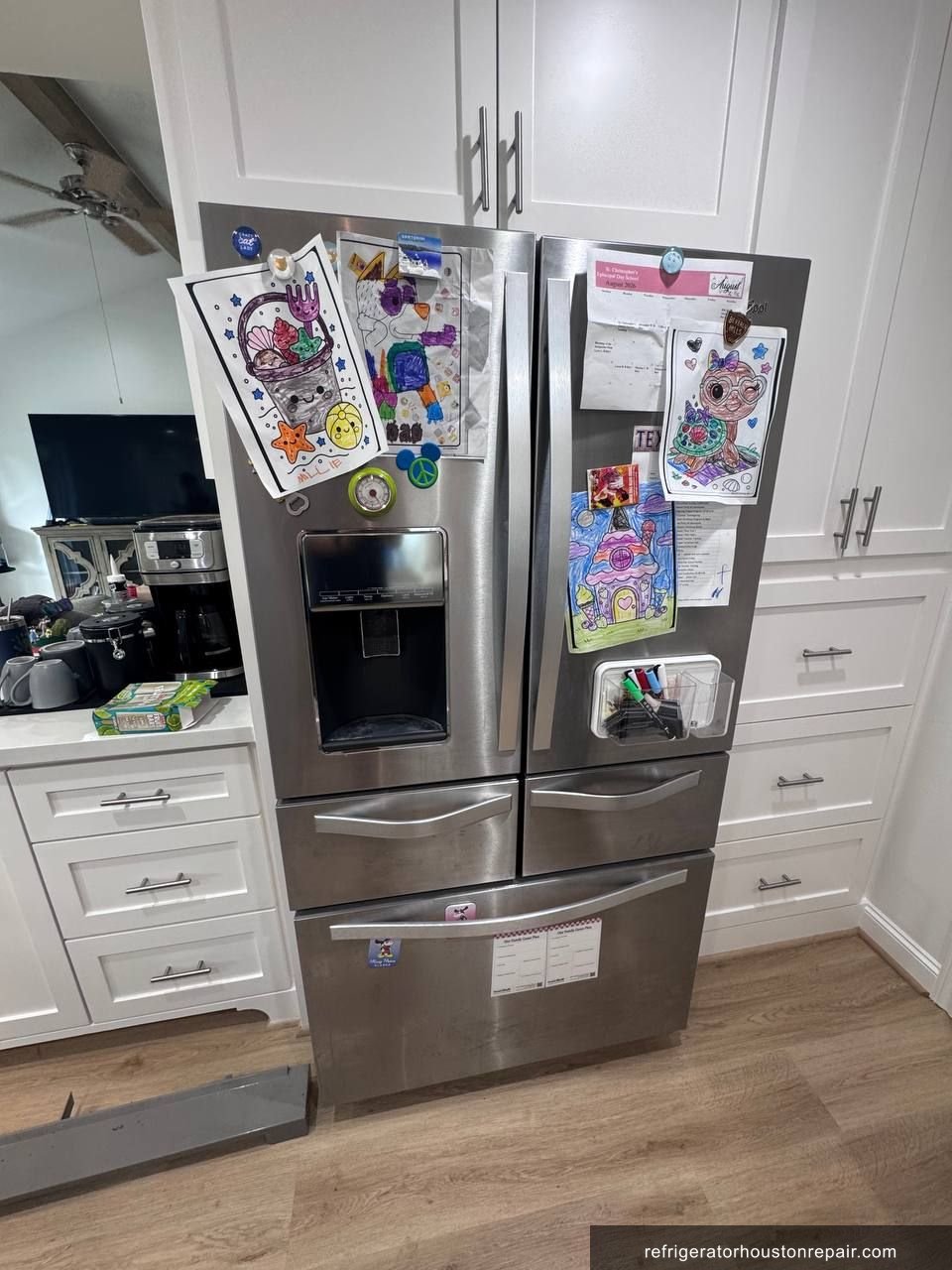

Whirlpool WRV986FDEM01: Frozen Evaporator and Failed Defrost Sensor in Memorial, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Freezer producing a strange grinding or humming noise during normal operation
- •Freezer section not reaching target temperature, food soft or partially thawed
- •No airflow felt from freezer vents despite fan motor running
- •Fresh food compartment warmer than set temperature due to blocked air circulation
🔍 Diagnosis
When I arrived at the home in Memorial 77079, the customer described a noise coming from the freezer and poor cooling throughout the unit. I pulled the WRV986FDEM01 away from the wall and removed the rear freezer panel to inspect the evaporator coil. What I found was a fully encased block of ice and snow around the evaporator. The coil was packed solid. The evaporator fan motor was running, I could hear it spinning, but there was zero air movement making it past that ice wall. No airflow means no cooling exchange, which explains why the freezer was failing to hold temperature. I checked the defrost system components next. The WRV986FDEM01 uses what is commonly called a gold defrost sensor, a thermal fuse and temperature sensor assembly that triggers and monitors the defrost heater cycle. I tested the sensor with a multimeter and got an open circuit reading, confirming it had failed. With the sensor gone, the defrost heater never received the signal to run, frost accumulated over weeks, and eventually sealed off the evaporator completely. On this model, the defrost sensor is integrated into the evaporator fan assembly. Whirlpool designed the WRV986FDEM01 so that the fan, the wiring harness, the thermal fuses for the heater circuit, the freezer compartment temperature sensor, and the defrost sensor all come packaged together as part number W11249952. Replacing individual sensors on this assembly is not reliable. I made the call to replace the entire assembly as a unit.
🔧 The Repair
- ✓Step 1: Disconnected the WRV986FDEM01 from power and removed all food from the freezer compartment to gain full access to the rear interior panel.
- ✓Step 2: Removed the freezer back panel by unfastening the mounting screws along the perimeter and carefully disconnecting the wiring connectors behind the panel.

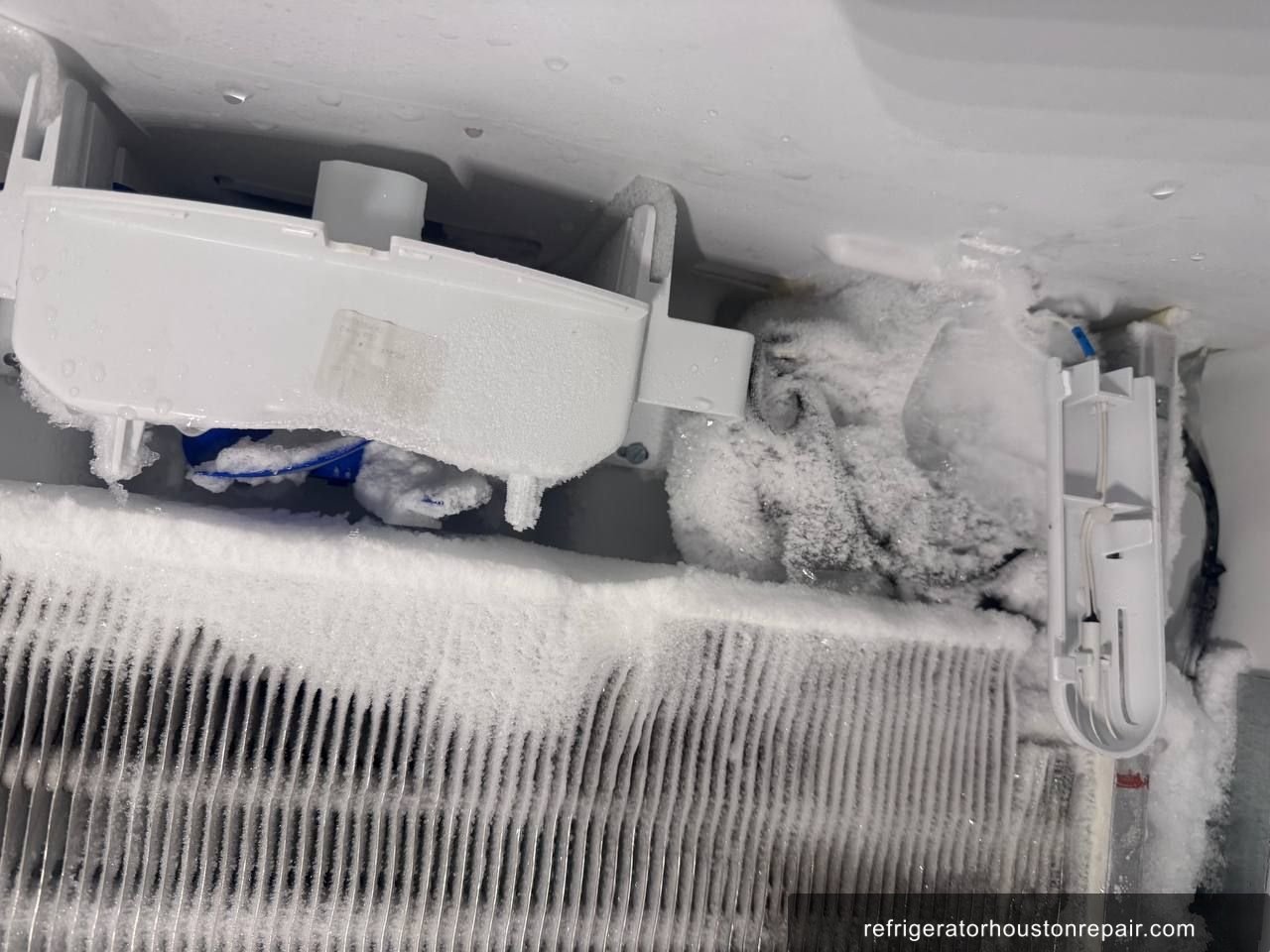

- ✓Step 3: Documented the condition of the evaporator with photos showing the full frost and ice encasement across the coil surface. Five photos taken for the repair record.
- ✓Step 4: Performed a manual defrost using a heat gun at safe distance to melt the ice block from the evaporator coil without damaging the coil fins or refrigerant tubing. Cleared all frost completely.
- ✓Step 5: Disconnected the existing evaporator fan assembly, unplugging the wiring harness connections for the fan motor, the defrost sensor, the freezer temperature sensor, and the heater circuit thermal fuses.

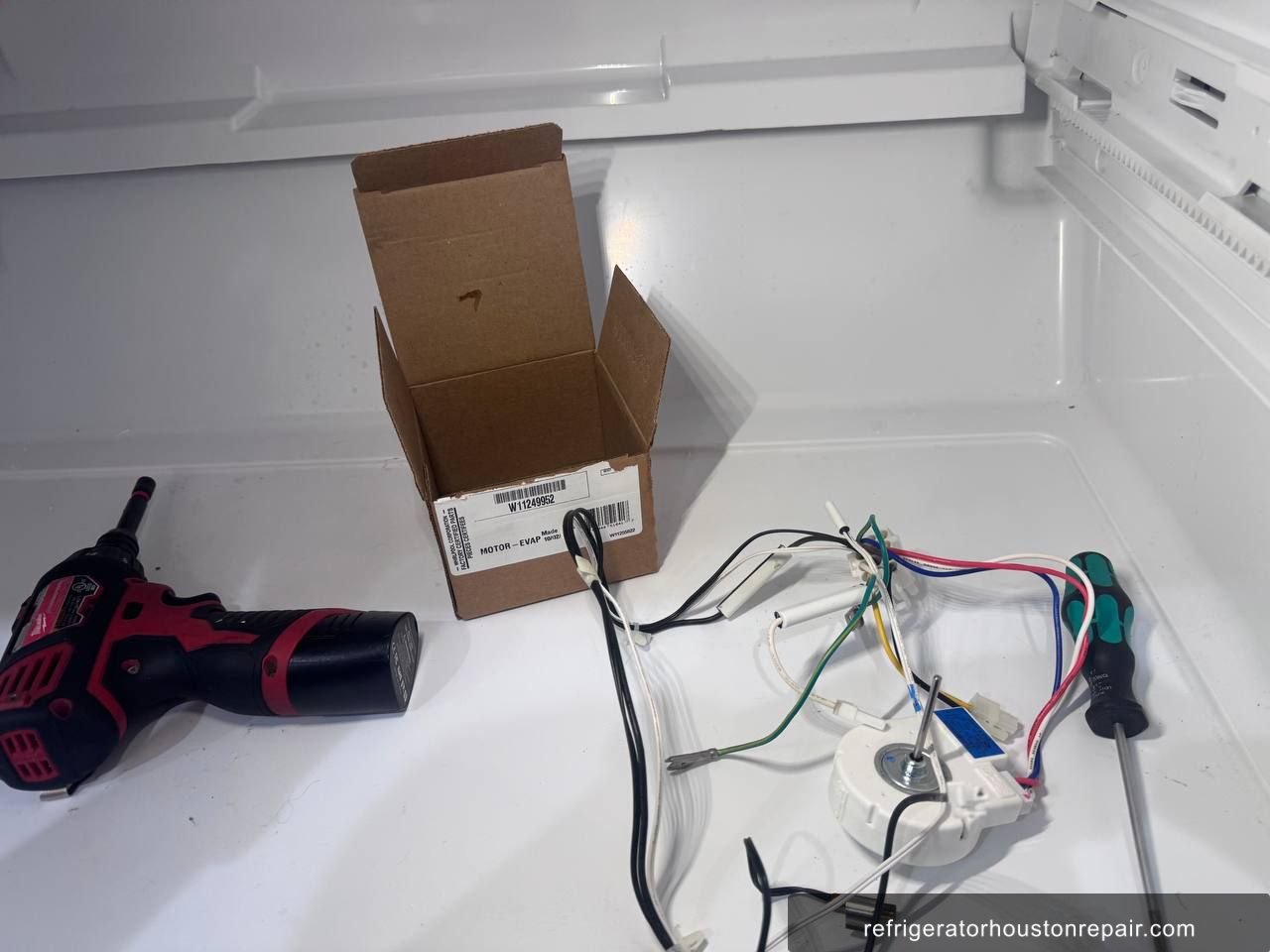

- ✓Step 6: Installed Whirlpool OEM replacement assembly W11249952, which includes the fan motor, full wiring harness, thermal fuses for the heater circuit, freezer compartment temperature sensor, and defrost sensor. Secured all connectors and confirmed fit.
- ✓Step 7: Reassembled the freezer rear panel, restored power to the unit, and set the freezer to the manufacturer target of 0°F. Monitored the first defrost cycle initiation to confirm the new sensor was communicating with the control board.
- ✓Step 8: After a two-hour runtime, I confirmed freezer temperature at 1°F and fresh food compartment at 37°F. Airflow from the vents was strong and consistent. The noise the customer reported was gone.
✓ Result
After the two-hour runtime in Memorial, the WRV986FDEM01 was holding 1°F in the freezer and 37°F in the fresh food section. The noise was gone and airflow through the vents was strong. The customer was relieved because they had a full freezer of food that had started to soften. Most of it was saved. I noted that the control board is still on my watch list. I told the customer to call me if the frost issue returns within 30 days, which would point to a board that is not cycling defrost correctly. The repair carries a 90-day parts and labor warranty.
💡 Technician Notes
Whirlpool bottom-mount and French door models like the WRV986FDEM01 are known for this specific failure pattern. The gold defrost sensor is a thermal fuse type, meaning once it opens, it does not reset. It fails silently. The first sign a Whirlpool owner will notice is usually a faint grinding or labored hum from the freezer, which is the fan motor working against an ice wall it cannot push air through. If you hear that sound and your freezer starts losing temperature within a week or two, do not wait. A fully packed evaporator puts extra load on the compressor. On this model, check your freezer vents monthly. If you see heavy frost building on the back panel, that is an early warning. Do not attempt to chip ice away from the coil yourself. You risk puncturing the R-134a refrigerant circuit and turning a sensor replacement into a sealed system repair.
Frequently Asked Questions
Why is my Whirlpool WRV986FDEM01 freezer making a loud humming noise and not cooling?
On the WRV986FDEM01, that humming noise with poor cooling usually means the evaporator fan is running but hitting a wall of frost it cannot move air through. The defrost sensor has likely failed, allowing ice to build up and block the entire coil. The fan motor strains against the blockage, which creates that labored hum. This needs a technician to defrost the coil and replace the sensor assembly.
How much does it cost to replace the defrost sensor and evaporator fan on a Whirlpool French door refrigerator in Houston?
For a Whirlpool WRV986FDEM01 in the Memorial area, replacing the full evaporator fan and defrost sensor assembly W11249952 typically runs between $280 and $420 including parts and labor. The part itself retails around $90 to $130. Labor accounts for the rest because the repair involves removing the freezer panel, manual defrost of the coil, and a full reassembly with testing.
What happens if I ignore the frost buildup in my Whirlpool freezer and don't get it repaired?
If the evaporator stays blocked with frost on your WRV986FDEM01, the compressor works continuously trying to compensate for the lack of airflow. Over weeks, that added load shortens compressor life significantly. Your freezer food will eventually thaw, and the fresh food section will climb above safe temperatures. What starts as a $300 sensor repair can turn into a compressor failure that costs more than the refrigerator is worth.
Is it worth repairing a Whirlpool WRV986FDEM01 with a failed defrost sensor, or should I replace the refrigerator?
If the compressor and sealed system are intact, repairing a WRV986FDEM01 with a defrost sensor failure makes sense. This is a mid-to-high tier Whirlpool model, and a sensor assembly replacement at $300 to $400 is a fraction of replacement cost. The repair is worth doing if the unit is under 10 years old and the compressor checks out. If the board is also failing, get a full diagnosis before deciding.
Could a faulty control board cause the same frost buildup symptoms as a bad defrost sensor on the Whirlpool WRV986FDEM01?
Yes, and this is worth understanding. The control board on the WRV986FDEM01 sends the signal to initiate defrost cycles. If the board is not triggering those cycles correctly, the evaporator will frost over even with a working sensor. After replacing the sensor assembly, I monitor the unit for 30 days. If frost returns, the board is the next component to test and likely replace.
Repair Summary
- Brand
- Whirlpool
- Model
- WRV986FDEM01
- Repair Type
- Evaporator Fan and Defrost Sensor Assembly Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed defrost sensor caused complete evaporator frost blockage
- Parts Replaced
- ✓Whirlpool OEM Evaporator Fan and Defrost Sensor Assembly, part number W11249952, includes fan motor, wiring harness, thermal fuses for heater circuit, freezer compartment temperature sensor, and defrost temperature sensor
- Location
- Memorial, TX 77079
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Memorial and surrounding areas.
View Memorial Service Area →📸 Repair Photos

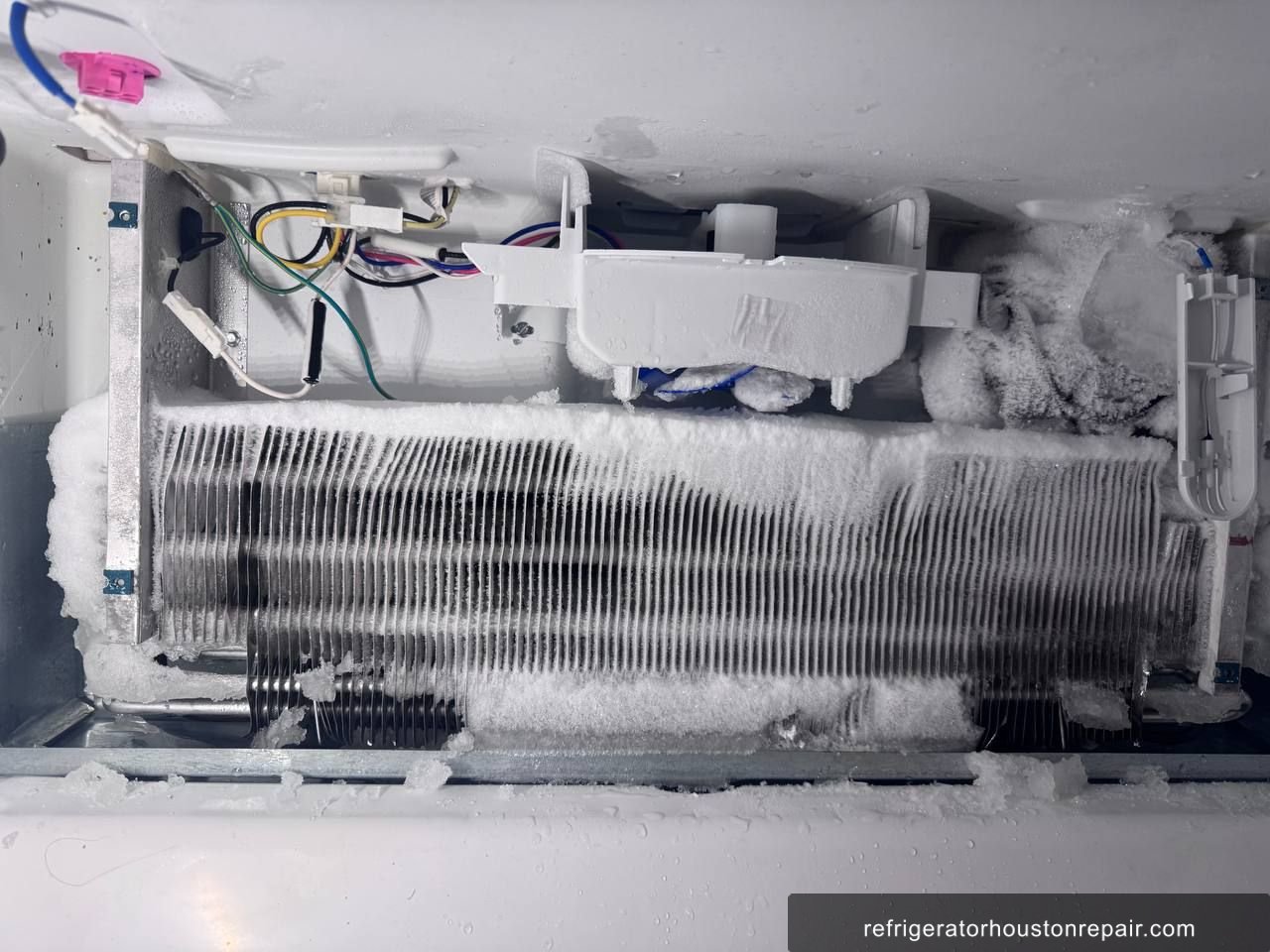

Whirlpool WRV986FDEM01 repair in Memorial, TX — photo 3
