Whirlpool WRS965CIAE00: No Water from Dispenser in Sugar Land, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •No water dispensed when pressing the door dispenser paddle — completely dry, no flow at all
- •Audible clicking sound from the back lower section of the refrigerator when the dispenser lever is pressed
- •Ice maker continues producing ice normally while water dispenser remains non-functional
- •No error codes displayed on the control panel despite the dispenser being fully unresponsive
🔍 Diagnosis
On arrival at the Sugar Land home, the Whirlpool WRS965CIAE00 was confirmed to be making a distinct clicking sound from the rear lower panel each time the dispenser lever was engaged — a classic sign that the control board is sending the signal correctly but the valve solenoid is not responding mechanically. The ice maker was fully operational, which immediately narrowed the fault to a single coil within the dual water inlet valve rather than a pressure, line, or board issue. Using a digital multimeter, the technician tested resistance across both solenoid coils on the dual inlet valve W10341320. The ice maker coil read approximately 200 ohms — within the normal range. The dispenser-side coil read OL (open circuit/infinite resistance), confirming a burned-out winding. This is a documented failure pattern on Whirlpool side-by-side models in the WRS965C series: the dispenser coil in the dual valve carries higher cycle frequency than the icemaker coil and tends to fail first, typically after 5–8 years of regular use. Houston's hard water and high mineral content can accelerate valve wear by depositing scale inside the valve body, increasing back-pressure and thermal stress on the coil windings. Water line pressure was also verified at 65 PSI — within the 20–120 PSI operating range — ruling out over-pressure as a contributing factor here.
🔧 The Repair
- ✓Step 1: Disconnected the refrigerator from power and shut off the household water supply line feeding the unit.
- ✓Step 2: Pulled the refrigerator away from the wall to access the rear lower service panel. Removed the two Phillips screws securing the panel and set it aside.
- ✓Step 3: Photographed all wire harness connectors and water line routing before disassembly to ensure correct reassembly.

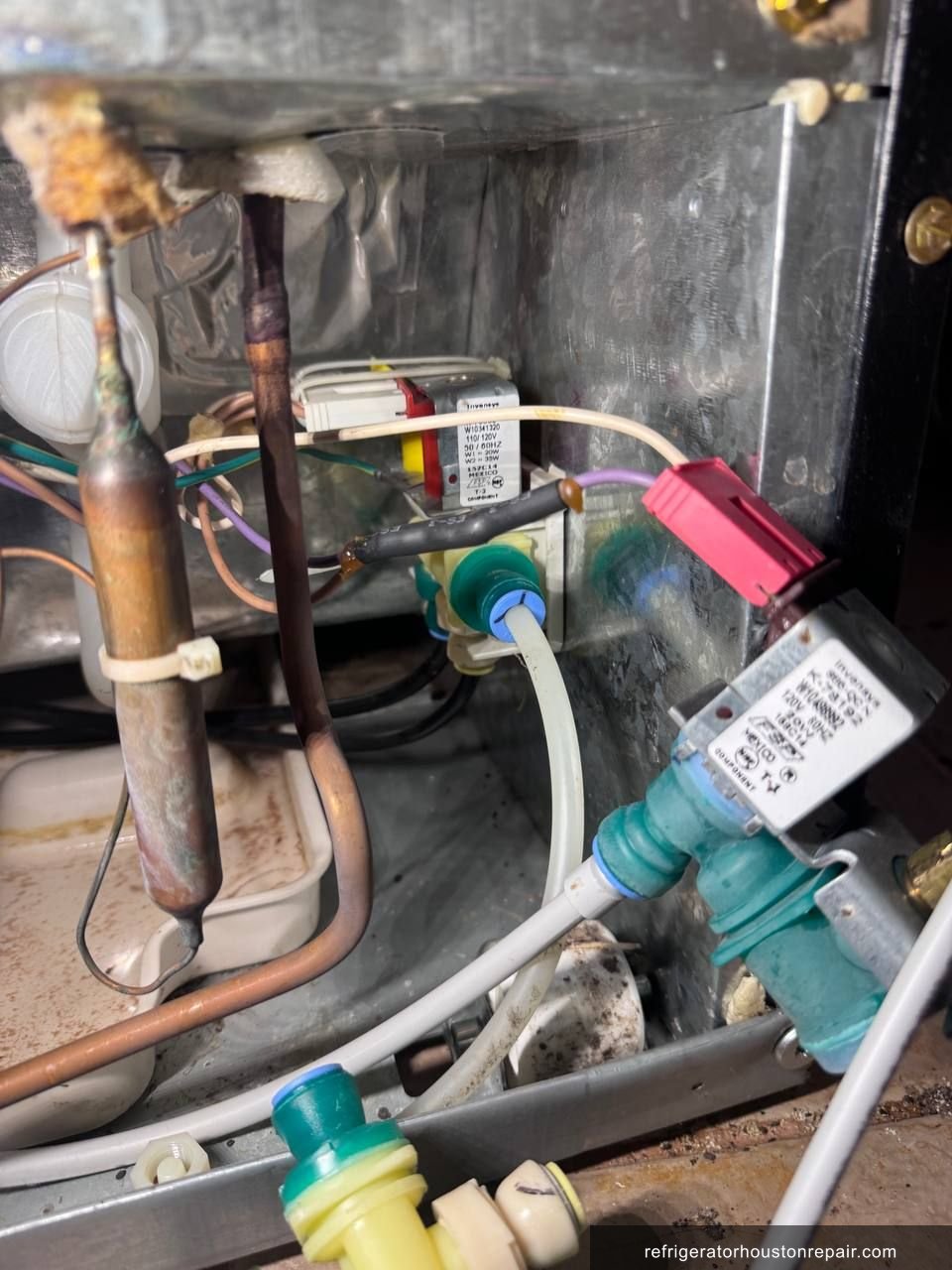

- ✓Step 4: Disconnected the two wire harness connectors from the dual water inlet valve solenoid coils and removed the single 5/16" hex screw securing the valve bracket to the cabinet frame.
- ✓Step 5: Used a 1/4" nut driver to loosen the compression clamp on the internal water line, then carefully pulled both the inlet water line and the two outlet lines (one to icemaker, one to dispenser) free from the valve ports. Minimal water residue captured with a shop towel.

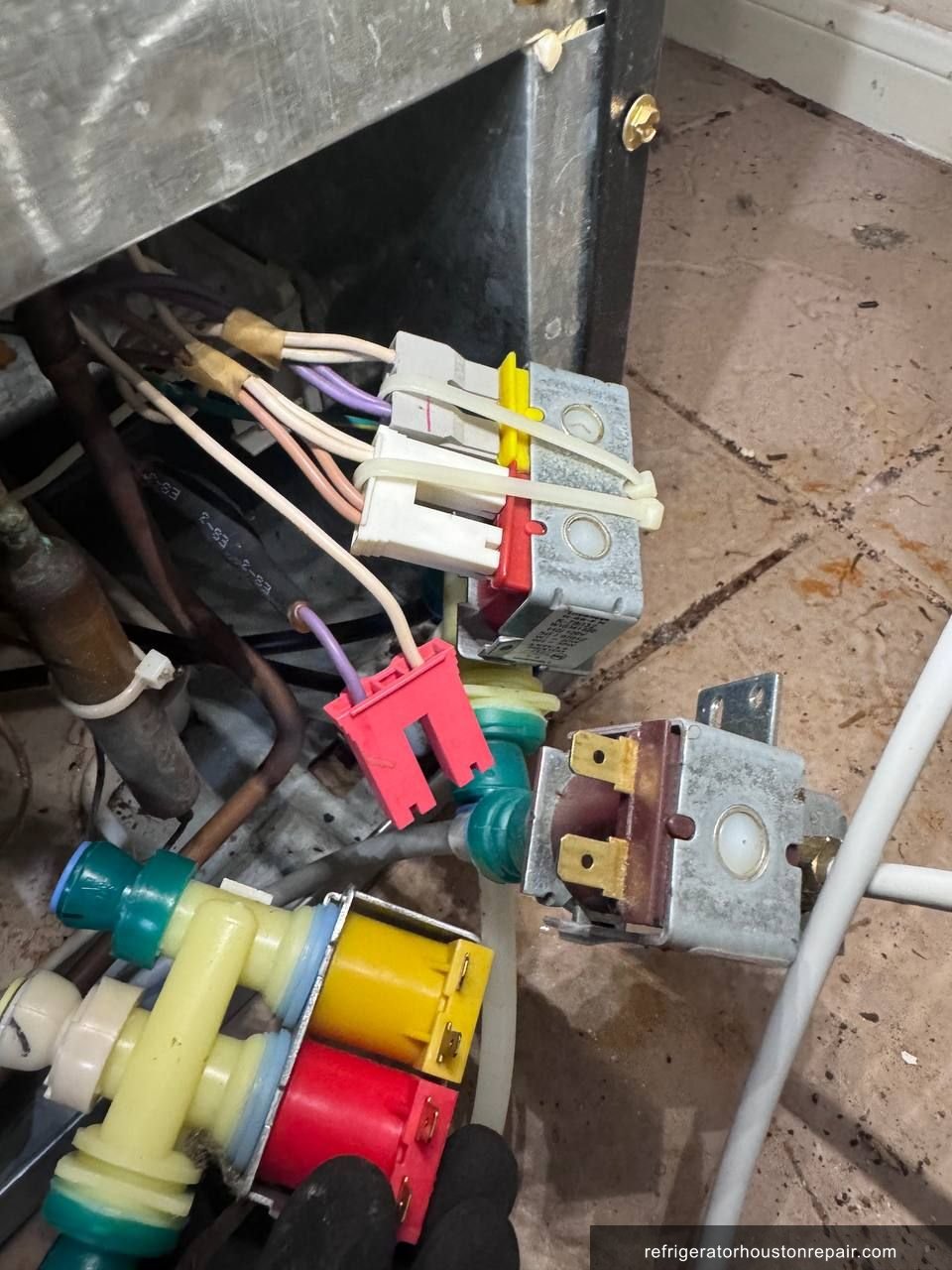

- ✓Step 6: Installed the new OEM-equivalent dual water inlet valve W10341320. Reconnected both outlet water lines and the inlet supply line, ensuring all compression fittings were fully seated. Torqued the mounting screw to snug without overtightening the plastic bracket.
- ✓Step 7: Reconnected both wire harness connectors — verified orientation matched the original photograph. Restored water supply and checked all three line connections for leaks under pressure before reinstalling the rear panel.

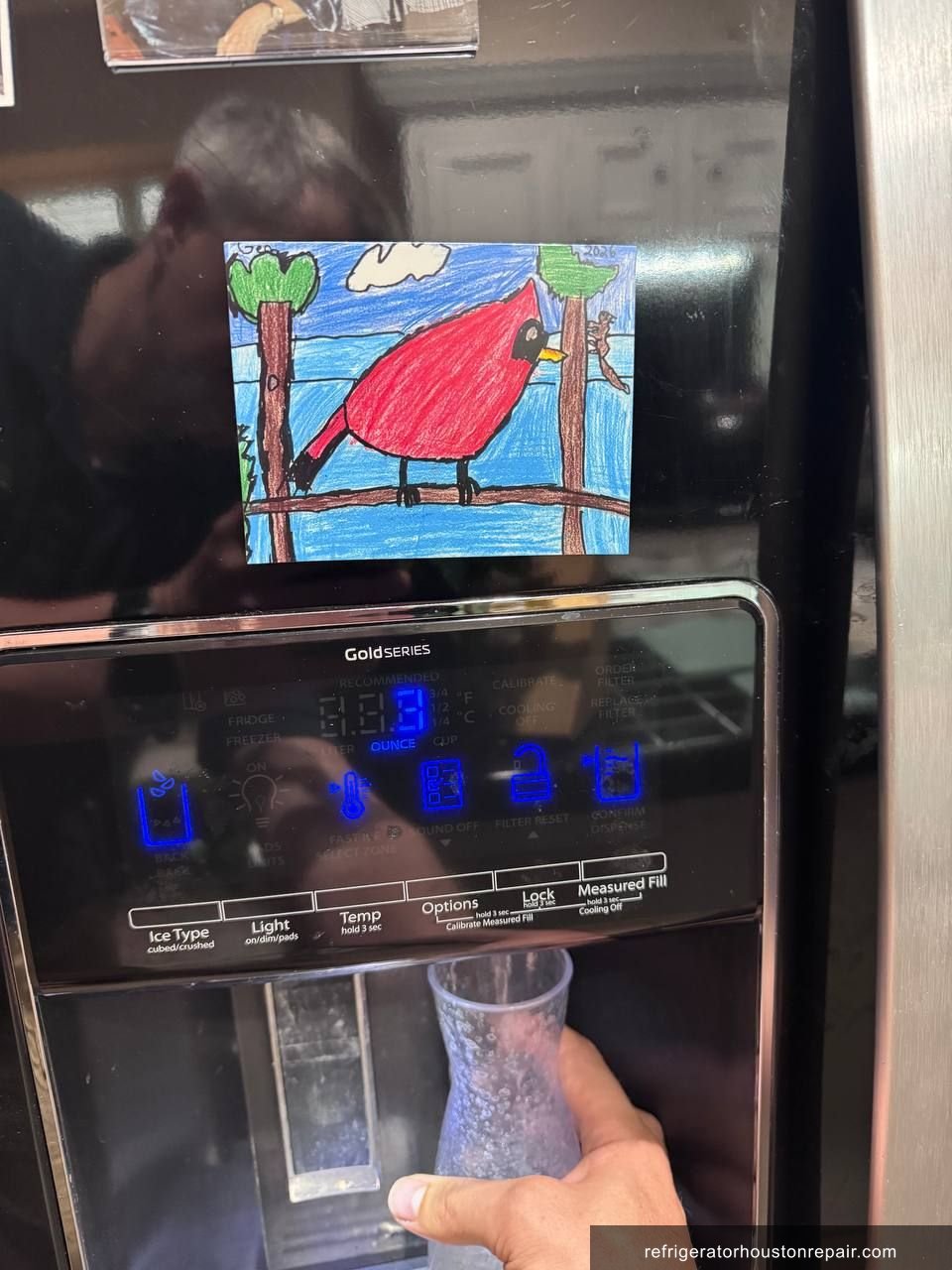

- ✓Step 8: Plugged in the refrigerator and tested the dispenser through 10 full activation cycles — consistent, strong water flow confirmed. Verified ice maker continued cycling normally. Dispenser water flow measured at approximately 8 oz per 6 seconds, consistent with factory spec. Rear panel reinstalled and unit pushed back into position.
✓ Result
Water flow from the dispenser was fully restored within about 90 minutes of arrival. The replacement valve W10341320 brought dispenser output back to normal factory flow rate. No leaks detected at any connection point. The repair came with a 90-day parts and labor warranty. The homeowner — a returning customer from the 77478 Sugar Land area — was relieved they didn't have to go without a working dispenser over the weekend and mentioned they'd been surviving on bottled water for three days before calling.
💡 Technician Notes
On the Whirlpool WRS965CIAE00 and similar WRS965C-series side-by-sides, the dual inlet valve is a single component with two independent solenoid coils — one for the dispenser circuit and one for the icemaker. When only the dispenser fails while the icemaker keeps working, that split failure pattern points almost exclusively to this valve's dispenser coil burning out. The early warning sign to watch for is intermittent dispenser flow before it stops entirely — water comes out weak or in pulses for a few weeks before cutting out completely. If you're in a Sugar Land or Katy ZIP with hard municipal water, consider installing an inline sediment filter on the refrigerator's supply line — mineral buildup inside the valve body shortens coil lifespan measurably. Don't delay this repair: a stuck-open valve failure (less common, but possible as the coil degrades) can flood the line and cause water damage behind the unit. If you hear clicking from the back but get zero water, call same day.
Frequently Asked Questions
Why is my Whirlpool WRS965CIAE00 dispenser not working but the ice maker is fine?
That split symptom — ice maker working, dispenser dead — points directly to the dual water inlet valve. The WRS965CIAE00 uses a two-coil valve (part W10341320), and the dispenser coil tends to fail independently of the icemaker coil. A multimeter test confirming an open circuit on that coil is definitive. Replacing the full valve is the correct fix since both coils share one housing.
How much does it cost to replace the water inlet valve on a Whirlpool refrigerator in Sugar Land, TX?
For a Whirlpool WRS965CIAE00 dual inlet valve replacement in the Sugar Land area, expect to pay $180–$280 total, including the valve itself (W10341320 typically runs $55–$85 at cost) and labor. The repair takes a skilled technician about 45–75 minutes. It's a straightforward fix with a strong success rate — not a job that warrants replacing the refrigerator.
What happens if I ignore a broken water dispenser on my Whirlpool refrigerator?
Ignoring it won't cause immediate additional damage if the coil has simply burned open — the icemaker will keep working and nothing leaks. But a failing valve can also stick partially open, which causes slow drips behind the fridge or onto the floor. That leads to water damage and mold behind the unit. If the clicking sound started recently, get it diagnosed before the failure mode changes.
Is it worth repairing a Whirlpool WRS965CIAE00 or should I just replace it?
A dual inlet valve replacement on the WRS965CIAE00 is absolutely worth doing. The repair costs under $300 and takes under two hours. This model retails for $1,800–$2,200 new, and the rest of the refrigerator — sealed system, compressor, control board — is independent of this valve. Unless the unit has multiple compounding failures, replacing the refrigerator over a $250 valve repair makes no financial sense.
Can I replace the Whirlpool W10341320 water inlet valve myself, or do I need a technician?
The physical replacement is within reach for a confident DIYer — it's four connectors, one screw, and three water lines. The challenge is accurate diagnosis first. If you replace the valve and the problem was actually a wiring harness fault or a bad dispenser switch on the door, you've spent money on the wrong part. A technician can confirm the coil resistance reading in under five minutes and order the right part the same day.
Repair Summary
- Brand
- Whirlpool

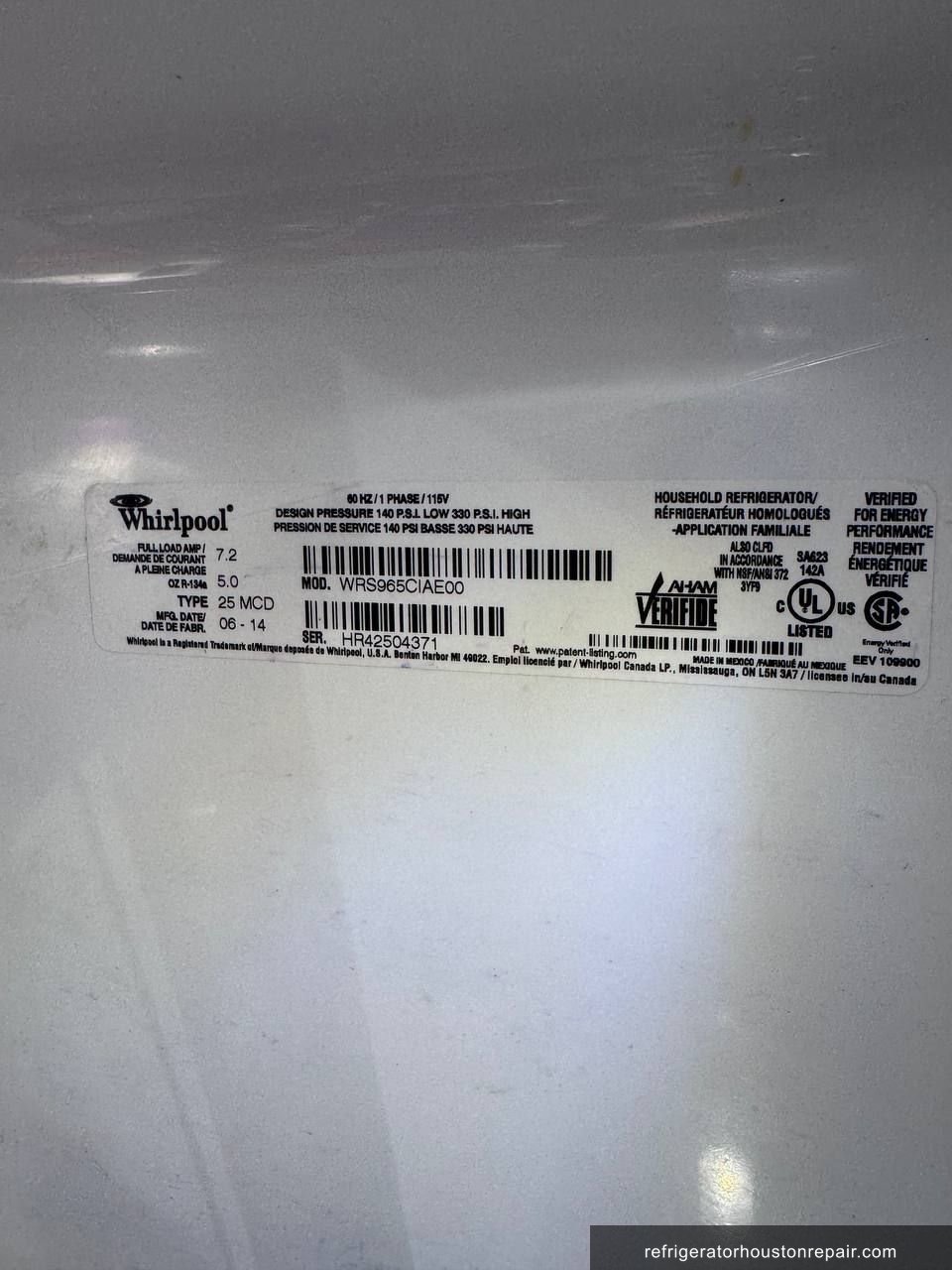

- Model
- WRS965CIAE00
- Repair Type
- Dual Water Inlet Valve Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed dispenser coil in dual water inlet valve W10341320
- Parts Replaced
- ✓Dual water inlet valve W10341320 (Whirlpool OEM-equivalent replacement, two-coil design for simultaneous icemaker and dispenser circuits)
- Location
- Sugar Land, TX 77478
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Sugar Land and surrounding areas.
View Sugar Land Service Area →📸 Repair Photos

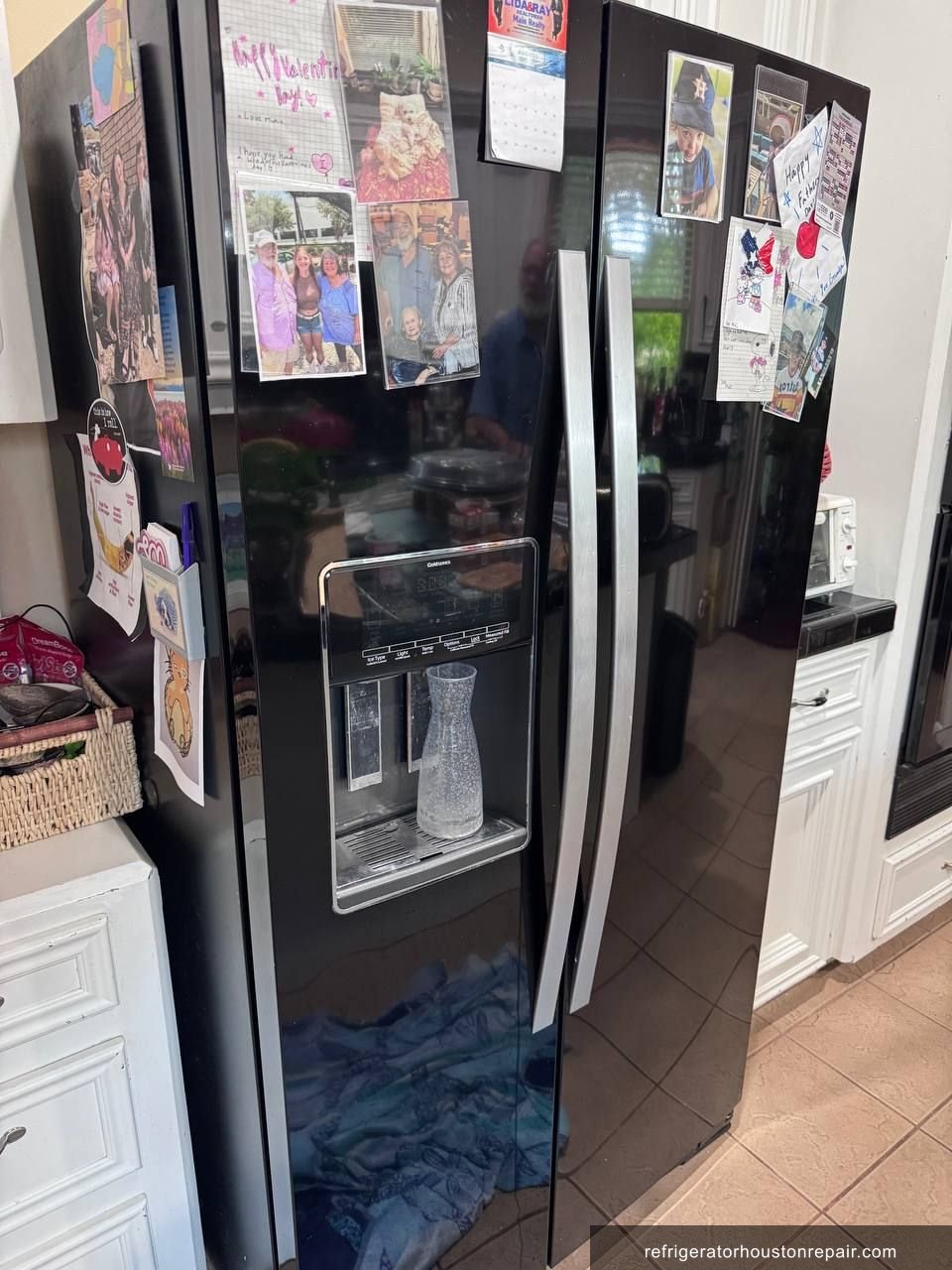

Whirlpool WRS965CIAE00 repair in Sugar Land, TX — photo 3
