Whirlpool WRS965JCIAE00 No Cooling — Main Control Board Failure
📞 Call (346) 512-3688
The Problem
- •Refrigerator and freezer completely stopped cooling overnight
- •Everything in the freezer thawed out — ice cream, frozen food all melted

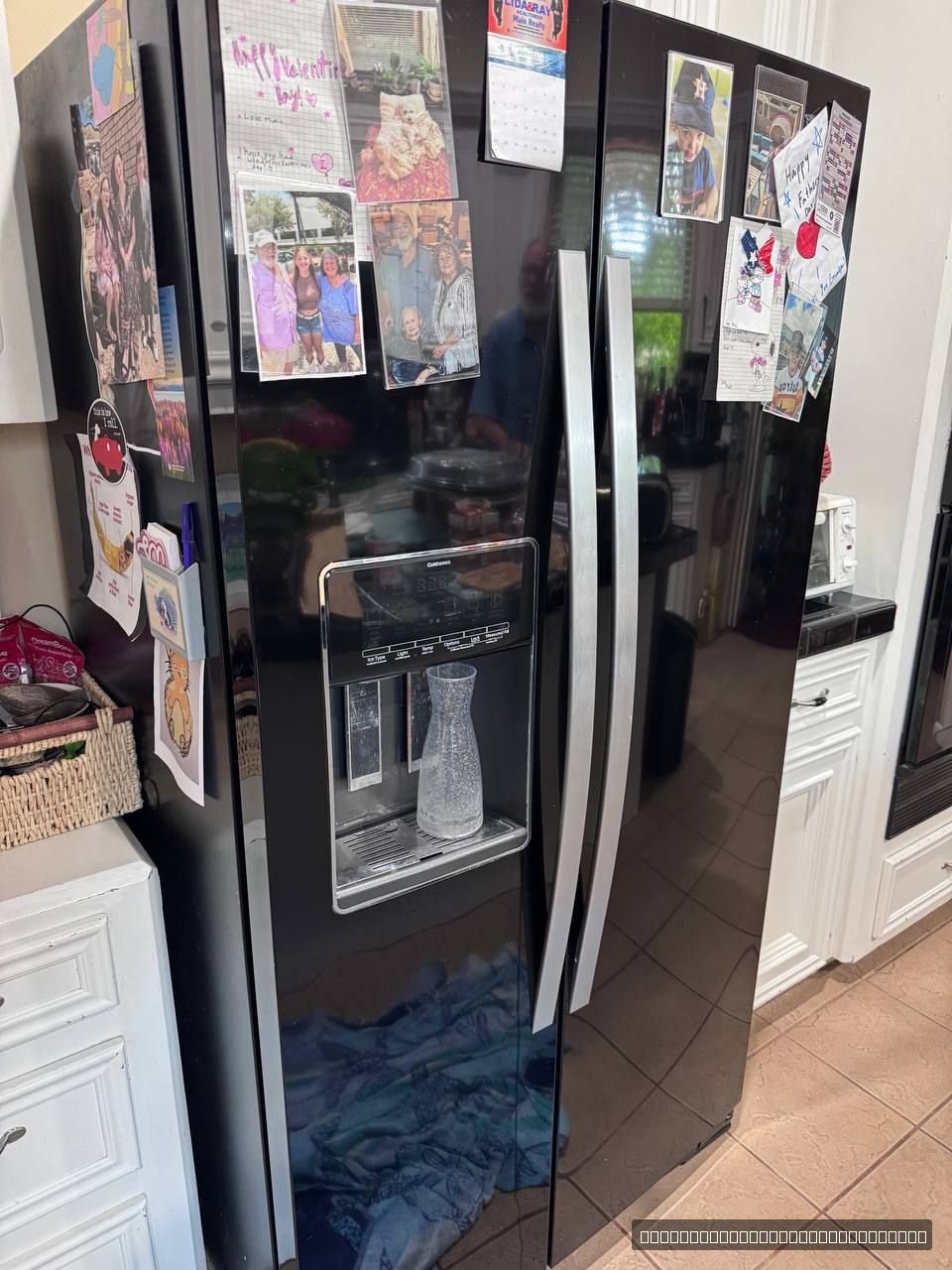

- •Ice maker and door ice dispenser melted, causing large puddle of water on the floor
- •No airflow detectable inside the freezer or fresh food compartment
- •Evaporator coils completely blocked with a heavy buildup of frost and ice
🔍 Diagnosis
Technician Serhii arrived at the customer's Sugar Land home and began a systematic diagnosis of the Whirlpool WRS965JCIAE00 (Serial: R-134a, ). The first observable clue was standing water throughout the kitchen — evidence of a total defrost system failure rather than a sealed system or compressor issue. Upon removing the rear freezer panel, Serhii confirmed the evaporator coil assembly was completely encased in ice, blocking all airflow through the evaporator fan. With zero air circulation, neither the freezer nor fresh food sections could maintain temperature. Using a digital multimeter, Serhii performed a two-stage electrical diagnosis. First, he tested the defrost thermistor from the main board harness connector and confirmed it read within the normal resistance range for its ambient temperature, ruling out thermistor failure. Second, he measured the resistance of the defrost heating element directly at its terminals — the reading came back at 30 ohms, a healthy value confirming the heating element itself was fully intact and functional. With both the thermistor and heating element cleared, Serhii checked for output voltage from the main control board to the defrost heating element circuit during an initiated defrost cycle. The board produced no output voltage whatsoever to the heater relay circuit. This conclusively identified the main control board (also referred to as the "main board" or "motherboard") as the failed component. The board's internal relay or control logic responsible for energizing the heating element had failed, preventing any automatic defrost cycle from executing and causing progressive ice accumulation on the evaporator.
🔧 The Repair
- ✓Powered down the Whirlpool WRS965JCIAE00 by unplugging from the outlet and moved food contents to temporary coolers to prevent further spoilage.
- ✓Removed all freezer drawer assemblies and shelving to gain full access to the rear evaporator panel cover.

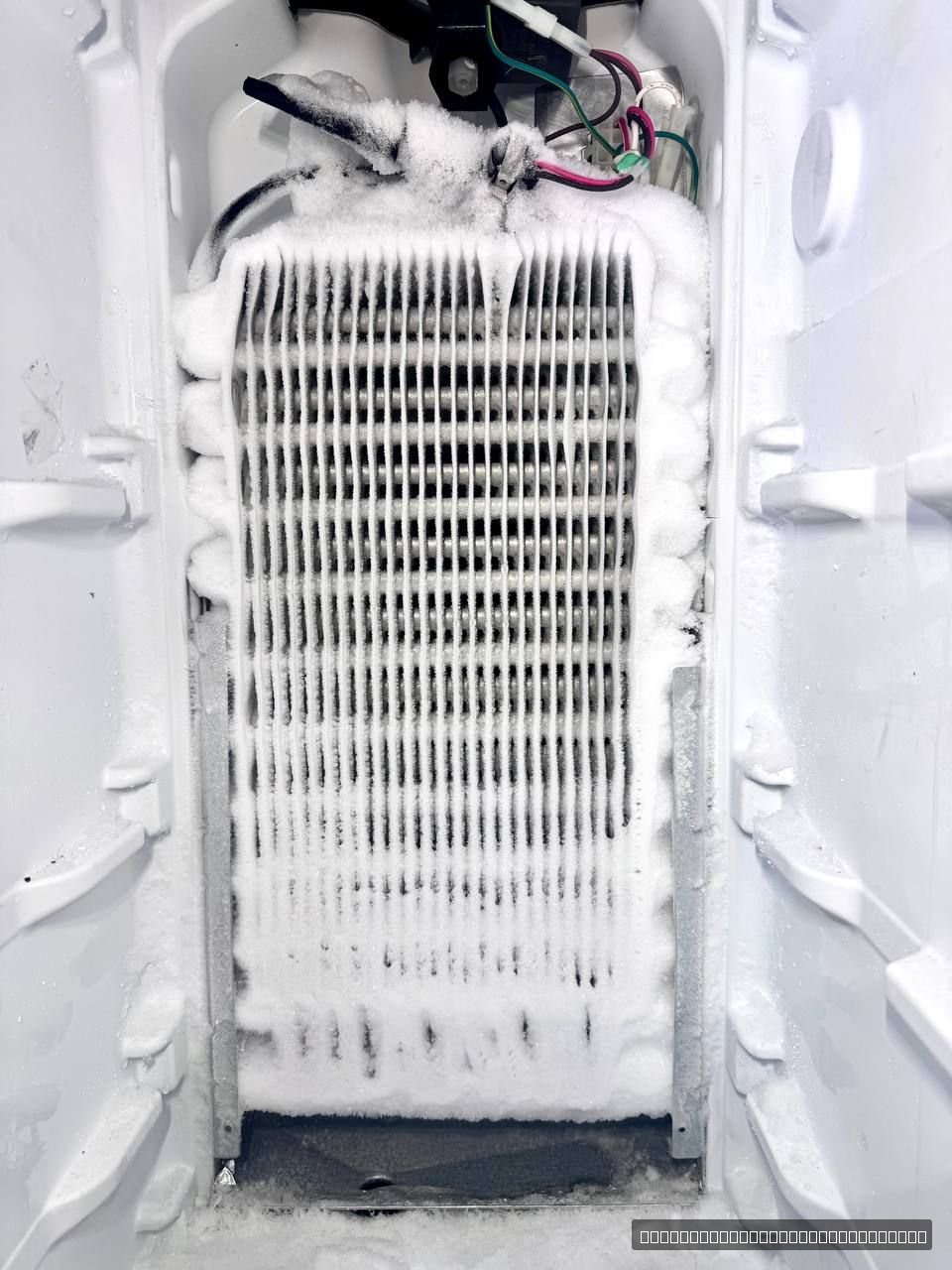

- ✓Unscrewed and carefully removed the rear evaporator panel cover to expose the fully ice-encased evaporator coil assembly and blocked evaporator fan.

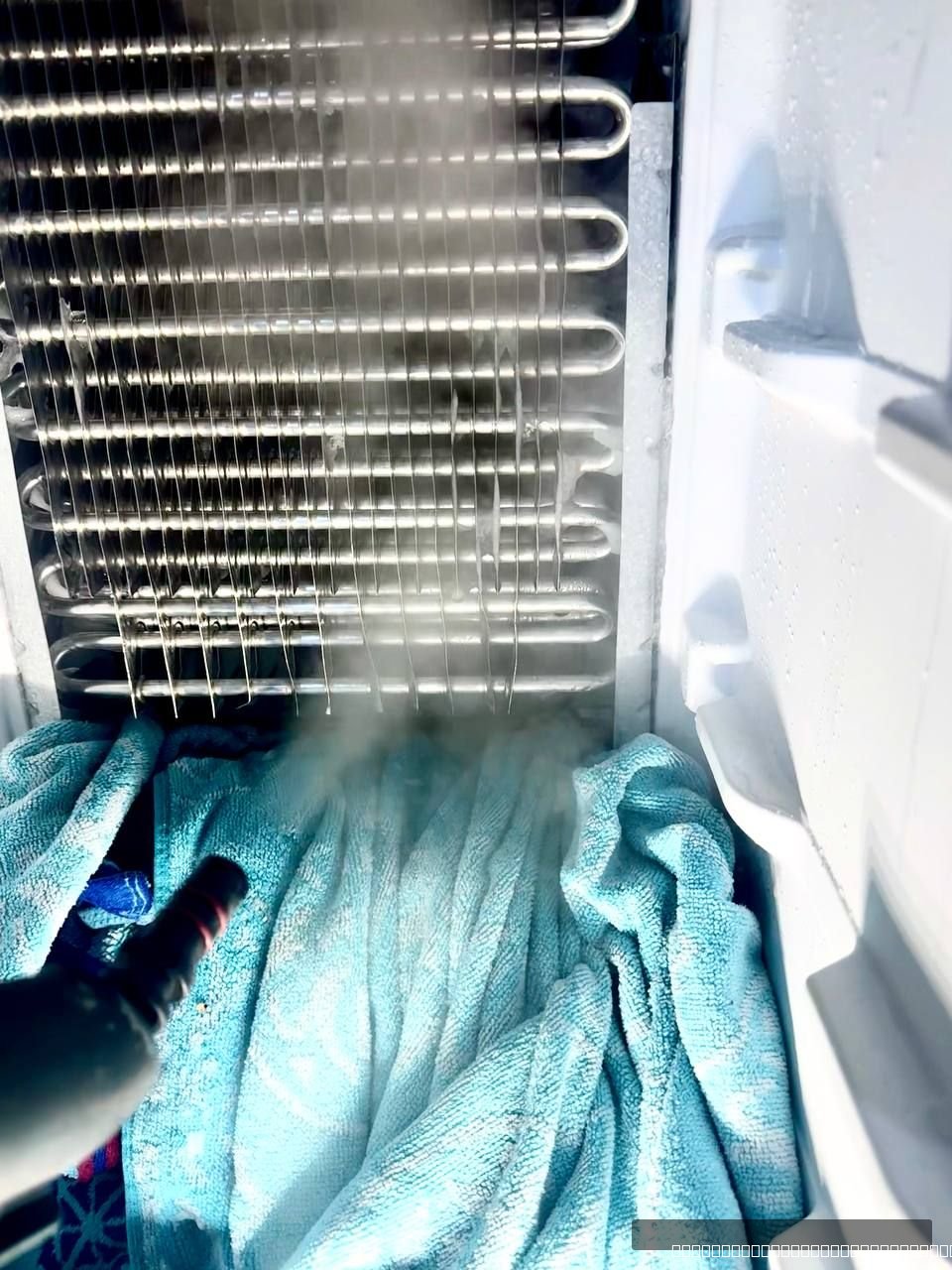

- ✓Performed a controlled manual defrost using low-heat hair dryers and towels, carefully melting all accumulated ice from the evaporator coils, heater assembly, and drain pan without damaging any components.
- ✓Verified the drain tube was clear of ice blockage and confirmed the condensate drain pan under the unit was emptied and clean.
- ✓Using a digital multimeter, tested the defrost thermistor resistance at the main board wiring harness — reading confirmed within manufacturer specification, component cleared.
- ✓Measured resistance of the defrost heating element directly at its terminals — confirmed 30 ohms, within normal operating range, element cleared as a suspect.
- ✓Initiated a forced defrost cycle via the main board diagnostic mode and probed the output voltage at the heater relay terminals on the main control board — confirmed 0V output, proving the main board relay circuit had failed.
- ✓Documented all findings and photographed the label (Brand: Whirlpool, Model: WRS965JCIAE00, Serial: R-134a) to identify the exact OEM-compatible replacement main control board for ordering.
- ✓Reassembled the evaporator panel, reinstalled all freezer drawers and shelving, and plugged the unit back in to allow it to run and maintain temperatures while the replacement board is in transit.
- ✓Placed an order for the correct OEM Whirlpool main control board compatible with model WRS965JCIAE00 — estimated delivery within 2–4 business days.
- ✓Communicated the full repair plan to the customer, confirmed the refrigerator is temporarily operational after the manual defrost, and scheduled a return visit to install the replacement board upon its arrival — case currently open and in progress.
✓ Result
After manually defrosting the fully iced-over evaporator coil assembly, the Whirlpool WRS965JCIAE00 was restored to temporary operation the same day — a Saturday — ensuring the long-term customer was not left without a refrigerator over the weekend. The unit resumed normal cooling within approximately 3–4 hours of restart. The replacement OEM main control board has been ordered and installation is scheduled upon delivery. The customer expressed strong appreciation for the same-day response and the technician's transparency throughout the diagnostic process. A parts and labor warranty will be applied upon final board installation.
💡 Technician Notes
Whirlpool French door and side-by-side refrigerators with automatic ice makers — such as the WRS965JCIAE00 — are particularly vulnerable to progressive defrost system failures because the heavy ice production demands frequent, reliable defrost cycles. When a main control board begins to fail internally, the defrost relay is often the first circuit to go, and the failure is gradual: you may notice your freezer getting slightly warmer or food not staying as frozen before the total failure occurs. As an owner, watch for these early warning signs: unusual frost buildup visible around freezer vents, water pooling under the crisper drawers, or the ice maker slowing production unexpectedly. Every 12 months, inspect the area around the freezer evaporator fan for frost accumulation. If your Whirlpool refrigerator is more than 7–10 years old and experiences a board failure, consider the overall appliance condition before investing in a premium OEM board — however, for units in good shape, board replacement is almost always the right call over full replacement.
Frequently Asked Questions
Why did my Whirlpool refrigerator stop cooling and everything in the freezer melted?
This is a classic sign of defrost system failure in Whirlpool refrigerators. When the main control board fails to send voltage to the defrost heating element, ice accumulates on the evaporator coil until airflow is completely blocked. Without airflow, neither the freezer nor fresh food section can cool. The root cause is usually a failed board relay, a bad heating element, or a faulty defrost thermistor — all diagnosable with a multimeter.
How much does it cost to replace a main control board on a Whirlpool WRS965JCIAE00 refrigerator?
Main control board replacement on a Whirlpool WRS965JCIAE00 typically ranges from $250 to $450 total, including the OEM board and labor. The board itself generally costs $120–$250 depending on the supplier. Compared to the cost of a new refrigerator, this repair is almost always cost-effective, especially on a unit in otherwise good condition with no sealed system issues.
What are the early warning signs of a failing defrost system in a Whirlpool refrigerator?
Early signs include: frost buildup visible around the freezer back wall or vents, food in the fresh food section not staying cold enough, the freezer temperature gradually rising over days, reduced ice production from the ice maker, and unusual humming or the absence of the evaporator fan sound. Catching these symptoms early prevents the complete evaporator icing and water damage seen in advanced failures.
Should I repair or replace my Whirlpool WRS965JCIAE00 refrigerator if the main control board fails?
In most cases, repair is the right choice for a Whirlpool WRS965JCIAE00 with a failed main board — provided the compressor, sealed system (R-134a), and other major components are intact. A board replacement costs a fraction of a new comparable refrigerator. If the unit is over 12–15 years old or has had multiple major repairs, replacement may be worth evaluating, but board failure alone is not a reason to replace an otherwise sound appliance.
Is it safe to manually defrost a Whirlpool refrigerator evaporator and keep using it while waiting for a new control board?
Yes — manual defrosting performed by a qualified technician is a safe and practical interim solution. After manually clearing all ice from the evaporator coil assembly and drain, the unit can resume normal operation temporarily. However, without replacing the failed main control board, automatic defrost cycles will not run, and ice will begin accumulating again within days. The replacement board must be installed promptly to restore full, automatic defrost function.
Repair Summary
- Brand
- Whirlpool
- Model
- WRS965JCIAE00
- Repair Type
- Main Control Board Replacement / Defrost System Repair
- Refrigerant
- R-134a
- Root Cause
- Main control board failed to power defrost heating element
- Parts Replaced
- ✓Whirlpool OEM Main Control Board (compatible with model WRS965JCIAE00) — ordered, pending installation
- ✓No additional parts required — defrost thermistor (tested, within spec) and defrost heating element (30 ohms, within spec) confirmed functional
- Location
- Sugar Land, TX 77478
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Sugar Land and surrounding areas.
View Sugar Land Service Area →📸 Repair Photos
Whirlpool WRS965JCIAE00 repair in Sugar Land, TX — photo 1
Whirlpool WRS965JCIAE00 repair in Sugar Land, TX — photo 2
Whirlpool WRS965JCIAE00 repair in Sugar Land, TX — photo 3
Whirlpool WRS965JCIAE00 repair in Sugar Land, TX — photo 4
Whirlpool WRS965JCIAE00 repair in Sugar Land, TX — photo 5
