Viking VCSB5483SS20 Fresh Food Door Stop Replacement
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment door swings fully open without stopping, hitting nearby kitchen cabinets
- •Audible banging or impact sound when the refrigerator door opens fully
- •Door stop or door limiter mechanism feels loose or completely unresponsive
- •Visible damage to kitchen cabinet faces adjacent to the refrigerator
- •Door does not hold at the standard 90-degree open position
🔍 Diagnosis

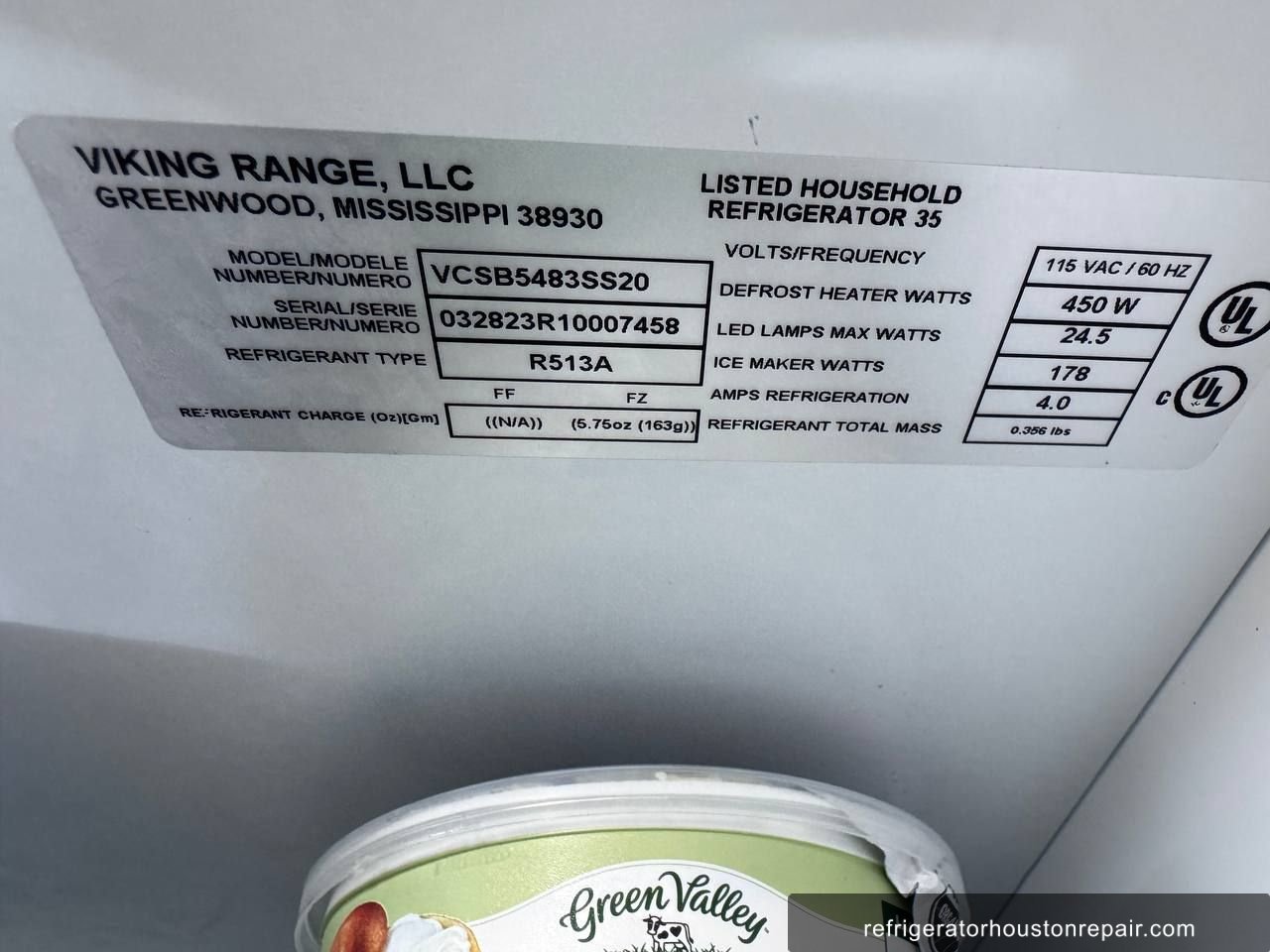

Upon arrival at the Memorial, TX residence (ZIP 77057), the technician performed a full visual and mechanical inspection of the Viking VCSB5483SS20 built-in French door refrigerator. The homeowner reported that the fresh food compartment door had been swinging completely open — a full 180-degree rotation — and striking the adjacent kitchen cabinetry. The door stop mechanism, which is engineered to halt door travel at approximately 90 to 110 degrees of arc on this model, was visibly non-functional. The technician confirmed the door stop bracket was fractured at its mounting point, likely due to repeated mechanical stress over years of use combined with the substantial door weight typical of high-end built-in units. No electronic fault codes were present on the user interface panel, and the sealed system was not involved in this failure. Refrigerant charge was confirmed at 6.75 oz (163g) per the appliance label — within spec and unrelated to the complaint. Multimeter checks of the door alarm switch confirmed normal continuity. The diagnosis was straightforward: the OEM door stop/limiter component had failed mechanically and required full door removal to access and replace, a labor-intensive procedure on this class of built-in refrigerator. Two technicians were required on-site for safe door handling.
🔧 The Repair
- ✓Confirmed appliance was safely energized; no power disconnection required for this mechanical repair — however, refrigerator was placed in diagnostic/sabbath mode to prevent false alarms during door removal.
- ✓Removed the decorative top grille panel (kick plate trim above the fresh food door) using a trim removal tool to avoid scratching the stainless steel finish — secured by friction clips and two concealed Torx T20 fasteners.
- ✓Carefully disconnected the ribbon cable (flexible flat cable) running from the top hinge area down to the user interface control panel on the door, releasing the ZIF (zero insertion force) connector lock before extraction to prevent cable damage.
- ✓With the ribbon cable safely detached and secured, removed the user interface panel assembly from the door by releasing four hex-head screws (5/16 in.) and setting the panel aside on a padded surface.
- ✓Accessed the upper hinge assembly after panel removal; removed the hinge cover plate held by three Phillips PH2 screws to expose the full hinge mechanism and door stop locking plate.
- ✓Second technician supported the full weight of the fresh food door (estimated 85–95 lbs for this built-in model) while the lead technician removed the four upper hinge mounting bolts (3/8 in. hex) and slid the hinge pin upward to free the door.
- ✓Lifted the door vertically off the lower hinge pin with both technicians supporting opposing corners, then placed the door horizontally on moving blankets on the kitchen floor.

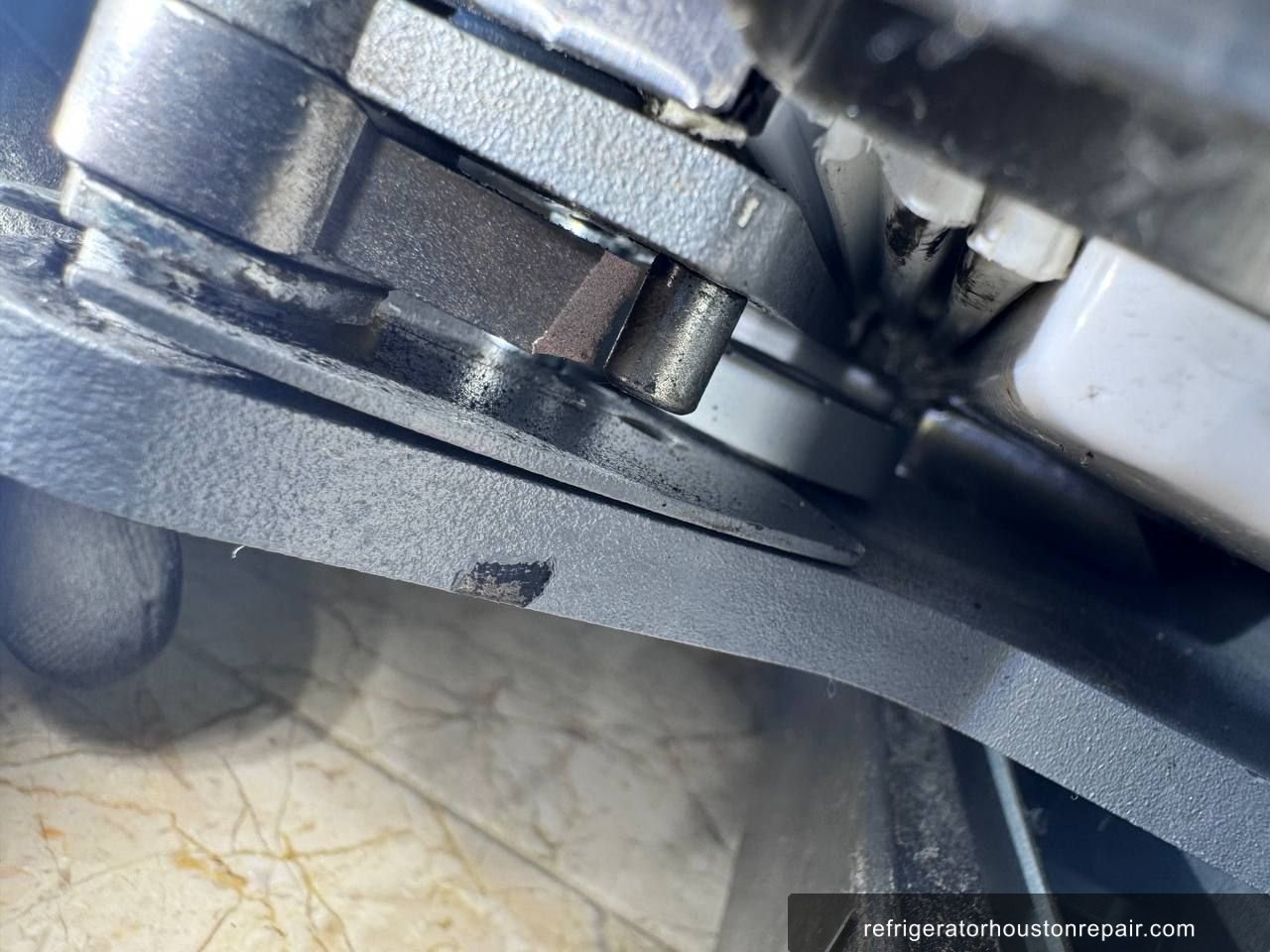

- ✓Identified the fractured door stop bracket — a plastic-reinforced metal clip integrated into the upper hinge stop plate — confirmed OEM part number required for VCSB5483SS20 and sourced replacement from stock.
- ✓Installed the new OEM door stop bracket into the upper hinge stop plate, confirming proper seating and torque on retaining fasteners (8 in-lbs per Viking service specification).
- ✓Re-hung the door onto the lower hinge pin with both technicians supporting door weight, aligned upper hinge, reinserted hinge pin, and torqued upper hinge mounting bolts to specification.
- ✓Reconnected the user interface ribbon cable into the ZIF connector, confirmed secure lock, reinstalled the UI panel assembly, and reinstalled hinge cover plate and decorative top grille.
- ✓Performed full functional test: opened and closed the fresh food door repeatedly to confirm the new door stop arrested travel at approximately 90–100 degrees with no contact with adjacent cabinetry — verified door seals, door alarm, and interior lighting all operating normally.
✓ Result
The repair was completed successfully within approximately three hours, including door removal, parts replacement, and full reassembly. After reinstallation, the fresh food door stopped cleanly at the 90-to-100-degree open position with no contact with the adjacent kitchen cabinets. The refrigerator maintained its set temperature of 37°F in the fresh food compartment throughout the repair with no thermal disruption. The customer was extremely satisfied, noting that the banging against the cabinetry had been a daily frustration. A 90-day labor warranty was provided on the door stop repair.
💡 Technician Notes
Viking built-in refrigerators like the VCSB5483SS20 are engineered to exceptional standards, but the door stop mechanism on large French door units does experience wear over time — particularly in high-traffic kitchens where the door is opened dozens of times per day. Owners should never force the door beyond its natural stopping point, as even a few degrees of over-extension repeatedly applied can fatigue the stop bracket. Watch for early warning signs: a door that feels slightly 'sloppy' at full open, a faint clicking or snapping sound near the top hinge area, or a door that rests at an unusual angle when open. Annual inspection of door gaskets and hinge hardware is recommended. For Viking built-in units, always use a two-person team for any door removal — attempting this alone risks ribbon cable damage, door drops, and floor or cabinet damage. Costs for this repair range from $1,200 to $1,500 given the complexity.
Frequently Asked Questions
Why does my Viking VCSB5483SS20 fresh food door swing all the way open and hit the cabinets?
On the Viking VCSB5483SS20, a door that swings past its normal stopping point and hits adjacent cabinets almost always means the door stop bracket inside the upper hinge assembly has broken. This bracket is designed to arrest door travel at roughly 90–100 degrees. Once it fractures — often due to wear or accidental over-extension — the door swings freely until repaired.
How much does it cost to replace the door stop on a Viking built-in refrigerator like the VCSB5483SS20?
Replacing the door stop on a Viking VCSB5483SS20 typically costs between $1,200 and $1,500 in the Memorial and Houston area. The high cost reflects the labor intensity of the job: the process requires two certified technicians, full door removal, decorative grille disassembly, and user interface panel and ribbon cable disconnection before the hinge area is even accessible.
What are the warning signs that the door stop is failing on a Viking built-in French door refrigerator?
Early warning signs include a door that feels unusually loose or 'sloppy' at full open, a subtle clicking or cracking sound near the top hinge when opening the door, or the door resting at a slightly wider angle than usual. If ignored, the stop bracket will fracture completely, allowing the door to swing into walls or cabinets and potentially damaging cabinet faces, the door itself, or the internal ribbon cable.
Is it worth repairing the door stop on a Viking VCSB5483SS20, or should I replace the refrigerator?
For a high-end Viking built-in like the VCSB5483SS20, repair is almost always the right choice. These refrigerators retail for $8,000–$12,000 new. A door stop repair at $1,200–$1,500 is a small fraction of replacement cost, and the sealed system and electronics on well-maintained Viking units can last 20 years or more. Replacement parts are available, and certified technicians service this platform routinely.
Can the ribbon cable or user interface panel be damaged when removing the door on a Viking VCSB5483SS20?
Yes — the flexible ribbon cable connecting the user interface panel to the main control board passes through the upper hinge area and is a common casualty of improper door removal. A Viking-certified technician will release the ZIF connector lock before extraction and handle the cable carefully. If the ribbon cable is torn during DIY repair attempts, replacement adds $300–$600 to the total repair cost, making professional service strongly recommended.
Repair Summary
- Brand
- Viking Range, LLC
- Model
- VCSB5483SS20
- Repair Type
- Door Stop / Door Hinge Assembly Repair
- Refrigerant
- 6.75oz (163g)
- Root Cause
- Broken door stop bracket allowing unrestricted door swing
- Parts Replaced
- ✓OEM Viking Door Stop / Door Limiter Bracket for upper hinge assembly — compatible with VCSB5483SS20 (high-end built-in French door configuration)
- ✓Upper hinge stop plate (replaced as assembly with door stop bracket per Viking service bulletin recommendation)
- ✓ZIF ribbon cable connector cover (precautionary replacement during reassembly — no additional charge to customer)
- Location
- Memorial, TX 77057
- Status
- ✓ Completed
