Viking VCSB5423SS: Defrost System Failure Repair in The Woodlands, TX
📞 Call (346) 512-3688🔧 Performed by Alex Z.
The Problem
- •Fresh food compartment warming above 50°F despite compressor running continuously

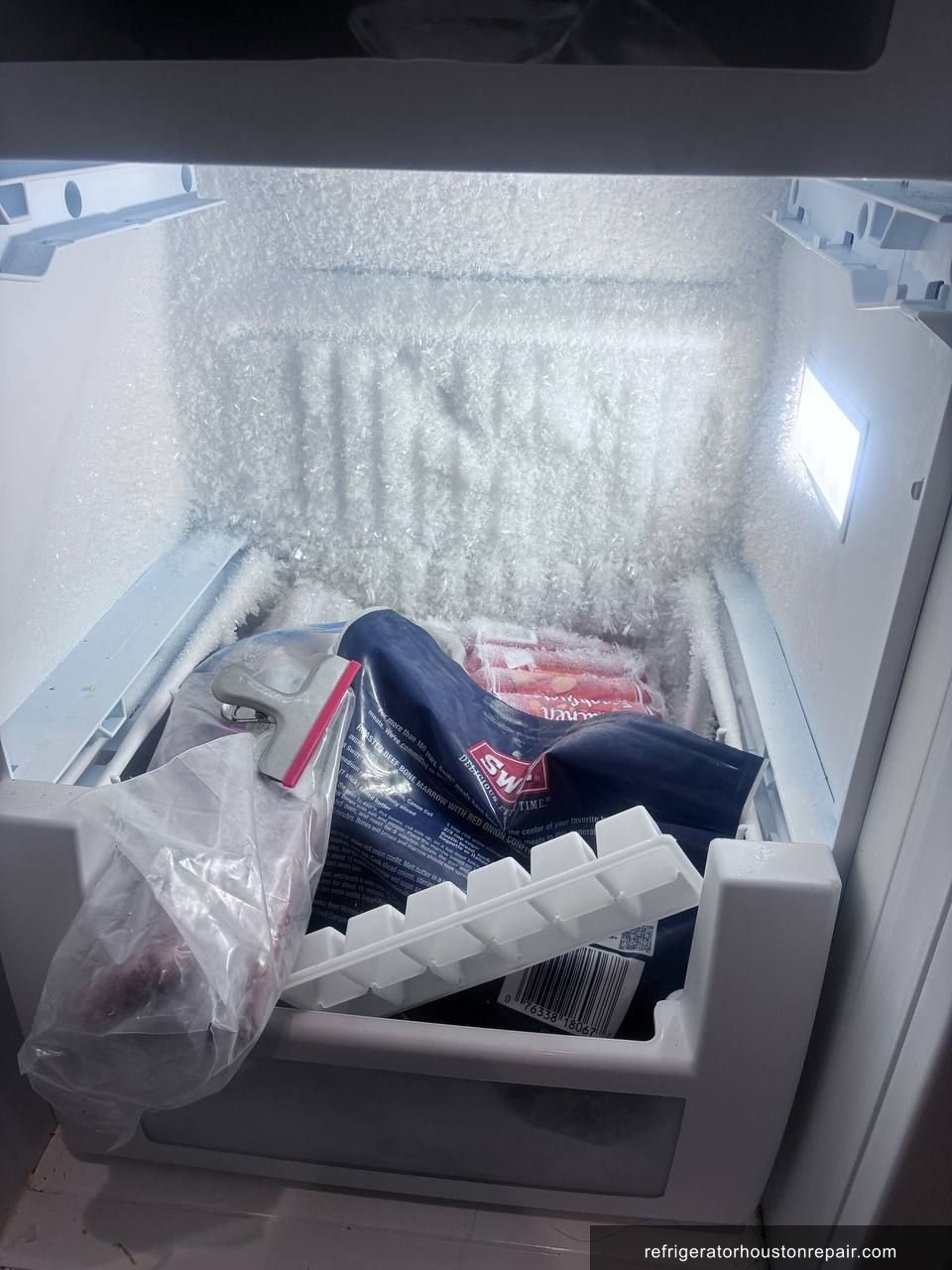

- •Thick ice and snow accumulation visible on evaporator coils behind the rear panel
- •Airflow from vents noticeably weak, indicating blocked evaporator
- •Defrost cycle not initiating on its normal 8-to-12 hour timer schedule
🔍 Diagnosis

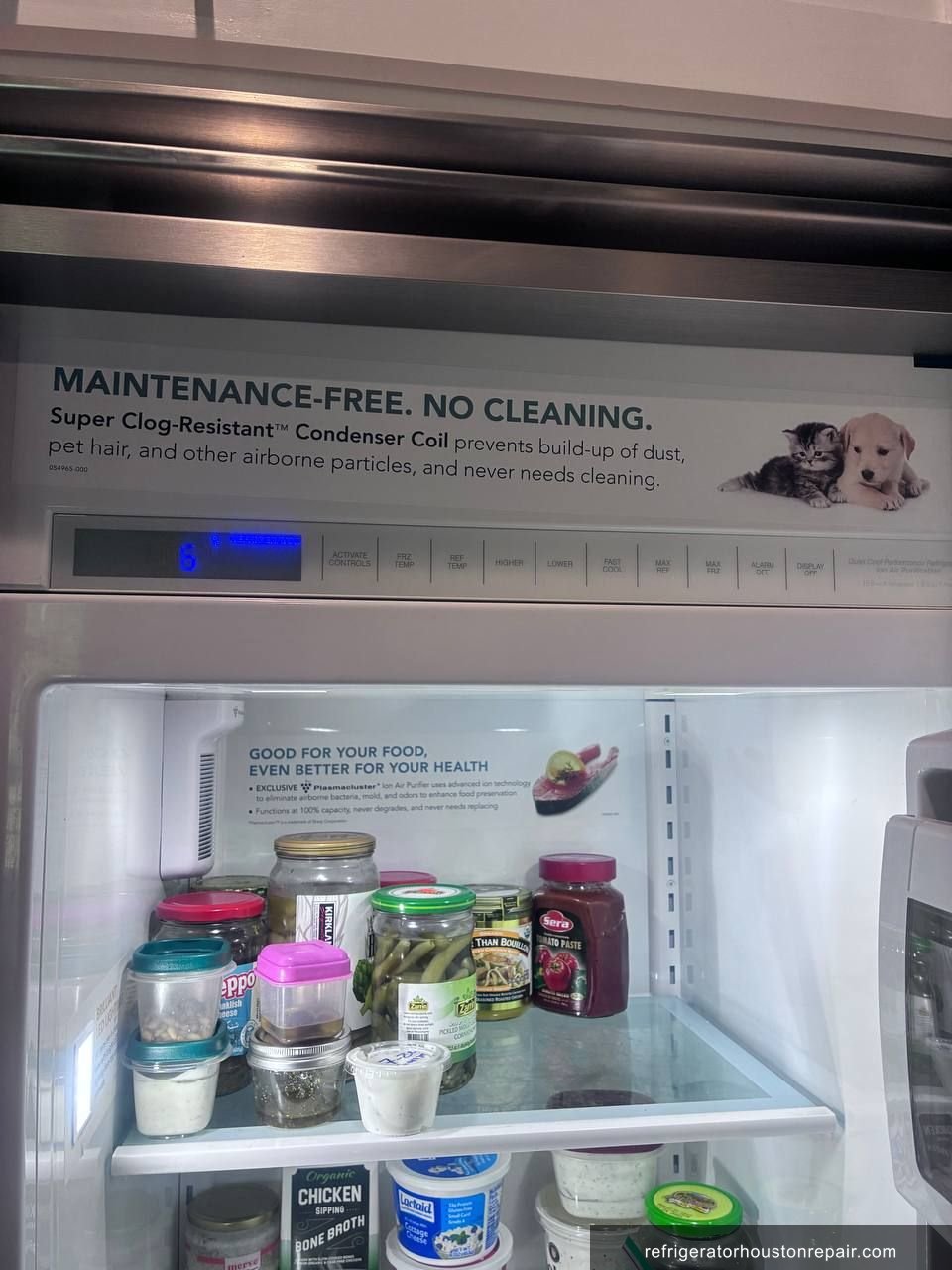

When I arrived at the home in The Woodlands zip 77382, the Viking VCSB5423SS built-in refrigerator had a fresh food compartment reading 54°F and a freezer section at 28°F. The compressor was running but airflow through the vents was nearly absent. I pulled the interior rear panel and found the evaporator coils buried under approximately two inches of ice and compacted frost. That volume of accumulation told me the defrost system had not cycled in days, possibly longer. I connected my manifold gauges and confirmed suction pressure consistent with a refrigerant-charged system, ruling out a sealed system leak. R-134a charge showed within normal range for this unit. I then tested the defrost thermostat with a multimeter and got an open reading at room temperature when it should have shown continuity, confirming thermostat failure. The defrost temperature sensor also read out of specification at 11.4 kOhm versus the expected 5 to 6 kOhm range at ambient. I checked the main control board next. The board on the VCSB5423SS is known to develop relay failures that prevent defrost initiation even when the thermostat and sensor send correct signals. The defrost relay on the board showed no output voltage during a forced defrost test, confirming board failure. All three defrost system components had failed in sequence, which is a recognized pattern on this generation of Viking built-in units.
🔧 The Repair
- ✓Step 1: Powered down the VCSB5423SS and removed all food from both compartments to allow safe access to internal components.
- ✓Step 2: Removed the interior rear evaporator panel by backing out six Phillips screws and disconnecting two wiring harness clips specific to the VCSB5423SS panel assembly.
- ✓Step 3: Performed a controlled manual defrost using a low-heat heat gun and shop towels, clearing approximately two inches of ice from the evaporator coils without damaging the R-134a coil surface or fins.
- ✓Step 4: Inspected evaporator fins for physical damage after ice removal. Found minor fin compression on the lower section. Straightened with a fin comb to restore full airflow.
- ✓Step 5: Replaced the defrost thermostat with a Viking OEM-spec replacement rated to open at 59°F and close at 29°F, matching factory specifications for this unit.
- ✓Step 6: Replaced the defrost temperature sensor, verified resistance at 5.8 kOhm at 70°F ambient, which confirmed correct calibration before installation.
- ✓Step 7: Accessed the main control board located in the top service compartment of the VCSB5423SS. Disconnected the wiring harness, removed four mounting screws, and installed the replacement control board. Verified board firmware compatibility with this model's serial range before installation.
- ✓Step 8: Initiated a forced defrost cycle through the control board diagnostic mode to confirm all three replaced components communicated correctly. Reassembled the rear panel, restored power, and monitored for two hours. Final readings: fresh food compartment 37°F, freezer 0°F. Defrost cycle initiated on schedule during monitoring period.
✓ Result
After two hours of runtime, the VCSB5423SS settled at 37°F in the fresh food section and 0°F in the freezer. The defrost cycle triggered on schedule, confirming all three components were communicating through the new control board. The homeowner in The Woodlands was relieved because they had a large amount of food they were worried about losing. They mentioned the unit had been struggling for about a week before they called. We provided a 90-day parts and labor warranty on all replaced components.
💡 Technician Notes
Viking built-in refrigerators like the VCSB5423SS use a control board that manages defrost timing through an internal algorithm, not a simple mechanical timer. When the board's defrost relay fails, the evaporator ices over within 48 to 72 hours. The early warning sign specific to this failure is a gradual rise in fresh food temperature while the freezer stays relatively cold. Owners often mistake this for a thermostat setting issue and ignore it for days. The one maintenance action that prevents accelerated ice buildup is keeping the door gaskets clean and sealing tightly. Excess humidity entering the cabinet puts extra load on the defrost system. If you notice your Viking built-in running louder than usual combined with a warming fresh food section, do not wait. A blocked evaporator left too long forces the compressor to overwork, which adds sealed system stress to what started as a simple defrost repair.
Frequently Asked Questions
Why is my Viking VCSB5423SS not cooling even though the compressor is running?
A running compressor does not mean the refrigerant is circulating properly through the evaporator. On the VCSB5423SS, a failed defrost system causes ice to block the evaporator coils completely. The compressor runs but produces no usable cooling because airflow is cut off. The fix requires defrosting the coils and repairing the defrost components, not touching the sealed system.
How much does it cost to repair the defrost system on a Viking built-in refrigerator in The Woodlands TX?
A full defrost system repair on a Viking built-in like the VCSB5423SS typically runs between $400 and $750 in the Houston area, depending on which components failed. Replacing only the thermostat and sensor is less expensive. Adding a control board brings the cost higher. Labor for accessing the evaporator panel on a built-in unit takes more time than on a freestanding model, which affects the total.
What happens if I ignore a defrost problem on my Viking refrigerator and keep using it?
Leaving a defrost failure unrepaired on the VCSB5423SS puts the compressor under sustained overload. The compressor runs continuously trying to maintain temperature against a fully blocked evaporator. Within days to weeks, this leads to compressor overheating and potential sealed system damage. A repair that starts as a board and thermostat replacement becomes a compressor replacement or a total loss situation.
Is it worth repairing a Viking built-in refrigerator with a defrost system failure or should I replace it?
Viking built-in refrigerators are expensive to replace, often $8,000 to $15,000 new. A defrost system repair on the VCSB5423SS, even with a control board replacement, costs a fraction of that. As long as the sealed system and compressor are intact, repair is the clear choice. The only exception is if the unit is over 15 years old and showing multiple simultaneous system failures beyond the defrost circuit.
How does the Viking VCSB5423SS defrost system work and why does the control board cause it to fail?
The VCSB5423SS uses an adaptive defrost algorithm on the main control board. The board monitors compressor run time and door openings, then calculates when to trigger the defrost heater. When the defrost relay on the board fails, it stops sending voltage to the heater entirely. The thermostat and sensor become irrelevant because the board never activates the circuit. That is why board failure produces total defrost shutdown, not partial frost buildup.
Repair Summary
- Brand
- Viking
- Model
- VCSB5423SS
- Repair Type
- Defrost System Repair: Control Board, Defrost Thermostat and Sensor Replacement, Evaporator Defrost

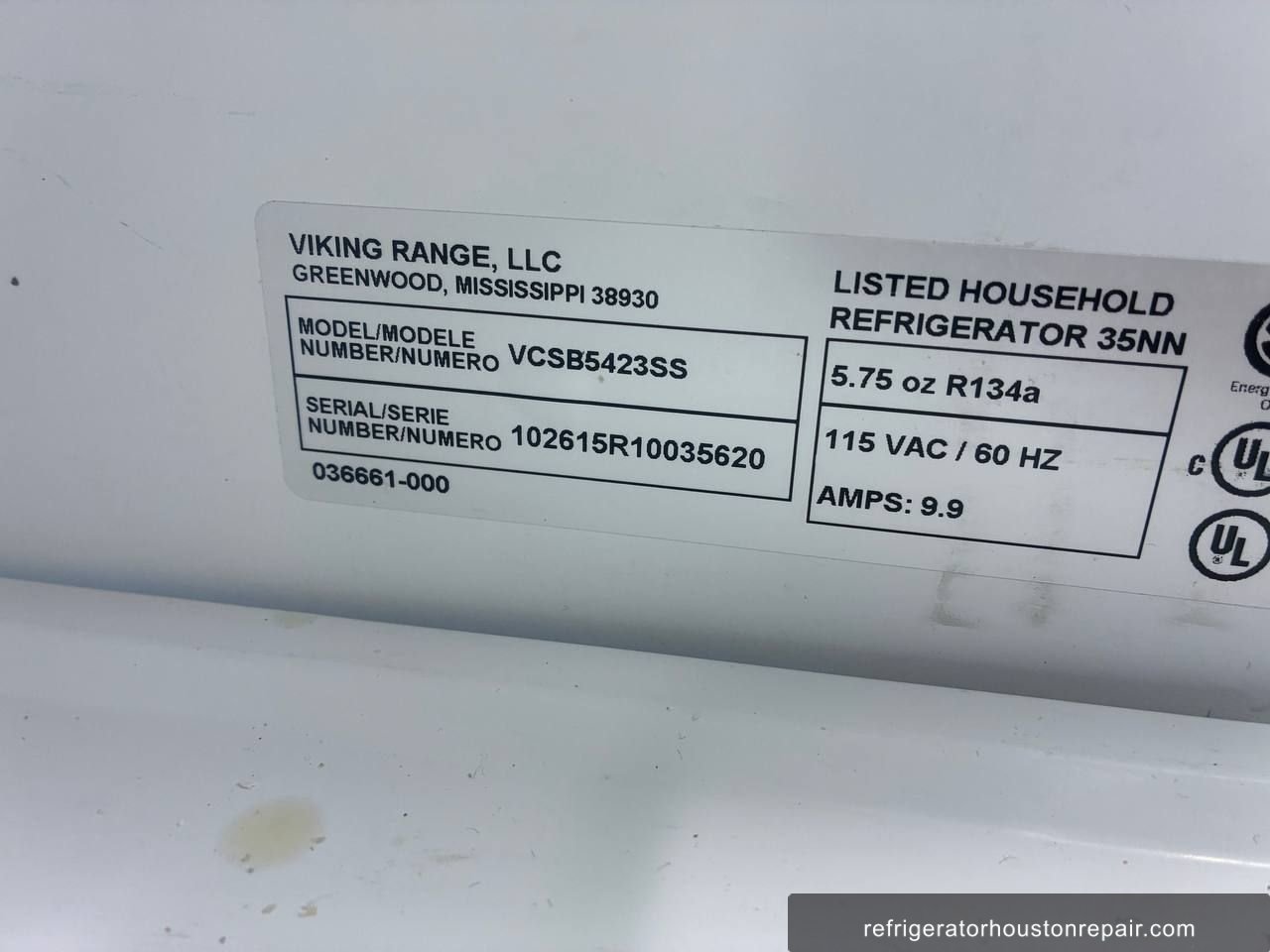

- Refrigerant
- R-134a
- Root Cause
- Failed control board disabling defrost cycle, causing evaporator ice blockage
- Parts Replaced
- ✓Main control board (Viking OEM replacement, compatible with VCSB5423SS serial range)
- ✓Defrost thermostat (OEM-spec, rated 59°F open / 29°F close)
- ✓Defrost temperature sensor (OEM-spec, 5.8 kOhm verified at 70°F)
- Location
- The Woodlands, TX 77382
- Status
- ✓ Completed
