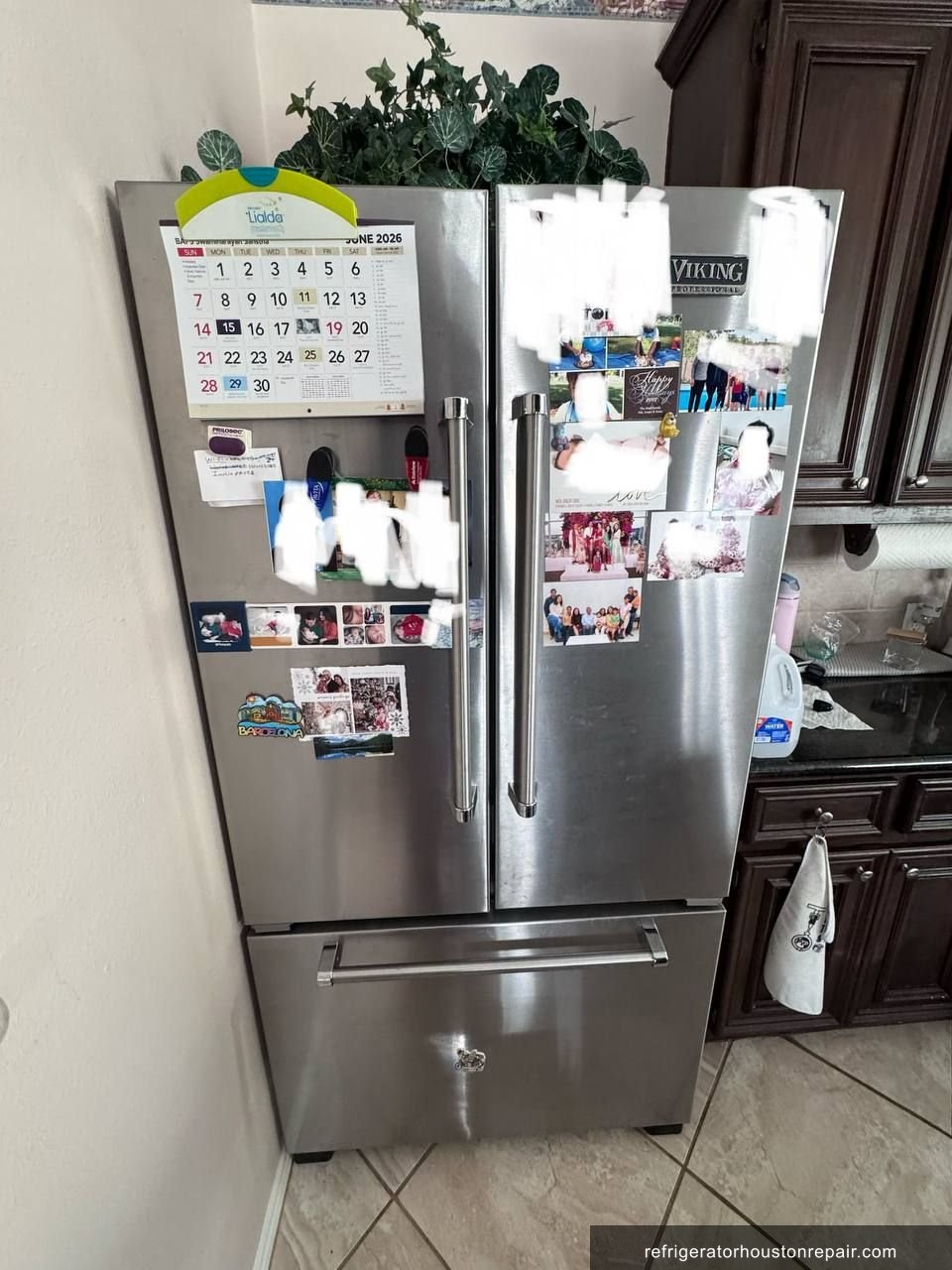

Viking VCFF236SS003: Door Flipper, Gasket, and Dispenser Switch Repair in Sugar Land, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Refrigerator door flipper broken and not closing automatically, leaving a gap in the door seal
- •Ice accumulating on the ceiling of the fresh food compartment
- •Interior light not turning on when door opened
- •Built-in water dispenser not dispensing water
- •No preventive maintenance performed in 15 years of operation
🔍 Diagnosis
When I arrived at the customer's home in Sugar Land, 77498, the Viking VCFF236SS003 was running and temperatures in both compartments were within acceptable range, around 37°F in the fresh food section and 0°F in the freezer. The customer flagged three separate issues: the door flipper was broken and not returning to its closed position automatically, the interior light was out, and the built-in water dispenser was non-functional. I also noticed a thin layer of ice forming along the upper ceiling panel of the fresh food section. That told me warm, humid Houston air was getting in through the door opening. I inspected the door flipper mechanism and confirmed it was mechanically broken. The plastic pivot and spring assembly had snapped, which is a known wear point on this Viking column refrigerator after extended use. With the flipper stuck open, the magnetic door gasket was not seating properly at the mullion. I checked the gasket itself and found several stress tears along the bottom corner, consistent with 15 years of compression and thermal cycling. The door switch tested at infinite resistance with my multimeter when the door was open, confirming it was failed. This single switch controls both the interior light circuit and the dispenser activation signal on the VCFF236SS003. No refrigerant pressure issues were found. The R-134a system was intact at the expected charge of 5.00 oz.
🔧 The Repair
- ✓Step 1: Inspected door flipper assembly on the Viking VCFF236SS003 and confirmed the pivot arm and return spring were fractured. Photographed the failure point for the repair record.
- ✓Step 2: Removed the broken door flipper assembly from the mullion panel. Cleaned the mounting area of debris and old lubricant buildup accumulated over 15 years.

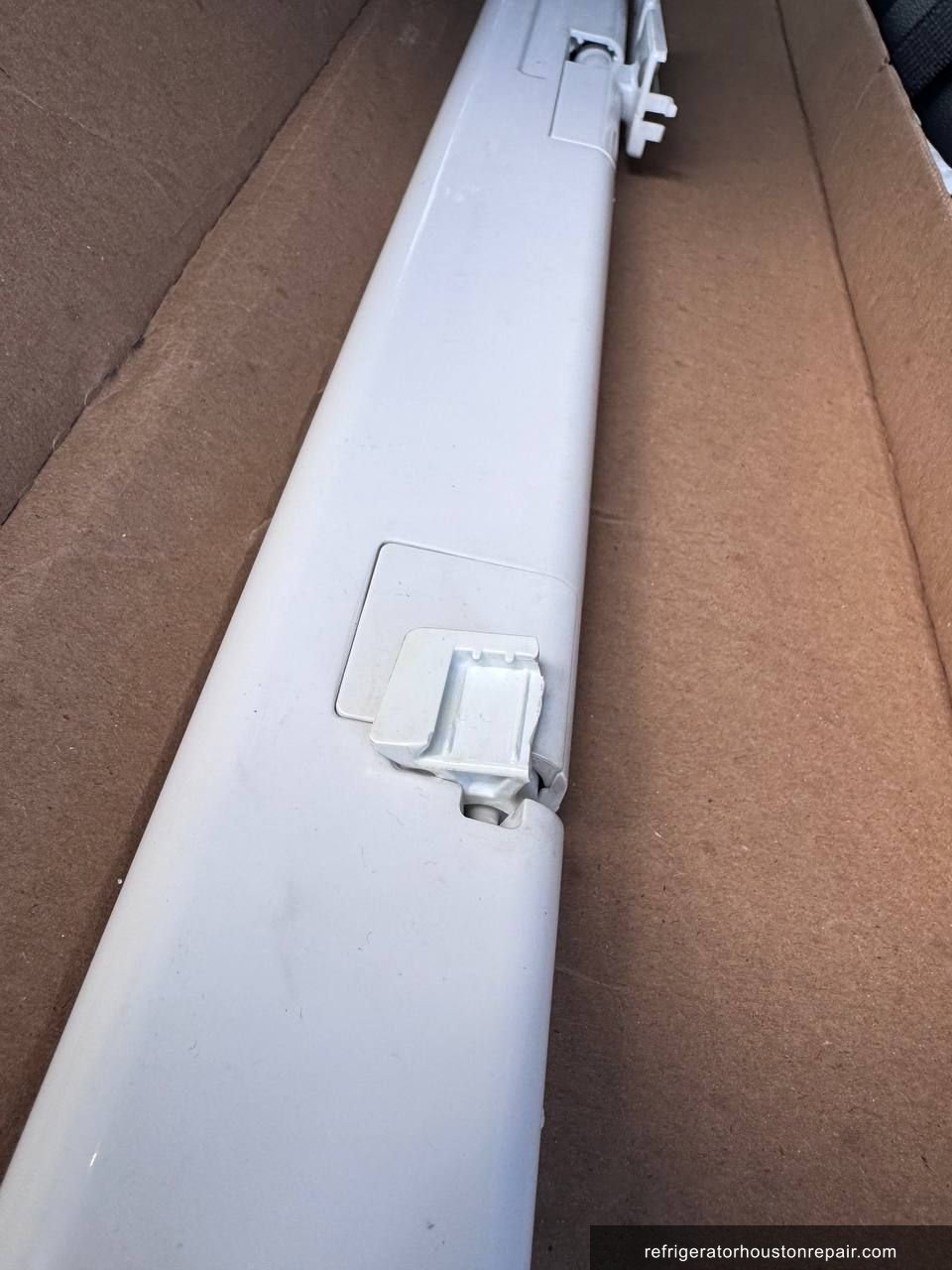

- ✓Step 3: Installed OEM-spec replacement door flipper assembly for the VCFF236SS003. Verified the return spring tension and confirmed the flipper snapped fully closed under normal door operation.

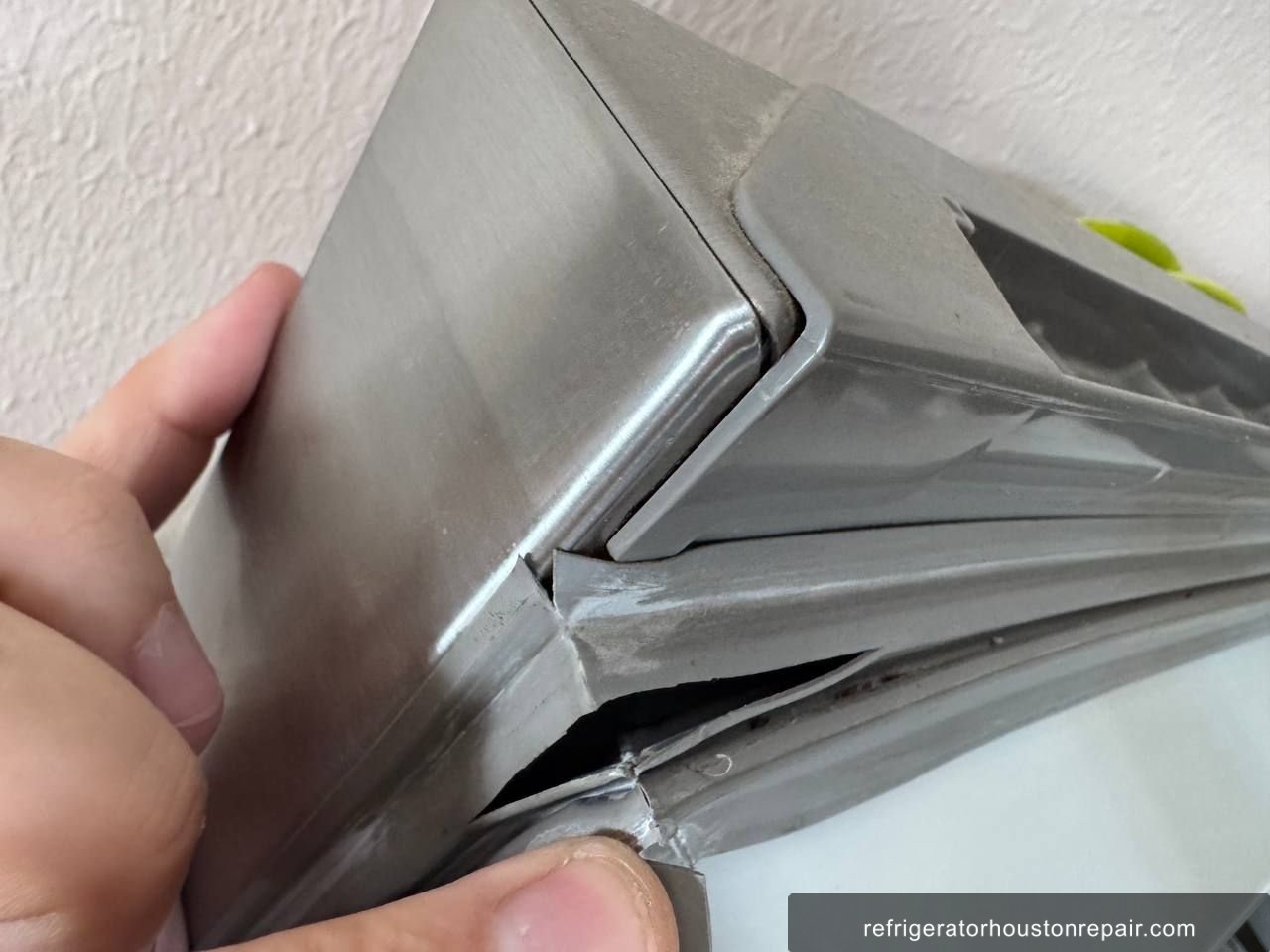

- ✓Step 4: Inspected the full perimeter of the door gasket. Found stress tears at both bottom corners and loss of magnetic pull along a 6-inch section on the hinge side. Ordered and installed a replacement gasket matched to the VCFF236SS003 door profile.
- ✓Step 5: Confirmed the new gasket seated flush against the cabinet frame on all four sides. Tested seal integrity by closing the door on a sheet of paper at multiple points around the perimeter. No slippage detected.
- ✓Step 6: Located the door switch behind the interior trim panel on the fresh food door. Tested the original switch: open circuit in both door-open and door-closed positions. Replaced the switch with a compatible OEM replacement and confirmed proper continuity readings with the door cycled open and closed.
- ✓Step 7: Performed full preventive maintenance service, including condenser coil cleaning with a coil brush and low-pressure air, drain pan inspection and cleaning, door hinge lubrication, and interior gasket channel cleaning.
- ✓Step 8: Monitored the unit for 2 hours post-repair. Fresh food compartment stabilized at 37°F, freezer at 0°F. Interior light activated correctly on door open. Water dispenser dispensed at normal flow. No ice formation observed on the ceiling panel.
✓ Result
After about two hours of work and one parts swap, the Viking VCFF236SS003 was operating exactly as it should. Fresh food section held steady at 37°F, the freezer at 0°F. The light came on the moment the door opened, and the water dispenser worked without hesitation. The ice on the ceiling panel was already melting by the time I finished the maintenance service. The customer in the 77498 area was relieved, especially knowing the unit had gone 15 years without a single service. He mentioned he had no idea the door flipper was the source of so many separate problems.
💡 Technician Notes
Viking column refrigerators like the VCFF236SS003 are built to last, but their door flipper mechanisms are made of reinforced plastic that degrades over time, especially in Houston's humidity. The first sign this part is going is a subtle resistance when the door swings past the mullion. If you feel the door not swinging freely or hear a faint click that stops happening, that flipper spring is close to breaking. Do not wait until it snaps. Once it fails, the gasket takes all the sealing load and tears within months. On a unit this age, I always recommend inspecting the door switch during any door-related service because it is housed in a high-traffic area and the VCFF236SS003 routes both the light and dispenser signal through that single component. Schedule condenser cleaning every 12 months. In Sugar Land, dust and pet hair load up those coils fast and force the compressor to work harder than it needs to.
Frequently Asked Questions
What is the door flipper on a Viking VCFF236SS003 and why does it break?
The door flipper is a spring-loaded plastic arm mounted on the mullion that guides the refrigerator door to close fully and activate the gasket seal. On the VCFF236SS003, it takes thousands of open-and-close cycles over the years. The return spring fatigues and the plastic pivot point cracks, usually after 10 to 15 years of use. Once broken, the door no longer seals consistently.
How much does it cost to replace a door flipper and gasket on a Viking refrigerator in Sugar Land TX?
For a Viking VCFF236SS003, replacing both the door flipper and the door gasket typically runs between $280 and $450 in the Houston area, depending on parts availability. OEM Viking parts carry a premium over third-party alternatives. If the door switch also needs replacement, add roughly $80 to $120 to that estimate. Combining all three repairs in one visit saves on labor costs significantly.
What happens if I ignore a broken door flipper on my Viking refrigerator?
A broken flipper means the door gasket has to compensate for an uneven seal, which accelerates gasket tearing. Warm, humid air enters the cabinet, causing ice to form on the ceiling panel and forcing the compressor to run longer cycles. Over months, this leads to higher electricity bills, premature compressor wear, and potential food safety issues if temperatures creep above 40°F in the fresh food section.
Is it worth repairing a 15-year-old Viking VCFF236SS003 or should I replace it?
A 15-year-old Viking column refrigerator with a solid sealed system and no compressor or cooling issues is worth repairing. The VCFF236SS003 was built for 20-plus year service life, and door components are wear items, not structural failures. If the compressor, evaporator, or sealed system were compromised, the math changes. Door flipper, gasket, and switch repairs on a unit with good cooling capacity are cost-effective compared to a new column refrigerator.
Why did my Viking refrigerator water dispenser stop working at the same time the interior light went out?
On the Viking VCFF236SS003, both the interior light and the water dispenser activation signal run through the same door switch. When that switch fails, both functions go out simultaneously. It looks like two separate problems but it is a single failed component. Replacing the door switch restores both functions at once. This is a known single-point failure on this model after extended use.
Repair Summary
- Brand
- Viking
- Model

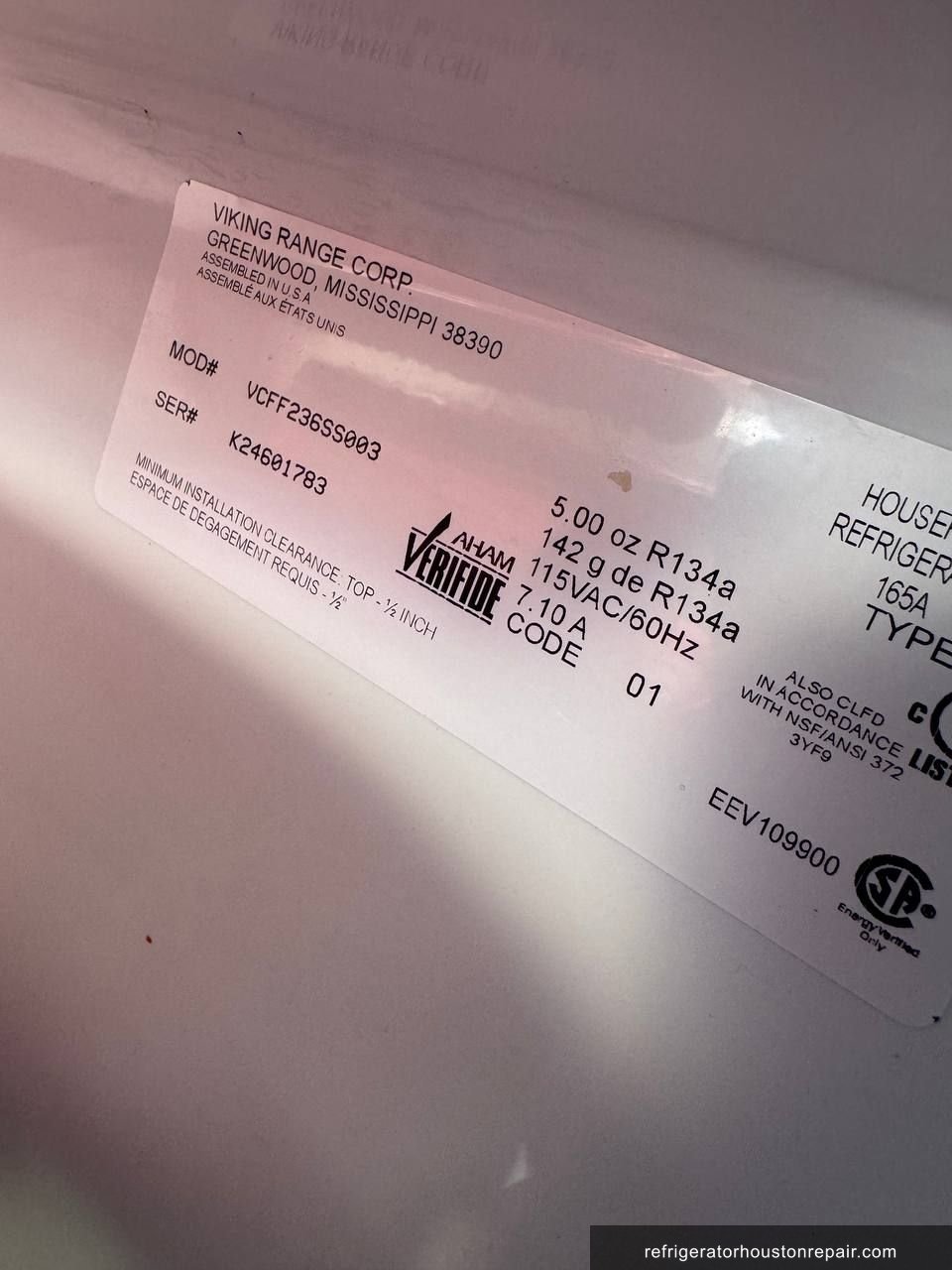

- VCFF236SS003
- Repair Type
- Door Flipper Replacement / Gasket Replacement / Door Switch Repair / Preventive Maintenance
- Refrigerant
- R-134a
- Root Cause
- Broken door flipper and torn gasket causing ice buildup and dispenser failure
- Parts Replaced
- ✓Door flipper assembly (OEM-spec Viking replacement for VCFF236SS003 mullion)
- ✓Door gasket, fresh food section (OEM profile matched to VCFF236SS003 door frame)
- ✓Door switch (OEM-compatible replacement controlling interior light and dispenser circuit)
- Location
- Sugar Land, TX 77498
- Status
- ✓ Completed
