Viking VCFF036SS Fresh Food Section Not Cooling — Defrost System Failure
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment not cooling while freezer section works normally
- •No cold air circulation or airflow felt inside the refrigerator section
- •Food spoiling or reaching unsafe temperatures despite freezer appearing fine
- •Visible frost or ice buildup on the back wall of the freezer compartment
🔍 Diagnosis
Upon arrival at the customer's home in Memorial, TX 77057, the technician performed a systematic evaluation of the Viking VCFF036SS refrigerator, which uses R-134a refrigerant charged at 5.25 oz (148 g) per the appliance label. The customer reported that the fresh food compartment had completely stopped cooling, while the freezer appeared to be functioning normally. The technician's initial inspection confirmed zero measurable airflow into the fresh food section. Suspecting an evaporator ice blockage, the technician accessed the freezer compartment and immediately noted heavy frost accumulation on the rear wall — a classic indicator of a failed defrost cycle. After carefully removing the evaporator cover panel, the technician found the evaporator coil completely encased in a thick layer of compacted snow and ice, fully obstructing airflow to the fresh food section. With no airflow through the blocked coil, the refrigerant circuit remained operational but could not transfer cold air across the compartment divider. The technician tested the defrost heating element using a multimeter and confirmed it was within acceptable resistance specifications. Attention then shifted to the defrost thermostat, which registered as open circuit on the multimeter — despite being fully embedded in ice and well below its rated cutout temperature. Under normal operation, the thermostat should have remained closed (conducting) at those temperatures. This open-circuit reading confirmed the defrost thermostat had failed in the open position, permanently disabling the defrost cycle and allowing ice to accumulate unchecked over time.
🔧 The Repair
- ✓Disconnected the Viking VCFF036SS from its power source and documented the appliance label confirming R-134a refrigerant at 5.25 oz / 148 g charge weight.
- ✓Removed all food items and shelving from the freezer compartment to gain unobstructed access to the rear evaporator panel.

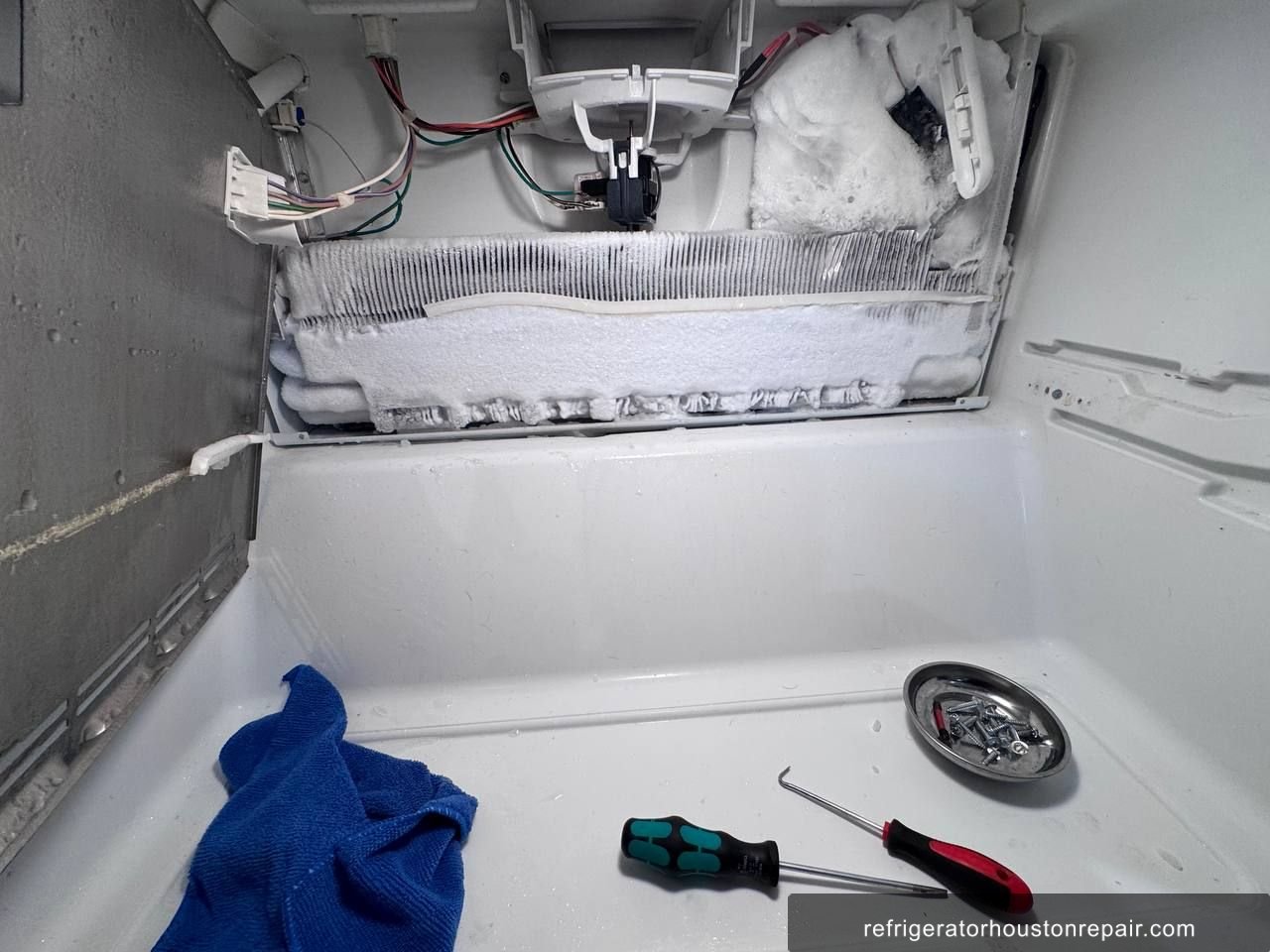

- ✓Unscrewed and carefully removed the evaporator cover panel, revealing a completely ice-encased evaporator coil assembly — photographed for documentation (6 photos taken).
- ✓Used a commercial-grade steamer to safely and efficiently defrost the evaporator coil, ensuring no mechanical damage to the aluminum fins or refrigerant tubing during the process.
- ✓Tested the defrost heating element with a digital multimeter across its terminals — resistance reading confirmed the element was functional and within manufacturer specifications.
- ✓Tested the defrost thermostat with the multimeter — unit read open circuit (OL) despite being surrounded by ice well below its rated closing temperature, confirming thermostat failure.
- ✓Disconnected and removed the faulty defrost thermostat from the evaporator assembly, taking care not to disturb refrigerant lines or connected wiring harnesses.
- ✓Installed a new OEM-compatible defrost thermostat rated for the VCFF036SS, securing it in the correct mounting position against the evaporator coil for accurate temperature sensing.
- ✓Inspected all wiring connections in the defrost circuit — terminals, connectors, and wire insulation — confirming no secondary damage from prolonged ice accumulation.
- ✓Reinstalled the evaporator cover panel and all interior freezer components, ensuring all air ducts and gaskets were properly seated for correct airflow distribution.
- ✓Restored power to the unit and verified that the defrost cycle initiated correctly using the service diagnostic mode available on the Viking VCFF036SS control board.
- ✓Monitored the refrigerator for approximately one hour post-repair, confirming fresh food compartment temperature dropped to the target range of 35–38°F and freezer stabilized at 0°F, validating the repair.
✓ Result
Within approximately one hour of completing the repair and restoring power, the Viking VCFF036SS was operating like new. The fresh food compartment reached its target temperature of 35–38°F, and the freezer stabilized at 0°F. The customer was relieved to have the unit fully operational the same day, avoiding food loss on remaining stored items. A 90-day labor warranty was provided on the defrost thermostat replacement. The customer was advised to monitor the unit over the following 24 hours and contact the technician immediately if any cooling issues recurred.
💡 Technician Notes
Viking built-in column refrigerators like the VCFF036SS are premium appliances, but their defrost systems are subject to the same wear patterns as any refrigerator. In Houston's high-humidity climate, the defrost system works harder than average — meaning defrost thermostats and heating elements face greater thermal cycling stress over time. Homeowners should watch for early warning signs: reduced airflow in the fresh food section, unusual frost on the freezer's back wall, or a freezer that feels colder than usual while the fridge warms up. These are classic early indicators of a failing defrost cycle. Annual professional inspections are recommended for Viking units over five years old. Avoid overpacking the freezer, as restricted airflow accelerates ice buildup on the evaporator. If you notice any of these symptoms, do not delay service — a fully iced evaporator can stress the compressor over time, turning a simple thermostat replacement into a far more costly sealed system repair.
Frequently Asked Questions
Why is my Viking VCFF036SS fresh food section not cooling but the freezer works fine?
This is a classic symptom of a failed defrost system in the Viking VCFF036SS. When the defrost thermostat fails open, ice builds up on the evaporator coil and blocks airflow to the fresh food compartment. The freezer continues to cool because the refrigerant circuit is still running, but no cold air reaches the refrigerator section.
How much does it cost to repair a Viking VCFF036SS defrost thermostat in Memorial, TX?
A defrost thermostat replacement on a Viking VCFF036SS in the Memorial area typically ranges from $180 to $320, depending on parts availability and labor time. The repair is straightforward for a trained technician and is usually completed in a single visit. It's far more economical than compressor work or sealed system repairs, which can run $600 or more.
What are the warning signs that the defrost system is failing on a Viking refrigerator?
Key warning signs include: the fresh food section warming up while the freezer stays cold, visible frost or ice on the freezer's rear wall, reduced airflow in the fridge compartment, and longer-than-normal cooling cycles. If you notice any of these on your Viking VCFF036SS, schedule service promptly — catching a defrost failure early prevents compressor damage and costly secondary repairs.
Is it worth repairing a Viking VCFF036SS with a defrost system failure, or should I replace it?
Absolutely worth repairing. The Viking VCFF036SS is a high-end built-in column refrigerator with a retail value well above $3,000. A defrost thermostat replacement is one of the least expensive repairs possible — typically under $350. Unless the unit has multiple simultaneous failures or compressor damage, repair is almost always the financially sound choice for Viking appliances of this caliber.
How long does it take for a Viking VCFF036SS to return to normal temperature after a defrost system repair?
After the evaporator is manually defrosted and the faulty thermostat is replaced, a Viking VCFF036SS typically returns to its target fresh food temperature of 35–38°F within 45 to 90 minutes. Full thermal stabilization throughout both compartments may take up to 4 hours. Avoid opening the doors frequently during this period to allow the unit to pull down temperature as efficiently as possible.
Repair Summary
- Brand
- Viking Range Corp.
- Model
- VCFF036SS
- Repair Type
- Defrost System Repair
- Refrigerant
- R-134a
- Root Cause
- Failed defrost thermostat caused evaporator coil ice blockage
- Parts Replaced
- ✓Defrost thermostat — OEM-compatible replacement rated for Viking VCFF036SS evaporator assembly, failed open-circuit at sub-freezing temperature
- Location
- Memorial, TX 77057
- Status
- ✓ Completed
Same Problem?
We fix Viking Range Corp. refrigerators in Memorial and all Houston area.
Call (346) 512-3688Service Area
We provide refrigerator repair service in Memorial and surrounding areas.
View Memorial Service Area →📸 Repair Photos

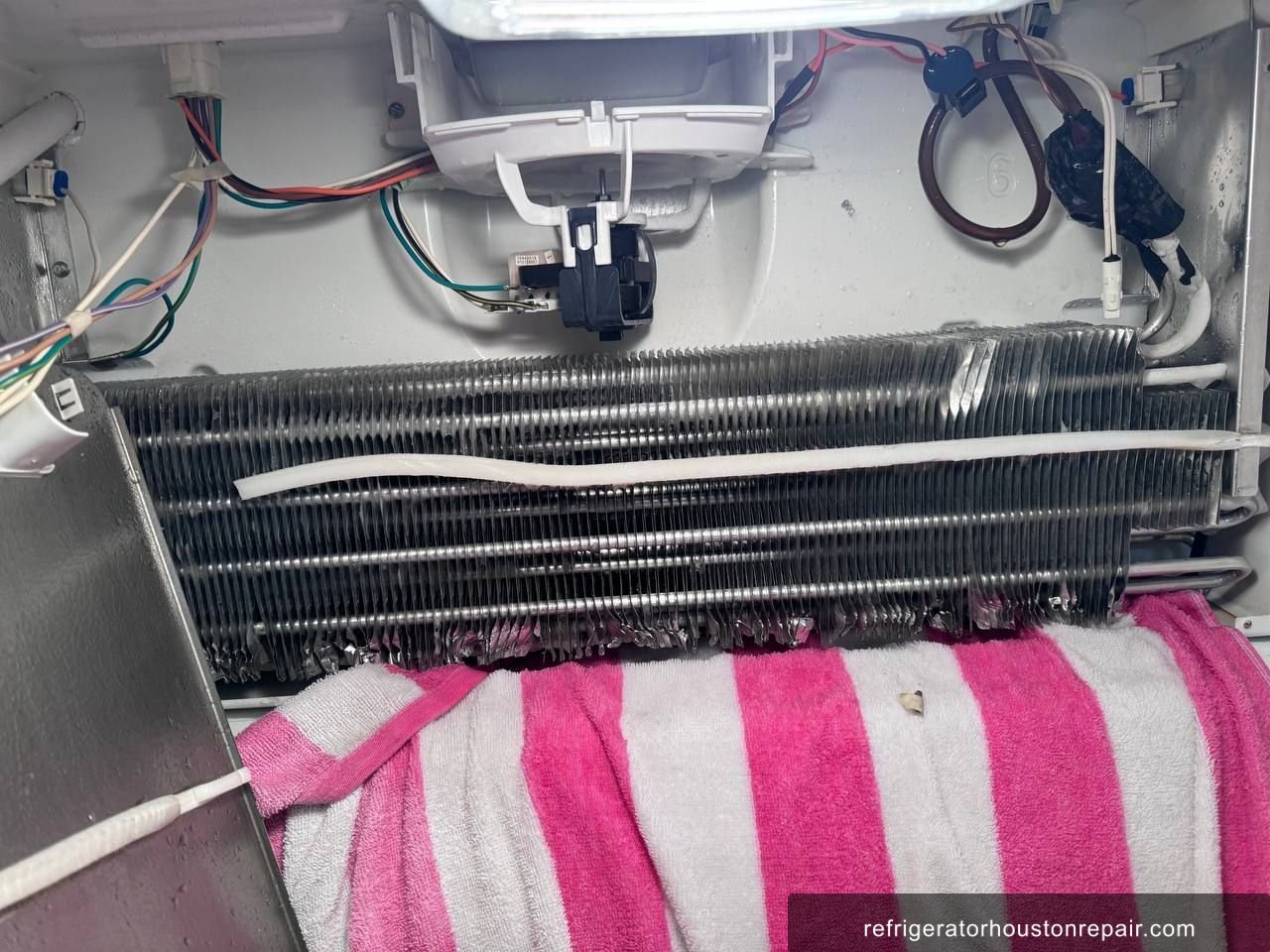

Viking Range Corp. VCFF036SS repair in Memorial, TX — photo 5
