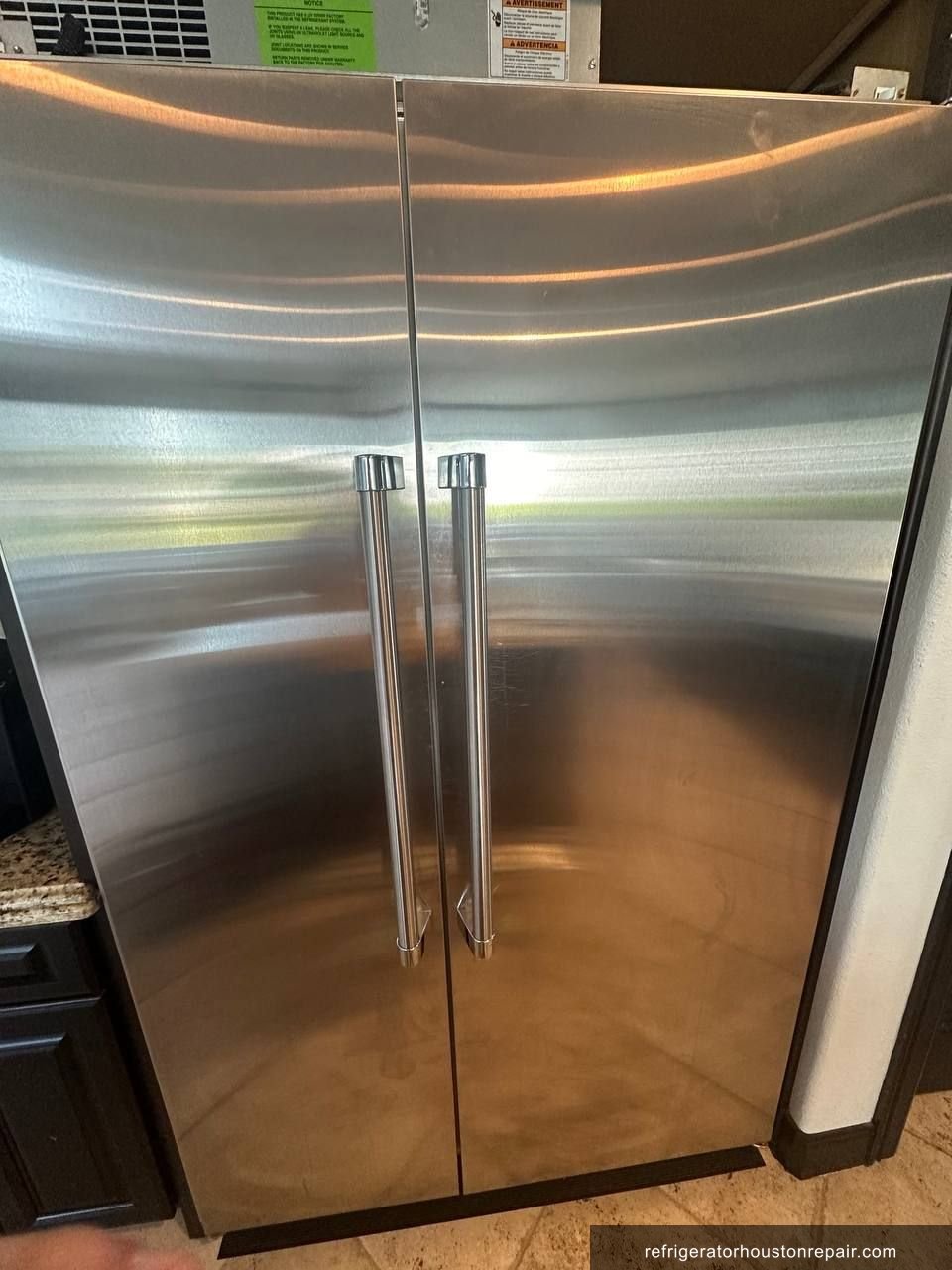

Thermador T48BR820NS02: Broken Door Latch Bolt Repair in Kemah, TX
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Refrigerator door would not latch closed or stay sealed on its own
- •Door switch not engaging properly, causing interior light to stay on
- •Door seal not making full contact with the cabinet frame, letting warm air in
- •Audible resistance and then a snap when attempting to close the door
🔍 Diagnosis
When I arrived at the Kemah residence, the Thermador T48BR820NS02 door would not latch. The customer described a gradual increase in resistance when closing the door over the past few weeks, followed by a complete failure where the bolt simply stopped catching the strike. I opened the door latch assembly and found the latch bolt had fractured clean through at its base. The spring tension on this assembly is unusually high for a residential refrigerator, and on a unit of this age, metal fatigue at that stress point is predictable. The door switch was not being triggered because the bolt never traveled far enough to depress it. I measured switch continuity with a multimeter and confirmed the switch itself tested good at 0.3 ohms closed. The problem was entirely mechanical. The bolt was the original OEM part, and after pulling the part number from the assembly, I confirmed it had been discontinued. No direct Thermador replacement existed in the supply chain. I cross-referenced the bolt design against patent records and found that Whirlpool, Jenn-Air, and KitchenAid use the same latch mechanism under a different part number. I sourced a 1:1 matching bolt under the alternate part number, confirmed the geometry matched exactly, and moved forward with the repair.
🔧 The Repair

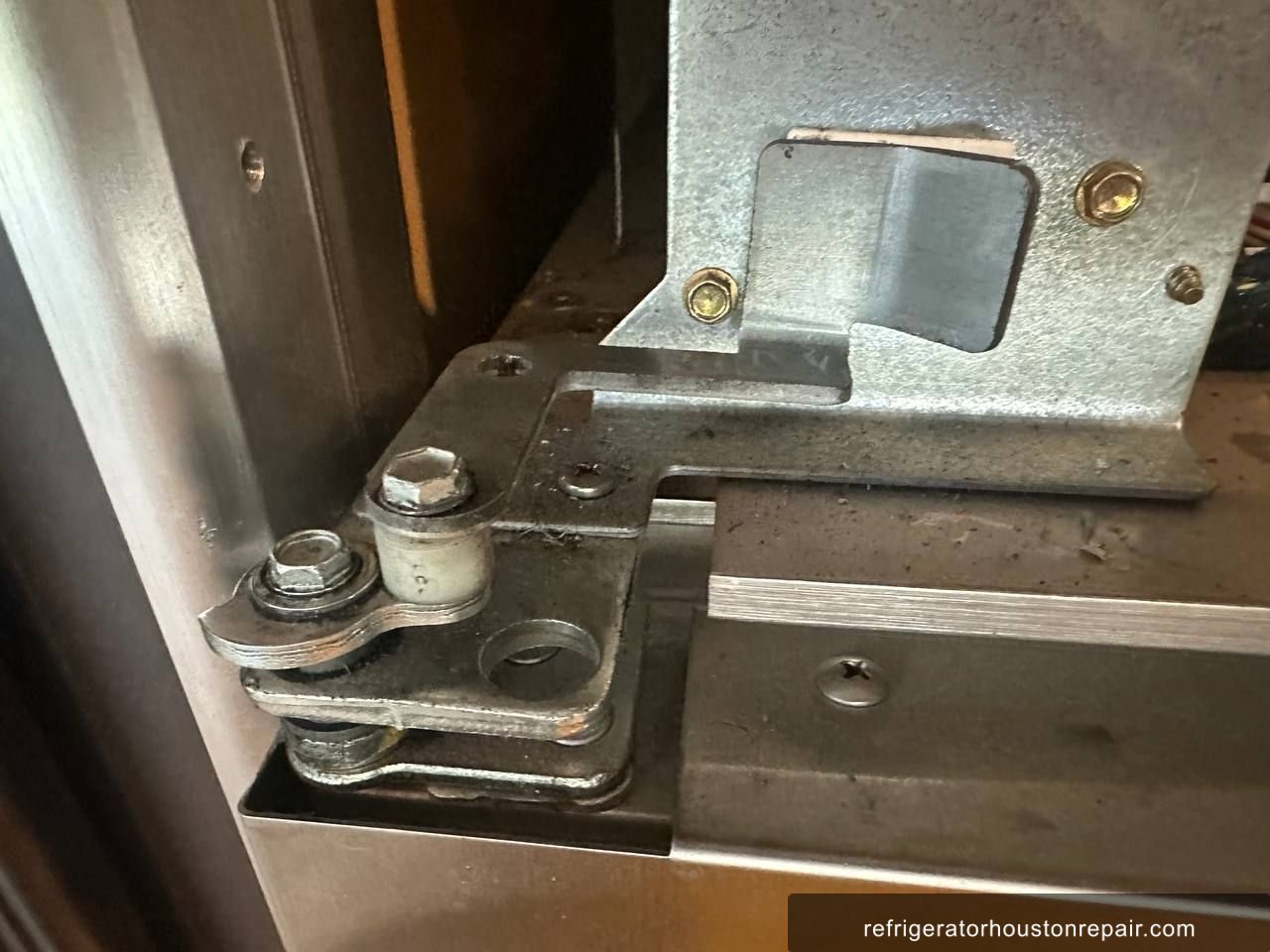

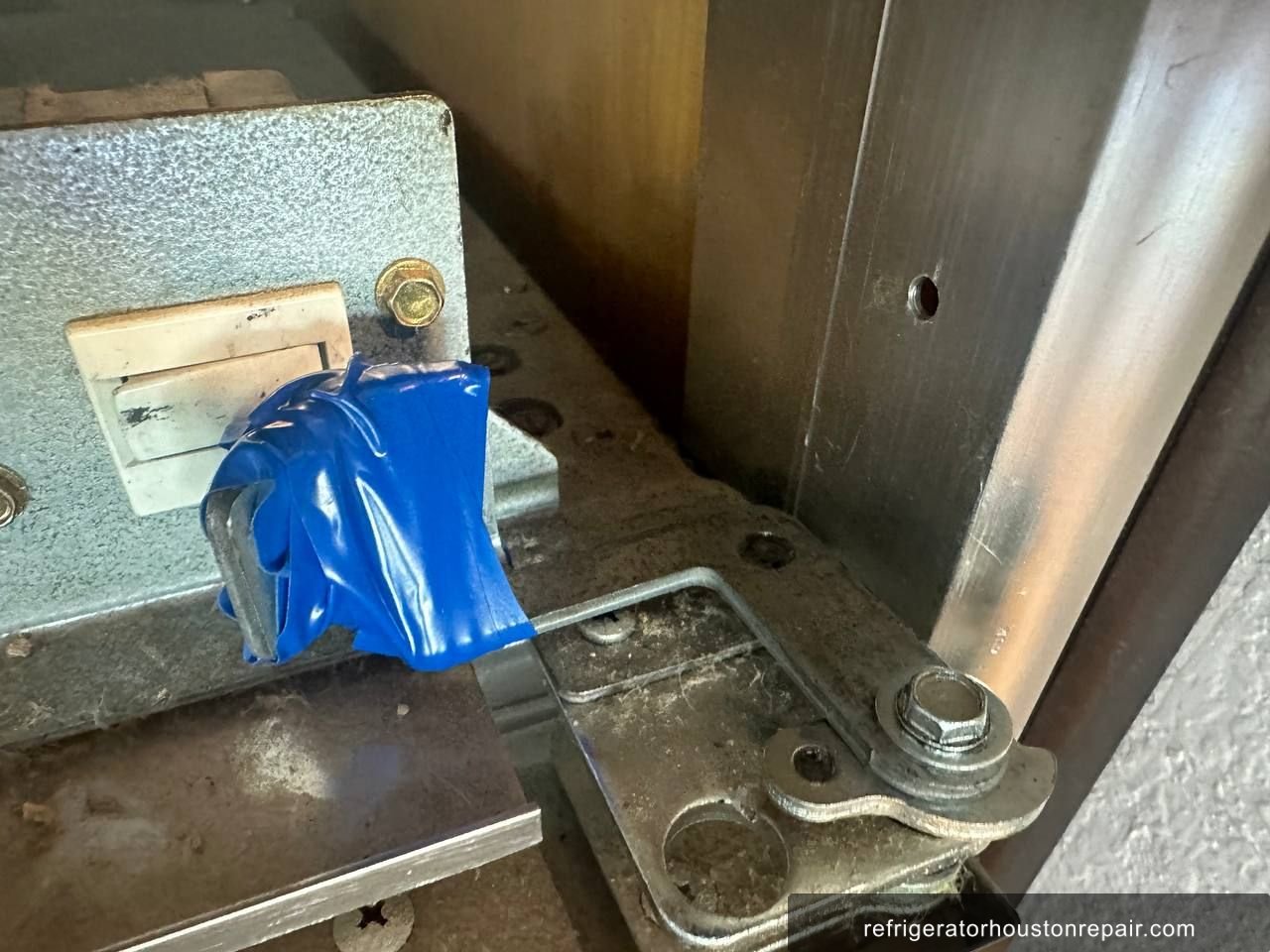

- ✓Step 1: Disassembled the door latch housing on the Thermador T48BR820NS02 by removing the two Phillips screws securing the bezel and sliding the cover plate off the mounting rail
- ✓Step 2: Extracted the fractured latch bolt and documented the break point, confirming the bolt sheared at the spring collar where metal fatigue was most concentrated

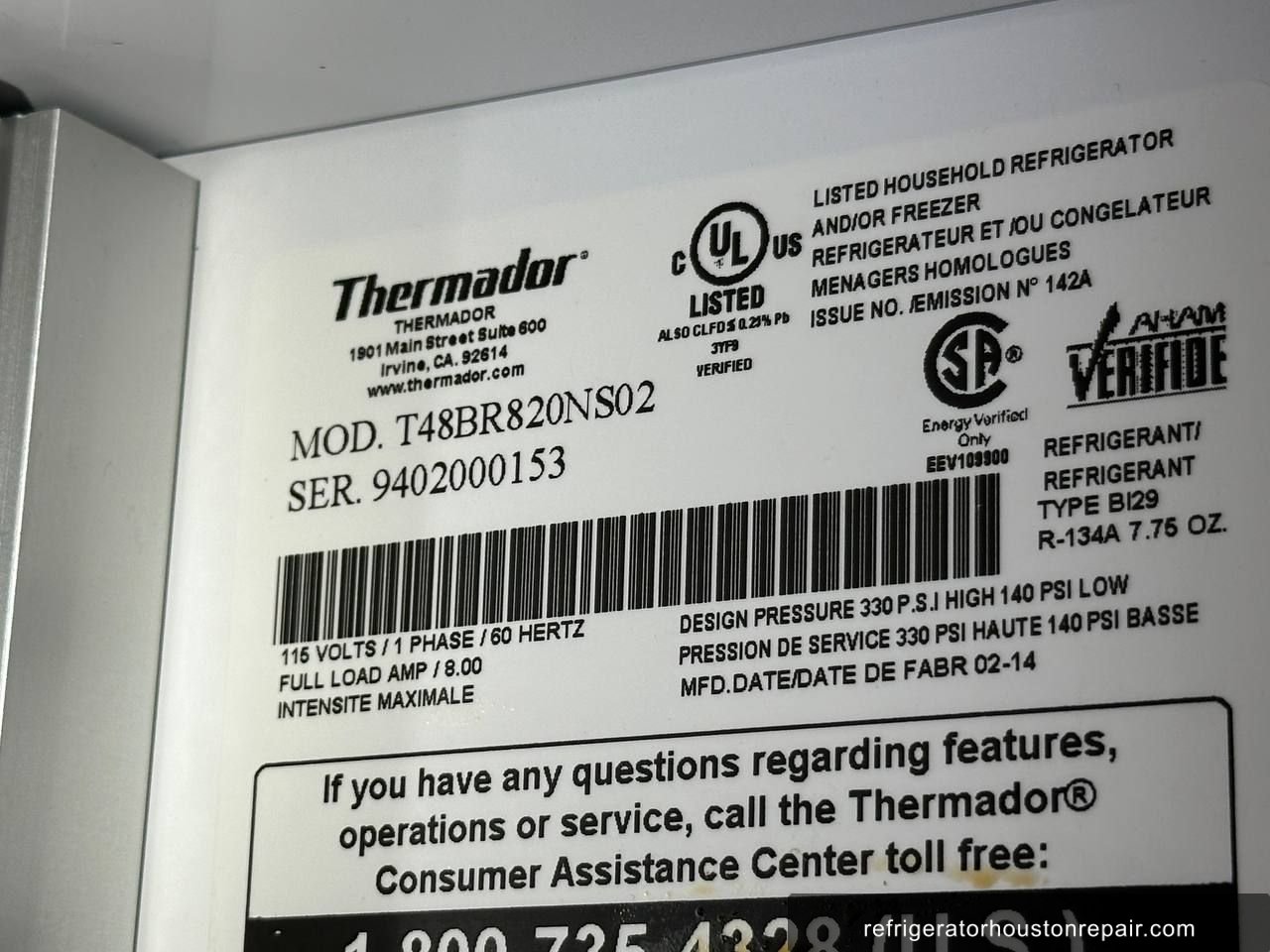

- ✓Step 3: Pulled the OEM part number from the assembly label, confirmed the part was discontinued through Thermador's BSH parts network with no available substitute listed
- ✓Step 4: Cross-referenced the bolt design using patent records and identified that Whirlpool, Jenn-Air, and KitchenAid use a mechanically identical latch bolt under a different part number
- ✓Step 5: Sourced the cross-reference bolt, verified the dimensions, spring collar diameter, and bolt travel distance matched the original Thermador specification 1:1
- ✓Step 6: Installed the replacement bolt into the latch housing, seated the spring correctly, and confirmed smooth travel with no binding through the full range of motion
- ✓Step 7: Tested the door switch engagement by slowly closing the door and measuring switch actuation with a multimeter, confirmed clean circuit closure at proper bolt extension
- ✓Step 8: Performed ten consecutive door close cycles, confirmed the latch caught cleanly each time, the door switch triggered correctly, and the door seal made full contact around the entire perimeter. Interior temperature held at 37°F fresh food, 0°F freezer after a 90-minute runtime check.
✓ Result
The door latches and seals perfectly now. After 90 minutes of normal operation, the fresh food section read 37°F and the freezer held at 0°F with no thermal drift from air infiltration. The repair took longer than usual because of the parts research, but finding the cross-reference saved the customer from a costly door assembly replacement or a long wait for a potentially unavailable OEM part. The homeowner in Kemah was genuinely relieved since the unit is a high-capacity 48-inch column and replacing it was not something they wanted to consider.
💡 Technician Notes
Thermador column refrigerators in the T48 series use a high-tension spring in the door latch that places more stress on the bolt than you would expect from a residential unit. On units over eight years old, that bolt is a known wear point. If you start feeling unusual resistance when closing the door, do not force it repeatedly. Forcing it accelerates the fatigue fracture. The early warning sign is a slight grinding or stiff catch before the door seats fully. Lubricate the latch bolt and housing annually with a small amount of food-safe silicone grease to reduce friction and slow metal wear. If the door starts staying open on its own or the interior light does not turn off when the door closes, the bolt has likely already failed or is close to it. Call at that point. Waiting causes the compressor to overwork from the warm air infiltration, and that is a much more expensive fix than a latch bolt.
Frequently Asked Questions
Thermador T48BR820NS02 door won't latch closed, what's wrong?
On the Thermador T48BR820NS02, a door that won't latch is almost always the latch bolt assembly. The high-tension spring in this model fatigues the bolt over time, especially on older units. The bolt can crack or shear at the spring collar. A technician needs to open the housing to confirm, but this is a mechanical failure, not an electrical one.
How much does it cost to fix a broken door latch on a Thermador refrigerator in the Houston area?
A door latch bolt repair on a Thermador in the Houston area typically runs between 180 and 320 dollars depending on parts availability. If the original OEM part is discontinued, as it was on the T48BR820NS02, a technician may need to research cross-reference parts from Whirlpool or KitchenAid, which adds research time but keeps the total cost well below a new door assembly.
What happens if I keep using my Thermador refrigerator with a broken door latch?
If the door does not seal properly because the latch bolt is broken, warm humid air enters the cabinet continuously. The compressor runs longer cycles trying to compensate. Over weeks, that leads to increased energy use, frost accumulation on the evaporator, and accelerated compressor wear. On a Thermador column unit, compressor work is expensive. Fix the latch before it creates a second problem.
Is it worth repairing a Thermador T48BR820NS02 if the door latch part is discontinued?
Yes. A discontinued latch bolt does not mean the repair is impossible. The T48BR820NS02 latch assembly shares its bolt design with Whirlpool, Jenn-Air, and KitchenAid units, so a 1:1 cross-reference part exists. Thermador column refrigerators are built to run 15 to 20 years. A door latch repair extends that life significantly and costs a fraction of a replacement unit.
Can a Whirlpool or KitchenAid latch part really work in a Thermador refrigerator?
Yes, in this case it does. BSH and Whirlpool share certain door latch designs across their brand families, and the bolt geometry on the T48BR820NS02 matches a Whirlpool and KitchenAid variant exactly. I verified spring collar diameter, bolt travel length, and mounting footprint before installation. The cross-reference was confirmed through patent documentation, not guesswork.
Repair Summary
- Brand
- Thermador
- Model
- T48BR820NS02
- Repair Type
- Door Latch Assembly Replacement with Cross-Reference Parts Research
- Refrigerant
- R-134a
- Root Cause
- Spring-fatigued door latch bolt snapped due to age and mechanical stress
- Parts Replaced
- ✓Door latch bolt assembly, cross-referenced from Whirlpool/Jenn-Air/KitchenAid OEM part number, geometrically identical 1:1 replacement for the discontinued Thermador original
- Location
- Kemah, TX 77565
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Kemah and surrounding areas.
View Kemah Service Area →📸 Repair Photos

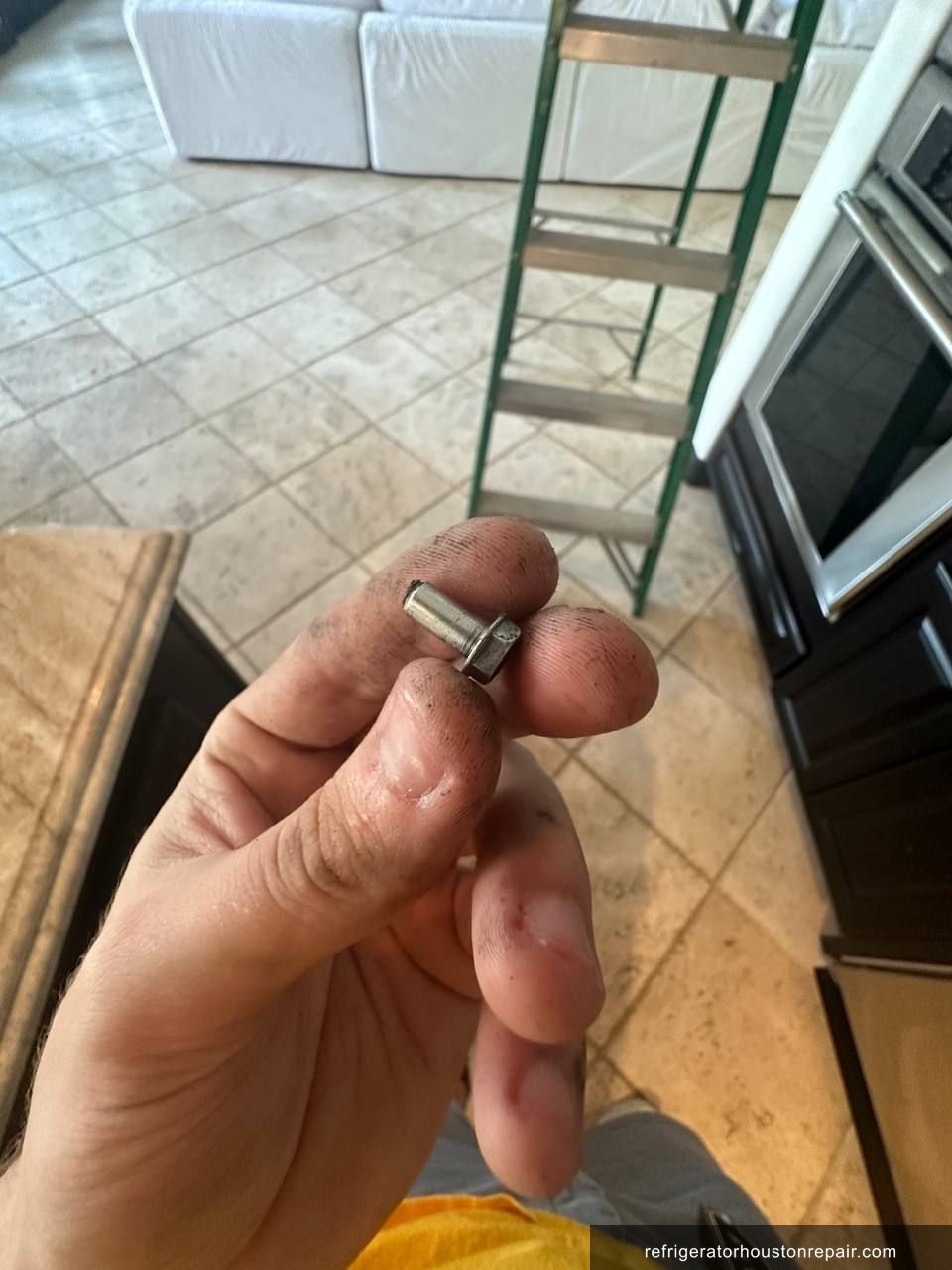

Thermador T48BR820NS02 repair in Kemah, TX — photo 3
