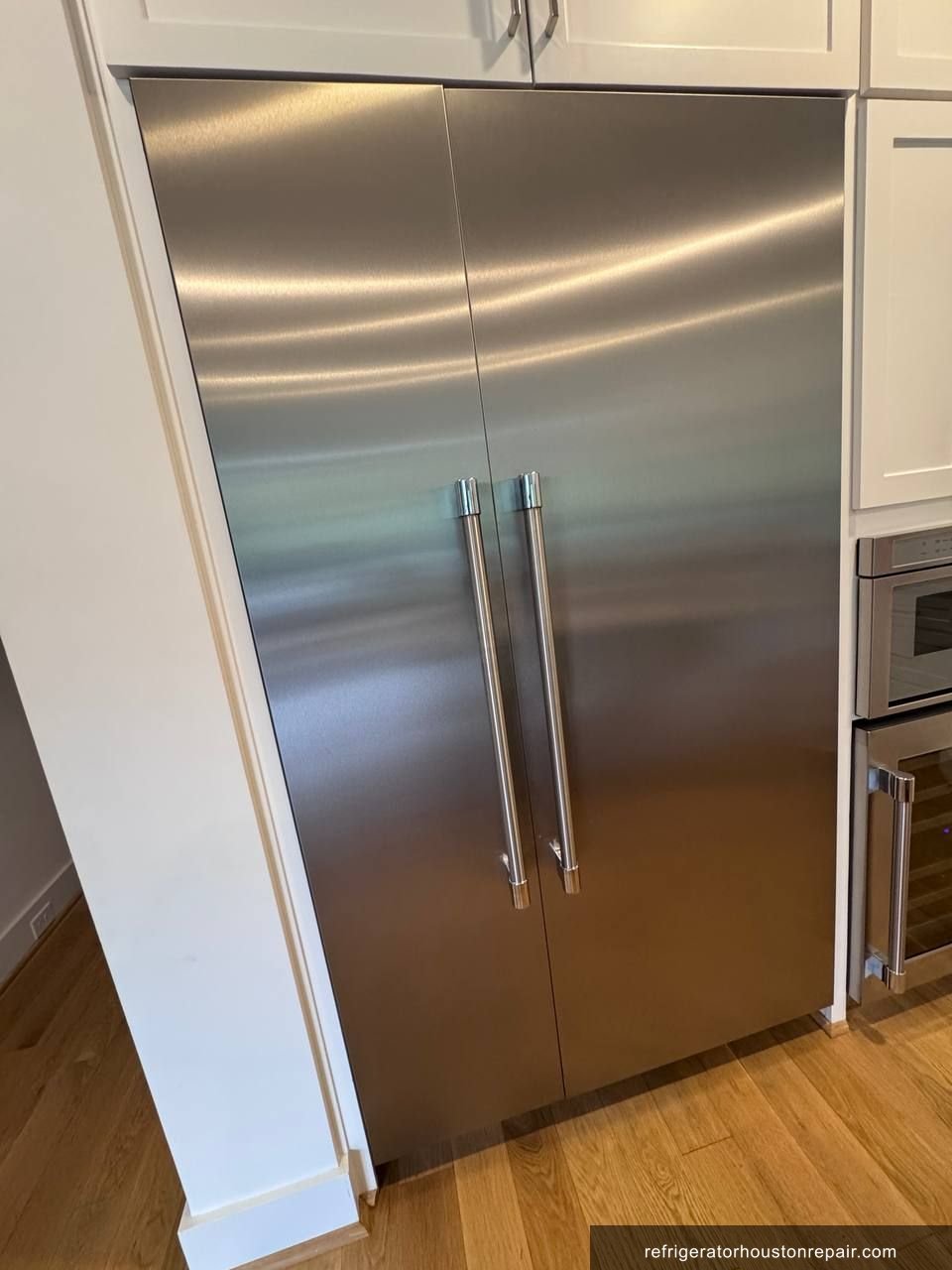

Thermador T30IR901SP: Flipper Damper and Evaporator Fan Replacement in Memorial, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Loud repetitive cracking and clicking noise coming from the refrigerator section
- •Fresh food compartment reading 40-42°F instead of the set 35-36°F
- •Noise stopped briefly then resumed, indicating a motor cycling against a mechanical obstruction
🔍 Diagnosis
When I arrived at the Memorial home, the Thermador T30IR901SP was making a persistent cracking noise from the fresh food section. The cabinet temperature was sitting at 41°F. The customer had the unit set to 35°F and said the noise started a few weeks before the temperature drift became noticeable. I pulled the rear panel inside the refrigerator compartment and immediately identified the source. The flipper damper assembly, which on this Thermador model is integrated into a single unit with the evaporator fan, was stuck in a partially open position. The small damper motor was cycling repeatedly, trying to open or close the flapper blade, and that mechanical struggle was generating the cracking sound. I also found an enormous block of ice covering the evaporator coil and extending down into the drain channel below it. I tested the evaporator heater and got approximately 60 ohms resistance, which is within spec for this unit. The drain heater read around 600 ohms, also normal. The thermal fuse tested continuous. Everything in the defrost circuit checked out electrically. The ice accumulation was a structural problem, not an electrical one. On this Thermador design, ice that builds up on the evaporator over years migrates downward into the drain trough where the drain heater, rated for a lighter load, cannot melt it. That ice block was physically jamming the damper flapper and forcing the motor to fight it.
🔧 The Repair
- ✓Step 1: Confirmed cabinet temperature at 41°F with calibrated digital thermometer and documented the cracking noise pattern before beginning disassembly.
- ✓Step 2: Removed all food from the fresh food compartment and powered down the unit at the wall outlet.

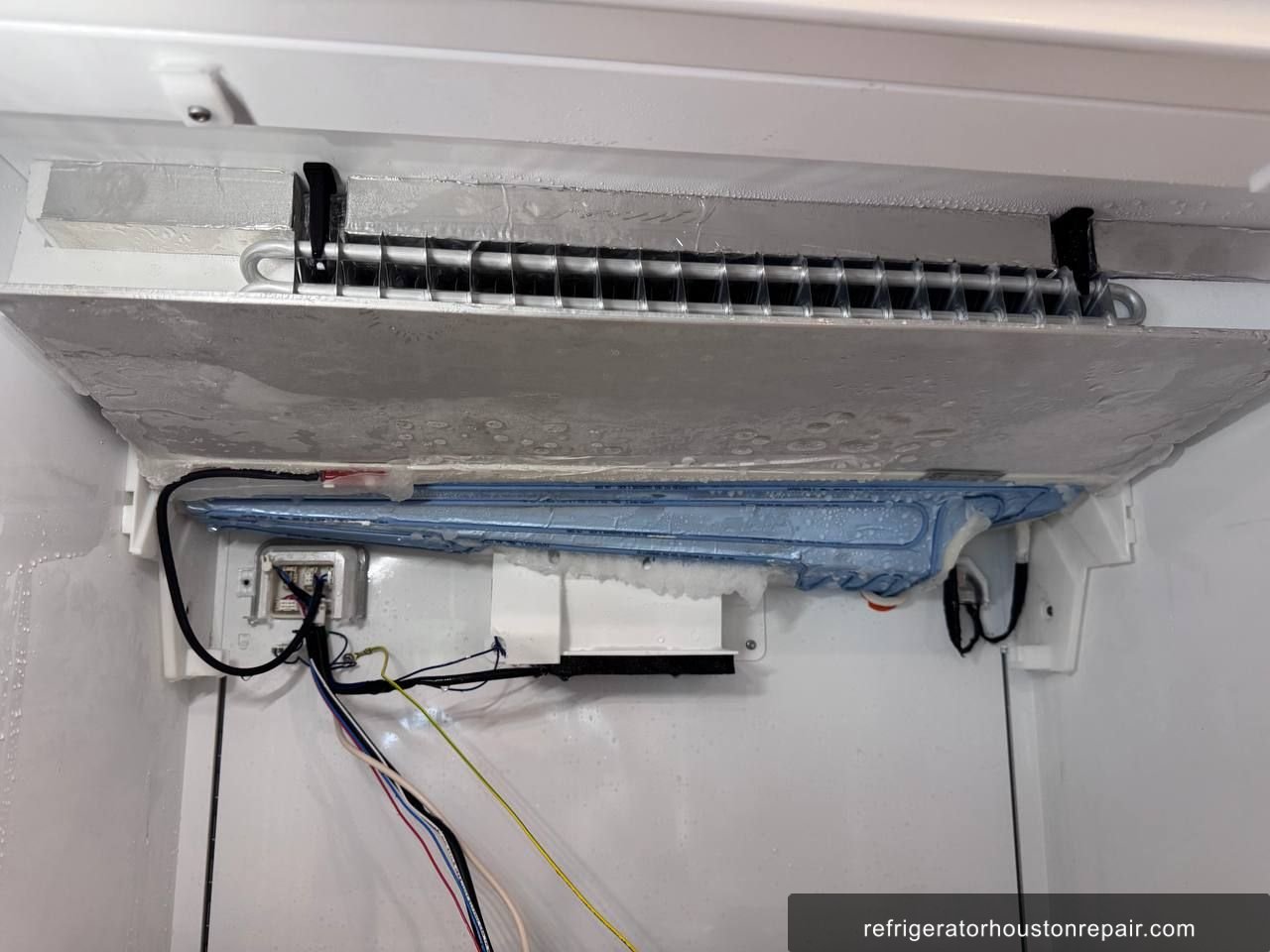

- ✓Step 3: Removed the interior rear panel of the refrigerator section to expose the evaporator fan and damper assembly on the Thermador T30IR901SP.
- ✓Step 4: Confirmed the flipper damper was seized. The damper blade and surrounding housing were encased in a solid block of ice extending from the evaporator coil into the drain pan area below.
- ✓Step 5: Tested the evaporator heater resistance at approximately 60 ohms and the drain heater at approximately 600 ohms. Both readings are within normal range for this model. Tested the thermal fuse for continuity and confirmed it intact.

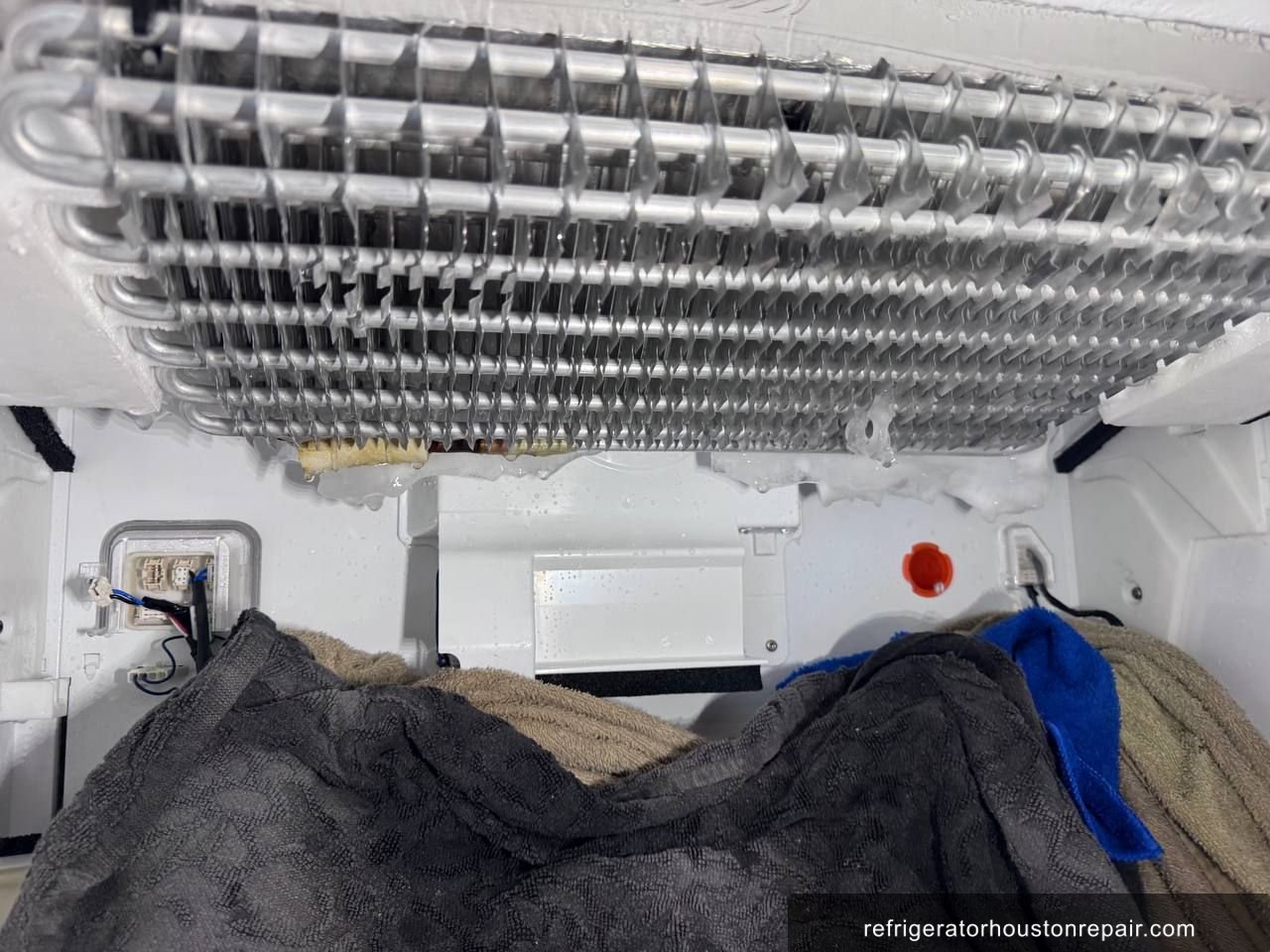

- ✓Step 6: Used two commercial steam guns to manually defrost the evaporator assembly. This process took close to two hours because the ice mass was substantial, extending well beyond the coil into the lower drain section. Removed all melt water with towels and a wet vacuum.
- ✓Step 7: Disconnected the wiring harness from the integrated fan and damper assembly. Removed the mounting screws and extracted the complete unit. On the T30IR901SP, the evaporator fan motor and the flipper damper are one combined part and they are replaced together.
- ✓Step 8: Installed the new OEM flipper damper and fan assembly, secured the mounting hardware, reconnected the wiring harness, and reinstalled the rear interior panel.
- ✓Step 9: Powered the unit on and monitored for two hours. Confirmed no cracking or clicking noise. Fresh food compartment reached 36°F. Drain flow tested clear after a forced defrost cycle.
✓ Result
After two hours of runtime the T30IR901SP in Memorial was holding 36°F in the fresh food section with no noise. The damper opened and closed silently on command. The customer was relieved because the refrigerator is stocked with premium groceries and was close to crossing into unsafe food temperature territory. The repair took most of the day, largely because of the ice removal, but the unit left in solid working condition. A 90-day labor warranty was provided on the repair.
💡 Technician Notes
On Thermador column refrigerators like the T30IR901SP, the early warning sign for this specific failure is a faint intermittent clicking from the fresh food section that appears and disappears over days or weeks before it becomes constant. Most owners dismiss it as normal. It is not. That sound is the damper motor fighting a partial ice obstruction. The maintenance action that prevents this from becoming a major repair is a manual defrost of the evaporator cavity every four to five years. This is a design characteristic of this Thermador platform. The drain heater handles normal daily frost load well, but it is not rated to clear years of accumulated ice that migrates from the evaporator into the drain trough. If you hear clicking from the fresh food section and your temperature starts drifting above 38°F, call a technician immediately. Waiting weeks turns a fan replacement into a multi-hour defrost job and drives up the labor cost significantly on a refrigerator that already cost ten to twelve thousand dollars new.
Frequently Asked Questions
Why is my Thermador T30IR901SP making a cracking or clicking noise from the refrigerator side?
On the Thermador T30IR901SP, that cracking noise almost always comes from the flipper damper assembly. The damper blade and the evaporator fan are one integrated part on this model. When ice accumulates around the evaporator and drain trough over time, it physically blocks the damper, and the small motor inside keeps trying to cycle it open and closed. That mechanical struggle makes the cracking sound you hear.
How much does it cost to repair a stuck damper and fan assembly on a Thermador column refrigerator in Houston?
For a Thermador T30IR901SP with a seized flipper damper and significant ice buildup, expect to pay between $700 and $1,100 in the Houston area. The part itself is moderate in cost, but if there is heavy ice accumulation around the evaporator, manual defrost work adds several hours of labor. The more you delay after the noise starts, the more ice accumulates and the higher the labor cost.
What happens if I ignore the clicking noise in my Thermador refrigerator and don't get it repaired?
If you leave the damper motor cycling against a blockage on the Thermador T30IR901SP, two things happen. First, the motor burns out completely, and the damper stops moving at all. Second, airflow to the fresh food section becomes unregulated, and temperatures drift above 40°F. At that point food safety becomes a real concern, and the repair cost increases because you are replacing additional components and clearing a larger ice mass.
Is it worth repairing a Thermador T30IR901SP refrigerator or should I replace it?
A Thermador T30IR901SP is a column refrigerator that sells for ten to twelve thousand dollars new. A damper and fan replacement, even with extensive defrost work, costs a fraction of that. Unless the sealed system or compressor has failed, repair is almost always the right call on this appliance. The platform is built to last, and this specific ice buildup issue is a maintenance problem, not a sign that the refrigerator is failing overall.
Why did so much ice build up around my Thermador evaporator even though the defrost heaters tested good?
This is a design characteristic of the Thermador T30IR901SP. The evaporator heater at around 60 ohms and the drain heater at around 600 ohms both function correctly for routine daily defrost cycles. What they are not sized to handle is years of gradual ice accumulation that migrates from the coil into the lower drain trough. The drain heater output is too low to melt that secondary ice mass. This is why a manual deep defrost every four to five years is recommended on this platform.
Repair Summary
- Brand
- Thermador
- Model
- T30IR901SP
- Repair Type
- Evaporator Fan and Flipper Damper Assembly Replacement with Manual Defrost
- Refrigerant
- R-134a
- Root Cause
- Seized flipper damper motor straining against frozen evaporator assembly
- Parts Replaced
- ✓Integrated flipper damper and evaporator fan assembly (Thermador OEM, compatible with T30IR901SP)
- Location
- Memorial, TX 77055
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Memorial and surrounding areas.
View Memorial Service Area →📸 Repair Photos
Thermador T30IR901SP repair in Memorial, TX — photo 3

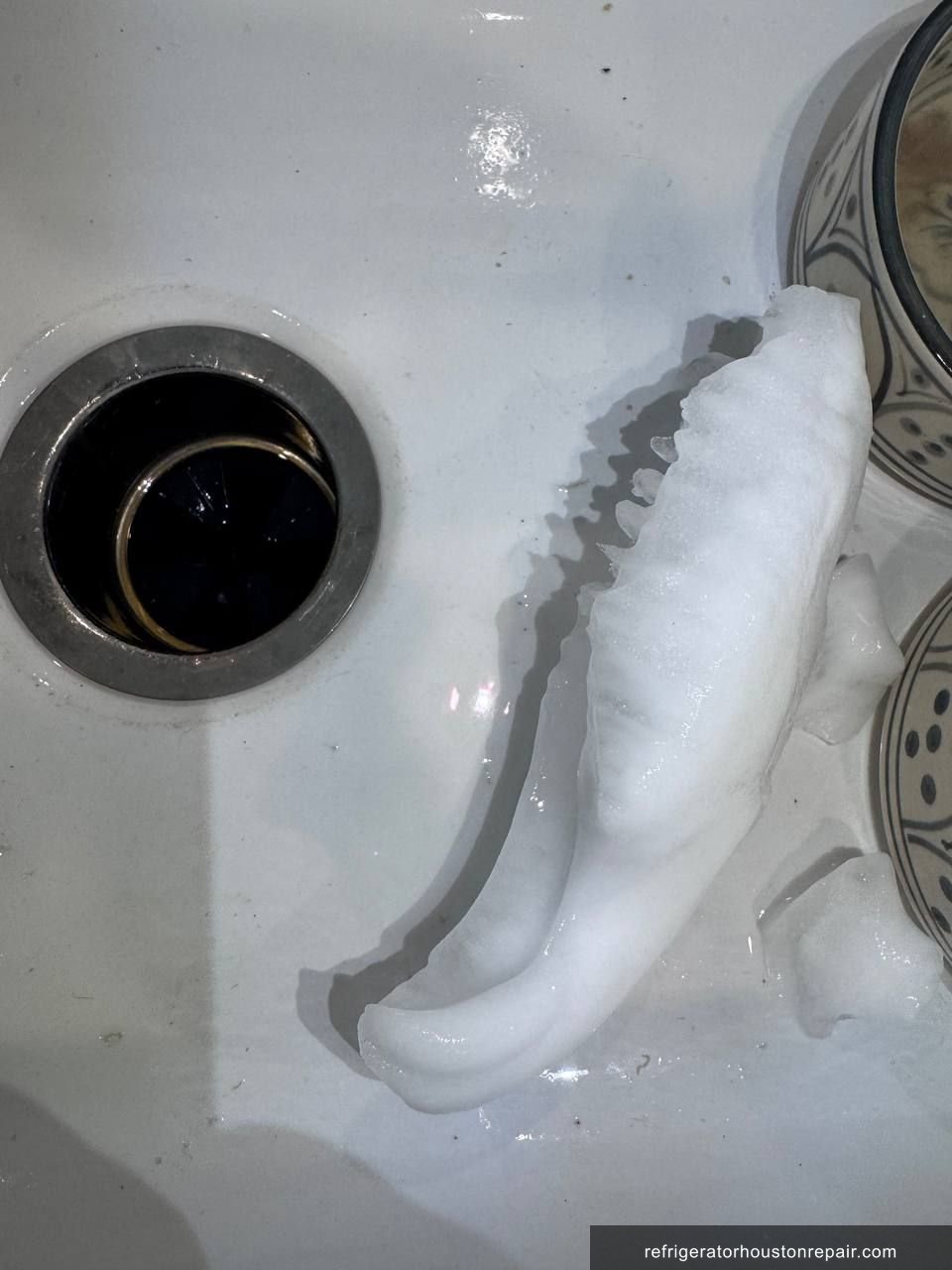

Thermador T30IR901SP repair in Memorial, TX — photo 4

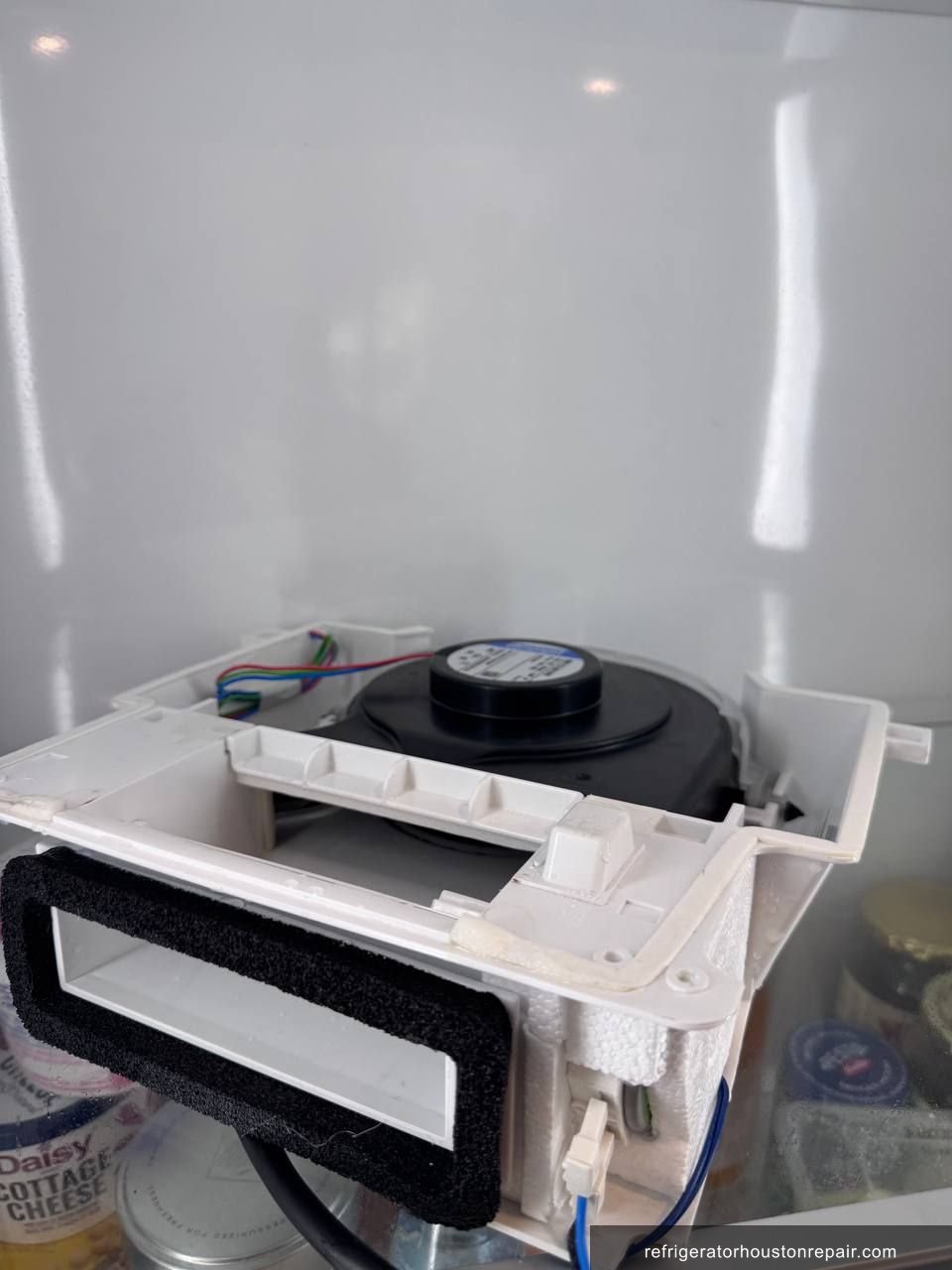

Thermador T30IR901SP repair in Memorial, TX — photo 5
