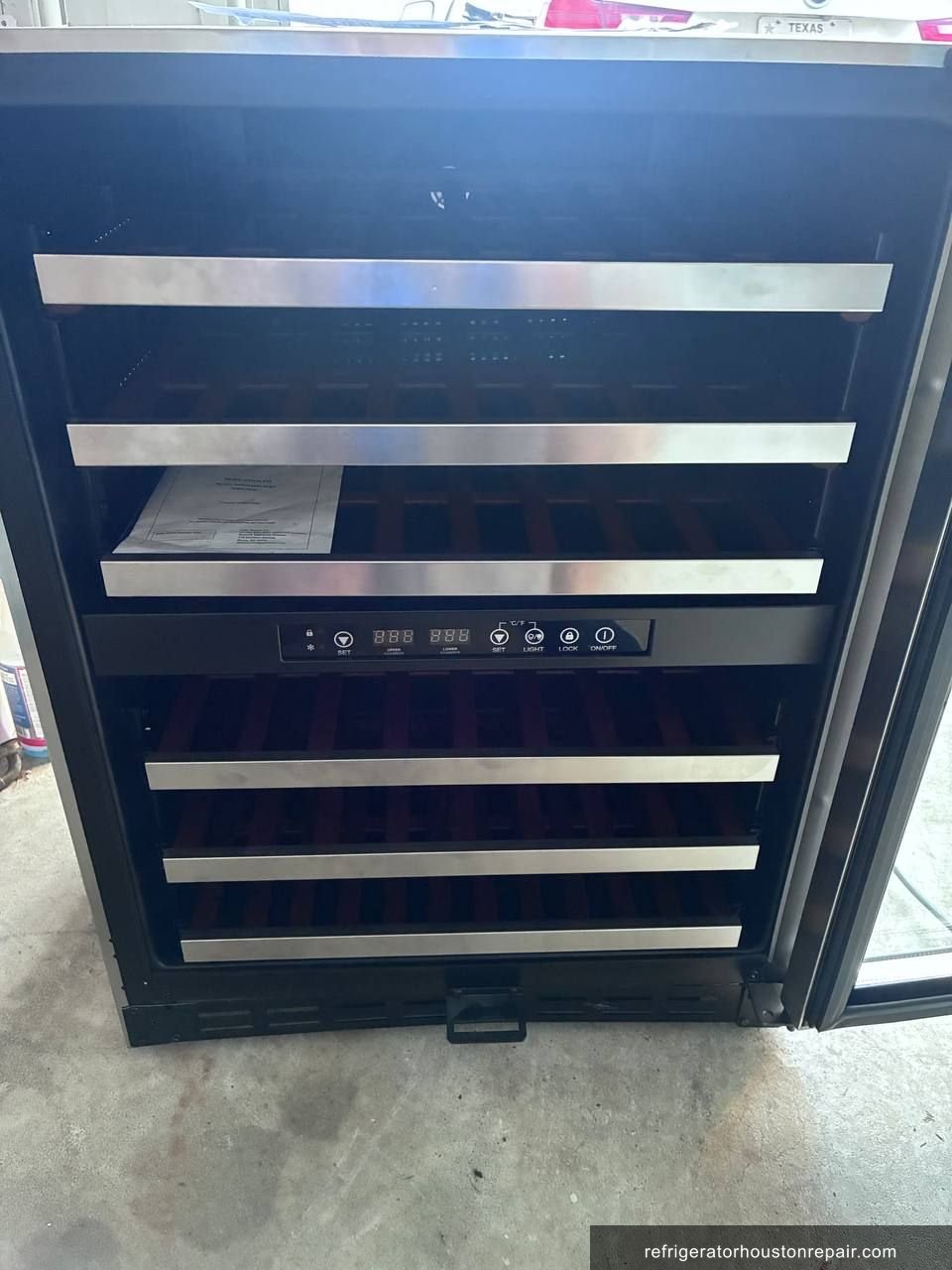

Summit SWC530BLBIST: Refrigerant Leak from Evaporator Coil in The Woodlands, TX
📞 Call (346) 512-3688🔧 Performed by Alex Z.
The Problem
- •Wine cooler interior temperature rose to 75°F and stayed there regardless of thermostat setting
- •No cooling at all — compressor running but no cold air circulating inside the cabinet
- •Sealed system showed zero pressure when the unit was powered off, indicating a full refrigerant loss
🔍 Diagnosis
When I arrived at the home in The Woodlands, the Summit SWC530BLBIST wine cooler was running but not cooling. The internal temperature read 75°F, which matched the ambient room temperature. The compressor was cycling, but nothing was happening inside the cabinet. I installed a service valve on the compressor access port to check sealed system pressure. With the unit off, the gauge read zero psi. A properly charged R-600a system on this model should hold static pressure in the range of 30 to 50 psi at room temperature. Zero pressure told me the refrigerant charge of 1.23 oz had fully escaped. To locate the leak source, I introduced dry nitrogen at 120 psi into the sealed system. I then worked through the system methodically with leak detection solution. The evaporator coil showed active bubbling at one of the coil bends, confirming a pinhole leak in the aluminum evaporator. On Summit wine coolers in this model series, the thin-walled aluminum evaporator coils are known to develop stress corrosion at the bends, especially in humid Gulf Coast environments where condensation is persistent. The coil wall had thinned and cracked. Patching was not an option. The coil needed full replacement. I ordered the OEM-spec evaporator and returned four days later once the part arrived.
🔧 The Repair
- ✓Step 1: Installed a service valve on the compressor low-side port and confirmed zero system pressure with manifold gauges, establishing that the full R-600a charge of 1.23 oz had leaked out.
- ✓Step 2: Pressurized the sealed system with dry nitrogen to 120 psi to perform a leak search throughout all accessible system components.
- ✓Step 3: Applied leak detection solution to all coil bends, joints, and brazed connections. Identified active bubbling at a pinhole in the evaporator coil bend, confirming the leak origin.
- ✓Step 4: Released nitrogen pressure from the system completely and documented coil location and routing before beginning disassembly.

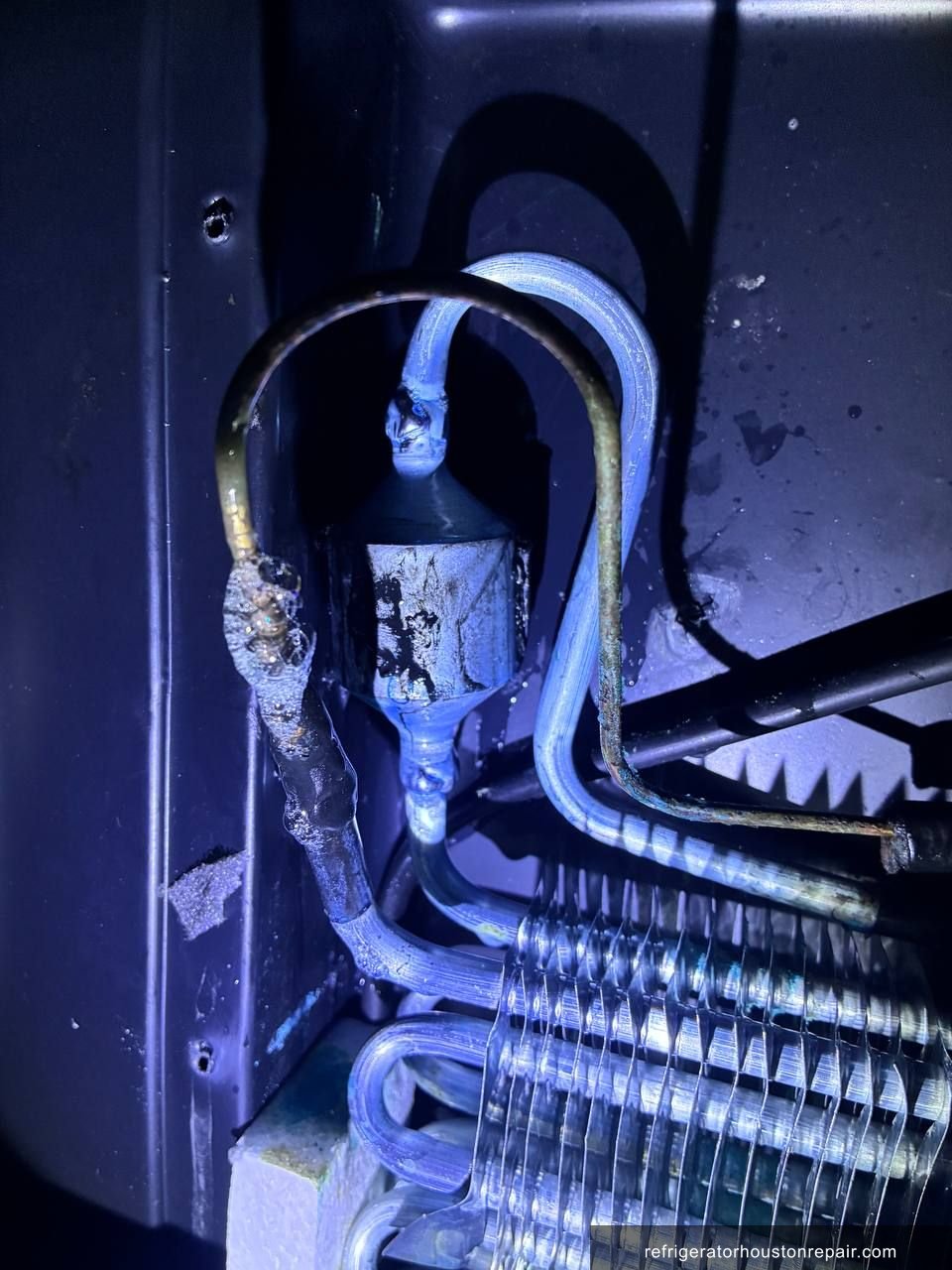

- ✓Step 5: Removed the interior back panel of the SWC530BLBIST cabinet to access the evaporator assembly. Disconnected the failed aluminum evaporator coil from both the capillary tube inlet and suction line outlet.
- ✓Step 6: Installed the new OEM-spec evaporator coil, brazing all connections with silver alloy filler under nitrogen purge to prevent internal oxidation scale.
- ✓Step 7: Pressure-tested the repaired sealed system with nitrogen at 120 psi for 30 minutes. No pressure drop detected. Pulled a deep vacuum to below 250 microns and held for 20 minutes to confirm system integrity before charging.

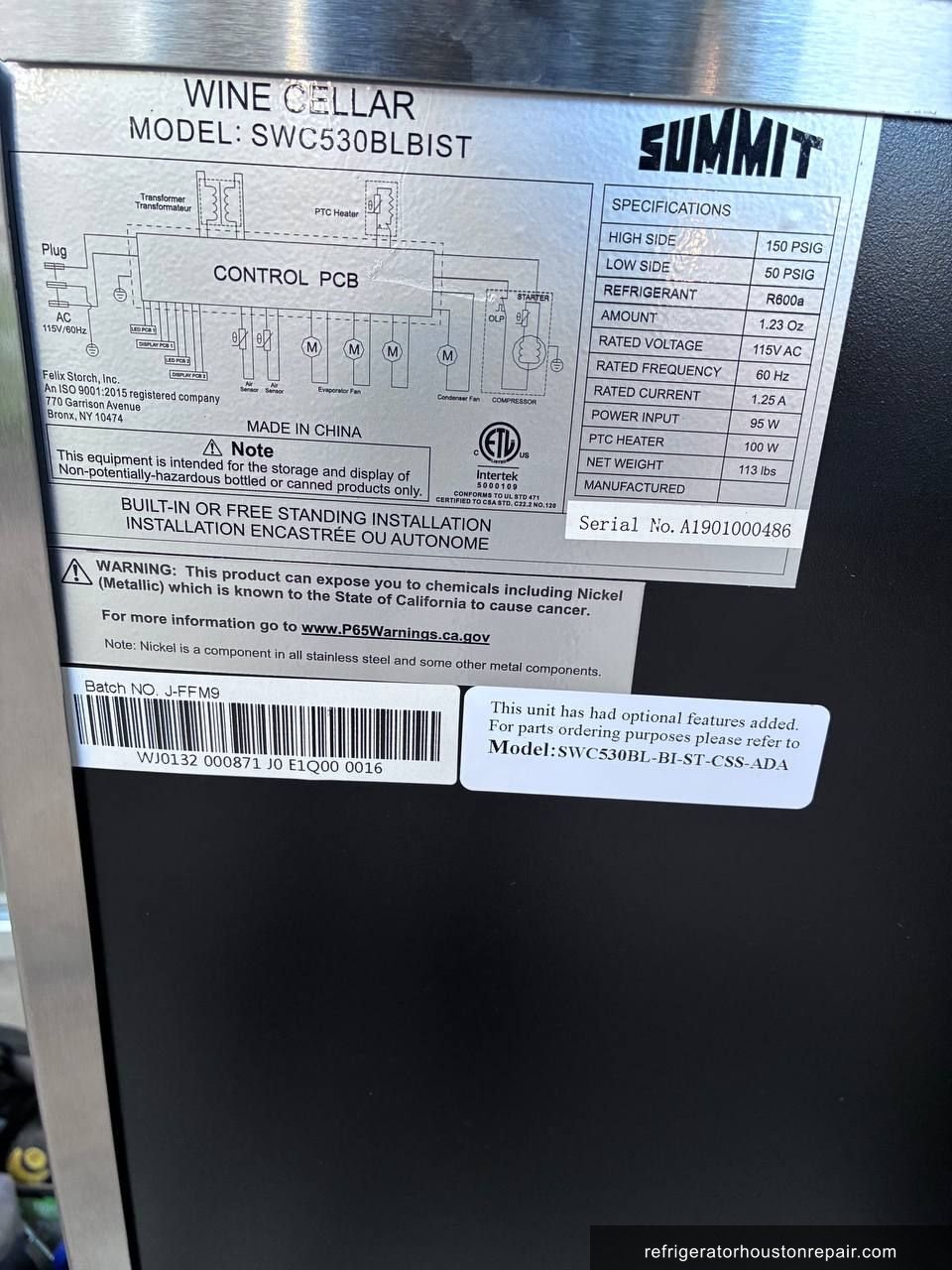

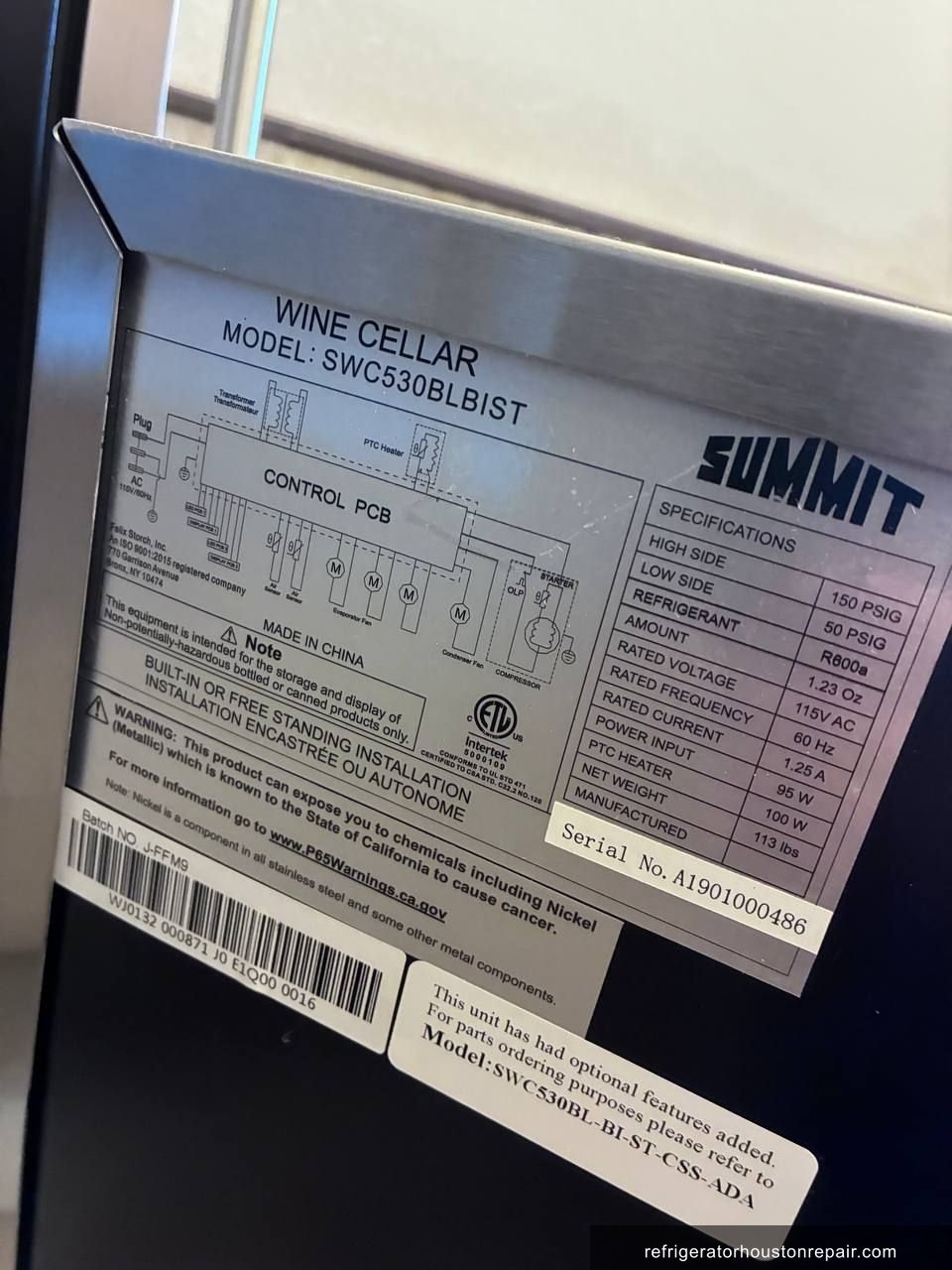

- ✓Step 8: Charged the system with exactly 1.23 oz of R-600a per the label specification using a calibrated charging cylinder. After a 90-minute runtime, interior cabinet temperature reached 54°F and continued dropping steadily toward the set point of 50°F, confirming full system operation.
✓ Result
After the new evaporator was installed and the system was recharged with 1.23 oz of R-600a, the Summit SWC530BLBIST reached 54°F within 90 minutes of startup and continued cooling toward the owner's set point of 50°F. The total repair took four days from first visit to final fix, with the delay being part lead time. The homeowner in The Woodlands 77382 had a collection of about 40 bottles stored at room temperature during that window. They were relieved everything was salvageable and the cooler was back to proper wine storage temperature.
💡 Technician Notes
Summit wine coolers in the SWC530 series use thin-wall aluminum evaporator coils that are more vulnerable to stress corrosion than copper alternatives. In The Woodlands and across the Houston area, high ambient humidity accelerates this process. If you notice your SWC530BLBIST running continuously but the interior temperature drifting upward over several weeks, that is the early warning sign of a slow refrigerant leak at the evaporator. Do not ignore gradual temperature drift on a wine cooler. A 5 to 10 degree rise in cabinet temperature over a month points directly to refrigerant loss. One maintenance step that slows this failure: keep the condenser coils at the back of the unit clean and free of dust. Dirty condensers raise system head pressure and put more stress on the entire sealed system, including the evaporator welds. If the cabinet temperature climbs above 65°F, call immediately. R-600a is isobutane and should only be handled by a certified technician. Do not attempt to recharge this system yourself.
Frequently Asked Questions
Why did my Summit SWC530BLBIST wine cooler stop cooling completely?
The most common reason a Summit SWC530BLBIST loses all cooling is a refrigerant leak in the sealed system, usually at the evaporator coil. When R-600a escapes, the compressor runs but cannot transfer heat, so the cabinet climbs to room temperature. A technician needs to pressure-test the system with nitrogen to locate the exact leak point before any repair begins.
How much does it cost to repair a refrigerant leak on a Summit wine cooler in The Woodlands?
An evaporator coil replacement on a Summit SWC530BLBIST in the Houston area, including parts, labor, nitrogen pressure testing, and R-600a recharge, typically runs between $350 and $550 depending on part availability. The repair on this unit took four days total, mostly waiting for the evaporator part to arrive. Labor time on-site across both visits was about three hours.
What happens if I keep running my Summit wine cooler after it stops cooling?
Running the SWC530BLBIST with an empty sealed system does not damage the compressor immediately, but it causes the compressor to cycle without load, which shortens its service life over time. The bigger risk is to your wine collection. Once the cabinet holds 65°F or higher for more than 24 hours, temperature-sensitive wines start to degrade. Do not leave the unit running without refrigerant for more than a day or two.
Is it worth repairing a Summit SWC530BLBIST with an evaporator leak or should I replace it?
If the compressor is healthy and the rest of the cabinet is in good shape, repairing the evaporator leak is worth it. The SWC530BLBIST retails above $1,000 new, and a sealed system repair typically costs less than half that. Replacement only makes more sense if the compressor has also failed or if the unit is more than 12 years old and showing multiple issues at once.
Why does the Summit SWC530BLBIST use R-600a refrigerant and is it safe?
The Summit SWC530BLBIST uses R-600a, which is isobutane, a natural refrigerant with very low global warming potential. It is used in small-charge systems like wine coolers because it is efficient at low pressures. The charge in this unit is only 1.23 oz, which is a small amount. R-600a is flammable, so any sealed system work must be done by a certified technician in a ventilated space away from ignition sources.
Repair Summary
- Brand
- Summit
- Model
- SWC530BLBIST
- Repair Type
- Evaporator Coil Replacement / Sealed System Refrigerant Leak Repair
- Refrigerant
- R-600a
- Root Cause
- Evaporator coil refrigerant leak causing complete pressure loss
- Parts Replaced
- ✓Evaporator coil assembly, OEM-spec aluminum replacement for Summit SWC530BLBIST
- ✓R-600a refrigerant, 1.23 oz per label specification
- Location
- The Woodlands, TX 77382
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in The Woodlands and surrounding areas.
View The Woodlands Service Area →📸 Repair Photos

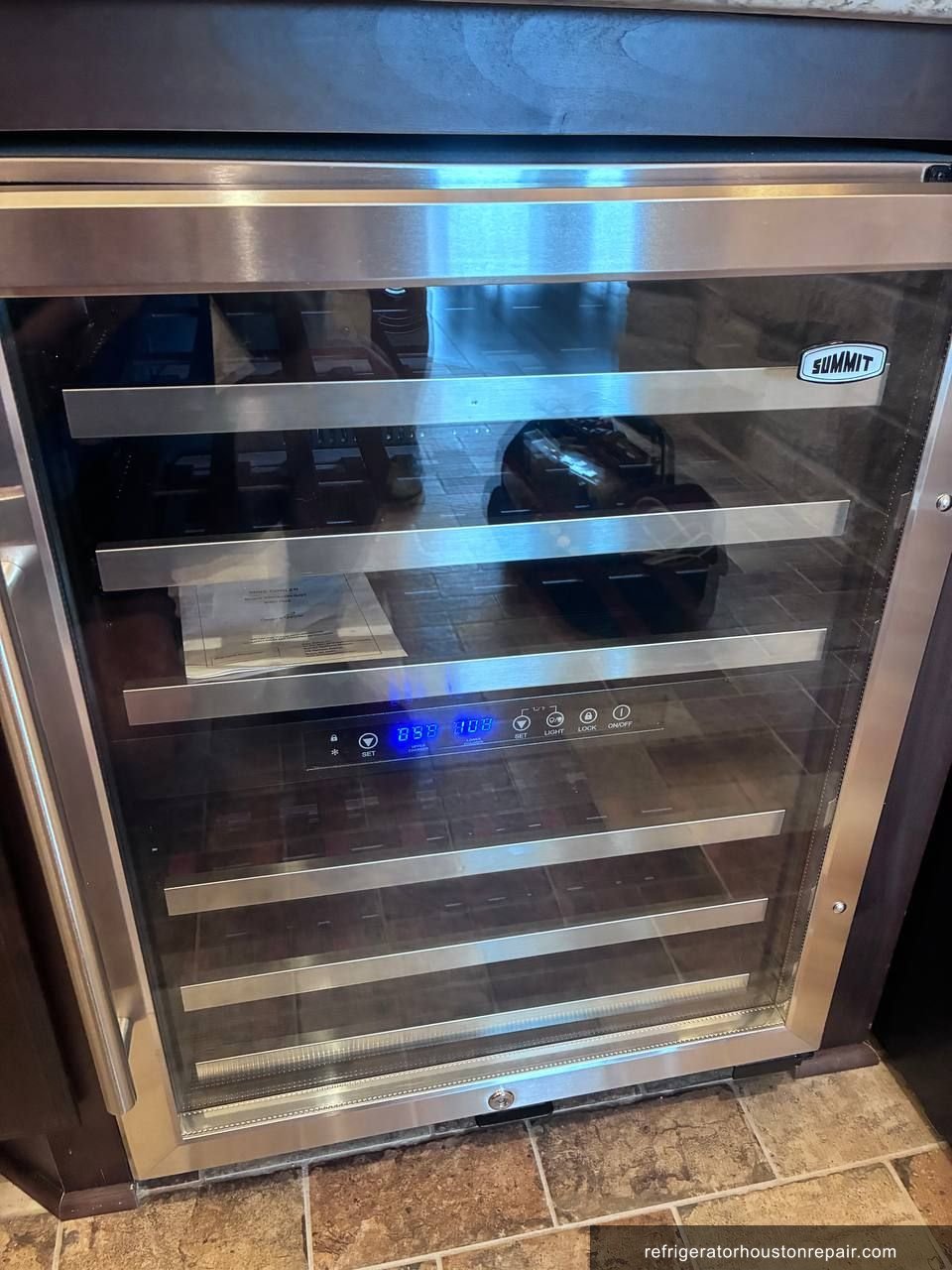

Summit SWC530BLBIST repair in The Woodlands, TX — photo 3
