Sub-Zero BI-48SD/PH: Clogged Drain Line & Neglected Condenser in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Water pooling on the floor of the fresh food compartment, especially toward the back wall
- •Unusual musty odor inside the refrigerator cabinet, noticeable when opening the fresh food door
- •Refrigerator running longer cycles than usual — audible compressor runtime increased noticeably
- •Water occasionally visible beneath the unit on the kitchen floor near the toe kick panel
🔍 Diagnosis
On arrival at the Bellaire-area home in ZIP 77401, the technician opened the fresh food section and immediately detected a musty, organic odor — a reliable indicator of standing water and biological growth in the drain system. The back wall of the fresh food compartment showed moisture streaking, and a small amount of standing water had collected at the base of the liner. The drain opening at the bottom of the evaporator cover was probed and found to be completely obstructed. Upon clearing access to the drain line, the technician found not just a standard debris clog, but active mold and fungal growth colonizing the drain tube — a result of years of accumulated food particles, condensate, and Houston's ambient humidity creating ideal conditions for biological growth. On the Sub-Zero BI-48SD/PH, the drain line routes through the cabinet floor to an evaporation pan near the condenser. With the pan area inspected, the condenser coil — accessible via the front toe grille on this built-in model — was found entirely coated in a dense layer of dust and pet hair, effectively insulating the coil and forcing the compressor to run extended cycles. A review of the installation date confirmed the unit had been operating since 2018 with no recorded maintenance. The R-134a system pressures were within normal range, ruling out any refrigerant or sealed-system fault. The root cause was purely mechanical: total drain blockage and severely compromised condenser efficiency from six consecutive years of deferred maintenance.
🔧 The Repair

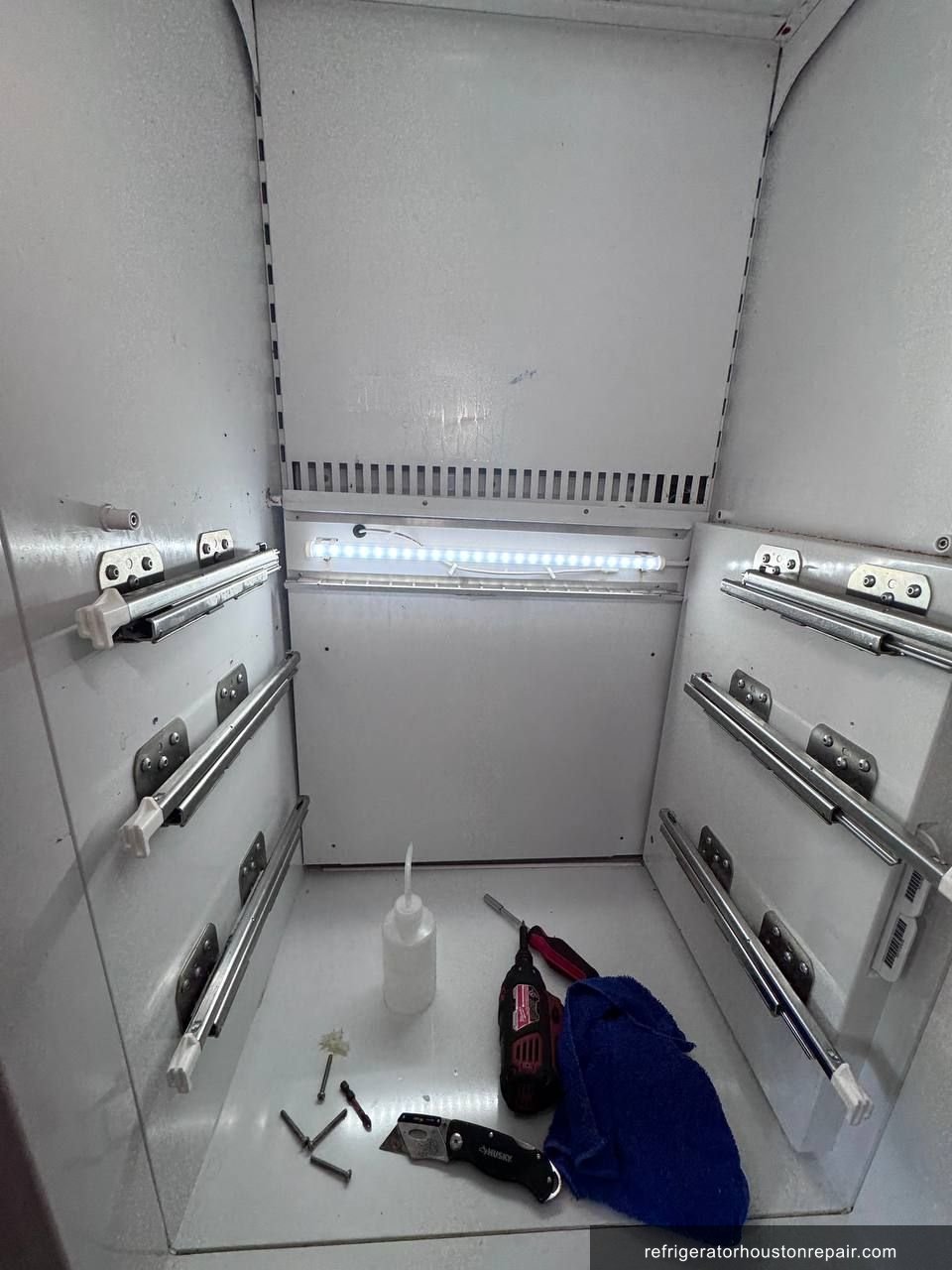

- ✓Step 1: Removed the fresh food compartment rear evaporator cover panel to expose the drain opening and confirm full obstruction of the drain line.
- ✓Step 2: Flushed the drain line using a pressurized hot water and diluted white vinegar solution to begin breaking down the mold and organic blockage.
- ✓Step 3: Used a flexible drain snake to mechanically clear the remaining compacted debris from the drain tube, extracting the fungal growth that had taken hold inside the line.
- ✓Step 4: Applied an EPA-approved antimicrobial solution to the drain tube, evaporator drain pan, and surrounding liner surfaces to eliminate remaining mold spores and prevent recurrence.

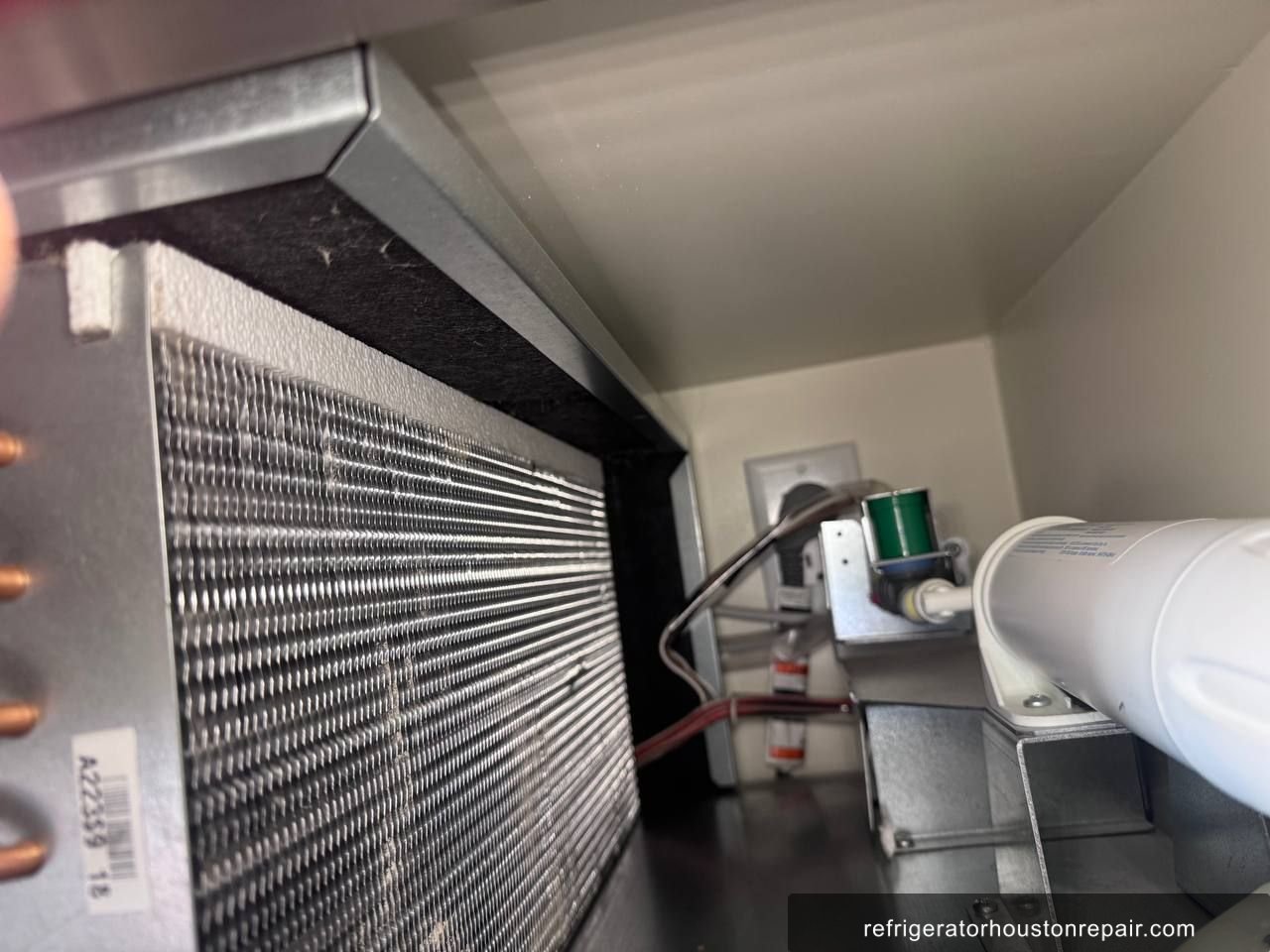

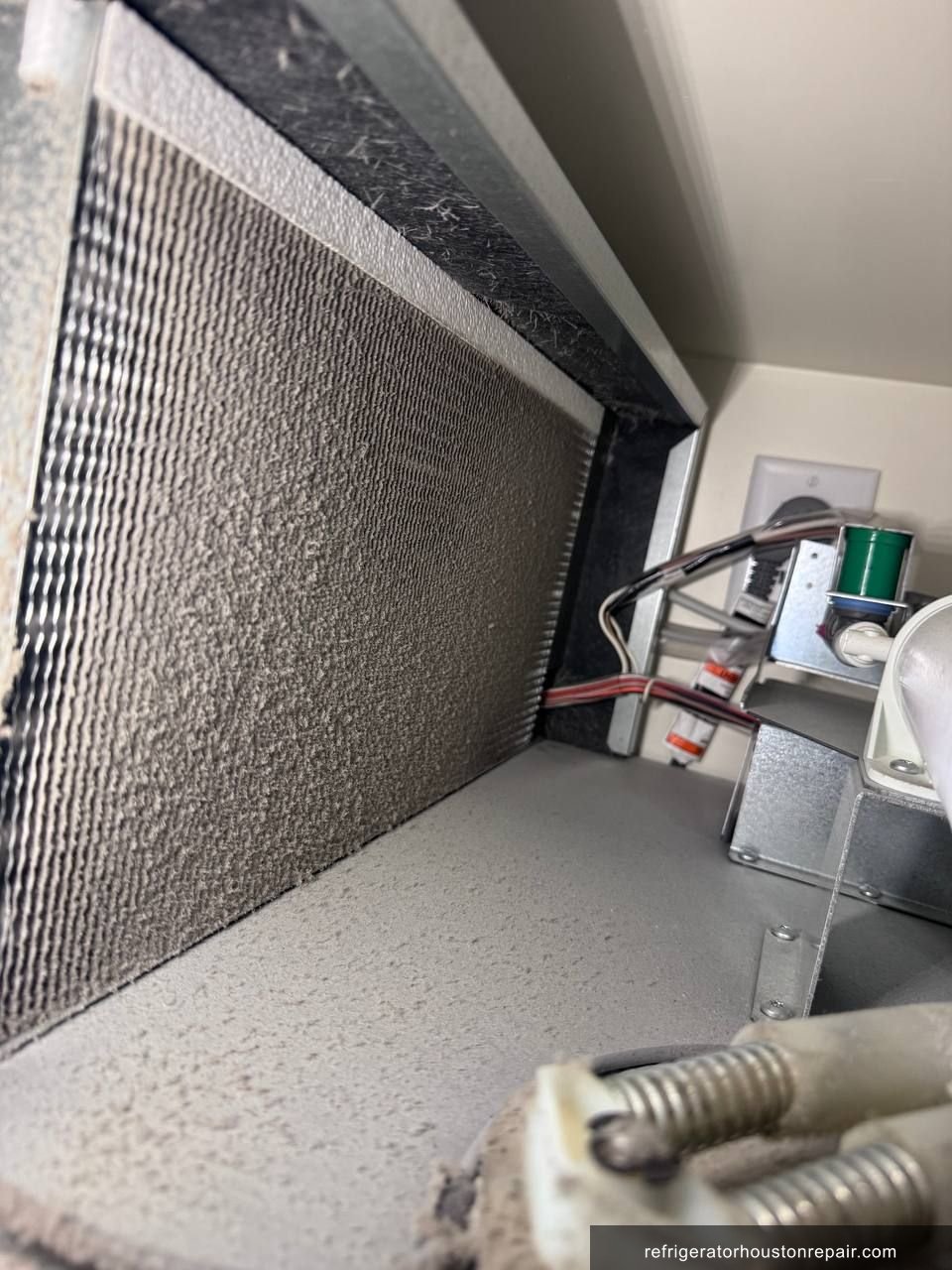

- ✓Step 5: Removed the front toe kick grille to access the condenser coil compartment on the BI-48SD/PH and used a Ridgid commercial coil brush and shop vacuum to remove the full layer of dust and compacted debris from the condenser coil fins.
- ✓Step 6: Wiped down the condensate evaporation tray near the condenser and verified the drain line exit point was clear and draining freely into the tray.
- ✓Step 7: Replaced the internal water filter (Sub-Zero part compatible with the BI-48SD/PH inline filter housing) — the existing filter was long past its 12-month replacement interval.
- ✓Step 8: Powered the unit through a full cycle and verified operation after a 2-hour runtime. Fresh food compartment stabilized at 37°F, freezer section held at 0°F, and no moisture accumulation observed at the drain area. Condenser fan airflow confirmed strong and unobstructed.
✓ Result
After the drain line was cleared, the antimicrobial treatment applied, and the condenser coil fully cleaned, the BI-48SD/PH returned to proper operating temperatures within two hours — fresh food section at 37°F, freezer at 0°F. The compressor cycle length normalized noticeably. The homeowner in the Bellaire area commented that the musty smell they had dismissed for months was gone immediately. Relieved that no sealed system damage had occurred, the client signed an annual maintenance contract to ensure the unit never reaches this state again.
💡 Technician Notes
Sub-Zero built-in refrigerators like the BI-48SD/PH are engineered to last 20+ years — but that longevity depends entirely on regular maintenance that most owners never perform. The earliest warning sign unique to drain line failure on this model is a faint musty smell in the fresh food section before any visible water appears. By the time water is pooling on the floor liner, the blockage has usually been developing for 6–12 months. Houston's humidity accelerates mold growth in drain lines significantly compared to drier climates — what takes two years to clog in Denver can clog in one year here. The condenser coil on the BI-48SD/PH sits behind the front toe grille and should be vacuumed every 6 months in homes with pets or carpet. A clogged condenser doesn't just waste energy — it raises head pressure, shortens compressor life, and can eventually trigger thermal overload shutdowns. Schedule professional maintenance annually. Don't wait for a symptom.
Frequently Asked Questions
Why is my Sub-Zero BI-48SD refrigerator leaking water inside the fresh food section?
Water pooling inside the fresh food compartment on the Sub-Zero BI-48SD/PH is almost always caused by a blocked drain line. Condensation that forms on the evaporator coil normally drains through a tube to an evaporation pan near the condenser. When that line clogs — especially in humid Houston conditions — water backs up and collects at the base of the fresh food liner.
How much does it cost to clean the drain line and condenser on a Sub-Zero refrigerator in Houston?
A full maintenance service on a Sub-Zero built-in — covering drain line clearing, condenser coil cleaning, and water filter replacement — typically runs between $250 and $450 in the Houston area, depending on the severity of the blockage and the model. If mold remediation is required inside the drain system, expect the higher end of that range. Annual maintenance contracts bring that cost down significantly per visit.
What happens if I ignore a clogged drain line on my Sub-Zero refrigerator?
Left unaddressed, a clogged drain on the BI-48SD/PH leads to mold and fungal growth inside the drain tube, water damage to the cabinet floor and surrounding cabinetry, and eventually moisture reaching electrical components. The compressor also runs harder to compensate for the warm, humid interior — accelerating wear. What starts as a $300 drain cleaning can become a $1,500+ repair if ignored past the first symptoms.
Is it worth repairing a Sub-Zero BI-48SD from 2018, or should I replace it?
A 2018 Sub-Zero BI-48SD/PH is only about six years old — well within the expected 20-year lifespan of this product line. Unless the sealed refrigerant system or compressor has failed, repair and maintenance on a unit this age is almost always the right financial decision. Sub-Zero parts remain supported, and the cost of a full maintenance service is a fraction of the $10,000+ replacement cost for a comparable built-in unit.
How often should the condenser coil be cleaned on a Sub-Zero built-in refrigerator?
Sub-Zero recommends cleaning the condenser coil every 12 months under normal conditions — but in Houston homes with pets, carpet, or high dust levels, every 6 months is more realistic. On the BI-48SD/PH, the condenser is accessible from the front behind the toe kick grille, making it straightforward to service. A clogged condenser forces the R-134a system to run at higher head pressures, reducing efficiency and stressing the compressor over time.
Repair Summary
- Brand
- Sub-Zero
- Model
- BI-48SD/PH
- Repair Type
- Drain Line Cleaning / Condenser Coil Service / Water Filter Replacement
- Refrigerant
- R-134a
- Root Cause
- Completely blocked drain line with mold growth and dust-packed condenser coil from six years of zero maintenance
- Parts Replaced
- ✓Sub-Zero compatible internal water filter (inline replacement, BI-48SD/PH filter housing)
- Location
- Houston, TX 77401
- Status
- ✓ Completed
