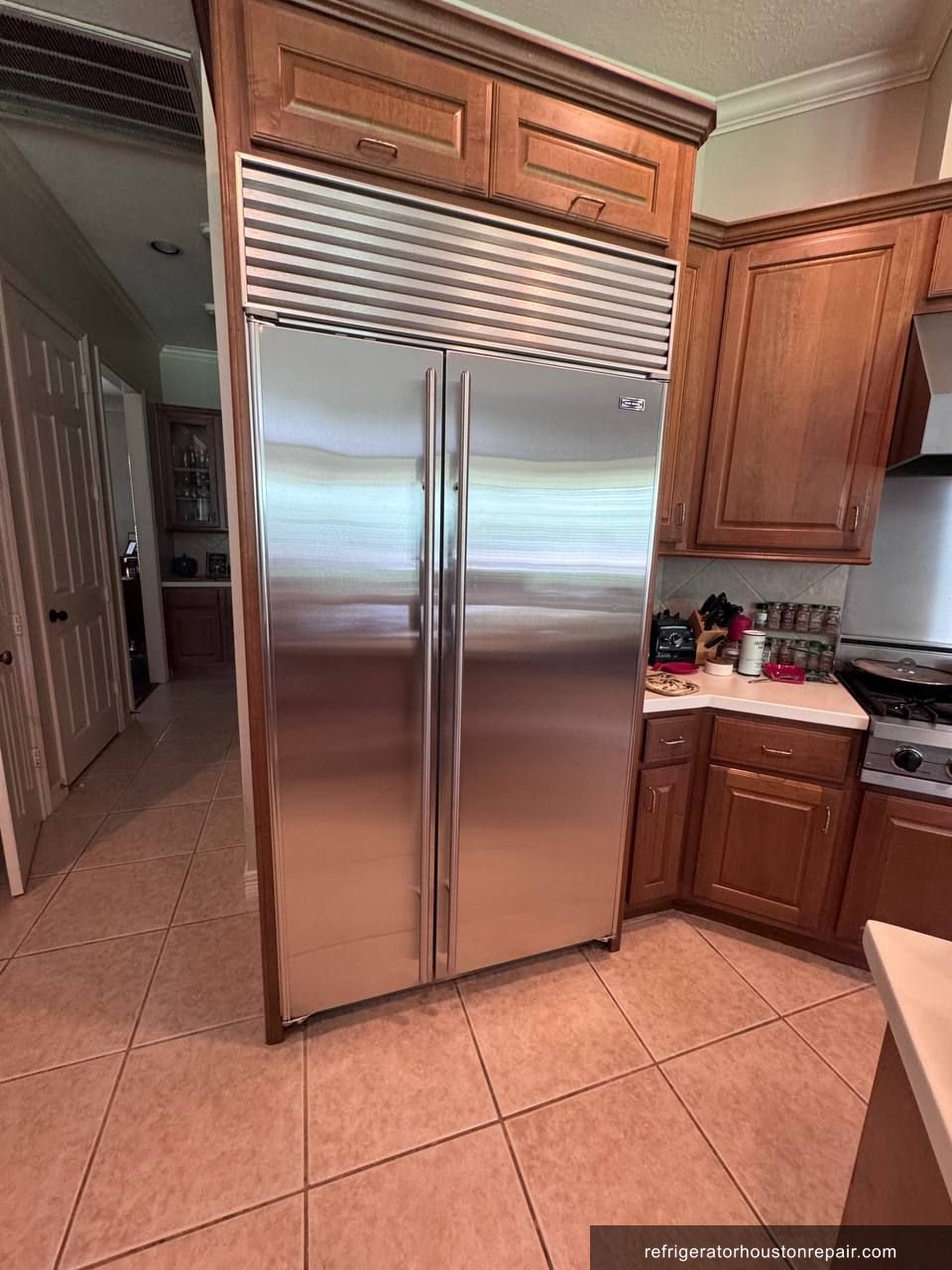

Sub-Zero 642S: Error Codes 50EC and 08EC, Fresh Food at 42°F in Magnolia, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment holding 40 to 42°F instead of the target 38°F

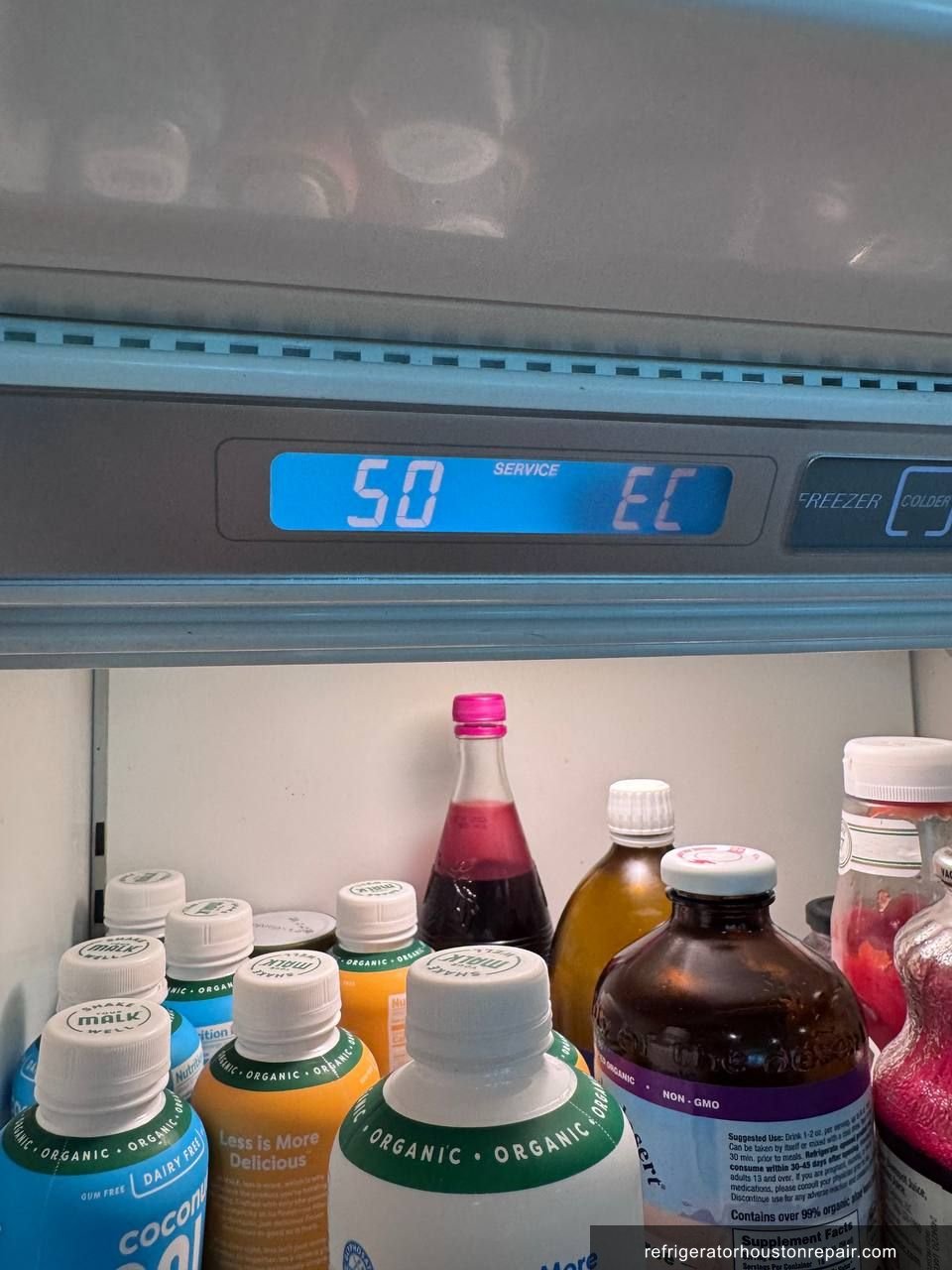

- •Active error codes 50EC and 08EC displayed on the Sub-Zero 642S control panel

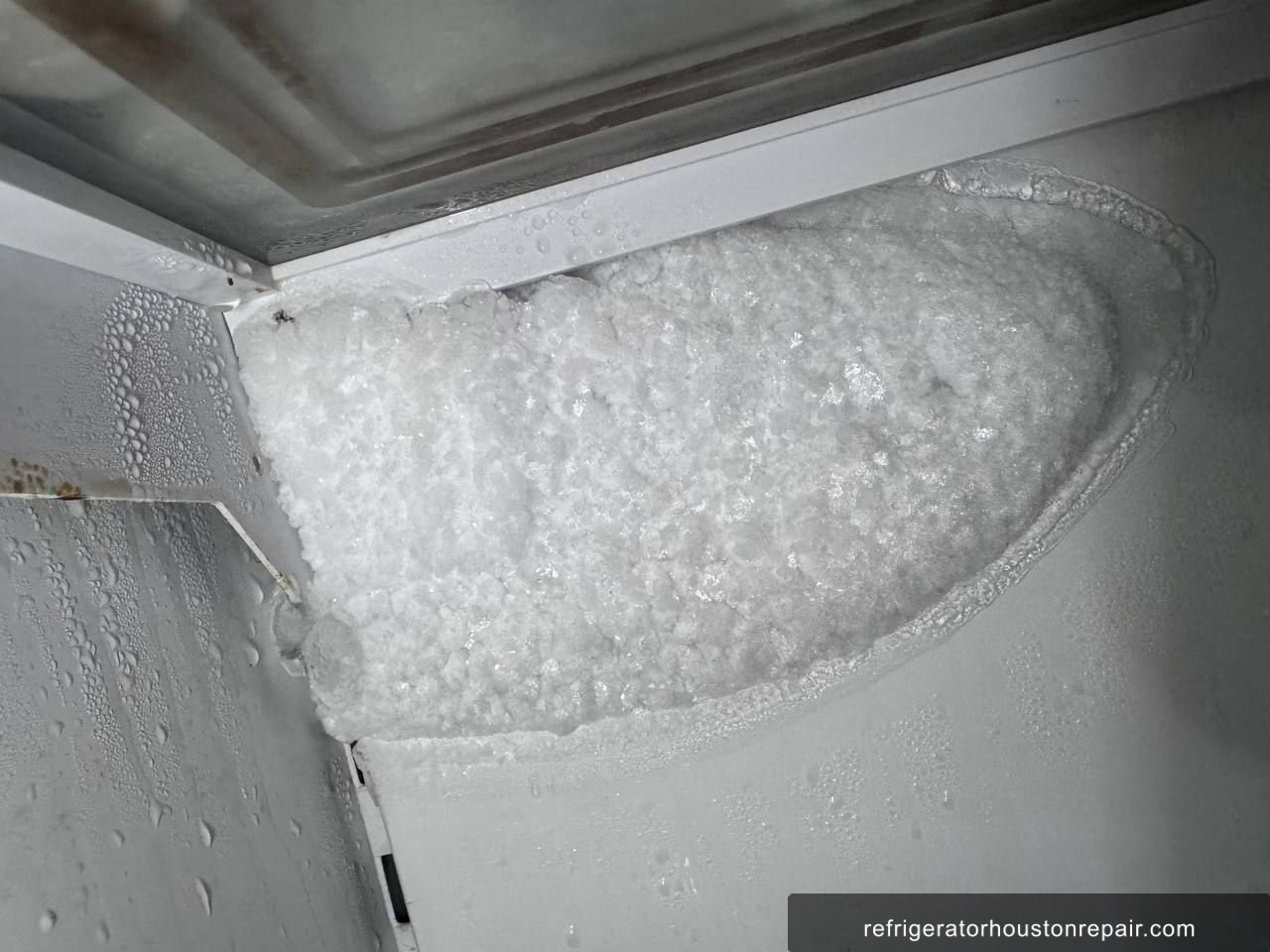

- •Heavy frost and snow accumulation on the rear wall of the fresh food section
- •Compressor running continuously without reaching set temperature
🔍 Diagnosis
When I arrived at the home in Magnolia, the Sub-Zero 642S was reading 41°F in the fresh food section and throwing two active fault codes: 08EC and 50EC. The freezer evaporator had visible snow buildup on the rear wall, which told me the defrost cycle was not completing correctly. I pulled the error history from the 642S control interface. Error 08EC on the Sub-Zero 600 series indicates an open circuit, short circuit, or unstable resistance reading from the freezer evaporator temperature sensor. I tested the sensor with a digital multimeter and got erratic resistance readings, jumping between 9 kOhm and open circuit. A good sensor at ambient should read a stable value in the 10 to 11 kOhm range. The sensor was clearly failing. Error 50EC means the compressor has been running for an extended period without achieving the set point. That pointed me toward a secondary cause. I pulled the unit away from the wall and found the condenser coil completely packed with dust and pet hair. Airflow across the coil was essentially zero. This forced the compressor to work far harder than designed, causing sustained high discharge temps and contributing directly to the 50EC fault. The unit is 25 years old. I checked the main control board and found signs of heat stress on the capacitors and relay contacts. On a machine this age, a compromised board compounds every other fault the system is dealing with. All three issues were connected.
🔧 The Repair
- ✓Step 1: Documented both active error codes, 50EC and 08EC, from the Sub-Zero 642S control panel and photographed frost accumulation on the fresh food rear wall.
- ✓Step 2: Disconnected power to the unit and removed the lower rear access panel to expose the condenser coil assembly.

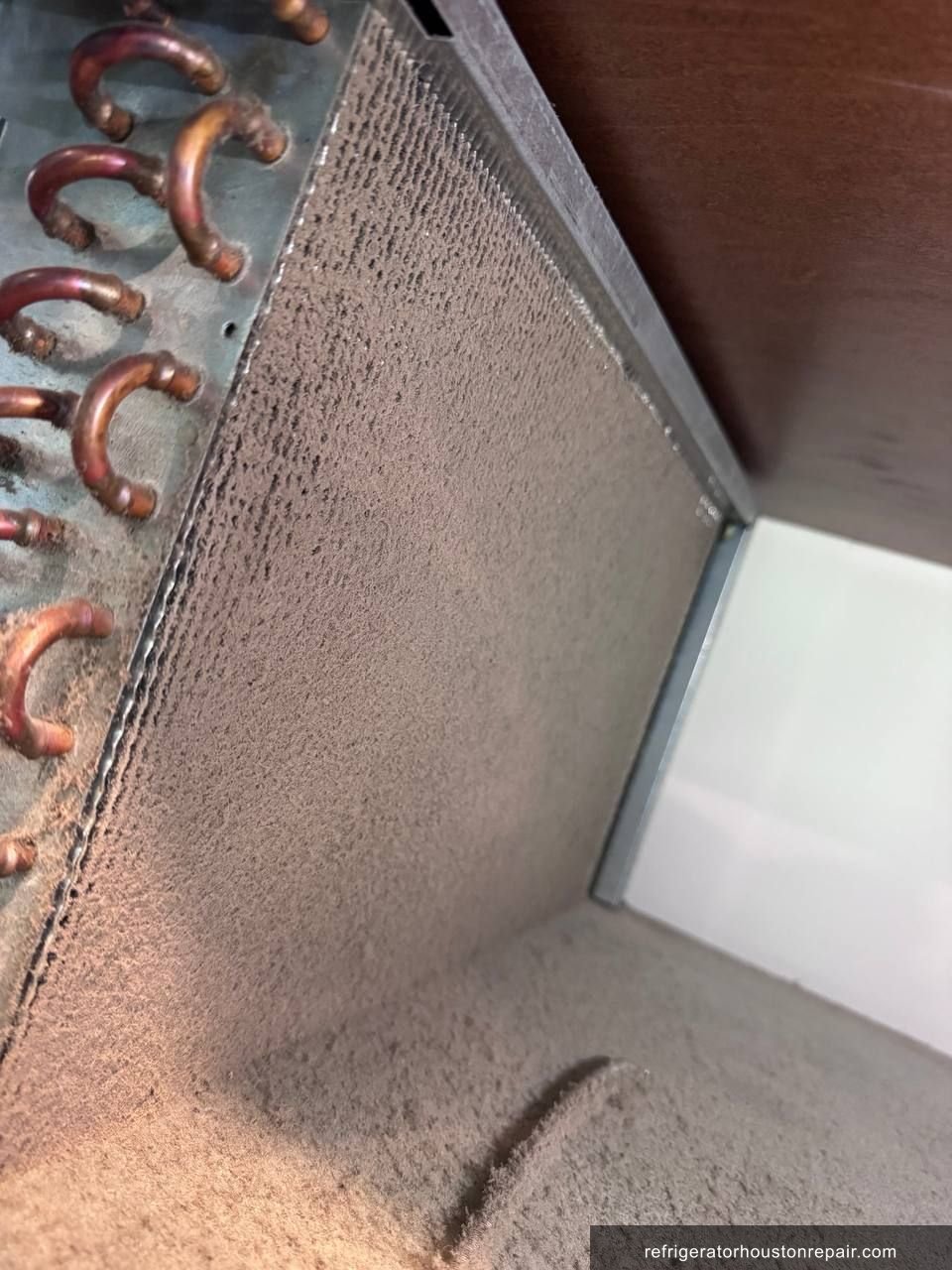

- ✓Step 3: Cleaned the condenser coil thoroughly using a soft-bristle brush and commercial coil cleaner, removing a dense layer of dust and pet hair that was blocking airflow completely.
- ✓Step 4: Removed the freezer interior back panel to access the evaporator coil and temperature sensor. Manually defrosted the accumulated frost using a heat gun on low setting.
- ✓Step 5: Disconnected the evaporator temperature sensor and measured resistance with a Fluke 116 multimeter. Readings jumped erratically between 9 kOhm and open circuit. Confirmed sensor failure.
- ✓Step 6: Installed a replacement OEM-spec evaporator temperature sensor for the Sub-Zero 642S, routed wiring correctly through the clip guides, and secured the sensor to the evaporator bracket.
- ✓Step 7: Removed the main control board from the upper cabinet housing. Inspected for heat-stressed components and confirmed relay contact degradation on a 25-year-old board. Installed a compatible replacement main control board.
- ✓Step 8: Restored power and monitored the unit through two full compressor cycles. After 2.5 hours of runtime, fresh food section reached 37°F and freezer reached -2°F. No active error codes. Compressor cycle times returned to normal.
✓ Result
After the sensor swap, board replacement, and condenser cleaning, the Sub-Zero 642S stabilized at 37°F in the fresh food section and -2°F in the freezer within two and a half hours. Both error codes cleared and did not return. The compressor stopped short-cycling. The homeowner in Magnolia had been nursing this unit along for weeks and was relieved to avoid replacing a refrigerator this well-built. They mentioned they had no idea the condenser cleaning alone could make such a difference after all these years.
💡 Technician Notes
Sub-Zero 642S units from this era, meaning mid-to-late 1990s production, have main boards that were not designed for the Houston heat and humidity cycles. If you start seeing intermittent faults that clear on their own and then return, that is often the board losing reliability before a full failure. Do not wait until you have multiple simultaneous error codes. For condenser coil maintenance on the 642S, Sub-Zero recommends cleaning every 12 months. In Houston homes with pets, every 6 months is more realistic. A clogged condenser forces the compressor to run longer, heat rises in the compressor compartment, and the cascade of faults follows quickly. If you see error 08EC on a Sub-Zero 600 series unit, check the evaporator sensor first before replacing the board. They often fail together on older machines, but the sensor is the lower-cost fix and should be confirmed first with a meter reading.
Frequently Asked Questions
What does error code 08EC mean on a Sub-Zero 642S refrigerator?
On the Sub-Zero 600 series, error 08EC means the freezer evaporator temperature sensor is reading outside normal range. This includes an open circuit, a short, or unstable resistance. I measured the sensor on this 642S and found it jumping between 9 kOhm and open. A working sensor at ambient holds steady around 10 to 11 kOhm. The sensor needs replacement when you see this code.
How much does it cost to repair a Sub-Zero 642S with error codes 50EC and 08EC in Magnolia TX?
A repair like this one, covering evaporator sensor replacement, main control board replacement, and condenser coil cleaning on a Sub-Zero 642S, typically runs between 600 and 1,000 dollars depending on parts sourcing and the condition of the board. Labor time on a 642S is substantial because of the access required. The job at this Magnolia home took about three hours on site.
What happens if I ignore error code 50EC on my Sub-Zero refrigerator and keep using it?
Error 50EC means the Sub-Zero compressor is running nonstop and failing to hit target temperature. Continuing to run the unit in this state shortens compressor life significantly. On a refrigerator like the 642S with R-134a, compressor replacement is expensive. A clogged condenser left uncleaned accelerates wear on the compressor windings. I have seen units reach sealed system failure from what started as a maintenance issue.
Is it worth repairing a 25-year-old Sub-Zero 642S or should I replace it?
This is the most common question I get on older Sub-Zero units. The 642S was built to last and the cabinet, door seals, and sealed system on this one were all in solid shape. When the compressor is still strong and the issue is a sensor, board, or condenser, repair almost always makes sense. A new Sub-Zero comparable to the 642S costs 8,000 to 12,000 dollars. Spending 800 on a solid repair is straightforward math.
How often should I clean the condenser coil on a Sub-Zero 642S and how do I know when it needs it?
Sub-Zero recommends annual condenser cleaning on the 642S. In a home with pets in Magnolia, every six months is a better interval. You will know the coil needs cleaning when the compressor runs longer than usual, the unit feels warm near the bottom grille, or you start seeing fault codes like 50EC. Pulling the lower rear panel and visually checking the coil takes under five minutes.
Repair Summary
- Brand
- Sub-Zero
- Model
- 642S
- Repair Type
- Evaporator Temperature Sensor Replacement / Main Control Board Replacement / Condenser Coil Cleaning

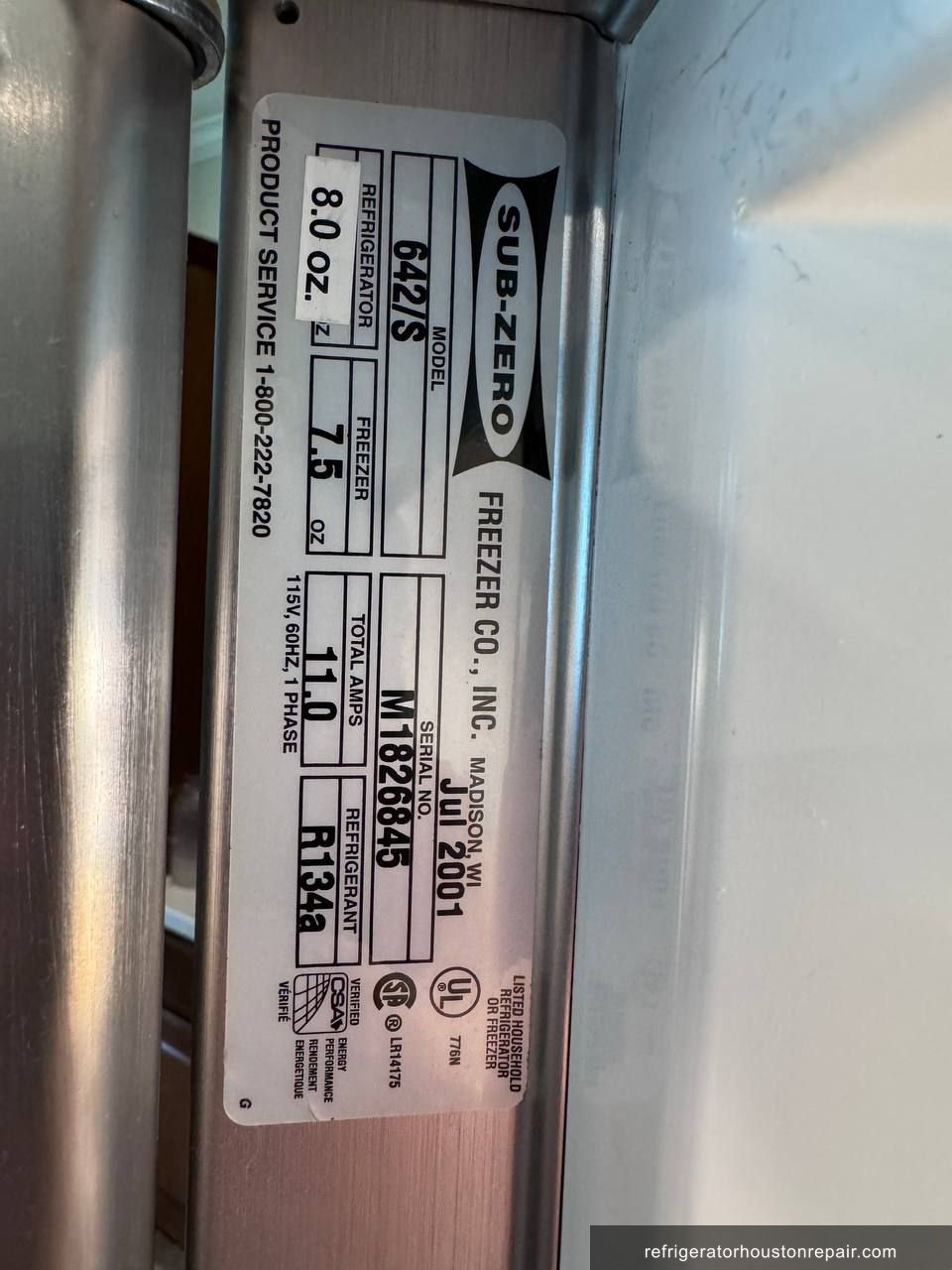

- Refrigerant
- R-134a
- Root Cause
- Clogged condenser coil, failed evaporator sensor, and degraded 25-year-old main board
- Parts Replaced
- ✓Freezer evaporator temperature sensor (OEM-spec replacement for Sub-Zero 642S, 600 series compatible)
- ✓Main control board (replacement unit compatible with Sub-Zero 642S, addressing 25-year service life degradation)
- ✓Condenser coil cleaning performed, no part replacement needed
- Location
- Magnolia, TX 77354
- Status
- ✓ Completed
