Sub-Zero UW-24/S: Neglected Condenser Coil Maintenance in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Wine cooler compressor running continuously without cycling off
- •Interior temperature rising above the set wine storage range of 55°F
- •Audible compressor strain, louder than normal operating noise
- •Unit body warm to the touch near the base grille area
🔍 Diagnosis

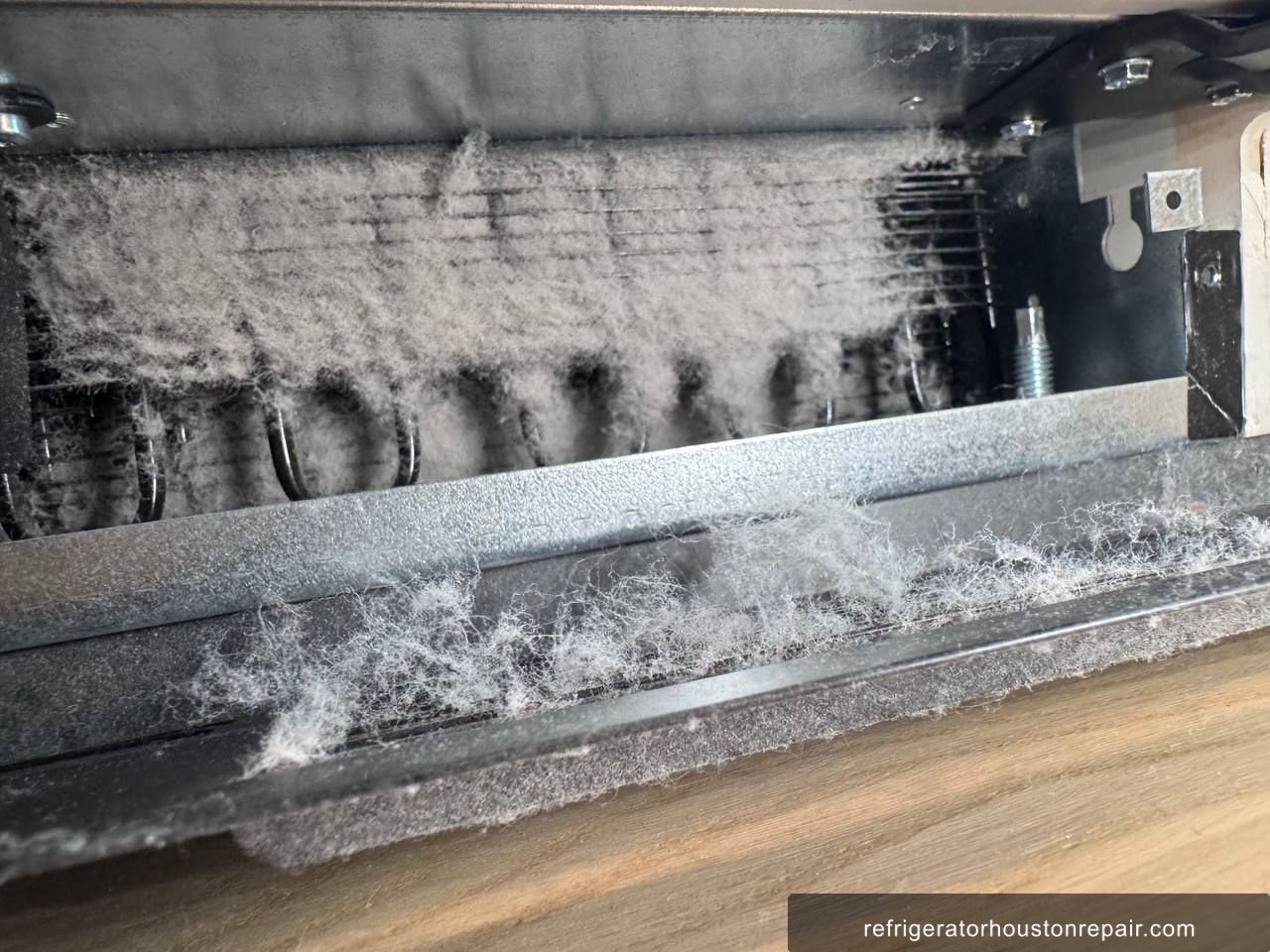

When I arrived at the residence in the 77401 ZIP code in Houston, the Sub-Zero UW-24/S wine cooler was running nonstop. The interior was reading 62°F on my digital thermometer, well above the 55°F the customer had it set to. The compressor was audibly laboring, a sign of thermal overload caused by restricted heat dissipation. I pulled the base grille and immediately saw the problem. The condenser coil was so thoroughly packed with dust, pet hair, and debris that airflow across it was almost completely blocked. I used my clamp meter to measure the compressor amp draw, which read 2.8 amps, noticeably elevated above the normal 1.6 to 2.0 amp range for this model. The condenser surface temperature measured 118°F with my infrared thermometer. A healthy Sub-Zero UW-24/S condenser should not exceed 90°F under normal Houston ambient conditions. The customer told me this was the first time anyone had serviced the unit since purchase. Sub-Zero specifies condenser cleaning every 12 months, and in Houston's dusty, high-humidity environment, every 6 months is more appropriate. This level of buildup forces the compressor to work against excessive head pressure, which shortens compressor life significantly over time.
🔧 The Repair
- ✓Step 1: Powered down the Sub-Zero UW-24/S and disconnected the unit from the wall outlet before accessing the condenser compartment.
- ✓Step 2: Removed the front base grille panel to gain full access to the condenser coil assembly located at the bottom front of the unit.
- ✓Step 3: Photographed the condenser coil before cleaning to document the extent of dust and debris buildup for the customer record and service file.
- ✓Step 4: Used a Sub-Zero approved condenser brush and a variable-speed shop vacuum with a soft brush attachment to remove the compacted dust layer from all coil fins without bending or damaging them.
- ✓Step 5: Followed up with compressed air blown through the coil in the reverse direction of normal airflow to dislodge embedded debris from deep within the fin rows.
- ✓Step 6: Cleaned the condenser fan blades and fan housing, removing accumulated buildup that was also restricting airflow volume.

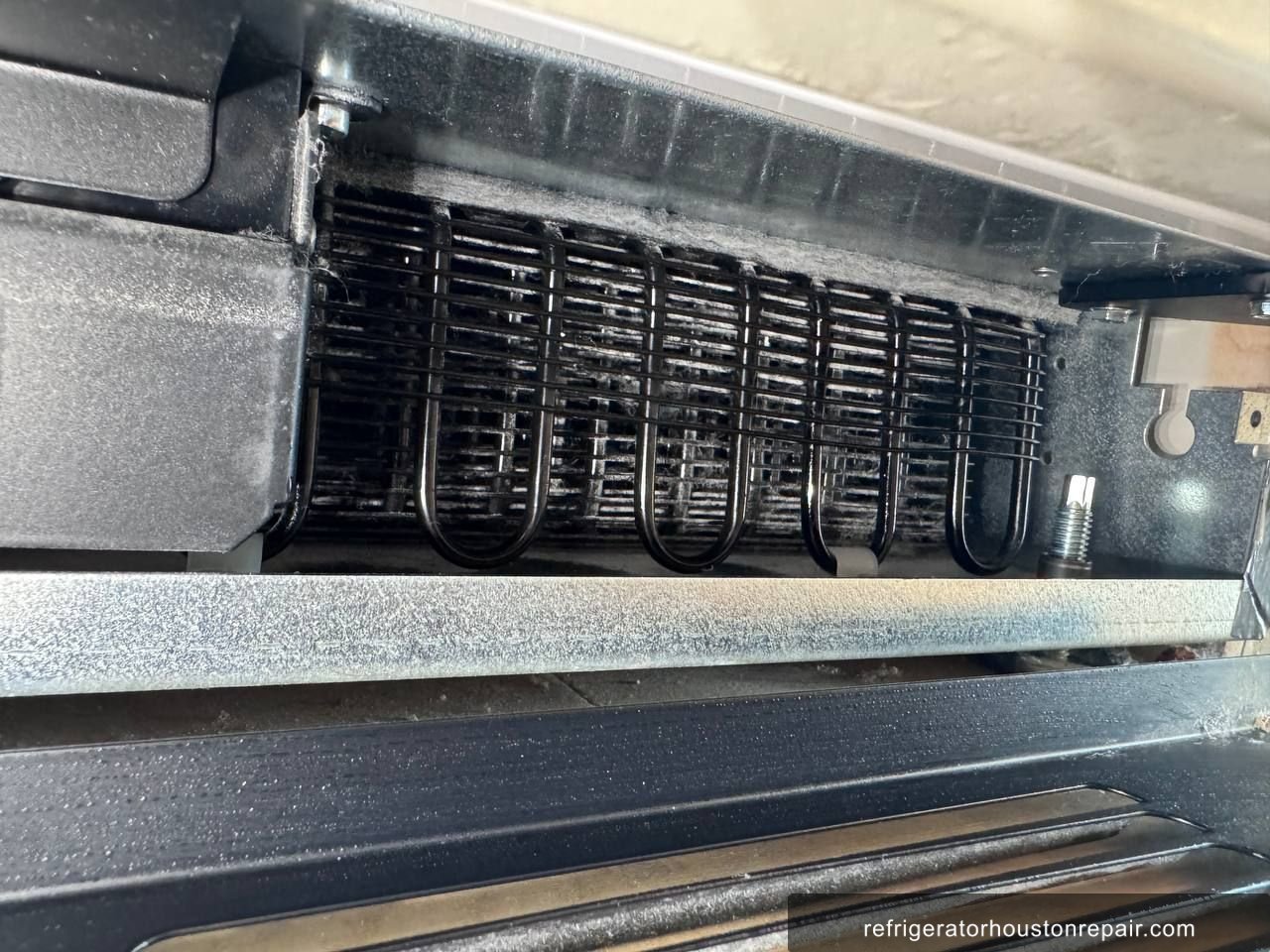

- ✓Step 7: Reinstalled the base grille, restored power, and measured compressor amp draw at 1.7 amps, within the normal operating range for the UW-24/S.
- ✓Step 8: Allowed the unit to run for 90 minutes and confirmed the interior temperature stabilized at 55°F, with the condenser surface temperature dropping to 86°F under Houston ambient conditions of 78°F.
✓ Result
After the maintenance service, the Sub-Zero UW-24/S reached its target wine storage temperature of 55°F within 90 minutes and the compressor returned to normal cycling behavior. The customer was genuinely shocked when I showed him the before photos of the condenser coil. He had no idea that kind of buildup was possible. His wine collection, some bottles valued at several hundred dollars each, was protected. He immediately scheduled a recurring annual maintenance appointment going forward.
💡 Technician Notes
Sub-Zero wine coolers like the UW-24/S use a bottom-mounted condenser that sits very close to the floor. In Houston homes, this means the coil pulls in dust, pet hair, and debris constantly. The earliest warning sign of a clogged condenser on this model is the compressor running without its normal off cycles. Most owners never notice this until temperatures inside start climbing. Sub-Zero recommends cleaning the condenser every 12 months, but in Houston's environment, every 6 months is the right interval. You do not need to call a technician for a basic brush cleaning if you are comfortable removing the base grille. However, if your amp draw is elevated or the compressor sounds strained after cleaning, call a technician before the compressor fails. A new Sub-Zero compressor costs significantly more than a maintenance visit.
Frequently Asked Questions
How often should I clean the condenser on my Sub-Zero UW-24/S wine cooler in Houston?
Sub-Zero recommends every 12 months, but in Houston I tell customers to do it every 6 months. The combination of dust, pet hair, and high ambient humidity here means the condenser on a UW-24/S gets clogged faster than in drier climates. A clogged condenser is the single most common cause of compressor failure on Sub-Zero wine units.
How much does a Sub-Zero wine cooler condenser cleaning cost in Houston?
A professional condenser cleaning and preventive maintenance visit for a Sub-Zero UW-24/S in Houston typically runs between $150 and $250 depending on the severity of buildup and the time required. This is a fraction of what a compressor replacement costs, which on Sub-Zero wine units runs $800 to $1,400 in parts and labor alone.
What happens if I ignore condenser maintenance on my Sub-Zero wine cooler?
The compressor runs hotter and harder than it was designed to. Over time this causes thermal overload trips, shortened compressor lifespan, and eventually full compressor failure. On the UW-24/S, a failed compressor often means the repair cost approaches or exceeds the unit's current market value. Neglected maintenance is the leading reason Sub-Zero wine coolers fail before their expected 20-year service life.
Is it worth repairing a Sub-Zero UW-24/S wine cooler or should I replace it?
If the compressor is still functional, the UW-24/S is absolutely worth repairing and maintaining. Sub-Zero builds these units to last 20 years or more with proper maintenance. If you are facing a compressor replacement on a unit that is under 12 years old and was otherwise well-maintained, repair makes financial sense. If the unit is over 15 years old with a failed sealed system, replacement deserves consideration.
Can a dirty condenser on a Sub-Zero wine cooler damage my wine collection?
Yes. A clogged condenser causes the interior temperature to rise above the stable 55°F that wine storage requires. Temperature fluctuations accelerate aging, damage corks, and compromise both red and white wines. On a Sub-Zero UW-24/S with a severely blocked condenser, the internal temperature in Houston summer conditions can climb 8 to 12 degrees above the set point, which is enough to damage a wine collection over days.
Repair Summary
- Brand
- Sub-Zero
- Model
- UW-24/S
- Repair Type
- Condenser Coil Cleaning and Preventive Maintenance
- Root Cause
- Severely dust-clogged condenser coil overloading compressor operation
- Parts Replaced
- ✓No parts replaced. Service consisted of full condenser coil cleaning and preventive maintenance only.
- Location
- Houston, TX 77401
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

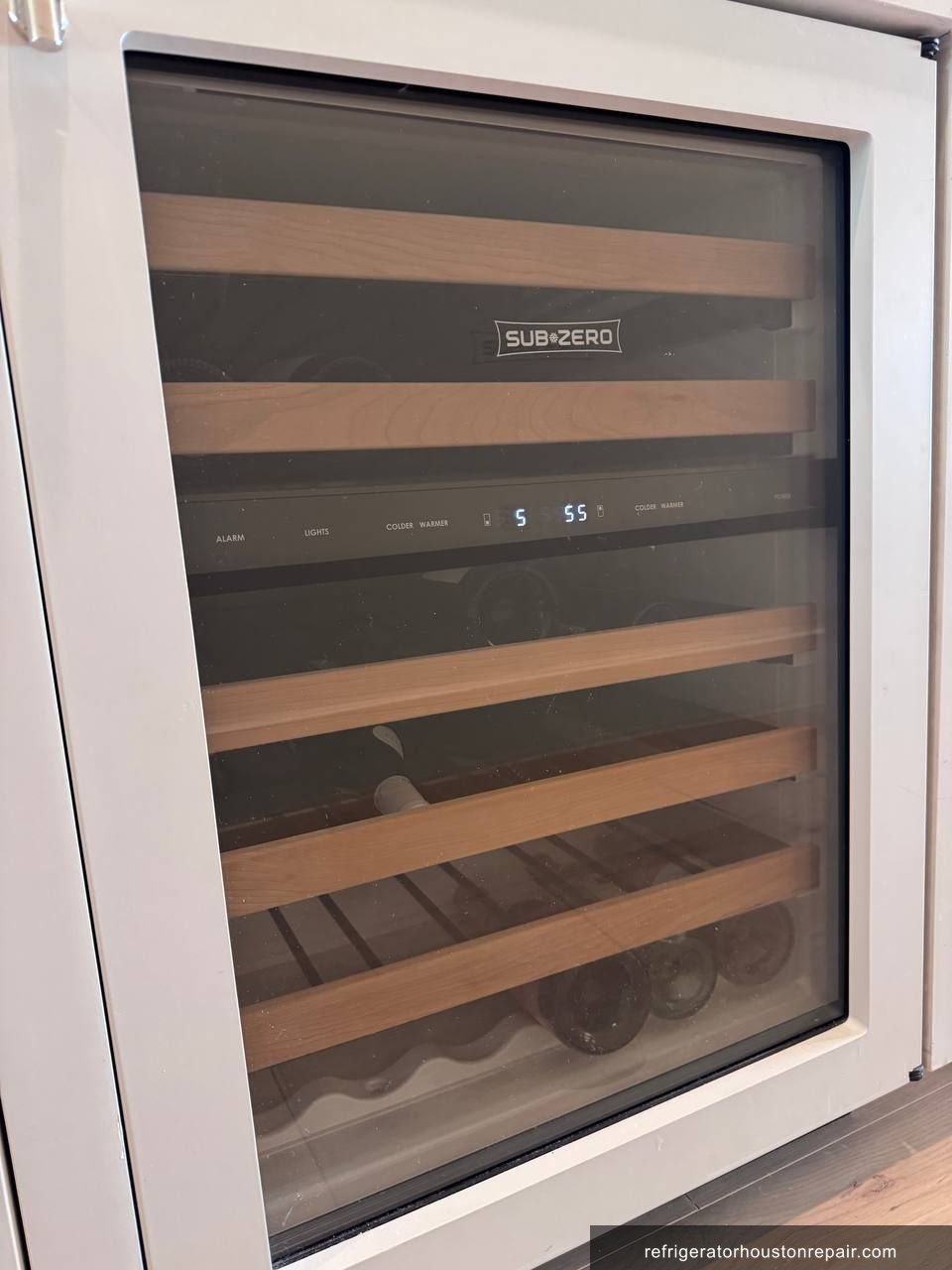

Sub-Zero UW-24/S repair in Houston, TX — photo 3
