Sub-Zero S/650 Condenser Fan Motor Failure — Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Freezer temperature rising to around 30°F instead of staying at 0°F
- •Fresh food compartment warming up to approximately 56°F
- •Refrigerator running constantly but not cooling either compartment
- •No audible fan noise from the condenser area beneath or behind the unit
🔍 Diagnosis
Upon arrival, the technician conducted a systematic inspection of the Sub-Zero S/650 refrigeration system. The unit was running — the compressor was energized and the evaporator fan inside the freezer compartment was operational — yet both compartments were severely out of range: the freezer measured approximately 30°F and the fresh food section was at 56°F. These readings pointed immediately toward a heat rejection failure rather than a sealed system or refrigerant issue. Using a multimeter, the technician tested the condenser fan motor windings and found an open circuit — the motor had completely failed electrically and was drawing zero current. The condenser fan, responsible for pulling ambient air across the condenser coil to dissipate the heat absorbed from inside the cabinet, was not moving at all. With no airflow over the condenser, the system's high-side pressure climbed far beyond normal operating range, causing the compressor to work under excessive load and the refrigerant (R-134a, 8.0 oz factory charge per the appliance label) to fail to condense properly. Manifold gauge readings confirmed elevated head pressure consistent with condenser heat rejection failure. The suction pressure and superheat readings were within acceptable limits, ruling out refrigerant loss or a sealed system fault. No refrigerant leak was detected with an electronic leak detector. The diagnosis was conclusive: the condenser fan motor was the sole failed component, and replacing it would fully restore system performance.
🔧 The Repair
- ✓Verified the customer's reported symptoms by measuring compartment temperatures with a calibrated digital thermometer: freezer at 30°F, fresh food at 56°F.
- ✓Disconnected the refrigerator from electrical power and allowed capacitors to discharge before beginning disassembly.
- ✓Accessed the condenser fan motor assembly located in the machine compartment of the Sub-Zero S/650 unit.
- ✓Used a multimeter set to resistance (Ω) mode to test the condenser fan motor windings — confirmed open circuit (infinite resistance), indicating complete motor failure.
- ✓Connected manifold gauges to the R-134a service ports to verify sealed system integrity; high-side pressure was elevated due to heat rejection failure, suction pressure normal.
- ✓Performed an electronic refrigerant leak check around all accessible brazed joints and service valves — no leaks detected, confirming the 8.0 oz R-134a charge was intact.
- ✓Ordered the OEM-equivalent condenser fan motor compatible with the Sub-Zero S/650 on Monday; part arrived Tuesday evening via expedited parts supplier.
- ✓Returned Wednesday morning and removed the failed condenser fan motor by disconnecting the wiring harness and unbolting the motor mounting bracket.
- ✓Installed the replacement condenser fan motor, ensuring correct blade orientation for proper airflow direction across the condenser coil.
- ✓Secured the motor mounting hardware to manufacturer torque specifications and reconnected the wiring harness with secure, insulated connections.
- ✓Restored electrical power to the unit and confirmed immediate condenser fan operation — verified amperage draw with a clamp meter, within spec.
- ✓Monitored system pressures with manifold gauges over a 20-minute run cycle to confirm head pressure normalizing as the condenser began rejecting heat properly, then closed up the machine compartment and confirmed both zones trending toward target temperatures before leaving the site.
✓ Result
Within approximately 4 hours of the Wednesday morning repair visit, the Sub-Zero S/650 freezer section had dropped from 30°F to 6°F and was continuing to pull down toward the 0°F target. The fresh food compartment fell from 56°F to below 40°F within the same period. Full stable operating temperatures were reached within 6–8 hours. The customer was highly satisfied with the rapid turnaround — diagnosis Monday, part ordered and received by Tuesday evening, repair completed Wednesday morning in under one hour on-site. A 90-day labor warranty was extended on the repair.
💡 Technician Notes
Sub-Zero refrigerators like the S/650 are precision-engineered machines, but the condenser fan motor is one of the most common wear items in built-in models, especially in Houston's hot and humid climate where the condenser works harder year-round. Owners should ensure the condenser grille is never blocked and that the machine compartment has adequate ventilation clearance as specified in the Sub-Zero installation guide. Every 6–12 months, vacuum dust and pet hair from the condenser coil and grille — restricted airflow accelerates motor wear significantly. Warning signs of an impending condenser fan failure include the compressor running unusually hot, the unit cycling longer than normal, or subtle increases in compartment temperatures during warm months. If you notice the unit running continuously but temperatures are creeping up, don't wait — a failed condenser fan allowed to run unaddressed will eventually cause compressor overload, turning a simple $200–$350 motor replacement into a sealed system repair costing several times more.
Frequently Asked Questions
Why is my Sub-Zero S/650 freezer temperature rising to 30°F while the compressor is still running?
A Sub-Zero S/650 freezer warming to 30°F with the compressor running typically points to a condenser fan motor failure. Without the fan pushing air across the condenser coil, heat cannot be expelled from the system. The compressor runs but cannot condense the R-134a refrigerant properly, so cooling capacity collapses in both the freezer and fresh food compartments. A technician can confirm this with a multimeter and manifold gauges in minutes.
How much does it cost to replace the condenser fan motor on a Sub-Zero S/650 in Houston, TX?
Condenser fan motor replacement on a Sub-Zero S/650 in the Houston area typically ranges from $250 to $450 total, depending on parts sourcing and labor time. The motor itself is generally $80–$180 for an OEM-equivalent part. Labor for the replacement is usually one hour or less once the part is on hand. Given Sub-Zero's longevity and high replacement cost, this repair almost always makes strong financial sense.
What are the early warning signs that the condenser fan on a Sub-Zero refrigerator is about to fail?
Early signs include the compressor running longer cycles than usual, the machine compartment feeling unusually hot to the touch, and slight temperature creep in either the freezer or fresh food section — often noticed first in warmer months. You may also notice the absence of the low hum from the condenser fan motor. Catching these signs early prevents compressor strain and keeps a straightforward fan motor repair from escalating into a costlier sealed system job.
Is it worth repairing a Sub-Zero S/650 with a failed condenser fan motor, or should I replace the refrigerator?
Sub-Zero refrigerators are built to last 20+ years with proper maintenance, and a condenser fan motor failure is one of the most minor repairs possible. Replacing a Sub-Zero S/650 new costs well over $10,000. A condenser fan motor replacement at $250–$450 is extremely cost-effective and restores the unit to full factory performance. Unless the sealed system or compressor is also damaged from prolonged overheating, repair is overwhelmingly the right choice.
After my Sub-Zero S/650 condenser fan was replaced, how long does it take to reach normal temperature?
After a condenser fan motor replacement on a Sub-Zero S/650, expect the freezer to reach 0°F and the fresh food section to stabilize at 37°F within 6–8 hours, assuming the refrigerant charge is intact and the sealed system is undamaged. Avoid opening the doors frequently during this pulldown period. If temperatures haven't normalized within 12 hours of the repair, contact your technician — there may be a secondary issue such as a low refrigerant charge.
Repair Summary
- Brand
- Sub-Zero
- Model
- S/650
- Repair Type
- Condenser Fan Motor Replacement
- Refrigerant
- R-134a
- Root Cause
- Condenser fan motor failed completely, blocking heat dissipation
- Parts Replaced
- ✓Condenser fan motor — OEM-equivalent replacement compatible with Sub-Zero S/650, correct voltage and RPM rating matched to factory specifications
- Location
- Houston, TX 77004
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

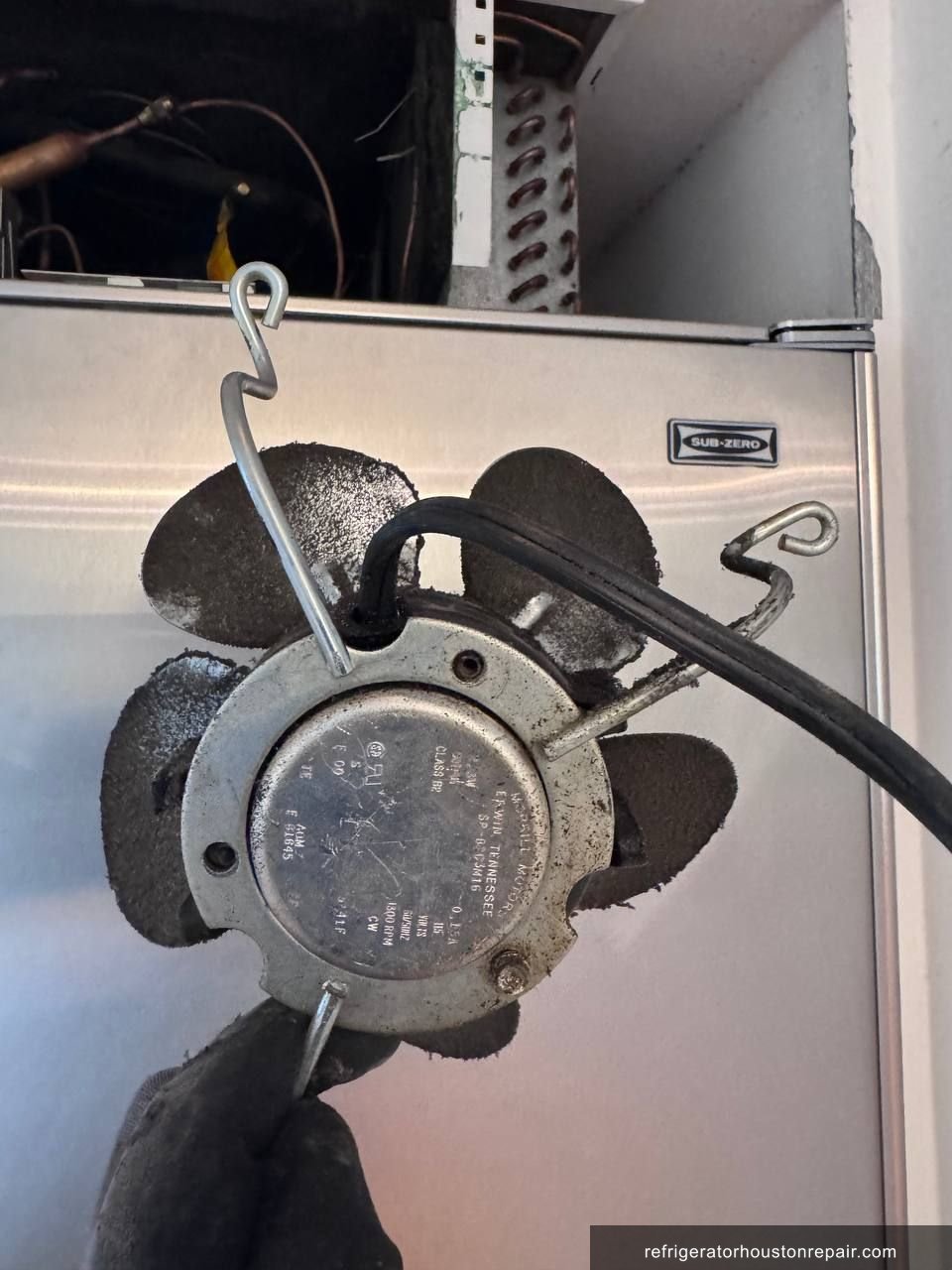

Sub-Zero S/650 repair in Houston, TX — photo 5

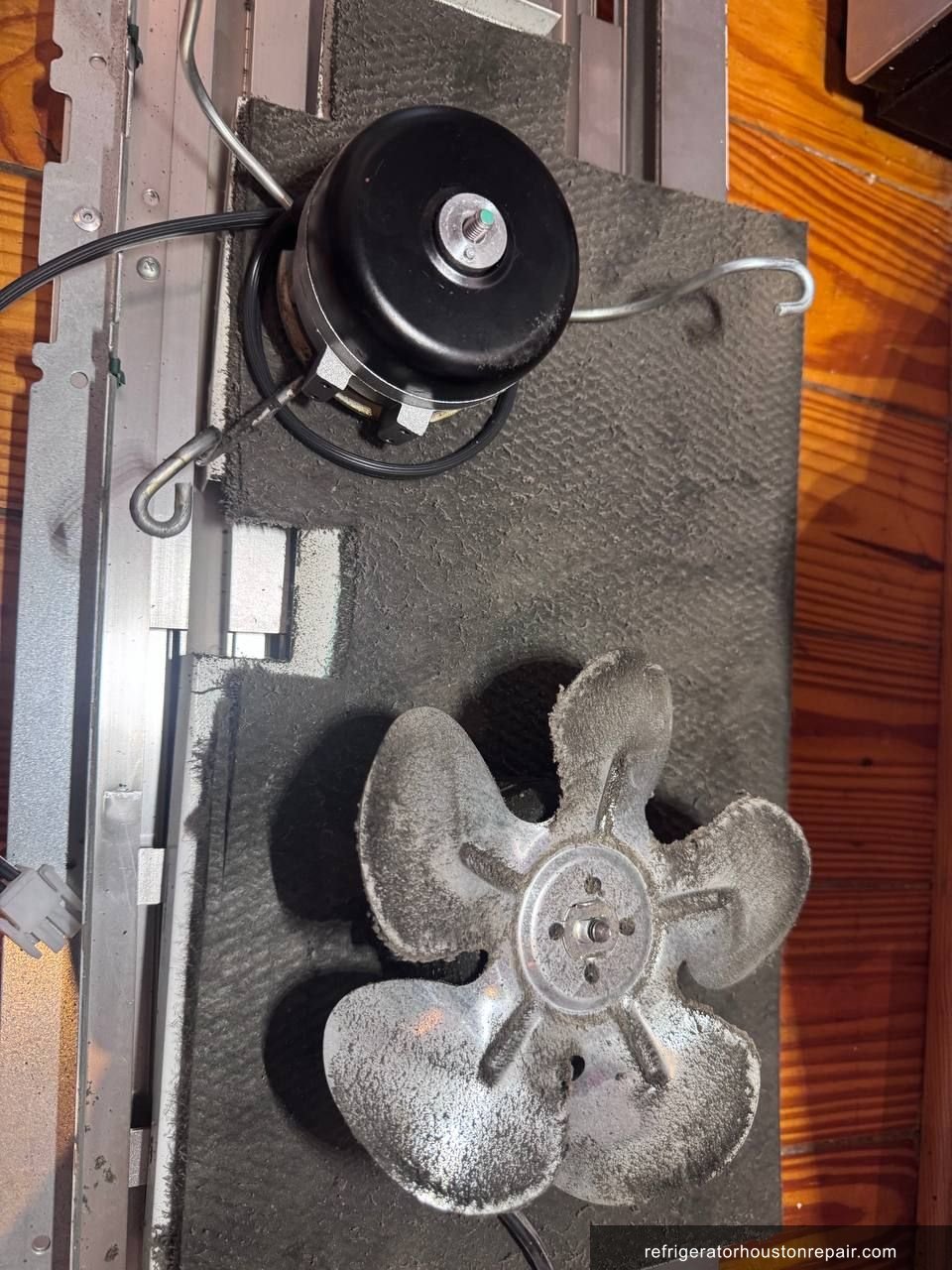

Sub-Zero S/650 repair in Houston, TX — photo 6

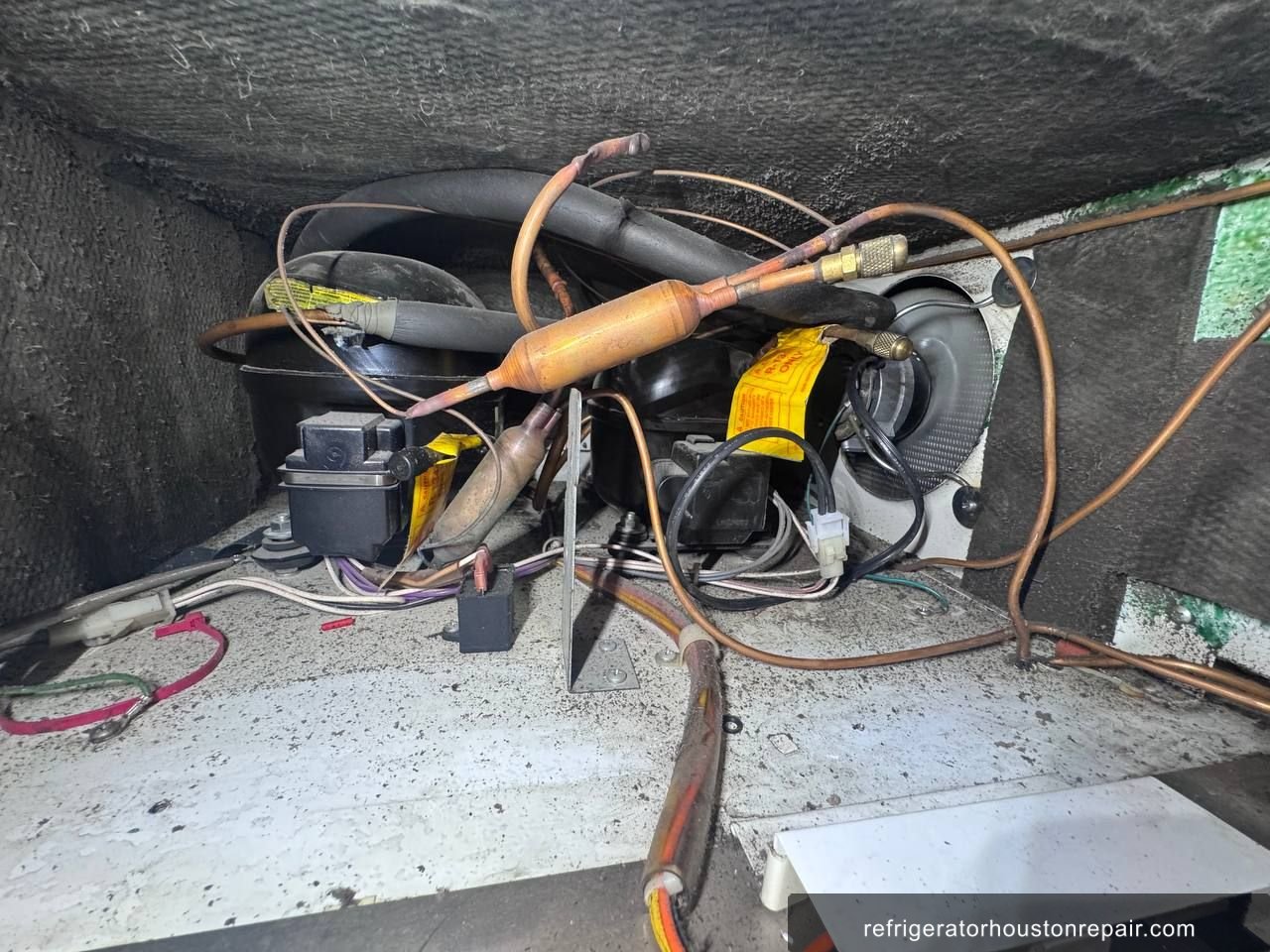

Sub-Zero S/650 repair in Houston, TX — photo 7

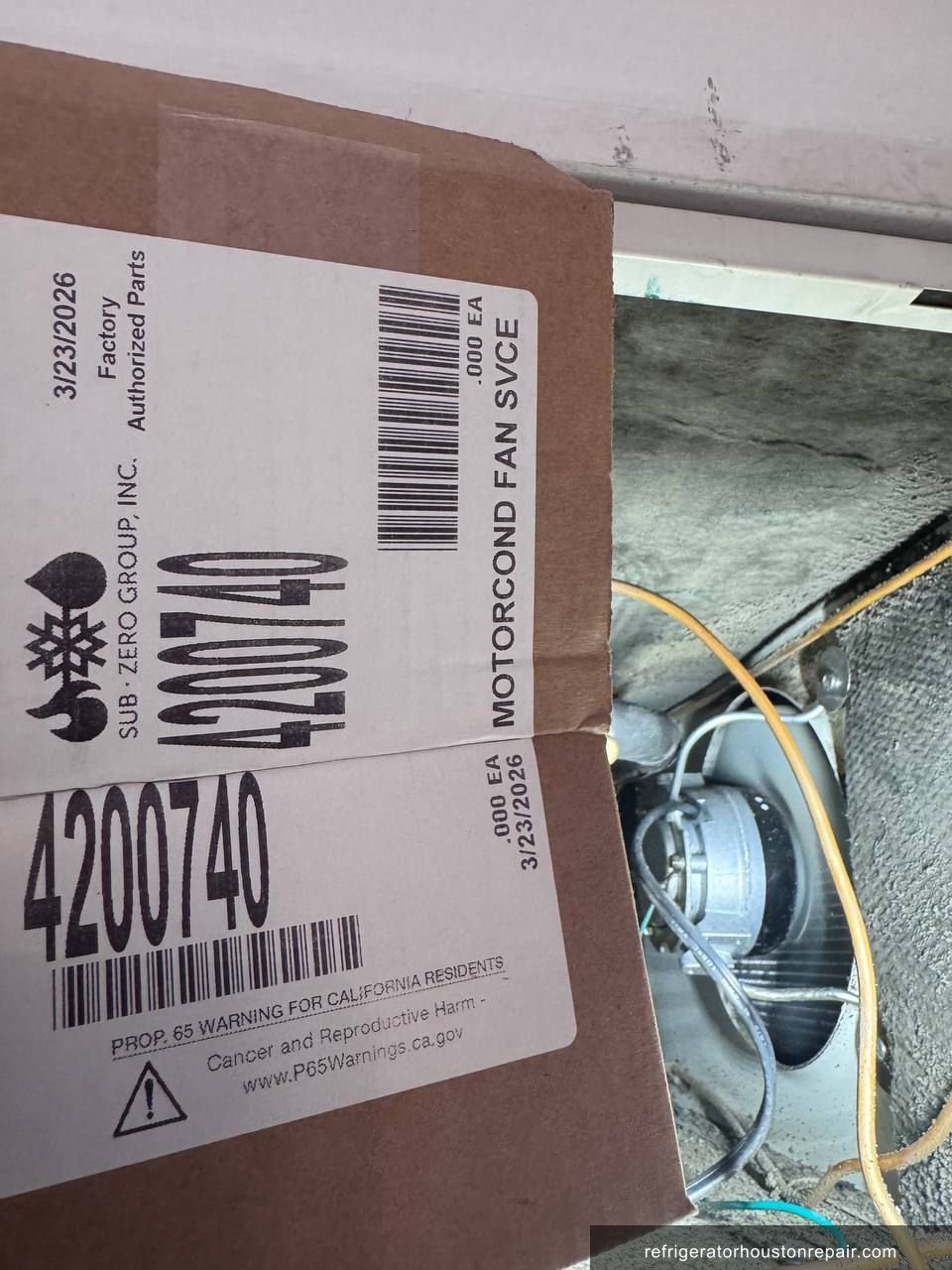

Sub-Zero S/650 repair in Houston, TX — photo 8
