Sub-Zero 661 Running Warm — Dual Circuit Evaporator Leak Repair
The Problem
- •Refrigerator running warm — measured at 55°F in fridge section
- •Freezer only reaching 20°F instead of 0°F target
- •Unit running constantly without achieving set temperatures
🔍 Diagnosis
The customer called saying their Sub-Zero 661 wasn't keeping food cold anymore and both sections felt warmer than normal. When I arrived, I measured 55°F in the refrigerator compartment and 20°F in the freezer section, way off from the target temperatures of 38°F and 0°F respectively. Both compressors were running constantly, which told me they were working hard but not achieving the desired cooling. I pulled the rear panel in the refrigerator section and immediately spotted frost buildup around the evaporator coil, which indicated a refrigerant leak. Using my electronic leak detector, I found a small pinhole in the aluminum tubing of the refrigerator circuit's evaporator. The leak was allowing R-134a refrigerant to escape, starving both circuits since the dual compressor system maintains pressure balance between the two sides. Pressure readings confirmed low refrigerant on both circuits, even though only the refrigerator side was actually leaking.
🔧 The Repair
- ✓I shut off power to the unit and removed all food items so the customer could store them temporarily in a neighbor's fridge.
- ✓I carefully removed the rear interior panel from the refrigerator section to access the evaporator coil assembly.
- ✓Using my refrigerant recovery machine, I evacuated all remaining R-134a from both the refrigerator and freezer circuits.
- ✓I disconnected the refrigerator evaporator coil from the copper lines using my tubing cutter and pipe wrenches.
- ✓I installed the new evaporator coil and brazed all connections using silver solder with nitrogen flowing through the lines.
- ✓I replaced both filter driers in the dual circuit system since any moisture contamination affects both sides.
- ✓I pressure tested the entire sealed system with dry nitrogen at 150 PSI and let it sit for 30 minutes to check for leaks.
- ✓Using my vacuum pump, I pulled a deep vacuum on both circuits for 45 minutes to remove all moisture and air.
- ✓I charged the refrigerator circuit with 8 ounces of R-134a and the freezer circuit with 6 ounces per the service manual specifications.
- ✓I reinstalled the rear panel and restored power to test the system operation.
- ✓I monitored temperatures for two hours and confirmed both compressors were cycling properly and achieving target temps.
✓ Result
After completing the repair, the Sub-Zero 661 performed perfectly. Within four hours, the refrigerator section reached 38°F and the freezer dropped to 0°F. The customer was relieved to get their expensive built-in unit working again instead of facing a potential replacement. Both compressors now cycle normally instead of running constantly. I provided a one-year warranty on all sealed system work, which covers the new evaporator coil and refrigerant charges.
💡 Technician Notes
Sub-Zero 661 models are known for pinhole leaks in the aluminum evaporator tubing, especially units over 15 years old. The dual compressor design means both circuits need attention even when only one side leaks. Always replace filter driers on both circuits during sealed system repairs. Watch for excessive frost buildup behind the rear panel or unusual compressor run times as early warning signs. This is definitely a job for certified technicians only since it involves refrigerant handling and brazing work. Regular condenser coil cleaning helps prevent overworking the compressors and extends evaporator life.
Frequently Asked Questions
Why was my Sub-Zero 661 running constantly but not cooling properly?
Your unit had a pinhole leak in the refrigerator evaporator coil, causing refrigerant loss. With low refrigerant, both compressors work constantly trying to reach target temperatures but can't generate enough cooling capacity. The dual circuit design means a leak on one side affects both the refrigerator and freezer performance.
Should I repair or replace my Sub-Zero 661 with evaporator problems?
Repair is usually the better choice for Sub-Zero units since they're premium appliances built to last decades. A new evaporator coil with proper installation will give you many more years of service. Replacement costs would be $8,000-12,000 versus $1,500-2,500 for sealed system repair including parts and labor.
How long does Sub-Zero evaporator coil replacement take?
The complete repair typically takes 6-8 hours including evacuation, coil replacement, brazing, vacuum testing, and recharging both circuits. Most of this is technical work that can't be rushed. We usually schedule a full day and finish in the afternoon so you can reload your food the same evening.
Are Sub-Zero sealed system failures common?
Sub-Zero builds excellent units, but aluminum evaporator coils in models from the 1990s and early 2000s do develop pinhole leaks over time. It's a known issue with these vintage models. Once repaired properly with quality parts, these units typically run trouble-free for many more years.
How can I prevent evaporator problems in my Sub-Zero refrigerator?
Keep condenser coils clean by vacuuming them every six months and maintain proper ventilation around the unit. Avoid overloading the refrigerator section which forces longer compressor run times. Watch for unusual frost buildup or temperature fluctuations and call for service early rather than letting the unit struggle with low refrigerant.
Repair Summary
- Brand
- Sub-Zero
- Model
- 661
- Repair Type
- Dual Circuit Sealed System Repair
- Refrigerant
- R-134a
- Root Cause
- Pinhole leak in evaporator coil of refrigerator circuit
- Parts Replaced
- ✓Evaporator coil (refrigerator circuit)
- ✓Dual circuit filter driers (x2)
- ✓R-134a refrigerant (both circuits recharged)
- Location
- Houston, TX
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos
Sub-Zero 661 built-in refrigerator — River Oaks, Houston TX

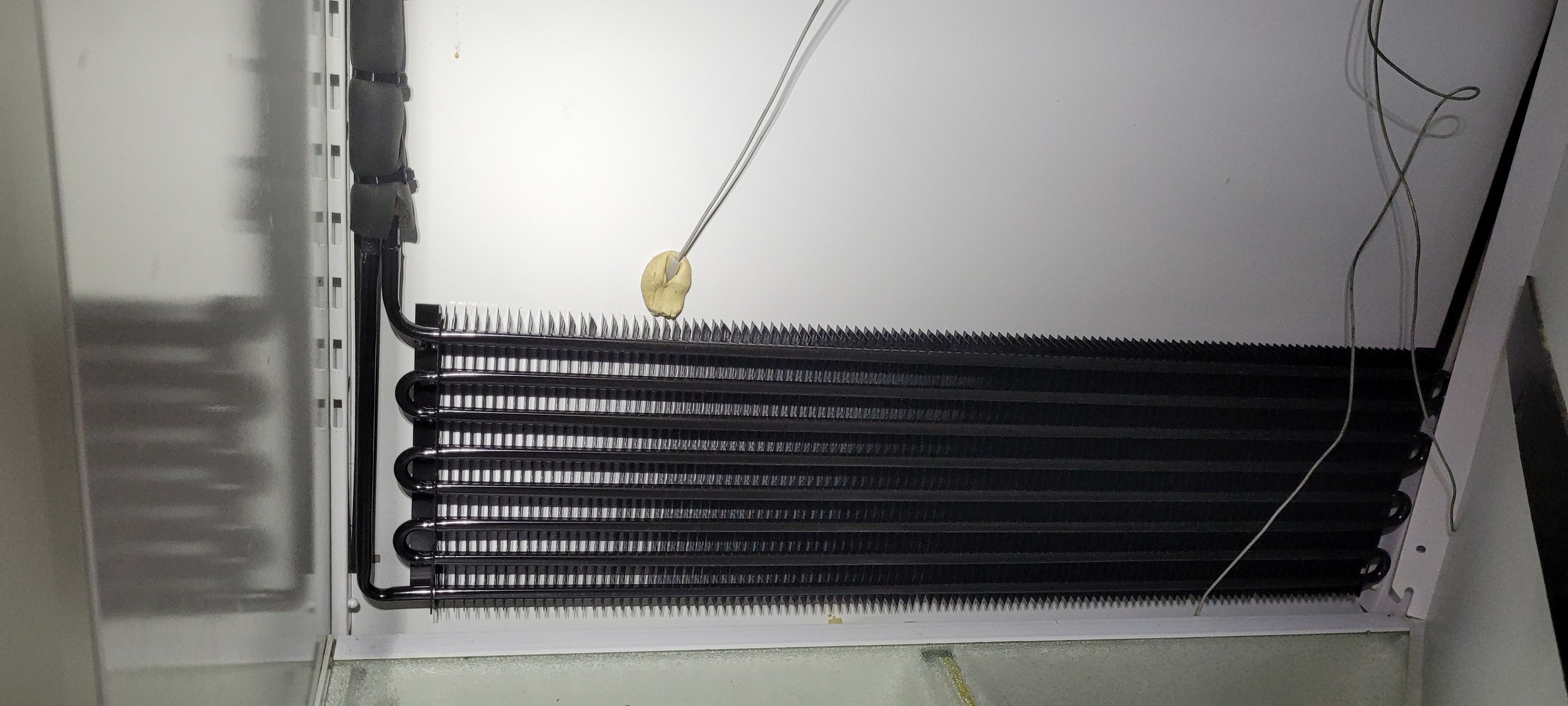

Sub-Zero 661 evaporator coil after leak repair and recharge
