Sub-Zero 736TCI3 Error Codes 50EC & 40EC — Condenser Cleaning
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem

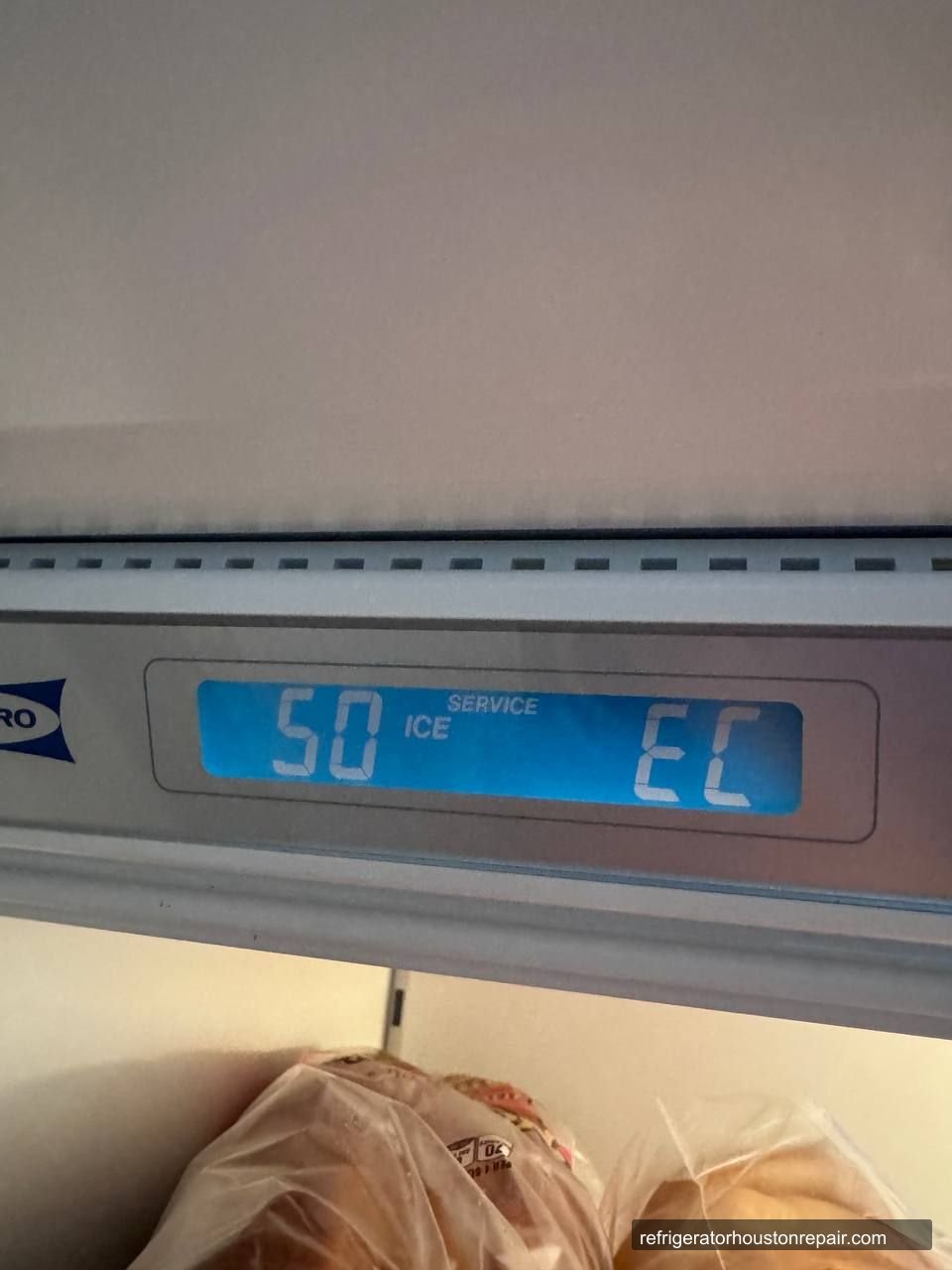

- •Error code 50EC displayed on the Sub-Zero control panel — freezer compartment unable to reach set temperature
- •Error code 40EC displayed — fresh food compartment not reaching target temperature within the required time frame
- •Refrigerator and freezer both running warmer than normal despite compressors operating
- •Unit running continuously without cycling off, causing increased energy consumption
- •No prior maintenance performed in over two years, leading to progressive heat dissipation failure
🔍 Diagnosis
Upon arrival at the Houston residence (ZIP 77025), technician Serhii connected to the Sub-Zero 736TCI3's diagnostic interface and confirmed active fault codes 50EC and 40EC. These codes indicate that the freezer compressor and the fresh food compressor, respectively, are failing to pull their compartments down to the programmed set-point temperatures within the manufacturer-specified time window. On Sub-Zero built-in refrigerators, this is almost always a heat rejection problem before it becomes a sealed system problem. Serhii began by accessing the condenser compartment and immediately identified a heavily fouled condenser coil — dust, pet hair, and compacted debris were blocking airflow across the entire coil surface. The condenser fan motor was operational and drawing correct amperage (referenced against the label baseline of 0.1A), ruling out a fan failure. Manifold gauge readings on the R-134a sealed system (label-confirmed charge: 8.0 oz) showed suction and discharge pressures consistent with heat-load saturation rather than refrigerant loss — a strong indicator that the root cause was thermal, not a leak. A thermal imaging check confirmed elevated condenser surface temperatures. Door gaskets on both the freezer and fresh food sections were inspected and found to be sealing correctly with no warm-air infiltration. Given the unit's age of 19 years (serial P2747872, manufactured in Madison, WI) and no maintenance in over two years, the diagnosis was confirmed: severely restricted condenser coil causing both compressors to run beyond their allowable temperature-pull-down window, triggering the 50EC and 40EC fault codes.
🔧 The Repair
- ✓Powered down the Sub-Zero 736TCI3 at the wall outlet and allowed the unit to sit for 5 minutes before opening the condenser access panel to ensure safe working conditions.

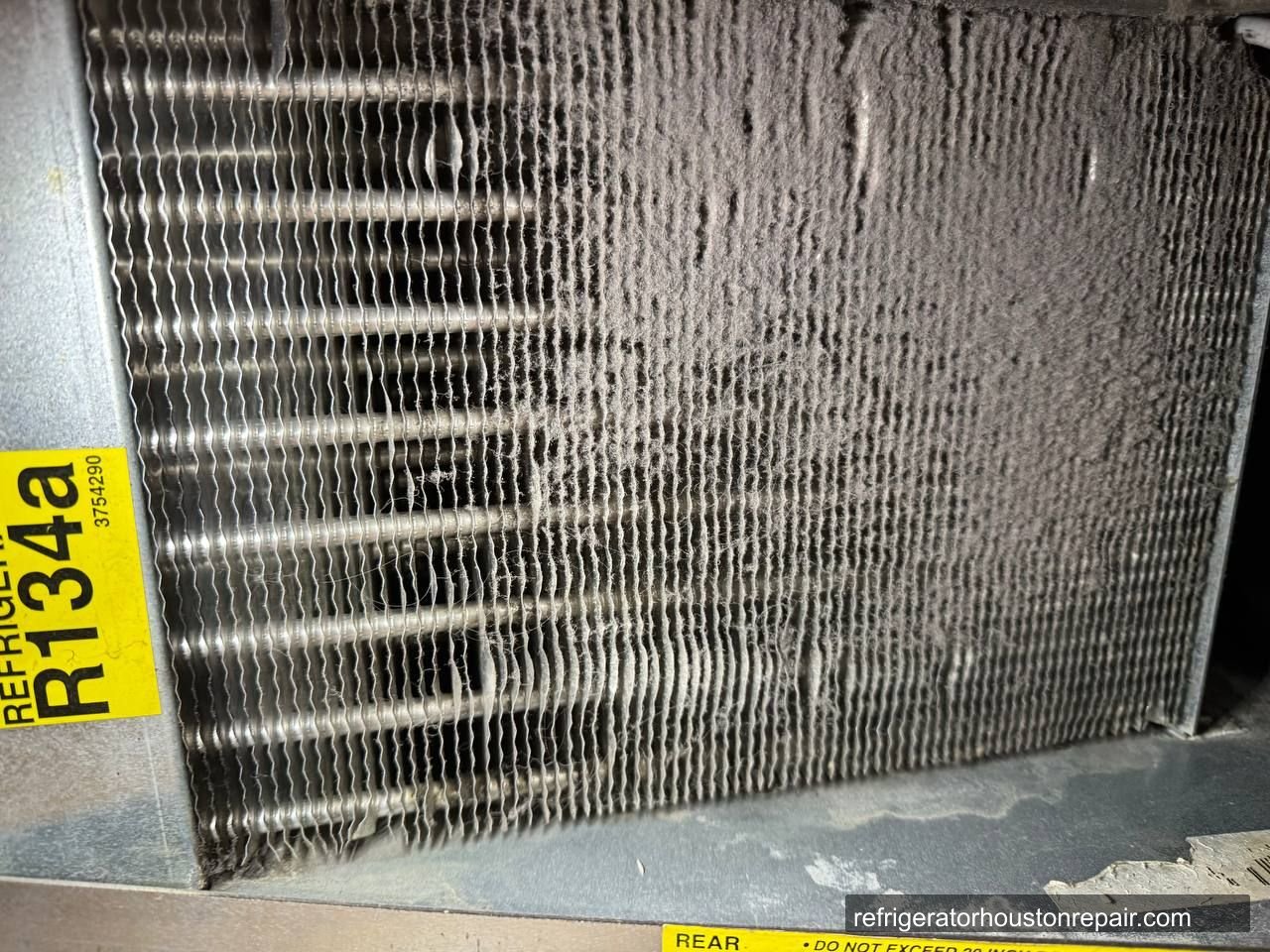

- ✓Removed the condenser access grille and inspected the condenser coil assembly, confirming heavy accumulation of dust, lint, and debris blocking approximately 70% of airflow through the coil fins.
- ✓Verified condenser fan motor operation and measured running amperage against the label-specified 0.1A baseline — fan was within spec and rotating freely with no bearing noise.
- ✓Connected manifold gauges to the R-134a service ports to evaluate sealed system pressures. Suction and discharge readings were consistent with a heat-saturated system under the confirmed 8.0 oz R-134a charge, ruling out refrigerant loss as the primary fault.

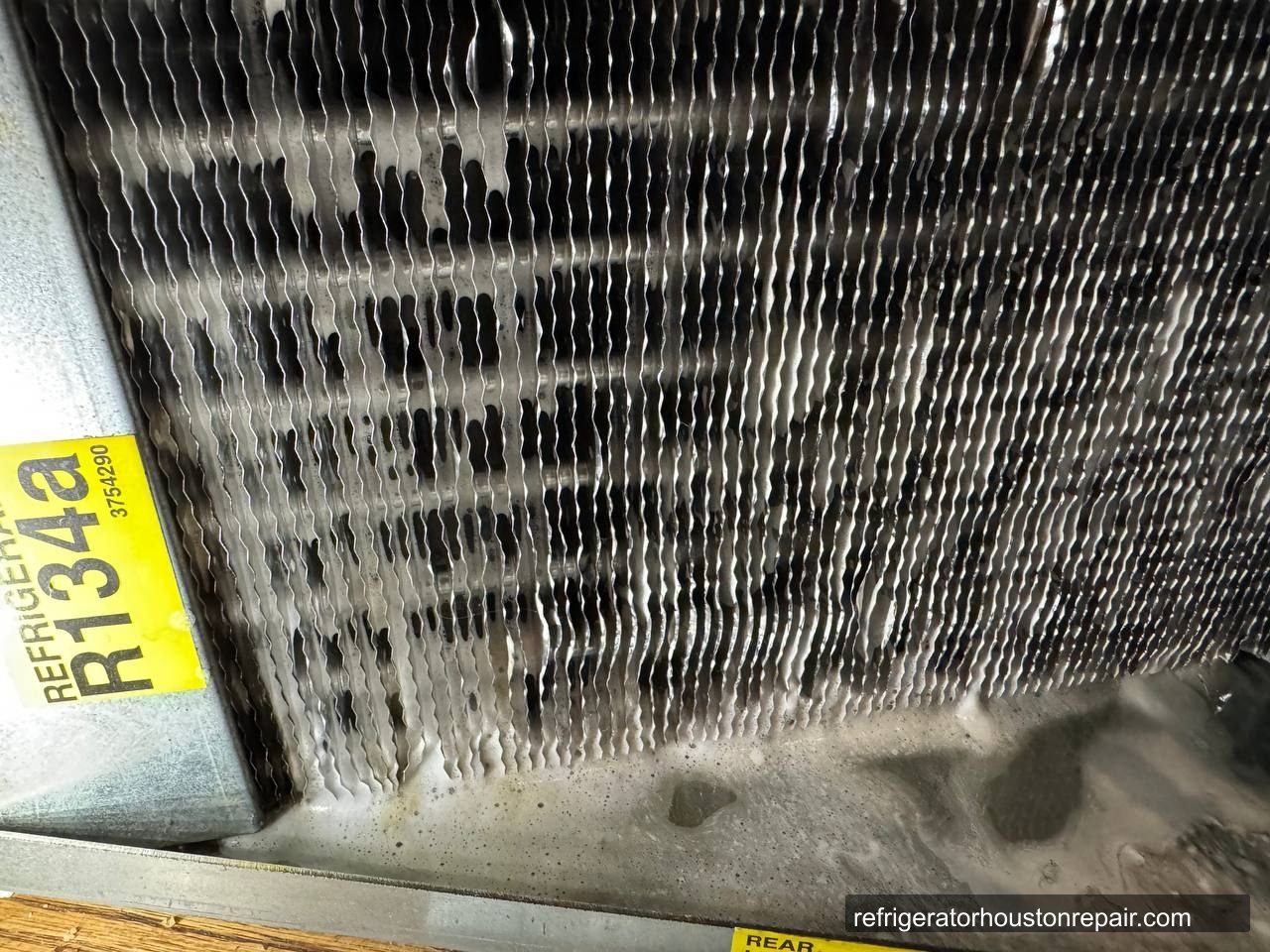

- ✓Applied professional-grade active foam coil cleaner to the condenser coil, allowing the foam to penetrate and break down compacted debris between the fins. Dwell time of approximately 8 minutes was observed per product instructions.
- ✓Used a low-pressure air purge and soft-bristle brush to remove loosened debris from between the condenser fins, working in the direction of the fin channels to avoid bending or damaging the aluminum fins.
- ✓Inspected all condenser fin rows for physical damage or bending; straightened any damaged fins using a fin comb tool to restore maximum airflow.
- ✓Inspected door gaskets on both the freezer and fresh food compartments for cracks, compression loss, or gaps using a flashlight and paper-slip test. Both gaskets were sealing correctly with no warm-air infiltration detected.
- ✓Cleared the 50EC and 40EC fault codes from the Sub-Zero electronic control board using the diagnostic reset procedure (simultaneously pressing and holding the control panel reset sequence as specified in the service manual for the 736TCI3).
- ✓Powered the unit back on and monitored compressor startup behavior. Both the freezer and fresh food compressors initiated normal cooling cycles without triggering alarm conditions.
- ✓Placed calibrated thermometers in both the freezer and fresh food compartments and monitored temperature pull-down over a 45-minute observation period to confirm both sections were descending toward their respective set points.
- ✓Advised the customer that annual condenser cleaning is required maintenance for Sub-Zero built-in refrigerators and documented the service visit, confirming no fault codes reappeared before technician departure.
✓ Result
Following the active foam condenser cleaning and fault code reset, both compressors resumed normal operation. The freezer compartment reached its set-point temperature of 0°F within approximately 90 minutes, and the fresh food section stabilized at 37°F within the same window — both well within Sub-Zero's specified pull-down performance parameters. The 50EC and 40EC error codes did not reappear. The customer was visibly relieved given the age of the unit and expressed satisfaction with the non-invasive repair. A 30-day labor warranty was provided on the service call.
💡 Technician Notes
Sub-Zero built-in refrigerators like the 736TCI3 rely entirely on a clean condenser coil to reject heat from both the freezer and fresh food sealed systems. Sub-Zero strongly recommends cleaning the condenser coil every 6 to 12 months — more frequently in homes with pets or heavy dust. In Houston's climate, where units run harder due to ambient heat and humidity, annual maintenance is the absolute minimum. Error codes 50EC and 40EC are your early warning system: if you see them, do not ignore them. Continuing to run the unit with a fouled condenser forces both compressors to work beyond their thermal limits, accelerating wear. At 19–20 years of age, compressor replacement becomes extremely expensive — often $1,500–$2,500 per compressor. A $150–$200 annual maintenance visit can extend the appliance's life by years. Always listen for the condenser fan running; if it stops, call for service immediately.
Frequently Asked Questions
What do error codes 50EC and 40EC mean on a Sub-Zero refrigerator?
On Sub-Zero refrigerators, error code 50EC means the freezer compressor cannot reach its set-point temperature within the required time, and 40EC means the fresh food compressor has the same issue. Both codes typically point to a heat rejection problem — most often a clogged condenser coil — rather than an immediate compressor failure, especially if maintenance has been neglected.
How much does it cost to fix Sub-Zero error codes 50EC and 40EC in Houston?
If the root cause is a dirty condenser coil — the most common cause — the repair involves a professional cleaning service, typically ranging from $150 to $250 in the Houston area. If the condenser cleaning resolves the fault codes, no parts are needed. However, if a compressor has been damaged from prolonged overheating, costs can rise significantly to $1,500–$2,500 per compressor on older Sub-Zero units.
How often should I clean the condenser coil on my Sub-Zero 736TCI3?
Sub-Zero recommends cleaning the condenser coil every 6 to 12 months. In Houston's hot and humid climate, annual cleaning is the minimum — and homes with pets or high dust levels should clean every 6 months. A clogged condenser is the leading cause of 40EC and 50EC fault codes and accelerates compressor wear on aging Sub-Zero built-in models like the 736TCI3.
Is it worth repairing a 19-year-old Sub-Zero 736TCI3 or should I replace it?
If the repair is non-invasive — such as a condenser cleaning or minor part replacement — it is almost always worth repairing a Sub-Zero at 19 years. These units are built to last 20+ years with proper maintenance. However, if both compressors need replacement simultaneously, the cost may approach or exceed the value of the appliance. A certified Sub-Zero technician can assess the sealed system condition to guide your decision.
Can I clean the Sub-Zero condenser coil myself to prevent error codes 50EC and 40EC?
Basic condenser coil brushing can be done by a careful homeowner using a Sub-Zero condenser brush kit — the coil is accessible behind the lower front grille. However, a professional deep cleaning with active foam cleaner provides more thorough results and ensures the fin channels are fully cleared. A technician can also inspect gaskets, verify fan operation, and check refrigerant pressures during the same visit, preventing future issues.
Repair Summary
- Brand
- Sub-Zero
- Model
- 736TCI3
- Repair Type
- Condenser Coil Cleaning / Preventive Maintenance
- Refrigerant
- R-134a
- Root Cause
- Severely clogged condenser coil from over two years without maintenance
- Parts Replaced
- ✓No parts replaced — repair completed through professional condenser coil cleaning and fault code reset
- ✓Active foam coil cleaner (professional-grade, non-conductive, safe for aluminum fin coils) — consumable used during service
- Location
- Houston, TX 77025
- Status
- ✓ Completed
