Sub-Zero 736TCI 3 Compressor Replacement — Freezer Temperature Issue
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Freezer not maintaining correct temperature — food partially thawed or soft
- •Refrigerator running constantly without reaching set temperature
- •Unusual noise or silence from compressor area where normal cycling sounds were expected
- •Ice production stopped or significantly reduced
🔍 Diagnosis
Upon arrival at the Houston 77025 residence, the technician conducted a full sealed-system diagnostic on the Sub-Zero 736TCI 3 built-in refrigerator (Serial No. P2747872, manufactured in Madison, WI). The unit operates on 115V/60Hz with a rated amperage of 8.1A and uses R-134a refrigerant with a factory charge of 8.1 oz. The customer reported that the freezer compartment was failing to maintain proper temperature, with readings several degrees above the set point. The technician began with a visual inspection and immediately identified a non-original equipment manufacturer (non-OEM) start relay installed on the compressor — a clear sign of a prior repair attempt by another service provider. Using a calibrated manifold gauge set, the technician measured both high-side and low-side pressures. The readings indicated abnormally low suction pressure and elevated discharge pressure, a pattern consistent with a mechanically worn or failing compressor with reduced pumping capacity. An ammeter clamp confirmed the compressor was drawing amperage inconsistent with the 8.1A label specification, cycling erratically under load. A leak detector sweep found no refrigerant leaks in the line set or evaporator coil. Based on the pressure data, the irregular amperage draw, and the history of a non-OEM relay installation, the technician concluded the compressor had reached end of life and required full replacement, along with the filter drier and an OEM start relay — both of which are included in the Sub-Zero OEM compressor kit.
🔧 The Repair
- ✓Performed complete system diagnostic including manifold gauge pressure readings on both high and low sides; documented abnormal pressures indicating compressor failure.

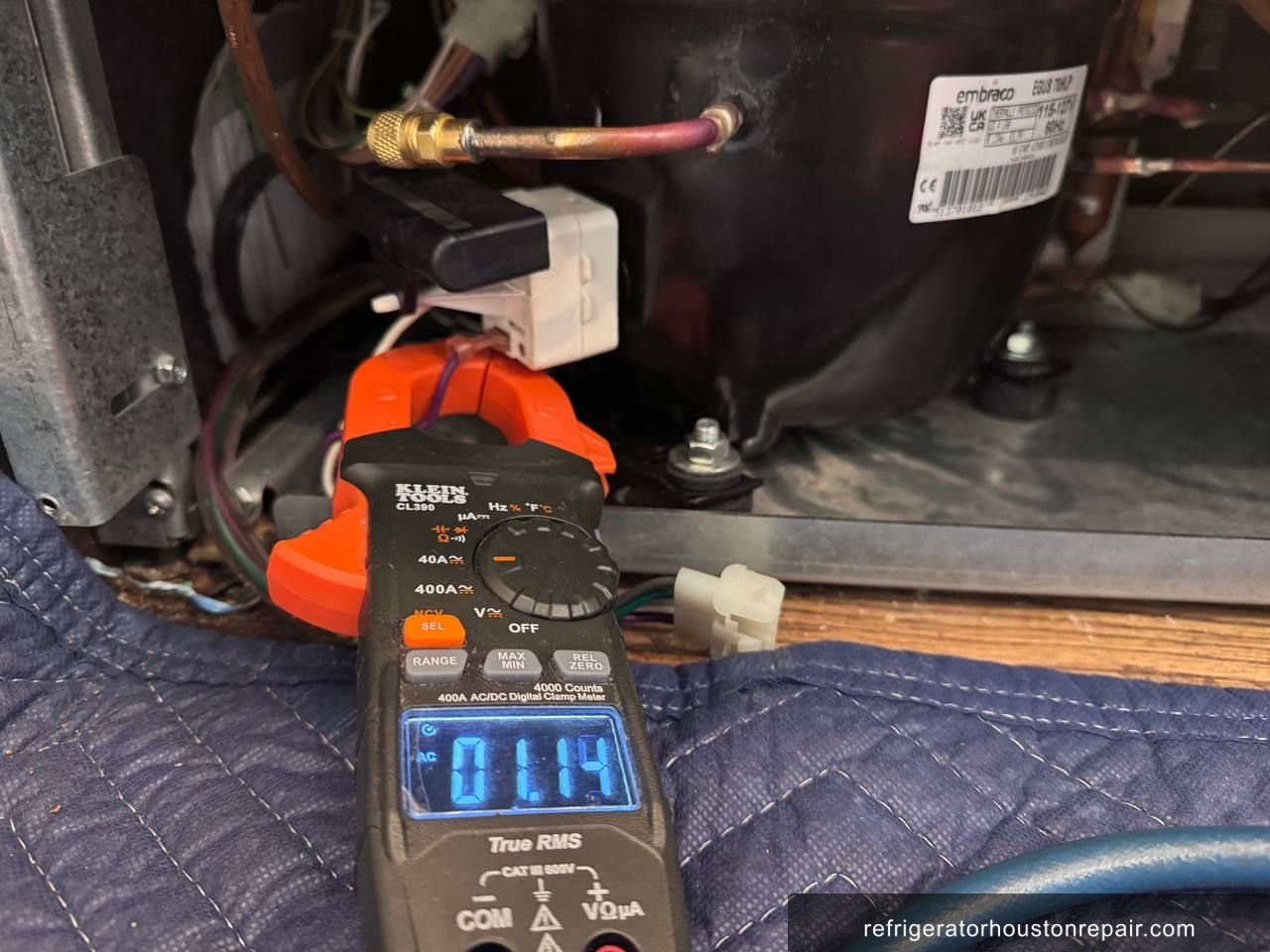

- ✓Measured running amperage with a clamp meter — confirmed draw inconsistent with the rated 8.1A specification on the appliance label, confirming mechanical compressor degradation.
- ✓Documented the presence of a non-OEM start relay installed by a previous technician; confirmed the relay was not matched to Sub-Zero 736TCI 3 compressor specifications.
- ✓Ordered the OEM Sub-Zero replacement compressor assembly, which includes the matched filter drier and OEM PTC start relay as a complete factory kit.
- ✓Upon compressor kit arrival (several days later), safely recovered all remaining R-134a refrigerant from the sealed system using EPA-certified refrigerant recovery equipment — ensuring zero atmospheric release.

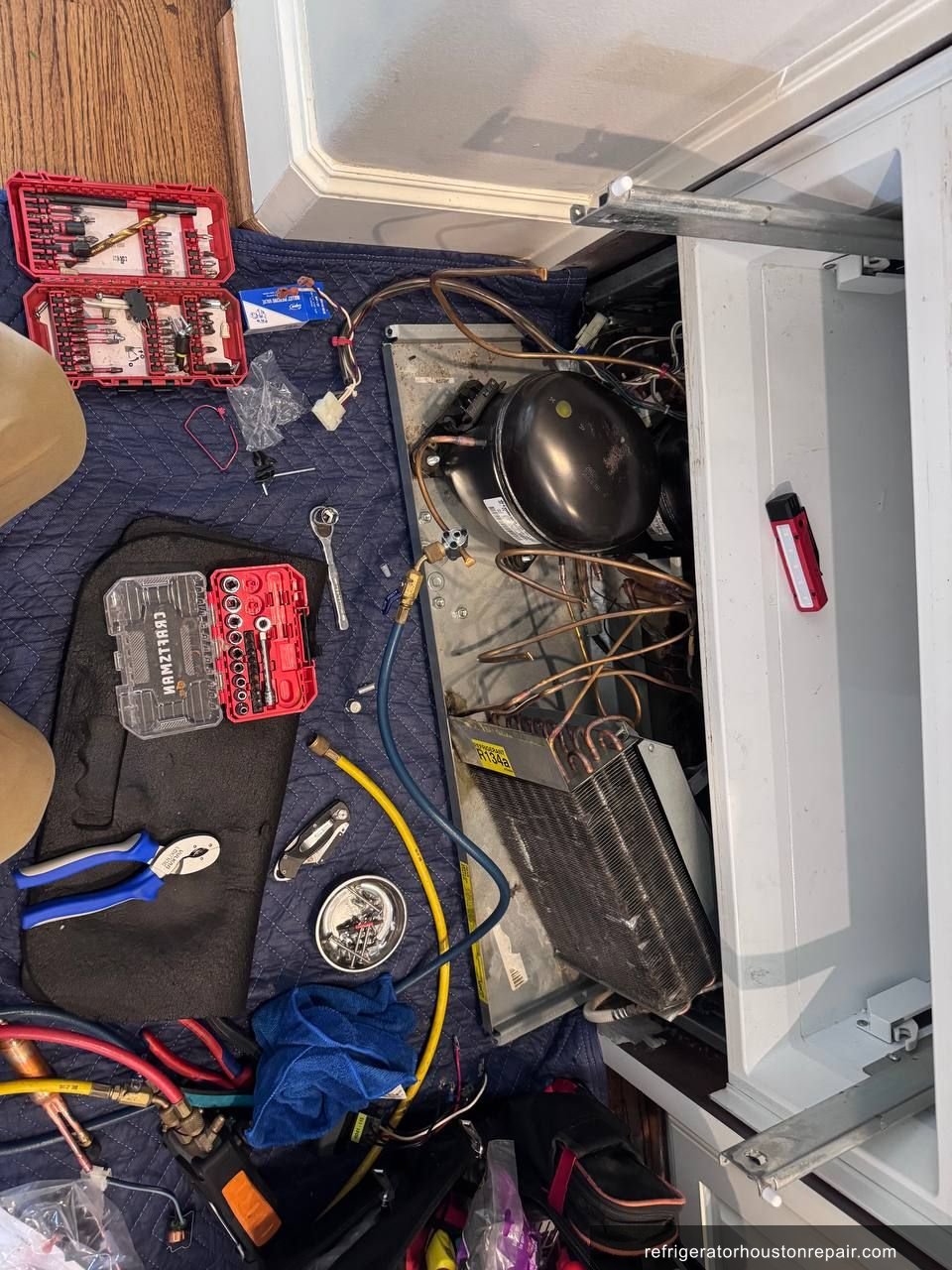

- ✓Disconnected and removed the failed compressor: unsoldered refrigerant line connections, disconnected electrical terminals, and unbolted the compressor from its mounting base.
- ✓Installed the new OEM compressor onto the mounting base, torquing all fasteners to specification to prevent vibration-related failures.

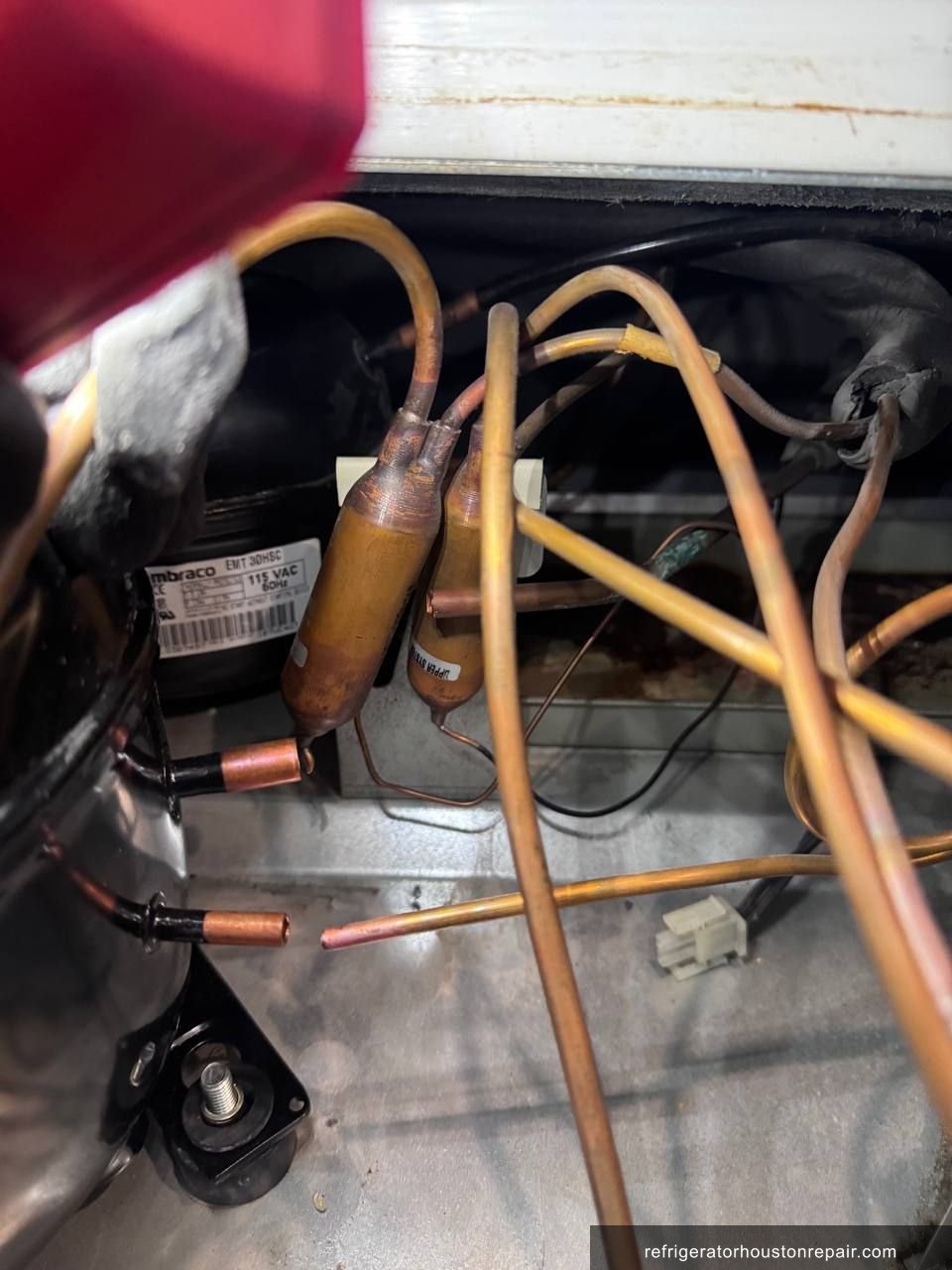

- ✓Replaced the filter drier with the OEM unit supplied in the compressor kit; installed in the correct flow direction on the liquid line.
- ✓Installed the new OEM PTC start relay on the compressor terminal pins, replacing the previously installed non-OEM component.
- ✓Pressure-tested the sealed system with dry nitrogen at appropriate PSI to verify all brazed joints were leak-free before refrigerant introduction.
- ✓Pulled vacuum on the system using a two-stage vacuum pump; held vacuum to confirm system integrity and remove all moisture from the lines.
- ✓Recharged the sealed system with the factory-specified 8.1 oz of R-134a refrigerant using calibrated charging equipment; verified charge by monitoring suction and discharge pressures.
- ✓Restored power to the unit and monitored operation over 30 minutes — confirmed compressor start, normal amperage draw, proper cycling, and temperatures dropping to target range in both the refrigerator and freezer compartments.
✓ Result
Following the compressor replacement and refrigerant recharge to the factory specification of 8.1 oz of R-134a, the Sub-Zero 736TCI 3 resumed normal operation. The freezer compartment reached its target temperature of 0°F within approximately 4 hours of restart, and the fresh food section stabilized at 37°F. Total labor time on the day of repair was 3 hours. The customer was highly satisfied with the thorough repair and the explanation of what had gone wrong with the prior non-OEM relay installation. A 90-day labor warranty was provided on all work performed.
💡 Technician Notes
Sub-Zero built-in refrigerators like the 736TCI 3 are engineered for longevity, but their sealed systems require OEM-grade components to perform as designed. Never allow a technician to substitute a generic start relay on a Sub-Zero compressor — the incorrect PTC relay can cause the compressor to start under excess load and shorten its lifespan dramatically. Watch for early warning signs: a freezer that's 5°F or more above set point, a compressor that runs continuously without cycling off, or a refrigerator that hums differently than usual. Have your sealed system pressures checked at the first sign of temperature irregularity. In Houston's climate, ambient heat in utility areas or tight cabinetry can accelerate compressor wear — ensure adequate ventilation around the unit's condenser area. Annual condenser coil cleaning is also strongly recommended for Sub-Zero owners.
Frequently Asked Questions
Why did the compressor fail on my Sub-Zero 736TCI 3 refrigerator?
Compressor failure on the Sub-Zero 736TCI 3 can result from multiple causes, including an incorrectly matched start relay (as found in this case), extended operation in high-ambient environments, or normal wear after many years of use. A non-OEM start relay forces the compressor to start under improper load conditions, accelerating internal mechanical wear and ultimately leading to reduced pumping capacity and full compressor failure.
How much does a Sub-Zero compressor replacement cost, and how long does the repair take?
A Sub-Zero sealed system compressor replacement, including the OEM compressor, filter drier, and start relay, is one of the more involved refrigerator repairs — typically requiring 3 or more labor hours on the service day, plus the lead time to source the OEM compressor kit. Costs vary, but the investment is often justified given Sub-Zero's premium build quality and long service life compared to buying a new unit.
What are the warning signs that a Sub-Zero freezer compressor is failing?
Early signs of compressor failure on Sub-Zero refrigerators include the freezer compartment running several degrees above the set temperature, the unit running continuously without achieving target temps, unusual clicking or humming at startup, or complete silence where normal compressor cycling sounds were present before. If you notice your Sub-Zero 736TCI 3 freezer temperature rising gradually over days or weeks, schedule a sealed-system diagnostic promptly.
Is it worth replacing the compressor on a Sub-Zero 736TCI 3, or should I buy a new refrigerator?
Sub-Zero refrigerators are built to last 20+ years with proper maintenance, and the 736TCI 3 is a premium built-in model that can cost $10,000 or more to replace new. In most cases, an OEM compressor replacement — even at a significant repair cost — is far more economical than replacing the unit. As long as the cabinet, door seals, evaporator, and electronics are in good condition, a compressor replacement is a sound investment.
How long will the refrigerator take to reach proper temperature after a compressor replacement and R-134a recharge?
After an OEM compressor installation and correct R-134a recharge to the factory specification (8.1 oz on the 736TCI 3), most Sub-Zero units will reach target freezer temperature (0°F) within 4 to 6 hours of restart. Fresh food compartment temperatures typically stabilize around the same window. Avoid loading the refrigerator with warm food immediately after restart — allow the system to fully stabilize for best results.
Repair Summary
- Brand
- Sub-Zero
- Model
- 736TCI 3
- Repair Type
- Sealed System Repair / Compressor Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed compressor and non-OEM start relay causing incorrect freezer temperatures
- Parts Replaced
- ✓OEM Sub-Zero compressor assembly (compatible with Model 736TCI 3, R-134a sealed system, 115V/60Hz)
- ✓OEM filter drier — supplied as part of the Sub-Zero compressor replacement kit, installed on liquid line
- ✓OEM PTC start relay — supplied in compressor kit, replaces previously installed non-OEM relay
- Location
- Houston, TX 77025
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

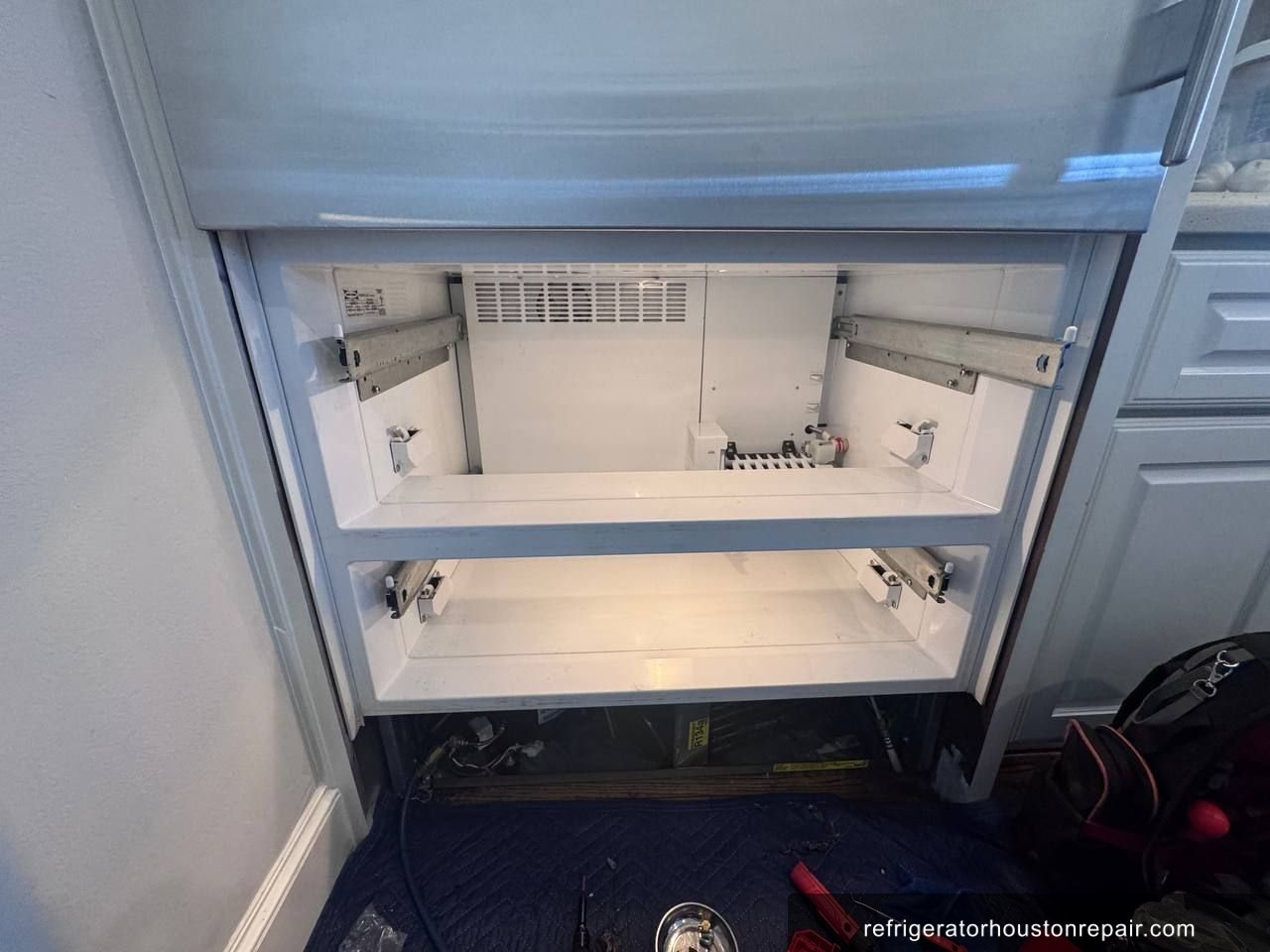

Sub-Zero 736TCI 3 repair in Houston, TX — photo 5
