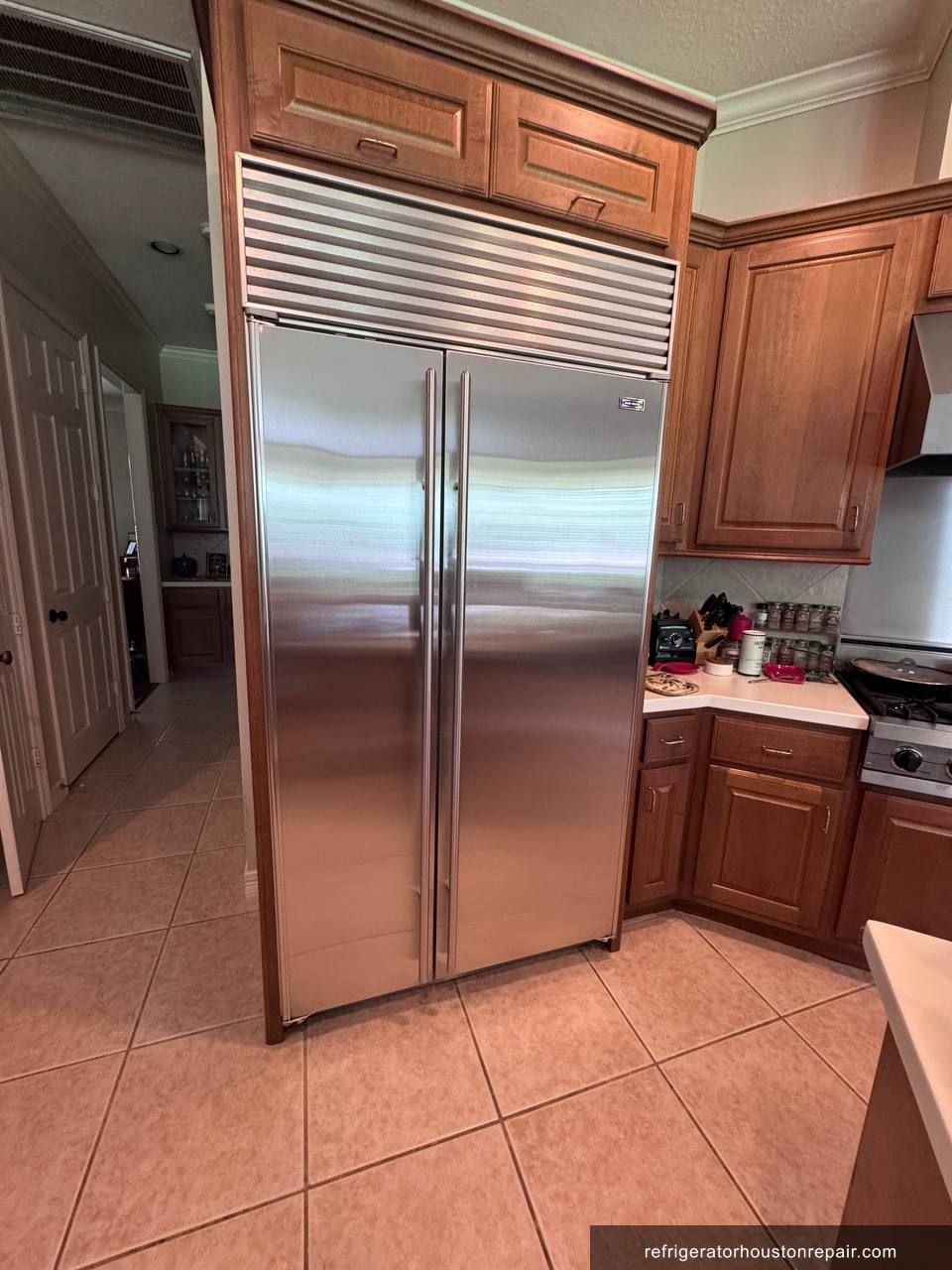

Sub-Zero 642S: Low Refrigerant and Clogged Condenser Repair in Magnolia, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment holding 41-42°F instead of the set 37°F
- •Gurgling or water-flowing sound coming from the back of the unit with no visible leak
- •Error code 50 EC displayed on the control panel
- •Frost accumulation visible under one shelf near the evaporator cover
🔍 Diagnosis
When I arrived at the home in Magnolia, the Sub-Zero 642S was running but the display showed error code 50 EC, which on this model means the compressor failed to pull the cabinet down to the set temperature within the required time window. The customer had set 37°F but the compartment was reading 41-42°F on my calibrated Fieldpiece thermometer. He also described a persistent gurgling sound from the rear of the unit. No water was visible anywhere, which was an important clue. I pulled the condenser grille first. The condenser coil was completely packed with dust and pet hair. Airflow was essentially zero. A blocked condenser on the 642S forces the compressor to run harder, raises head pressure, and degrades cooling capacity on its own. But that was not the whole story. I removed the evaporator cover inside the cabinet and found the evaporator coil with very light frost coverage, far less than expected for a running system. I connected my manifold gauges and confirmed suction pressure was well below the normal range for R-134a at operating conditions, indicating a low refrigerant charge. The gurgling sound the customer heard was liquid refrigerant that was not fully transitioning to vapor in the evaporator, caused by insufficient charge. The liquid was flowing through the tubing and creating that characteristic water-running noise. The compressor showed elevated amperage draw and higher-than-normal discharge temperature, consistent with a unit that had the compressor replaced roughly 12-14 years ago and has been slowly losing charge since.
🔧 The Repair
- ✓Step 1: Recovered the remaining R-134a charge from the sealed system using a Fieldpiece MR45 recovery machine, following EPA Section 608 protocol. Logged the recovered amount for documentation.
- ✓Step 2: Cleaned the condenser coil thoroughly using a soft-bristle condenser brush and a commercial coil cleaner spray, removing a dense layer of compacted dust and debris. Verified airflow was restored through the coil.
- ✓Step 3: Pressure-tested the sealed system with dry nitrogen at 150 psi for 30 minutes to confirm no active leak points in the lines or fittings.
- ✓Step 4: Connected a two-stage vacuum pump and pulled the system down to below 300 microns, then held the vacuum for 20 minutes to confirm the system was dry and sealed. Verified with a micron gauge.
- ✓Step 5: Recharged the system with R-134a to the label specification of 8.0 oz using a digital refrigerant scale for precision.
- ✓Step 6: Reinstalled the evaporator cover and restored all interior components. Cleaned and reinstalled the condenser grille.
- ✓Step 7: Monitored compressor amperage draw and discharge line temperature during the first 30 minutes of operation. Both readings dropped toward acceptable range as the system stabilized, though the compressor is still running at the higher end of normal.
- ✓Step 8: Returned after 2 hours of runtime and confirmed fresh food compartment at 37°F with no active error codes on the display and no gurgling sounds. Advised the customer in writing about compressor and heat exchanger condition.
✓ Result
Two hours after the recharge and condenser cleaning, the 642S was holding a steady 37°F with no error codes active and no gurgling noise. The customer, who had recently moved into the Magnolia home and had never owned a built-in Sub-Zero before, was relieved to finally understand what the sounds meant and to have the unit working correctly. He appreciated the honest conversation about the compressor's condition and the realistic timeline of a few more years with proper maintenance. The fridge food was preserved throughout.
💡 Technician Notes
Sub-Zero 642S owners need to clean the condenser coil at least once a year, more often if you have pets. This model pulls air through a grille at the bottom front, and it traps dust and hair faster than most people expect. A dirty condenser alone will trigger error code 50 EC and cause the same high-temperature symptoms this customer saw, even without any refrigerant issue. The early warning sign specific to low refrigerant on this model is that gurgling or flowing-water sound from the rear wall. Most owners assume it is a plumbing issue. It is not. If you hear that sound and your cabinet temperature is drifting more than 2-3 degrees above setpoint, call a technician who is certified to handle sealed systems. Do not wait. Running a Sub-Zero with low refrigerant stresses the compressor with every cycle. On an older compressor that has already been replaced once, that additional load shortens the remaining service life noticeably. Clean the condenser every 6 months and that single habit prevents most of the issues this unit presented.
Frequently Asked Questions
What does error code 50 EC mean on a Sub-Zero 642S?
Error code 50 EC on the Sub-Zero 642S means the compressor was unable to bring the cabinet down to the set temperature within a defined time period. The cause is usually a dirty condenser coil, low refrigerant charge, or a compressor that is beginning to fail. On this unit it was both a clogged condenser and insufficient R-134a charge working together.
How much does it cost to recharge refrigerant on a Sub-Zero built-in refrigerator in Magnolia TX?
A sealed system refrigerant recharge on a Sub-Zero in the Magnolia area typically ranges from $350 to $600 depending on how much refrigerant is needed and whether additional work like vacuuming or leak testing is required. The 642S uses R-134a at 8.0 oz. The job requires EPA 608 certification and proper recovery equipment, so it is not a DIY repair.
Why does my Sub-Zero refrigerator sound like water is running inside it?
That gurgling or flowing-water sound in a Sub-Zero is a known symptom of low refrigerant charge. When the R-134a level drops, liquid refrigerant enters the evaporator without fully converting to vapor, and the flow of liquid through the tubing creates that sound. There is no actual water involved. The fix is a proper sealed system recovery, vacuum, and recharge performed by a certified technician.
Is it worth repairing a Sub-Zero 642S when the compressor is old and the refrigerant is low?
The 642S is a high-quality built-in unit that costs $8,000 or more to replace new. If the cabinet and sealed system are intact, a refrigerant recharge and condenser cleaning at a fraction of that cost is worth doing, with clear eyes about what comes next. When the compressor on this unit was last replaced 12-14 years ago, the customer was honestly informed that the compressor, heat exchanger, and evaporator are all showing wear and a more complete overhaul in a few years is likely.
How often should I clean the condenser coil on a Sub-Zero 642S?
Sub-Zero recommends cleaning the condenser coil every 12 months under normal conditions. In a home with pets or high dust, every 6 months is more appropriate. The 642S draws air through the lower front grille, which collects debris quickly. A completely blocked coil raises compressor operating temperature, increases amp draw, and leads directly to error code 50 EC and poor cooling. It takes about 15 minutes with a brush and vacuum.
Repair Summary
- Brand
- Sub-Zero
- Model
- 642S
- Repair Type
- Sealed System Refrigerant Recharge and Condenser Coil Cleaning
- Refrigerant
- R-134a
- Root Cause
- Low R-134a charge combined with severely clogged condenser coil
- Parts Replaced
- ✓R-134a refrigerant, 8.0 oz (full recharge per Sub-Zero 642S label specification)
- Location
- Magnolia, TX 77354
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Magnolia and surrounding areas.
View Magnolia Service Area →📸 Repair Photos
Sub-Zero 642S repair in Magnolia, TX — photo 3
Sub-Zero 642S repair in Magnolia, TX — photo 4

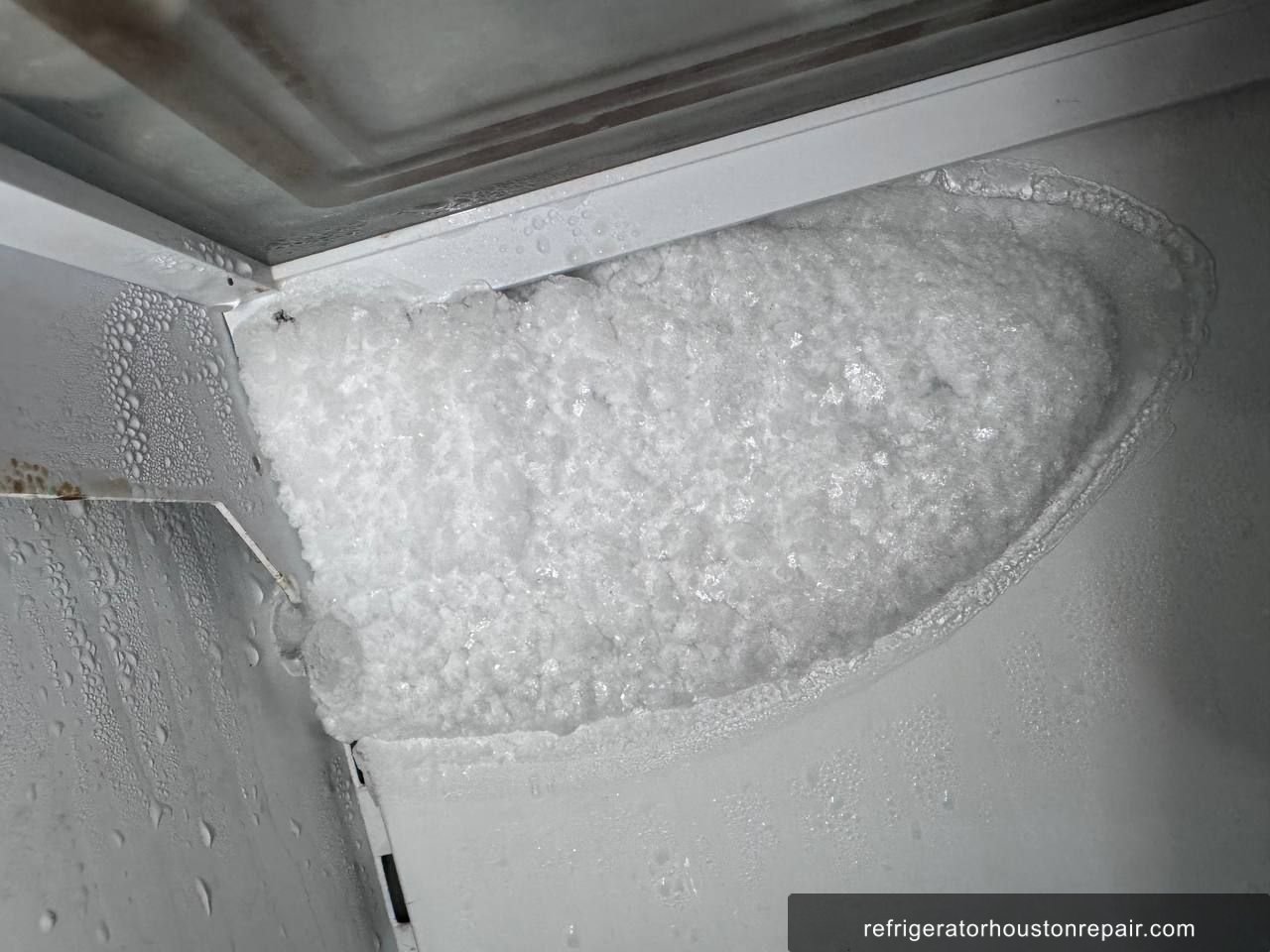

Sub-Zero 642S repair in Magnolia, TX — photo 5

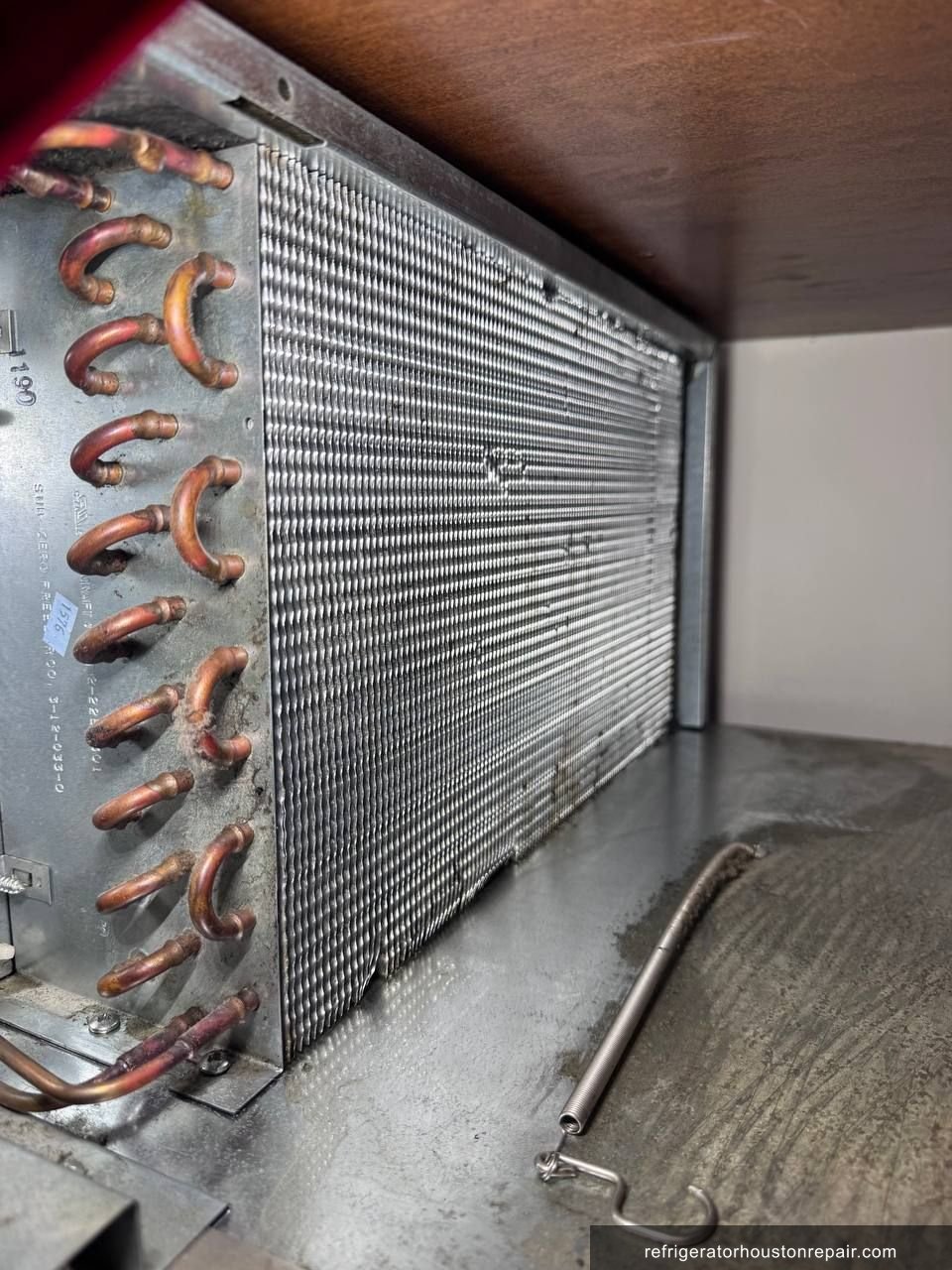

Sub-Zero 642S repair in Magnolia, TX — photo 6

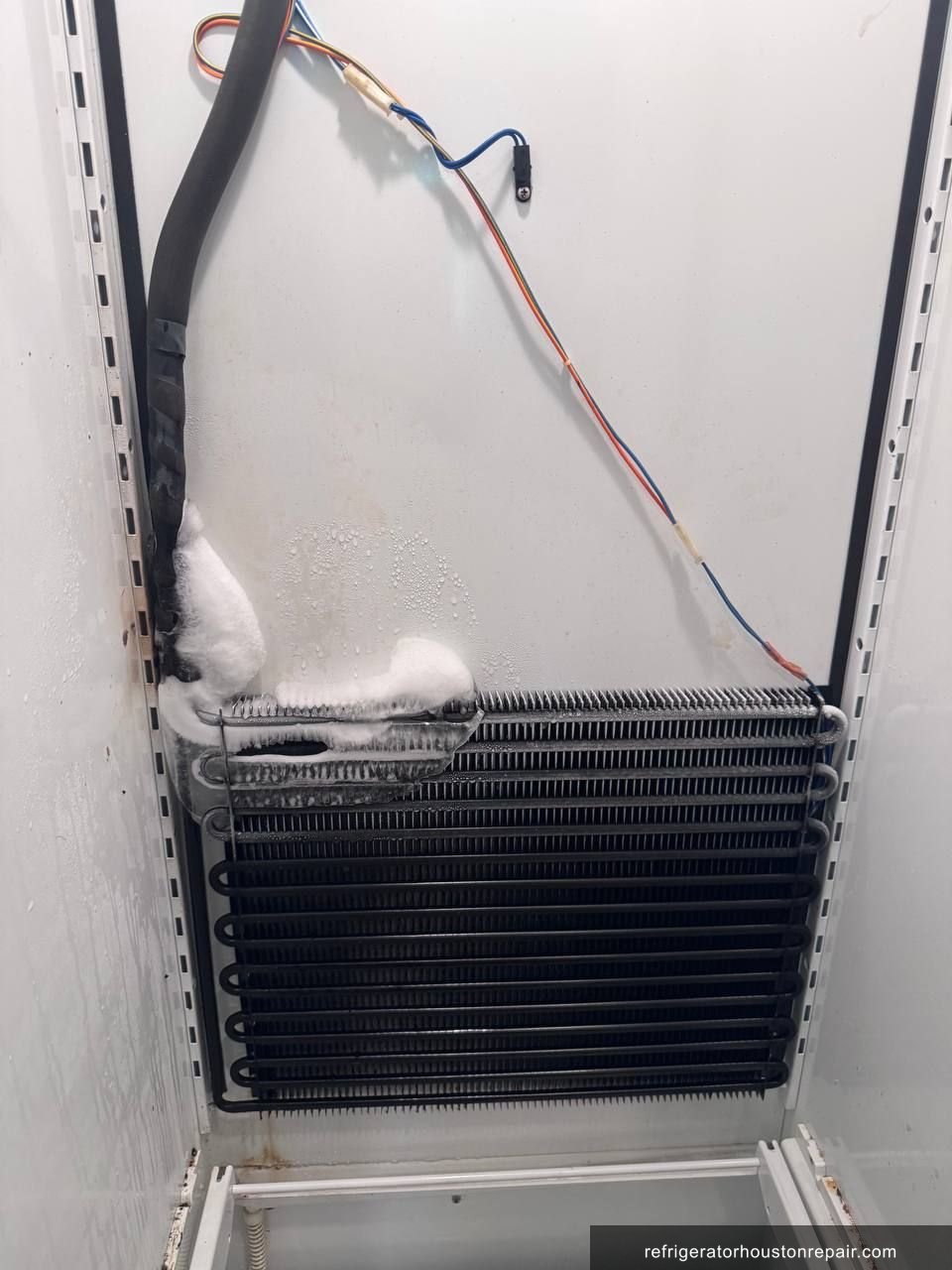

Sub-Zero 642S repair in Magnolia, TX — photo 7

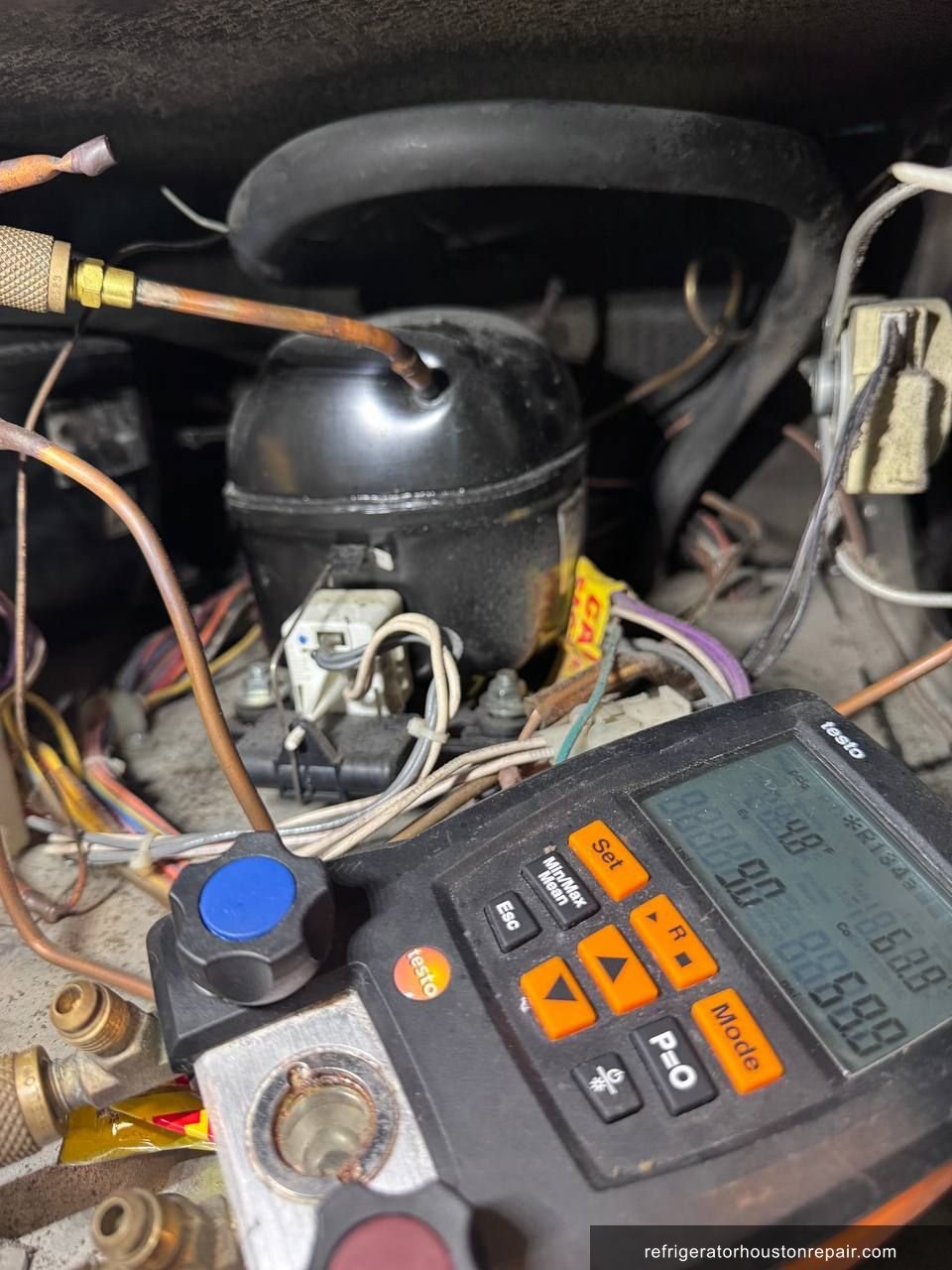

Sub-Zero 642S repair in Magnolia, TX — photo 8

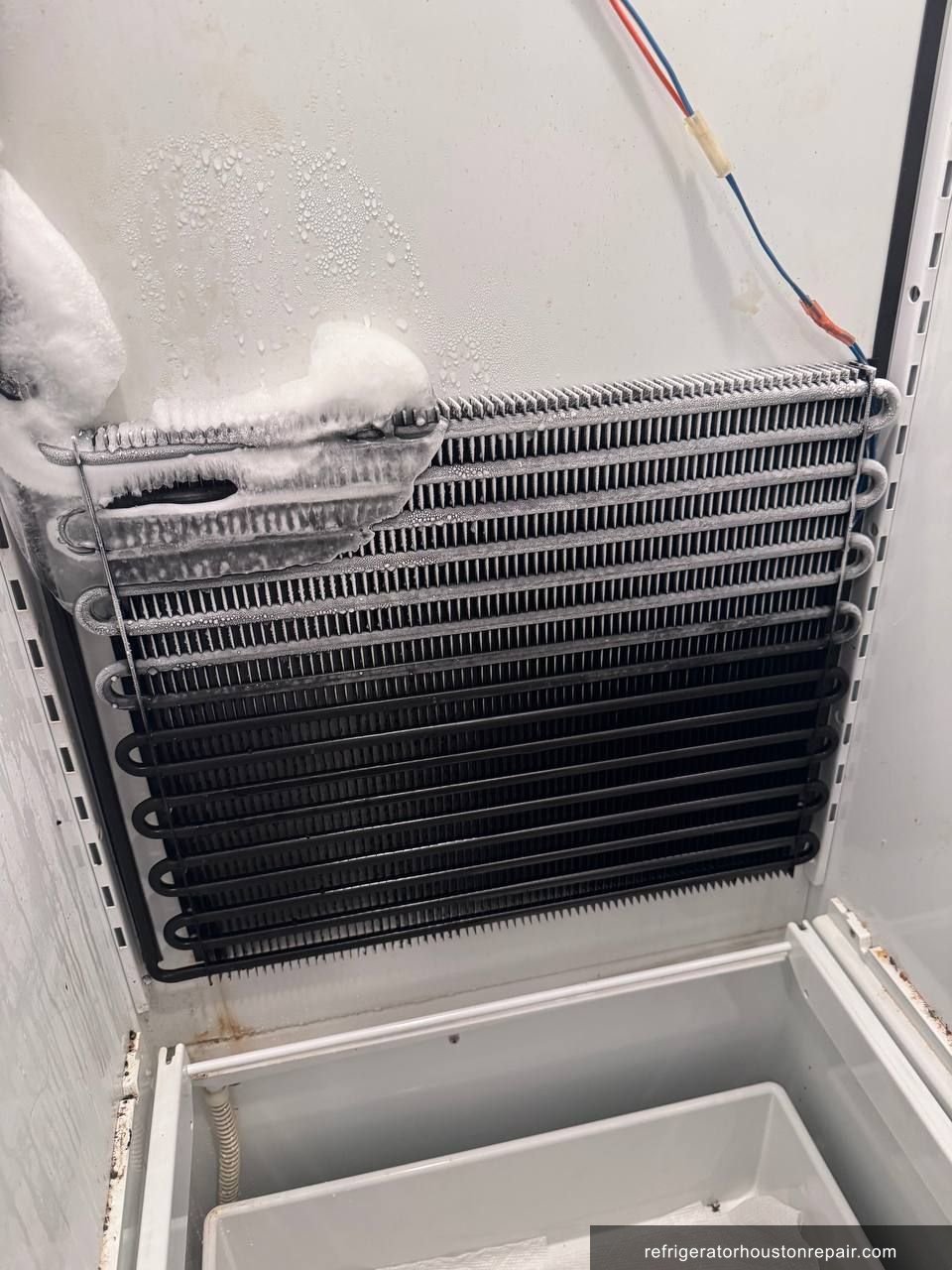

Sub-Zero 642S repair in Magnolia, TX — photo 9

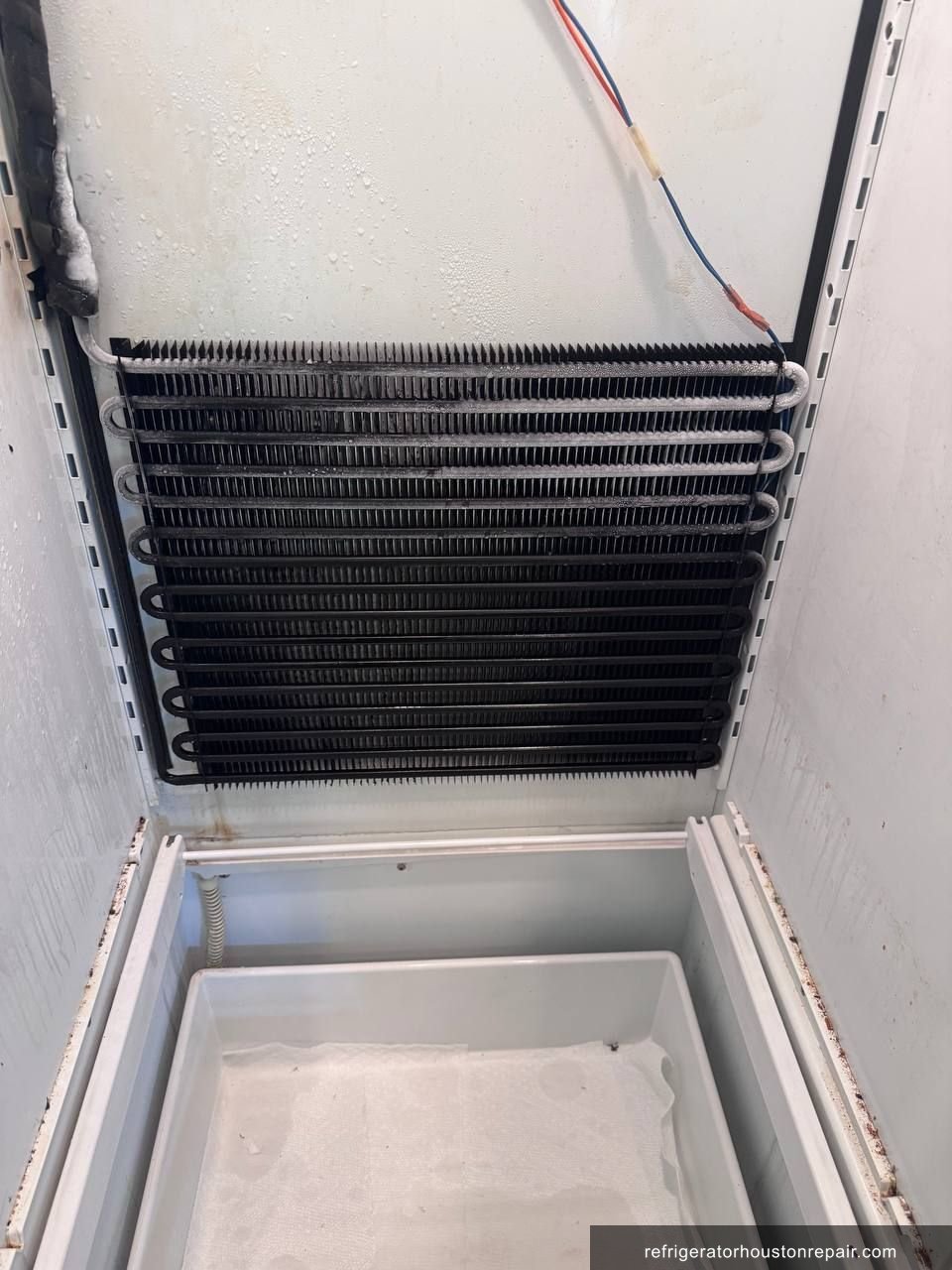

Sub-Zero 642S repair in Magnolia, TX — photo 10
