The Problem
- •Visible tear and gaps in the refrigerator door seal
- •Warm air leaking into the fresh food compartment, causing the unit to run longer than normal
- •Condensation and frost buildup around the door frame area
- •Interior temperatures slightly higher than expected set point
🔍 Diagnosis
Upon arrival at the customer's residence in Houston, TX 77042, the technician performed a thorough inspection of the Sub-Zero Model 632F refrigerator (Serial P2951517, manufactured in Madison, WI). The unit operates on R-134a refrigerant with a 2.00a charge and draws 9.0 amps at rated load. The customer reported that the door gasket had been pulled on repeatedly by young children in the household, resulting in a visible tear along one section of the fresh food door seal. The technician confirmed the damage by direct visual inspection — the gasket was torn in multiple places and had lost its magnetic retention capability along a significant portion of the door perimeter. A dollar-bill test was performed at several points around the door; the bill pulled out with little to no resistance in the affected areas, confirming substantial seal failure. The technician also used an infrared thermometer to detect warm ambient air infiltration at the breach points. A multimeter verified that amperage draw was elevated slightly above the label-rated 9.0A baseline, consistent with the compressor working harder to compensate for the thermal loss caused by the compromised seal. No refrigerant leaks were detected via electronic leak detector, and system pressures checked with manifold gauges were within normal operating range for R-134a. The sealed system itself was intact; the root cause was isolated entirely to the mechanical failure of the door gasket.
🔧 The Repair

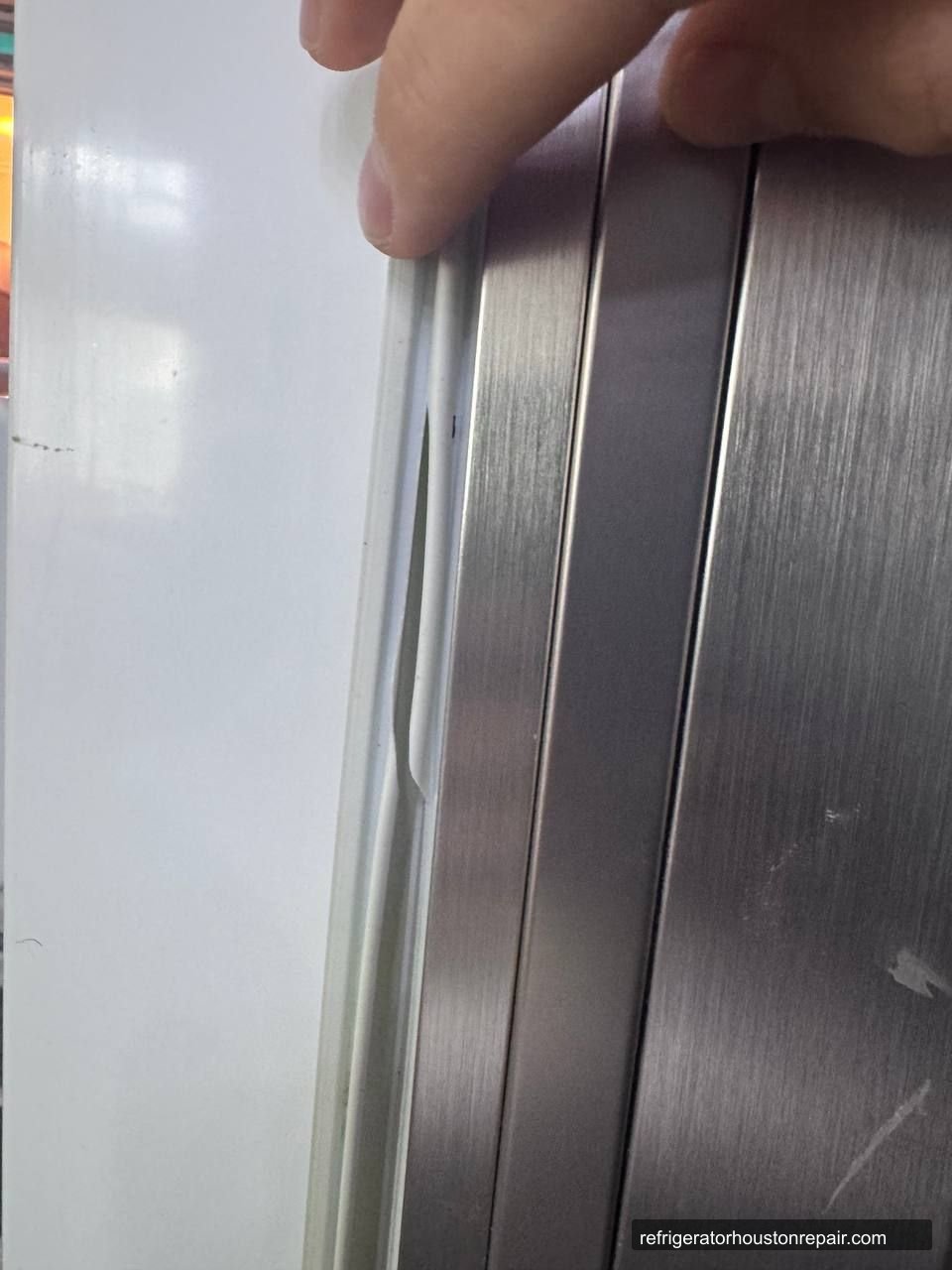

- ✓Performed initial visual inspection of the Sub-Zero 632F door gasket; photographed the torn sections for documentation (visible in photo 3 of the case file).
- ✓Conducted a dollar-bill pull test at six points around the full door perimeter to map all areas of seal failure and confirm the extent of gasket compromise.
- ✓Used an infrared thermometer to detect warm air infiltration at the breach points and an electronic manifold gauge set to verify R-134a system pressures — both high-side and low-side — were within specification.
- ✓Verified amperage draw with a clamp meter; reading was slightly above the label-rated 9.0A, consistent with compressor overwork due to the air leak.
- ✓Identified the correct OEM-compatible replacement gasket for Sub-Zero Model 632F fresh food door and placed an expedited parts order; the gasket was shipped from Dallas and delivered to Houston within 2 business days.
- ✓Upon part arrival, powered down the unit and carefully removed the existing torn gasket by loosening the door liner retaining screws along the full door perimeter.
- ✓Cleaned the door liner channel thoroughly with a mild detergent solution to remove debris, old gasket adhesive residue, and food particles that had accumulated in the track.
- ✓Soaked the new OEM gasket in warm water for approximately 10 minutes to make it pliable for proper seating, then carefully pressed it into the door liner channel starting at the top corners and working around the perimeter.
- ✓Reinstalled and torqued all door liner retaining screws evenly to manufacturer specification to ensure uniform gasket compression across the full door frame.
- ✓Checked and adjusted door alignment and hinge tension to confirm the door closed squarely and the gasket seated evenly against the cabinet frame on all four sides.
- ✓Performed a comprehensive preventive maintenance service on the full unit: cleaned condenser coils, inspected evaporator fan motors, verified defrost cycle operation, and cleaned interior drain lines.
- ✓Powered the unit back on, monitored startup amperage draw, confirmed it returned to the 9.0A label baseline, and verified interior temperatures stabilized within the Sub-Zero operating range before closing the service call.
✓ Result

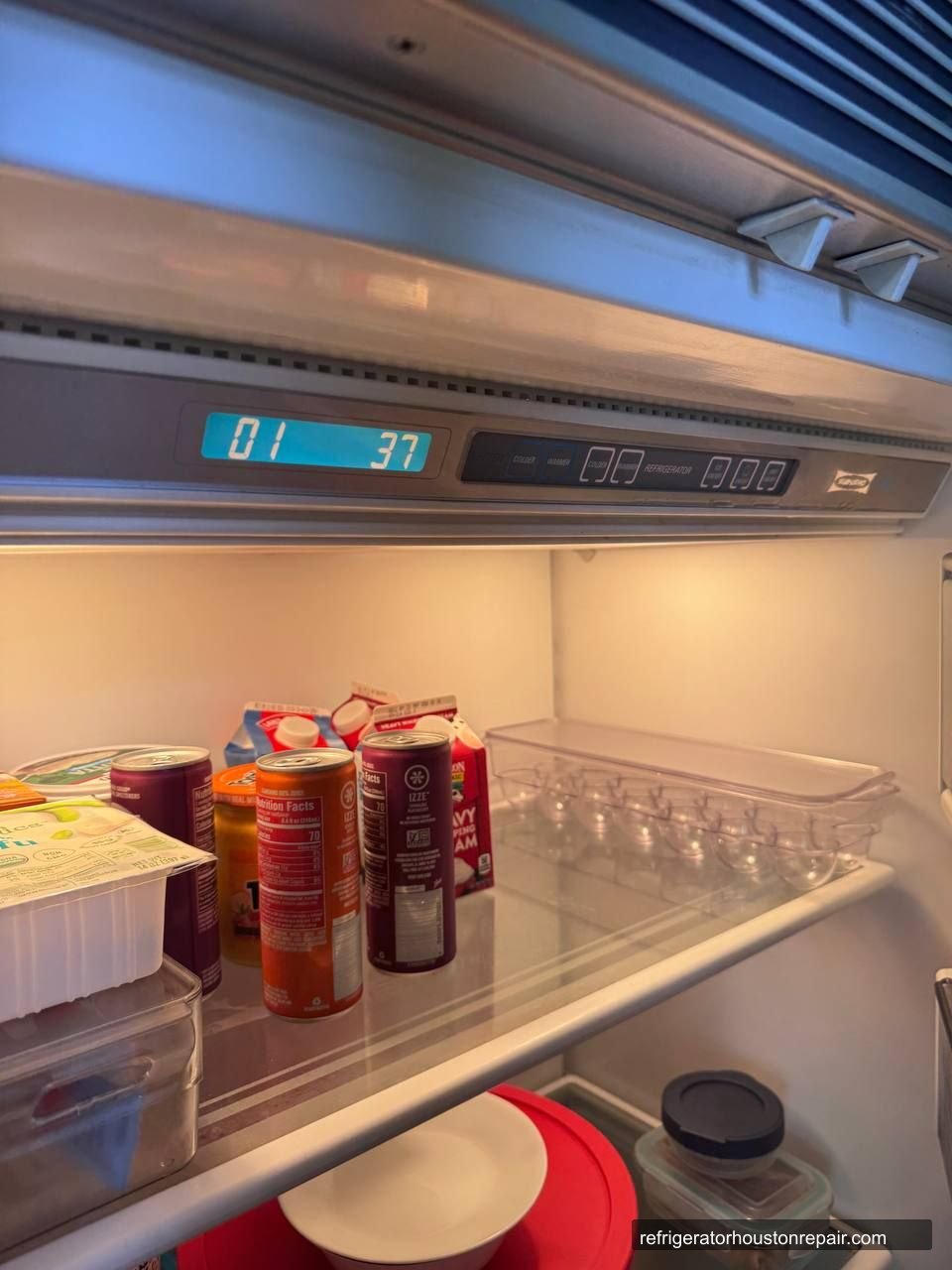

Following the gasket replacement and full preventive maintenance service, the Sub-Zero 632F returned to optimal operation. The door seal passed the dollar-bill test at all points around the perimeter, and interior temperatures stabilized within the manufacturer-specified range within approximately two hours of restart. Amperage draw confirmed at the label-rated 9.0A baseline. The customer was very satisfied with the quality of the repair and the additional maintenance performed. A service warranty was provided on the labor and the installed gasket.
💡 Technician Notes
Sub-Zero refrigerators are precision-built appliances with tight door tolerances, and the gasket is a critical component of their energy efficiency and food preservation performance. In households with young children, we strongly recommend educating family members never to pull the door open by grabbing the gasket — always use the door handle. Inspect your door seal every six months by running your hand around the perimeter while the door is closed to feel for cold air escaping. A torn or soft gasket causes the compressor to overwork, raising energy costs and shortening component life. Additionally, Sub-Zero units benefit from annual professional maintenance: coil cleaning, drain line flushing, and system pressure verification. Do not neglect this — deferred maintenance on a premium unit like the 632F is far more costly than a routine service visit.
Frequently Asked Questions
How do I know if my Sub-Zero 632F door gasket needs to be replaced?
The most obvious sign is a visible tear or crack in the rubber seal. You can also perform a dollar-bill test: close the door on a bill and try to pull it out — if it slides out easily, the gasket has lost its magnetic seal. Condensation around the door frame and a compressor that runs constantly are also strong indicators on a Sub-Zero 632F.
How much does a Sub-Zero 632F door gasket replacement cost and how long does it take?
For a Sub-Zero 632F in the Houston, TX area, door gasket replacement typically ranges from $200 to $450 depending on parts sourcing and labor. The installation itself takes approximately 1.5 to 2 hours on-site. If the OEM gasket needs to be ordered, expect 1–3 business days for delivery. Combining the repair with a preventive maintenance service is cost-effective and highly recommended.
What happens if I ignore a torn door gasket on my Sub-Zero refrigerator?
Ignoring a torn gasket on a Sub-Zero 632F forces the compressor to run significantly longer than designed to compensate for warm air infiltration. Over time this elevates amperage draw beyond the rated 9.0A, accelerates compressor wear, increases electricity bills, and can lead to frost buildup on the evaporator. Food safety is also compromised if interior temperatures drift above safe storage levels.
Is it worth repairing a door gasket on an older Sub-Zero 632F, or should I replace the unit?
Sub-Zero appliances are built to last 20+ years, and a door gasket is one of the most cost-effective repairs available. If the sealed system — compressor, condenser, and R-134a refrigerant charge — is intact and functioning properly as confirmed by manifold gauge readings, replacing the gasket and performing routine maintenance is almost always the right financial decision compared to the cost of a new Sub-Zero unit.
Can I replace a Sub-Zero 632F door gasket myself, or does it require a professional technician?
While a gasket swap on some refrigerators is a DIY task, the Sub-Zero 632F requires precise door alignment and even torquing of liner retaining screws to ensure proper seal compression. Improper installation can leave gaps, accelerate wear on the new gasket, or affect door hinge alignment. Given the cost of OEM Sub-Zero parts, professional installation is strongly recommended to ensure the repair is done correctly the first time.
Repair Summary
- Brand
- Sub-Zero
- Model
- 632F
- Repair Type
- Door Gasket Replacement & Preventive Maintenance
- Refrigerant
- R-134a
- Root Cause
- Door gasket torn from repeated forceful pulling by children
- Parts Replaced
- ✓Sub-Zero 632F OEM Fresh Food Door Gasket (magnetic, full-perimeter replacement, shipped from Dallas distribution center)
- Location
- Houston, TX 77042
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

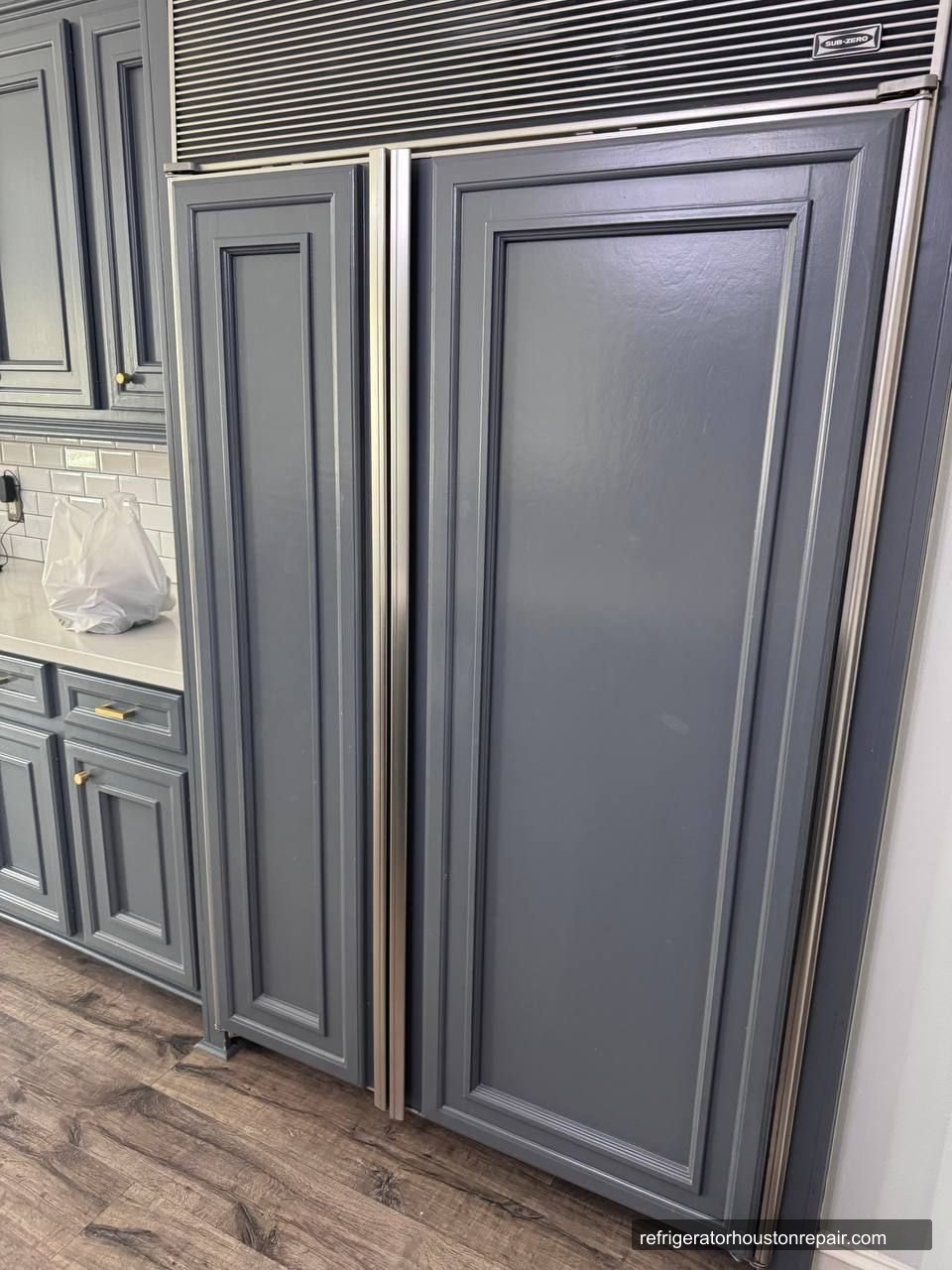

Sub-Zero 632F repair in Houston, TX — photo 1
