Sub-Zero 632: Water Flooding Kitchen Floor From Wall Supply Valve in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Water actively flowing from under the Sub-Zero 632 and spreading across the kitchen floor into adjacent rooms
- •No gradual drip — a continuous stream of water coming from behind the refrigerator
- •Water reached multiple rooms before the technician arrived, indicating the valve had been failing for some time
- •Refrigerator positioned tight in its built-in niche, making the source of the leak invisible until the unit was pulled out
🔍 Diagnosis
I arrived to find the kitchen floor completely covered in water that had already spread into neighboring rooms. The customer described it as coming from under the Sub-Zero 632, but that was misleading. The refrigerator itself was not leaking. The water was coming from behind the unit, which sits recessed into a built-in niche as most Sub-Zero 632 installations are configured. My first action was to locate the whole-house water shutoff and close it. That stopped the flow immediately. Then I needed to pull the 632 out of the niche, which required two people because of the unit's weight and the tight clearance typical of Sub-Zero built-in installations. Once the unit was out, the source was obvious: the angle stop valve mounted on the wall, which feeds the refrigerator's ice maker water line, had a cracked valve body at the stem. The failure was not in any Sub-Zero component. The valve itself is a standard 1/4-turn angle stop, but it had been in place long enough that mineral deposits from Houston's water supply had stressed the valve body. There were no refrigerant-related readings to take. This was a plumbing failure at the connection point behind the unit. The Sub-Zero 632's ice maker water line and internal components tested fine once I isolated the problem.
🔧 The Repair
- ✓Step 1: Located and closed the whole-house water shutoff to stop active flooding — water was already across the full kitchen floor and entering the hallway.

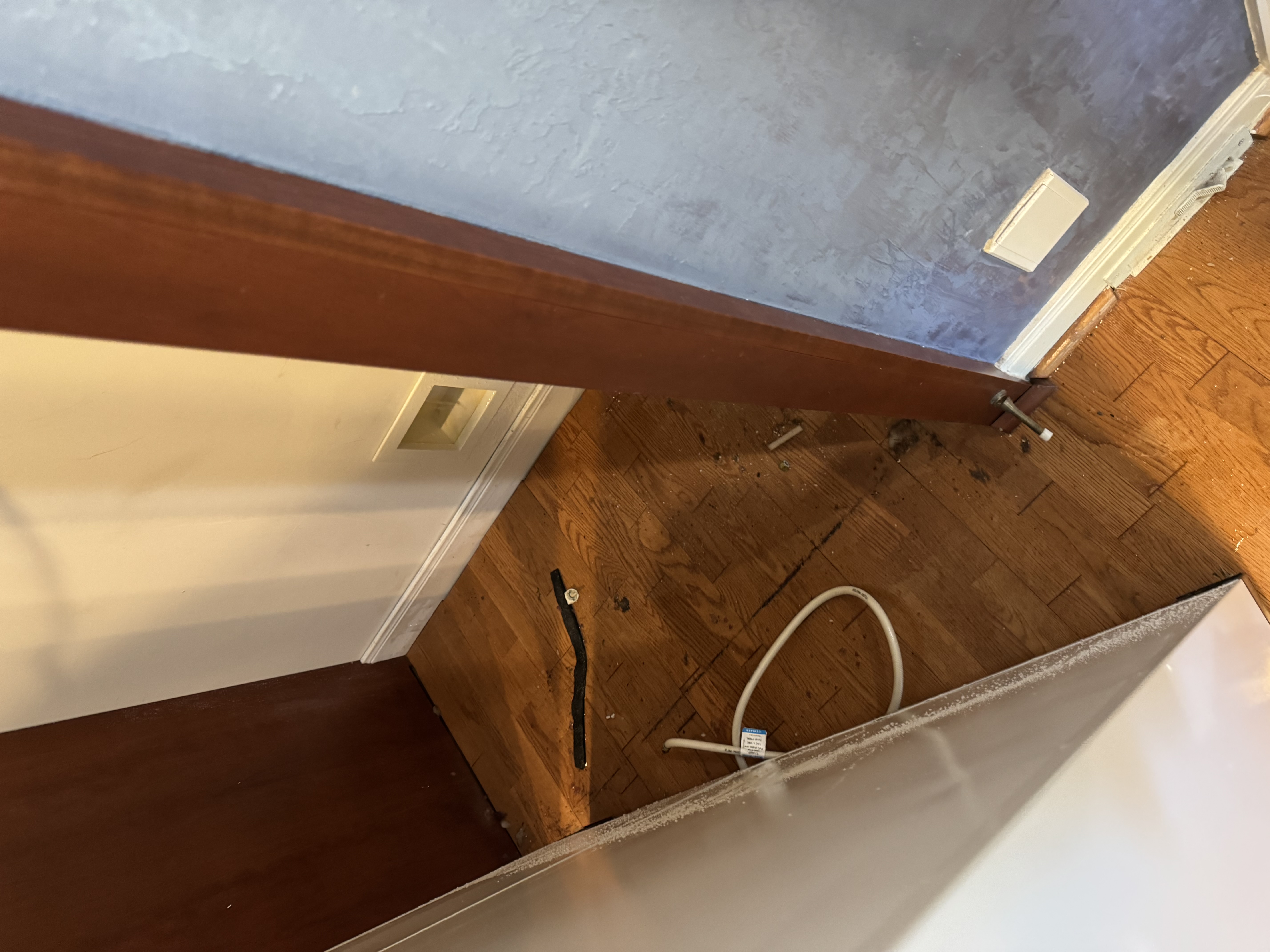

- ✓Step 2: Cleared the area around the Sub-Zero 632 built-in niche and removed the lower grille panel to access the unit's base.
- ✓Step 3: With assistance, pulled the Sub-Zero 632 forward out of the niche on its leveling legs, carefully to avoid damaging the custom cabinetry surrounding the unit.

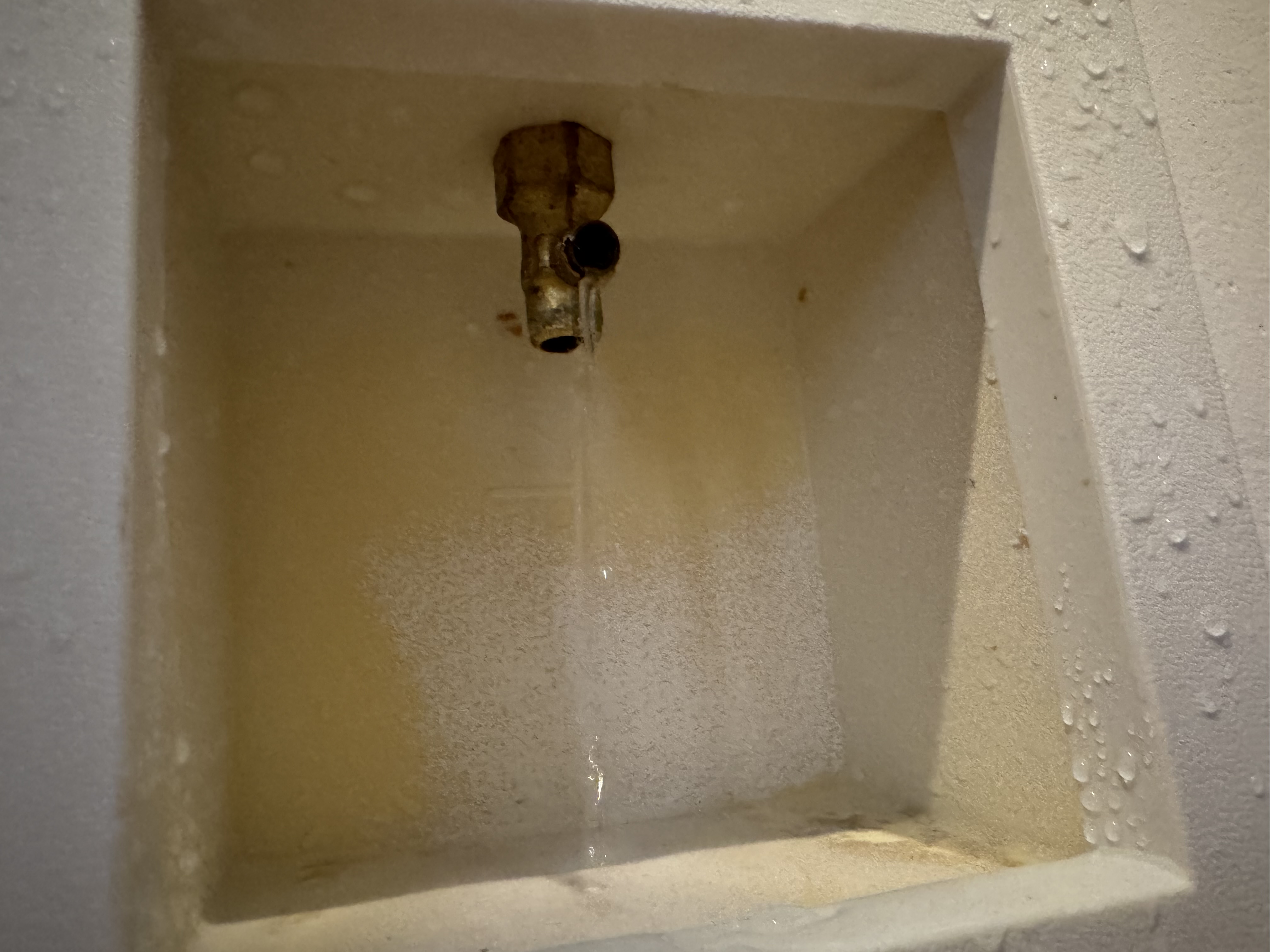

- ✓Step 4: Inspected the wall angle stop valve feeding the ice maker water line — identified a cracked valve body at the stem with visible mineral scale buildup indicating long-term stress.
- ✓Step 5: Disconnected the 1/4-inch compression fitting water supply line from the failed valve and capped the line temporarily.
- ✓Step 6: Coordinated with the homeowner to contact a licensed plumber to replace the wall-mounted angle stop valve — this repair falls under plumbing scope and requires a plumber.
- ✓Step 7: Once the plumber completed the valve replacement and water supply was restored, reconnected the Sub-Zero 632 ice maker water line at the compression fitting, torqued to hand-tight plus 1/4 turn.
- ✓Step 8: Restored water supply, checked all connections for leaks at 60 PSI line pressure, pushed the 632 back into the niche, verified ice maker fill cycle initiated, and confirmed no moisture at the wall connection after 30 minutes of observation.
✓ Result
After the wall valve was replaced and the supply line was reconnected, I pressurized the line and watched the connection point for 30 minutes. No moisture. The Sub-Zero 632 filled its ice maker reservoir on the first cycle. The flooding had stopped within minutes of my arrival once I shut off the main water. The customer was in the 77082 area of west Houston and was genuinely relieved that the refrigerator itself was not damaged. She said she had no idea the valve behind the unit even existed, let alone that it needed to be inspected periodically.
💡 Technician Notes
Sub-Zero 632 units are built-in appliances that sit deep in custom niches. Once they go in, most homeowners never look behind them. The wall angle stop valve that feeds the ice maker sits hidden in that space for years, sometimes decades. Houston's water has enough mineral content to attack valve bodies over time, and you get no warning until the valve fails completely. The early warning sign to watch for: when your Sub-Zero ice maker output drops or slows down without any internal error codes, the supply valve may be partially restricting. That is the time to pull the unit slightly and inspect the wall valve. Maintenance means once a year, during your Sub-Zero service visit, ask the technician to pull the unit and visually check the valve and supply line. If you see any white crust or moisture around the valve stem, call a plumber before it becomes an emergency. Do not wait.
Frequently Asked Questions
Why is water flooding my kitchen floor from under my Sub-Zero refrigerator?
In most Sub-Zero built-in installations, the refrigerator itself is not the source of a major floor flood. The wall-mounted angle stop valve that supplies water to the ice maker is a common failure point. When that valve cracks or fails, water flows freely behind the unit and spreads under it across the floor. Shut off your whole-house water immediately and call for service.
How much does emergency water leak repair cost for a Sub-Zero 632 in Houston?
The refrigerator repair portion of this call covers diagnosis, pulling the unit from the niche, inspecting internal water components, and reconnecting the supply line. That typically runs between 180 and 280 dollars in the Houston area. The wall valve replacement itself is a plumbing job billed separately by a licensed plumber, usually 120 to 200 dollars depending on access and valve type.
What happens if I ignore a small water leak behind my Sub-Zero refrigerator?
A small drip at the wall valve behind a Sub-Zero built-in can become a full failure within days or weeks. By the time water reaches the kitchen floor in visible quantity, it has likely already soaked the subfloor and the base of the surrounding cabinetry. Prolonged moisture under a Sub-Zero installation leads to mold growth and subfloor rot, which costs far more to remediate than a simple valve replacement.
Is it worth repairing a Sub-Zero 632 that has water damage, or should I replace it?
The Sub-Zero 632 is a high-quality built-in unit with a long service life, often 20 or more years with proper maintenance. If the flooding came from the wall supply valve and not from an internal Sub-Zero component failure, the refrigerator itself is almost certainly undamaged. Repair is the right call in this scenario. Replacement would be unnecessary and significantly more expensive.
How do I find the water shutoff for my Sub-Zero ice maker if it starts leaking?
Most Sub-Zero 632 installations have a dedicated angle stop valve mounted on the wall inside the niche behind the unit. If you cannot reach it quickly, go straight to your whole-house water shutoff. It is typically located near the water meter, in a utility room, or in the garage. Shutting off the main supply stops any leak behind a built-in refrigerator immediately while you wait for a technician.
Repair Summary
- Brand
- Sub-Zero
- Model
- 632
- Repair Type
- Emergency Water Leak / Wall Supply Valve Failure
- Root Cause
- Failed wall water supply valve flooding kitchen floor
- Parts Replaced
- ✓Wall-mounted 1/4-turn angle stop valve (replaced by licensed plumber — standard 3/8-inch OD compression outlet)
- ✓1/4-inch compression fitting water supply line (replaced to ensure a clean connection to the new valve)
- Location
- Houston, TX 77082
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos
Sub-Zero 632 repair in Houston, TX — photo 3
