Sub-Zero 601F/36: Compressor Failure and Sealed System Overhaul in Cypress, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem

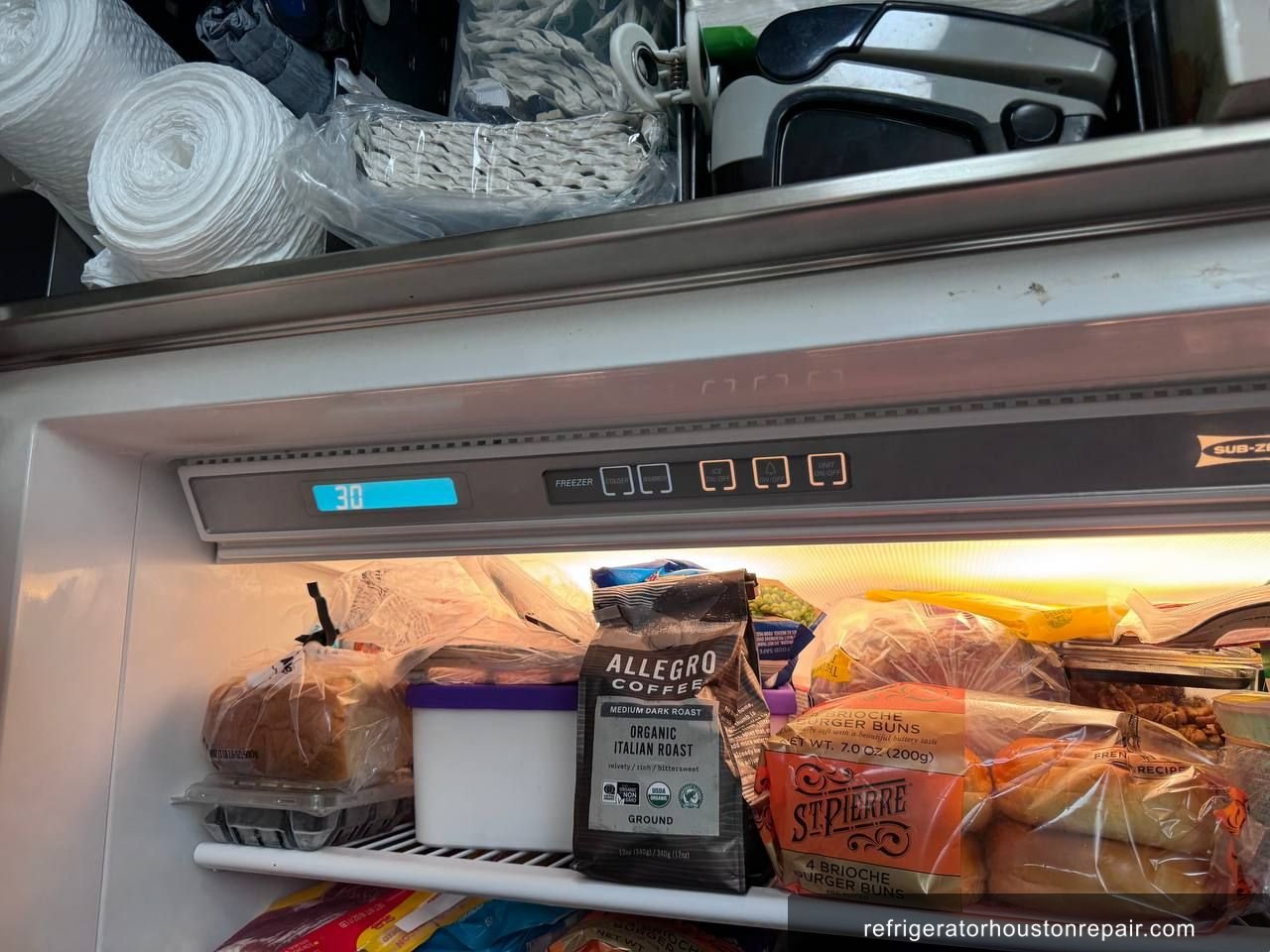

- •Freezer holding +30°F instead of the target 0°F — food was thawing and at risk
- •Compressor cycling on and off repeatedly without completing a full run cycle
- •Audible clicking from the compressor compartment each time the unit attempted to start
- •No cooling progress over several hours despite the unit appearing to run
🔍 Diagnosis

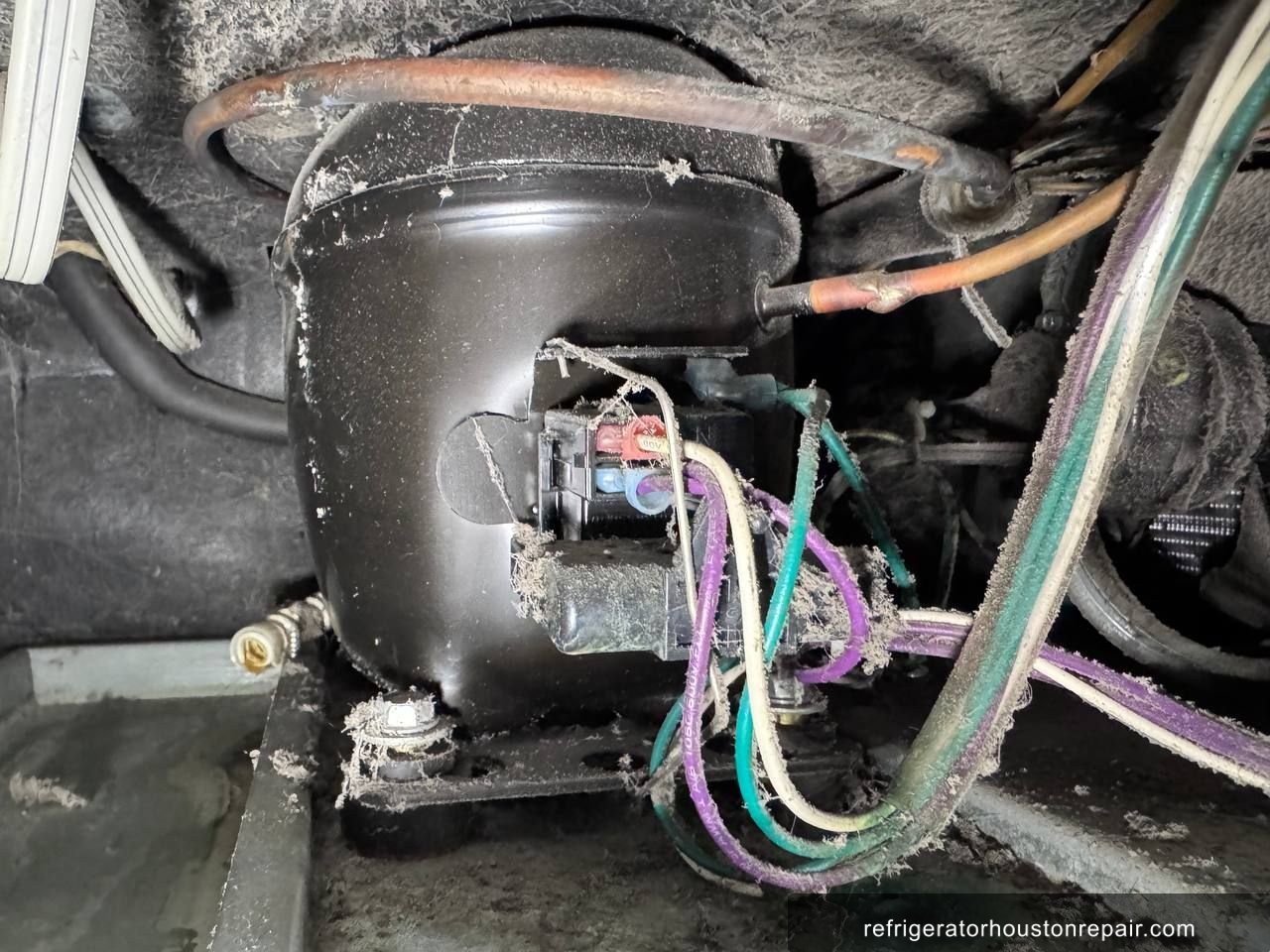

On arrival at this Cypress home, the Sub-Zero 601F/36 freezer section was reading +30°F — a full 30 degrees above the set point of 0°F. The compressor could be heard short-cycling: attempting to start, running briefly, then shutting off within seconds. This pattern is a textbook sign of start relay failure on Sub-Zero compressor-driven units. Manifold gauges were connected to the R404A sealed system with the compressor off. Static pressure read 58.7 psi — consistent with ambient equilibrium for R404A and confirming no refrigerant leak was present. The sealed system charge was intact. The failed start relay was confirmed: without it delivering the correct starting torque assist, the compressor was drawing excessive inrush current, overheating, and tripping its internal overload protector. On Sub-Zero units like the 601F/36, this repeated high-current cycling forces compressor oil into the sealed system tubing. That oil migrates directly into the filter drier, clogging it and creating a restriction that starves refrigerant flow — even if the compressor itself were replaced without addressing the drier, the system would fail again within weeks. The decision was made to replace the compressor, install a new filter drier, flush the sealed system with approved solvent, and purge with nitrogen before recharging to the label-specified 10 oz of R404A.
🔧 The Repair
- ✓Step 1: Connected manifold gauges to the R404A service ports with compressor off — confirmed static pressure of 58.7 psi, ruling out refrigerant loss before proceeding.
- ✓Step 2: Recovered all remaining R404A refrigerant from the sealed system using a certified recovery machine, per EPA Section 608 protocol.
- ✓Step 3: Removed the decorative grille panel and the door switch trim bar to gain access to the compressor compartment, following Sub-Zero 601F/36 service access procedure.
- ✓Step 4: Unbolted the compressor mounting hardware, pulled the unit partially forward, and rotated it approximately 90 degrees counterclockwise — the Sub-Zero-recommended orientation to extract the compressor through the drain pan cavity without damaging adjacent tubing.
- ✓Step 5: Cut the refrigerant lines at the compressor inlet and outlet, removed the failed compressor, and extracted it through the drain pan access path.
- ✓Step 6: Flushed the entire sealed system — evaporator, condenser, and connecting lines — with a professional-grade system flush solvent to remove oil contamination, then purged thoroughly with dry nitrogen to clear all residue.
- ✓Step 7: Installed the replacement compressor, silver-brazed the refrigerant line connections to the new unit under nitrogen flow to prevent oxidation scale inside the tubing, and installed a new filter drier in the liquid line.
- ✓Step 8: Pulled the system to a deep vacuum (below 500 microns), held vacuum to confirm no leaks, then recharged with exactly 10 oz of R404A per the 601F/36 label specification. After a 2.5-hour runtime, freezer temperature confirmed at 0°F.
✓ Result
After 2.5 hours of work, the Sub-Zero 601F/36 in Cypress was pulling down steadily and reached 0°F in the freezer compartment within the expected recovery window. The sealed system was clean, holding charge at the label-spec 10 oz of R404A, with no leaks detected on final check. The homeowner was relieved — the freezer had been struggling for days and food was already softening. Before the technician left, the customer mentioned a door gasket replacement needed on a second Sub-Zero unit in the same home and scheduled that follow-up on the spot.
💡 Technician Notes
Sub-Zero 601F/36 owners should know that a clicking or short-cycling compressor is never just a relay problem in isolation — by the time the relay fails, the compressor has already been running under stress and pushing oil into the sealed system. Replacing only the relay on a unit that has been short-cycling for days will buy you weeks at best before the restricted drier kills cooling again. The early warning sign specific to this failure: listen for a faint clicking every 3 to 5 minutes accompanied by zero temperature drop. That clicking is the overload protector tripping — not a normal defrost cycle. For prevention: Sub-Zero recommends cleaning the condenser grille every 12 months. A dirty condenser on a 601F/36 raises head pressure and forces the compressor to work harder on every start, accelerating wear on the start relay and the compressor windings. Call a technician immediately if the compressor is clicking and the freezer temperature is above +10°F. Waiting more than 24 hours risks food loss and allows oil contamination to spread further through the sealed system, adding cost to the repair.
Frequently Asked Questions
Why is my Sub-Zero 601F/36 freezer at 30 degrees instead of zero?
A freezer holding +30°F on a Sub-Zero 601F/36 almost always means the compressor is short-cycling — starting, overheating, and shutting off before it can pull the temperature down. The most common cause is a failed start relay. On this model, that relay failure is frequently accompanied by oil contamination in the filter drier, which requires a full sealed system service, not just a relay swap.
How much does a compressor replacement cost on a Sub-Zero refrigerator in Cypress TX?
A full compressor replacement with filter drier swap and sealed system flush on a Sub-Zero unit in the Cypress area typically runs between $800 and $1,400 depending on the model and refrigerant type. The 601F/36 uses R404A, which adds modest refrigerant cost. Given that Sub-Zero units are built to last 20+ years, this repair almost always makes financial sense over replacement.
What happens if I ignore a clicking sound from my Sub-Zero compressor?
Every click you hear is the compressor's internal overload protector tripping due to excessive heat or current draw. Each failed start cycle pushes more compressor oil into the sealed system tubing and filter drier. Within days, the restriction becomes severe enough that even a new compressor cannot move refrigerant efficiently. What starts as a relay replacement can become a full sealed system overhaul — and eventually irreversible compressor damage.
Should I repair or replace a Sub-Zero 601F/36 that needs a new compressor?
Repair. Sub-Zero built the 601F/36 with a commercial-grade cabinet, condenser, and evaporator that outlast the compressor by decades. A compressor and sealed system overhaul restores the unit to full spec. Replacing a Sub-Zero with a comparable unit costs $8,000–$12,000+. Unless the cabinet itself is compromised, repair is the rational choice on any Sub-Zero that is structurally intact.
Why did the technician replace the filter drier when the compressor was the problem on my Sub-Zero?
The filter drier on a Sub-Zero sealed system absorbs moisture and traps contaminants. When a compressor fails due to a bad start relay, it cycles repeatedly under load and pushes lubrication oil into the refrigerant lines. That oil saturates and clogs the drier, creating a flow restriction. Installing a new compressor without replacing the drier leaves that blockage in place — the new compressor would starve for refrigerant and fail prematurely.
Repair Summary
- Brand
- Sub-Zero
- Model
- 601F/36
- Repair Type
- Sealed System Overhaul / Compressor Replacement / Filter Drier Replacement
- Refrigerant
- R404A
- Root Cause
- Failed start relay causing compressor oil contamination and filter drier blockage
- Parts Replaced
- ✓Compressor — replacement unit compatible with Sub-Zero 601F/36 R404A sealed system
- ✓Filter drier (liquid line) — new OEM-compatible drier, installed after system flush
- ✓Start relay — failed original relay removed as part of compressor assembly replacement
- Location
- Cypress, TX 77429
- Status
- ✓ Completed
