Sub-Zero 561/F: Refrigerator Section Completely Dead After Thermostat Failure in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Refrigerator section completely stopped cooling after owner returned from an extended trip
- •No audible compressor activity from the fresh food compartment
- •Interior temperature climbed to ambient room temperature with no recovery
- •Freezer section continued operating normally while refrigerator side was fully inactive
🔍 Diagnosis

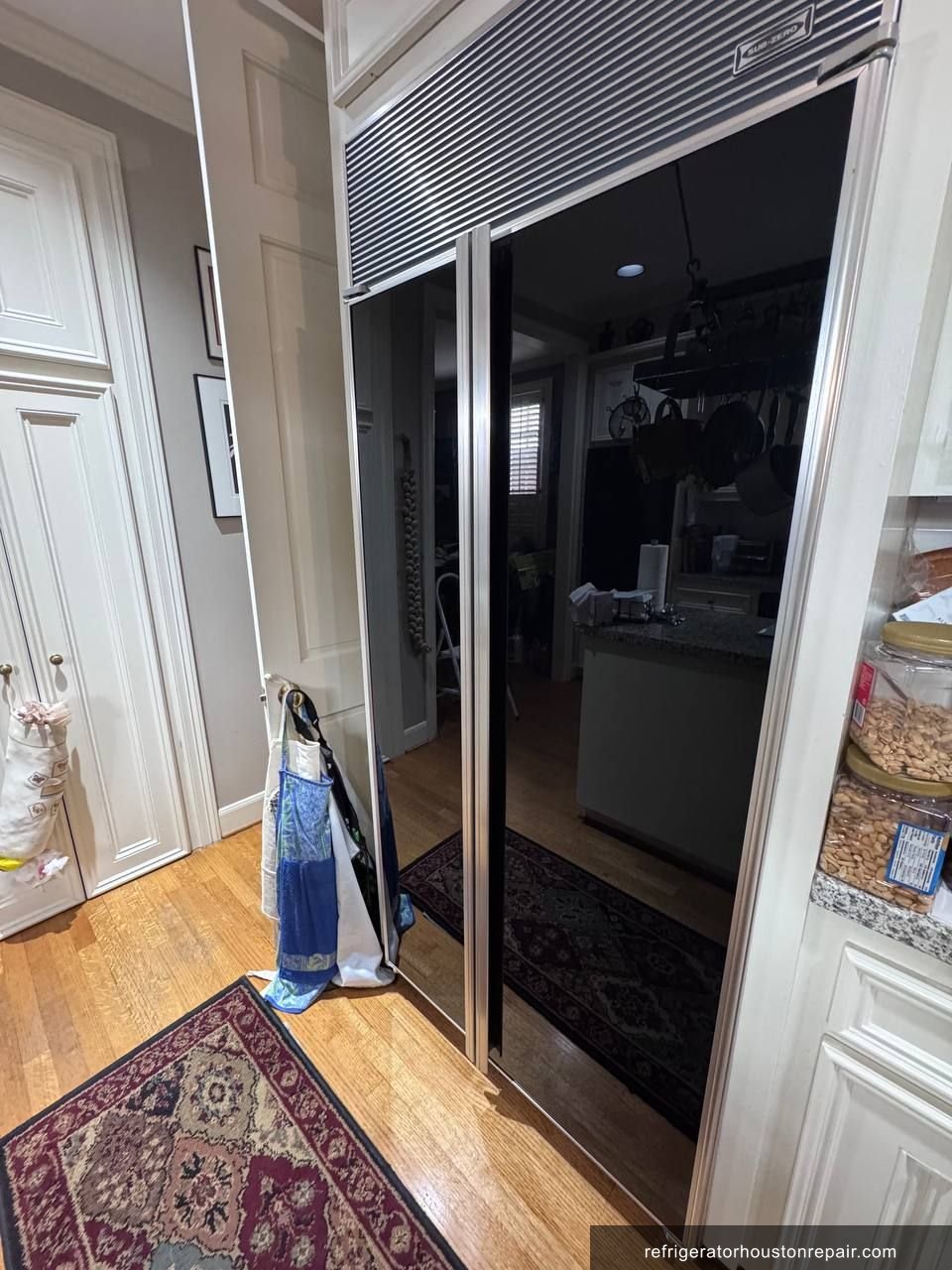

When I arrived at the home in the 77005 area, the Sub-Zero 561/F was dead quiet on the refrigerator side. The freezer was running fine, but the fresh food compartment had climbed to 68°F. No compressor hum, no fan cycling, nothing. I pulled the unit from the wall and started with the basics. I used a clamp meter on the compressor circuit and confirmed zero voltage reaching the compressor. That told me the problem was upstream, not the compressor itself. I traced the circuit back through the relay and overload, both tested fine. Then I got to the thermostat in the refrigerator section. I checked continuity across it and got an open circuit at a temperature where it should have been closed and calling for cooling. That was the failure point. The thermostat on the Sub-Zero 500 series, including the 561/F, is a mechanical capillary-tube type that senses temperature through a fluid-filled bulb. Over time, especially in units from 2001 like this one, the capillary bulb loses its charge or the contacts wear and stick open. When that happens, the control board never receives the signal to energize the compressor relay, and the refrigerator side goes completely dark. The freezer runs on a separate circuit in this model, which is why it stayed operational. The diagnosis was straightforward once I isolated the thermostat. Part ordered that same afternoon.
🔧 The Repair
- ✓Step 1: Verified zero voltage at the compressor terminals using a Fluke 117 multimeter, confirming no power delivery to the compressor on the refrigerator side.
- ✓Step 2: Tested the start relay and overload protector for the refrigerator circuit — both passed continuity and resistance checks within spec.
- ✓Step 3: Checked the mechanical thermostat in the refrigerator section for continuity. Found an open circuit at 38°F ambient bulb temperature, where the contacts should have been closed and signaling a cooling demand.

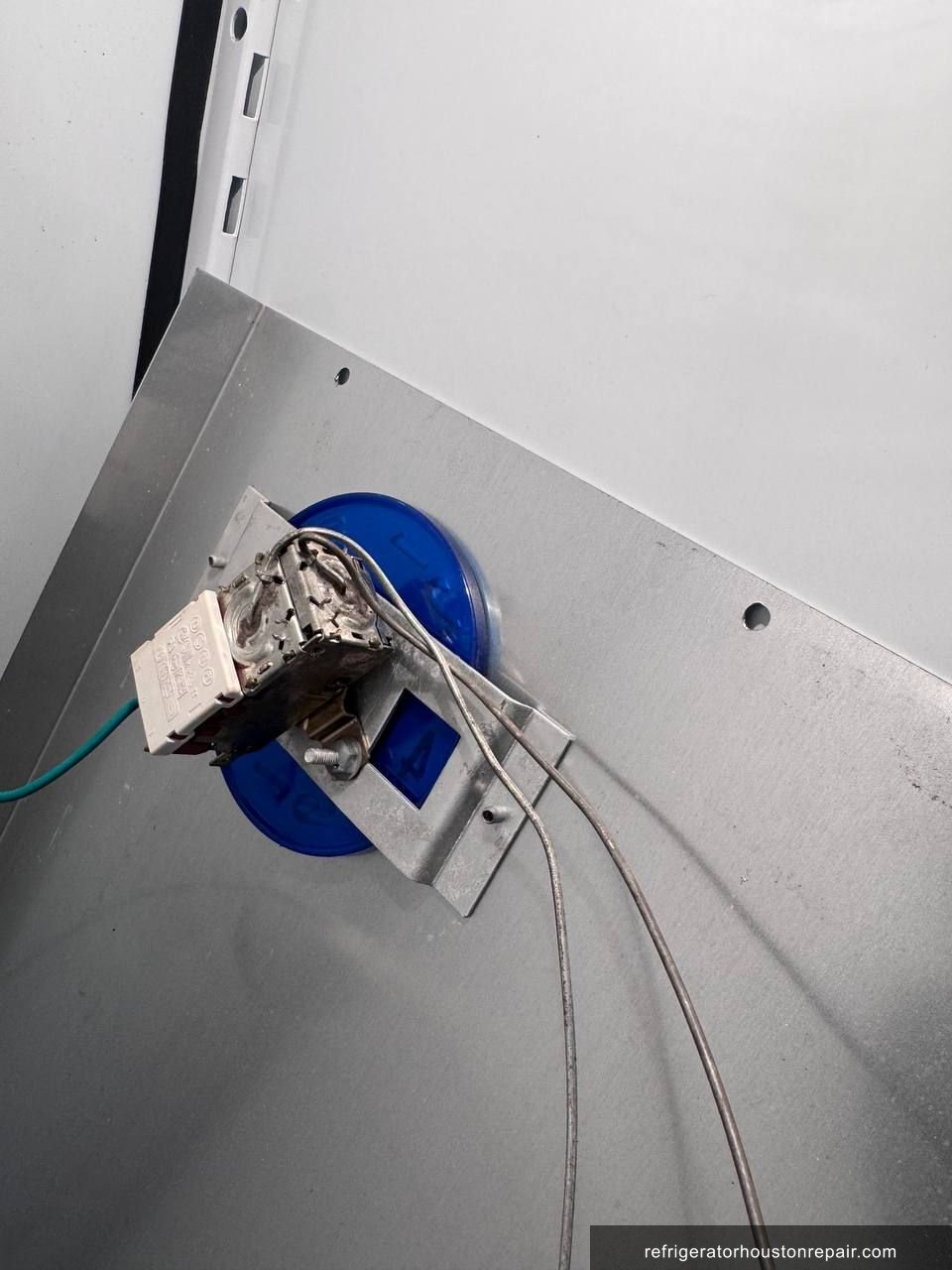

- ✓Step 4: Removed the thermostat assembly from the refrigerator compartment control housing, carefully unclipping the capillary tube from its routed channel along the interior liner.
- ✓Step 5: Ordered an OEM-spec replacement thermostat compatible with the Sub-Zero 561/F — part received the following day, as Sub-Zero 500 series parts remain in active supply despite this unit being built in 2001.
- ✓Step 6: Installed the new thermostat, routing the capillary tube along the original channel and securing it in the correct sensing position against the liner.
- ✓Step 7: Reconnected the wiring terminals, pushed the unit back into its enclosure, and powered it on. Compressor engaged within 90 seconds of startup.
- ✓Step 8: Monitored the unit for two hours. Fresh food section reached 37°F, freezer held at -2°F. Thermostat cycled the compressor correctly at both the cut-in and cut-out points.
✓ Result
The Sub-Zero 561/F was fully operational by the afternoon following the diagnosis visit. Fresh food section settled at 37°F and the freezer held at -2°F after two hours of runtime. The homeowner had come back from a trip to find everything in the refrigerator section spoiled. Getting the unit back to proper temps that quickly meant he could restock without worrying about the appliance failing again. He was genuinely relieved to learn the repair cost a fraction of what a replacement would run for a Sub-Zero of this caliber. A 90-day labor warranty was provided on the thermostat installation.
💡 Technician Notes

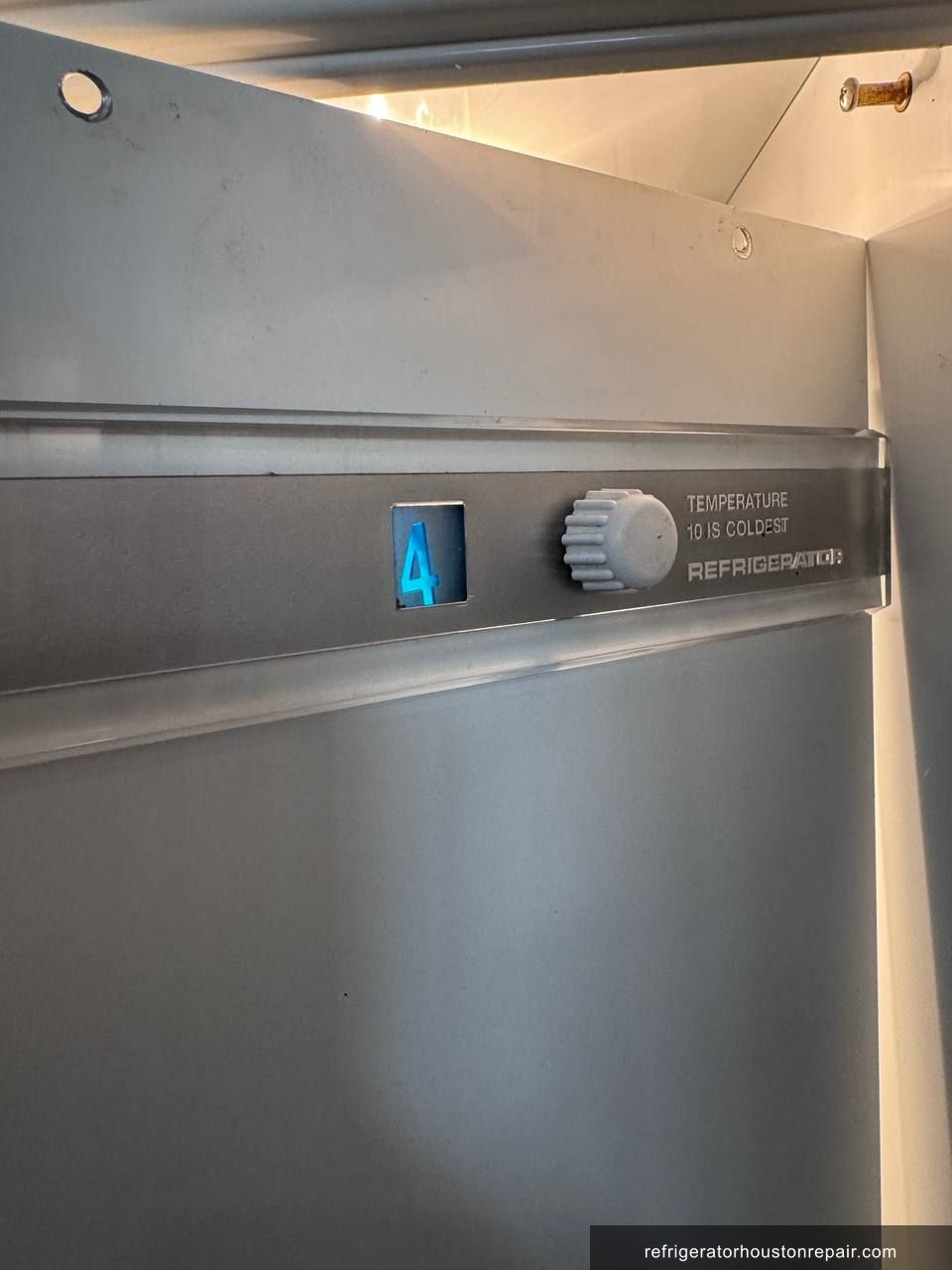

Sub-Zero 500 series units from the late 1990s and early 2000s are worth repairing. Parts availability is strong and the sealed systems on these units were built to outlast most modern refrigerators. The thermostat on the 561/F is a mechanical type, not electronic, so it fails silently. There is no error code, no flashing display. The refrigerator section simply stops calling for cooling. The early warning sign to watch for is inconsistent temperature cycling: the refrigerator getting warmer than usual for an hour or two and then recovering. That intermittent behavior usually precedes a full open-circuit failure. To slow thermostat wear, avoid adjusting the temperature dial repeatedly. Each turn stresses the contact mechanism. If the refrigerator section goes quiet but the freezer keeps running, call immediately. Waiting more than 24 hours risks food loss and, in summer Houston heat, the interior temperature climbs fast.
Frequently Asked Questions
Why did my Sub-Zero 561/F refrigerator stop cooling but the freezer still works?
The 561/F runs the refrigerator and freezer sections on separate circuits. When the refrigerator thermostat fails, it cuts power to the refrigerator compressor only. The freezer keeps running independently. I see this pattern often on Sub-Zero 500 series units. The thermostat is the first component to test when one section goes down and the other stays normal.
How much does it cost to replace a thermostat on a Sub-Zero 500 series refrigerator in Houston?
In the Houston area, a thermostat replacement on a Sub-Zero 561/F or similar 500 series unit typically runs between $180 and $320 all in, depending on the specific thermostat and labor time. The part itself is moderately priced. Labor for diagnosis and installation on a Sub-Zero usually takes two to three hours across two visits when the part is ordered.
What happens if I ignore a failing thermostat on my Sub-Zero refrigerator?
If the thermostat sticks open and you do nothing, the refrigerator section stops cooling entirely. In Houston's climate, the interior temperature rises to room temperature within hours. All refrigerated food spoils. There is also a secondary risk: if the thermostat fails in a stuck-closed position, the compressor runs without cycling off and the evaporator frosts over completely, causing additional damage to the sealed system.
Should I repair or replace my 2001 Sub-Zero 561/F?
Repair it. A 2001 Sub-Zero 561/F is worth servicing as long as the sealed system is intact. Sub-Zero 500 series units were built with commercial-grade components and OEM parts are still available. A thermostat replacement is a minor repair. Unless the compressor or sealed system has failed, putting money into this unit makes more financial sense than replacing it with a new appliance at several times the cost.
How does a capillary tube thermostat on a Sub-Zero work and why does it fail?
The capillary thermostat uses a sealed tube filled with refrigerant-grade fluid. As the refrigerator cools, the fluid contracts and the contacts inside the thermostat open, stopping the compressor. Over 20-plus years, the fluid charge inside the bulb leaks out or the contact points corrode and stick open permanently. At that point, the thermostat never signals a cooling demand and the compressor stops receiving power entirely.
Repair Summary

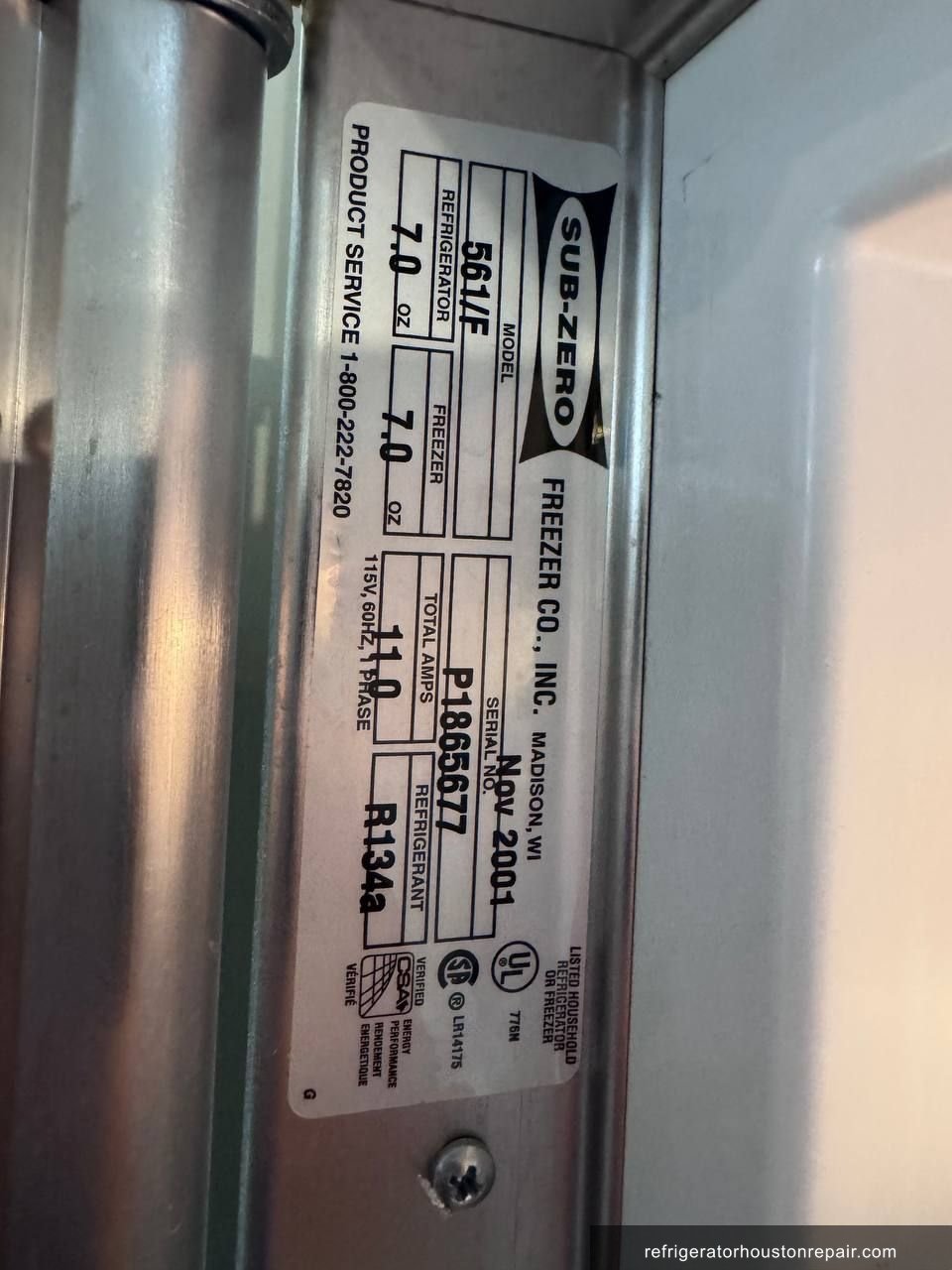

- Brand
- Sub-Zero
- Model
- 561/F
- Repair Type
- Refrigerator Thermostat Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed thermostat blocking power delivery to compressor
- Parts Replaced
- ✓Mechanical capillary thermostat for Sub-Zero 561/F refrigerator section (OEM-compatible replacement, 500 series)
- Location
- Houston, TX 77005
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

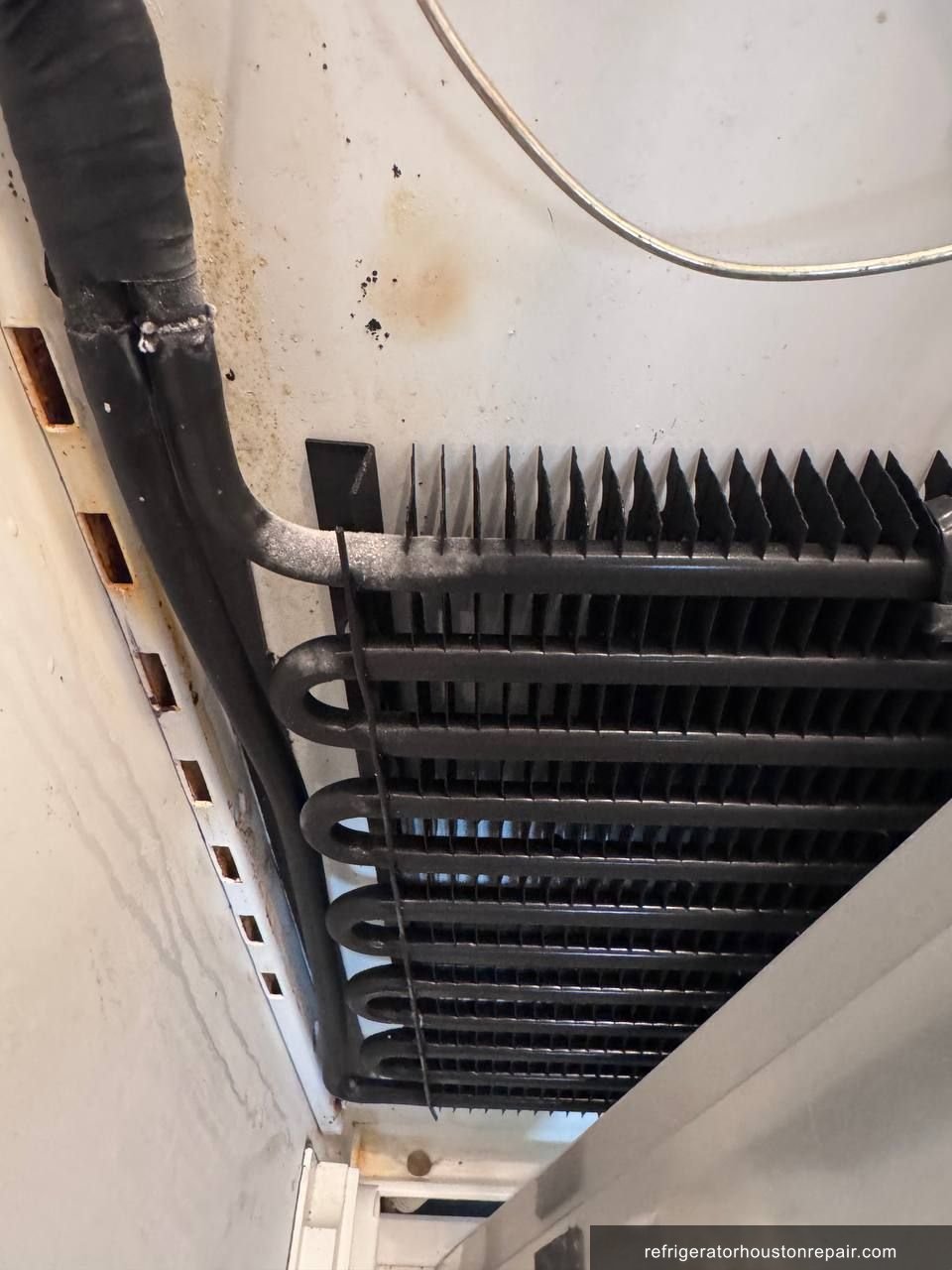

Sub-Zero 561/F repair in Houston, TX — photo 3
