Sub-Zero 532: Ice Maker Stopped Producing Ice in Memorial, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Ice maker completely stopped producing ice with no new cubes dropping
- •Ice maker unit showing no movement or harvest cycle activity
- •No error codes displayed on the Sub-Zero 532 control panel despite total ice maker failure
- •Everything else on the refrigerator functioning normally, including cooling performance
🔍 Diagnosis
When I arrived at the customer's home in Memorial, the Sub-Zero 532 was in impressive shape for a 1990-era unit. The fresh food and freezer compartments were holding proper temperatures, and the refrigerator itself looked and ran well. The only complaint was zero ice production. I started by pulling the ice maker module and checking the thermal fuse that protects the ice maker circuit. Sub-Zero 532 units use a dedicated fuse on the ice maker assembly, and it acts as the last line of protection if anything inside the module goes wrong electrically. I tested it with a multimeter and got an open circuit reading, confirming the fuse had blown completely. On the 532, this fuse blows for two main reasons: the heating element inside the ice maker shorts to the chassis, or the harvest motor seizes and draws excess current until the fuse opens. Either way, the fuse sacrifices itself to protect the rest of the refrigerator. I could not determine which internal component failed first without disassembling the module further, but on a unit this age, rebuilding individual ice maker components is not practical. I also tested the water inlet valve coil with a multimeter since it receives voltage from the ice maker circuit. Coil resistance read within spec, so the valve was not the source of the failure. The decision was straightforward: replace the ice maker assembly as a complete unit.
🔧 The Repair

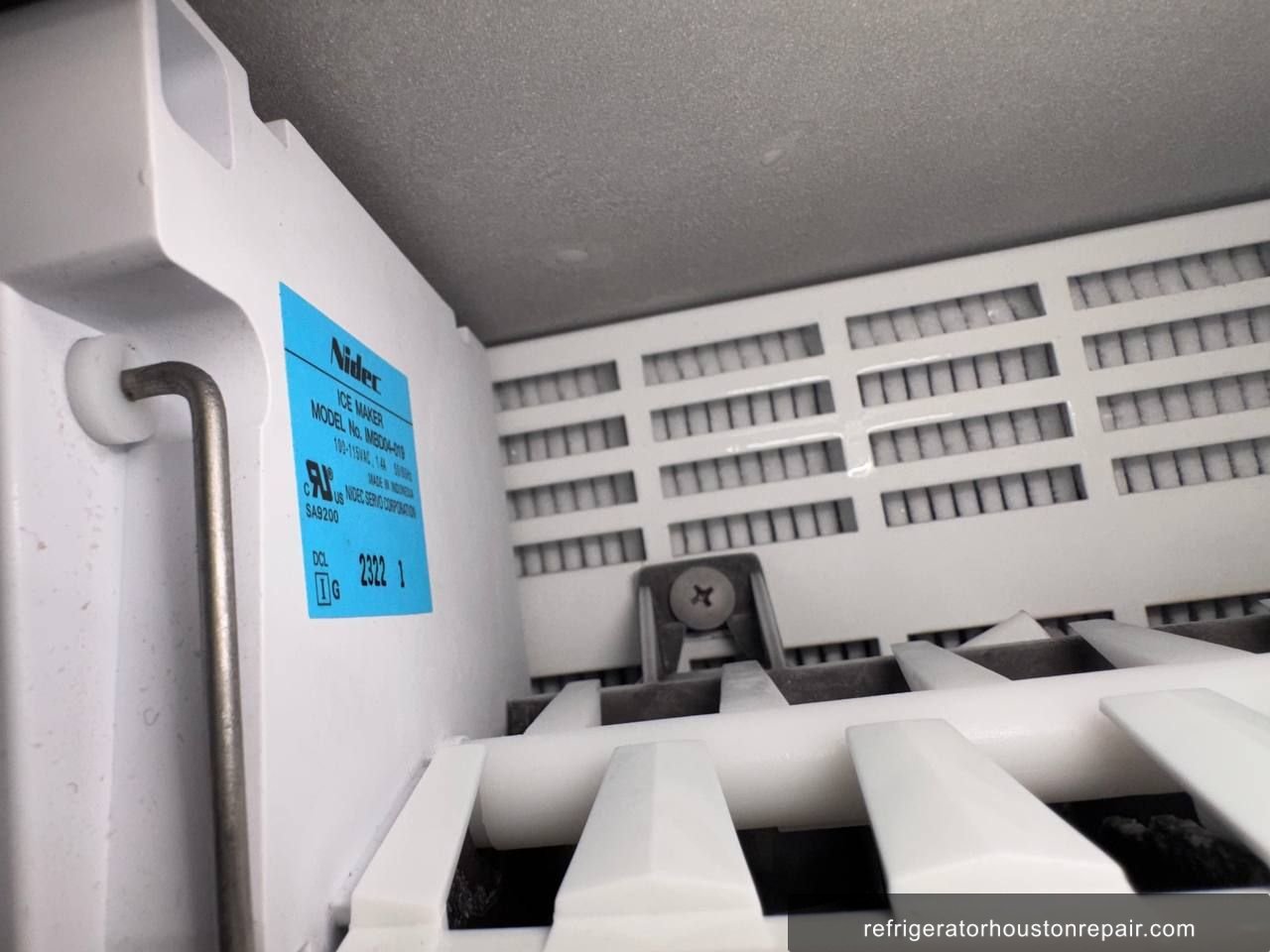

- ✓Step 1: Powered down the Sub-Zero 532 and removed the freezer shelving to access the ice maker compartment in the upper left section of the freezer.
- ✓Step 2: Disconnected the wire harness connector and the fill tube from the ice maker module, labeling each connection before removal.
- ✓Step 3: Tested the original ice maker fuse with a Fluke 117 multimeter. Confirmed open circuit, indicating a fully blown fuse. Documented the reading.
- ✓Step 4: Tested the water inlet valve coil resistance using the same multimeter across the valve terminals. Reading came back within the acceptable range, ruling out the valve as the failure source.
- ✓Step 5: Removed the four mounting screws securing the ice maker module to the freezer wall and extracted the complete assembly.
- ✓Step 6: Installed the replacement ice maker assembly for the Sub-Zero 532, torqued mounting screws evenly, and reconnected the wire harness and fill tube.
- ✓Step 7: Powered the refrigerator back on and manually initiated a harvest cycle to confirm the new module advanced through its full rotation without hesitation.
- ✓Step 8: Monitored for the first fill cycle and confirmed water entered the ice maker tray properly. After a two-hour runtime check, the freezer held 0°F and the ice maker produced a full tray of cubes, confirming the repair was complete.
✓ Result
After the replacement, the Sub-Zero 532 was back to making ice within two hours. Freezer temperature held steady at 0°F throughout. The water valve coil checked out clean, so no additional parts were needed. The customer in Memorial was genuinely relieved. This refrigerator has been in the family since 1990 and they had no interest in replacing it. Knowing it was fully functional again, including the ice maker, made the service call feel worthwhile for everyone. They mentioned they had already given up on finding anyone willing to work on a unit that old.
💡 Technician Notes
Sub-Zero 532 units from the late 1980s and early 1990s were built to last, and many of them still cool perfectly. The ice maker, though, is the most age-sensitive component. The thermal fuse inside the module is a one-time protection device. Once it opens, the entire module needs to come out. You cannot reset it or replace just the fuse alone in most field situations because the underlying cause of the fuse opening is typically inside the sealed module. The early warning sign before a total fuse failure is inconsistent ice production. If your 532 starts making partial trays or skipping harvest cycles, that is the motor or heater beginning to degrade before the fuse lets go entirely. Maintenance tip: every 12 months, check the fill tube for ice buildup at the entry point. A partially blocked fill tube forces the valve and module to work harder than they should. If your 532 loses ice production suddenly with no other symptoms, call immediately rather than waiting. The water valve receives voltage from the ice maker circuit, and a prolonged fault condition there puts additional stress on the valve coil.
Frequently Asked Questions
Why did my Sub-Zero 532 ice maker stop working all of a sudden?
On the Sub-Zero 532, a sudden and complete stop in ice production usually points to a blown thermal fuse inside the ice maker module. This fuse opens when the harvest motor seizes or the heating element shorts to the chassis. When it blows, the entire module loses power and stops working. Replacing the ice maker assembly as a complete unit is the standard repair for this failure.
How much does it cost to replace the ice maker on a Sub-Zero 532 in Houston?
In the Houston area, an ice maker replacement on a Sub-Zero 532 typically runs between $300 and $500 depending on parts availability for this vintage model. The repair itself takes one to two hours. Given that the 532 is a well-built unit that often still cools perfectly, the repair cost is almost always far lower than replacement and is worth doing.
What happens if I ignore a broken ice maker on my Sub-Zero 532?
If you leave a failed ice maker in a Sub-Zero 532 without addressing it, the water inlet valve coil continues to sit in a faulted circuit condition, which shortens its lifespan. You also risk ice buildup around the fill tube over time. The ice maker problem itself will not resolve on its own. Getting it diagnosed quickly keeps the repair contained to the module rather than spreading to the water valve.
Is it worth repairing a 1990 Sub-Zero 532 refrigerator or should I just replace it?
If the 532 still cools well and the sealed system is intact, repairing it is almost always the right call. These units were built with thicker insulation and more robust compressors than most modern refrigerators. A single component failure like an ice maker module does not indicate broader system failure. Sub-Zero 532s routinely run well past 30 years with targeted repairs rather than full replacement.
Does the water inlet valve on a Sub-Zero 532 need to be replaced when the ice maker fails?
Not automatically, but it should always be tested. The water inlet valve on the 532 receives voltage from the ice maker circuit, so if the ice maker module faults out, the valve sits in an abnormal electrical state. I test the coil resistance before closing out any ice maker job on this model. If the reading is within spec, the valve is fine and does not need to be replaced.
Repair Summary
- Brand
- Sub-Zero
- Model
- 532
- Repair Type
- Ice Maker Assembly Replacement with Water Valve Coil Verification
- Root Cause
- Blown ice maker fuse caused by failed internal ice maker component
- Parts Replaced
- ✓Ice maker assembly, complete module replacement for Sub-Zero 532 (OEM-compatible replacement unit including integral thermal fuse)
- Location
- Memorial, TX 77024
- Status
- ✓ Completed
