Sub-Zero 424G/S2: Drain Line Clog Causing Water Leaks in Memorial, TX
Customer Complaint / Symptoms
- •Intermittent water droplets visible on the exterior lower panel of the wine cooler
- •Water pooling at the base of the unit on the floor beneath the cabinet
- •No temperature or cooling loss — refrigeration system working normally throughout
🔍 Diagnosis / Cause Found
When I arrived at the client's home in Memorial, the Sub-Zero 424G/S2 wine cooler was cooling normally. Interior temperatures were within spec, roughly 55°F in the wine storage zone. No error codes, no unusual sounds. The complaint was specific: intermittent water dripping from the outside of the lower cabinet section. I pulled the unit out and inspected the drain system. The 424G/S2 uses a dual-evaporator configuration, which is characteristic of this Sub-Zero wine column series. Each evaporator has its own dedicated drain channel. Meltwater from the upper evaporator flows down into the lower drain channel, and from there the combined flow travels through a single drain tube into the drain pan underneath. At the junction point where the upper evaporator drain feeds into the lower channel, I found a solid mechanical blockage. The clog was a dense accumulation of biofilm, mineral deposits, and debris that had built up over time. The blockage was preventing water from reaching the drain pan, so it was backing up and finding its way out through the cabinet seams. This is a known failure pattern on dual-evaporator Sub-Zero wine units when routine maintenance is skipped. The drain path geometry at that junction creates a natural collection point for sediment. Without periodic flushing, it blocks completely.
📸 Repair Photos

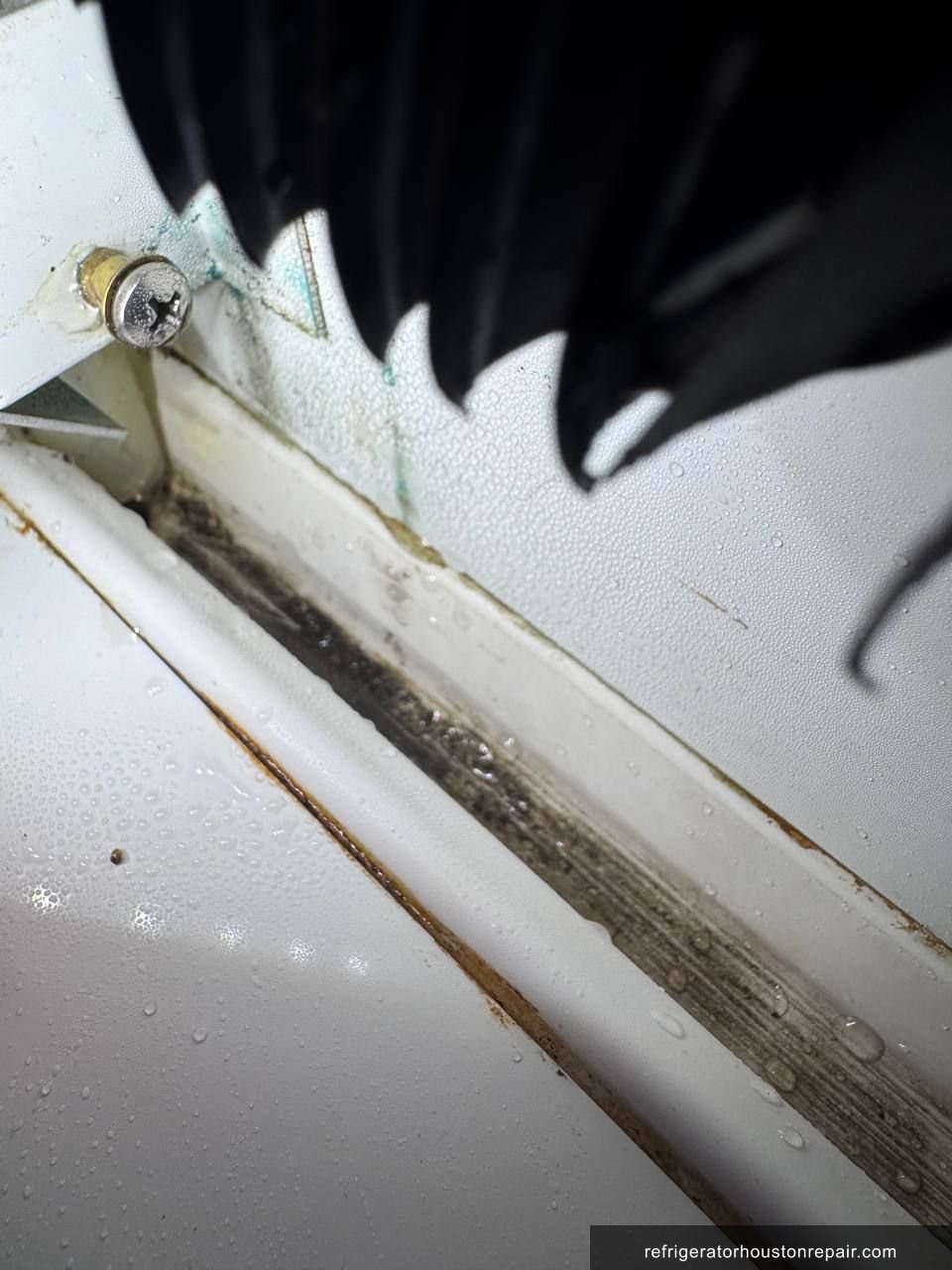

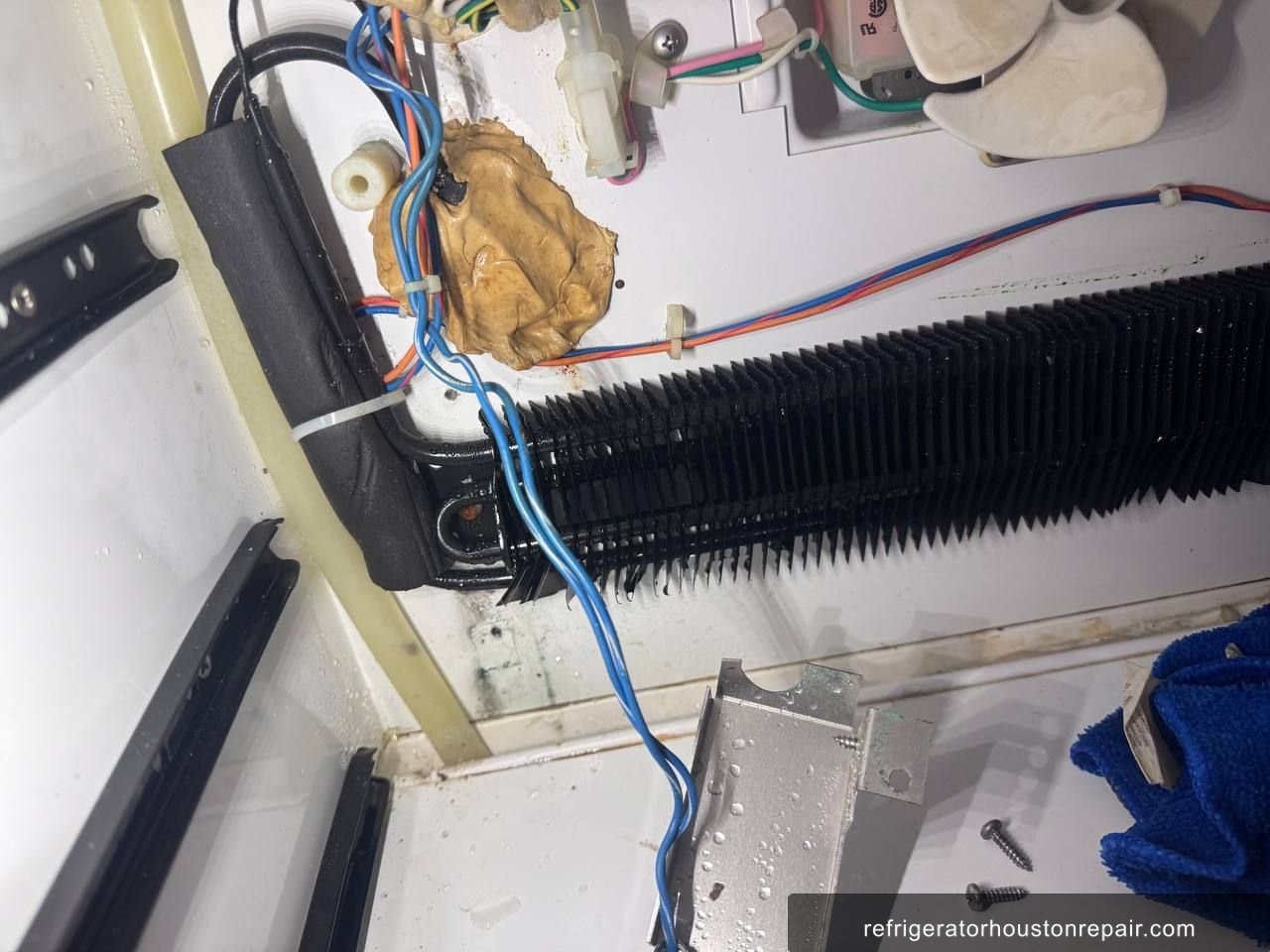

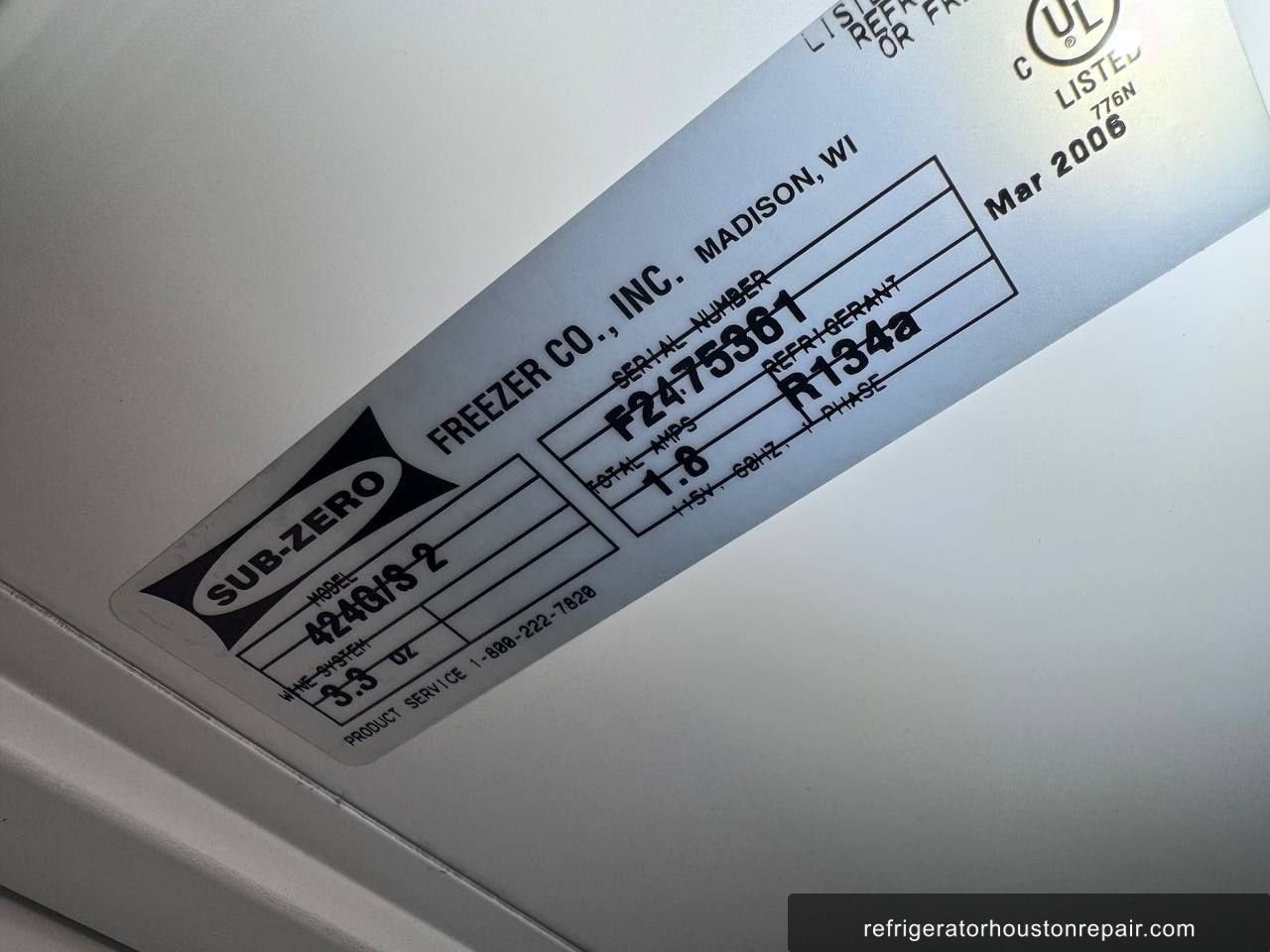

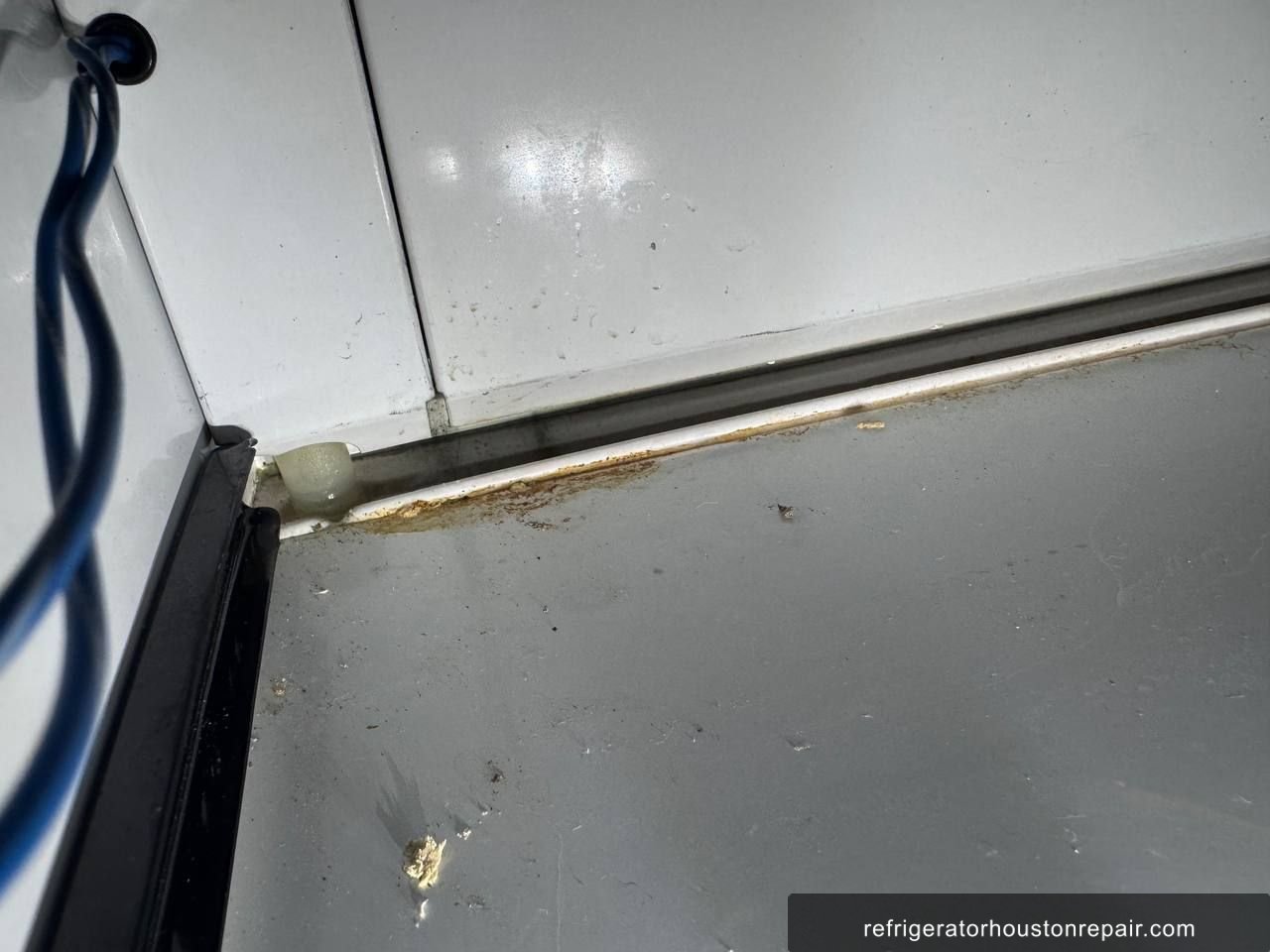

Sub-Zero 424G/S2 repair in Memorial, TX
Sub-Zero 424G/S2 repair in Memorial, TX
Sub-Zero 424G/S2 repair in Memorial, TX
Sub-Zero 424G/S2 repair in Memorial, TX
Sub-Zero 424G/S2 repair in Memorial, TX
🔧 Repair Performed
Step 1: Pulled the 424G/S2 away from the built-in cavity and removed the lower access panel to expose the drain pan and drain tube assembly.. Step 2: Confirmed the blockage location at the confluence point of the upper and lower evaporator drain channels using a flexible inspection mirror and penlight.. Step 3: Performed initial mechanical clearing of the clog using a drain snake brush inserted through the lower drain tube, dislodging the compacted debris.. Step 4: Flushed the upper evaporator drain channel separately with warm water to verify flow was reaching the junction point without restriction.. Step 5: Used a steamer tool to flush both drain channels and the connecting tube, targeting the biofilm and mineral scale coating the interior walls of the tubing.. Step 6: Verified full drainage by pouring measured water into both channels and confirming unobstructed flow into the drain pan below.. Step 7: Cleaned and dried the drain pan, reinstalled the lower access panel, and repositioned the unit in its cabinet cavity.. Step 8: Monitored the unit for 30 minutes post-repair. No water leakage observed. Wine zone temperature held steady at 55°F. Drain flow confirmed clear and functional.
🛒 Parts Replaced
- ✓No parts replaced. Repair consisted entirely of mechanical drain clearing and steam cleaning of the dual-channel drain system.
✅ Result
Within 30 minutes of completing the drain cleaning, the 424G/S2 was operating without any water leakage. The wine zone held 55°F throughout. The client in Memorial watched the entire post-repair monitoring period and confirmed she saw no further dripping. She was relieved it turned out to be a maintenance issue rather than a mechanical failure. She added a 10% tip on top of the service invoice, which I appreciated. I recommended scheduling annual maintenance to prevent the same blockage from returning.
