Scotsman SCN60 Ice Maker Not Making Ice — Drain Pump Running Constantly
📞 Call (346) 512-3688
The Problem
- •Ice maker stopped producing ice entirely
- •Drain pump running continuously and audibly without stopping
- •Water leaking through evaporator and draining away instead of freezing
- •No ice in the bin despite unit appearing to run normally
🔍 Diagnosis
Upon receiving the Scotsman SCN60 ice maker service call in Memorial, TX 77024, the technician began a systematic inspection of the unit. The customer reported that the machine had not been producing ice for several days and that the drain pump could be heard operating almost continuously — an immediate red flag indicating water was not being retained in the evaporator as intended during the freeze cycle. The technician removed the front panel and inspected the water distribution system, freeze plate, and evaporator assembly. Visual inspection revealed active water leakage around the evaporator shaft seal area. Water was bypassing the evaporator entirely and flowing directly into the drain pan, which explained the constant drain pump activation. The unit was cycling through its normal sequence, but because water could not accumulate on the freeze plate, no ice was being formed. Further disassembly of the evaporator shaft assembly exposed the root cause: the mechanical ceramic water seal — a precision component designed to maintain a watertight barrier between the rotating shaft and the water reservoir — had cracked and disintegrated. Additionally, the carbon (graphite) bearing that supports the shaft had worn completely beyond serviceable limits. Both components are subject to normal wear over extended service cycles, but their simultaneous failure caused total loss of ice production. No refrigerant leaks or electrical faults were detected. The compressor, refrigerant circuit, and control board were all confirmed functional.
🔧 The Repair
- ✓Disconnected the Scotsman SCN60 from power and water supply before beginning disassembly to ensure safe working conditions.
- ✓Removed the outer cabinet panels and front service cover to gain full access to the evaporator and water distribution assembly.
- ✓Drained remaining water from the internal reservoir and water circuits to prevent contamination during component removal.
- ✓Disassembled the evaporator shaft assembly, carefully extracting the worn carbon (graphite) bearing from its housing — bearing showed severe erosion and flattening on the contact surface.
- ✓Removed the failed mechanical ceramic water seal from the evaporator shaft. The ceramic face was found cracked and the rubber boot had hardened and lost elasticity, causing the seal failure.
- ✓Ordered OEM-specification replacement parts: new mechanical water-sealed ceramic shaft seal and compatible carbon bearing assembly for the Scotsman SCN60 — parts arrived within three business days.
- ✓Cleaned all mating surfaces on the evaporator shaft and housing using appropriate solvents to remove mineral deposits and seal residue before installing new components.
- ✓Installed the new carbon bearing into the evaporator housing, pressing it to the correct seating depth per Scotsman service specifications.
- ✓Installed the new ceramic mechanical water seal onto the evaporator shaft, ensuring proper orientation of the ceramic face and correct compression of the spring-loaded assembly.
- ✓Reassembled the evaporator shaft assembly and reinstalled it into the evaporator body, torquing fasteners to specification.
- ✓Performed a full cleaning of external cabinet surfaces and internal water circuits, including the water distribution tubes, reservoir, and drain pan, using Scotsman-approved nickel-safe cleaner to remove scale buildup.
- ✓Reconnected water supply and power, initiated a full freeze cycle, and confirmed the drain pump was no longer running continuously. The unit produced a full batch of ice within the first cycle, verifying successful repair.
✓ Result
Following the replacement of the ceramic water seal and carbon bearing, the Scotsman SCN60 resumed full normal operation. The drain pump stopped its continuous cycling immediately upon the first test run, confirming that water was now being retained properly in the evaporator. The unit produced a complete ice batch within the first freeze cycle after repair. Total repair time on-site was approximately half a day. The customer was satisfied with the quick turnaround — parts arrived in three days and the repair was completed the same morning. A standard 90-day labor warranty was provided on the replaced components.
💡 Technician Notes
Scotsman commercial-grade ice makers like the SCN60 are built for longevity, but the mechanical water seal and carbon bearing are consumable components that will wear over time — especially in areas like Memorial, TX, where hard water accelerates mineral buildup on rotating parts. Owners should schedule a professional cleaning and inspection at least once per year using Scotsman-approved nickel-safe descaler. Early warning signs of seal failure include a drain pump that runs more frequently than usual, reduced ice production, or visible water dripping below the evaporator area. Never ignore a continuously running drain pump — it almost always signals water is bypassing the freeze surface. Addressing this early can prevent secondary damage to the drain pump motor itself. Keep the unit's air filter and condenser coils clean seasonally to maintain efficiency and extend the life of internal components.
Frequently Asked Questions
Why is my Scotsman SCN60 ice maker not making ice but the drain pump keeps running?
A continuously running drain pump on a Scotsman SCN60 typically means water is leaking through the evaporator and going straight to the drain instead of freezing. The most common cause is a failed mechanical ceramic water seal on the evaporator shaft. When this seal cracks or wears out, water cannot accumulate on the freeze plate, so no ice is produced and the drain pump runs nonstop.
How much does it cost to replace the water seal and carbon bearing on a Scotsman SCN60 in Houston?
Repair costs for a Scotsman SCN60 water seal and carbon bearing replacement in the Houston, TX area typically vary based on parts pricing and labor time. The repair generally requires ordering OEM components with a 2–4 day lead time and approximately half a day of on-site labor. Contact a certified Scotsman repair technician in Memorial or the greater Houston area for an exact quote specific to your unit's condition.
What are the early warning signs that the water seal on a Scotsman ice maker is failing?
Early signs of a failing water seal on a Scotsman ice maker include reduced ice output, a drain pump that runs more often or continuously, visible moisture or dripping under the evaporator, and mineral crust buildup around the shaft area. If you notice the drain pump running when the unit should be in a freeze cycle, have the unit inspected promptly. Catching seal wear early can prevent damage to the drain pump and other components.
Is it worth repairing a Scotsman SCN60 ice maker with a failed water seal, or should I replace the unit?
For a Scotsman SCN60, repair is almost always the better value when the issue is limited to the mechanical water seal and carbon bearing. These are known wear components with straightforward replacement procedures. The compressor, refrigerant circuit, and controls on Scotsman units are highly durable. Unless the unit is very old with multiple failing systems, a targeted seal repair extends the life of the machine significantly at a fraction of replacement cost.
How often should the water seal and bearing be serviced on a Scotsman SCN60 ice maker?
Scotsman does not publish a fixed replacement interval for the water seal and carbon bearing, as lifespan depends on water quality and usage. In hard-water areas like Houston and Memorial, TX, mineral deposits accelerate wear. Annual professional inspection is recommended. During each yearly cleaning service, a technician can assess seal and bearing wear visually. Proactive replacement every 3–5 years in high-use environments can prevent unexpected breakdowns.
Repair Summary
- Brand
- Scotsman
- Model
- SCN60
- Repair Type
- Ice Maker Repair / Mechanical Seal Replacement
- Root Cause
- Failed ceramic water seal and worn carbon bearing in evaporator
- Parts Replaced
- ✓Mechanical water-sealed ceramic shaft seal (OEM-specification, compatible with Scotsman SCN60 evaporator assembly)
- ✓Carbon (graphite) bearing for evaporator shaft (worn beyond serviceable limits, replaced with OEM-equivalent)
- Location
- Memorial, TX 77024
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Memorial and surrounding areas.
View Memorial Service Area →📸 Repair Photos

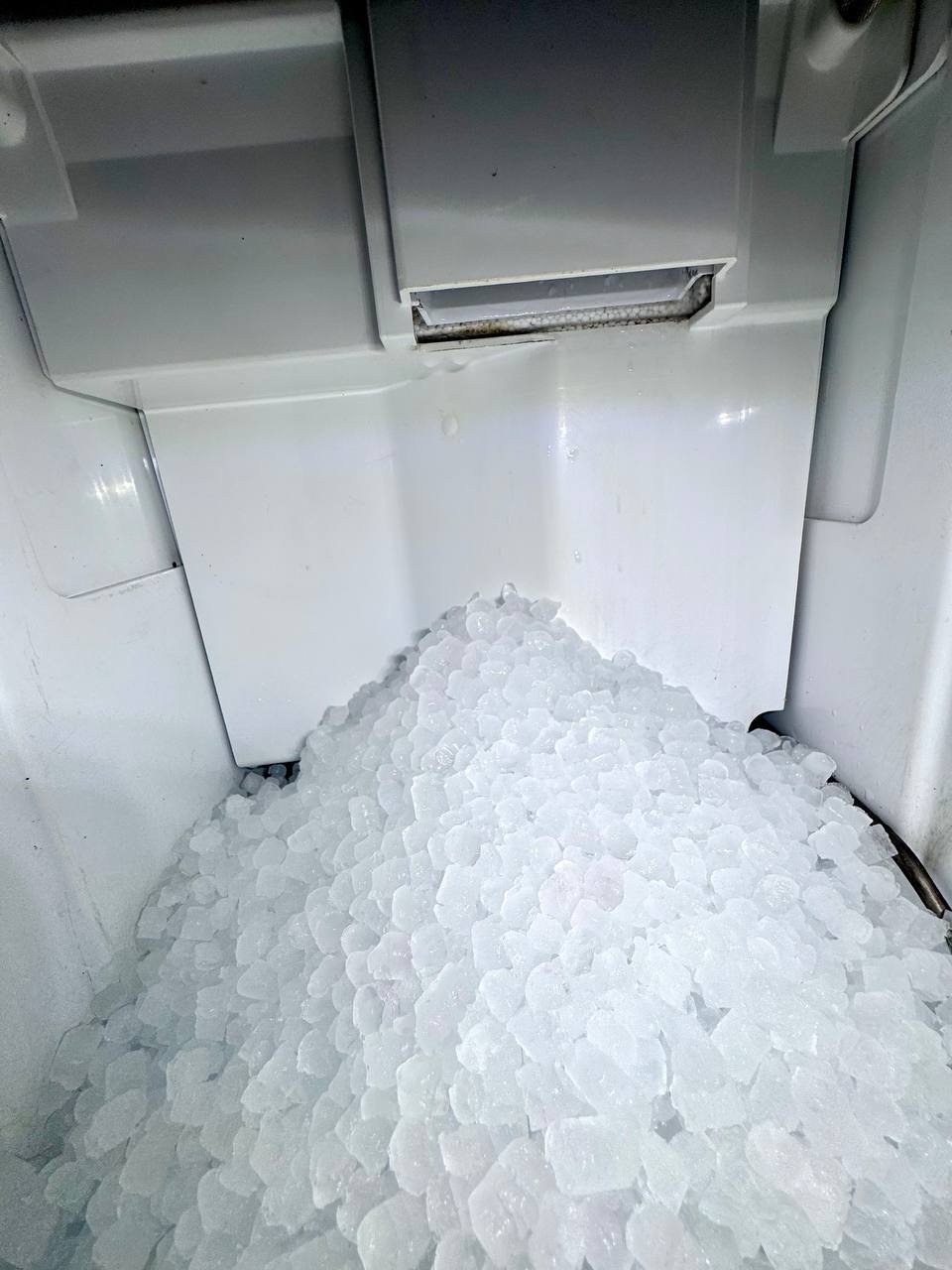

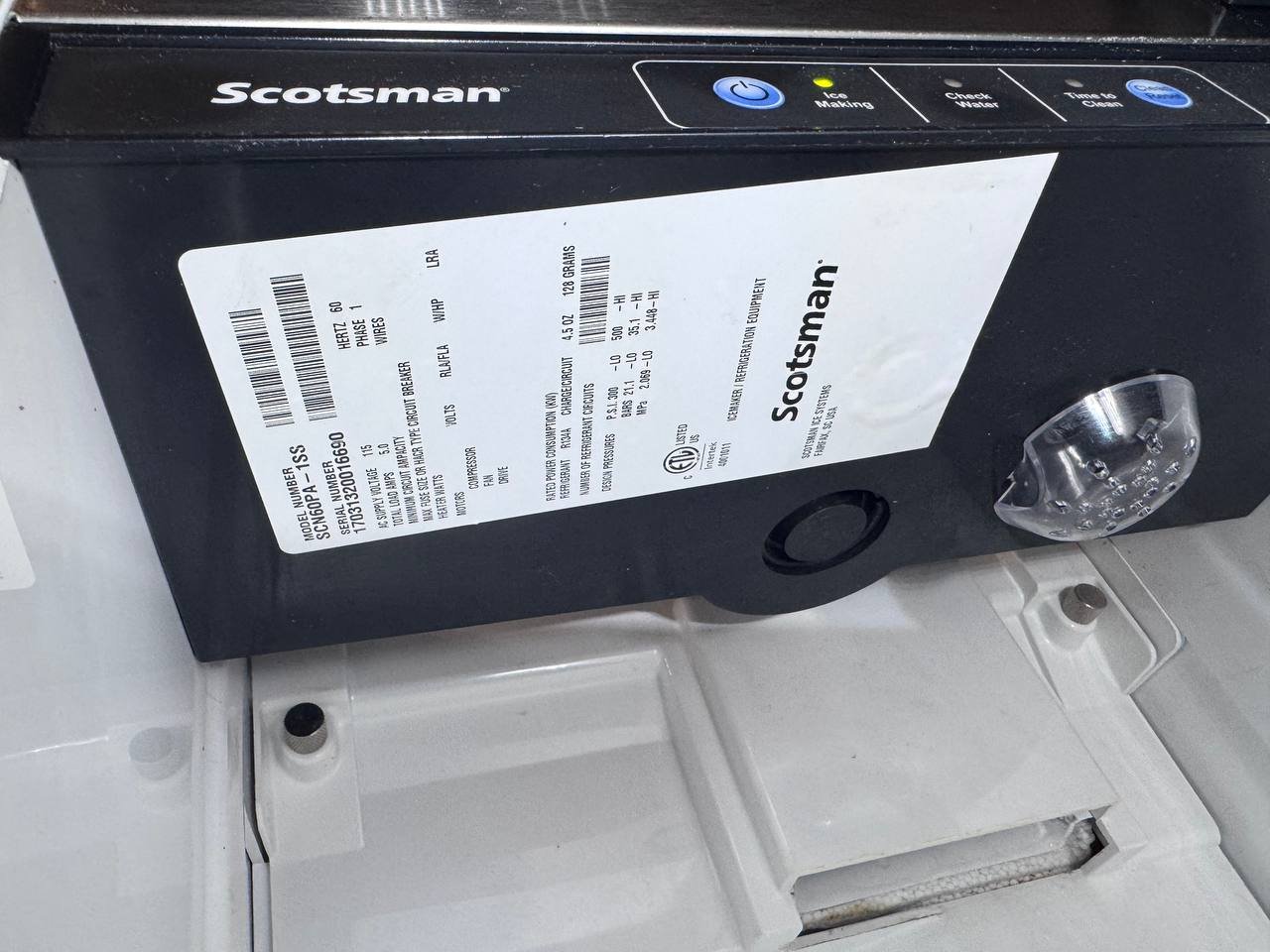

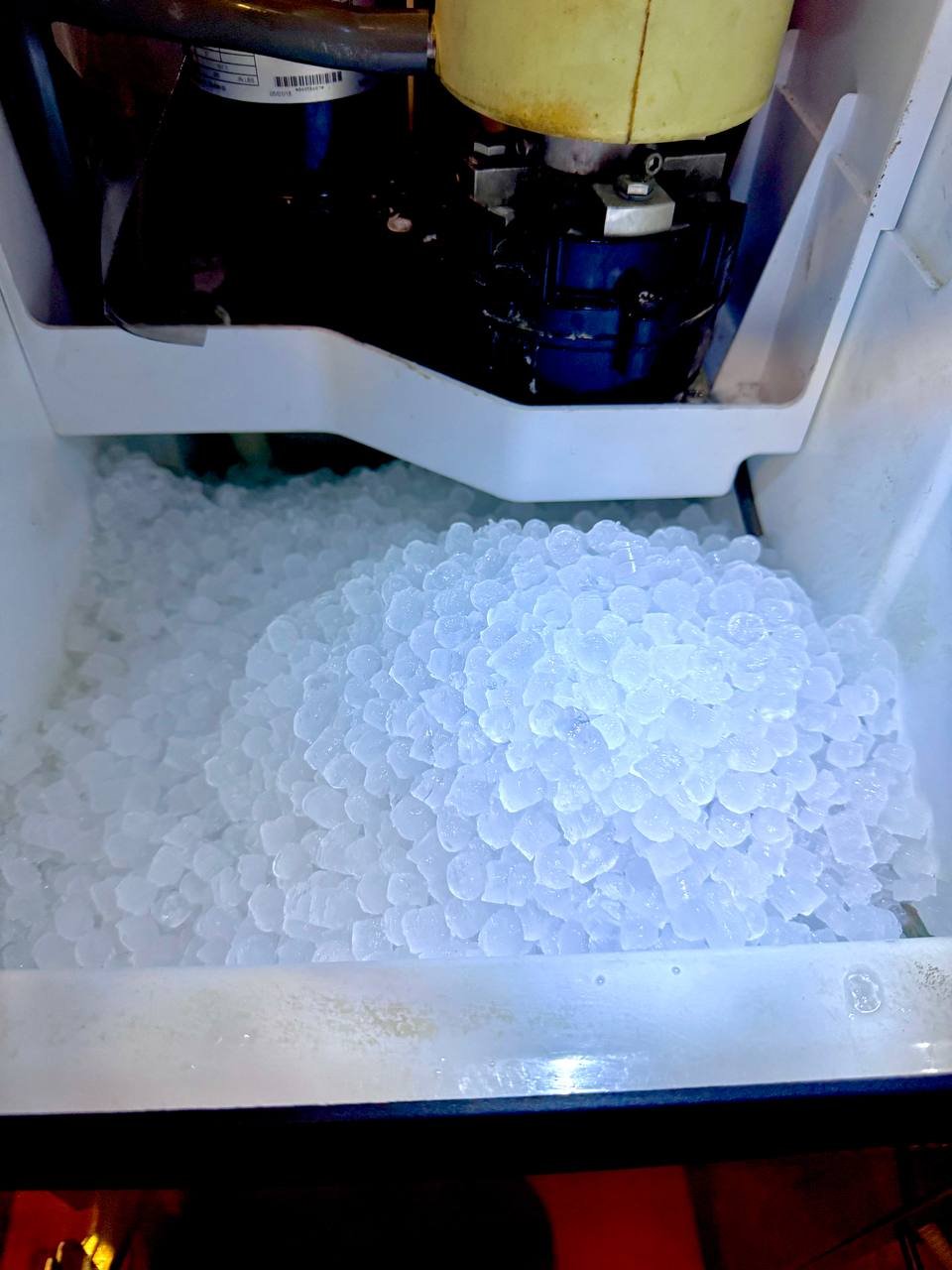

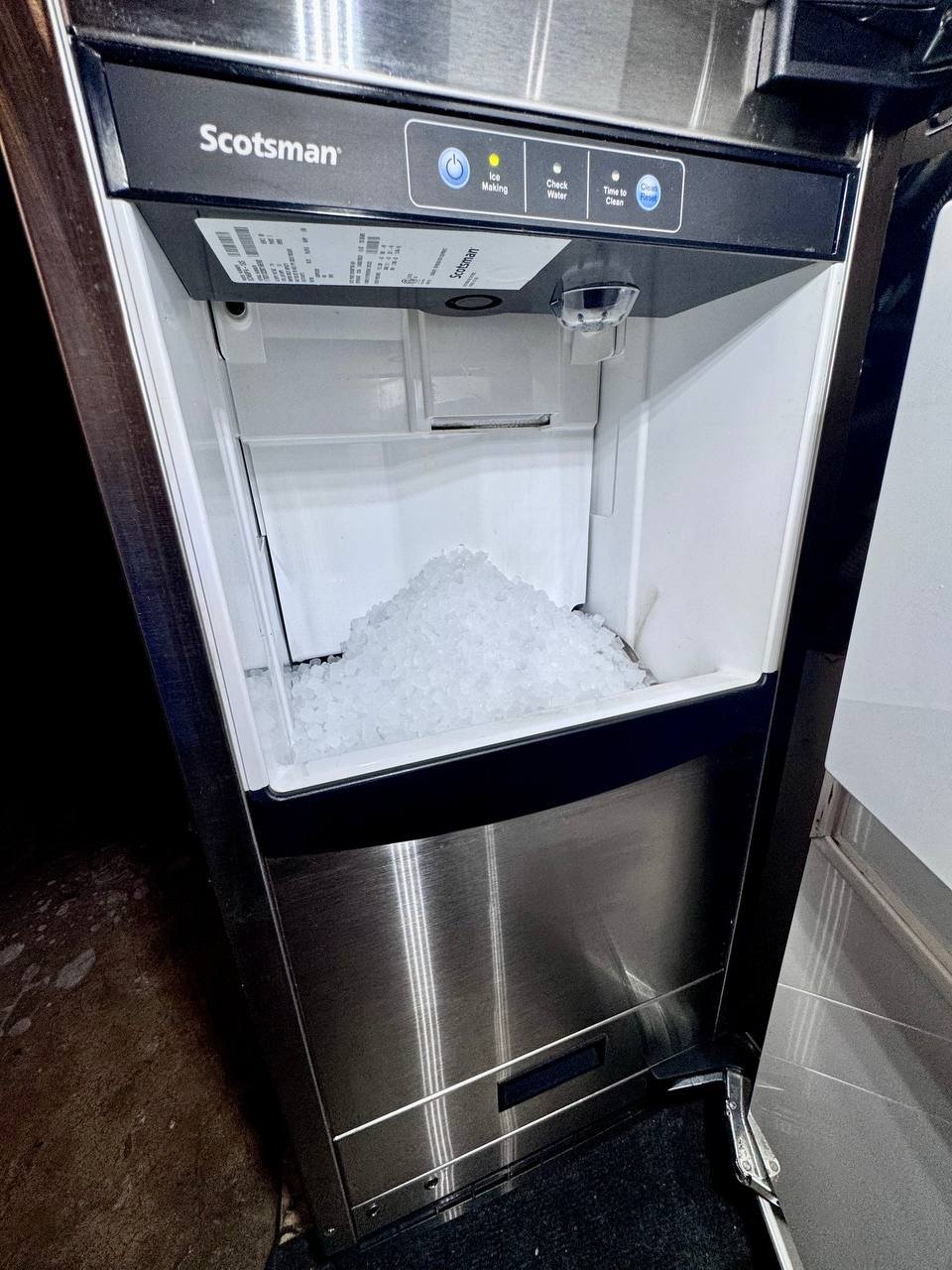

Scotsman SCN60 repair in Memorial, TX — photo 1
Scotsman SCN60 repair in Memorial, TX — photo 2
Scotsman SCN60 repair in Memorial, TX — photo 3
Scotsman SCN60 repair in Memorial, TX — photo 4
Scotsman SCN60 repair in Memorial, TX — photo 5
Scotsman SCN60 repair in Memorial, TX — photo 6
