Scotsman SCCP30MA: Ice Maker Producing Incomplete, Cloudy Ice in Sugar Land, TX
Customer Complaint / Symptoms

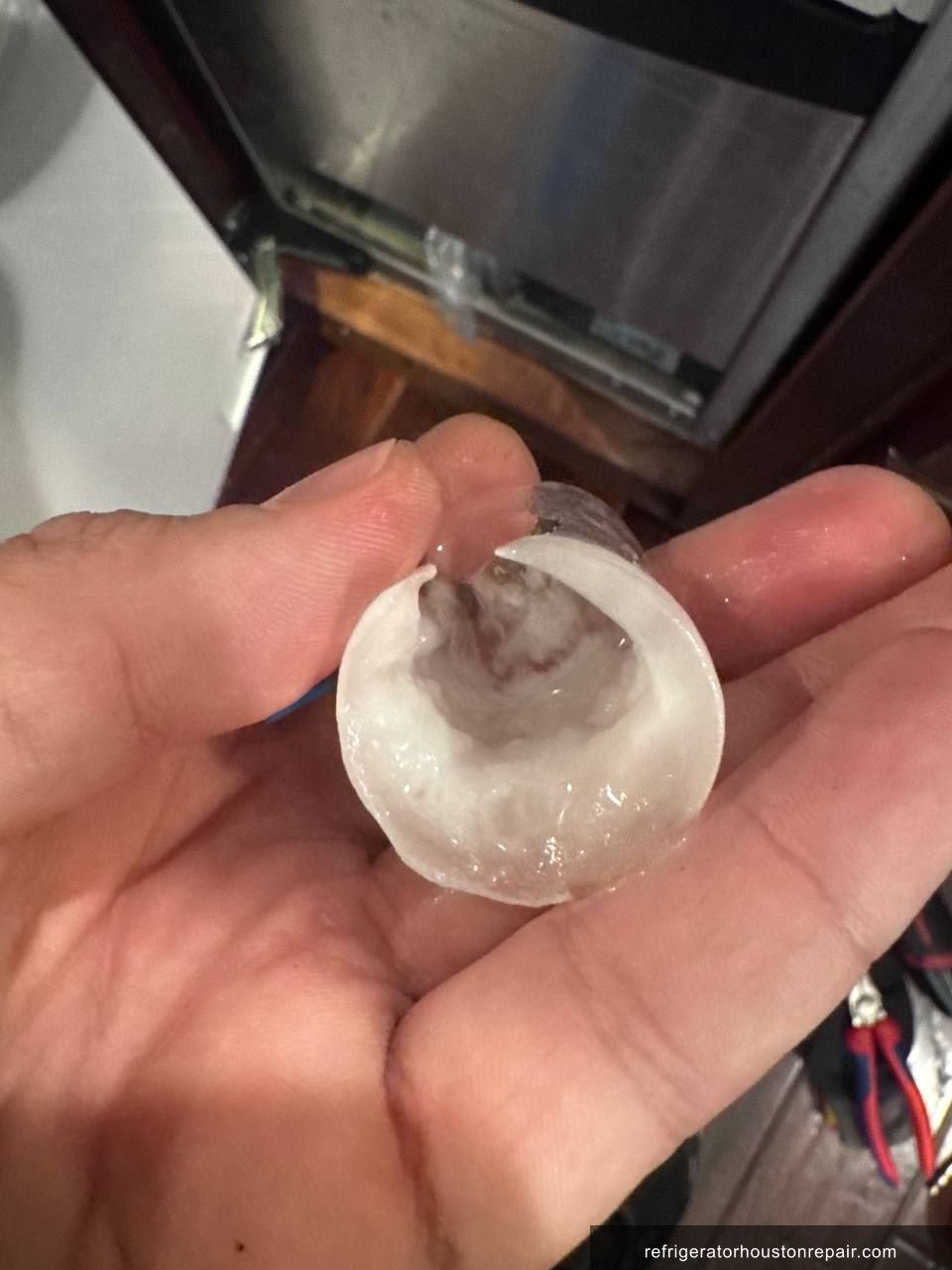

- •Ice cubes coming out hollow and not fully formed after two months of degraded output
- •Ice completely cloudy and opaque instead of the clear, dense cubes Scotsman SCCP30MA is built to produce
- •Water fountain jets inside the ice maker starting strong at cycle start but losing pressure mid-cycle
- •Circulation pump sound changing mid-cycle, indicating the reservoir running low on water
🔍 Diagnosis / Cause Found
When I arrived at the Sugar Land home in ZIP 77478, the customer described two months of progressively worsening ice quality from the Scotsman SCCP30MA. The cubes were hollow and cloudy, which on this model points immediately toward a water supply or reservoir issue rather than a refrigerant or freeze plate problem. The R-134a sealed system on the SCCP30MA was not in question here. I powered the unit through a full freeze cycle and watched the fountain jets at startup. They hit the freeze plate hard and evenly, and the circulation pump ran quietly, which told me the pump itself was healthy. About halfway through the cycle, I heard the pump tone shift slightly, a subtle cavitation sound that Scotsman technicians recognize as the impeller losing prime. I watched the jets drop noticeably in height. That combination, a healthy pump going quiet with dropping jet pressure mid-cycle, is a textbook sign of the reservoir not holding enough water. I disconnected the incoming water supply line at the inlet valve and found visible calcium scale buildup at the fitting. On the SCCP30MA, the water inlet valve includes an integrated mesh filter screen designed to catch particulate. In Houston's hard water environment, that screen accumulates mineral deposits over time until flow rate drops below what the reservoir needs to stay full through an entire freeze cycle. The valve body itself had internal scale as well. Restricted flow, not a pump failure, was the root cause.
📸 Repair Photos

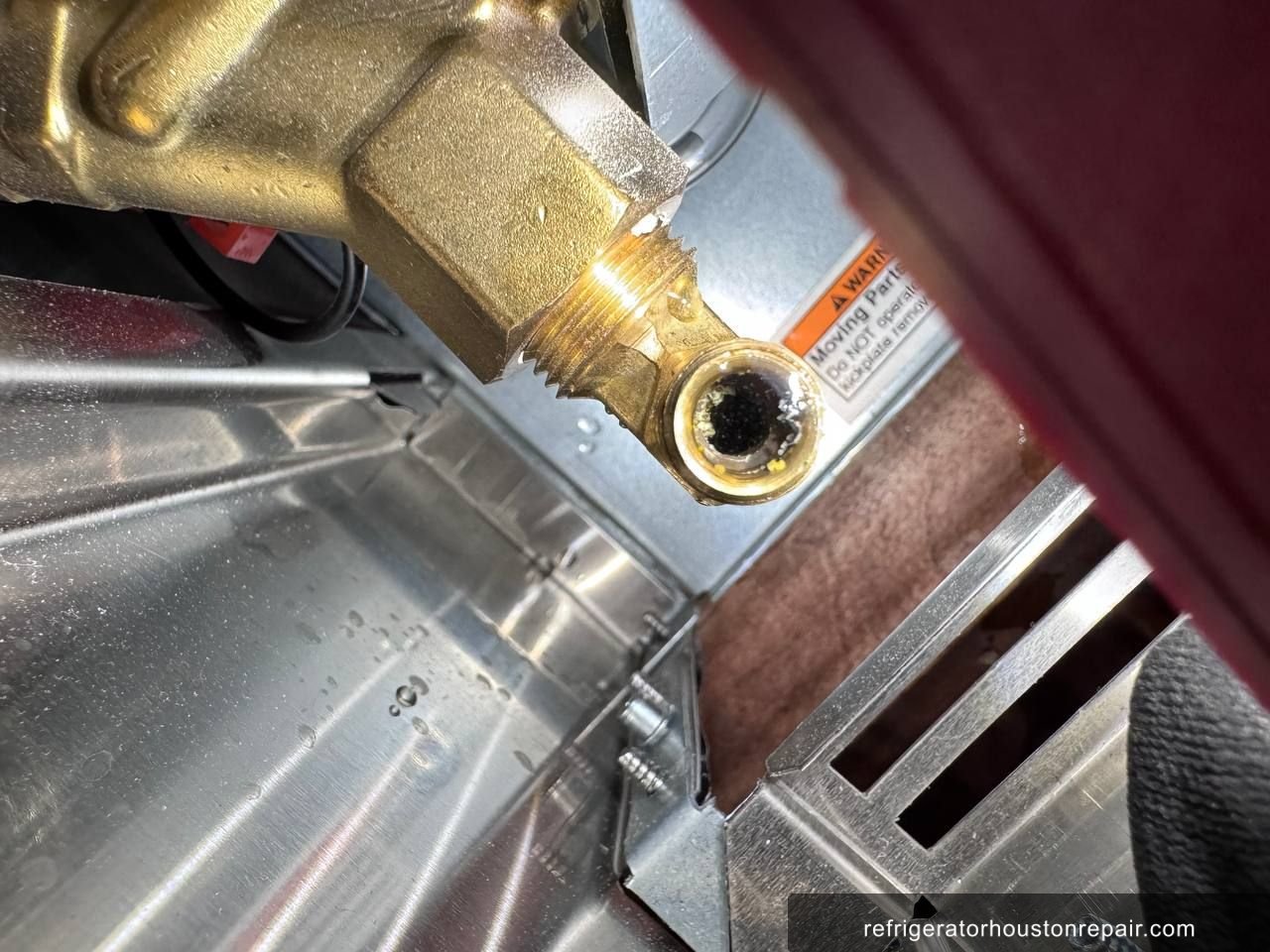

Scotsman SCCP30MA repair in Sugar Land, TX

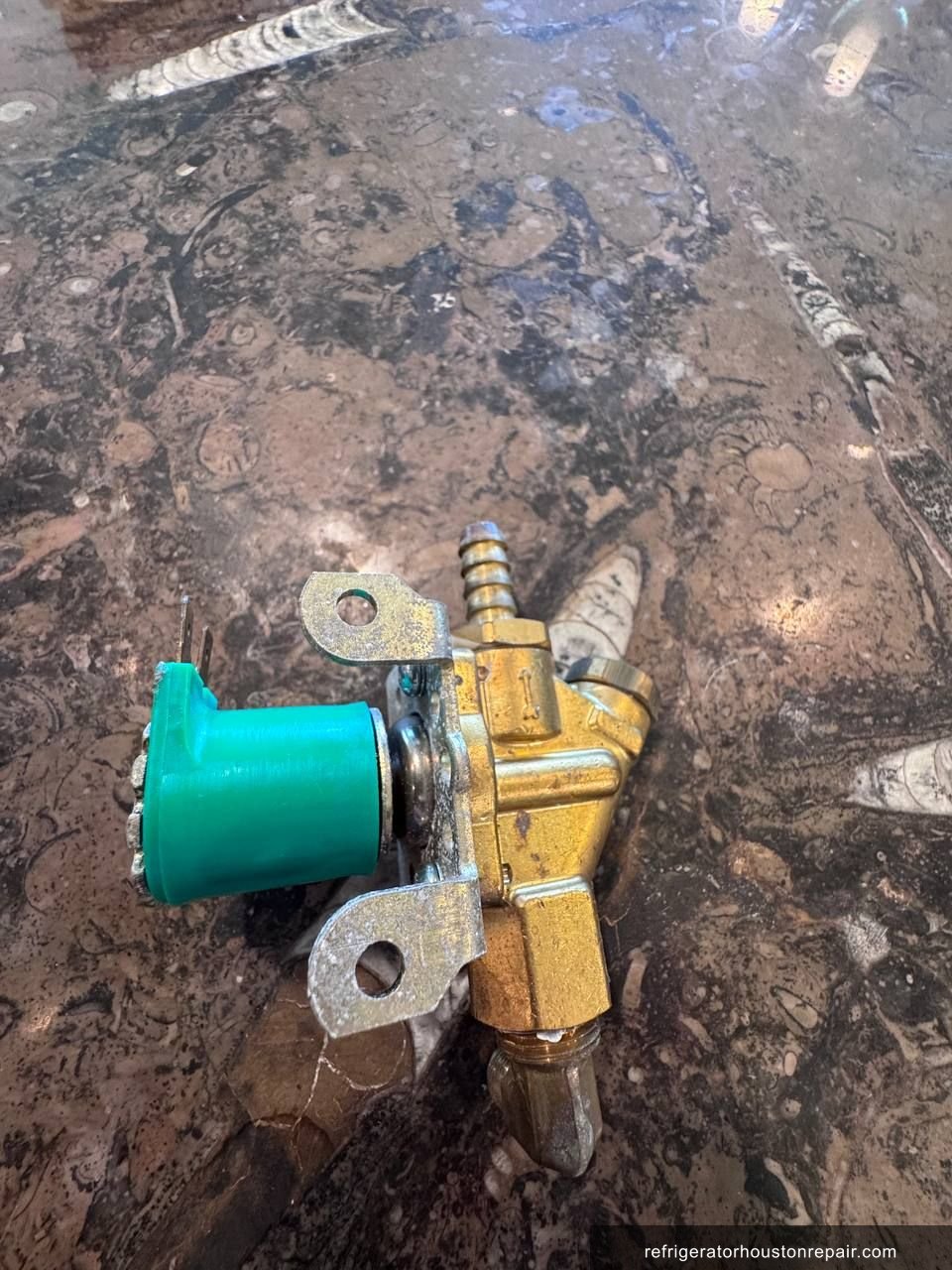

Scotsman SCCP30MA repair in Sugar Land, TX

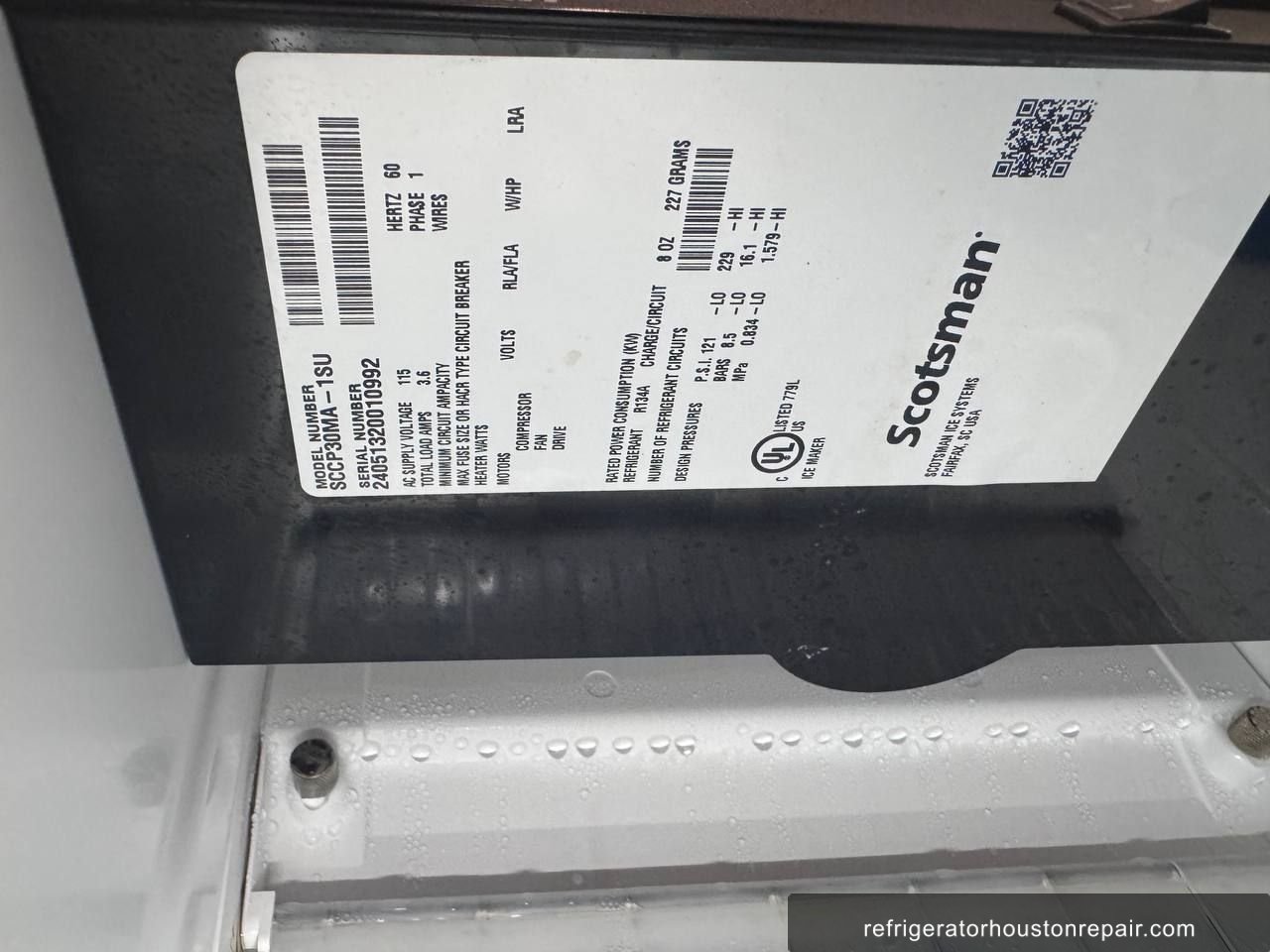

Scotsman SCCP30MA repair in Sugar Land, TX
Scotsman SCCP30MA repair in Sugar Land, TX
Scotsman SCCP30MA repair in Sugar Land, TX
🔧 Repair Performed
Step 1: Powered the SCCP30MA through a full freeze cycle and observed fountain jet behavior at cycle start and mid-cycle to isolate the failure phase.. Step 2: Confirmed circulation pump motor health by listening for tone changes and measuring pump draw with a clamp meter, ruling out pump failure as the cause.. Step 3: Shut off the water supply line and disconnected the inlet fitting at the water inlet valve, revealing visible calcium deposits at the connection point.. Step 4: Removed the water inlet valve assembly from the unit and inspected the integrated mesh filter screen, which showed heavy mineral scale accumulation restricting flow.. Step 5: Inspected the valve body internally and confirmed calcium deposits had built up inside the valve seat, further limiting water flow volume per open cycle.. Step 6: Installed OEM replacement water inlet valve for the Scotsman SCCP30MA, which includes the factory mesh filter screen and is rated for the correct flow rate and inlet pressure spec for this model.. Step 7: Reconnected the supply line, restored water pressure, and ran the unit through two complete freeze cycles, monitoring fountain jet height and reservoir level throughout both cycles.. Step 8: Confirmed full ice quality restoration after two complete cycles. Cubes came off the freeze plate solid, fully formed, and clear. Pump tone remained consistent from start to finish of both cycles with no mid-cycle pressure drop.
🛒 Parts Replaced
- ✓Water inlet valve with integrated mesh filter screen (Scotsman OEM replacement for SCCP30MA)
✅ Result
After two complete freeze cycles with the new OEM inlet valve installed, the Scotsman SCCP30MA in Sugar Land was producing solid, clear, fully formed crescent cubes exactly as designed. The reservoir maintained its fill level throughout both test cycles with no mid-cycle pump cavitation. The customer had been tolerating two months of unusable ice and was genuinely relieved. He said he almost bought a new machine before calling. One valve replacement brought the unit back to full factory output. I was happy with that outcome too.
