Samsung RS25J500DSR: Complete Refrigerant Loss from Sealed System Leak in Katy, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Freezer section holding the same temperature as the room, roughly 75°F to 78°F, with zero cooling
- •Fresh food compartment also at room temperature, no cold air anywhere in the unit
- •Refrigerator running continuously with no temperature drop in either section
- •No frost or ice buildup on evaporator coils, which is a sign of empty refrigerant charge
🔍 Diagnosis

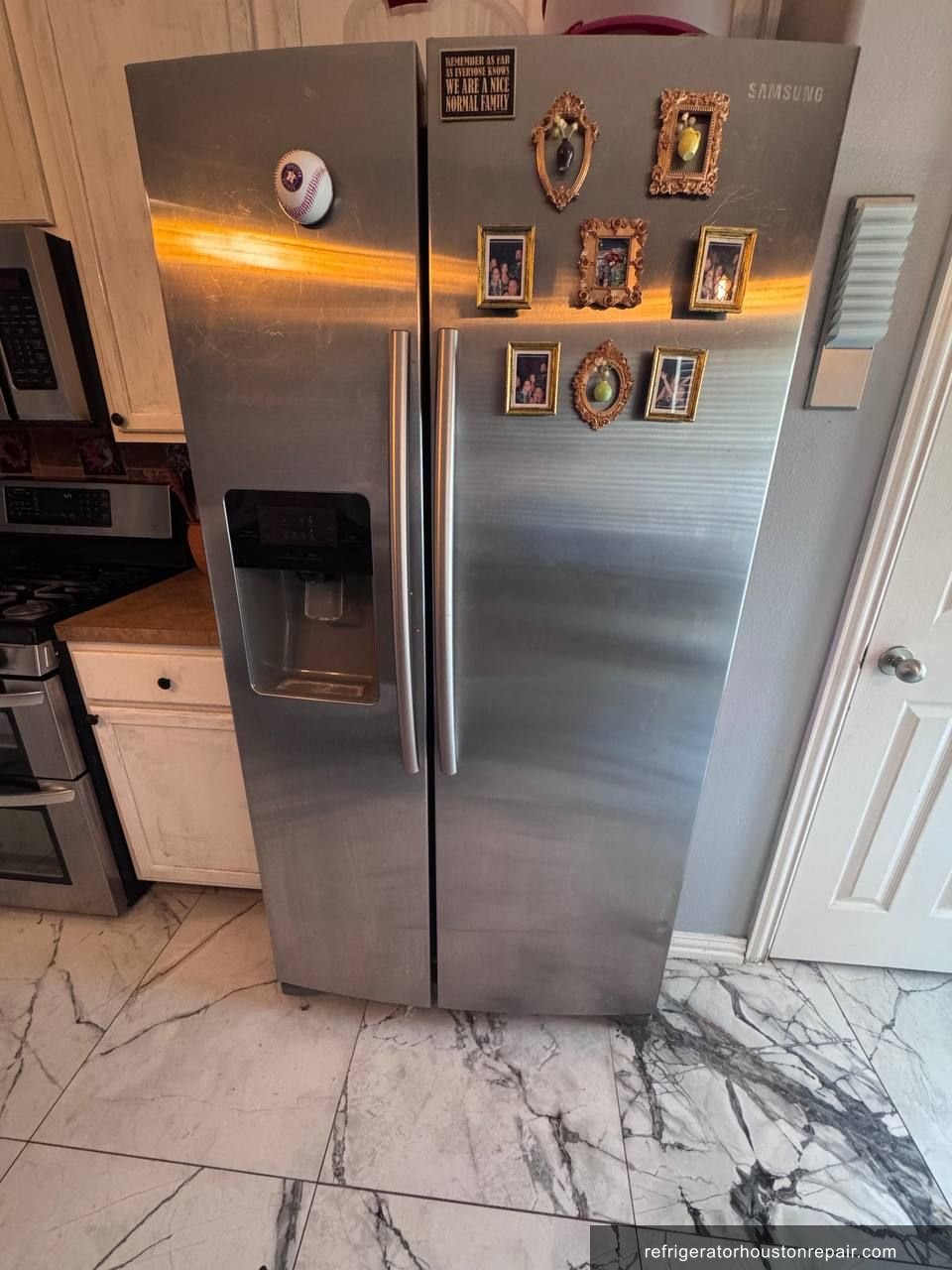

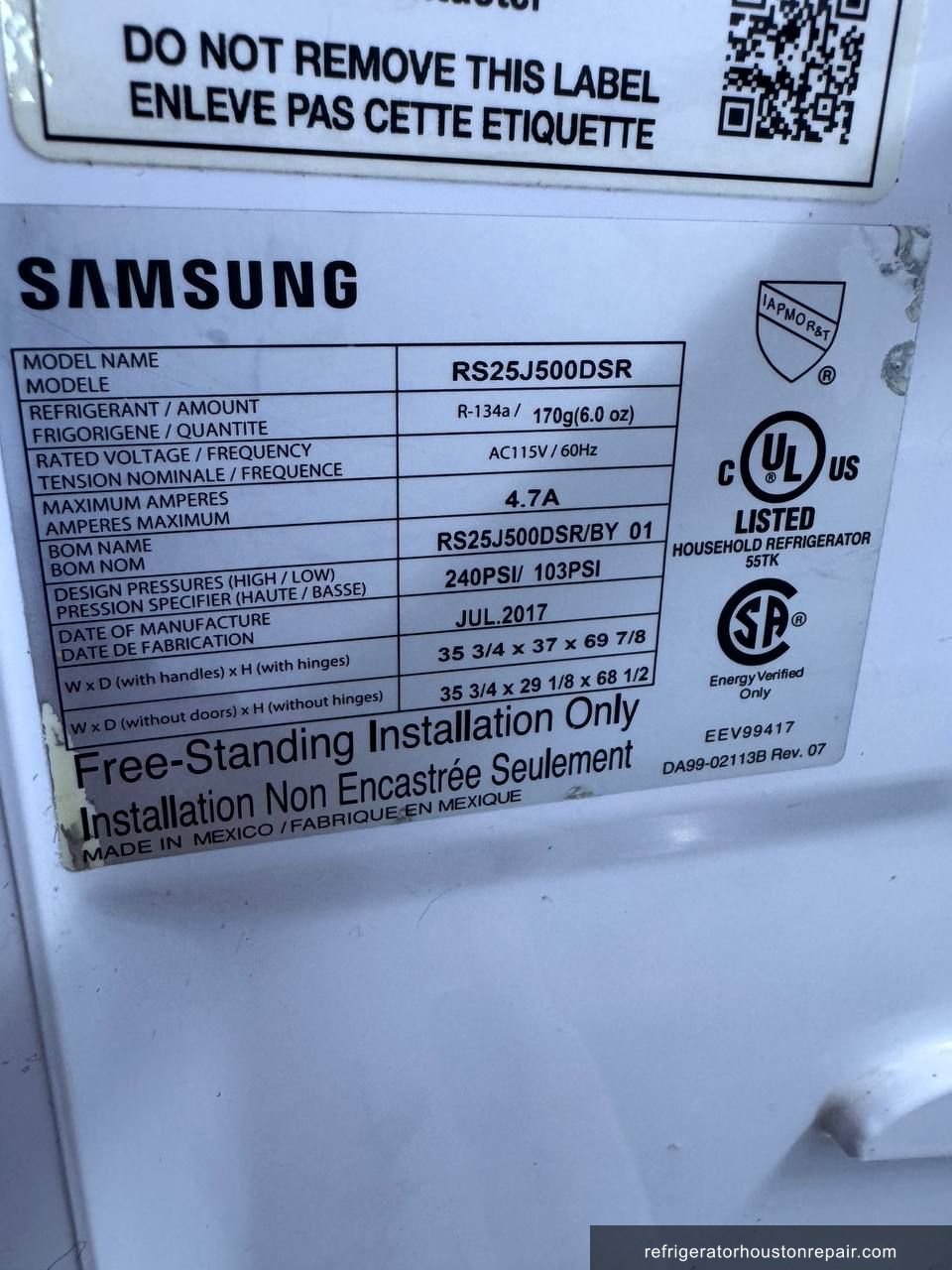

When I arrived at the home in Katy, 77449, the Samsung RS25J500DSR was 9 years old and not producing any cold in either the freezer or the fresh food section. Both compartments read ambient room temperature, around 76°F. That alone told me this was not a defrost issue or a fan problem. I pulled out my electronic leak detector and ran it through the freezer compartment first. The device pegged immediately at its maximum reading. I moved to the fresh food section and got the same response. A strong freon background throughout the entire cabinet confirmed this was a sealed system leak with a near-total loss of R-134a refrigerant. The label specifies a 170g charge of R-134a, and based on the readings, essentially none of it remained inside the system. I then accessed the inverter board and checked it for fault codes and abnormal behavior. It was operating normally. I moved to the compressor compartment next. The compressor was warm to the touch and cycling, which told me the electrical side of the system was intact. The root cause is a breach in the sealed refrigerant circuit. On 9-year-old Samsung French door and side-by-side models, the aluminum evaporator in the freezer section is the most common failure point. Aluminum evaporators develop micro-cracks over time, especially in units exposed to repeated defrost cycles. Once the refrigerant escapes, the system runs but produces no cooling effect.
🔧 The Repair

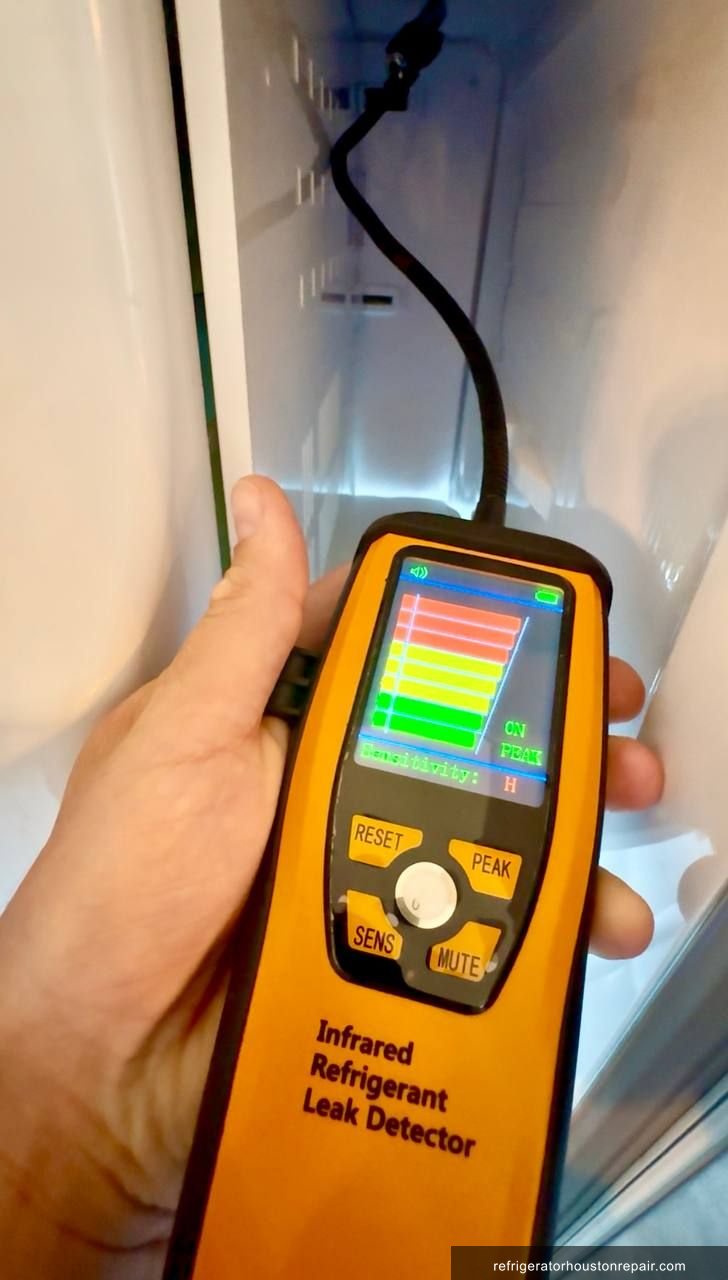

- ✓Step 1: Connected electronic leak detector to both the freezer and fresh food compartments. Detector registered maximum freon concentration in both sections, confirming a full refrigerant loss from the sealed system.
- ✓Step 2: Recorded ambient temperature in both compartments using a digital thermometer. Freezer read 76°F and fresh food section read 74°F, matching room temperature exactly.

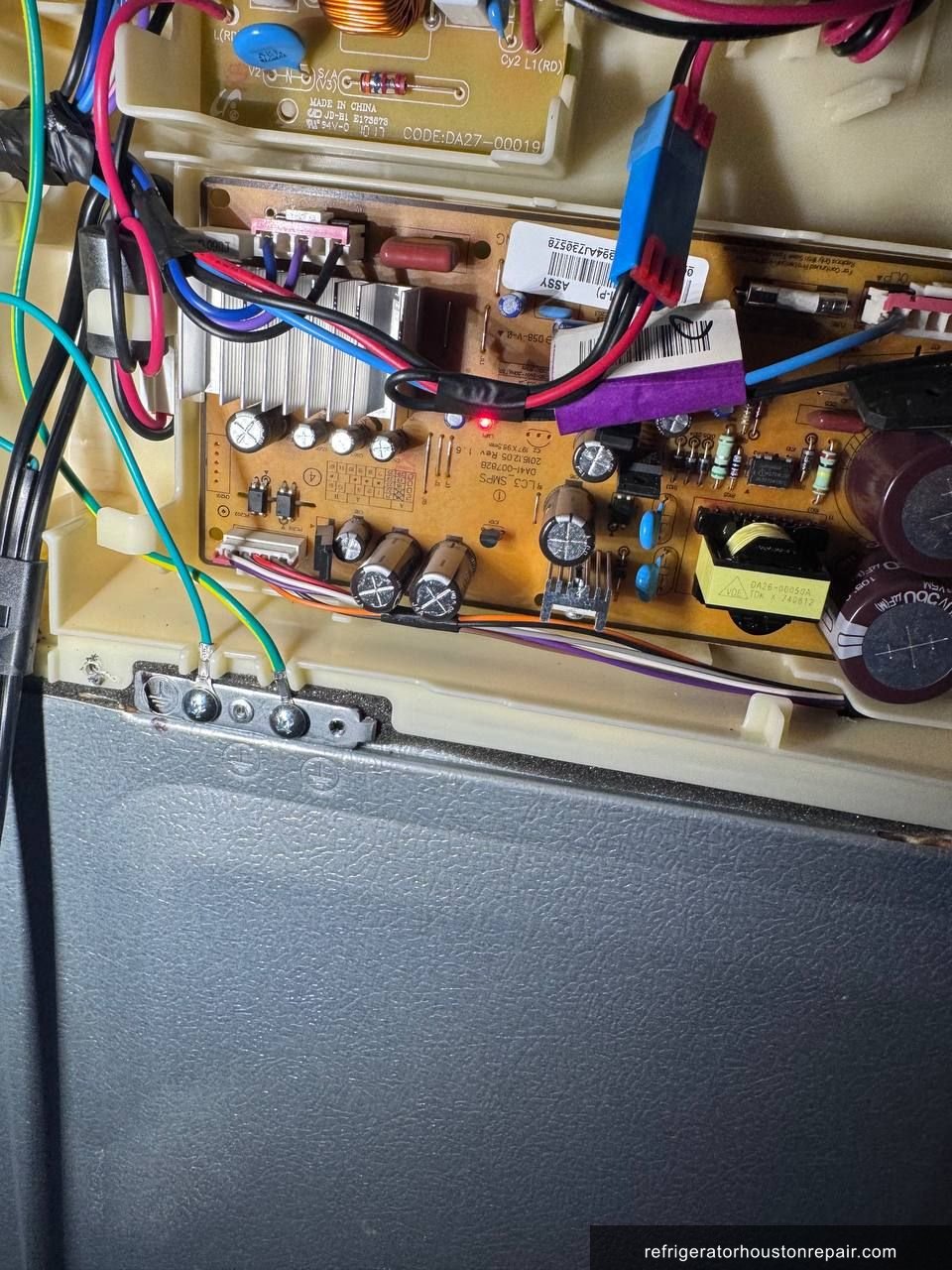

- ✓Step 3: Removed the rear access panel to reach the inverter board. Checked for stored fault codes and measured input/output voltages. Board was operating within normal parameters with no error codes present.
- ✓Step 4: Opened the compressor compartment at the base of the unit. The compressor was warm and running, confirming no electrical or mechanical failure on that side of the system.
- ✓Step 5: Assessed repair cost for sealed system work on this model. Recovering residual refrigerant, locating and brazing the leak, recharging with 170g of R-134a, and verifying pressures would run between $750 and $900 in parts and labor.
- ✓Step 6: Discussed findings and repair estimate with the customer. Given the age of the unit at 9 years and the repair cost approaching the price of a new refrigerator, the customer made the informed decision not to proceed with sealed system repair.
- ✓Step 7: Documented all findings with 4 photos showing leak detector readings at maximum in both compartments, compressor compartment condition, and inverter board status.
- ✓Step 8: Collected $89 diagnostic fee. Advised the customer on what to look for when purchasing a replacement unit. No further repair was performed at the customer's request.
✓ Result
The diagnostic was completed in full. I identified a sealed system refrigerant leak, almost certainly originating from the aluminum evaporator in the freezer section, confirmed the compressor and inverter board were both functional, and gave the customer a clear cost picture. The repair estimate of $750 to $900 was close to what a new comparable unit costs in the Houston area. The customer in Katy, 77449, paid the $89 diagnostic fee and decided to replace the refrigerator rather than invest in sealed system work on a 9-year-old unit. That was the right call given the numbers.
💡 Technician Notes
Samsung side-by-side and French door models from 2012 to 2016 have a known pattern of aluminum evaporator failure in the 8 to 10 year range. The early warning sign that most owners miss is a gradual loss of cooling performance over several weeks before the unit stops cooling entirely. If your Samsung starts struggling to maintain freezer temperatures below 10°F, that is worth a service call before the refrigerant is completely gone. There is no maintenance step that prevents an evaporator from cracking over time, but keeping the freezer door sealed properly and not overloading it reduces thermal stress on the coil. The rule I use for sealed system repairs on Samsung units is straightforward: if the refrigerator is under 7 years old, the repair math works. At 9 years or older with a full sealed system breach, replacement almost always makes more financial sense than a $750 to $900 repair on R-134a equipment.
Frequently Asked Questions
Why did my Samsung RS25J500DSR stop cooling completely all of a sudden?
When a Samsung RS25J500DSR loses all cooling in both the freezer and fresh food sections at once, a complete refrigerant loss from the sealed system is the most likely cause. The aluminum evaporator in the freezer develops micro-cracks over years of defrost cycles and releases all the R-134a refrigerant. Once the charge is gone, the compressor runs but moves nothing, so both sections go warm.
How much does it cost to fix a refrigerant leak on a Samsung side-by-side in Katy TX?
Sealed system repair on a Samsung side-by-side in the Katy and Houston area runs between $750 and $900. That includes refrigerant recovery, leak location, brazing the breach, recharging with the correct amount of R-134a, and pressure testing. Labor is the majority of the cost because this work is time-intensive and requires EPA 608 certification to handle refrigerants legally.
What happens if I keep running my Samsung refrigerator after it loses all its freon?
Running a Samsung refrigerator after a complete refrigerant loss does not make the leak worse, but it does nothing to preserve your food. The compressor and inverter board continue to operate normally, which is why some owners think the unit is fine at first. The only real risk is leaving perishables in the unit while waiting for service. Everything at room temperature for more than two hours should be discarded.
Should I repair or replace a 9-year-old Samsung refrigerator with a sealed system leak?
At 9 years old with a sealed system breach, replacement almost always makes more sense than repair. The sealed system work costs $750 to $900, and a comparable new Samsung side-by-side starts around that same price point. If the unit were 5 years old or under warranty, the repair math changes. But on a 9-year-old unit with no remaining manufacturer coverage, buying new gives you a fresh warranty and modern efficiency.
Can a Samsung refrigerator with a refrigerant leak be recharged without fixing the leak first?
No. Recharging a Samsung sealed system without repairing the breach first is a waste of refrigerant and money. R-134a is a regulated substance under EPA Section 608, and simply topping off a leaking system is not a legal or lasting repair. The refrigerant will escape again within days or weeks. The leak source must be located, brazed shut, and pressure tested before any refrigerant is added to the system.
Repair Summary
- Brand
- Samsung
- Model
- RS25J500DSR
- Repair Type
- Sealed System Leak Diagnosis
- Refrigerant
- R-134a
- Root Cause
- Complete R-134a refrigerant loss from aluminum evaporator leak
- Parts Replaced
- ✓No parts replaced. Repair was not authorized by customer after diagnostic findings and cost estimate were reviewed.
- Location
- Katy, TX 77449
- Status
- ✓ Completed
