Samsung RF29B8200QL: Sealed System Failure Diagnosed in Katy, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Freezer compartment completely stopped cooling despite being less than three years old
- •Fresh food section maintaining temperature while freezer produced no cold air
- •No ice production and frozen food thawing progressively over 24 to 48 hours
- •No error codes displayed on the control panel pointing to a specific component failure
🔍 Diagnosis

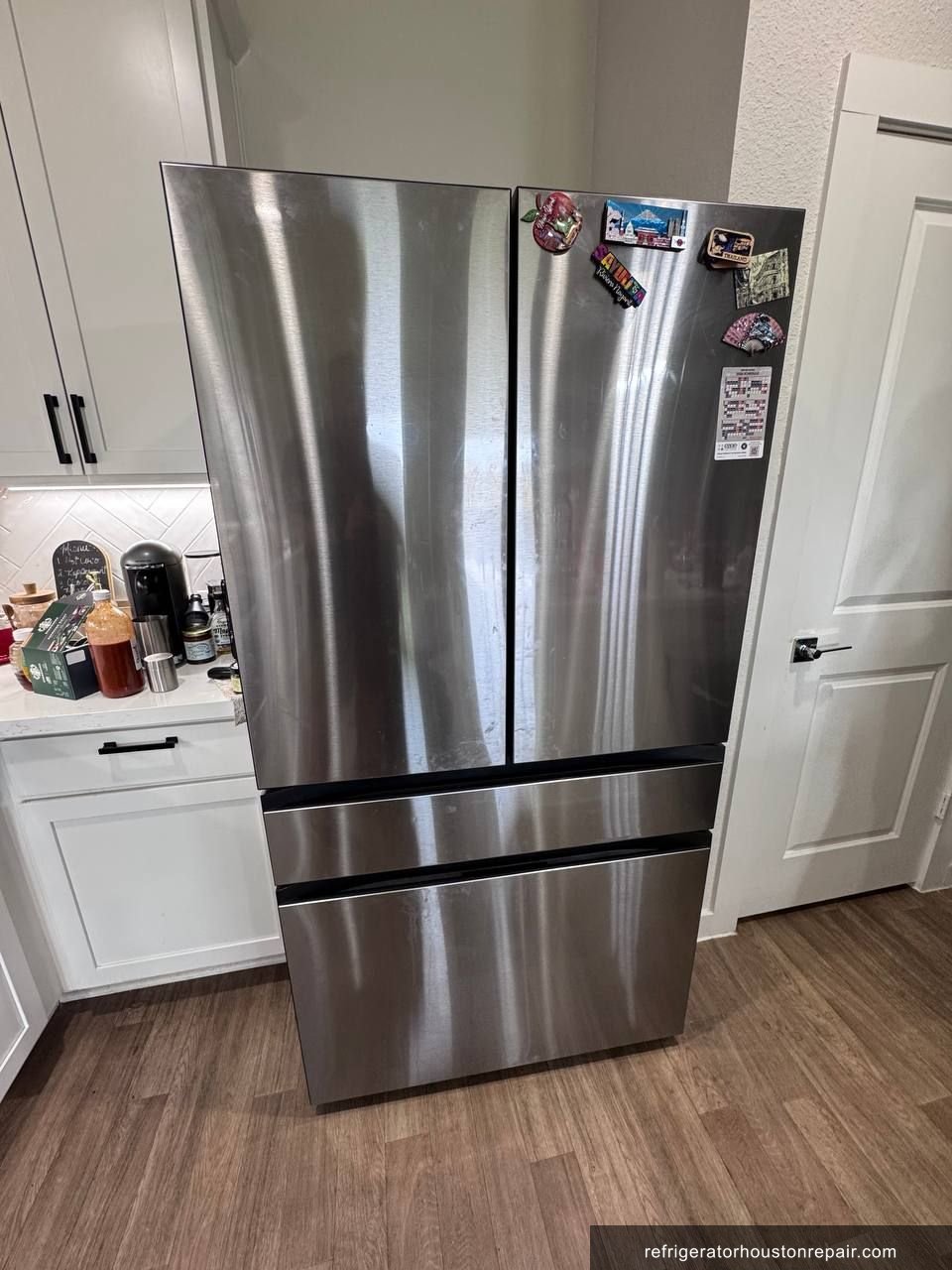

When I arrived at the customer's home in Katy, the Samsung RF29B8200QL was less than three years old. The freezer section was reading ambient room temperature, around 72°F, while the fresh food compartment was still holding near 38°F. That temperature split told me immediately the sealed system was the likely suspect rather than a control board or sensor issue. I ran a full component check to rule out everything else first. The evaporator fan motor was spinning at correct RPM and moving air through the freezer cavity. The condenser fan was operating normally. I put my clamp meter on the compressor start circuit and confirmed it was drawing current within spec, meaning the compressor was running. With all three of those components confirmed functional, the refrigeration cycle itself was the problem. On an R-600a system like this one, that points directly to a refrigerant leak or internal sealed system failure. At that point, I had a clear choice: pierce the sealed system to diagnose and repair, or advise the customer on his warranty coverage. Samsung provides a five-year warranty specifically on the sealed system and its components for this refrigerator line. That warranty is voided the moment a third-party technician opens the sealed system. I pulled up the warranty terms in the owner's manual and walked the customer through exactly what it covers and what he would lose by letting me proceed.
🔧 The Repair
- ✓Step 1: Confirmed customer complaint on arrival. Measured freezer temperature at 71°F and fresh food compartment at 38°F using a calibrated digital thermometer.
- ✓Step 2: Visually inspected the condenser coils and evaporator access panel for ice blockage or physical damage. No frost accumulation was present in the freezer cavity, which reinforced the sealed system failure theory.
- ✓Step 3: Tested the evaporator fan motor on the RF29B8200QL by manually initiating diagnostic mode through the control panel button sequence. Fan confirmed running at normal speed.
- ✓Step 4: Tested the condenser fan motor at the base of the unit. Fan spinning freely, no bearing noise, no obstruction.
- ✓Step 5: Used a clamp meter to verify compressor amperage draw. Compressor pulling current within the rated range on the label, confirming it was attempting to run.
- ✓Step 6: Assessed all evidence together. Compressor running, both fans operational, no refrigerant circulation reaching the evaporator. Conclusion: sealed system failure involving the R-600a refrigerant circuit.

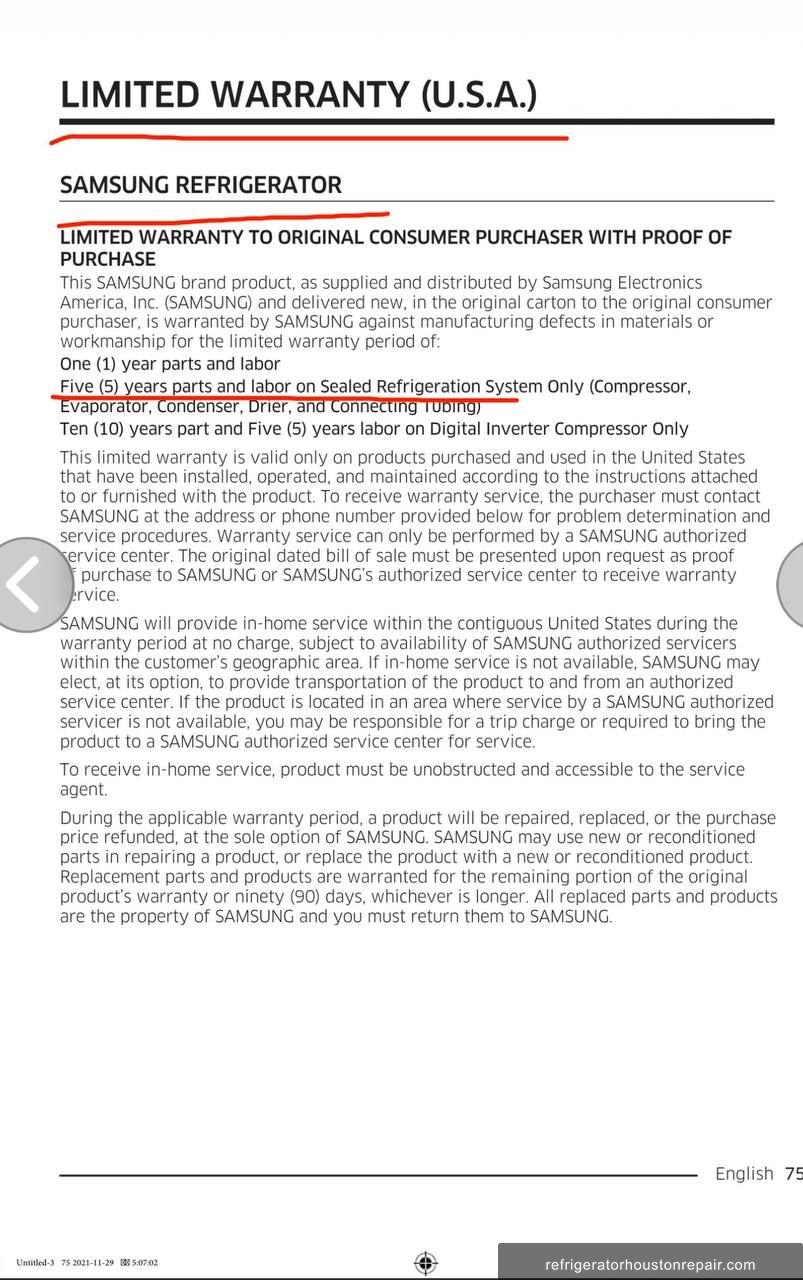

- ✓Step 7: Pulled out the RF29B8200QL owner's manual and located the Samsung warranty section. Showed the customer the five-year sealed system warranty clause in writing and explained that opening the sealed system would immediately void that coverage.
- ✓Step 8: Documented findings for the customer and advised him to contact Samsung directly to initiate a warranty claim for sealed system service. No sealed system was pierced. Unit left as-is to preserve full warranty protection.
✓ Result
The diagnostic visit gave this Katy homeowner exactly what he needed: a clear answer and a clear path forward. I confirmed all external components were working, identified the sealed system as the failure point, and showed him in writing that Samsung covers this repair at no cost under the five-year warranty. He submitted a warranty claim that same day. Catching this before anyone opened the sealed system saved him from a costly mistake that would have put the repair bill entirely on him.
💡 Technician Notes
Samsung's five-year sealed system warranty on models like the RF29B8200QL is one of the strongest coverage terms in the residential refrigerator market. A lot of customers do not know it exists, and some technicians skip over it because warranty work does not pay the same as out-of-pocket repairs. Know your rights as an owner. The early warning sign specific to sealed system failure on these French door Samsung models is a warm freezer with a functioning fresh food section. That split happens because the evaporator is in the freezer cavity. If the refrigerant charge drops or the circuit fails, the freezer loses cooling first while the fresh food section coasts on residual thermal mass. Do not run the unit for more than 24 hours with a known sealed system failure. Extended compressor operation with no refrigerant load causes overheating and permanent compressor damage, which is not covered under the same warranty terms. Call for a diagnostic before that window closes.
Frequently Asked Questions
Samsung RF29B8200QL freezer not cooling but fridge is fine — what is wrong?
On the RF29B8200QL, the evaporator coil sits inside the freezer compartment. When the sealed system fails or loses its R-600a refrigerant charge, the freezer goes warm first while the fresh food side holds temperature temporarily. If the evaporator fan and compressor are both running, the sealed system is the most likely cause and Samsung covers it under a five-year warranty.
How much does it cost to repair a Samsung sealed system failure in Katy TX?
If the refrigerator is within Samsung's five-year sealed system warranty, the repair costs you nothing through an authorized service provider. Outside that window, a sealed system repair on an R-600a unit like the RF29B8200QL typically runs between 400 and 700 dollars depending on whether the compressor needs replacement. Always check warranty status before authorizing any sealed system work.
What happens if I ignore a Samsung freezer that stopped cooling?
Running a Samsung RF29B8200QL with a sealed system failure for more than 24 to 48 hours risks permanent compressor damage. The compressor is designed to run under refrigerant load. Without it, the motor overheats. A compressor failure on top of a sealed system leak turns a warranty-covered repair into a much larger out-of-pocket expense or a full replacement.
My Samsung fridge is only two years old and the freezer stopped working — should I repair or replace it?
At under three years old, replacing the RF29B8200QL makes no sense. Samsung's sealed system warranty runs five years from the purchase date, which means the repair should cost you nothing if you go through the correct warranty channel. Always verify your purchase date and register the appliance on Samsung's website before scheduling any service.
Can a third-party technician repair the sealed system on my Samsung RF29B8200QL and keep the warranty valid?
No. Once any technician pierces the sealed system on a Samsung refrigerator, the factory warranty on that system is void. Samsung's warranty terms specifically require sealed system repairs to be performed by an authorized Samsung service provider during the coverage period. A diagnostic visit from an independent technician is fine, but stop there and go through Samsung if the sealed system is still under warranty.
Repair Summary
- Brand
- Samsung
- Model
- RF29B8200QL
- Repair Type
- Sealed System Diagnostic / Warranty Referral
- Refrigerant
- R-600a
- Root Cause
- Sealed system refrigerant circuit failure within active Samsung warranty
- Parts Replaced
- ✓No parts replaced. Sealed system left intact to preserve Samsung five-year warranty coverage on the RF29B8200QL.
- Location
- Katy, TX 77493
- Status
- ✓ Completed
