Samsung RF28N9780SG Compressor Failure Due to Refrigerant Leak
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Refrigerator and freezer completely stopped cooling
- •Compressor attempts to start but shuts off repeatedly
- •Inverter board flashing 4 LED blinks — indicates mechanically locked compressor
- •No temperature drop in either the freezer or fresh food compartments
🔍 Diagnosis
Upon arrival at the Fulshear, TX 77441 residence, the technician began a systematic inspection of the Samsung RF28N9780SG French door refrigerator. The customer reported the unit had stopped cooling entirely. The technician first inspected both the freezer and fresh food compartments using an electronic refrigerant leak detector. The detector produced a strong positive reading inside the freezer section, clearly identifying an active R-134a leak originating at the freezer evaporator coil — most likely due to a crack or corrosion in the evaporator tubing, a known failure point on this model. The technician then removed the electronics bay protective cover and observed the inverter board's diagnostic LED flashing exactly 4 times in a repeating pattern. Per Samsung's inverter board fault codes, 4 blinks indicate a mechanically locked compressor. Additionally, intermittent compressor start attempts were audible, further confirming the compressor was seizing and unable to complete a start cycle. The technician reconstructed the failure chain: the original sealed system breach caused a gradual loss of the 195 g R-134a charge. As refrigerant levels declined over time, the compressor lost adequate suction-side pressure for proper cooling and lubrication. Operating under these stressed conditions eventually caused the compressor's internal mechanical components to seize. Per best practices taught at a Samsung-certified training seminar — specifically the principle that a Samsung TAB (Total Absorption Brazed) sealed system should only be serviced as a complete assembly — the technician did not pierce or open the sealed system on-site. Recommended repair scope includes evaporator replacement, compressor replacement, and likely inverter board replacement.
🔧 The Repair
- ✓Perform a thorough visual and electronic leak detection sweep of both the freezer and fresh food compartments using a calibrated electronic refrigerant leak detector to confirm and localize the R-134a leak source.
- ✓Remove the freezer interior panels and evaporator cover to expose the freezer evaporator coil assembly for direct inspection and access.
- ✓Confirm leak location on the evaporator coil — identify cracked, corroded, or pinholes in the R-134a tubing; document findings with photos for warranty claim purposes.

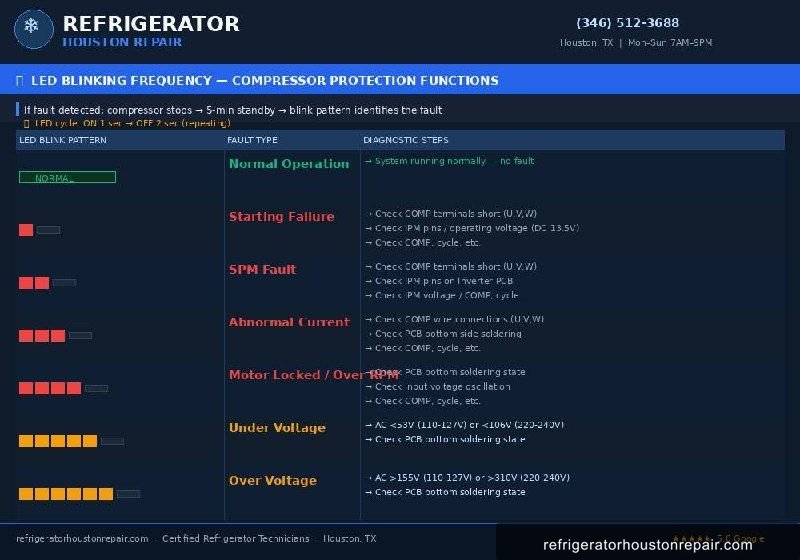

- ✓Remove the electronics bay protective cover and record the inverter board LED fault code (4 blinks = mechanically locked compressor) using the Samsung diagnostic protocol.
- ✓Attempt a manual compressor start test to confirm mechanical lock condition and rule out electrical start components as the sole cause.
- ✓Order OEM replacement parts: Samsung RF28N9780SG compatible freezer evaporator assembly, linear/inverter compressor rated for R-134a at 195 g charge, and replacement inverter board if diagnostics confirm board damage.
- ✓Recover any remaining refrigerant from the sealed system using an EPA-certified recovery machine before opening the system — even with a near-empty charge, proper recovery is required by law.
- ✓Replace the failed freezer evaporator coil, brazing all joints per Samsung TAB sealed system specifications to maintain system integrity.
- ✓Replace the mechanically seized compressor with an OEM-spec unit; braze all refrigerant line connections and perform a nitrogen pressure test at 150–200 PSI to verify leak-free joints.
- ✓Pull a deep vacuum on the sealed system using a two-stage vacuum pump; hold vacuum below 500 microns for a minimum of 30 minutes to confirm system integrity before charging.

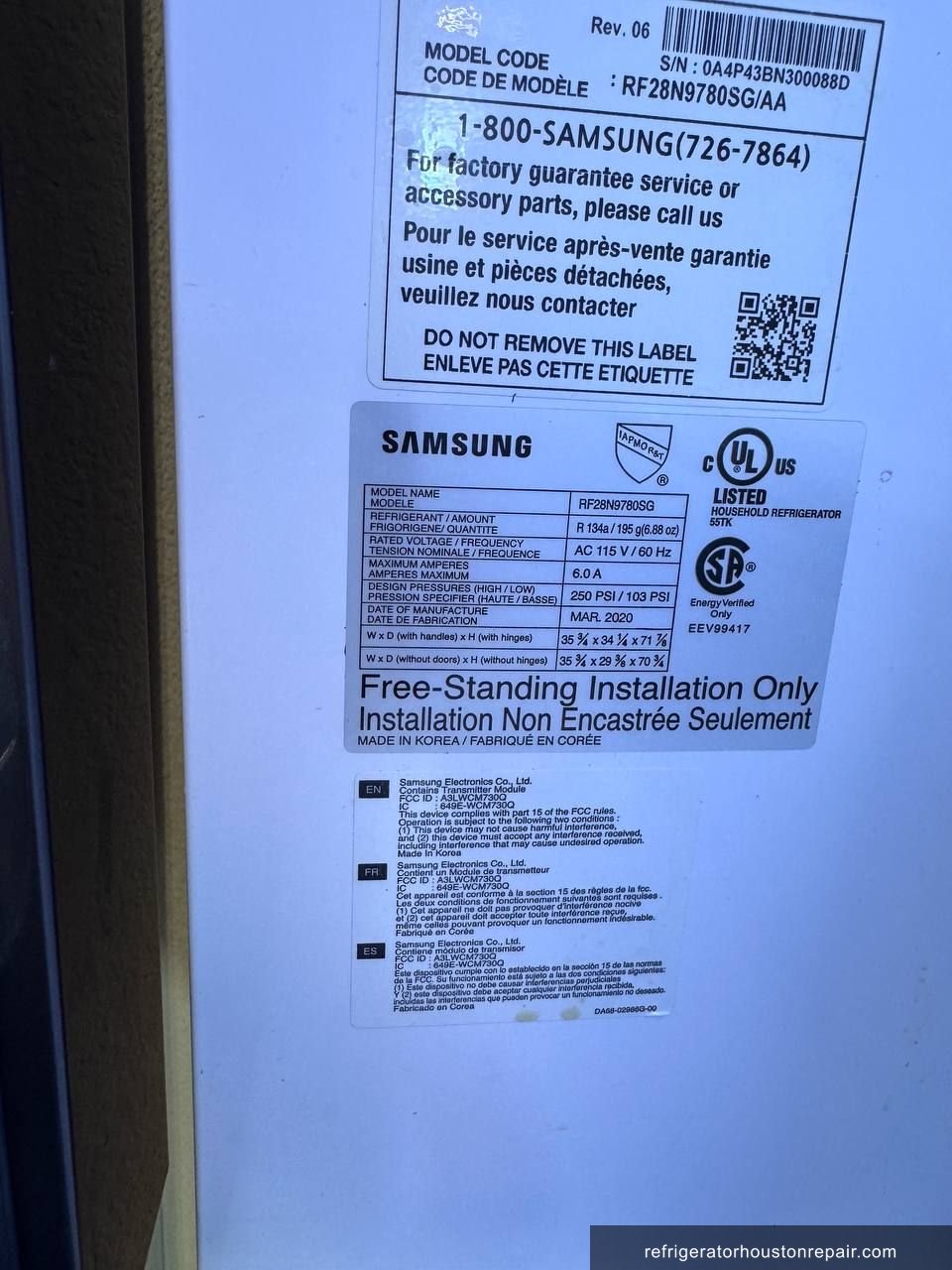

- ✓Recharge the sealed system with exactly 195 g of R-134a refrigerant per the confirmed appliance label specification, using calibrated manifold gauges.
- ✓Replace the inverter board if fault codes persist after compressor replacement; reconnect all wiring harnesses and restore the electronics bay cover.
- ✓Power on the refrigerator and monitor startup sequence — confirm no LED fault codes, verify compressor runs continuously, and check that both compartments reach target operating temperatures (0°F freezer / 37°F fresh food) within 4–6 hours.
✓ Result
In this particular case, the customer chose not to proceed with the estimated $1,200–$1,400 repair and instead decided to contact Samsung directly to pursue a warranty claim, as Samsung offers a 10-year limited warranty on the compressor for qualifying models including the RF28N9780SG. The technician advised the customer on how to document the failure, provided a written diagnostic report including the leak detection findings and inverter board fault code, and recommended the customer request Samsung's authorized service network to assess the warranty claim before committing to out-of-pocket repair costs.
💡 Technician Notes
Samsung French door refrigerators — particularly the RF28N9780SG and similar 4-door flex models — are known to develop R-134a refrigerant leaks at the freezer evaporator coil, often after 4–8 years of service. This failure is insidious because the unit may continue operating at reduced capacity for months before completely losing cooling, during which time the compressor is under severe stress. Homeowners should watch for early warning signs: unusual warmth in the freezer, longer-than-normal compressor run times, or ice buildup in unexpected locations. If your Samsung refrigerator's inverter board is flashing 4 LED blinks, do not ignore it — this fault code directly indicates a locked compressor. Most importantly, Samsung's 10-year compressor warranty may cover this repair. Always check your warranty status before authorizing costly sealed system repairs. Avoid opening the sealed system unless you are Samsung-certified, as the TAB system requires specialized brazing procedures.
Frequently Asked Questions
What does 4 blinks on a Samsung RF28N9780SG inverter board mean?
Four LED blinks on the Samsung RF28N9780SG inverter board indicate a mechanically locked compressor. This fault code means the compressor is seized and cannot complete its start cycle. It often results from prolonged operation with low refrigerant caused by a sealed system leak. Samsung-certified technicians use this code as a key diagnostic step before recommending compressor replacement.
How much does it cost to repair a Samsung RF28N9780SG with a refrigerant leak and failed compressor?
A full sealed system repair on the Samsung RF28N9780SG — including evaporator replacement, compressor replacement, and possible inverter board replacement — typically ranges from $1,200 to $1,400 in the Fulshear, TX area. However, Samsung offers a 10-year limited warranty on compressors for qualifying models, which may significantly reduce or eliminate out-of-pocket costs if the unit is still within warranty.
What are early warning signs of a refrigerant leak in a Samsung French door refrigerator?
Early signs of an R-134a refrigerant leak in a Samsung French door refrigerator include the freezer gradually becoming less cold, unusual ice buildup on the back freezer wall, the compressor running almost continuously, and food spoiling faster than normal. If you notice these symptoms on your Samsung RF28N9780SG, schedule a diagnostic immediately — catching a refrigerant leak early can prevent compressor damage and save hundreds in repair costs.
Should I repair or replace my Samsung RF28N9780SG if the compressor has failed?
Before deciding, check whether your Samsung RF28N9780SG is covered under Samsung's 10-year compressor warranty. If it qualifies, repair costs may be fully or partially covered. If out of warranty, a $1,200–$1,400 sealed system repair on a high-end model like this — originally retailing around $3,500–$4,000 — may still be worth it. A certified technician can provide a detailed estimate to help you make an informed decision.
Can a Samsung TAB sealed system be repaired by any appliance technician?
Samsung's TAB (Total Absorption Brazed) sealed system requires specialized training and equipment to service correctly. Samsung advises that this system should only be repaired by Samsung-certified technicians following OEM brazing and recharging procedures. Improper repairs can void any remaining warranty and compromise the system's long-term reliability. Always verify your technician's Samsung certification before authorizing sealed system work on the RF28N9780SG.
Repair Summary
- Brand
- Samsung
- Model
- RF28N9780SG
- Repair Type
- Sealed System Repair / Compressor Replacement
- Refrigerant
- R-134a
- Root Cause
- R-134a refrigerant leak in freezer evaporator caused compressor failure
- Parts Replaced
- ✓Freezer evaporator coil assembly — OEM Samsung RF28N9780SG compatible (R-134a rated)
- ✓Inverter linear compressor — OEM Samsung replacement, R-134a compatible, matched to 195 g system charge
- ✓Inverter control board — Samsung DA92 series compatible (pending diagnostic confirmation)
- ✓R-134a refrigerant — 195 g per confirmed appliance label specification
- Location
- Fulshear, TX 77441
- Status
- ✓ Completed
