Samsung RF23M8570SG/AA: Fresh Food Section at 56°F Due to Failed Evaporator Fan in Richmond, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment holding 56°F while thermostat was set to 34°F
- •Food spoiling faster than normal despite no visible ice buildup or error codes
- •No audible fan noise coming from the fresh food section during normal operation
- •Freezer section appeared unaffected while fresh food temps climbed well above safe range
🔍 Diagnosis

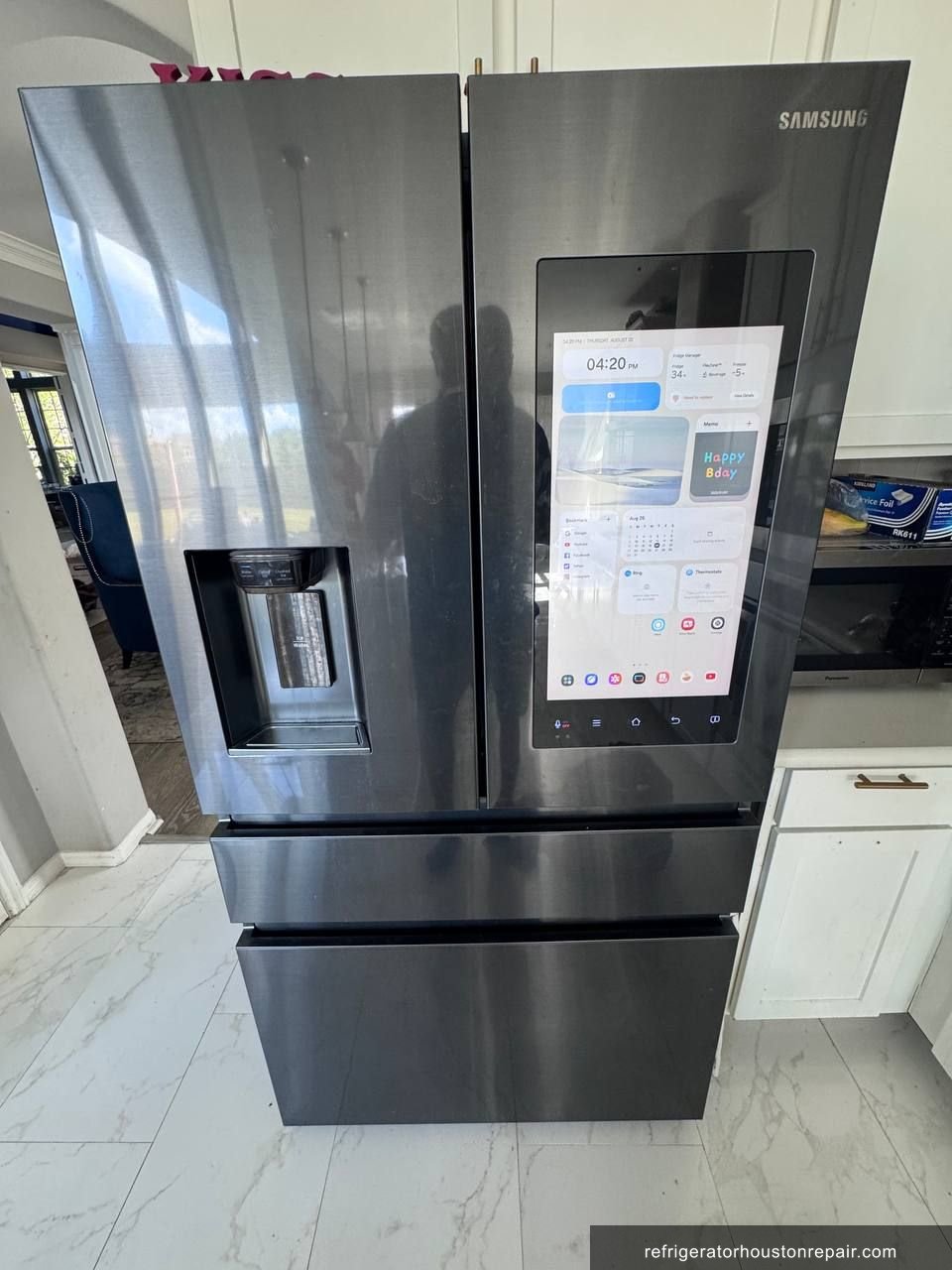

When I arrived at the Richmond address in ZIP 77406, the customer showed me the Samsung RF23M8570SG/AA, a French door refrigerator built in September 2018. She told me her groceries were spoiling and she had no idea why. I pulled out my thermometer and measured the fresh food compartment: 56°F. The thermostat was set to 34°F. That 22-degree gap told me airflow was the problem, not refrigerant. I listened for the evaporator fan in the fresh food section and heard nothing. The freezer fan was running normally, which ruled out a compressor or sealed system issue. This model uses R-600a refrigerant, a flammable isobutane-based refrigerant that requires careful handling, but the pressures were not the concern here. I removed the evaporator cover panel in the fresh food section and confirmed the fan motor was completely seized. No rotation, no response. The DA31-00334D fan motor on this Samsung model is a known weak point in units from the 2017 to 2019 production window. The motor windings fail prematurely, especially in Houston's heat and humidity. Without that fan pushing cold air through the fresh food cavity, warm air stagnates and temperatures spike even when the evaporator coil itself is functioning correctly.
🔧 The Repair
- ✓Step 1: Confirmed fresh food compartment temperature at 56°F with a calibrated digital thermometer. Thermostat setting was 34°F. Noted no fan noise from the fresh food evaporator section.
- ✓Step 2: Unplugged the Samsung RF23M8570SG/AA from the wall outlet to eliminate any electrical hazard. This model uses R-600a, a flammable refrigerant, so I ensured no open flames or sparks near the unit during the entire service call.
- ✓Step 3: Removed all shelves and drawer assemblies from the fresh food compartment to gain clear access to the rear evaporator cover panel.
- ✓Step 4: Removed the evaporator cover panel in the fresh food section by releasing the plastic clips and screws along the perimeter. Set the panel aside without cracking the brittle plastic.
- ✓Step 5: Disconnected the wiring harness connector from the failed evaporator fan motor DA31-00334D. Inspected the harness for corrosion or heat damage. Harness was clean.
- ✓Step 6: Unbolted the seized fan motor from its mounting bracket and pulled it free. The motor would not spin by hand, confirming a fully locked rotor.
- ✓Step 7: Installed the new OEM Samsung evaporator fan motor DA31-00334D onto the existing bracket. Connected the wiring harness and confirmed a secure fit before replacing the evaporator cover panel.
- ✓Step 8: Reassembled all shelves and drawers. Plugged the unit back in and confirmed the new fan motor spun up immediately. Fresh food temperature began dropping within minutes. Advised the customer to allow 24 hours for the compartment to fully stabilize at 34°F.
✓ Result
Within minutes of installing the new DA31-00334D fan motor, I could feel cool air moving through the fresh food section again. The temperature had already dropped to 48°F before I finished packing my tools. I told the customer in Richmond to expect full stabilization at 34°F within 24 hours. She was relieved because she had a full load of groceries she was worried about losing. The repair was completed in a single visit with a stocked OEM part, and the unit, manufactured in September 2018, was brought back to full working condition without any sealed system work.
💡 Technician Notes
Samsung French door refrigerators from the 2017 to 2020 period, especially models in the RF23 and RF28 families, have a recurring pattern of fresh food evaporator fan failure. The early warning sign is subtle: your fresh food section feels slightly warmer than usual but your freezer seems fine. Most owners blame the door seal or thermostat first. Do not wait. If your Samsung reads more than 5 degrees above the set point and the freezer is normal, suspect the fresh food fan immediately. One maintenance step that helps: keep the evaporator cover panel area free of ice by running a manual defrost cycle once a year using the button combination in the diagnostic menu. If your fresh food temps climb above 45°F, call for service the same day. Food safety is the line. Do not wait to see if it fixes itself, because a seized motor will not recover on its own.
Frequently Asked Questions
Why is my Samsung RF23M8570SG fresh food section warm but freezer is fine?
When the freezer works but the fresh food section is warm, the most common cause on the Samsung RF23M8570SG/AA is a failed evaporator fan motor in the fresh food compartment. This fan circulates cold air through that section independently. Without it, temperatures climb fast even though the compressor and freezer are fully functional.
How much does it cost to replace the evaporator fan motor on a Samsung French door refrigerator in Richmond TX?
For a Samsung RF23M8570SG/AA fan motor replacement in the Richmond, TX area, expect to pay for the OEM part DA31-00334D plus labor. The repair is typically completed in one visit. It is a straightforward fix compared to sealed system work, and it is almost always worth repairing on a unit that is 6 to 7 years old and otherwise in good condition.
What happens if I ignore a warm fresh food section on my Samsung refrigerator?
If the fresh food evaporator fan has failed and you leave the Samsung running without repair, temperatures in that compartment will stay well above 40°F. Food will spoil within hours. Dairy, meat, and leftovers become unsafe quickly. The freezer section will continue working, which masks the severity of the problem. Call for service the same day temps climb above 45°F.
Is it worth repairing a Samsung RF23M8570SG/AA built in 2018 or should I replace it?
A 2018 Samsung RF23M8570SG/AA with a failed evaporator fan motor is absolutely worth repairing. The sealed system, compressor, and control board are intact. An evaporator fan replacement is one of the least expensive repairs on this model. Replacing the refrigerator would cost ten times more. Unless the compressor or sealed system has failed, repair is the right call on a unit this age.
Does the Samsung RF23M8570SG use R-134a or a different refrigerant and does it affect repairs?
The Samsung RF23M8570SG/AA uses R-600a, which is isobutane, a flammable refrigerant. It is not R-134a. For an evaporator fan replacement, the sealed system is not opened, so refrigerant handling is not required. R-600a does require a technician to avoid ignition sources and follow specific safety protocols during any work near the unit, even non-sealed-system repairs.
Repair Summary
- Brand
- Samsung
- Model
- RF23M8570SG/AA
- Repair Type
- Evaporator Fan Motor Replacement
- Refrigerant
- R-600a
- Root Cause
- Failed evaporator fan motor stopped air circulation in fresh food section
- Parts Replaced
- ✓Samsung OEM evaporator fan motor, part number DA31-00334D, fresh food section
- Location
- Richmond, TX 77406
- Status
- ✓ Completed
