Samsung RF23J9011SR: Locked Compressor Error Code 84C in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Error code 84C displayed continuously on the control panel
- •Compressor attempting to start every few minutes then shutting off within seconds
- •Refrigerator and freezer compartments completely warm — no cooling at all
- •Inverter board LED flashing 4 times in a loop, indicating compressor motor lock signal
- •Audible clicking or brief hum from the compressor bay followed by immediate shutdown
🔍 Diagnosis

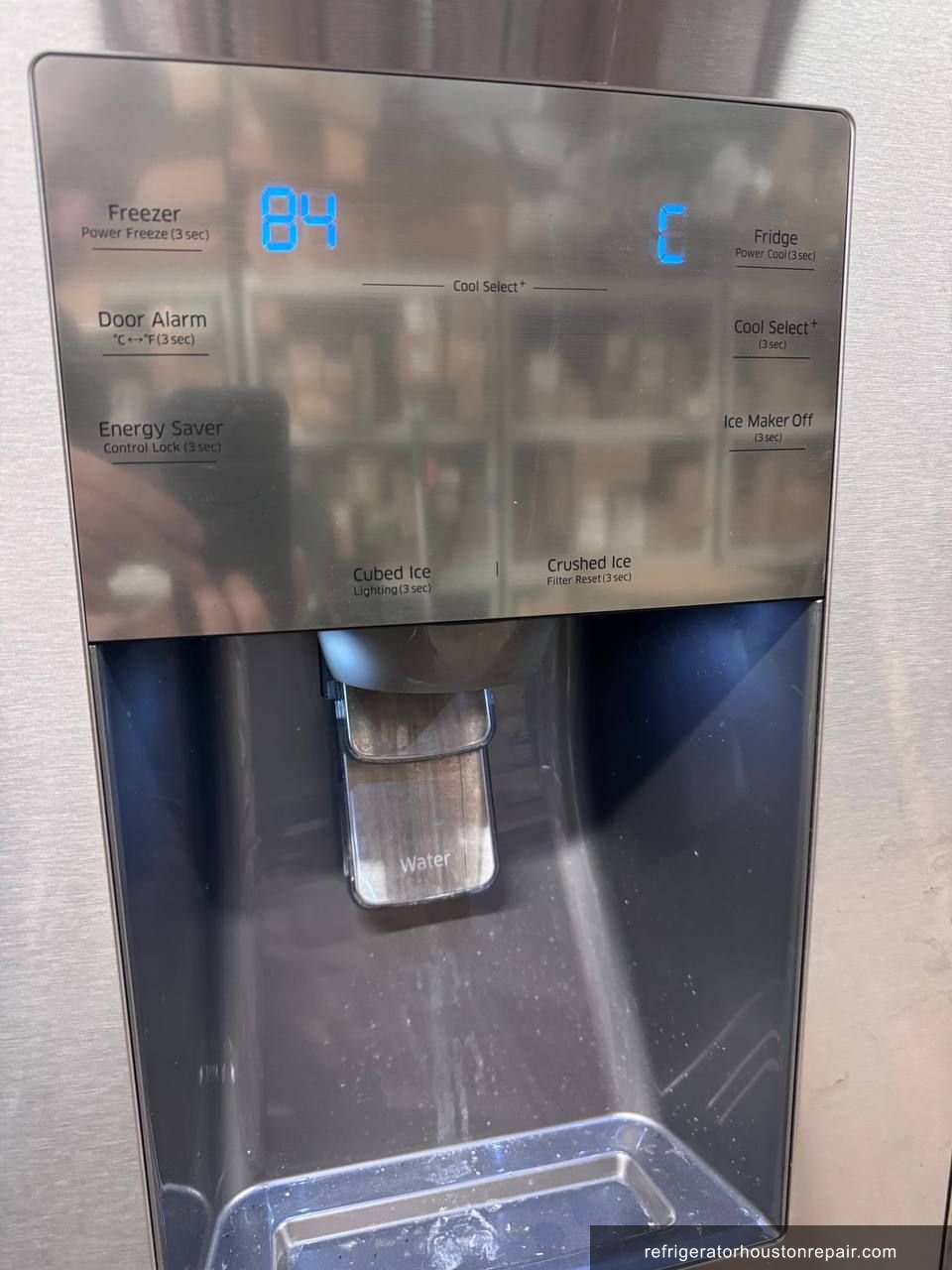

On arrival at the 77095 property, the Samsung RF23J9011SR displayed a solid error code 84C on the external display panel. This code is Samsung-specific and triggers when the inverter control board detects that the compressor motor is mechanically constrained — meaning the motor windings are energizing but the crankshaft or piston is unable to rotate. The inverter board mounted on the rear base panel was observed flashing its diagnostic LED exactly 4 times in a repeating cycle, which cross-references to a compressor lock fault in Samsung's service documentation for this French door series. A clamp meter placed on the compressor start lead showed a brief current spike of approximately 8–9 amps at startup — far exceeding the normal 1.5–2.2A running current for this R-134a linear inverter compressor — followed by an immediate cutout. Manifold gauges connected to the low and high side service ports showed near-equalized pressure at approximately 60 psi on both sides after the system had been off for over an hour, with zero pressure differential — consistent with a sealed system that is no longer circulating refrigerant. The root cause: a slow refrigerant leak — common in the RF23J9011SR line due to stress fractures in the evaporator tubing or flare joint corrosion — allowed R-134a charge to drop well below the rated 195 g. Operating undercharged, the compressor ran hot for an extended period, leading to lubrication breakdown inside the cylinder assembly and eventual mechanical seizure. This is a known failure pattern across Samsung's RF23 series French door units.
🔧 The Repair
- ✓Step 1: Connected digital manifold gauges to both low-side and high-side service ports on the RF23J9011SR to confirm equalized static pressure at ~60 psi — verifying zero refrigerant circulation and near-complete R-134a loss.
- ✓Step 2: Performed electronic leak detection sweep across the evaporator coil access area (behind fresh food rear panel) and along the condenser loop at the base — confirmed trace refrigerant presence indicating the origin of the long-term leak.
- ✓Step 3: Confirmed compressor motor lock via clamp meter current draw test — startup spike of 8.8A with immediate inverter cutout, consistent with a mechanically seized DA97-series linear inverter compressor. Compressor physically could not be freed.
- ✓Step 4: Pulled full fault code history from the Samsung diagnostic mode (hold Energy Saver + Fridge buttons for 8 seconds) — log confirmed repeated 84C events over several weeks, indicating gradual compressor degradation rather than sudden failure.

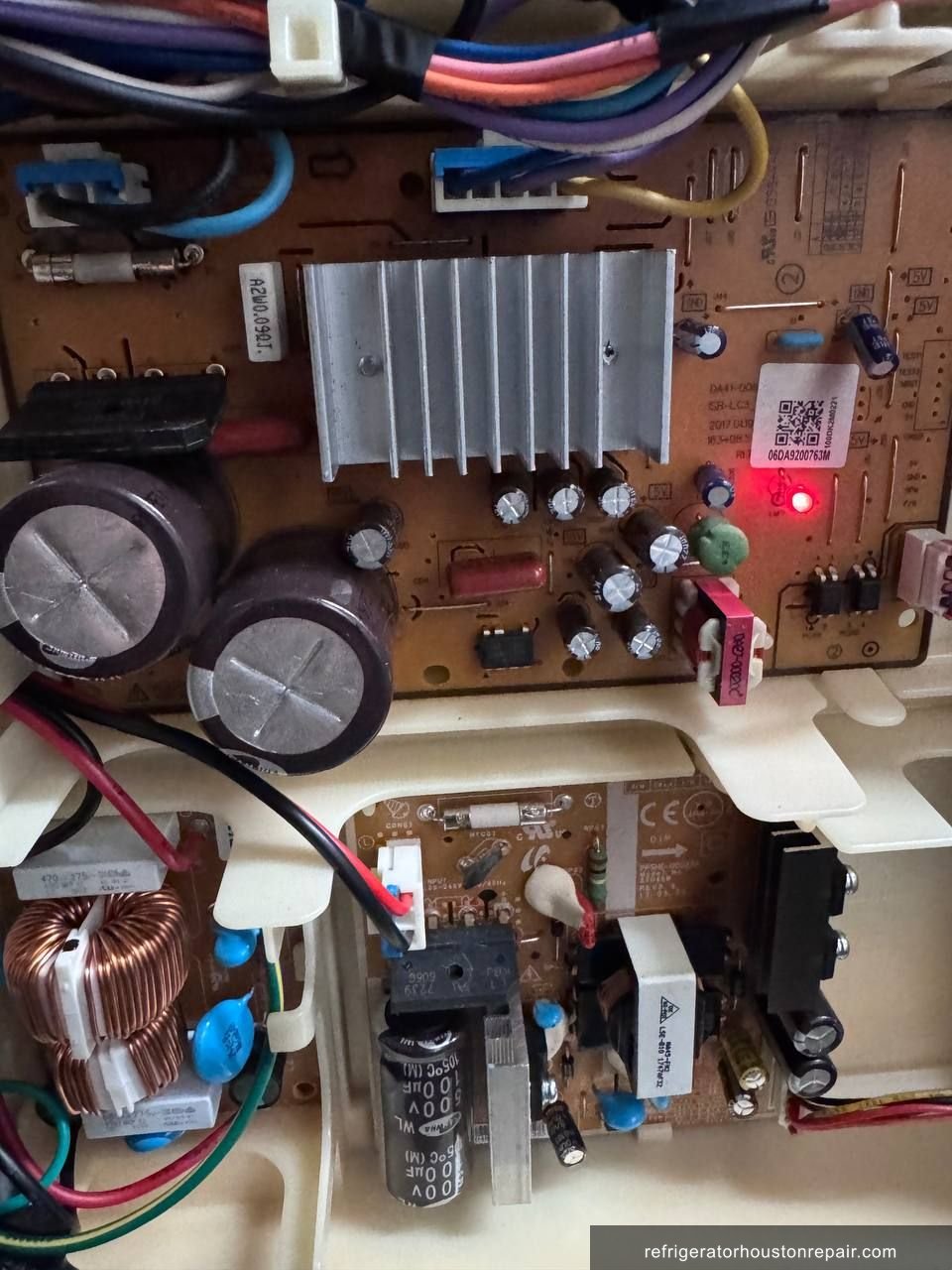

- ✓Step 5: Verified inverter control board (part reference DA92-00215A family) output signals were within normal voltage range — ruling out board failure as the primary cause. The board was responding correctly to a genuine mechanical lock condition.
- ✓Step 6: Presented findings to the customer — repair would require recovering remaining refrigerant per EPA 608 protocol, replacing the seized compressor, locating and repairing the leak point, pressure-testing the sealed system, pulling vacuum to 500 microns, and recharging with exactly 195 g of R-134a per label spec. Estimated repair cost exceeded 60–70% of the unit's current market value.
- ✓Step 7: Customer declined repair after reviewing cost-versus-value breakdown. Documented all findings, confirmed no refrigerant was vented to atmosphere, and advised on safe unit disconnection.
- ✓Step 8: Final documentation — unit confirmed non-operational, error 84C active, inverter LED flashing 4x. Customer advised to pursue replacement and provided guidance on what specifications to match in a new unit.
✓ Result
The RF23J9011SR was fully diagnosed and the root cause — a mechanically seized compressor resulting from long-term refrigerant loss — was confirmed with manifold gauge readings, clamp meter current testing, and inverter board fault code history. The customer in the 77095 area received a complete technical explanation of the failure. After reviewing the repair cost against the unit's age and value, the customer made an informed decision to replace the refrigerator rather than proceed with the sealed system overhaul. No refrigerant was released improperly. The customer appreciated having a clear answer rather than an unclear estimate.
💡 Technician Notes
The RF23J9011SR and the broader RF23 French door family have a documented vulnerability to slow refrigerant leaks originating at the evaporator tubing — specifically at the aluminum-to-copper transition joints inside the fresh food compartment. The leak is often invisible for months, but the compressor quietly degrades the entire time it runs undercharged. The earliest warning sign unique to this failure is subtle: food in the fresh food section spoils 20–30% faster than normal, while the display still shows a correct-looking temperature. The thermostat sensors read air temperature — not actual refrigeration capacity — so the display can appear normal while the system is already struggling. One maintenance action that matters: if your Samsung French door unit starts cycling its compressor more frequently than usual — short runs of 5–8 minutes with brief pauses — call for a refrigerant pressure check immediately. Do not wait for an error code. By the time 84C appears, the compressor has usually already sustained internal damage. If you hear a brief hum and click from the rear bottom of the unit more than twice in 30 minutes, that is not normal defrost behavior — that is a compressor attempting and failing to start.
Frequently Asked Questions
What does error code 84C mean on a Samsung RF23J9011SR refrigerator?
Error code 84C on the Samsung RF23J9011SR means the inverter control board has detected that the compressor motor is locked — it's receiving power but the mechanical assembly won't rotate. You'll also typically see the inverter board LED on the back of the unit flashing 4 times repeatedly. This is a serious fault, not a soft reset issue.
How much does it cost to repair a locked compressor on a Samsung French door refrigerator in Houston?
A full locked compressor repair on a Samsung RF23J9011SR in the Houston area — including compressor replacement, leak repair, system evacuation, and refrigerant recharge — typically runs between $600 and $950 depending on parts availability and leak location. If the unit is over 7 years old, that cost often approaches or exceeds the refrigerator's current replacement value, which is why many customers opt to replace.
What happens if I ignore the 84C error code on my Samsung refrigerator and keep resetting it?
Resetting error 84C on a Samsung RF23J9011SR buys minutes, not time. Each restart attempt forces the seized compressor to draw a high-current spike that can damage the inverter board — turning a compressor-only problem into a compressor-plus-board problem. Meanwhile, nothing is being cooled. Food spoilage begins within 4 hours of the compressor failing to run, and in Houston's heat, that window is shorter.
Is it worth repairing a Samsung RF23J9011SR with a seized compressor, or should I just replace it?
If the RF23J9011SR is under 5 years old and still under Samsung's sealed system warranty (which covers the compressor for 5 years from purchase), repair is absolutely worth pursuing — Samsung may cover the compressor cost. If it's out of warranty and over 7 years old, replacement usually makes more financial sense. The sealed system repair on this model is labor-intensive and requires precise R-134a recharging to exactly 195 g.
Why do Samsung RF23 series refrigerators lose refrigerant and seize their compressors?
The RF23 series uses a linear inverter compressor with R-134a charged to exactly 195 g. The most common leak point is the evaporator coil assembly inside the fresh food compartment, where aluminum tubing is joined to copper lines — a junction prone to micro-fractures over time. As charge drops, the compressor runs hotter than designed, oil viscosity breaks down inside the cylinder, and mechanical friction eventually locks the piston. It's a slow failure that accelerates once refrigerant loss crosses a threshold.
Repair Summary
- Brand
- Samsung
- Model
- RF23J9011SR
- Repair Type
- Compressor Failure Diagnosis / Locked Compressor Assessment
- Refrigerant
- R-134a
- Root Cause
- Refrigerant leak caused compressor seizure from thermal overload
- Parts Replaced
- ✓No parts replaced — customer declined repair after full diagnostic assessment
- ✓Compressor (required, not installed): Samsung linear inverter compressor compatible with RF23J9011SR sealed system

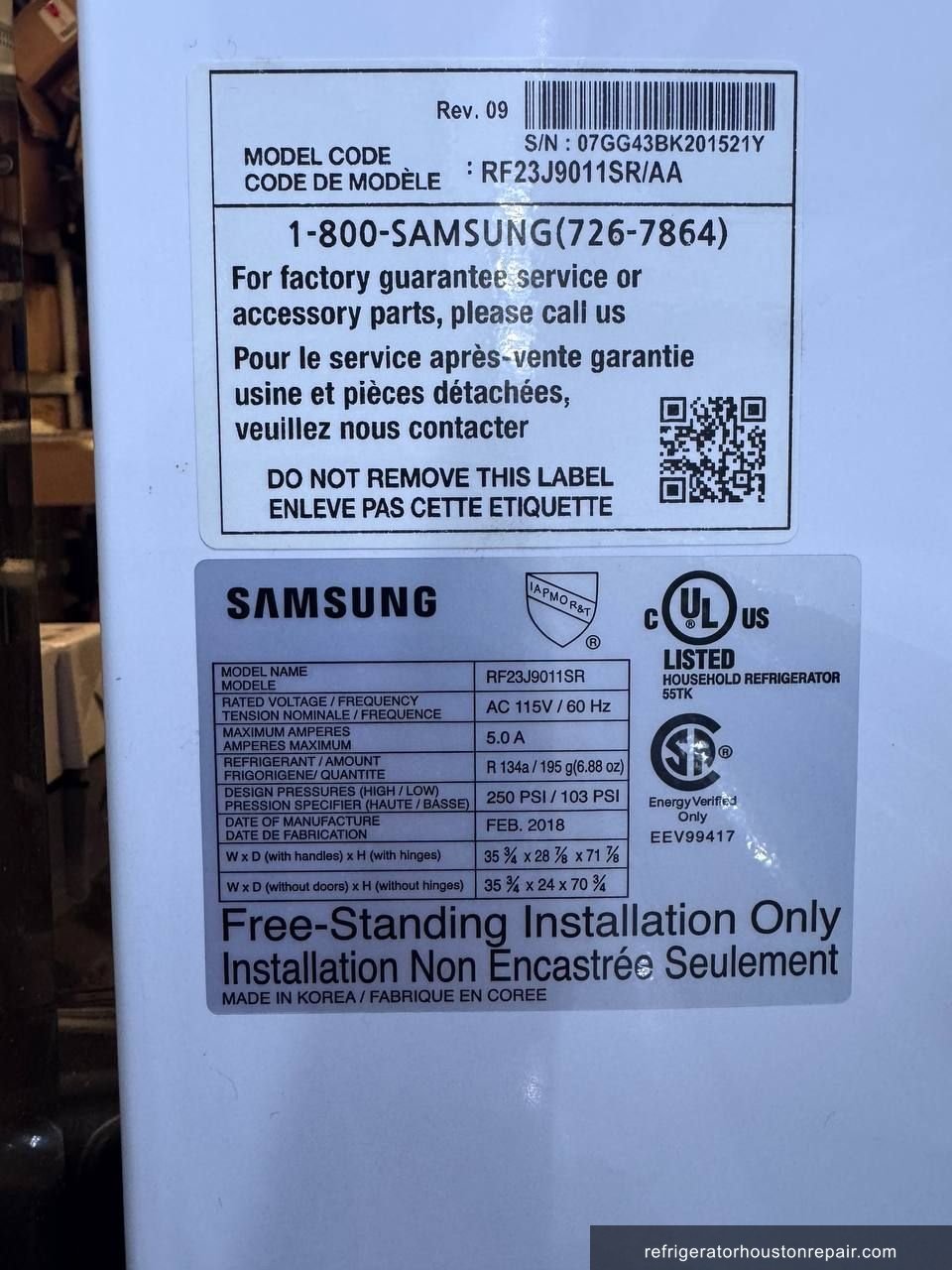

- ✓Refrigerant R-134a (required, not installed): 195 g per confirmed appliance label specification
- Location
- Houston, TX 77095
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

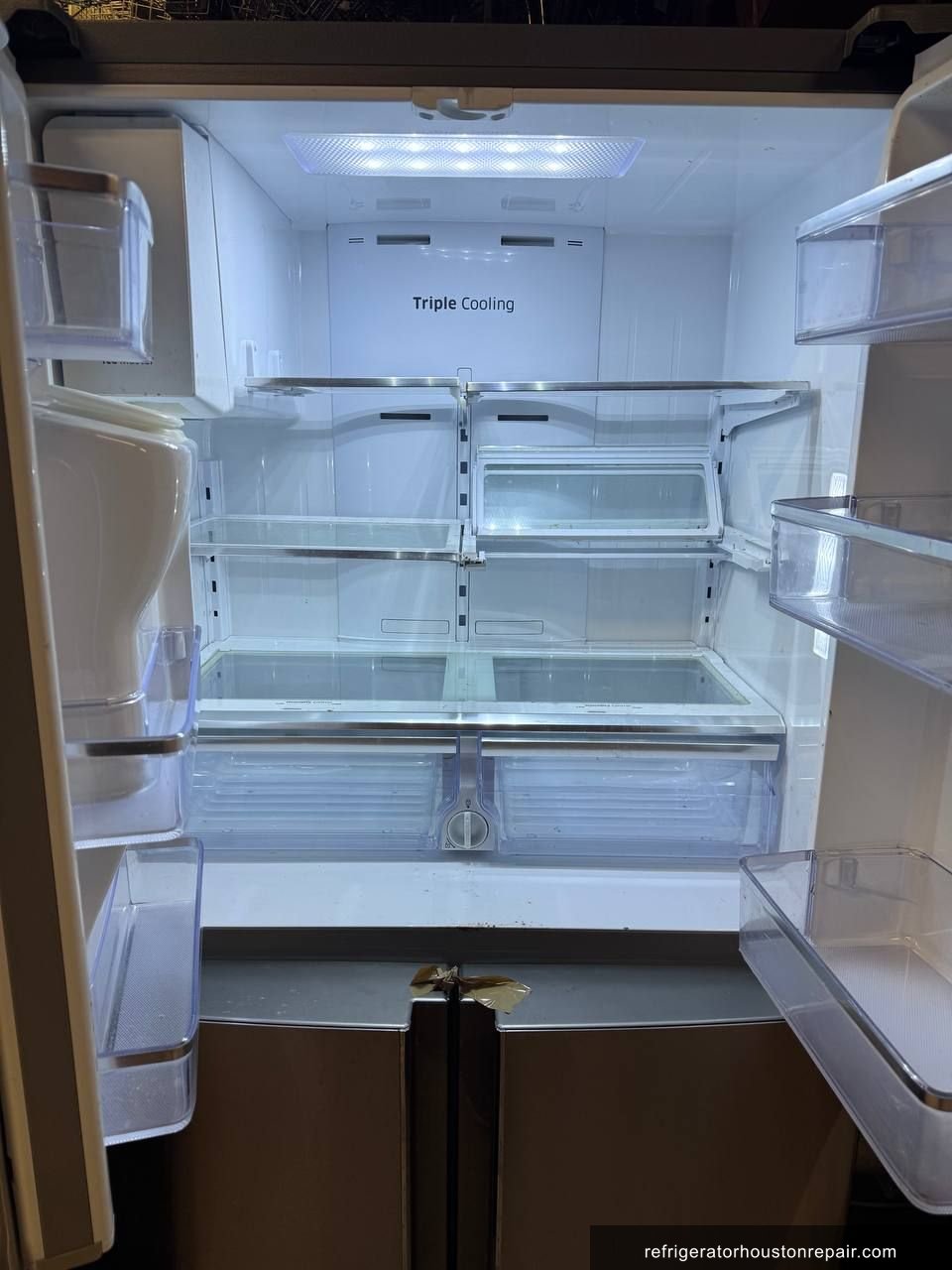

Samsung RF23J9011SR repair in Houston, TX — photo 3
