Monogram ZISS420DHASS: Main Control Board Failure in Richmond, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Dispenser user interface flickering and blinking intermittently
- •Interior control panel completely dark, no display at all
- •Freezer temperature climbed to 20°F instead of holding 0°F
- •Fresh food compartment warmed to 55°F, putting food at risk
- •Compressor not running despite unit receiving power
🔍 Diagnosis

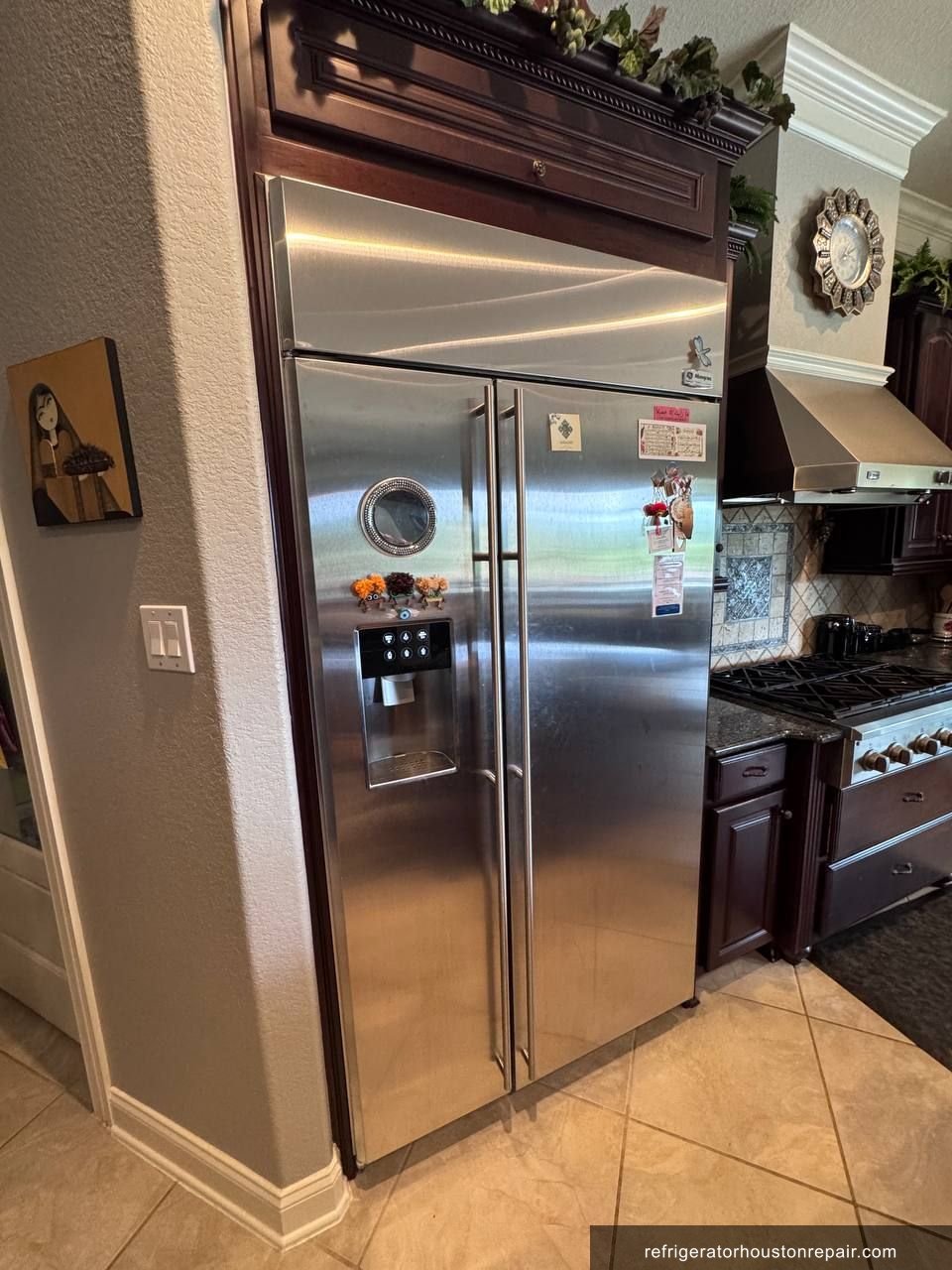

When I arrived at the Richmond home in 77406, the Monogram ZISS420DHASS was completely non-functional from a cooling standpoint. The customer had called about a blinking dispenser panel, but I found two separate user interface failures: the dispenser UI was flickering, and the interior control board showed zero illumination. Neither display responded to input. I pulled out my clamp meter and confirmed the unit was receiving proper line voltage at 120V. The compressor was not cycling at all. I measured the freezer at 20°F and the fresh food section at 55°F, meaning the unit had already been without cooling for several hours. I removed the rear access panel to inspect the main control board directly. The board showed visible damage immediately: multiple electrolytic capacitors were bulging at the top, a textbook sign of capacitor failure from heat stress and age. This unit was 17 years old, and on the ZISS420DHASS, the main board sits in a position that accumulates heat over time. The swollen capacitors were no longer regulating voltage correctly, which caused the board to stop sending run signals to the compressor and stop powering both user interfaces. There were no refrigerant or sealed system issues. The problem was entirely electrical, originating at the main board.
🔧 The Repair
- ✓Step 1: Confirmed 120V supply voltage at the unit's power connection using a Fluke 117 multimeter, ruling out an electrical supply issue.
- ✓Step 2: Documented interior temperatures: freezer at 20°F, fresh food at 55°F, using a calibrated digital probe thermometer.
- ✓Step 3: Disconnected power and removed the rear service panel to access the main control board on the ZISS420DHASS.

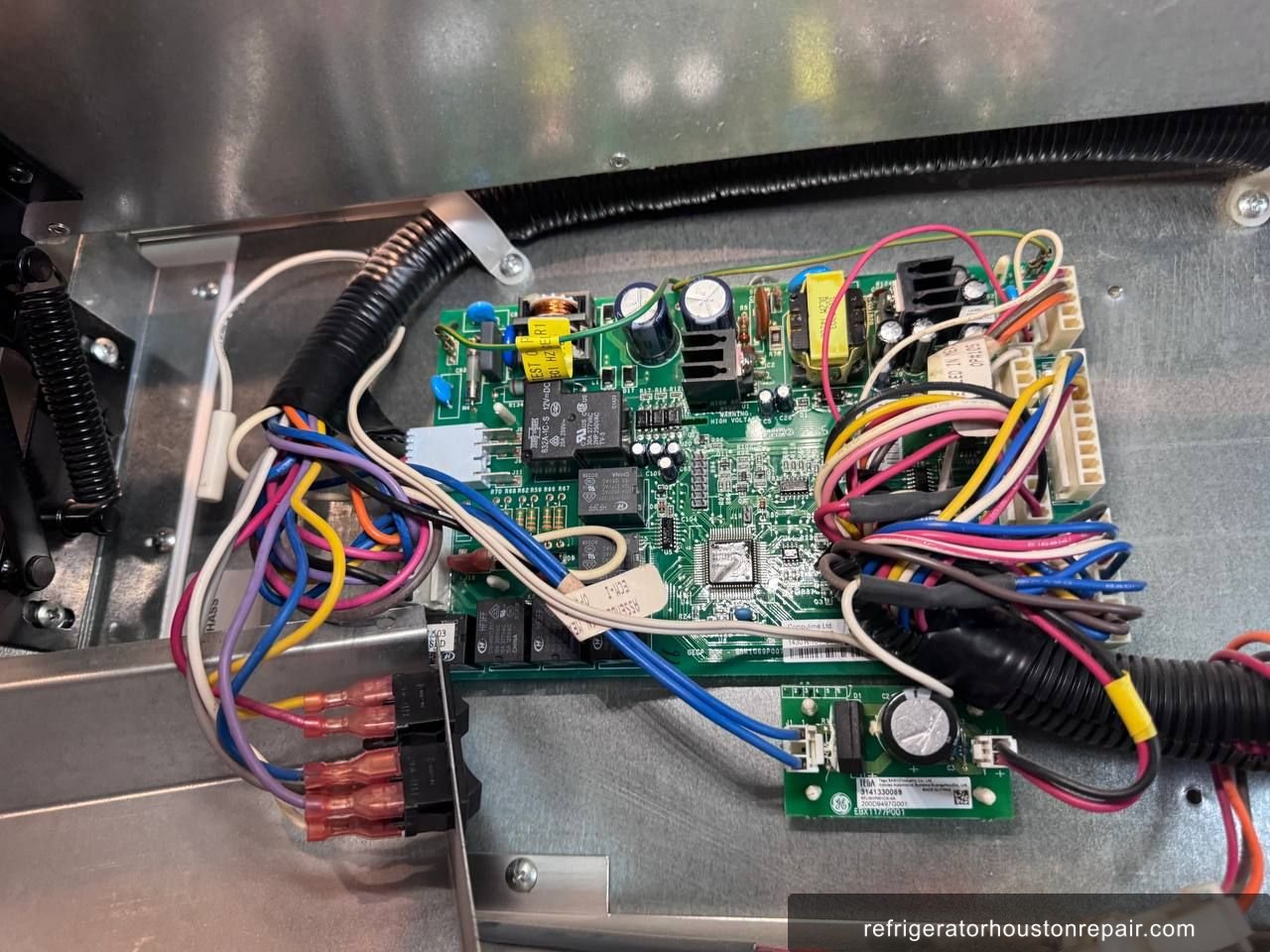

- ✓Step 4: Visually inspected the board under a work light and identified multiple bulging electrolytic capacitors, confirming the root cause without additional component testing needed.
- ✓Step 5: Photographed the damaged board from four angles for documentation, showing the swollen capacitors clearly.
- ✓Step 6: Disconnected all wire harnesses from the failed board in sequence, labeling each connector to ensure correct reinstallation.
- ✓Step 7: Installed the replacement Monogram main control board, reconnecting all harnesses to their correct positions and verifying each connection was seated fully.
- ✓Step 8: Restored power and confirmed both user interfaces powered on immediately, the compressor started its run cycle, and the unit reached freezer 0°F and fresh food 37°F within 3.5 hours of runtime.
✓ Result
After installing the replacement main control board, both user interfaces lit up immediately and the compressor started within the first minute. I stayed long enough to confirm stable operation. The unit reached 0°F in the freezer and 37°F in the fresh food section within about three and a half hours. The customer in Richmond was relieved, especially since the fresh food section had reached 55°F and perishables were at risk. Most of the food was still salvageable. A 90-day labor warranty was provided on the repair.
💡 Technician Notes
Monogram built-in column refrigerators like the ZISS420DHASS are designed for a 20-plus year service life, but the main control board is a weak point on units past the 15-year mark. The electrolytic capacitors on the board degrade from repeated heat cycles in the tight installation cavity. The earliest warning sign specific to this failure is an intermittent or flickering dispenser UI, often appearing months before the compressor stops running. Customers frequently assume it is a display issue only and delay the call. Do not wait. Once the capacitors swell enough to affect the board's output signals, the compressor will stop getting a run command and temperatures will climb fast. There is no homeowner maintenance that prevents board-level capacitor aging, but keeping the condenser coils clean twice a year reduces ambient heat buildup around the board, which slows the degradation. If your Monogram dispenser panel starts blinking irregularly, call a technician within the week.
Frequently Asked Questions
Why is my Monogram ZISS420DHASS dispenser panel blinking and the inside display not turning on?
On the ZISS420DHASS, both the dispenser interface and the interior control panel draw their signals from the main control board. When the board's capacitors fail from age and heat, both displays lose power simultaneously. The blinking dispenser is usually the first sign the board is failing. By the time the interior display goes dark, the compressor has likely already stopped running.
How much does a Monogram refrigerator main control board replacement cost in Richmond TX?
For a Monogram ZISS420DHASS in the Richmond and Houston area, a main control board replacement typically runs between $400 and $650 total, including the OEM board and labor. The board itself is the largest cost. Diagnostic fees are usually applied toward the repair total. Exact pricing depends on current parts availability and the specific service call details.
What happens if I ignore a blinking display on my Monogram built-in refrigerator?
If you ignore the blinking dispenser panel on a Monogram unit, the underlying board failure will progress. The interior display will go dark next, and then the compressor will stop running entirely. Freezer temperatures rise to 20°F or above and the fresh food section hits 50 to 55°F within hours. At that point, food safety becomes a real concern and the repair urgency increases significantly.
Is it worth repairing a 17-year-old Monogram ZISS420DHASS or should I replace it?
A 17-year-old Monogram ZISS420DHASS with a main board failure is worth repairing if the sealed system, compressor, and cabinet are in good condition. Monogram built-ins are engineered for longevity and a board replacement costing $400 to $650 is a fraction of the replacement cost for this unit. If the compressor or sealed system also failed, that calculation changes. In this case, the sealed system was perfectly fine.
Can swollen capacitors on a refrigerator control board cause the compressor to stop running?
Yes. The main control board sends the run signal to the compressor. When electrolytic capacitors on the board swell and lose their ability to regulate voltage correctly, the board stops outputting stable signals. The compressor receives no run command and shuts down completely. This is why a board-level electrical failure produces the same symptom as a dead compressor, the refrigerator simply stops cooling.
Repair Summary
- Brand
- Monogram
- Model
- ZISS420DHASS
- Repair Type
- Main Control Board Replacement
- Refrigerant
- R-134a
- Root Cause
- Swollen capacitors on main control board caused total system shutdown
- Parts Replaced
- ✓Main control board for Monogram ZISS420DHASS (OEM replacement board, sourced to match original board layout and harness configuration)
- Location
- Richmond, TX 77406
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Richmond and surrounding areas.
View Richmond Service Area →📸 Repair Photos

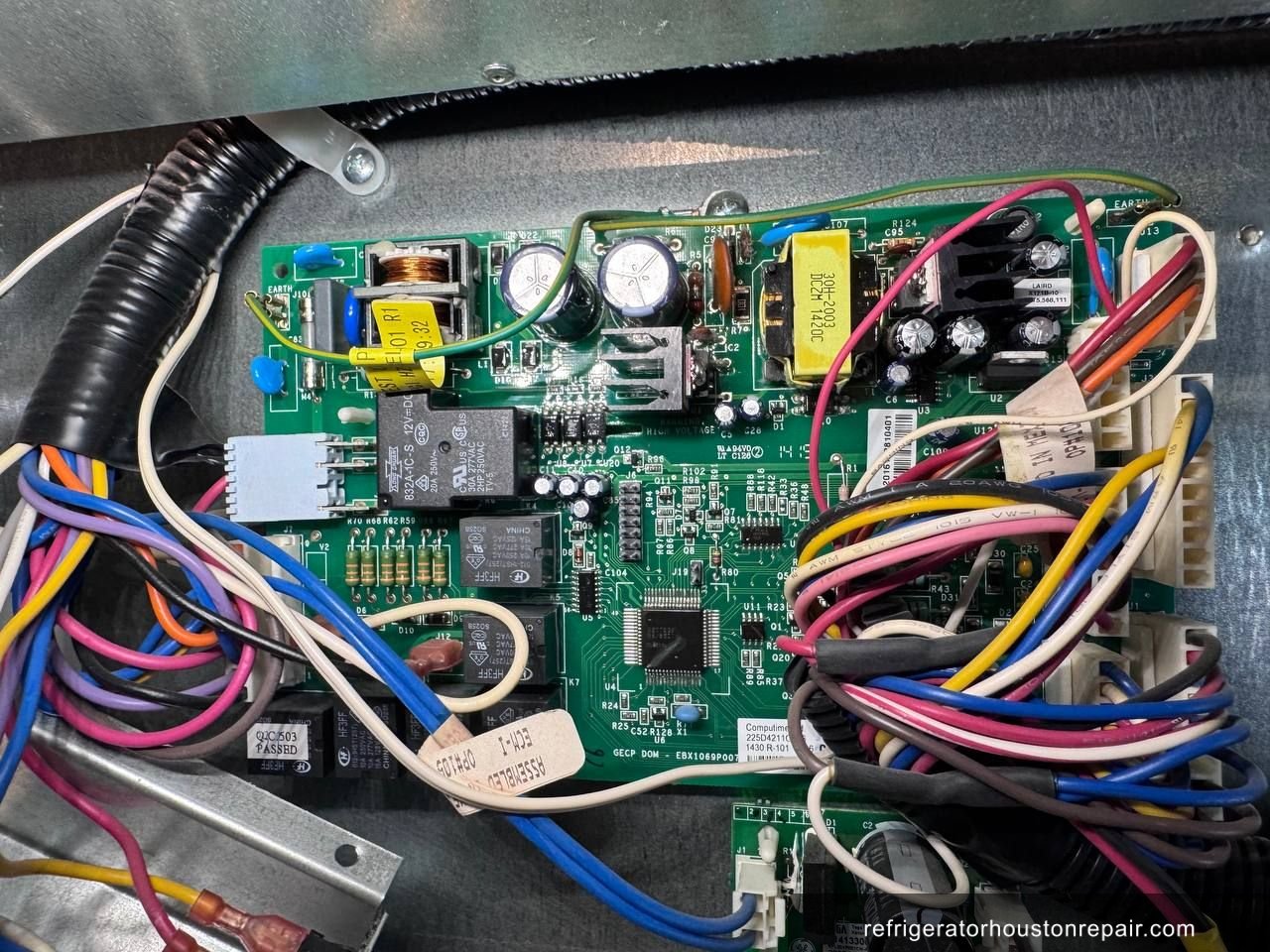

Monogram ZISS420DHASS repair in Richmond, TX — photo 3
