The Problem

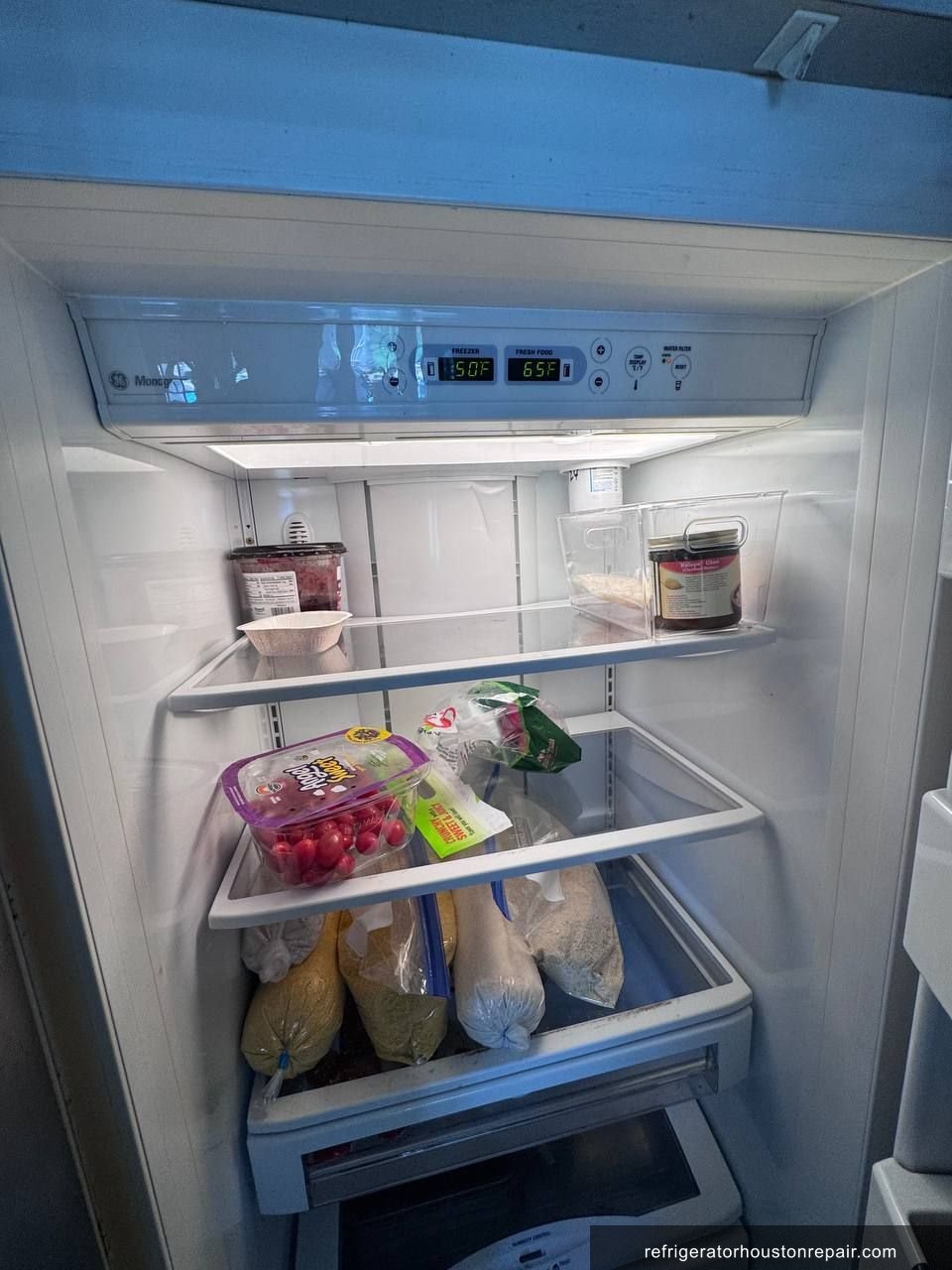

- •Fresh food compartment temperature climbed to 65°F, spoiling food
- •Freezer section warmed to 50°F, no longer freezing
- •No airflow detectable from any interior vents in either compartment
- •Unit running but no cold air circulating through the cabinet
🔍 Diagnosis

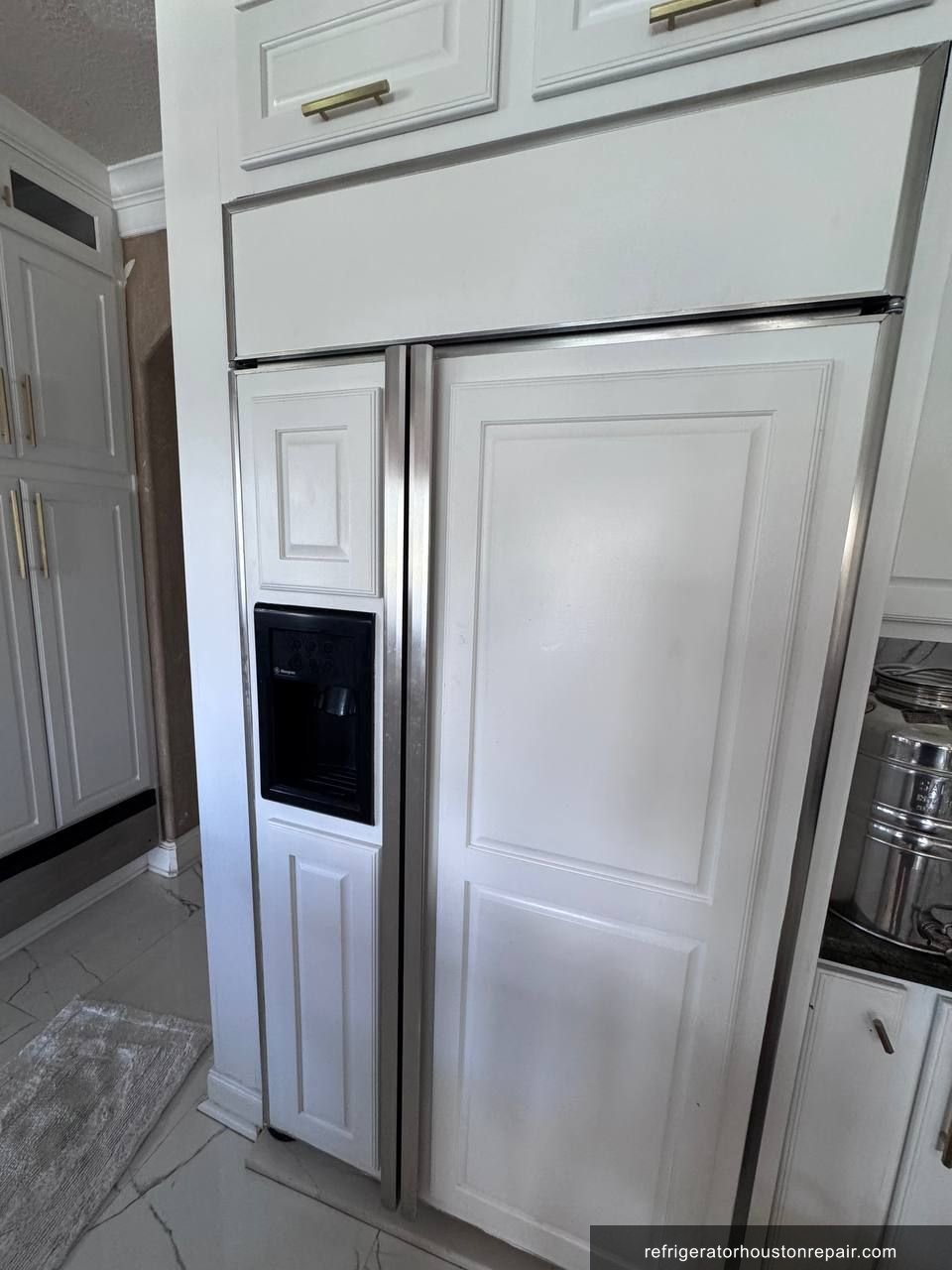

When I arrived at the home in Cypress, ZIP 77433, the Monogram ZISB420DMA built-in refrigerator was reading 65°F in the fresh food section and 50°F in the freezer. Both compartments had completely lost cooling function. The compressor was running and the sealed system appeared to be operating, so I immediately focused on airflow. In this Monogram built-in model, the evaporator is mounted in the ceiling of the cabinet rather than in a rear panel, which is specific to this design. I removed the ceiling access panel and found the evaporator coil completely encased in ice and compacted snow. The drain pan heating element had failed, meaning condensate from the defrost cycle had no path out. Water accumulated, refroze, and built up around the evaporator coil over time until it fully blocked the evaporator fan blade. The fan motor tested at 0 RPM under load and showed no rotation. I confirmed the fan motor had seized due to the ice blockage, causing total airflow loss across both compartments. The drain pan heater measured open circuit on my multimeter, confirming it had burned out. This is a well-documented failure pattern on the ZISB420DMA. GE Monogram developed a retrofit drain kit specifically to address this deficiency in the original drainage system design on these ceiling-evaporator built-in models.
🔧 The Repair

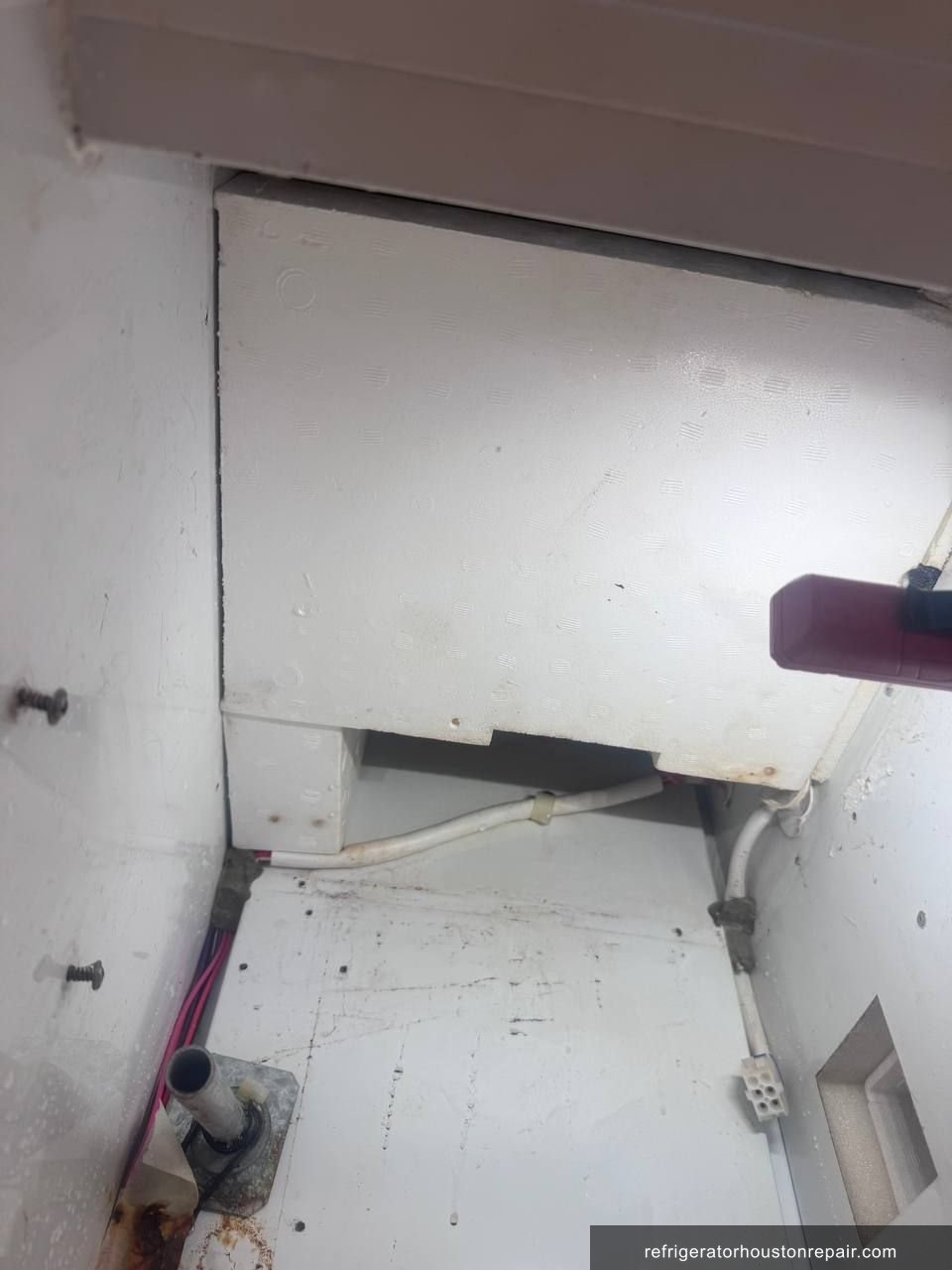

- ✓Step 1: Powered down the ZISB420DMA at the circuit breaker and removed all interior ceiling panel fasteners to access the evaporator cavity.
- ✓Step 2: Documented ice accumulation with photos, then used a low-heat steamer to safely melt the ice pack surrounding the evaporator coil and fan assembly without damaging the coil fins.
- ✓Step 3: Removed the failed evaporator fan motor, which had seized from prolonged ice contact. The blade was frozen in place and required manual extraction after thawing.
- ✓Step 4: Tested the original drain pan heating element with a multimeter and confirmed open circuit, indicating a complete burn-out of the element.
- ✓Step 5: Removed the original drain pan heater assembly and installed the GE Monogram retrofit drain kit designed for the ceiling evaporator configuration on this model. This kit replaces the existing drainage routing and heating element with an updated design that prevents recurrence.

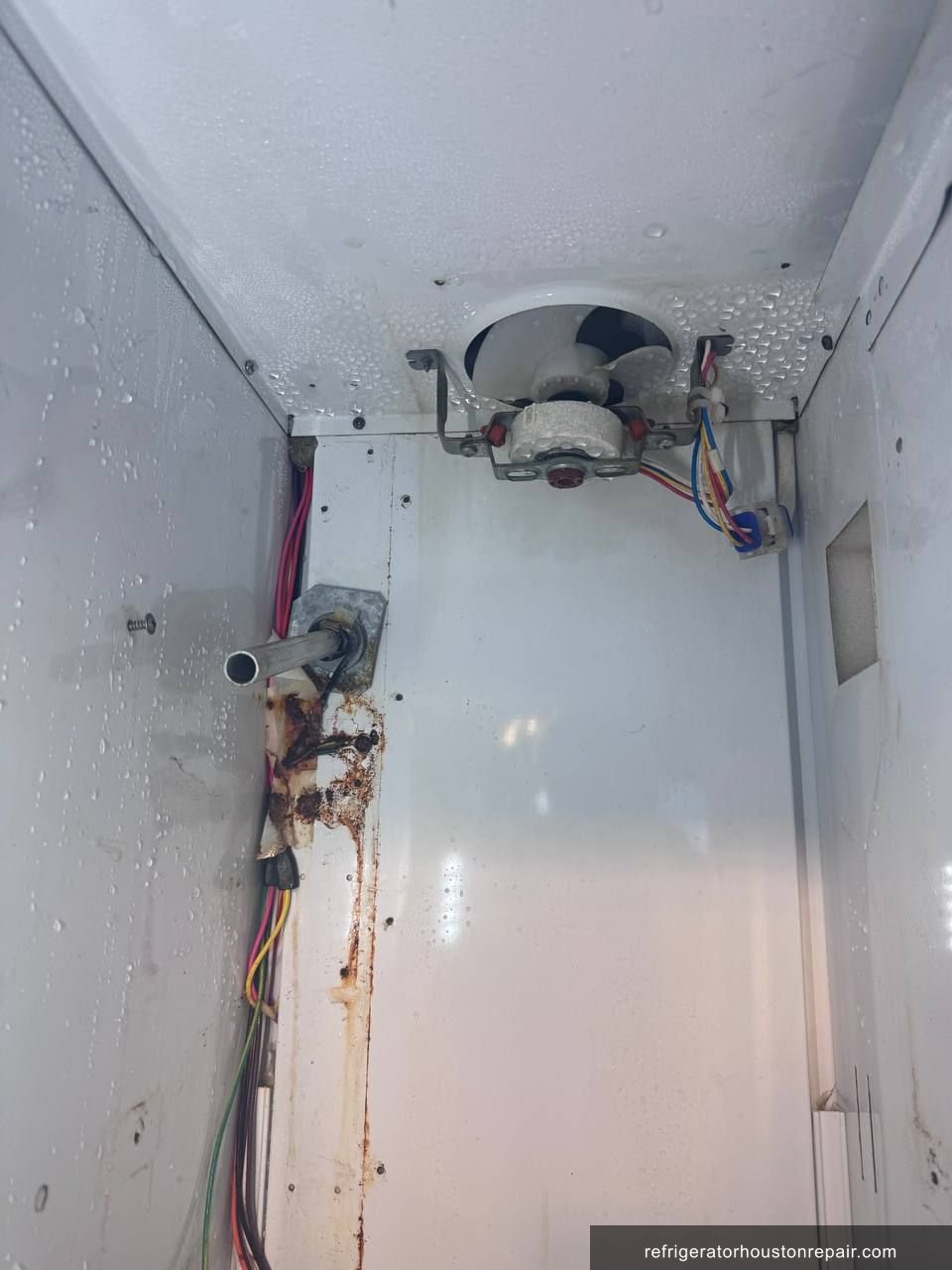

- ✓Step 6: Installed a new OEM-compatible evaporator fan motor matched to the ZISB420DMA specifications, confirmed correct rotation direction before securing the assembly.
- ✓Step 7: Reassembled the ceiling panel, restored power, and initiated a manual defrost cycle to verify the new drain heater activated correctly and condensate flowed through the updated drain path without pooling.
- ✓Step 8: Monitored the unit for two hours. Fresh food section reached 37°F and the freezer reached 0°F, confirming full cooling restoration across both compartments.
✓ Result
After two hours of runtime, the ZISB420DMA was holding 37°F in the fresh food section and 0°F in the freezer. This unit is 24 years old and it performed like it was restored to full working condition. The homeowner in Cypress was relieved because a significant amount of food had survived in the still-cold lower section of the freezer. They mentioned they had considered replacing the unit and were genuinely surprised it was worth repairing. The retrofit kit gives this refrigerator a real path to continued service.
💡 Technician Notes
If you own a Monogram built-in refrigerator with a ceiling-mounted evaporator, the earliest warning sign of this failure is uneven cooling between the top and bottom shelves of the fresh food section. Cold air in these models flows from the ceiling down, so when ice starts blocking the evaporator, the top of the cabinet loses cold air first while the bottom shelves stay cool longer. Most owners miss this for weeks before both compartments fail completely. The one maintenance action that helps delay this problem is checking your drain pan area annually for any moisture pooling under the unit. If you see water on the floor near a Monogram built-in, do not wait. The drain heater is already failing. Call a technician before the ice builds up and takes the fan motor with it. Replacing a fan motor and a retrofit kit is a fraction of the cost of a new built-in unit.
Frequently Asked Questions
Why did my Monogram ZISB420DMA stop cooling in both the fridge and freezer at the same time?
On the ZISB420DMA, the evaporator is mounted in the ceiling and a single fan circulates air through both compartments. When the drain pan heater fails, ice builds up around the evaporator and locks the fan blade. With no fan running, neither section gets cold air. Both compartments fail together, which is what makes this failure pattern distinctive on Monogram built-in models.
How much does it cost to repair a Monogram built-in refrigerator evaporator fan and drain kit in Cypress, TX?
For a repair like this one on the ZISB420DMA, which involved a retrofit drain kit and a new evaporator fan motor, expect to pay in the range of $400 to $650 depending on parts availability and labor time. The ceiling evaporator access on this model requires more disassembly than a standard rear-panel unit, which adds time. Compared to replacing a 24-year-old Monogram built-in, it is a clear financial win.
What happens if I ignore a Monogram refrigerator that is not cooling and just keep waiting?
Once the evaporator fan stops on a ZISB420DMA, the compressor keeps running but generates no useful cooling. The ice pack around the evaporator continues to grow. Prolonged operation in this state can overheat the compressor and damage the sealed system. What starts as a drain heater and fan replacement becomes a sealed system repair or total loss. Waiting more than a day or two significantly raises the repair cost.
Is it worth repairing a 24-year-old Monogram built-in refrigerator or should I replace it?
A 24-year-old Monogram ZISB420DMA that has been well-maintained is worth repairing when the failure is mechanical rather than a sealed system or compressor issue. The cabinet, door hinges, and sealed system on these units are built to outlast most modern refrigerators. If the compressor and refrigerant circuit are intact, a fan motor and retrofit drain kit repair makes strong financial sense, especially given the cost of a new Monogram built-in.
What is the GE Monogram retrofit drain kit and why does it fix the recurring ice problem on built-in models?
GE Monogram developed the retrofit drain kit specifically for built-in models with ceiling-mounted evaporators where the original drain pan heater design proved unreliable over time. The kit replaces the original heater element and drain routing with an updated assembly that handles condensate more reliably during defrost cycles. Installing it instead of just replacing the original heater with the same part significantly reduces the chance of the same ice blockage failure repeating.
Repair Summary
- Brand
- Monogram
- Model
- ZISB420DMA
- Repair Type
- Evaporator Fan Motor Replacement and Drain Pan Heater Retrofit Kit Installation

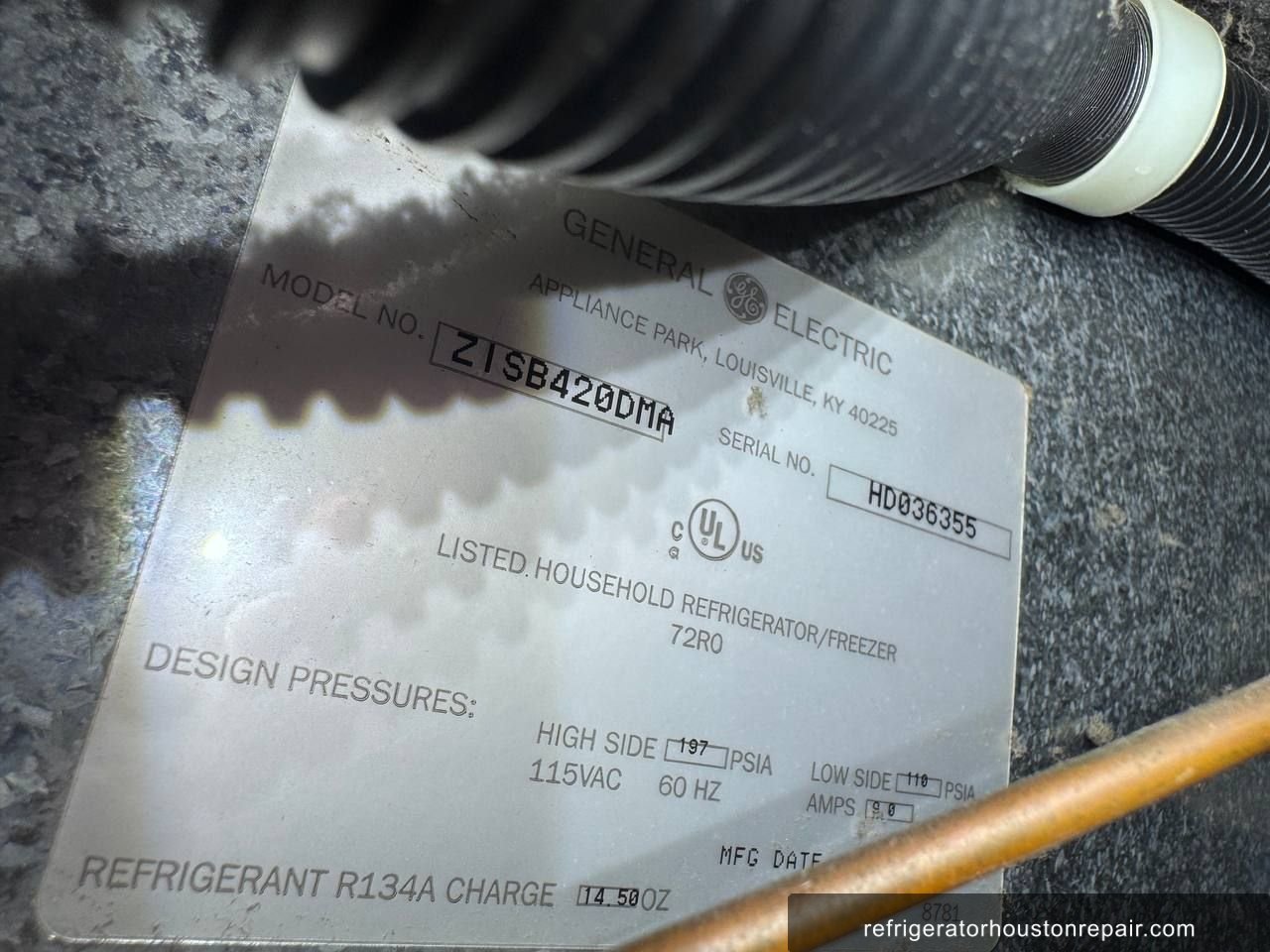

- Refrigerant
- R-134a
- Root Cause
- Failed drain pan heating element causing ice blockage of evaporator fan
- Parts Replaced
- ✓Evaporator fan motor, OEM-compatible replacement for Monogram ZISB420DMA ceiling-mount evaporator configuration
- ✓GE Monogram retrofit drain kit for ceiling evaporator drain pan heating element, updated design to replace original failed assembly
- Location
- Cypress, TX 77433
- Status
- ✓ Completed
