Monogram ZIR360NHBRH: Refrigerator Section Not Cooling Due to Failed Main Control Board in Magnolia, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment completely stopped cooling while the unit remained powered on
- •Compressor not running despite the refrigerator displaying no error codes on the control panel
- •Interior lights and display panel functioning normally, giving no obvious clue to the failure
- •No unusual sounds from the unit — no clicking, no humming from the compressor attempting to start
🔍 Diagnosis
When I arrived at the home in Magnolia, the Monogram ZIR360NHBRH was running silently. The display was active, the lights worked, but the fresh food section had risen to ambient temperature. The compressor was completely silent, which pointed me toward either a failed inverter board, a failed compressor, or a command signal problem upstream of both. I started with the inverter board. Using a digital oscilloscope, I monitored the PWM output signals from the inverter board under load conditions. The signals were clean and within spec. I then used a signal generator to feed a start command directly into the compressor drive circuit. The compressor responded and started running without hesitation. That told me the compressor itself was mechanically and electrically sound, and the inverter board was processing signals correctly. With both the compressor and inverter board cleared, I turned my attention to the main control board. I probed the communication line between the main board and the inverter board. The main board was not transmitting the compressor activation signal at all. The ZIR360NHBRH uses a proprietary communication protocol between these two boards, and the main board had lost the ability to issue that command. This is a known failure mode on this generation of Monogram column refrigerators, where the main board's output driver for the compressor control line degrades over time, often without triggering any visible fault code.
🔧 The Repair
- ✓Step 1: Confirmed the fresh food compartment temperature at 71 degrees F using a calibrated digital thermometer. Verified compressor was not cycling by placing a hand on the compressor housing and confirming no vibration.
- ✓Step 2: Removed the rear access panel to expose the inverter board and compressor assembly. Inspected all wiring harnesses and connectors for corrosion, burn marks, or looseness. All connections were tight and clean.
- ✓Step 3: Connected a digital oscilloscope to the inverter board output terminals and monitored PWM signal waveforms. Signals measured at correct frequency and amplitude, confirming inverter board integrity.
- ✓Step 4: Used a signal generator to simulate a compressor start command directly at the inverter board input. Compressor started and ran smoothly, drawing 3.8 amps at startup and stabilizing at 1.6 amps running current. Compressor confirmed good.
- ✓Step 5: Probed the communication line from the main control board to the inverter board using the oscilloscope. Confirmed zero signal output from the main board on the compressor activation channel across multiple test cycles.
- ✓Step 6: Powered down the unit and disconnected power at the outlet. Removed the main control board from its mounting location behind the interior rear wall panel.
- ✓Step 7: Installed the replacement main control board, a direct OEM-equivalent unit for the ZIR360NHBRH. Reconnected all harness connectors in sequence and secured the board to its mounting bracket.
- ✓Step 8: Restored power and monitored the communication line with the oscilloscope. The main board immediately began transmitting the compressor start signal. Compressor engaged within 90 seconds. After a 2-hour runtime check, fresh food section measured 37 degrees F and the unit was holding stable.
✓ Result
After the main control board swap, the Monogram ZIR360NHBRH returned to full operation within two hours. The fresh food section stabilized at 37 degrees F, right where the customer had it set. The repair was completed the same day at the home in Magnolia, ZIP 77354. The customer had been worried about a full compressor replacement job, so when I confirmed the compressor was fine and only the board needed replacing, she was visibly relieved. She mentioned she had groceries delivered the day before and was glad nothing went to waste.
💡 Technician Notes
Monogram column refrigerators like the ZIR360NHBRH use a two-board architecture where the main board and the inverter board communicate digitally. The tricky part is that when the main board stops sending the compressor signal, the unit shows no error codes and everything else appears to work normally. Owners often assume the compressor has failed and brace for a major repair. The early warning sign is subtle: the unit will feel slightly warmer than usual for a day or two before stopping cooling entirely, as the main board intermittently drops the signal before failing completely. If you notice your Monogram running slightly warm but cycling back to normal, do not wait. That intermittent behavior is the board degrading. Annual checks of the control board connectors for corrosion, particularly in high-humidity areas like Magnolia, extend board life. If the compressor is silent and no fault codes appear, call a technician immediately rather than waiting to see if it self-corrects.
Frequently Asked Questions
Why is my Monogram ZIR360NHBRH not cooling but the display is still on?
A working display with no cooling usually means the compressor is not running. On the Monogram ZIR360NHBRH, this often points to the main control board failing to send the start signal to the inverter board. The unit stays powered, lights and controls work, but the compressor never gets the command to run. A technician needs to test both boards separately to pinpoint which one failed.
How much does it cost to replace the main control board on a Monogram column refrigerator in Magnolia TX?
Main control board replacement on a Monogram ZIR360NHBRH typically runs between 400 and 650 dollars in the Houston area, including parts and labor. The board itself is the largest cost. Diagnosis using an oscilloscope and signal generator adds time but prevents replacing parts that do not need replacement. Same-day service is often available in Magnolia and the surrounding 77354 area.
What happens if I ignore a Monogram refrigerator that stopped cooling?
If the compressor is not running, the fresh food section will reach room temperature within 4 to 6 hours. Food spoilage begins quickly in Houston's heat. Beyond food loss, running the unit in a failed state for extended periods stresses the control electronics. On the ZIR360NHBRH, delays do not typically cause secondary damage, but scheduling repair within 24 hours protects your food and prevents any cascading issues.
Should I repair or replace my Monogram ZIR360NHBRH if the control board failed?
A main control board replacement is one of the most cost-effective repairs on a Monogram column refrigerator. If the unit is under 12 years old and the compressor is confirmed good, repair makes clear financial sense. The ZIR360NHBRH is a high-end column unit with a sealed system built to last well beyond 15 years. Replacing the board extends the appliance life significantly for a fraction of the replacement cost.
How do technicians tell the difference between a bad inverter board and a bad main board on a Monogram refrigerator?
The key is isolating each board individually. I use a digital oscilloscope to check whether the inverter board is receiving a signal from the main board. Then I use a signal generator to feed a test command directly into the inverter board, bypassing the main board entirely. If the compressor starts on the generator signal, the inverter board and compressor are good. If no signal is coming from the main board, that is the failed component.
Repair Summary
- Brand
- Monogram
- Model
- ZIR360NHBRH
- Repair Type
- Main Control Board Replacement
- Root Cause
- Main control board failed to send compressor start signal
- Parts Replaced
- ✓Main control board, OEM-equivalent replacement for Monogram ZIR360NHBRH column refrigerator
- Location
- Magnolia, TX 77354
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Magnolia and surrounding areas.
View Magnolia Service Area →📸 Repair Photos

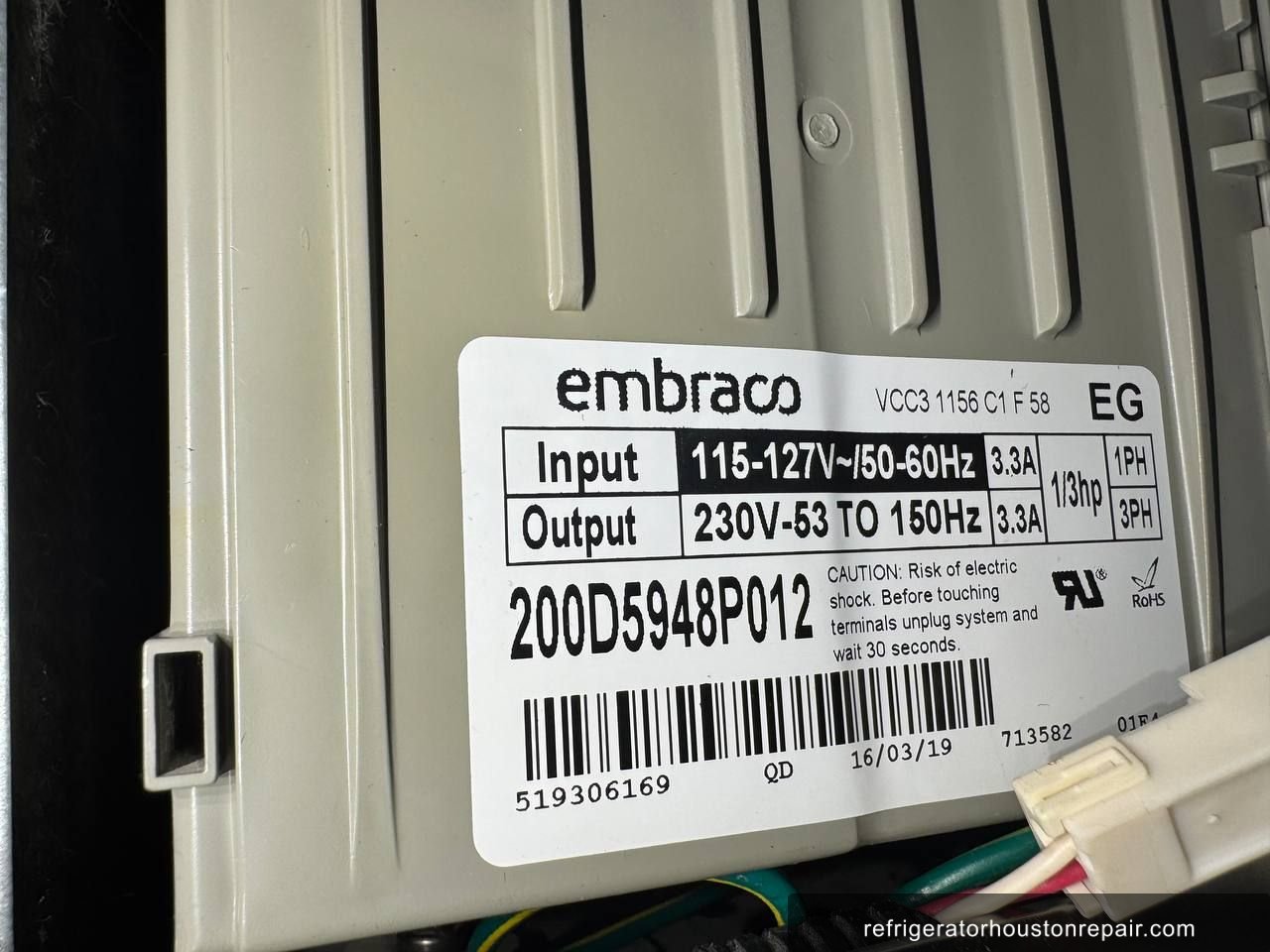

Monogram ZIR360NHBRH repair in Magnolia, TX — photo 3

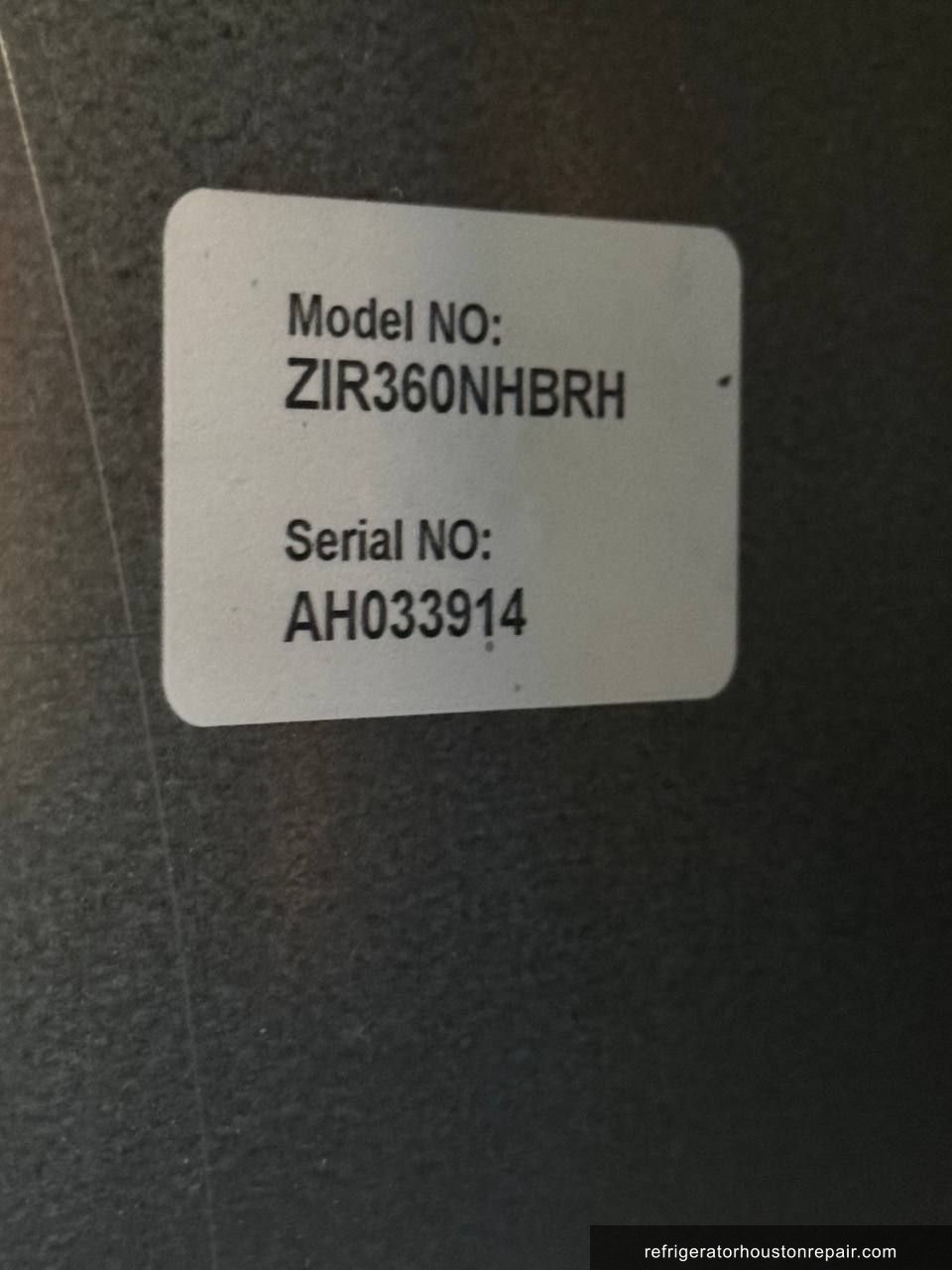

Monogram ZIR360NHBRH repair in Magnolia, TX — photo 4

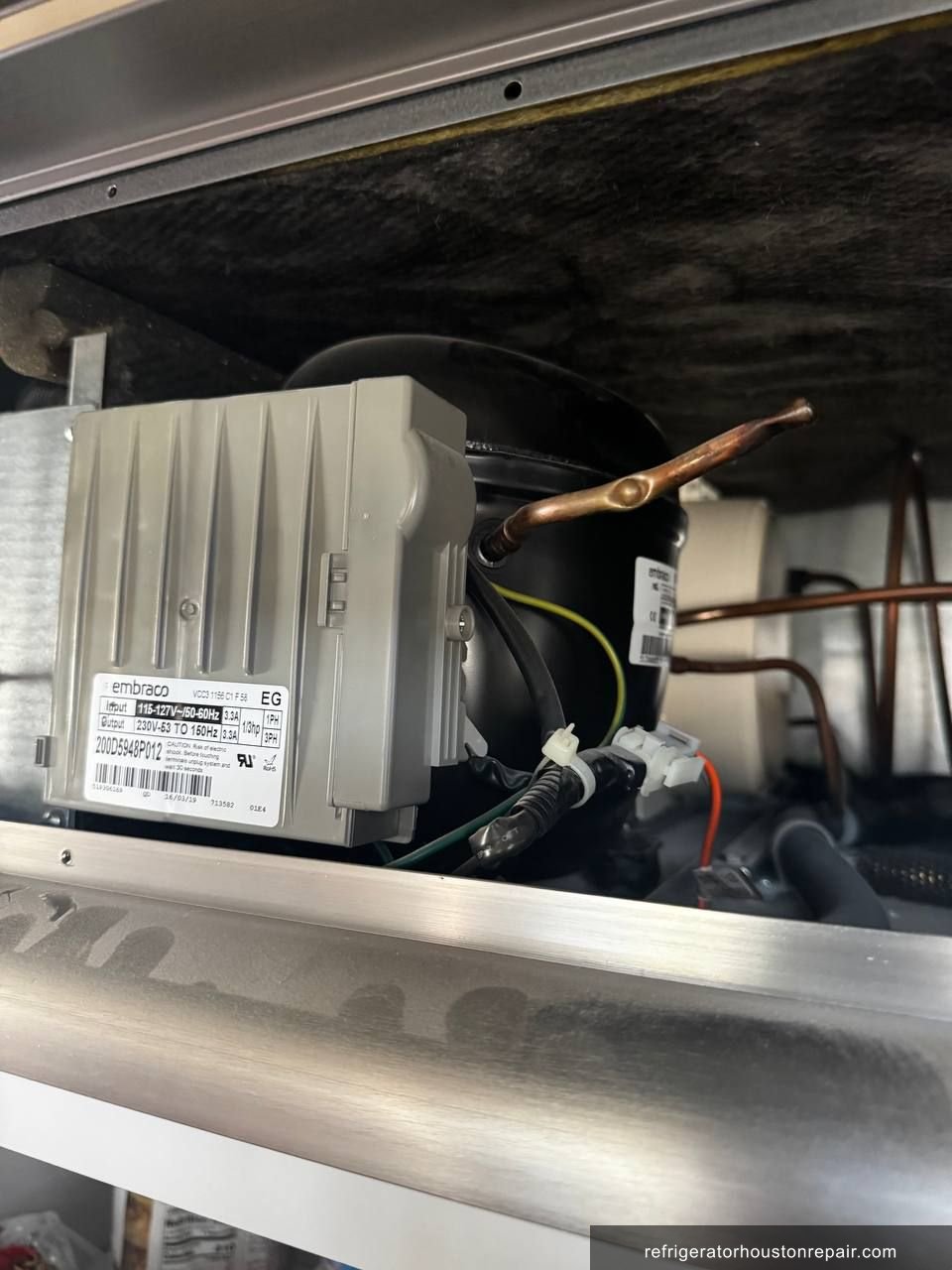

Monogram ZIR360NHBRH repair in Magnolia, TX — photo 5

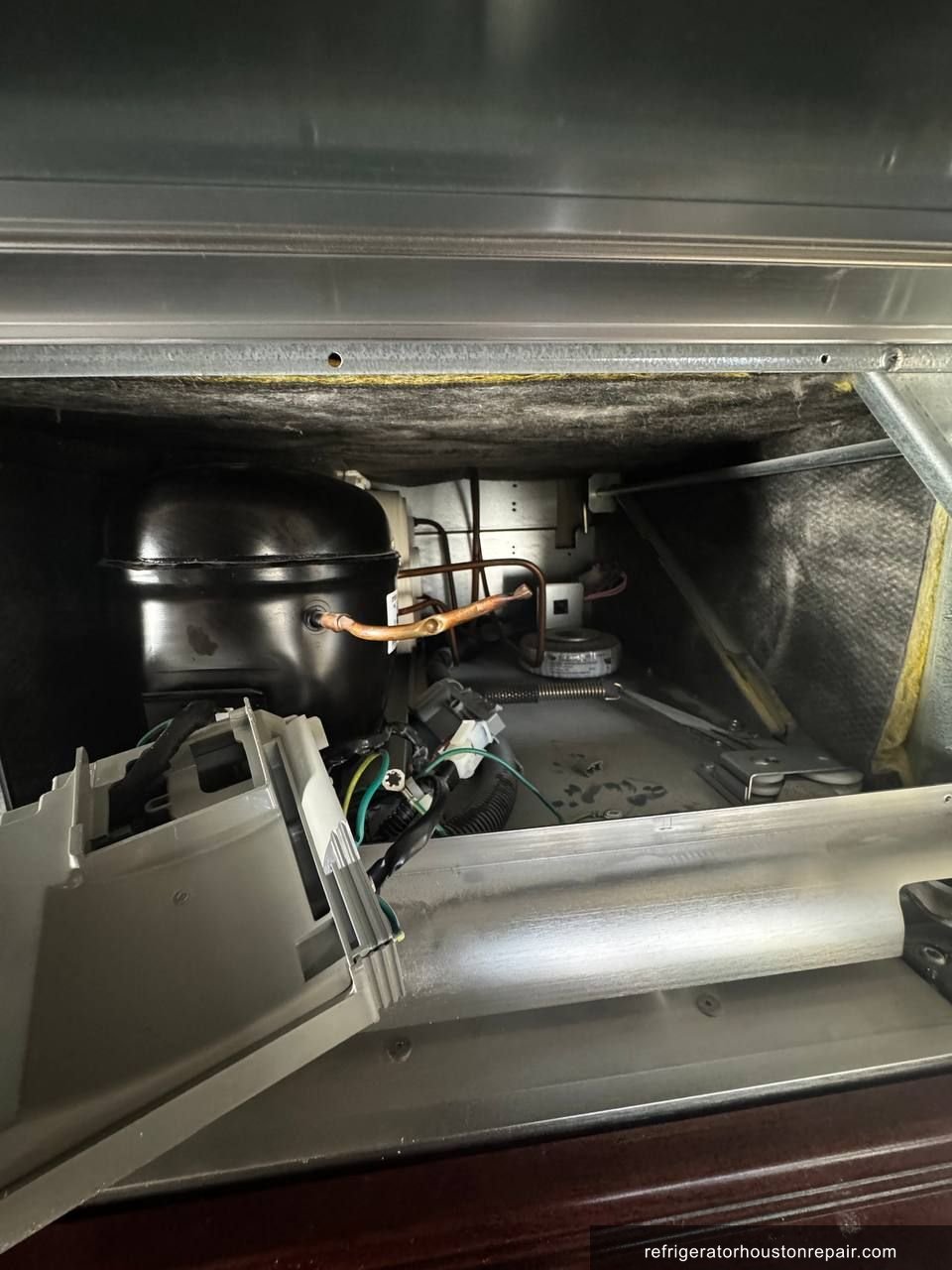

Monogram ZIR360NHBRH repair in Magnolia, TX — photo 6
