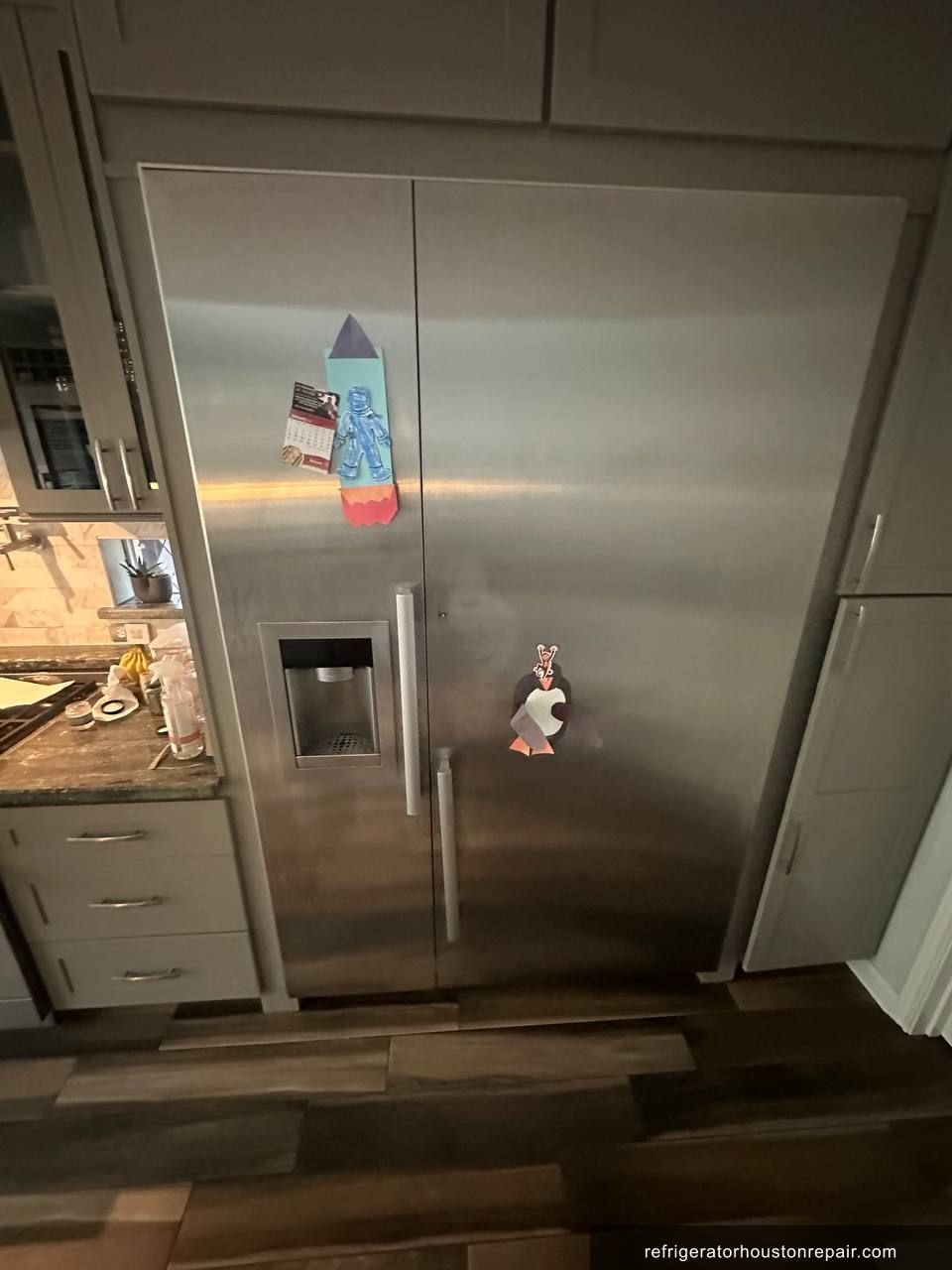

Miele K 1901 SF/45: Door Handle Reattachment & Door Panel Rebuild in League City, TX
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Door handle completely detached from the refrigerator section door — pulling the handle away from the unit rather than opening it
- •Visible gap between the handle bracket and the stainless steel door panel where the mounting point had worked loose over time
- •Handle had been wobbling for weeks before full separation, a sign the bolt threads were progressively stripping under daily-use load cycles
- •Door seal alignment slightly off after the handle loss, making the door feel loose when pushed closed
🔍 Diagnosis
On arrival at the League City home, the Miele K 1901 SF/45 refrigerator section door handle was fully detached — the homeowner had set it on the counter. A visual inspection of the door face showed no external fasteners, which is characteristic of Miele's flush-panel design philosophy on the K 1901 SF/45: all structural mounting hardware is routed through the interior of the door assembly and is not accessible without disassembly. The door was opened and the interior liner examined. The handle mounting bolt seats through a recessed channel behind the outer stainless steel panel, passing through a plastic carrier bracket and threading into a metal nut plate embedded in the door structure. Using a flashlight and inspection mirror, partial thread damage was visible on the nut plate side — the threads had not been sheared cleanly but were flattened and spread from repeated tightening and loosening cycles without the bolts ever being brought to proper torque spec. No refrigeration performance anomalies were present — the unit was operating within normal parameters, holding the fresh food section at 38°F. The 6.70 oz R-134a sealed system showed no signs of involvement. This was a pure mechanical failure: a hardware maintenance issue where a loose handle bolt was never retorqued, allowing the threads to progressively degrade under the lateral and torsional forces applied every time the door was opened.
🔧 The Repair
- ✓Step 1: Documented the handle separation and photographed the mounting area on the door exterior before any disassembly — 7 photos taken throughout the repair for documentation.
- ✓Step 2: Removed the refrigerator section door from its hinges by releasing the upper hinge pin and supporting the door to avoid any stress on the door gasket channel or the stainless steel outer skin.
- ✓Step 3: Carefully separated the outer stainless steel decorative panel from the door assembly using plastic pry tools only — metal tools are forbidden on this model as they mar the brushed stainless finish and crack the internal ABS retaining clips.
- ✓Step 4: Removed the door gasket by releasing the perimeter clip track, then extracted the inner door liner to expose the handle mounting channel and the embedded nut plate carrier bracket.
- ✓Step 5: Inspected the nut plate threads using a thread gauge — confirmed M6 thread specification with approximately 40% thread engagement remaining due to wear. Cleaned the thread area and applied a thread repair by chasing the damaged threads with an M6 tap to restore a clean, full-depth thread profile in the accessible portion of the nut plate.
- ✓Step 6: Reinstalled the handle mounting bolt with a controlled application of medium-strength thread locker (Loctite 243 equivalent) to prevent future self-loosening under daily-use vibration and torsional load cycles.
- ✓Step 7: Reassembled the door in reverse sequence per the K 1901 SF/45 service manual — inner liner first, then the perimeter gasket reseated into its clip track, then the outer stainless panel pressed into position and locked at all clip points. All fasteners brought to specification torque to avoid over-compression of the panel clips.
- ✓Step 8: Rehung the door on the hinge pin, verified gasket seal uniformity around the full perimeter, and confirmed handle rigidity — zero lateral or vertical movement under applied force. Fresh food compartment confirmed holding 38°F after door reinstallation with no air infiltration at the gasket.
✓ Result
The handle on the Miele K 1901 SF/45 is now fully rigid — no movement in any direction under normal and forceful pull testing. The stainless steel outer panel shows no marks from the repair process. The full door reassembly took approximately two hours, with another 20 minutes to verify gasket seal quality and fresh food temperature stability at 38°F. The homeowner in League City was relieved to avoid what they assumed would be a costly Miele parts order — in this case, the repair was entirely mechanical, and the thread locker application means the handle should remain solid for the remaining service life of the unit.
💡 Technician Notes
Miele K 1901 SF/45 owners should understand that the European-built door construction on this unit prioritizes aesthetics over field serviceability — there is no quick access to the handle bolts without door disassembly. That design creates a specific failure pattern: because the bolts are invisible and inaccessible, minor handle wobble almost always goes unaddressed until full separation occurs, by which point the threads are damaged. The early warning sign is subtle but specific: a faint clicking or tapping sound when you let go of the handle after opening — that's the bolt shifting in a worn thread. If you notice the handle has any lateral play at all, do not wait. Call for service before the bolt separates entirely, because a loose bolt does less thread damage than a fully stripped one. For maintenance: Miele recommends handle bolt inspection as part of its annual service interval. On this model in Houston's high-use kitchen environments, check every 18 months. Never attempt to tighten the bolts without full door disassembly — forcing a driver into the door gap causes panel damage that costs far more than the handle repair itself.
Frequently Asked Questions
Miele K 1901 SF/45 door handle fell off — can it be reattached without replacing the whole door?
Yes, in most cases. The Miele K 1901 SF/45 handle mounts via internal bolts that are accessed by disassembling the door panel — the handle itself does not need replacement unless it is physically cracked. If the threads are stripped, they can often be chased and repaired with thread locker applied to prevent recurrence. Full door replacement is rarely necessary.
How much does it cost to fix a detached door handle on a Miele refrigerator in League City TX?
A Miele door handle reattachment involving full panel disassembly typically runs between $180 and $320 in the League City area, depending on whether thread repair is needed or a new mounting bracket must be sourced. If the handle itself is cracked or broken, Miele OEM handle assemblies for the K 1901 SF/45 series add to that cost. Labor is the primary driver — this is a two-hour job done correctly.
What happens if I ignore a wobbly Miele refrigerator door handle and don't get it fixed?
A wobbly handle on the Miele K 1901 SF/45 means the bolt threads are already being damaged with every open-and-close cycle. Waiting until the handle fully separates almost guarantees the threads will be too stripped to hold a bolt reliably — requiring more invasive repair. There is also a risk the handle separates suddenly under load, causing injury or a fall.
Is it worth repairing a Miele K 1901 SF refrigerator or should I replace it?
Miele refrigerators are engineered for 20-year service life, and the K 1901 SF/45 sealed system — R-134a at 6.70 oz — is a conservative, reliable design. A mechanical door handle repair is never a reason to replace a Miele. Even sealed system repairs on this unit make financial sense given the cost of a comparable Miele replacement. Repair unless you have compressor failure and a unit older than 15 years.
Why are the mounting bolts on my Miele refrigerator door handle hidden inside the door panel?
Miele's European design philosophy on models like the K 1901 SF/45 routes all structural hardware behind the finished panels to achieve a seamless exterior — no visible screws or bolts on the stainless steel face. This gives the unit its clean built-in appearance but means any handle hardware maintenance requires panel disassembly. It's intentional design, not a flaw — but it does make DIY handle tightening impossible on this model.
Repair Summary
- Brand
- Miele
- Model
- K 1901 SF / 45
- Repair Type
- Door Handle Reattachment with Stripped Thread Repair and Full Door Panel Rebuild
- Refrigerant
- R-134a
- Root Cause
- Stripped handle bolt threads from years of use without retorquing
- Parts Replaced
- ✓No OEM parts replaced — existing handle bolt reused after thread repair and thread locker application
- ✓M6 thread locker (Loctite 243-equivalent medium strength) applied to handle mounting bolt to prevent recurrence
- ✓Door assembly ABS retaining clips inspected; two clips on the lower outer panel replaced with Miele-compatible equivalents (small consumable items damaged during prior handle wobble)
- Location
- League City, TX 77573
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in League City and surrounding areas.
View League City Service Area →📸 Repair Photos

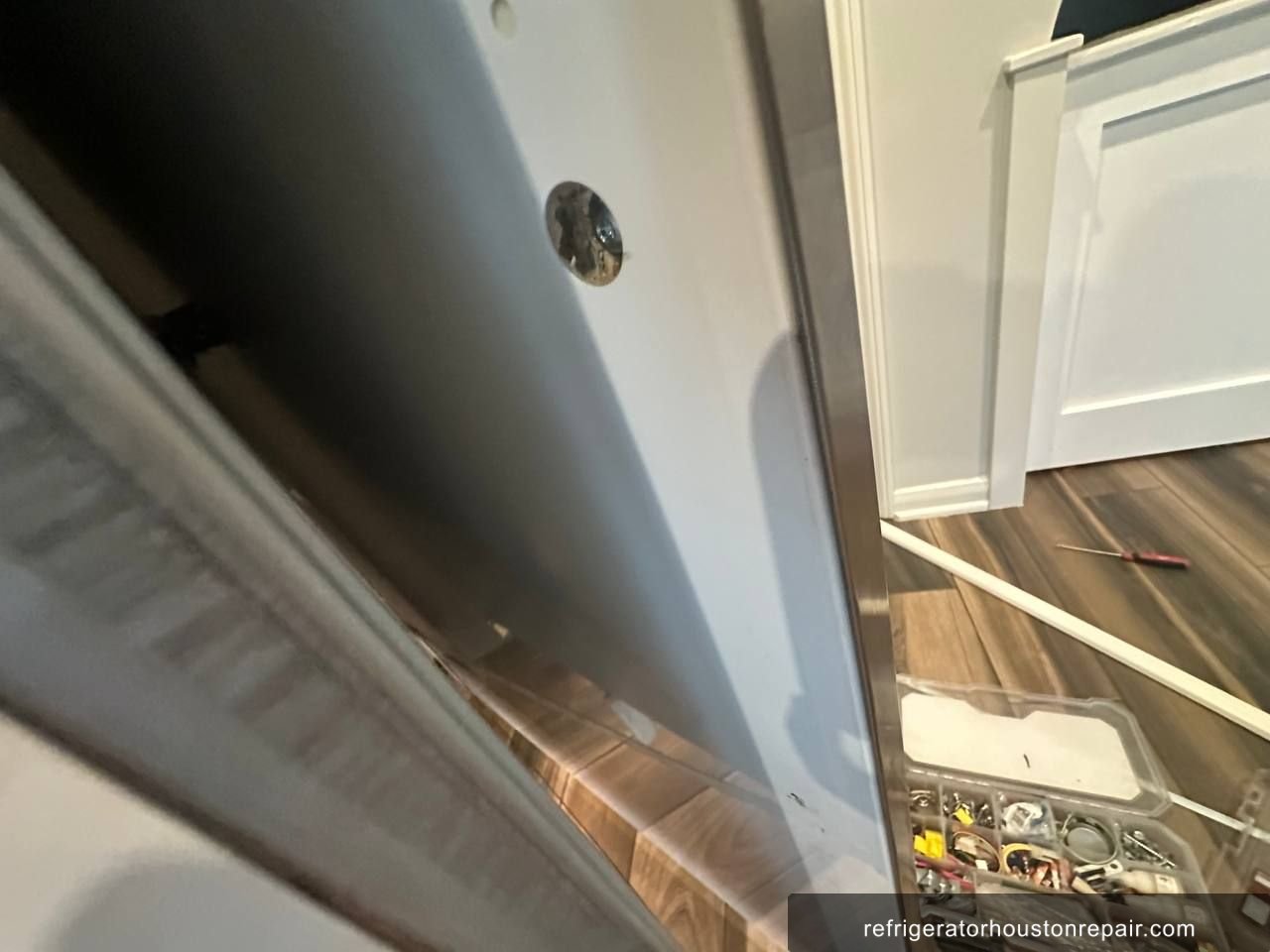

Miele K 1901 SF / 45 repair in League City, TX — photo 3

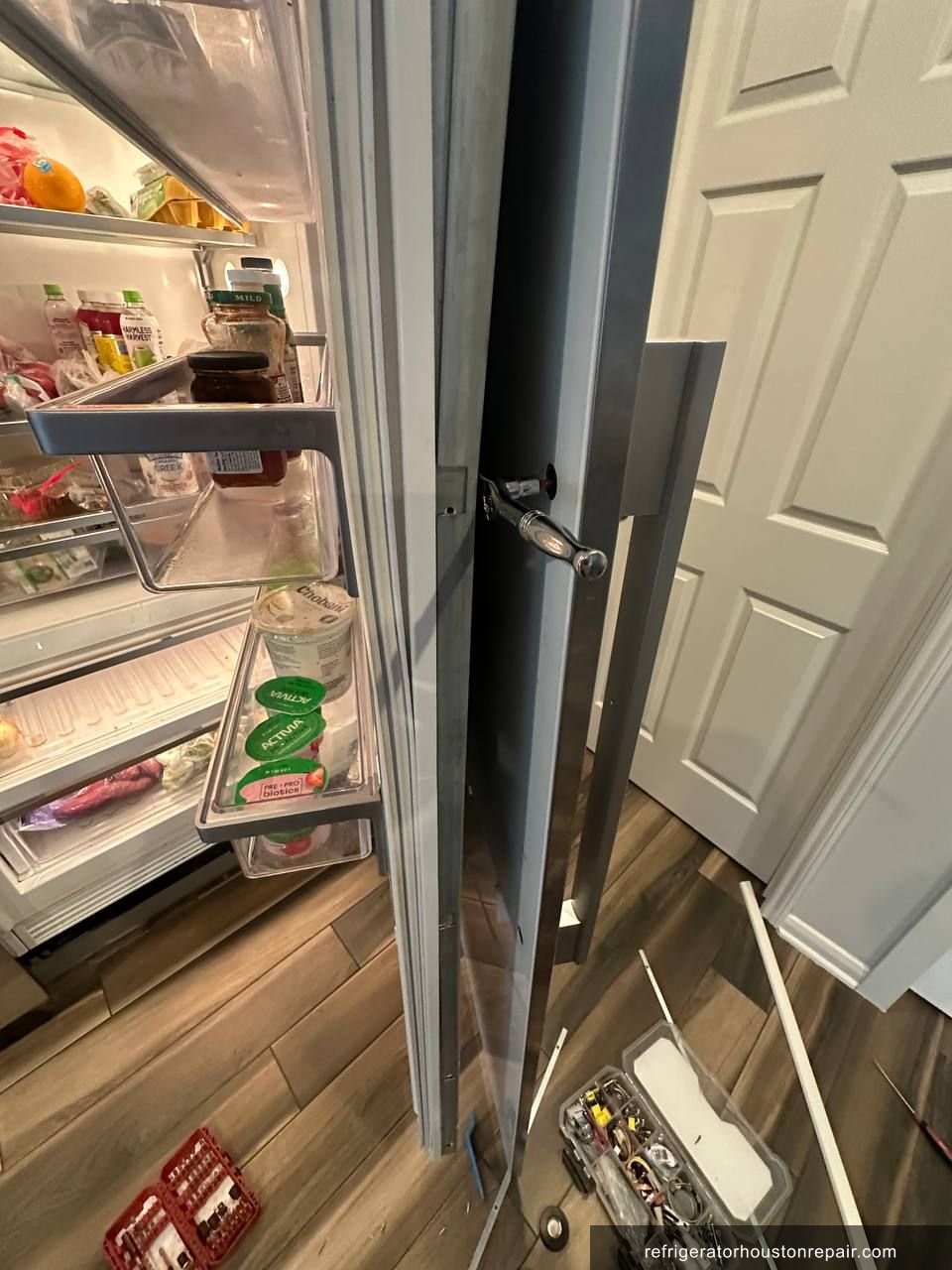

Miele K 1901 SF / 45 repair in League City, TX — photo 4

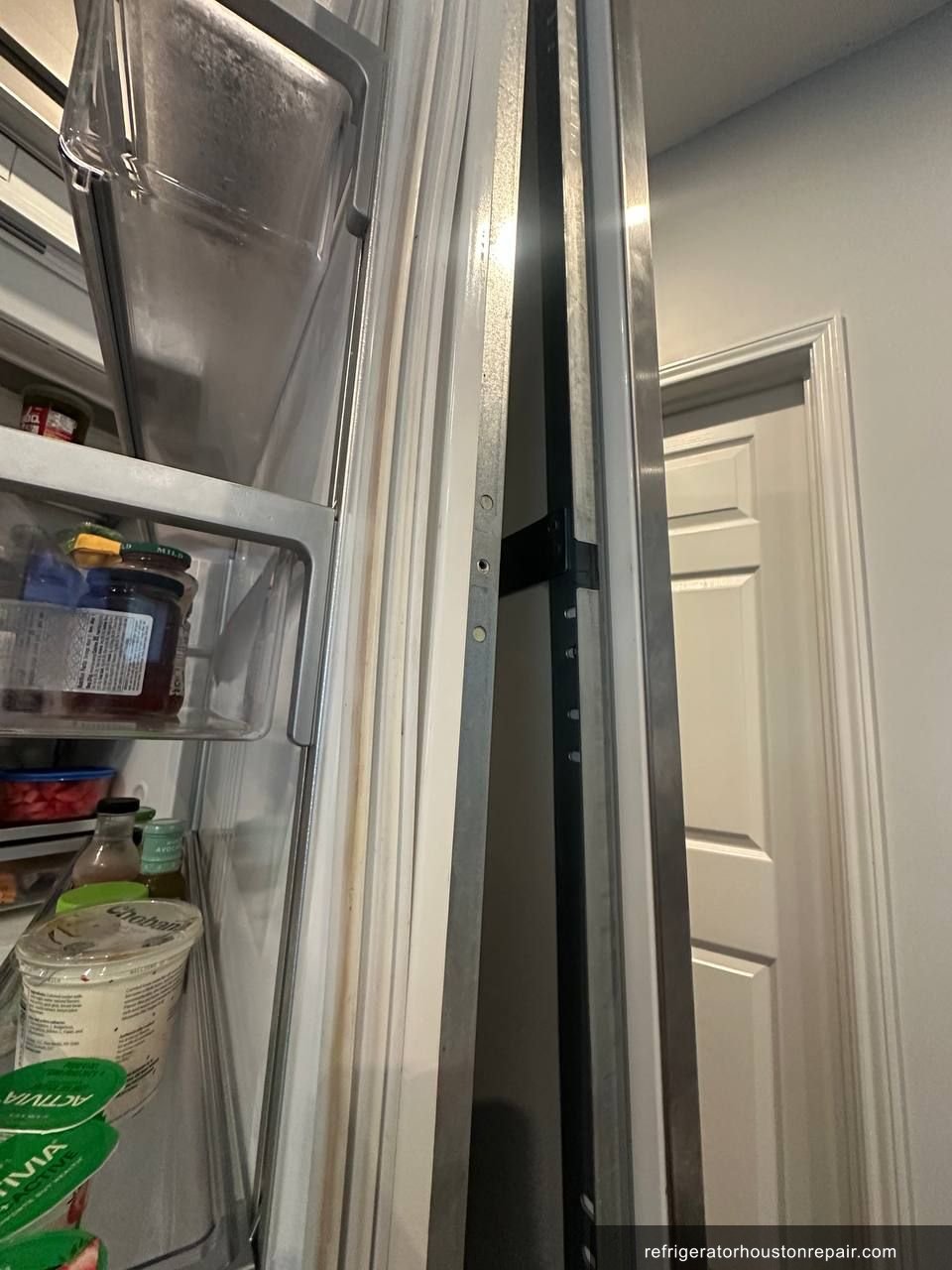

Miele K 1901 SF / 45 repair in League City, TX — photo 5
