The Problem
- •Fresh food compartment temperature rising above 55°F while freezer remained partially cool
- •Compressor running continuously but producing no audible compression stroke
- •No cold air movement through fresh food section vents despite fan operating normally
- •Warm condenser coils with no pressure differential across the sealed system
🔍 Diagnosis
When I arrived at the home in Pearland, the customer told me the fresh food section had stopped cooling entirely. The freezer still had some residual cold, but the fresh food compartment was reading 58°F. The compressor was humming but not building any head pressure. I connected my manifold gauges to the process port and found suction and discharge pressure equalized at 43 psi, which confirmed the compressor was not pumping. On an R-134a system at ambient temperature, I expected to see discharge pressure climb above 150 psi under load. It never moved. I pulled the overload relay and PTC start relay from the compressor terminals. The overload showed continuity loss when cold, which is a clear sign it had failed in the open position. The LG linear compressor used in the LMXS30776S series is known for winding degradation and overload relay failure, often together. I checked compressor winding resistance: the start and run windings read out of spec compared to factory values, confirming internal compressor failure. The filter drier tested saturated by feel and moisture indicator color. With a failed compressor, a saturated drier, and a failed overload relay, a full sealed system overhaul was the correct path forward.
🔧 The Repair
- ✓Step 1: Connected Fieldpiece manifold gauges to the process port and confirmed equalized system pressure at 43 psi with no pressure differential, verifying compressor failure
- ✓Step 2: Recovered 4.76 oz of R-134a refrigerant using a certified recovery machine per EPA 608 protocol before opening the sealed system

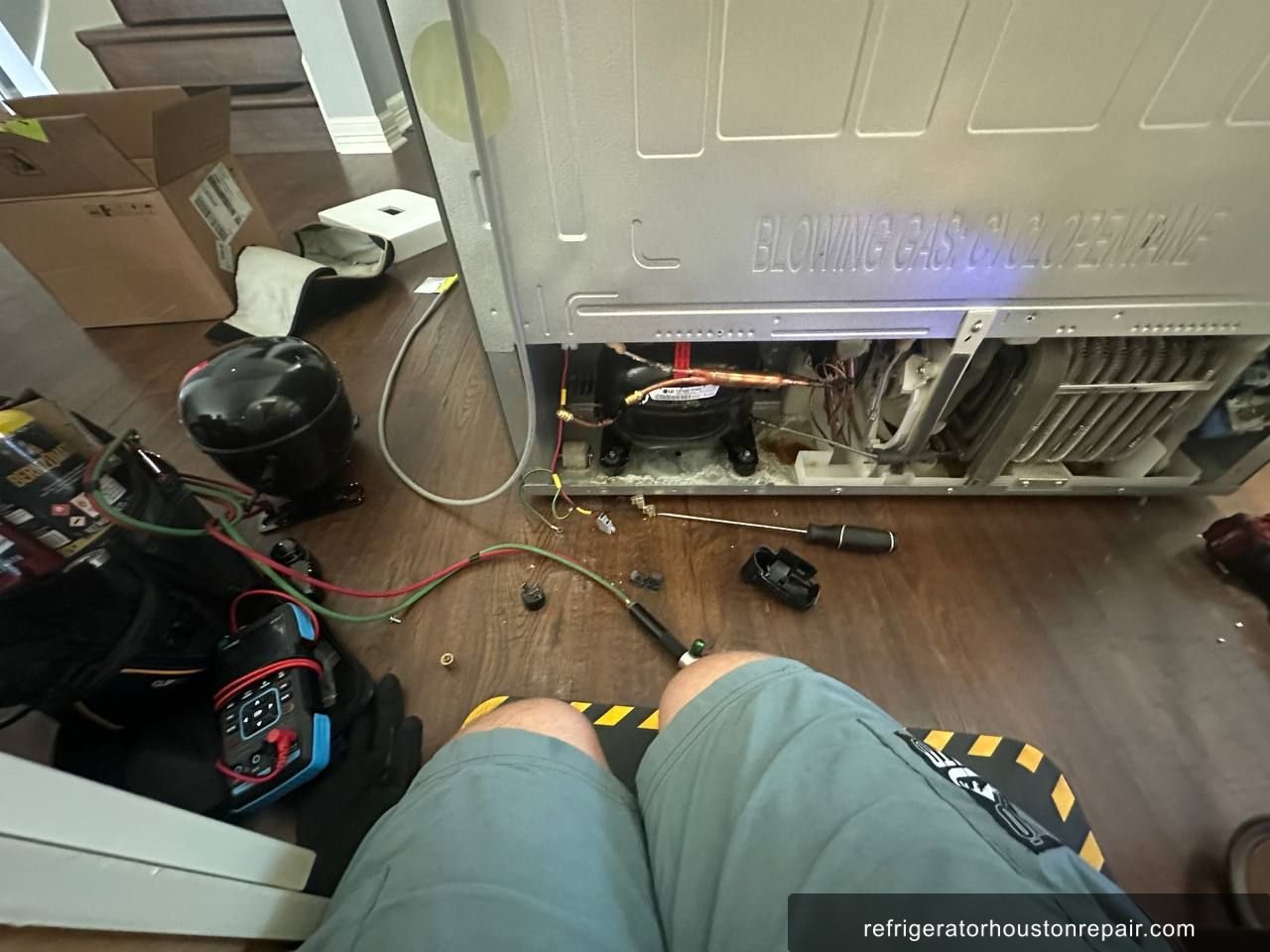

- ✓Step 3: Removed the failed LG linear compressor from the LMXS30776S/04 by cutting the suction and discharge lines at the appropriate locations and unbolting the compressor mounting brackets from the base pan
- ✓Step 4: Removed the saturated filter drier from the liquid line and discarded it along with the old compressor
- ✓Step 5: Installed the replacement compressor, brazing the suction and discharge line connections using nitrogen purge to prevent oxidation scale inside the copper tubing during the brazing process
- ✓Step 6: Installed a new filter drier on the liquid line, brazing connections under nitrogen flow, then pressure tested the sealed system with dry nitrogen at 150 psi for 30 minutes with no pressure drop detected
- ✓Step 7: Pulled a deep vacuum on the system to 200 microns using a two-stage vacuum pump, held the vacuum for 20 minutes to confirm system integrity before charging

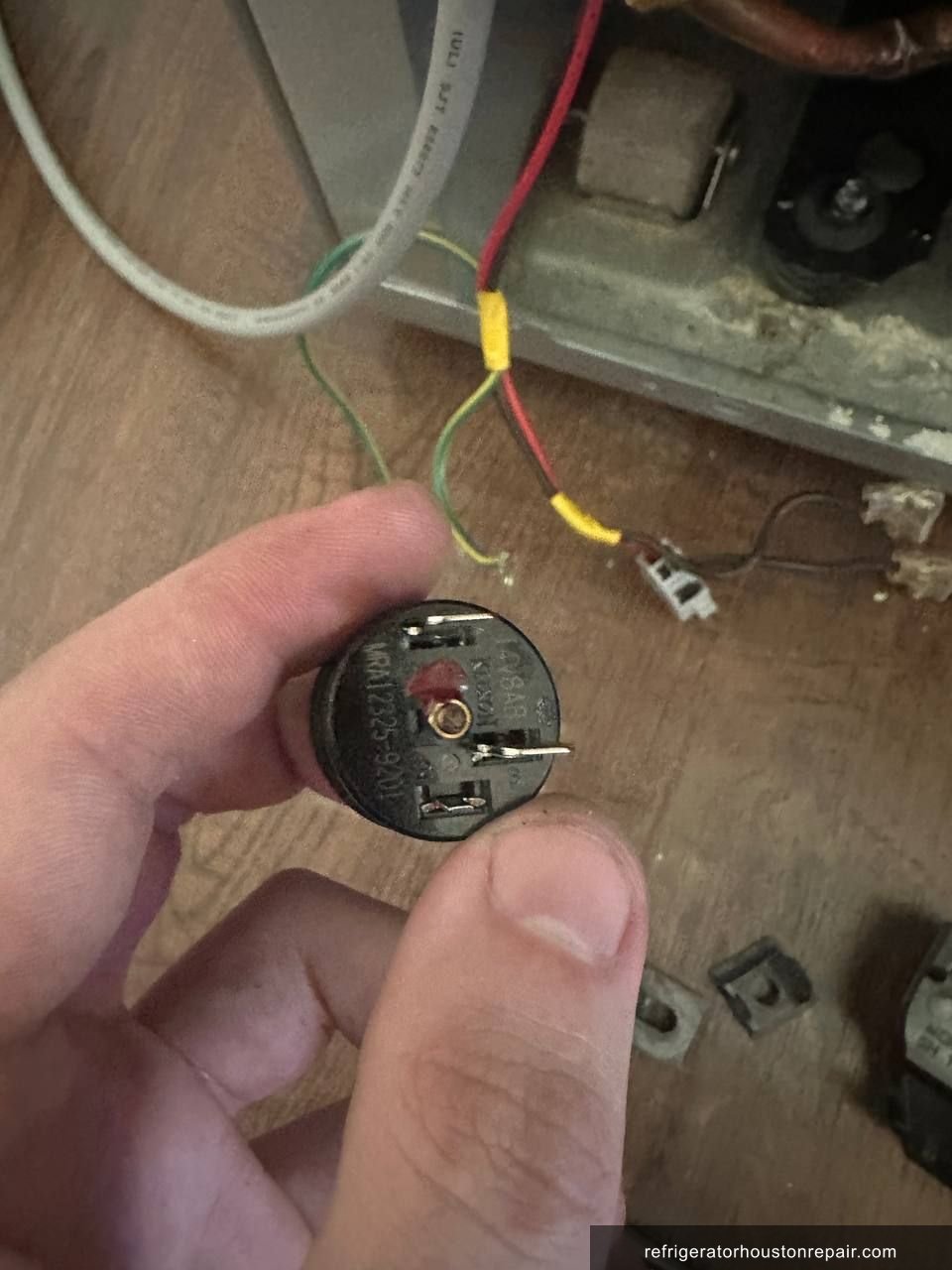

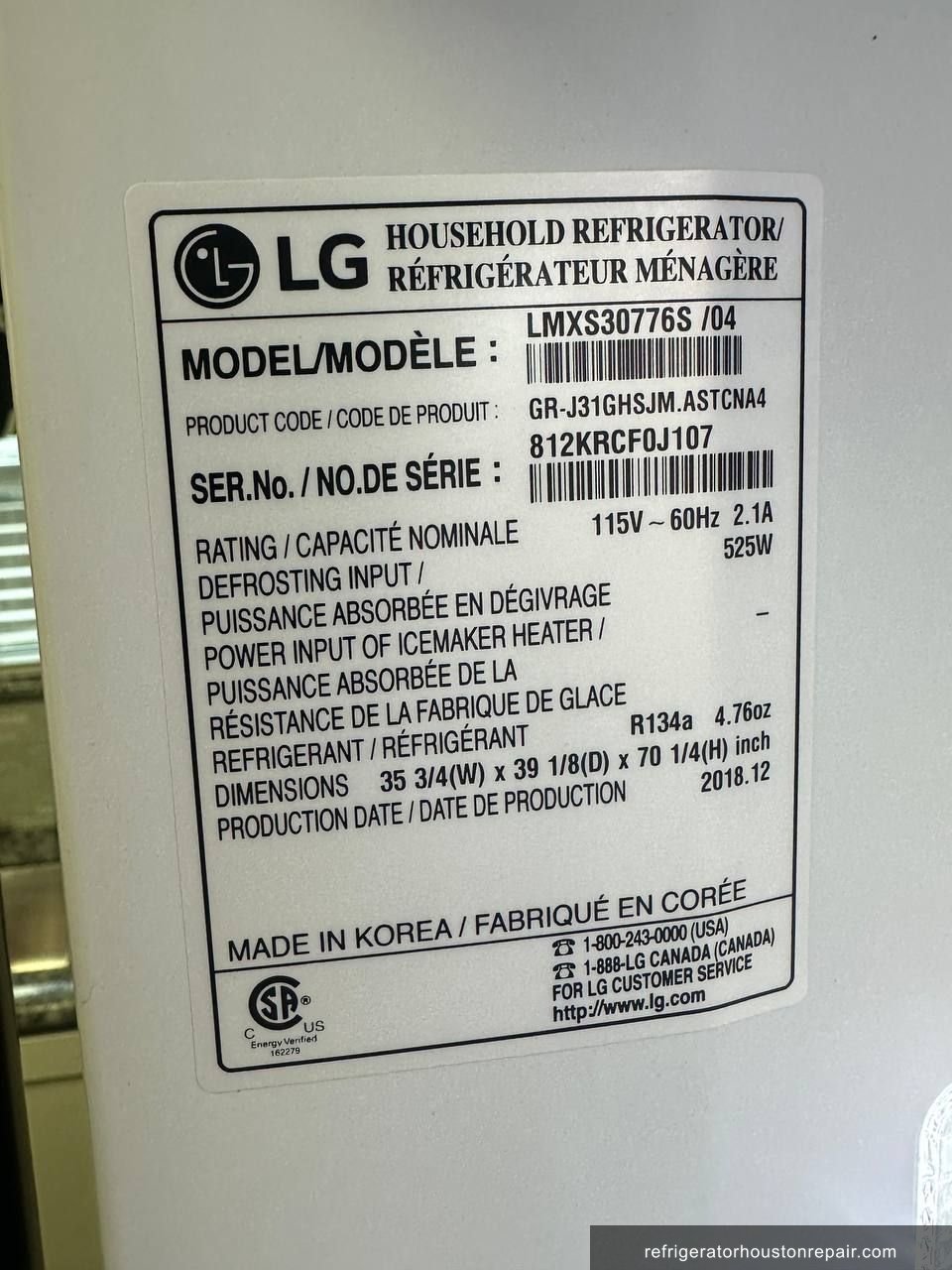

- ✓Step 8: Charged the sealed system with 4.76 oz of R-134a refrigerant by weight per the label specification, installed the new overload relay and PTC start relay on the compressor terminals, and confirmed discharge pressure climbed to 163 psi within 10 minutes of startup. After a 2-hour runtime, fresh food compartment measured 37°F and freezer measured -2°F.
✓ Result
After a 2-hour runtime following the recharge, the fresh food section stabilized at 37°F and the freezer held -2°F. The customer in the Shadow Creek Ranch area of Pearland was relieved because she had a full refrigerator of groceries at risk. She was able to save most of her food. I provided a 90-day warranty on the sealed system repair and parts. The compressor came up to operating speed cleanly with no abnormal noise, and head pressure held steady at expected values throughout the verification period.
💡 Technician Notes
LG French door models in the LMXS30776S series, especially units five or more years old, have a documented pattern of linear compressor failure accompanied by overload relay failure. The early warning sign specific to this failure mode is a compressor that runs continuously without cycling off. On a healthy system, the compressor cycles on and off based on thermostat demand. When the compressor runs non-stop but the fresh food section gradually warms over days, that points to a compressor losing pumping efficiency before it fails completely. Do not ignore that pattern. One maintenance step that matters on this model is keeping the condenser coils clean at the base of the unit. Restricted airflow raises head pressure and shortens compressor life. If your LG fresh food section is warming but the freezer still feels cold, call a technician immediately. Waiting even 48 hours risks spoiled food and gives moisture time to contaminate the refrigerant circuit, which turns a compressor replacement into a more involved flush and recharge job.
Frequently Asked Questions
Why did my LG LMXS30776S stop cooling in the fresh food section but the freezer still worked?
This is a common failure pattern on LG French door refrigerators with linear compressors. The compressor loses pumping capacity and the system prioritizes the freezer evaporator first. The fresh food section, which relies on airflow from the freezer evaporator, loses cooling before the freezer does. By the time the fresh food compartment is warm, the compressor has usually failed completely and needs replacement.
How much does it cost to replace a compressor on an LG French door refrigerator in Pearland TX?
A sealed system repair on an LG French door model like the LMXS30776S, including compressor, filter drier, overload relay, refrigerant recovery, and recharge, typically runs between $600 and $900 in the Houston and Pearland area depending on parts availability. Labor for the brazing, evacuation, and recharge process is significant because it requires EPA 608 certification and specialized equipment.
What happens if I wait to fix a failed LG refrigerator compressor?
Waiting causes food loss first. Beyond that, if the compressor is still attempting to run while failed, it draws high amperage and strains the electrical components. Moisture from warm humid air in the Pearland area entering a system with a compromised sealed circuit contaminates the refrigerant oil, which forces a more extensive cleanup procedure on top of the compressor replacement. The repair cost goes up the longer the system sits open to atmosphere.
Is it worth replacing the compressor on a 7-year-old LG LMXS30776S or should I buy a new refrigerator?
The LMXS30776S is a high-end French door model that retails above $2,000. If the unit is otherwise in good condition with no rust, working ice maker, and intact door seals, a sealed system repair is worth doing at this age. The repair cost is roughly 35 to 45 percent of replacement cost. If the unit is past ten years and has had multiple prior repairs, the calculation shifts toward replacement.
Why does an LG compressor replacement also require replacing the filter drier?
The filter drier is a one-time-use component. Once the sealed system is opened for a compressor swap, the drier is exposed to air and moisture and loses its ability to protect the new compressor from contamination. Installing a fresh filter drier on the liquid line is standard procedure on any sealed system repair. Skipping it risks moisture and acid buildup inside the new compressor, which shortens its life significantly.
Repair Summary
- Brand
- LG
- Model
- LMXS30776S/04
- Repair Type
- Sealed System Overhaul: Compressor, Filter Drier, and Overload Relay Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed compressor with seized overload relay causing total loss of refrigerant circulation
- Parts Replaced
- ✓LG linear compressor (OEM replacement, compatible with LMXS30776S/04 sealed system)
- ✓Filter drier (liquid line, replacement sized for R-134a 4.76 oz charge)
- ✓Overload relay (OEM LG replacement for LMXS30776S compressor terminal assembly)
- ✓PTC start relay (OEM LG replacement, installed alongside overload relay)
- Location
- Pearland, TX 77584
- Status
- ✓ Completed
