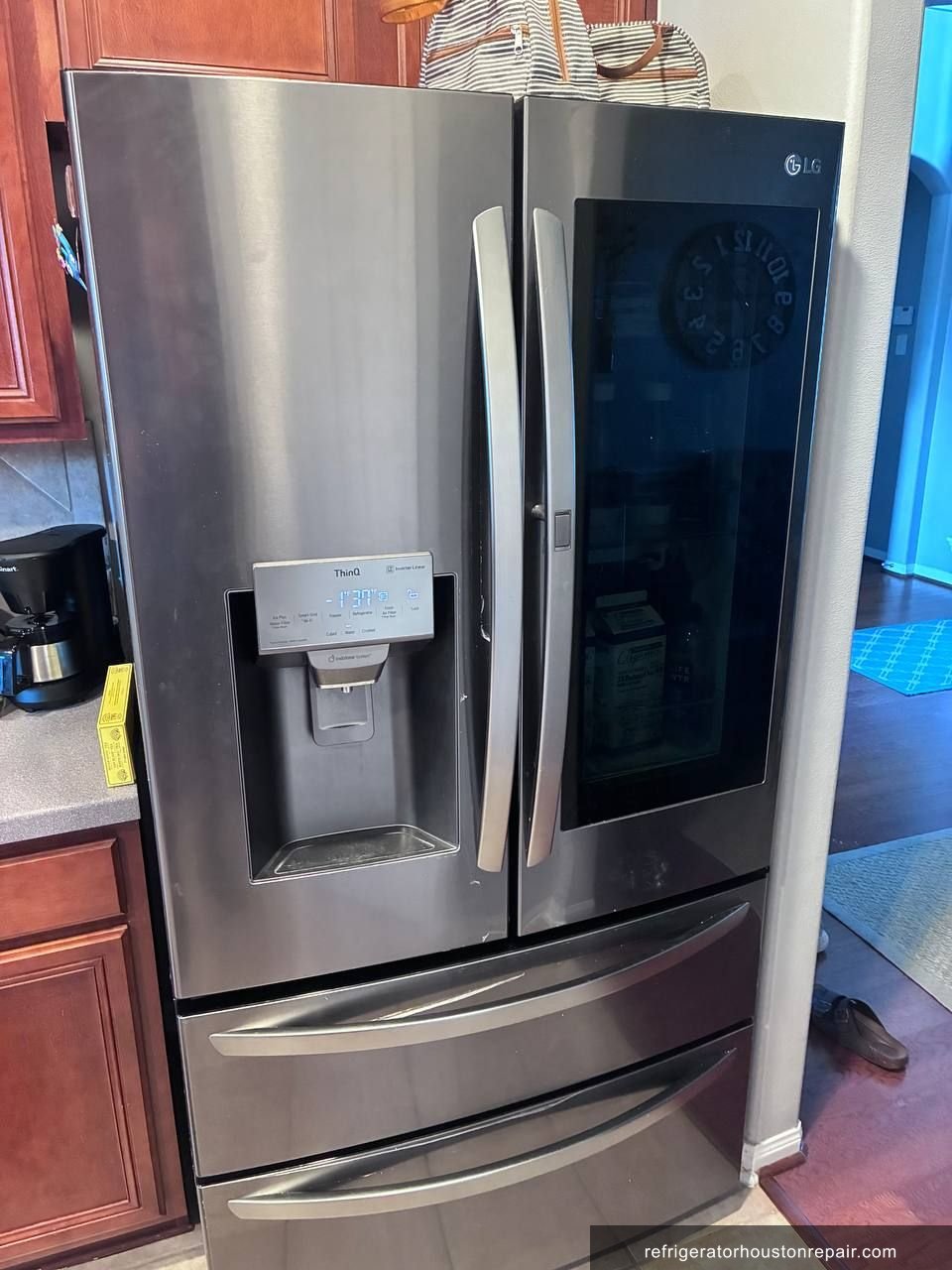

LG LMXS28596D: Inverter Compressor Failure Repaired in Spring, TX
📞 Call (346) 512-3688🔧 Performed by Alex Z.
The Problem
- •Refrigerator and freezer completely lost cooling — all frozen food thawed and spoiled
- •Ice maker stopped producing ice entirely
- •Compressor running continuously but generating no cold air in either compartment
- •No audible change in compressor tone — unit appeared to be running normally but producing zero cooling effect
🔍 Diagnosis
On arrival, both the refrigerator and freezer compartments of the LG LMXS28596D were at ambient room temperature — approximately 78°F throughout. The compressor was energized and running, but no cooling was occurring in either section. The ice maker was completely inoperative as a direct consequence of the thermal failure, not an independent fault. A piercing valve was installed on the low-side service port of the compressor suction line to access the sealed system without cutting refrigerant lines. Manifold gauge readings confirmed the failure: with the compressor running, low-side pressure measured only 12 psi. When the compressor was shut off and pressures equalized, the system settled at 22 psi. On a properly functioning R-600a system, operating low-side pressure should read approximately 0–3 psi under load, with equalized static pressure closer to 30–35 psi at room temperature. The 12 psi running pressure indicates the compressor piston assembly had lost its pumping capacity — it could not pull adequate suction or build discharge pressure. This is a well-documented failure mode in LG's linear inverter compressors used across their French door lineup, including the LMXS28596D. The internal components wear or seize, causing the compressor to spin without generating usable refrigerant flow. The refrigerant charge (R-600a, isobutane) was still present in the system — there was no leak — but the compressor could no longer circulate it.
🔧 The Repair
- ✓Step 1: Installed a piercing valve on the compressor low-side suction tube and connected manifold gauges — recorded 12 psi running pressure and 22 psi static pressure, confirming internal compressor failure with loss of pumping capacity.
- ✓Step 2: Recovered the existing R-600a refrigerant charge from the sealed system using an approved hydrocarbon-compatible recovery machine, following EPA 608 protocol for flammable refrigerants.

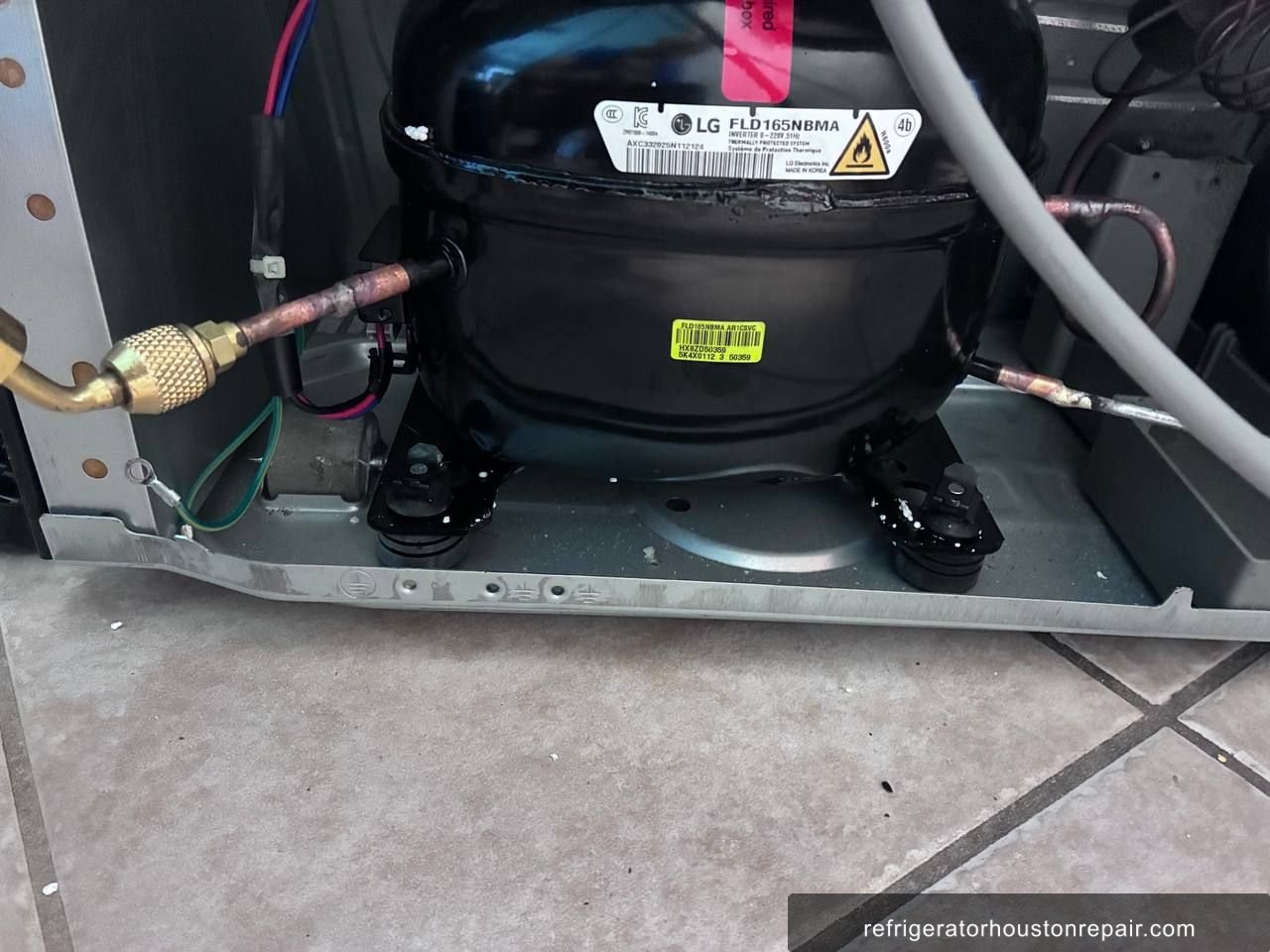

- ✓Step 3: Removed the failed LG linear inverter compressor from the LMXS28596D — disconnected inverter board harness, brazed open the suction and discharge line connections, and removed the compressor from its rubber isolation mounts.
- ✓Step 4: Installed the replacement LG inverter compressor — seated on isolation mounts, brazed suction and discharge lines using nitrogen purge during brazing to prevent internal oxidation scale.
- ✓Step 5: Installed a permanent service valve on the low-side line to allow future refrigerant access without piercing valves.
- ✓Step 6: Replaced the inline dryer filter (desiccant filter) to eliminate any moisture or contaminants introduced during the compressor swap — critical on R-600a systems where moisture causes acid formation.
- ✓Step 7: Evacuated the sealed system to below 200 microns using a vacuum pump, held vacuum for 30 minutes to confirm no leaks before charging.

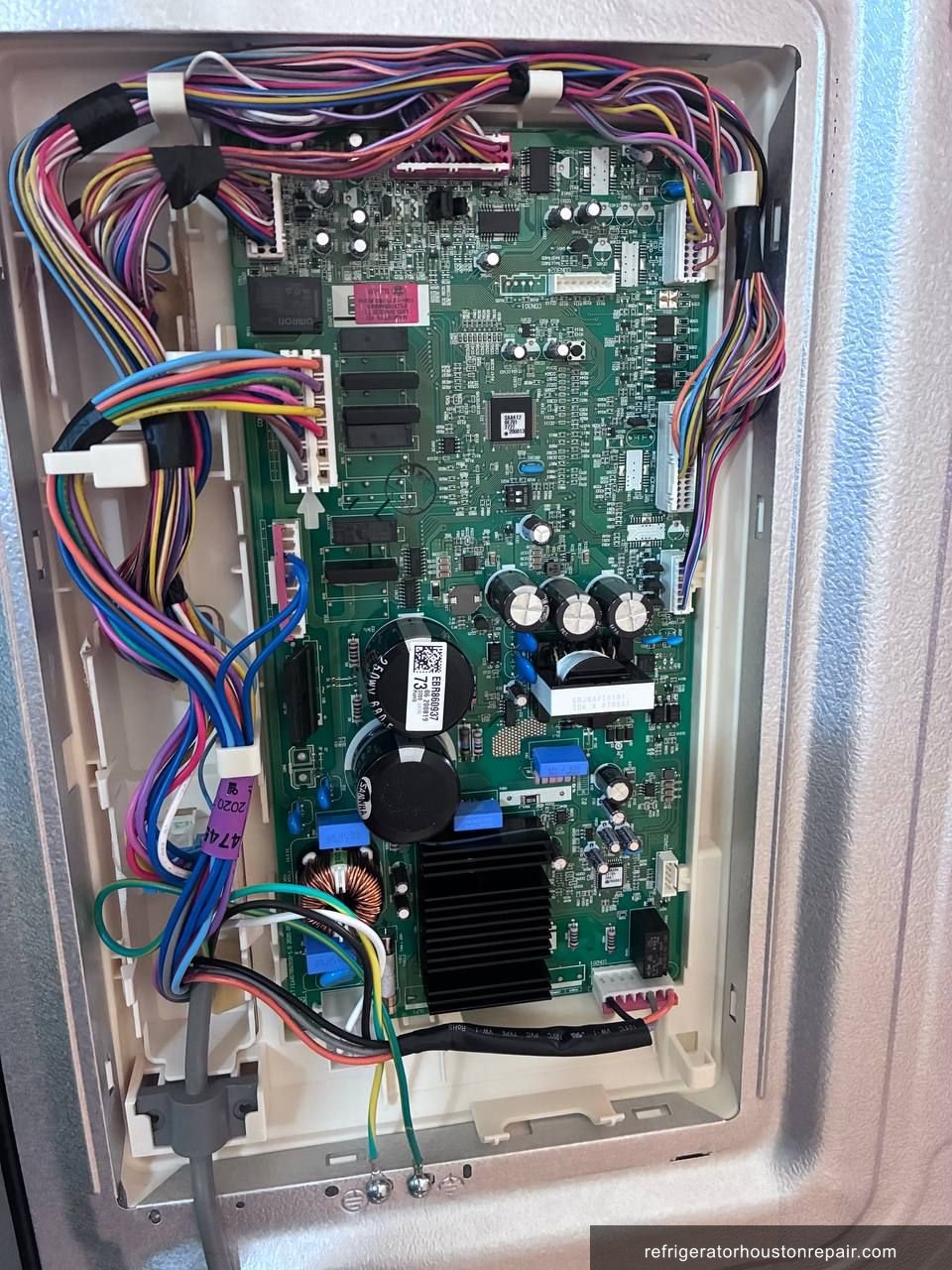

- ✓Step 8: Charged the system with R-600a refrigerant to manufacturer specification by weight. Updated the compressor inverter board software to ensure compatibility with the replacement compressor. After a 2-hour runtime, freezer measured -4°F and fresh food compartment measured 36°F — both within LG factory spec.
✓ Result
After a 2-hour runtime post-repair, the LG LMXS28596D was holding -4°F in the freezer and 36°F in the fresh food section — factory operating range fully restored. The ice maker resumed normal cycling within 24 hours as the evaporator reached operating temperature. The repair was completed same-day at the Spring, TX 77379 location. The homeowner was relieved the unit was back online quickly; they had already lost a full freezer of groceries and were grateful to avoid replacing the entire refrigerator.
💡 Technician Notes
LG's linear inverter compressors — used across the LMXS28596D and most of LG's French door line — have a higher-than-average failure rate compared to traditional reciprocating compressors. The earliest warning sign specific to this failure is subtle: the refrigerator starts running longer cycles to maintain temperature, sometimes weeks before it stops cooling entirely. If your LG is running almost continuously but temperatures are still acceptable, that's the window to call — catching it early means diagnosing before total food loss. One maintenance step that reduces stress on the compressor: keep the condenser coils clean. On the LMXS28596D, coils are at the rear-bottom behind a kick plate. Dust buildup forces the compressor to work harder and run hotter, accelerating wear on the linear piston mechanism. If your LG suddenly stops cooling completely and the compressor is still running — don't wait 48 hours hoping it recovers. A running compressor with no cooling almost always means sealed system failure, and every hour of delay risks more food loss. Call same day.
Frequently Asked Questions
Why did my LG LMXS28596D stop cooling even though the compressor is still running?
On the LG LMXS28596D, a running compressor with no cooling almost always points to internal compressor failure. The linear inverter piston wears out and loses pumping capacity — the motor keeps spinning but can no longer circulate refrigerant. A manifold gauge test on the low-side port confirms it instantly: a healthy R-600a system runs near 0–3 psi under load; a failed one reads 10–15 psi or higher.
How much does it cost to replace the compressor on an LG French door refrigerator in Spring, TX?
LG inverter compressor replacement on models like the LMXS28596D typically runs between $600–$950 in the Houston area, depending on parts availability and whether a full sealed system service (dryer filter, vacuuming, R-600a recharge) is included. That full sealed system overhaul is not optional — skipping the dryer filter or vacuum step after a compressor swap leads to premature repeat failure.
What happens if I ignore a failing compressor on my LG refrigerator?
Once the LG inverter compressor loses pumping capacity, cooling stops completely — there's no partial cooling state. Everything in both the freezer and fresh food sections will reach room temperature within 4–8 hours. Beyond food loss, running a failing compressor continuously can overheat the inverter board, turning a single-part repair into a more expensive two-part fix. Act the same day cooling stops.
Is it worth repairing an LG LMXS28596D compressor or should I just replace the refrigerator?
The LMXS28596D is a 28 cu. ft. four-door French door unit that retails for $2,500–$3,000 new. If the sealed system is otherwise intact — no refrigerant leak, no evaporator damage — a compressor replacement at $600–$950 is clearly worth it. The break-even math only changes if the unit is over 12 years old or has multiple simultaneous failures. A compressor swap on an otherwise sound unit routinely delivers another 5–8 years of service.
Why does an LG inverter compressor replacement require a software update?
LG's linear inverter compressors are controlled by a dedicated inverter board that runs firmware matched to the compressor's specific operating parameters — stroke frequency, current limits, and fault thresholds. Installing a replacement compressor without updating the inverter board software can cause the board to misread the new unit's performance, trigger false fault codes, or run the compressor outside safe parameters. The software update ensures the board and compressor communicate correctly from day one.
Repair Summary

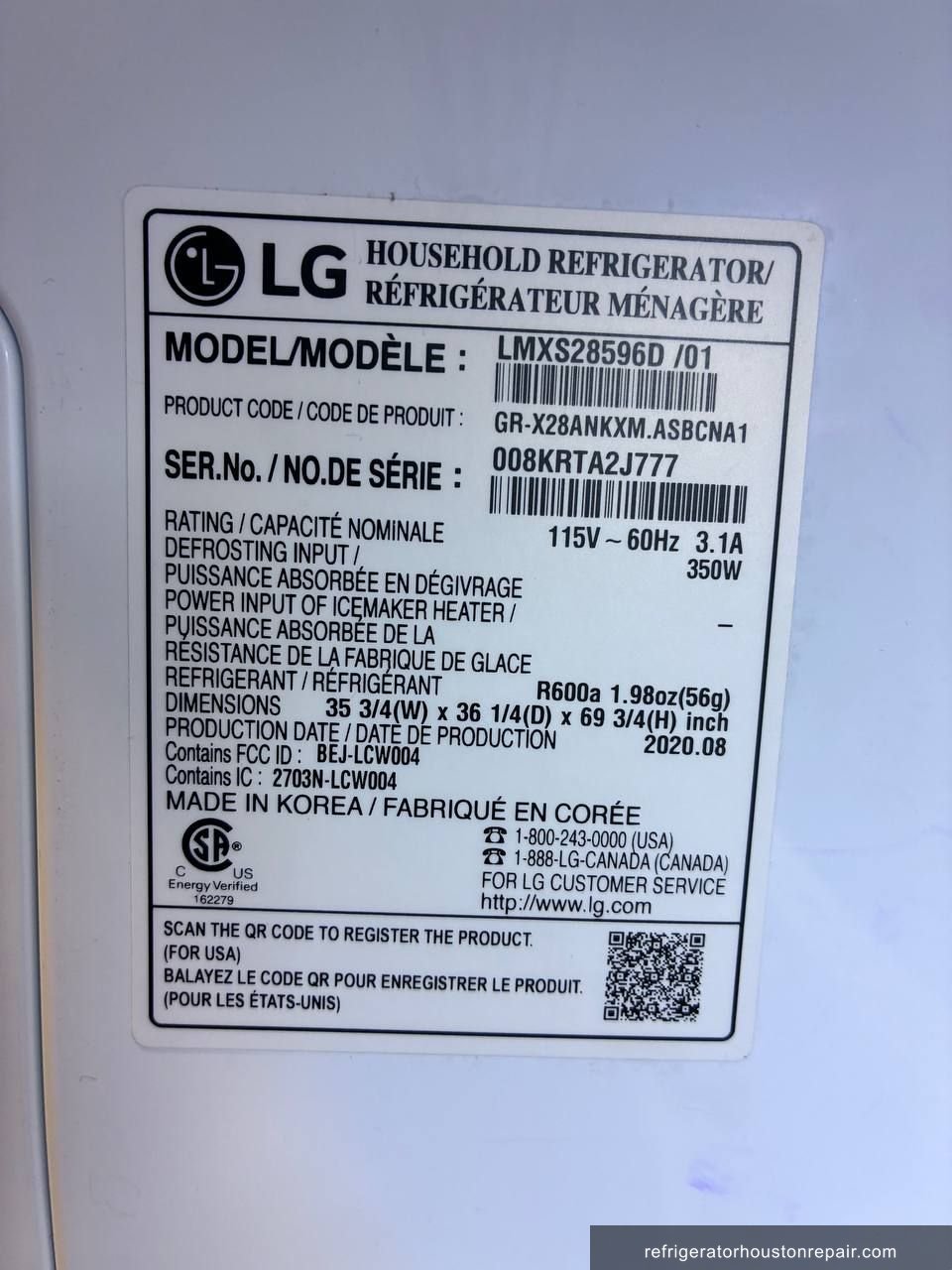

- Brand
- LG
- Model
- LMXS28596D /01
- Repair Type
- Sealed System Overhaul / Inverter Compressor Replacement
- Refrigerant
- R-600a
- Root Cause
- Failed LG inverter compressor with critically low pumping pressure
- Parts Replaced
- ✓LG Linear Inverter Compressor (OEM replacement unit, compatible with LMXS28596D /01 sealed system)
- ✓Inline refrigerant dryer filter (desiccant type, R-600a compatible)
- ✓Low-side service valve (permanent access fitting, brazed installation)
- ✓Piercing valve (used for initial diagnosis, removed after service valve installation)
- Location
- Spring, TX 77379
- Status
- ✓ Completed
