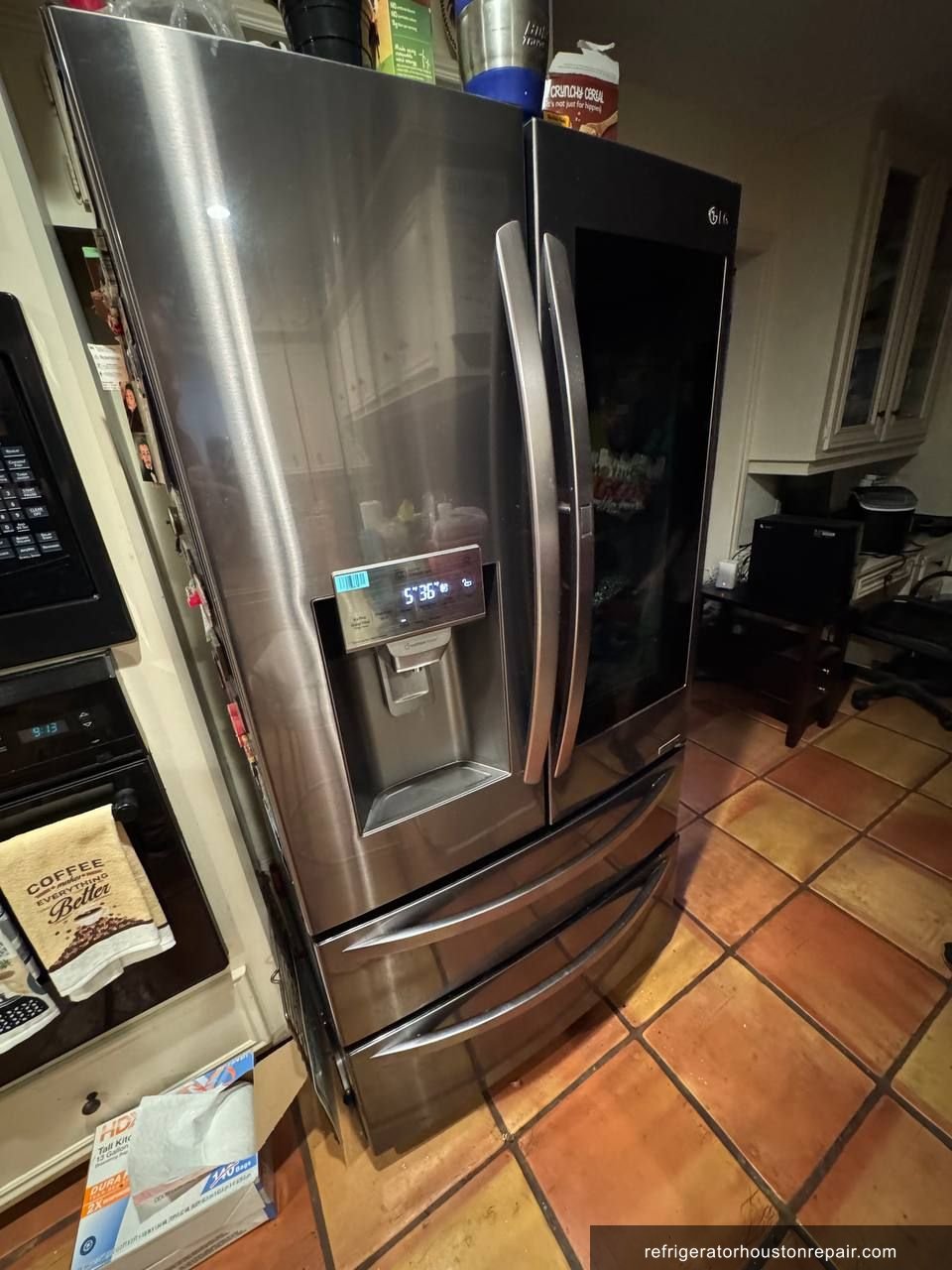

LG LMXS28596001: Ice Maker Failure & Massive Freezer Frost Buildup in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Ice maker completely stopped producing ice

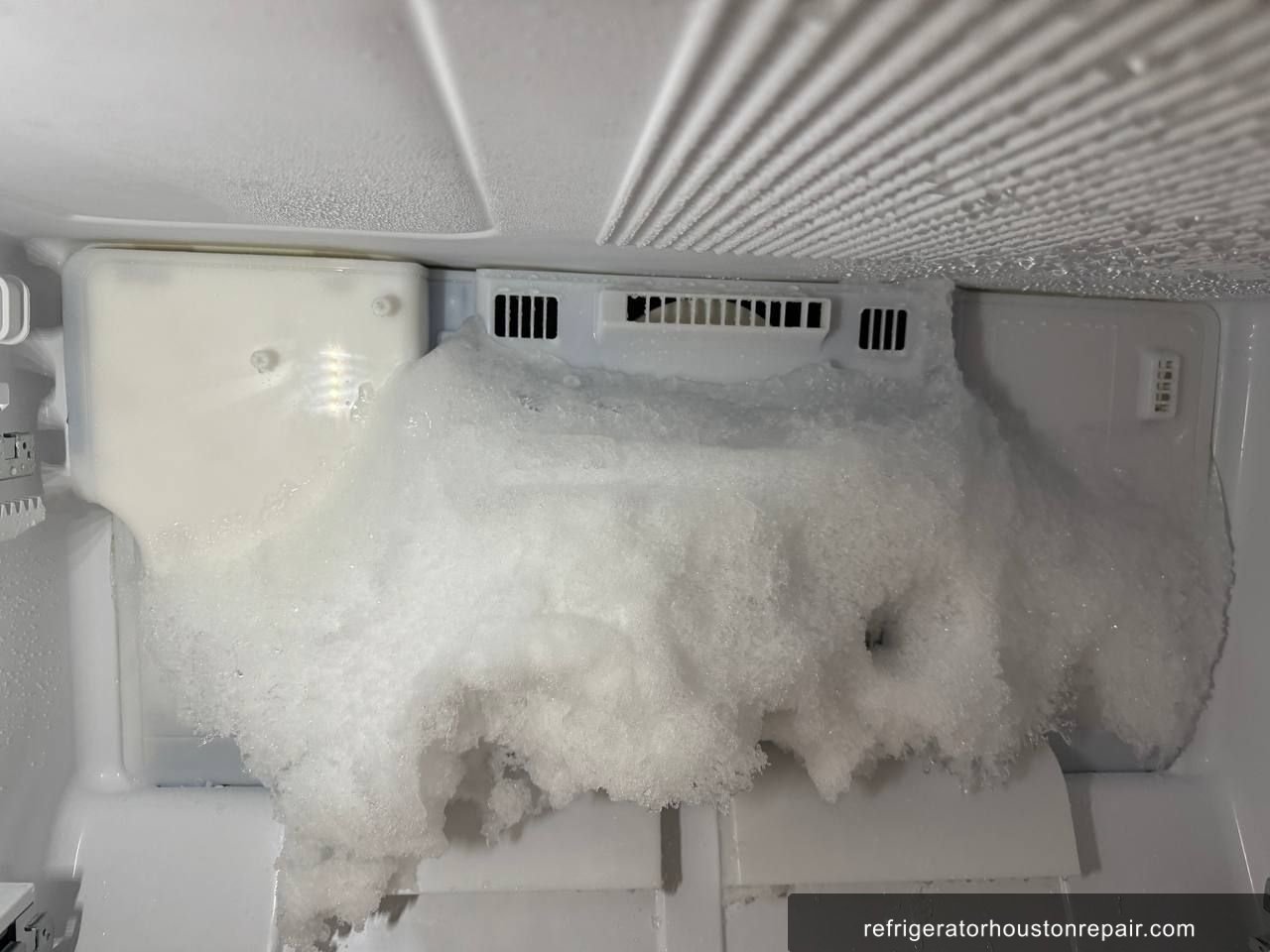

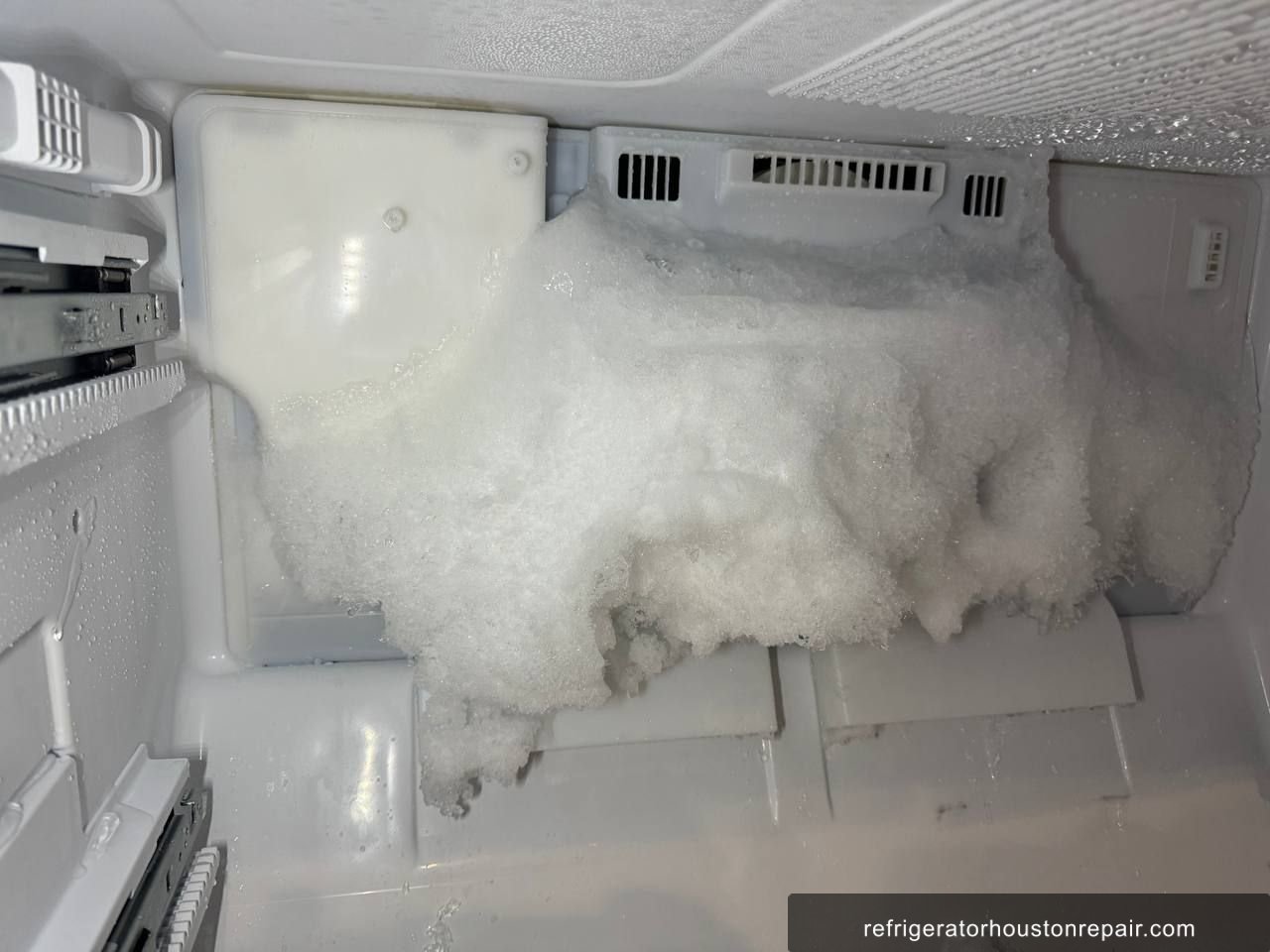

- •Freezer rear wall buried under several inches of compacted frost — visible immediately upon opening the door
- •Refrigerator not reaching proper cooling temperatures despite compressor running
- •Water pooling inside freezer drawer compartment during ice maker fill cycle due to deformed ice tray
🔍 Diagnosis

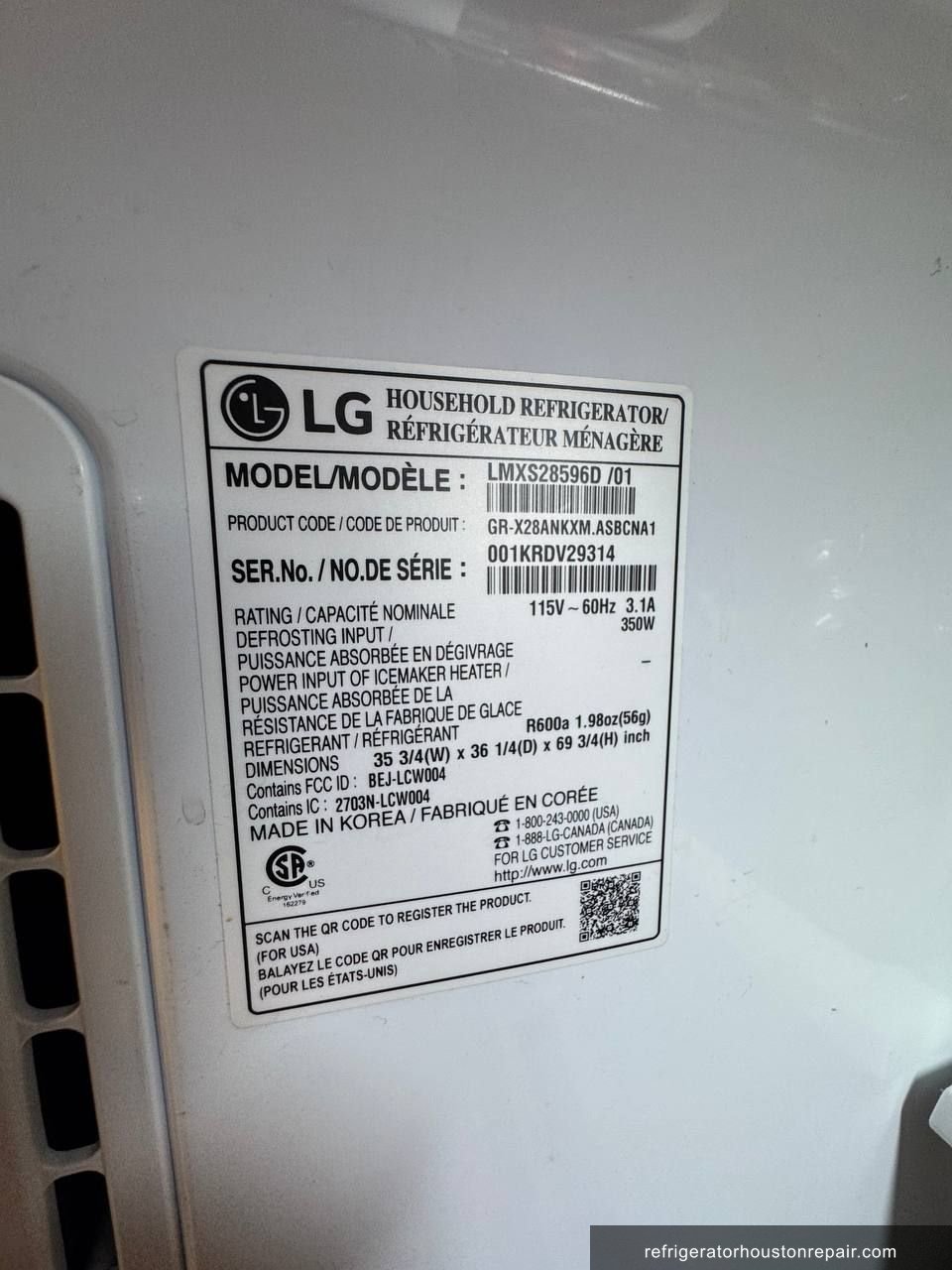

On arrival at the 77040 property, the freezer section of the LG LMXS28596001 — a French door model running R-600a at a factory charge of 1.98 oz (56g) — showed an immediate and obvious anomaly: the entire rear evaporator wall was encased in a dense, compacted frost block several inches thick. Ambient freezer temp had climbed to roughly 18°F instead of the expected 0°F, confirming that airflow across the evaporator coil was nearly zero. The frost mass had insulated the coil completely, preventing heat exchange. A thermal imaging scan of the evaporator panel showed near-uniform cold with no temperature differential — classic total frost blockage. Refrigerant pressures were not checked at this stage because the sealed R-600a system showed no signs of leak (no oil traces, no odor, compressor cycling normally), which pointed squarely at an airflow problem rather than a refrigerant fault. The root cause was mechanical: a food bag had fallen from a shelf and wedged itself under the freezer drawer, preventing it from seating fully. That gap — even a few millimeters — allowed warm, humid Houston air to continuously enter the freezer, condense on the cold evaporator, and build up over days into the frost mountain found on-site. The ice maker inspection revealed secondary damage: the ice tray assembly had physically deformed, likely from repeated thermal stress and ice-over, causing it to leak water during every fill cycle instead of directing it into the mold properly.
🔧 The Repair
- ✓Step 1: Removed all food from the freezer compartment and documented the extent of frost accumulation — frost layer measured approximately 3–4 inches thick across the full rear evaporator panel.
- ✓Step 2: Used a commercial steam defrost tool (steamer) to methodically melt the frost block from the rear evaporator wall, working section by section to avoid thermal shock to the evaporator tubing.
- ✓Step 3: Evacuated meltwater continuously with towels and a wet/dry extraction method — total water removed was substantial, confirming the frost had built up over an extended period.
- ✓Step 4: Dried all interior surfaces thoroughly, including the evaporator housing, drawer channels, and rear wall, using clean dry cloths to eliminate any residual moisture that could re-freeze immediately.
- ✓Step 5: Inspected the freezer drawer slides and rails — found debris and slight corrosion from chronic moisture exposure. Cleaned the tracks and applied food-grade, freeze-resistant lubricant (silicone-based, rated to -40°F) to all drawer guide surfaces to restore smooth, full-close operation.
- ✓Step 6: Confirmed drawer now seals flush against the cabinet with no gap — this was the critical fix preventing warm air re-entry.
- ✓Step 7: Disconnected and removed the deformed LG ice maker assembly. Installed a direct OEM-equivalent replacement ice maker unit compatible with the LMXS28596001, reconnected the water line and wiring harness, and verified the fill valve opened and closed cleanly without leaking at the tray.
- ✓Step 8: Powered the unit back on, ran a 2-hour monitoring cycle. Final readings confirmed: Freezer at 1°F, Fresh food compartment at 37°F. Ice maker completed its first fill cycle with no leaking. All temperatures stable and within LG factory specifications.
✓ Result
After manual defrost and ice maker replacement, the LG LMXS28596001 returned to full operation within the same service visit in the 77040 area of Houston. Freezer stabilized at 1°F and the fresh food section settled at 37°F within two hours. The ice maker ran its first cycle cleanly with zero leaking. The customer was relieved — they had assumed the compressor was failing and were bracing for a much larger expense. Once they saw the frost block and the misaligned drawer, it all made sense. They were back to full cooling the same afternoon.
💡 Technician Notes
LG French door models like the LMXS28596001 use drawer-style freezer compartments with bottom-mounted evaporators, and that design has one real Achilles heel: the drawer seal. Unlike a traditional door gasket you can feel and tug on, a drawer that's even slightly out of alignment gives you no obvious visual warning — it just looks closed. The earliest sign of this specific problem on this LG model is unusually fast frost re-accumulation on items stored near the rear wall, or frost appearing on the exterior trim around the drawer. If you notice that within a week or two of defrosting, the drawer alignment is your first suspect — not the defrost heater. Every 6 months, pull the freezer drawer out fully, check that nothing has migrated underneath it, clean the tracks, and feel for any resistance in the close. Food-grade silicone lubricant on the drawer runners is cheap insurance. If frost is already visibly thick on the rear wall — more than a quarter inch — don't wait. That frost layer compounds fast in Houston humidity, and what starts as an airflow issue can eventually stress the defrost thermistor and heater circuit from prolonged duty cycles.
Frequently Asked Questions
Why is the back wall of my LG French door freezer covered in thick snow and ice?
On LG French door models like the LMXS28596001, the most common cause isn't a defrost failure — it's a drawer that isn't sealing fully. Humid Houston air sneaks in through even a small gap and freezes on contact with the evaporator wall. Check whether anything is blocking the drawer from closing completely before assuming a component has failed.
How much does it cost to replace an ice maker on an LG French door refrigerator in Houston?
For an LG model like the LMXS28596001, ice maker replacement in Houston typically runs $200–$380 including parts and labor, depending on parts availability and whether additional issues like water valve replacement are needed. If a manual defrost is also required at the same visit — as in this case — expect the total to land in the $300–$500 range for both repairs combined.
What happens if I just let the frost build up in my LG freezer and don't defrost it?
Left unaddressed, that frost block will eventually insulate the evaporator coil completely. The freezer temperature will rise, food will spoil, and the compressor will run continuously trying to compensate. Prolonged overrun can overheat the compressor on R-600a systems and cause sealed system damage — turning a $350 manual defrost call into a $700–$1,200 sealed system repair or a full replacement.
Is it worth repairing an LG LMXS28596001 ice maker, or should I just replace the fridge?
The LMXS28596001 is a high-capacity French door unit with a retail replacement cost of $2,000–$2,800. An ice maker replacement is a straightforward mechanical fix well under $400. Unless the sealed R-600a system is compromised or the main control board has failed, repairs on this model are almost always worth it — especially if the refrigerator is under 10 years old.
Why did the LG ice maker tray warp and start leaking water?
On LG ice makers, the tray assembly is plastic and sits in a below-freezing environment, but if frost buildup surrounds and stresses the unit — or if the water inlet fill rate is slightly high — repeated freeze-thaw cycles cause the tray to deform over time. Once warped, the tray no longer holds water level during the fill cycle, causing it to overflow and leak into the drawer below rather than freezing properly into cubes.
Repair Summary
- Brand
- LG
- Model
- LMXS28596001
- Repair Type
- Ice Maker Replacement & Manual Freezer Defrost
- Refrigerant
- R-600a
- Root Cause
- Dislodged food bag blocking freezer drawer, causing warm air infiltration and ice maker warping from water overflow
- Parts Replaced
- ✓LG Ice Maker Assembly — OEM-equivalent replacement unit compatible with LMXS28596001, resolving tray deformation and fill-cycle leaking
- Location
- Houston, TX 77040
- Status
- ✓ Completed
