LG LMXS27626S: Linear Compressor Failure After 11.5 Years in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Refrigerator was cooling normally the evening before, but all food thawed and spoiled by the following morning
- •Compressor audible and running, but no cooling detected in either the fresh food or freezer compartments
- •Both the fresh food and freezer sections reached ambient room temperature, approximately 75 to 78 degrees F
- •Ventilation grilles at the rear base of the unit were completely blocked with dust and debris buildup
🔍 Diagnosis

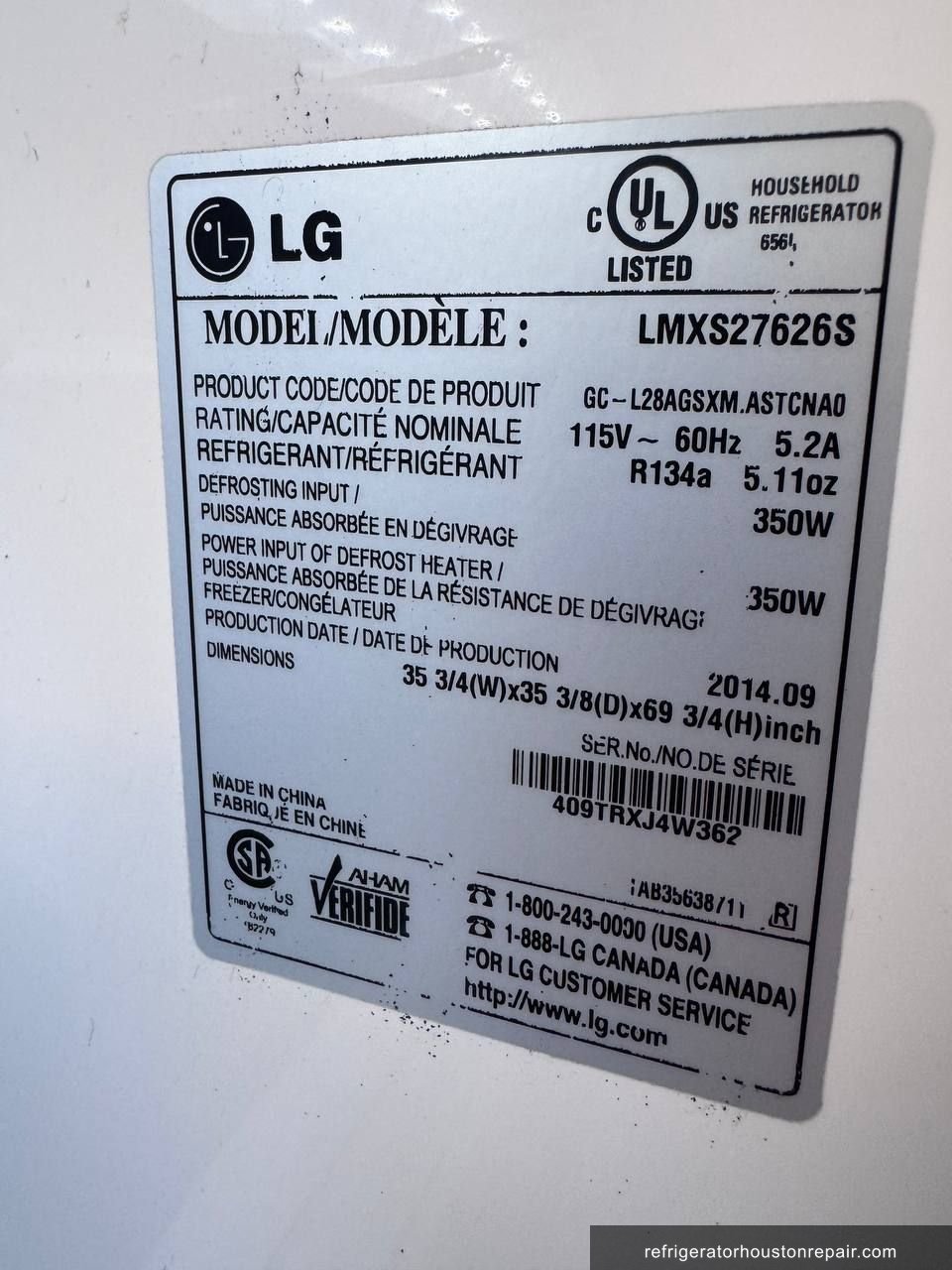

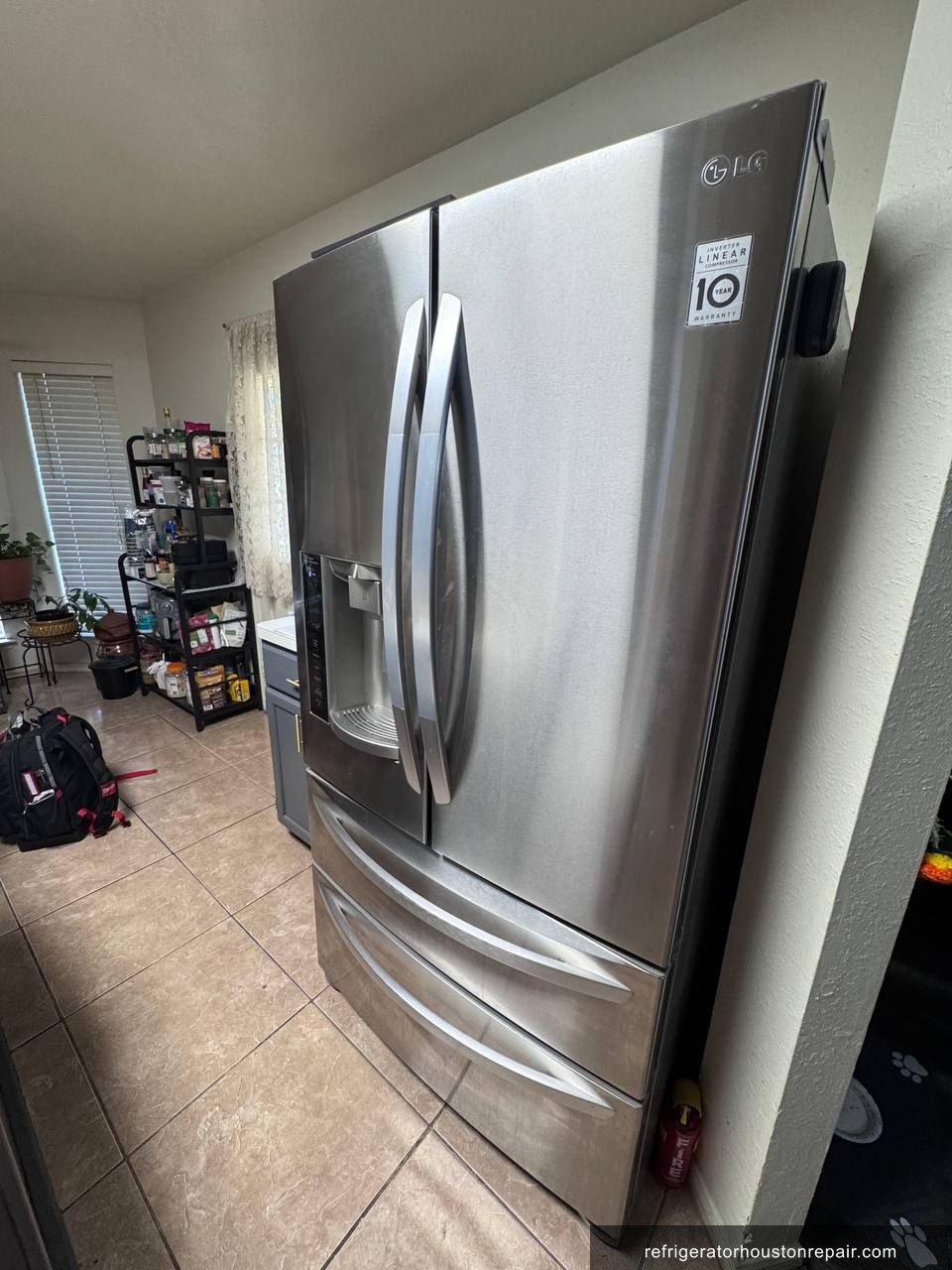

When I arrived at the home in the 77083 ZIP code, the LG LMXS27626S French door refrigerator had been warm since early that morning. The customer confirmed it was cooling fine the night before. I checked both compartments with my digital thermometer and found fresh food at 74 degrees F and the freezer at 72 degrees F. No temperature differential at all. I pulled the unit away from the wall and immediately noticed the rear ventilation grilles were packed solid with dust and lint, which restricts airflow around the condenser area and forces the compressor to run hotter than designed. I connected my manifold gauges to check the R-134a system. The unit carries a 5.11 oz charge per the data plate. I found the system had equalized pressure on both high and low sides, sitting at around 60 PSI static with no differential, which tells me the compressor is not pumping. I checked compressor winding resistance with my clamp meter and got readings consistent with a worn linear compressor that has lost its pumping ability entirely. The compressor was still producing sound and drawing current, but it was no longer building any pressure differential. This is a known failure pattern for LG linear compressors in this generation of models. At 11.5 years of runtime, this unit outlasted many of its peers. The blocked ventilation almost certainly shortened its remaining service life by forcing the motor to run at elevated temperatures for an extended period.
🔧 The Repair
- ✓Step 1: Confirmed no cooling in either compartment using a calibrated digital probe thermometer. Fresh food section read 74 degrees F, freezer read 72 degrees F.

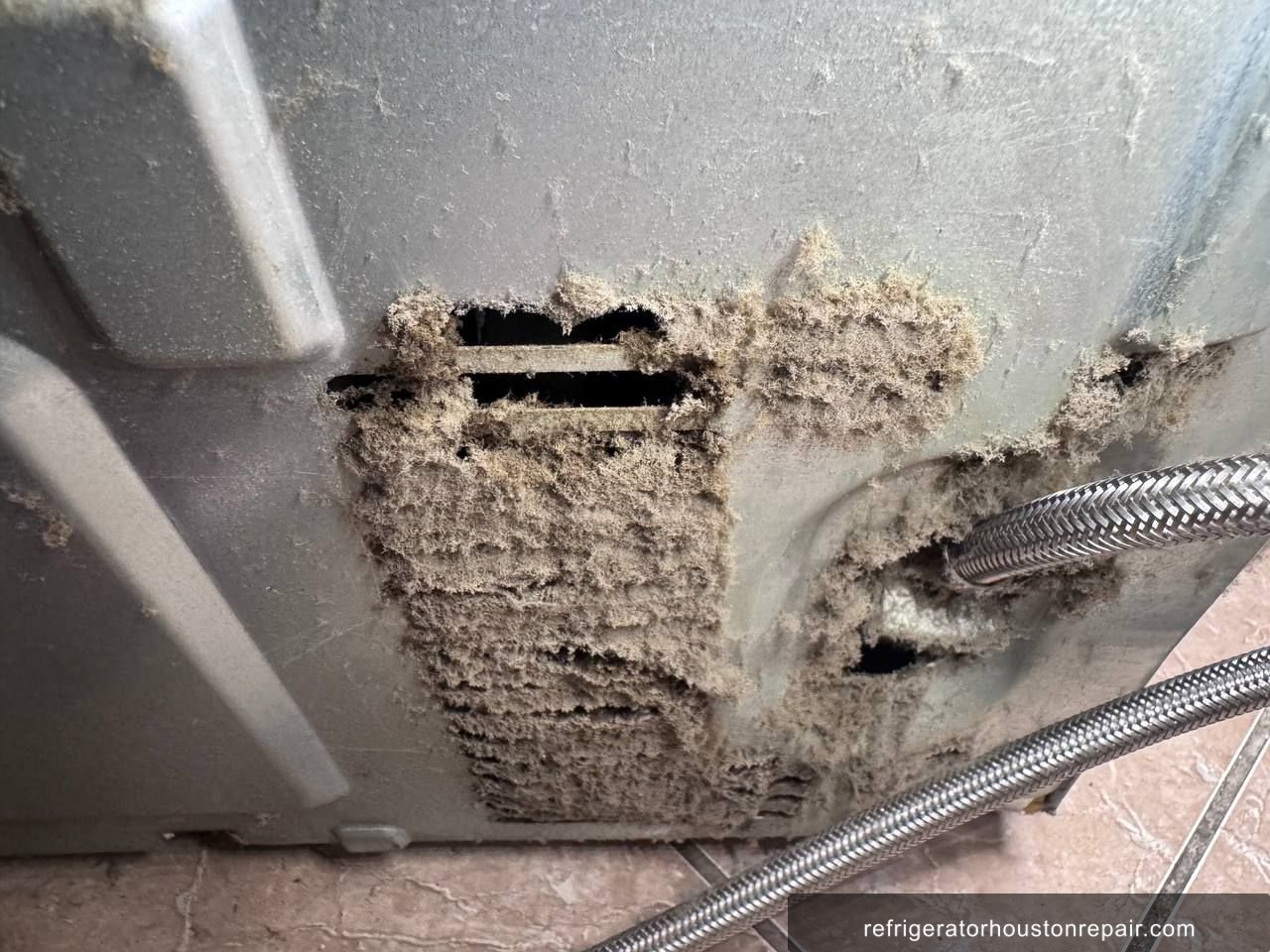

- ✓Step 2: Pulled the refrigerator away from the wall and visually inspected the rear base. Found ventilation grilles completely blocked with compacted dust and lint restricting condenser airflow.
- ✓Step 3: Connected Fieldpiece manifold gauges to the R-134a service ports. Observed equalized static pressure on both high and low sides with zero differential, confirming the compressor was not pumping.
- ✓Step 4: Used a clamp meter to check compressor amperage draw. The compressor was drawing current and producing mechanical sound but generating no pressure differential in the sealed system.

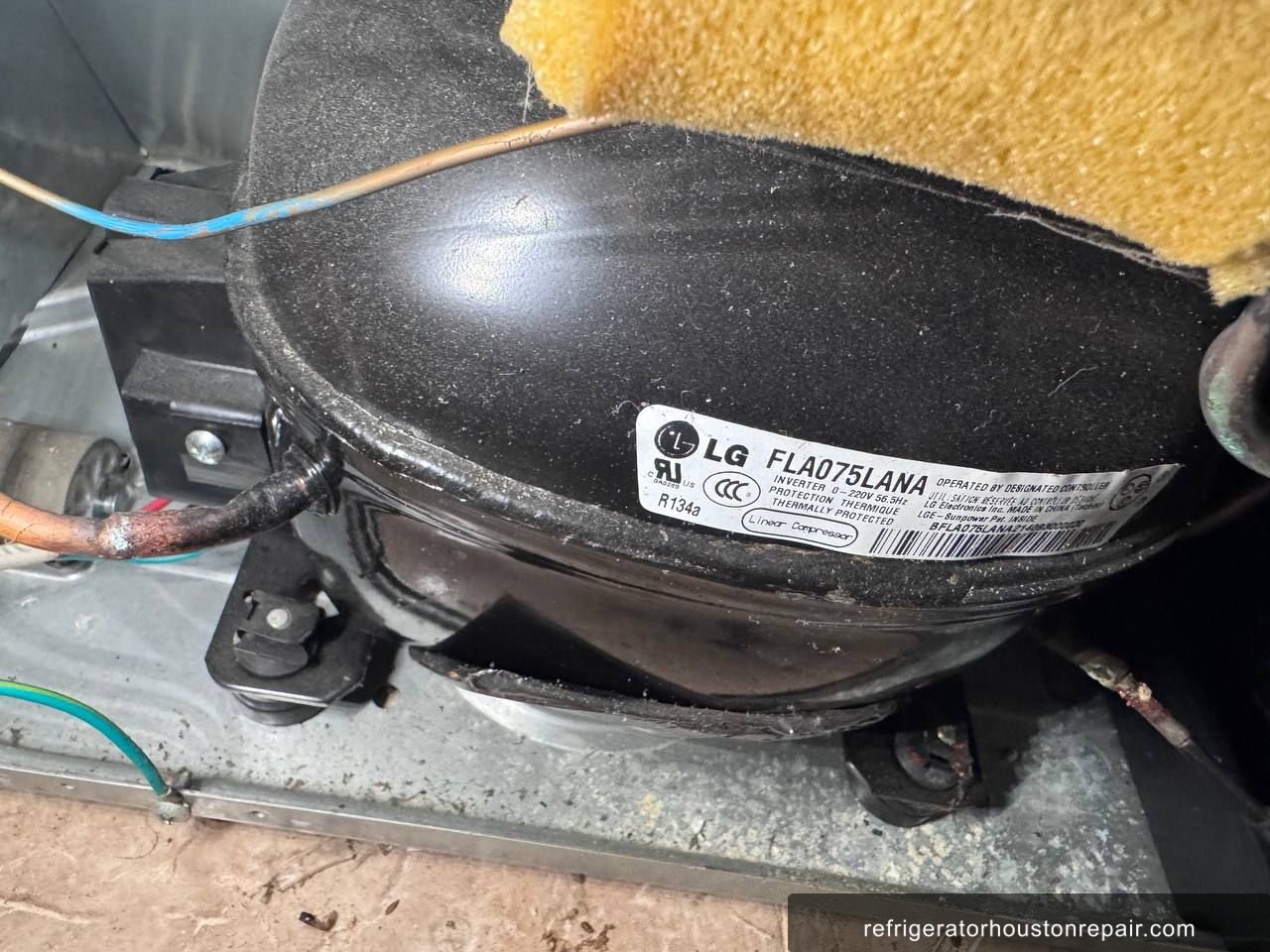

- ✓Step 5: Measured compressor winding resistance to confirm the linear motor windings showed degradation consistent with end-of-life failure in LG linear compressor assemblies.
- ✓Step 6: Cleared the blocked rear ventilation grilles and cleaned the condenser area to fully document the condition for the customer during the estimate conversation.
- ✓Step 7: Calculated replacement cost for an OEM LG linear compressor compatible with the LMXS27626S. Parts and labor estimate came to approximately $800 to $900, which exceeds the economical repair threshold for an 11.5-year-old unit out of warranty.
- ✓Step 8: Presented the customer with the full diagnosis and cost estimate. The customer declined repair and chose to replace the refrigerator. No final operating temperatures were recorded as repair was not performed.
✓ Result
The diagnosis was thorough and gave the customer a clear picture of what happened and why. The LG LMXS27626S ran 11.5 years on its original linear compressor, which is genuinely impressive for this platform. The customer understood that at an $800 to $900 repair cost on an appliance that age, replacement made more financial sense. They appreciated having a specific answer rather than a guess. They mentioned they would factor in proper ventilation clearance and routine maintenance when setting up their new unit.
💡 Technician Notes
LG linear compressors in this generation have an extended warranty history for a reason. LG extended the compressor warranty to 10 years on many of these models specifically because early units were failing before that mark. This unit made it past the warranty window entirely, which tells you the blocked ventilation was not helping. The single most useful thing an LG French door owner in Houston can do is clean the rear base grilles and check the clearance behind the unit every 6 months. Houston dust and pet hair collect fast in tight spaces. The early warning sign to watch for is a compressor that runs continuously without cycling off. On this model, the linear compressor modulates its speed based on load. If you notice the unit running non-stop even when the kitchen is cool, that is worth a service call before you find everything thawed one morning. Do not wait on that symptom.
Frequently Asked Questions
Why did my LG LMXS27626S stop cooling overnight with no warning?
LG linear compressors in the LMXS27626S tend to fail gradually internally before the symptom becomes obvious. The compressor runs but loses its ability to pump refrigerant under load. One evening it holds temperature, the next morning it cannot. There is rarely a dramatic noise or clear warning. By the time food is thawing, the compressor has already been struggling for some time.
How much does it cost to replace the compressor on an LG LMXS27626S in Houston?
In the Houston area, replacing the linear compressor on an LG LMXS27626S runs approximately $800 to $900 including parts and labor. The OEM LG linear compressor assembly is the primary cost driver. If the unit is still under LG's 10-year compressor warranty, the part cost drops significantly. A unit that is 11 or more years old is fully out of warranty and the full cost falls to the owner.
What happens if I ignore a failing compressor on my LG refrigerator?
Once the LG linear compressor stops pumping, the refrigerant system equalizes pressure and no cooling occurs at all. There is no partial cooling state to manage. Food spoilage happens within hours. Beyond food loss, running a dead compressor draws current without producing work and adds unnecessary wear to the electrical components. A compressor that is humming but not cooling should be diagnosed the same day.
Is it worth repairing a 10 or 11 year old LG French door refrigerator when the compressor fails?
At 10 to 12 years of age with a failed linear compressor, the math rarely favors repair. The compressor replacement alone costs $800 to $900, and other sealed system components including the evaporator and condenser have the same mileage on them. A new comparable LG French door refrigerator starts around $1,200 to $1,500. Most customers in this situation choose replacement, which is a reasonable call.
Can blocked ventilation grilles actually cause a compressor to fail on an LG refrigerator?
Blocked rear ventilation grilles force the LG linear compressor to run at higher operating temperatures than it was designed for. Over months and years, that thermal stress accelerates wear on the compressor windings and internal components. The LMXS27626S is built with tight clearance tolerances. Dust buildup is common in Houston homes and should be cleared every 6 months to protect the compressor and extend service life.
Repair Summary
- Brand
- LG
- Model
- LMXS27626S
- Repair Type
- Linear Compressor Diagnosis and Replacement Estimate
- Refrigerant
- R-134a
- Root Cause
- Failed LG linear compressor after 11.5 years of continuous operation
- Parts Replaced
- ✓No parts replaced. Repair declined by customer after full diagnosis and cost estimate were presented.
- ✓Estimated required part: LG OEM linear compressor assembly compatible with LMXS27626S (R-134a, 5.11 oz charge spec)
- Location
- Houston, TX 77083
- Status
- ✓ Completed
