LG LMXS27626D/01 Ice Maker Not Working — E IF Icing Fan Error
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Ice maker completely stopped producing ice
- •E IF error code displayed on the refrigerator control panel

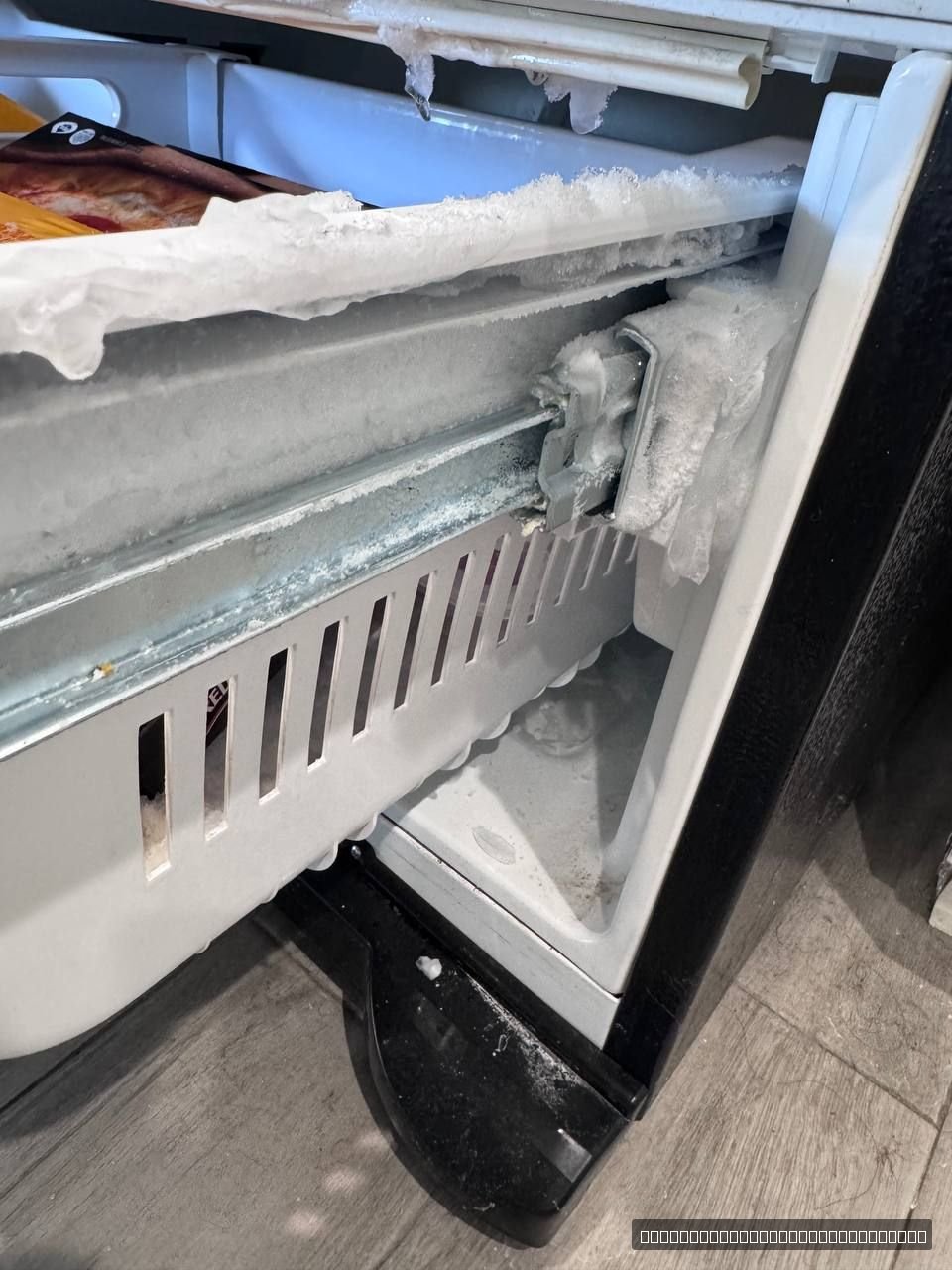

- •Visible ice buildup on freezer door rails and interior walls
- •Freezer compartment showing signs of frost accumulation around the ice maker area
🔍 Diagnosis
Upon arrival at the customer's home in Houston, TX 77040, the technician began a full diagnostic of the LG LMXS27626D/01 French door refrigerator (Serial: 706TRWA2H073), operating on 115V ~ 60Hz at 2.8A as specified on the appliance label. The customer reported that the ice maker had stopped producing ice entirely. The technician accessed the control board diagnostics and confirmed an active E IF fault code, which designates an ICING FAN ERROR — indicating that the Main PCB had ceased receiving a valid feedback signal from the ice maker evaporator fan motor. The LG ice maker fan on this model utilizes a 4-wire control harness: two wires supply power and direction control to the fan motor, while the remaining two wires carry a tachometer feedback signal back to the Main PCB, allowing the board to monitor real-time RPM. When this feedback signal is absent or falls outside acceptable parameters, the PCB triggers the E IF fault and disables ice maker operation as a protective measure. The technician manually attempted to rotate the fan blade with power disconnected and confirmed significant resistance due to ice encasing the fan assembly. A visual inspection also revealed substantial ice buildup on the freezer door glides and along the interior freezer walls, indicating a recurring or prolonged defrost deficiency compounding the fan failure. The fan motor tested open on the feedback winding via multimeter, confirming internal motor failure independent of the ice accumulation.
🔧 The Repair
- ✓Disconnected the refrigerator from the 115V power supply and pulled the unit away from the wall to allow safe access to all compartments.
- ✓Removed all freezer drawer assemblies and shelving to gain unobstructed access to the ice maker and evaporator fan compartment.
- ✓Accessed the ice maker housing by removing the rear freezer panel — four Phillips-head screws securing the upper evaporator cover were removed.
- ✓Identified the 4-wire ice maker evaporator fan motor assembly and disconnected the wiring harness connector from the fan motor.
- ✓Used a multimeter to test continuity and resistance across all four fan motor wires; confirmed an open circuit on the tachometer feedback winding, verifying motor failure.
- ✓Carefully removed the ice-encased fan motor from its mounting bracket, noting significant ice buildup around the fan blade and housing shroud.
- ✓Performed a full manual defrost of the entire freezer interior using a heat gun set to low temperature, removing all ice accumulation from the evaporator coils, fan housing, interior walls, and door glide rails — taking care not to damage plastic components or wiring.
- ✓Inspected the evaporator coils and defrost heater assembly for damage; coils and heater checked within acceptable condition and were cleared of frost without replacement needed.
- ✓Installed the replacement LG-compatible ice maker evaporator fan motor with matching 4-wire harness specification, securing it to the original mounting bracket and reconnecting the wiring harness connector fully.
- ✓Applied food-grade, temperature-rated silicone lubricant to the freezer door glide rails to restore smooth drawer operation and reduce the likelihood of future friction-related ice buildup in the guide channels.
- ✓Reassembled the rear evaporator panel, reinstalled all freezer drawer assemblies and shelving, and confirmed all components were seated properly.
- ✓Reconnected the refrigerator to power, navigated the diagnostic menu to clear the E IF error code, and monitored the ice maker fan motor operation — confirmed the Main PCB was receiving a steady tachometer feedback signal and the fan was spinning at correct RPM without fault recurrence.
✓ Result
After replacing the failed ice maker fan motor and completing a full manual defrost of the freezer compartment, the LG LMXS27626D/01 resumed normal operation with no active fault codes. The freezer compartment returned to its target operating temperature of 0°F within approximately 3–4 hours of the repair. The ice maker began its first harvest cycle within 90 minutes of restart. The customer was highly satisfied with the single-visit resolution and the thorough defrost service. A standard 90-day labor warranty was provided on the repair.
💡 Technician Notes
LG French door refrigerators with ice makers — including the LMXS27626D series — use a smart 4-wire fan motor that continuously reports its RPM back to the Main PCB. If the board loses that feedback signal for any reason, it will throw an E IF code and shut down ice production. Common causes include a failed fan motor, ice jamming the fan blade, or a damaged wiring harness. Homeowners should watch for early warning signs like reduced ice output, unusual grinding or humming from the freezer compartment, or visible frost building up on the freezer walls and door rails. Periodic inspection of the freezer interior every 6–12 months is advisable, especially in Houston's high-humidity climate, which can accelerate frost accumulation when door seals begin to degrade. If you notice any ice buildup along the freezer drawer glides or rear wall, address it promptly — allowing ice to accumulate can stall the fan motor and trigger cascading errors. Never attempt to force a jammed fan blade with power connected.
Frequently Asked Questions
What does the E IF error code mean on an LG LMXS27626D refrigerator?
The E IF error on the LG LMXS27626D stands for Icing Fan Error. It means the Main PCB has stopped receiving a tachometer feedback signal from the ice maker evaporator fan motor. This can be caused by a failed fan motor, ice jamming the fan blade, or a wiring issue. The refrigerator disables ice production as a protective response until the fault is resolved.
How much does it cost to repair an LG ice maker fan motor in Houston, TX?
In the Houston, TX 77040 area, repairing an LG ice maker evaporator fan motor — including parts, labor, and a full freezer defrost — typically ranges from $180 to $320 depending on parts availability and the extent of ice buildup. The LG LMXS27626D uses a specialized 4-wire fan motor that is slightly more expensive than standard single-speed motors. Most repairs are completed in a single visit.
Why is there ice buildup on the freezer walls and door rails of my LG LMXS27626D?
Ice buildup on the interior walls and door glide rails of an LG LMXS27626D is typically caused by a failing defrost cycle, a worn door seal allowing warm humid air to enter, or a stalled evaporator fan that disrupts airflow. In Houston's humid climate, even a minor door seal gap can accelerate frost accumulation significantly. A full manual defrost and inspection of the door gaskets is recommended when this is observed.
Is it worth repairing an LG LMXS27626D ice maker, or should I replace the refrigerator?
The LG LMXS27626D is a high-end French door refrigerator with a retail value well above $2,000. Repairing an ice maker fan motor is a straightforward, cost-effective fix typically costing a fraction of replacement. Unless the sealed system or compressor is also compromised, repair is almost always the better financial decision for this model, especially when the unit is under 10 years old.
How long does it take for an LG LMXS27626D ice maker to start working after a fan motor repair?
After replacing the ice maker evaporator fan motor and clearing the E IF error code on an LG LMXS27626D, the ice maker typically begins its first harvest cycle within 60 to 90 minutes of restart. Full ice bin production is usually restored within 12 to 24 hours. If a full freezer defrost was also performed, allow an additional 3 to 4 hours for the compartment to return to its target temperature of 0°F.
Repair Summary
- Brand
- LG
- Model
- LMXS27626D/01
- Repair Type
- Ice Maker Repair
- Refrigerant
- R-134a
- Root Cause
- Ice maker fan failure causing E IF error code
- Parts Replaced
- ✓LG Ice Maker Evaporator Fan Motor — 4-wire tachometer feedback type, compatible with LMXS27626D/01
- ✓Food-grade silicone lubricant applied to freezer door drawer glide rails (consumable)
- Location
- Houston, TX 77040
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

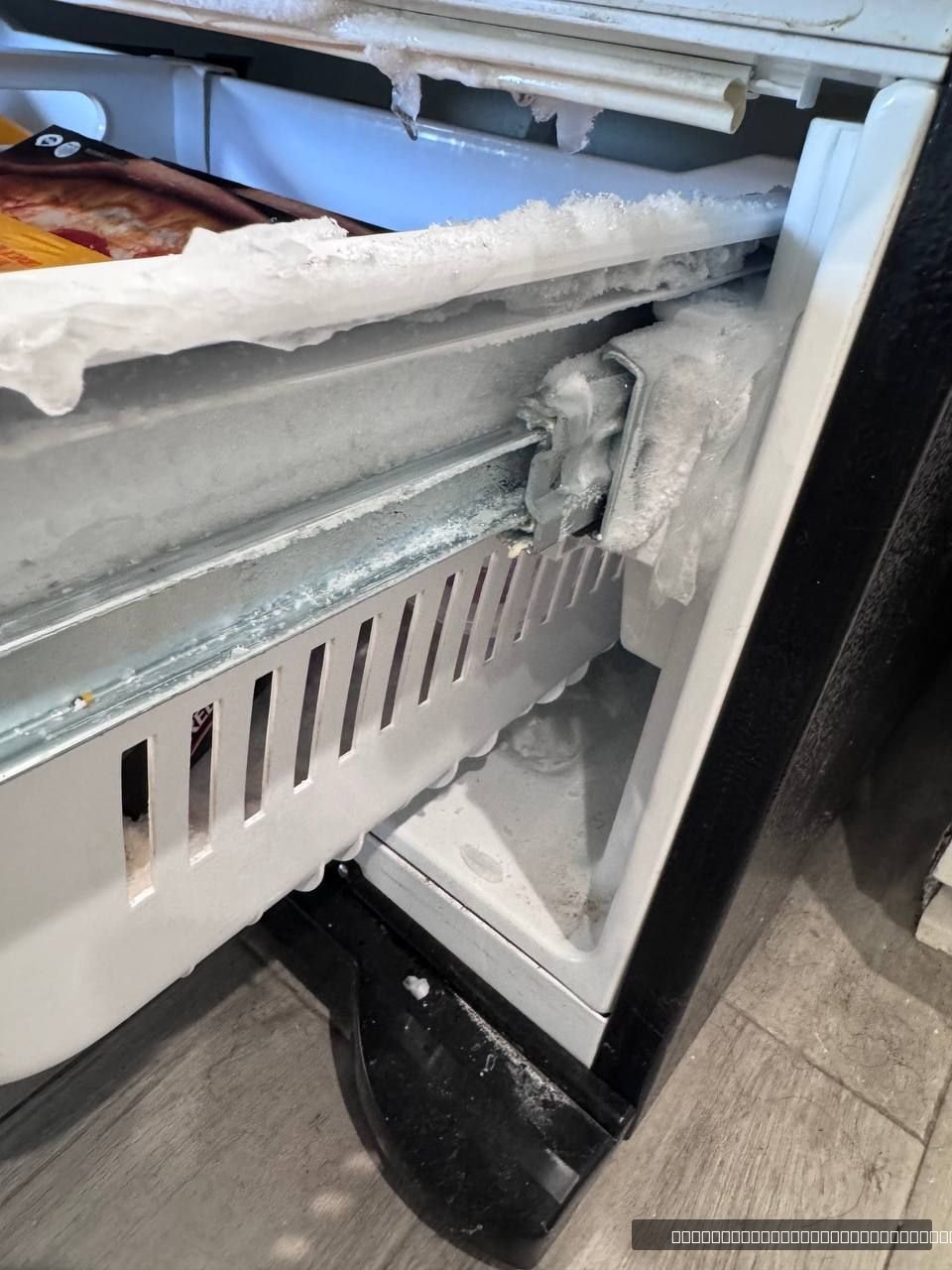

LG LMXS27626D/01 repair in Houston, TX — photo 5
