LG LFXS26596S: Compressor Failure Repair in Texas City, TX
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Refrigerator completely warm — fresh food section reading 65°F or higher after running overnight
- •Freezer failed to drop below 50°F despite the compressor appearing to run intermittently
- •No audible cooling cycle — compressor humming briefly then cutting off without building suction pressure
- •Condenser fan running normally but evaporator coil completely dry with no frost pattern at all
- •Ice maker stopped producing ice 2–3 days before total cooling loss became obvious
🔍 Diagnosis
On arrival in Texas City, the LG LFXS26596S was found with a fresh food compartment at 63°F and freezer at 54°F — well outside the design targets of 37°F and 0°F respectively. The condenser fan and evaporator fan were both spinning, and the control board was cycling the compressor normally from a command standpoint. That ruled out a simple electrical or control fault immediately. Manifold gauges connected to the process tube confirmed the core problem: suction side pressure was equalized with high side at approximately 14 psi (the equilibrium pressure for R600a / isobutane at ambient temperature), and after initiating a compressor start cycle, zero pressure differential developed. A functioning sealed system should show suction dropping to 0–2 psi and high side climbing to 55–80 psi under load. The compressor was mechanically seized and unable to pump refrigerant. The failed unit is the LG FLD165NBMA — a linear compressor variant used across LG's French door lineup, including the LFXS26596S built in May 2021. LG linear compressors in the 2019–2022 production window have a documented pattern of premature piston-spring fatigue failure, often presenting between 2 and 4 years of service. The failure is mechanical — not electrical — which is why amp draw on the compressor start winding appeared nearly normal right up to the point of complete loss of cooling.
🔧 The Repair

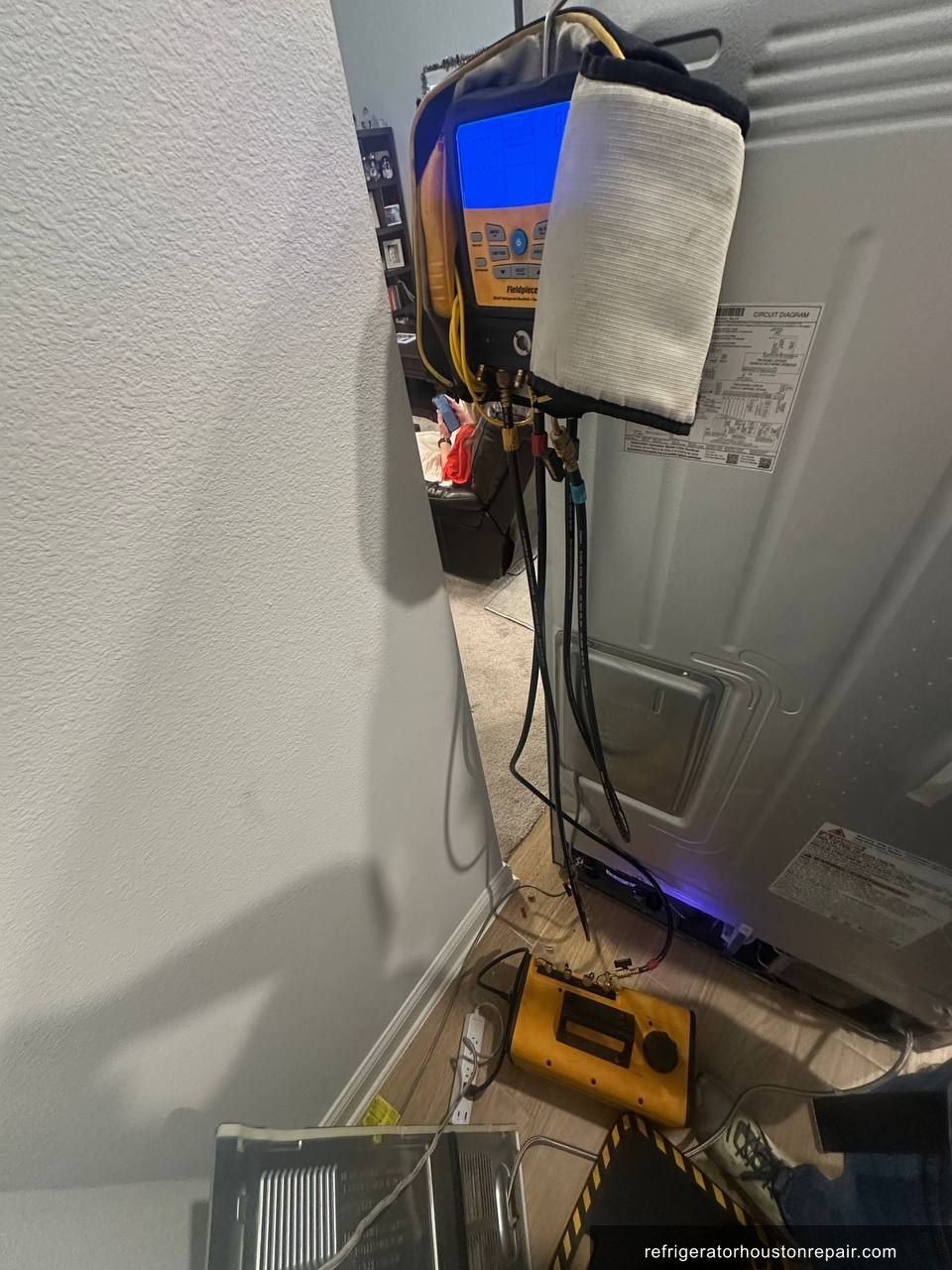

- ✓Step 1: Confirmed zero pressure differential across the sealed system using Fieldpiece SMAN manifold station — suction and discharge equalized at 14 psi, verifying full mechanical compressor failure rather than a refrigerant leak.
- ✓Step 2: Recovered residual R600a (isobutane) from the sealed system using flammable-rated recovery equipment in a ventilated workspace, following EPA 608 protocol for A3 refrigerants — no open flames or spark sources within the work area.
- ✓Step 3: Removed the failed LG FLD165NBMA linear compressor — disconnected compressor wiring harness, unsoldered the suction and discharge copper lines using a torch, and removed compressor mounting bolts from the compressor deck.

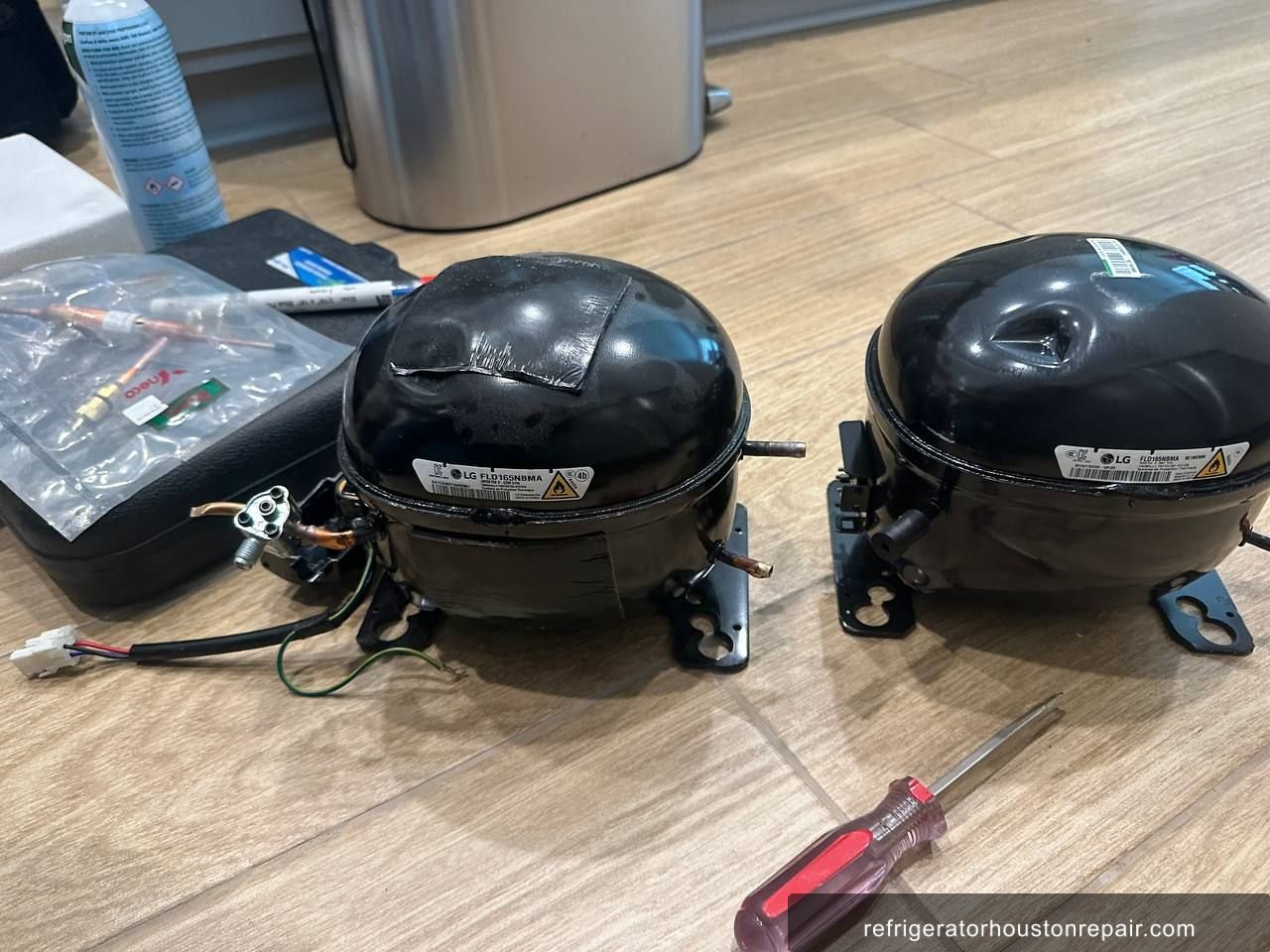

- ✓Step 4: Installed the replacement LG FLD165NBMA compressor, positioning it on the mounting grommets to maintain vibration isolation. Copper line stubs were cleaned and prepped for silver-alloy brazing.
- ✓Step 5: Brazed all copper refrigerant line connections using nitrogen purge (flowing dry nitrogen through the open lines during the entire brazing process) to prevent internal copper oxide scale formation — oxide contamination is a leading cause of repeat compressor failure in R600a systems.
- ✓Step 6: Pressure-tested the completed sealed system with dry nitrogen at 150 psi, holding for 30 minutes. All brazed joints confirmed leak-free using electronic leak detector rated for flammable refrigerants.

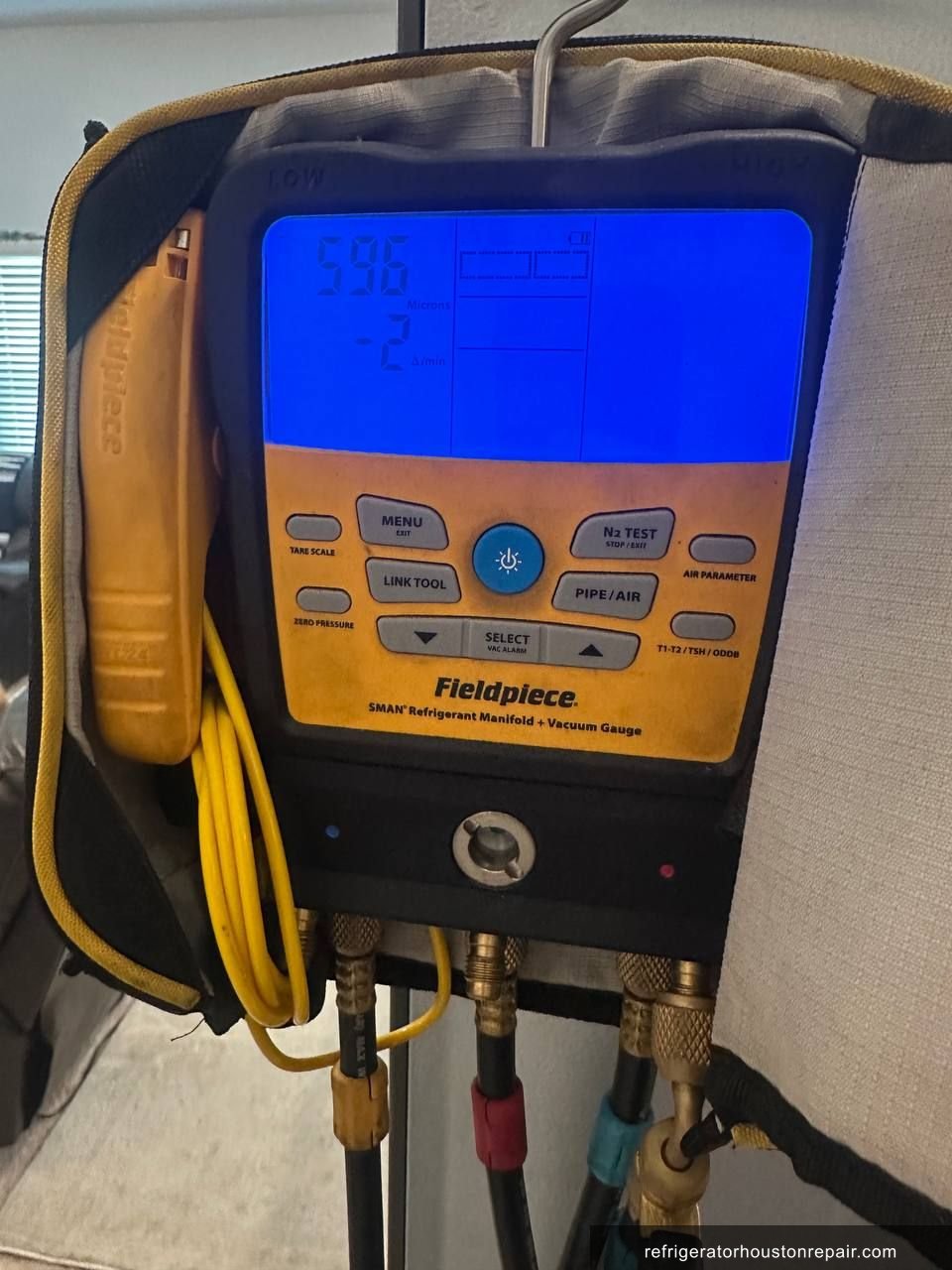

- ✓Step 7: Deep vacuum pulled using Fieldpiece SMAN manifold station — system evacuated to 596 microns and held stable for 15 minutes with valves closed, confirming no moisture contamination and no residual leak path.

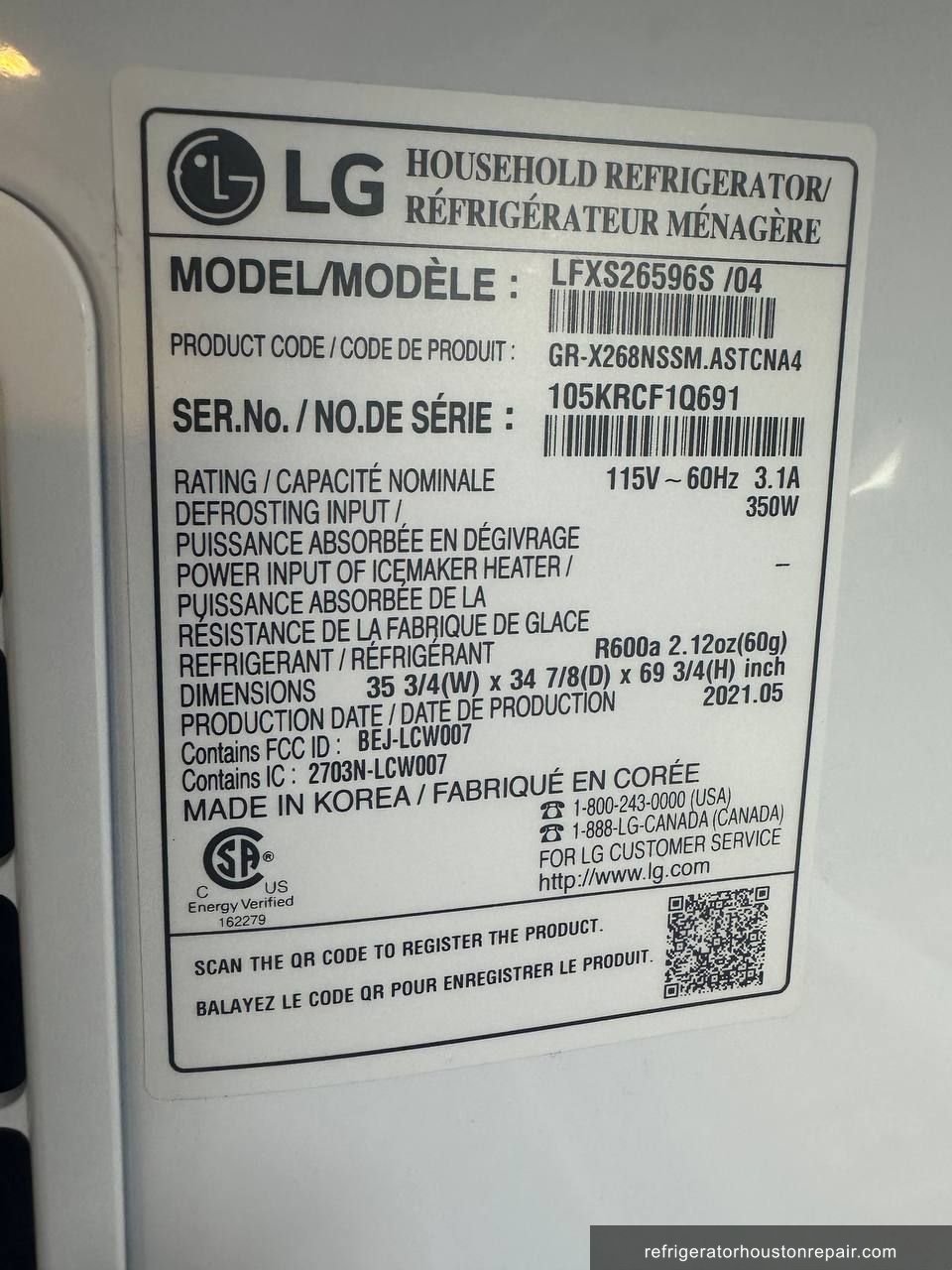

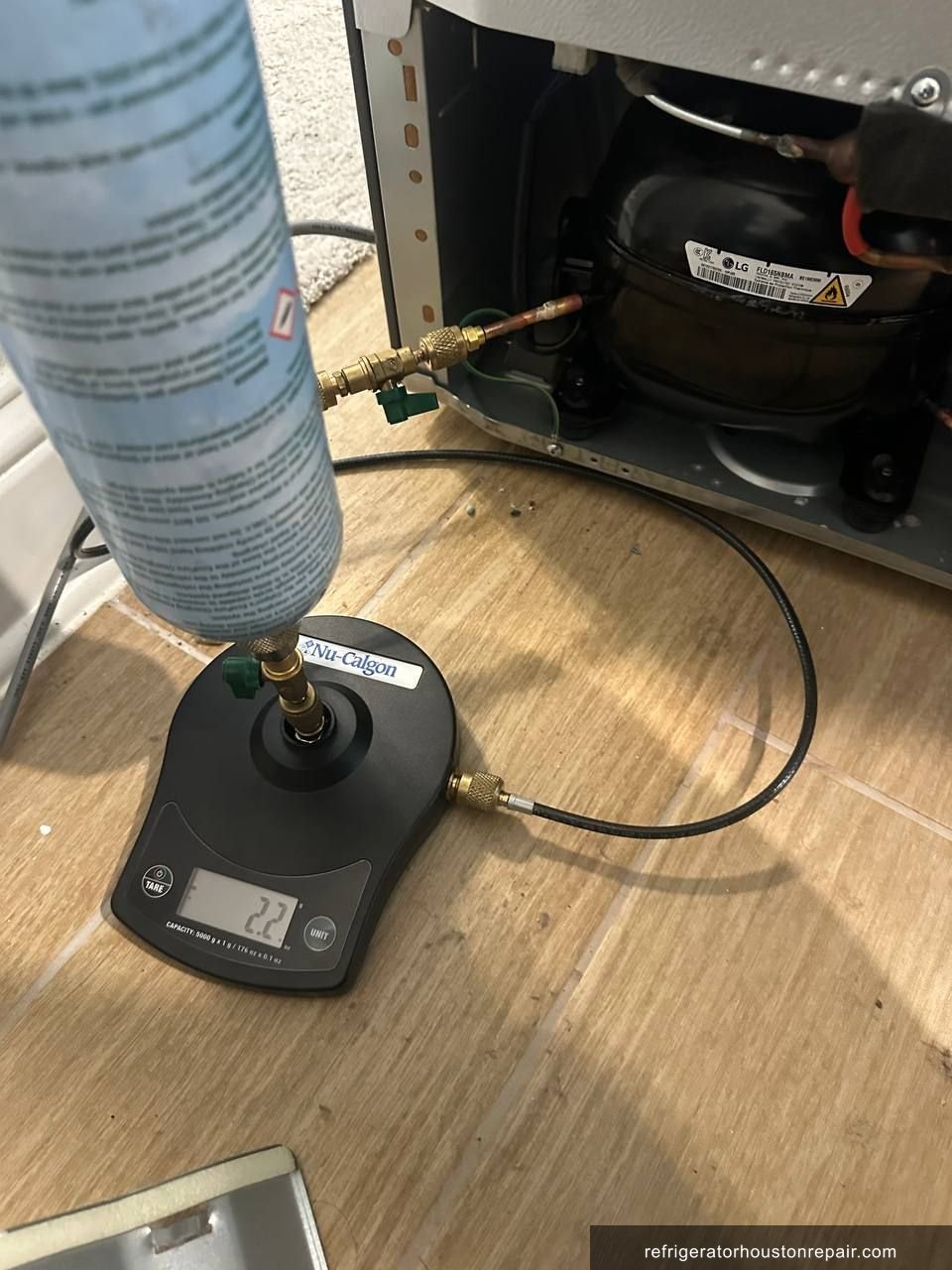

- ✓Step 8: Charged the sealed system with R600a by weight using Nu-Calgon precision scales, delivering exactly 60 g (2.12 oz) per the factory label specification. After a 2-hour runtime, fresh food section stabilized at 37°F and freezer at 1°F — within normal operating range.
✓ Result
After a 2-hour stabilization run, the LFXS26596S reached 37°F in the fresh food section and 1°F in the freezer — fully within LG's design targets. The repair was completed same-day at the customer's home in Texas City, 77591. The sealed system work carries a 90-day labor warranty, and the replacement compressor is covered under the OEM parts warranty. The customer had kept food in a cooler overnight and was able to reload the refrigerator immediately after confirming temperatures — no food loss on the second day.
💡 Technician Notes
LG linear compressors in French door models like the LFXS26596S have one early warning sign that almost every owner misses: the compressor will start running longer and longer cycles — sometimes 45–60 minutes continuous — weeks before it fails completely. If your LG is running non-stop but temperatures are still holding, that's the compressor struggling with reduced pumping efficiency, not a normal behavior. Don't wait for total failure. The single best maintenance action for this model is keeping the condenser coils clean. The LFXS26596S bottom-mount condenser is notorious for dust accumulation in Houston's humid environment, which forces the compressor to work harder and accelerates thermal fatigue on the piston spring assembly. Clean the coil every 6 months with a coil brush — not just a vacuum. R600a compressor replacement is not a DIY repair under any circumstances. Isobutane is highly flammable, and Houston building code requires EPA 608 certification and flammable-rated equipment for this service. If your LG stops cooling and the compressor is under 5 years old, call immediately — do not attempt to recharge or add refrigerant without a full system diagnosis first.
Frequently Asked Questions
LG LFXS26596S compressor died after 3 years — is this a known problem?
Yes. LG linear compressors in the LFXS26596S and similar French door models from the 2019–2022 production run have a documented pattern of early mechanical failure, typically between 2 and 5 years. The piston-spring mechanism fatigues under continuous load. LG extended the compressor warranty to 10 years on the part itself, but labor is not covered — so compressor replacement costs still fall on the owner after the first year.
How much does it cost to replace the compressor in an LG French door refrigerator in Texas City?
Compressor replacement on an LG LFXS26596S in the Texas City area typically runs $600–$950 depending on parts availability and whether additional components like the filter-drier and start capacitor are replaced at the same time — which they should be. The R600a refrigerant charge and nitrogen pressure testing are included in a proper sealed system overhaul. Same-day service is usually available in the 77591 area.
What happens if I keep running my LG refrigerator after the compressor starts failing?
A struggling LG linear compressor will draw higher amperage than normal while producing less and less cooling. Continued operation accelerates thermal damage to the compressor windings and can cause the overload protector to trip repeatedly. More importantly, as internal temperatures rise above 40°F, food safety becomes the immediate concern. If your LG is running constantly but not cooling below 45°F, shut it down and call for service — you risk losing the compressor and your food simultaneously.
Is it worth repairing the compressor on a 3-year-old LG LFXS26596S or should I replace the refrigerator?
At 3 years old, compressor replacement is the right call for the LFXS26596S. The refrigerator has 7–10 years of usable life remaining, and the repair cost is typically 30–40% of replacement cost. LG's 10-year compressor parts warranty may cover the compressor itself — check your original purchase documentation. If the control board, evaporator, or ice maker system also have issues, recalculate. But an isolated compressor failure on a 3-year-old unit is worth fixing.
Why does R600a refrigerant require special equipment — can't a regular HVAC tech recharge my LG?
R600a (isobutane) is an A3 flammable refrigerant — it ignites at concentrations as low as 1.8% in air. Standard HVAC manifold sets and recovery machines are not rated for flammable refrigerants and can spark internally. EPA 608 certification is required, and the technician must use explosion-proof recovery equipment and work in a ventilated area. The charge amount is also critical — the LG LFXS26596S holds exactly 60 g, and overcharging by even 10 g degrades efficiency and can stress the new compressor.
Repair Summary
- Brand
- LG
- Model
- LFXS26596S /04
- Repair Type
- Sealed System Overhaul / Compressor Replacement
- Refrigerant
- R-600a
- Root Cause
- Failed LG FLD165NBMA linear compressor — no pressure buildup
- Parts Replaced
- ✓LG FLD165NBMA linear compressor (OEM direct replacement, matched to LFXS26596S /04 production specification)
- ✓Compressor start capacitor — inspected and replaced as a precaution during sealed system access
- ✓Filter-drier — new inline drier installed during reassembly to protect the fresh charge from any residual moisture
- Location
- Texas City, TX 77591
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Texas City and surrounding areas.
View Texas City Service Area →📸 Repair Photos
LG LFXS26596S /04 repair in Texas City, TX — photo 3
LG LFXS26596S /04 repair in Texas City, TX — photo 4
LG LFXS26596S /04 repair in Texas City, TX — photo 5
LG LFXS26596S /04 repair in Texas City, TX — photo 6
