LG LFXS26596S Compressor Failure — Not Cooling at All
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Refrigerator not cooling at all — both fridge and freezer sections at room temperature
- •Compressor running but no cold air being produced
- •No audible refrigerant flow sounds from the evaporator coils
- •Interior lights and controls functioning normally despite zero cooling
🔍 Diagnosis
Upon arrival at the customer's home in Katy, TX 77493, the technician performed a systematic inspection of the LG LFXS26596S/02 french-door refrigerator. The unit was confirmed to be operating on 115V/60Hz with a rated draw of 3.1A per the appliance specifications. The first challenge encountered was a missing refrigerant label — the sticker specifying the refrigerant type and charge amount had been physically removed from the unit, likely prior to the customer's purchase at a scratch-and-dent outlet, possibly to obscure that the manufacturer's warranty had been voided. Using a clamp meter, the technician measured actual amperage draw at the compressor terminals and found abnormally low current, consistent with a compressor that was spinning but not building pressure. Manifold gauges were connected to the process tube: both high and low side pressures equalized almost immediately, confirming a failed compressor with no pumping capacity. A refrigerant leak detector sweep of the sealed system showed no external leaks, ruling out refrigerant loss as the primary cause. Based on extensive prior experience with LG linear compressor failures in the greater Houston area — a well-documented regional pattern — and referencing data from an identical LFXS26596S/02 case on file, the technician confirmed the compressor had mechanically failed internally. The refrigerant type was identified as R-600a (isobutane) at a charge of 2.12 oz (60g), sourced from a matching reference unit since the label was absent. Repair by compressor replacement was recommended and approved.
🔧 The Repair
- ✓Performed safety lockout/tagout: unplugged the unit and allowed capacitors to discharge before opening the sealed system.
- ✓Removed all food, interior shelving, and the rear access panel to gain clear access to the machine compartment and compressor assembly.
- ✓Attached manifold gauge set to the compressor process tube; confirmed zero pressure differential between high and low sides, verifying complete compressor failure with no pumping action.
- ✓Recovered any residual R-600a refrigerant from the sealed system using an approved hydrocarbon recovery machine, per EPA and local safety protocols for flammable refrigerants.

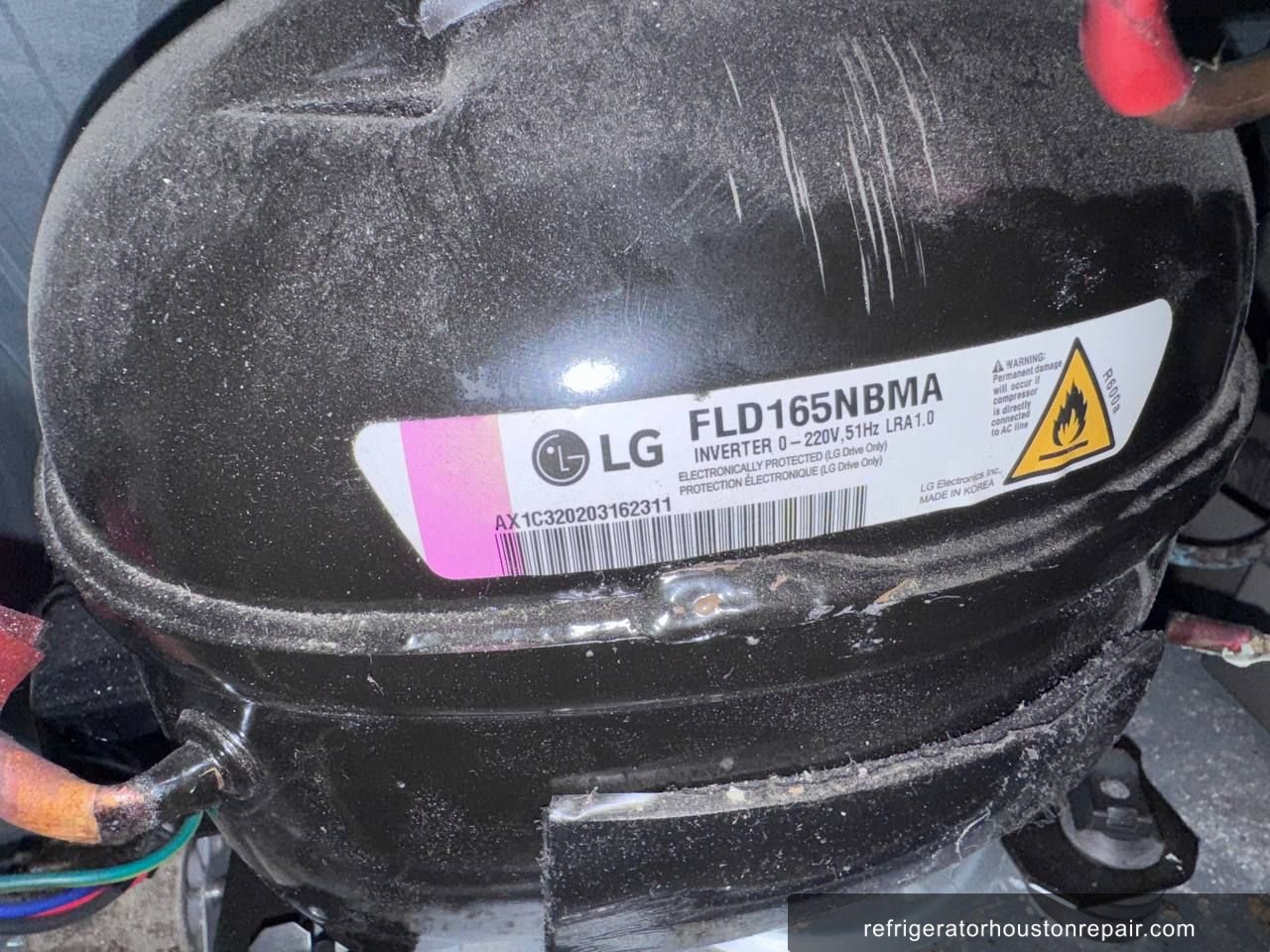

- ✓Disconnected the failed OEM LG linear compressor: unsoldered the suction and discharge lines using a nitrogen purge to prevent oxidation scale inside the copper tubing, then unbolted the compressor from its rubber isolation mounts.
- ✓Installed a replacement compressor matched to the LFXS26596S/02 specifications — same displacement and R-600a compatibility — securing it to the isolation mounts and torquing bolts to specification.
- ✓Re-soldered suction and discharge copper line connections using a nitrogen flow purge throughout the brazing process to keep the sealed system interior free of moisture and oxidation.
- ✓Pressure-tested the repaired sealed system with dry nitrogen at 150 PSI; held pressure for 30 minutes with no measurable drop, confirming leak-free joints.
- ✓Pulled a deep vacuum on the sealed system using a two-stage vacuum pump, reaching below 200 microns and holding for 20 minutes to ensure complete moisture evacuation.
- ✓Recharged the sealed system with exactly 2.12 oz (60g) of R-600a refrigerant by weight, using a calibrated digital refrigerant scale, matching the confirmed OEM specification for this model.
- ✓Reinstalled all interior components, reconnected power, and monitored compressor startup: verified correct amperage draw (approximately 3.1A at steady state) and confirmed audible refrigerant flow through the evaporator.
- ✓Placed calibrated thermometers in both the fresh food and freezer compartments and monitored temperature descent over two hours to confirm full cooling restoration before closing the job.
✓ Result
After the compressor replacement and a precise 2.12 oz R-600a recharge, the LG LFXS26596S/02 resumed normal operation. The freezer section reached 0°F and the fresh food compartment stabilized at 37°F within approximately 3.5 hours of restart. The customer was relieved given the uncertainty surrounding the unit's missing refrigerant label and scratch-and-dent history. A 1-year parts warranty was issued on the compressor and a 3-month labor warranty on the repair work, giving the customer confidence in the long-term reliability of the fix.
💡 Technician Notes
LG french-door refrigerators, particularly models using linear compressors, have a well-documented history of premature compressor failure across the Houston metro area, including Katy. If your LG fridge suddenly stops cooling entirely — especially if it's 5 to 10 years old — the compressor is the most likely culprit. Watch for early warning signs: the unit running continuously without reaching set temperature, warm spots in the fresh food section while the freezer still partially cools, or unusual clicking sounds at startup followed by silence. For owners who purchase scratch-and-dent appliances, always photograph every label on the unit before the store removes or damages them — refrigerant type and charge weight are critical data points for any future sealed system repair. Keep your condenser coils clean (vacuum them every 6 months at the rear or bottom grille) and ensure the unit has adequate clearance for airflow. These steps won't prevent a linear compressor failure, but they reduce unnecessary strain on the system and extend overall appliance life.
Frequently Asked Questions
Why do LG linear compressors fail so often in the Houston and Katy area?
LG linear compressors used in models like the LFXS26596S are known for internal mechanical wear that can lead to premature failure, often between 5–10 years of use. Houston's high ambient temperatures and humidity put additional load on sealed systems year-round, accelerating wear. This is a nationally recognized issue and was the subject of class-action litigation against LG.
How much does it cost to replace a compressor in an LG LFXS26596S refrigerator in Katy, TX?
A compressor replacement on the LG LFXS26596S in the Katy, TX area typically ranges from $400 to $700 depending on parts availability and labor. Because this model uses R-600a refrigerant requiring specialized recovery and recharge equipment, sealed system work carries a premium. However, it's almost always more cost-effective than replacing a large french-door refrigerator outright.
What are the early warning signs that an LG refrigerator compressor is about to fail?
Early signs include the refrigerator running continuously without reaching set temperature, warm fresh food section while the freezer remains partially cold, clicking or brief humming sounds at startup that quickly stop, and energy bills that increase unexpectedly. If you notice your LG fridge is slightly warmer than usual, call a technician promptly — early diagnosis can sometimes prevent a full compressor replacement.
Is it worth repairing an LG LFXS26596S with a failed compressor, or should I replace it?
For a large-capacity LG french-door model like the LFXS26596S, compressor replacement is almost always worth it if the rest of the unit — ice maker, sealed system lines, evaporator — is in good condition. Replacement cost for a comparable new refrigerator is $1,500–$2,500+. A quality compressor repair with a parts warranty is a fraction of that and restores full function for many additional years.
My LG refrigerator uses R-600a refrigerant — is that safe, and does it affect the repair?
R-600a (isobutane) is a flammable refrigerant used in modern, energy-efficient LG models like the LFXS26596S/02. It is safe during normal operation but requires technicians with proper training and certified flammable-refrigerant recovery equipment. Always confirm your technician is equipped to handle R-600a before authorizing sealed system work. The charge amount for this model is precisely 2.12 oz (60g) and must be measured by weight.
Repair Summary
- Brand
- LG
- Model
- LFXS26596S/02
- Repair Type
- Sealed System Repair / Compressor Replacement
- Refrigerant
- R-600a
- Root Cause
- Failed LG linear compressor causing complete loss of cooling
- Parts Replaced
- ✓LG-compatible linear compressor (R-600a rated, matched to LFXS26596S/02 displacement spec)
- ✓Compressor start components / PTC relay (replaced as a precautionary measure during sealed system service)
- ✓Drier/filter (inline desiccant filter replaced to protect the new compressor from any residual moisture)
- ✓R-600a refrigerant — 2.12 oz (60g) full recharge per OEM specification
- Location
- Katy, TX 77493
- Status
- ✓ Completed
