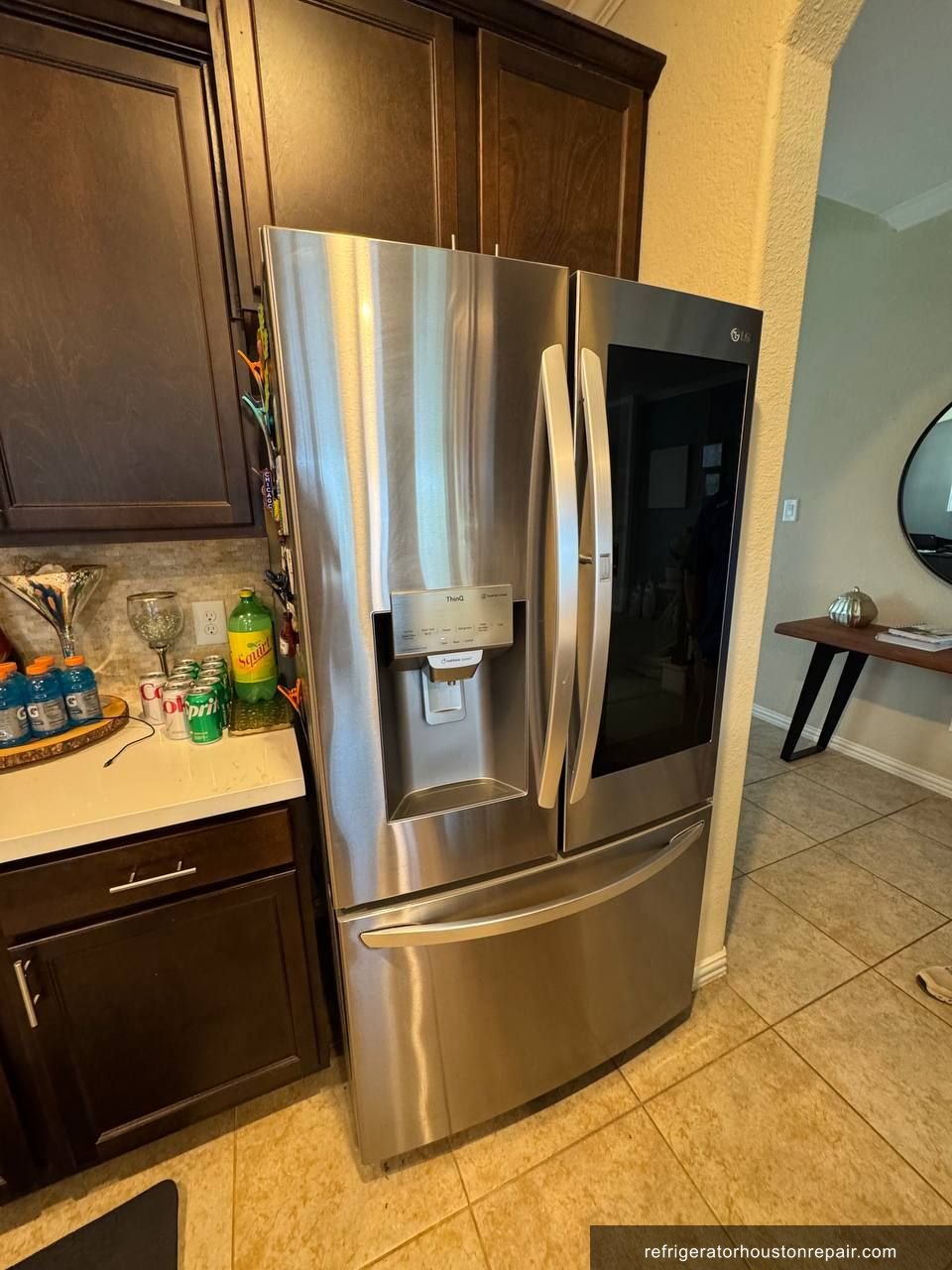

LG LFXS26596S: Compressor Failure — No Cooling in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment warming to 55–60°F while the freezer still felt slightly cool to the touch
- •Compressor running continuously but the refrigerator never reaching target temperature
- •No audible click or cycling — compressor humming without building pressure
- •Ice maker stopped producing ice entirely due to insufficient refrigerant circulation
- •Condenser area warm but evaporator coil never getting cold during a full compressor run cycle
🔍 Diagnosis
On arrival the LG LFXS26596S fresh food section was reading 57°F and the freezer had climbed to 28°F — well above safe food storage temperatures. The compressor was running continuously, which immediately suggested a sealed system issue rather than a control board or defrost fault. Manifold gauge set was connected to the R-600a service ports: low-side pressure was reading near 0 psig and high-side showed only 8 psig — far below the expected operating range for a properly functioning R-600a system, which should run around 2–4 psig low-side and 85–120 psig high-side at operating temp. A clamp meter on the compressor start circuit confirmed current draw of only 0.6A — a classic sign of LG's linear compressor running unloaded with no compression work being done. No refrigerant leak was detected with an electronic leak detector at the service valves, evaporator, or condenser connections, confirming the refrigerant charge itself (60g / 2.12 oz per label) was still present, but the compressor's internal reed valve assembly had failed mechanically — a well-documented failure mode in LG linear compressors, particularly in units manufactured between 2016 and 2019. The LFXS26596S falls squarely in that production window. The compressor was covered under LG's 10-year sealed system warranty, which saved the customer an estimated $500–600 in parts cost.
🔧 The Repair
- ✓Step 1: Verified LG 10-year compressor warranty eligibility by confirming manufacture date and serial number on the label (LFXS26596S /02); contacted LG warranty line and obtained warranty authorization number before ordering replacement compressor.
- ✓Step 2: Recovered the full R-600a charge — 2.12 oz (60g) per label spec — using an approved flammable refrigerant recovery machine with an explosion-proof motor, following EPA 608 protocol. R-600a (isobutane) is flammable and requires spark-free tools throughout the sealed system procedure.
- ✓Step 3: Disconnected the failed LG linear compressor (OEM warranty replacement unit sourced) by unbrazing the suction and discharge line connections using nitrogen purge to prevent oxidation scale inside the copper tubing.
- ✓Step 4: Installed the LG OEM warranty-supplied linear compressor, aligning mounting grommets to the compressor deck plate and brazing suction and discharge lines under continuous nitrogen flow at 2–3 psig.
- ✓Step 5: Replaced the inline filter-drier with a new OEM-spec desiccant drier to remove any residual moisture introduced during the open-system repair.
- ✓Step 6: Pressure-tested the sealed system with dry nitrogen at 150 psig for 30 minutes — no pressure drop detected, confirming leak-free brazed joints.
- ✓Step 7: Pulled system vacuum to below 300 microns using a two-stage vacuum pump; held vacuum for 20 minutes to confirm no moisture or leak present before charging.
- ✓Step 8: Charged the system with exactly 60g (2.12 oz) of R-600a refrigerant by weight using a digital refrigerant scale, per the confirmed label specification. Verified operating pressures stabilized within expected range. After 2-hour runtime: fresh food compartment reached 37°F, freezer reached 0°F — both confirmed with a calibrated digital thermometer.
✓ Result
Three hours after the technician arrived, the LFXS26596S was back at full operating temperature — 37°F in the fresh food section and 0°F in the freezer, verified with a calibrated thermometer before leaving. Because the compressor was covered under LG's 10-year warranty, the customer in the 77095 area paid only for labor and consumable materials, saving approximately $500–600 on the part alone. The ice maker resumed normal production within four hours of restart. The customer was relieved that most of the food in the freezer had stayed cold enough to salvage.
💡 Technician Notes
LG linear compressors in French door models like the LFXS26596S have a specific early warning sign that most owners miss: a subtle change in sound where the normal quiet hum develops a faint knocking or rattling at startup, lasting 2–3 seconds before settling. That's the reed valve beginning to lose seating integrity. If you hear that, schedule a diagnostic before the compressor fails completely — catching it early doesn't change the repair, but it gives you time to plan and prevents full food loss. On the maintenance side, keeping the condenser coils (located behind the bottom kick plate on this model) clean every 6–12 months directly reduces compressor load and heat stress — the single biggest external factor in premature LG linear compressor wear in Houston's climate. If the fridge is still cooling but struggling to maintain temperature on hot days, call for a diagnostic. If it's completely warm and the compressor is running non-stop, don't wait — every hour increases food loss and won't resolve itself.
Frequently Asked Questions
Why did my LG LFXS26596S stop cooling after only 5 years?
LG's linear compressor, used in the LFXS26596S and most LG French door refrigerators made between 2016 and 2019, has a documented failure pattern typically appearing between 5 and 7 years. The internal reed valve loses its seal, causing the compressor to run without building refrigerant pressure. The unit keeps running but never cools. LG covers this under a 10-year sealed system warranty.
How much does it cost to replace a compressor on an LG French door refrigerator in Houston?
If your LG is within the 10-year compressor warranty window, you pay only for labor and consumables — typically $350–500 in the Houston area. Without warranty coverage, add $500–600 for the compressor part itself. The full sealed system repair including refrigerant recovery, brazing, vacuuming, and recharge takes roughly 3 hours on an LFXS26596S.
What happens if I ignore my LG refrigerator not cooling and wait a few days?
On the LFXS26596S, a failed linear compressor will not recover on its own — the mechanical failure is internal and permanent. Every day of delay risks total food loss in both compartments. The compressor itself won't be further damaged by waiting, but the evaporator and sealed system components can develop secondary issues if the unit runs unloaded in a hot Houston environment for extended periods.
Should I repair or replace my 5-year-old LG LFXS26596S if the compressor failed?
At 5 years old with an active LG 10-year warranty covering the compressor, repair is the clear choice. You're paying labor only, not $500–600 for the part. The LFXS26596S is otherwise a well-built unit — the sealed system, cabinet, and electronics typically have a 15+ year lifespan. Replacing the fridge would cost $1,800–2,500 for a comparable model. Repair wins decisively here.
Why does the LG LFXS26596S use R-600a refrigerant and does that affect the repair?
R-600a (isobutane) was chosen by LG for its energy efficiency — it's used in a very small charge of just 60g on this model. The catch: R-600a is flammable, which means sealed system repairs require spark-free recovery equipment, proper ventilation, and a technician certified to handle flammable refrigerants. Not all shops carry R-600a or the correct equipment, so confirm this before booking.
Repair Summary
- Brand
- LG
- Model
- LFXS26596S /02
- Repair Type
- Sealed System Compressor Replacement
- Refrigerant
- R-600a
- Root Cause
- Linear compressor lost compression capacity at 5 years
- Parts Replaced
- ✓LG linear compressor — OEM warranty replacement unit (covered under LG 10-year sealed system warranty, part supplied at no cost to customer)
- ✓Inline filter-drier — OEM-spec desiccant type, replaced as mandatory sealed system service item
- ✓R-600a refrigerant — 60g / 2.12 oz, recharged to label specification
- ✓Compressor mounting grommets — replaced as part of compressor installation to prevent vibration transfer
- Location
- Houston, TX 77095
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

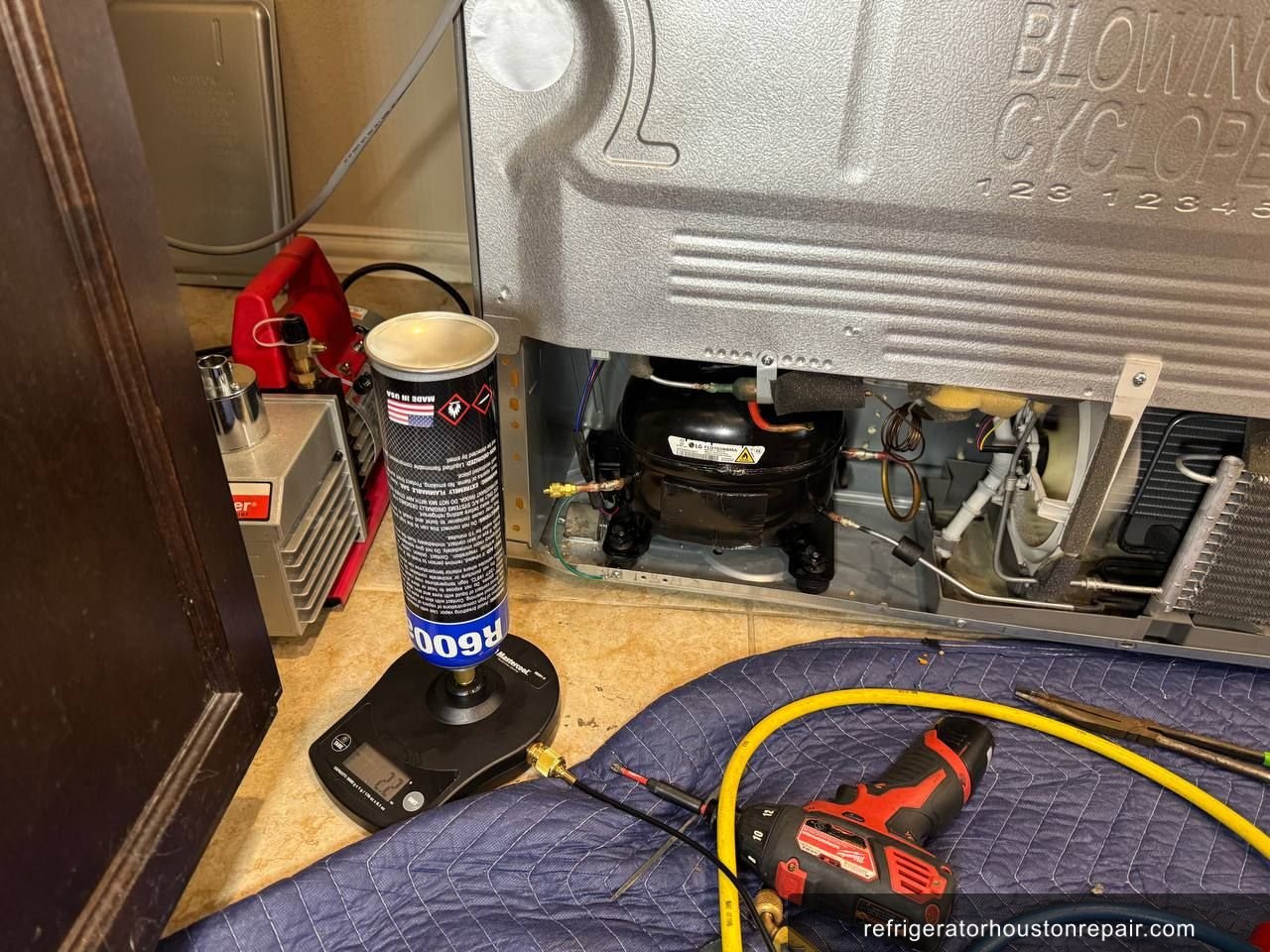

LG LFXS26596S /02 repair in Houston, TX — photo 3

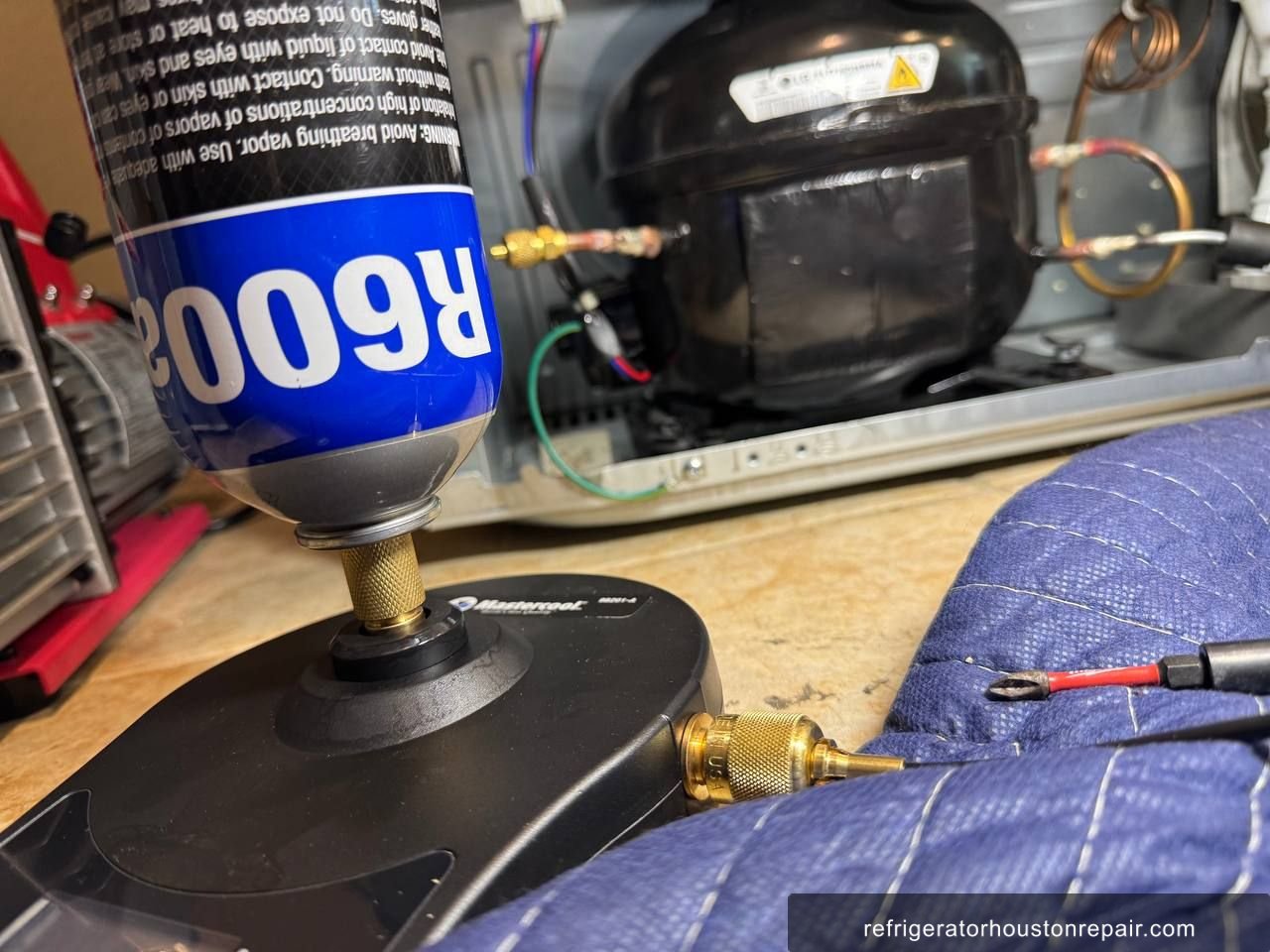

LG LFXS26596S /02 repair in Houston, TX — photo 4
