KitchenAid KUTX505ESS1 Ice Maker Not Producing Ice
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Ice maker completely stopped producing ice
- •No water entering the ice maker tray
- •Ice bin remained empty despite the unit running normally
- •Water supply line appeared functional but no ice was being made
🔍 Diagnosis

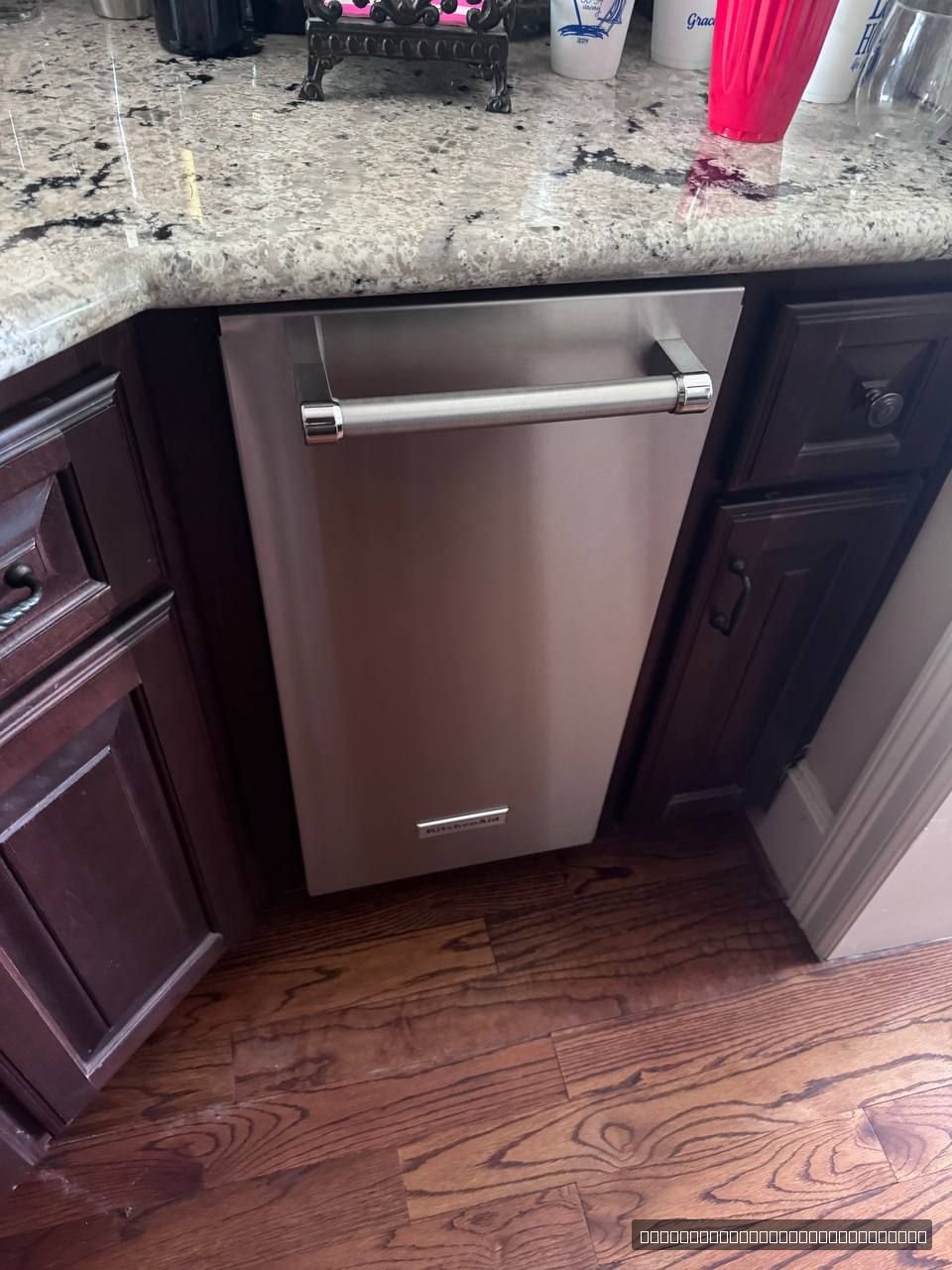

Upon arrival at the customer's residence in Memorial, TX (ZIP 77057), the technician inspected the freestanding KitchenAid KUTX505ESS1 ice maker, rated at 115V/60Hz and manufactured in Canada. The customer reported that the unit had not produced ice for several days. The technician began a systematic diagnostic evaluation, starting with a visual inspection of the ice bin, water supply line, and internal components. Using a multimeter, the technician verified the unit was receiving proper voltage at 115V, consistent with the label specification. Attention then shifted to the circulation pump, which houses an integrated water level sensor. The sensor was returning a signal indicating the water bin was full — even though the bin was completely empty. This false reading prevented the control board from issuing an open command to the water inlet valve, effectively shutting down the ice-making cycle entirely. The technician confirmed this diagnosis by manually bypassing the pump signal and observing that the water inlet valve solenoid responded correctly to a direct command. After isolating the circulation pump as the primary failure point, the technician also noted unusually dark, discolored water within the system — visible in the case photos — indicating contamination buildup inside the water inlet valve. Further inspection confirmed the valve was severely clogged, restricting water flow to a slow drip even after the pump issue was addressed.
🔧 The Repair
- ✓Disconnected the KitchenAid KUTX505ESS1 from the 115V power supply and shut off the water supply line to ensure safe working conditions.
- ✓Removed the ice maker's access panel and outer casing to gain full access to the internal components, including the circulation pump and water inlet valve.
- ✓Used a multimeter to verify incoming voltage at 115V and confirmed proper electrical continuity at the control board terminals.
- ✓Diagnosed the integrated water level sensor within the circulation pump as faulty — it was sending a 'bin full' signal to the control board despite the bin being empty, preventing the water inlet valve from receiving an open command.
- ✓Disconnected the circulation pump electrical harness and water connections, then removed the defective pump assembly from the unit.
- ✓Installed a new OEM-compatible circulation pump with an integrated water level sensor, ensuring all electrical connectors and water line fittings were seated and tightened securely.
- ✓Powered the unit on temporarily to verify the new pump's sensor was reporting the correct water level (empty), and confirmed the control board was now issuing the open command to the water inlet valve.
- ✓Observed that water flow through the inlet valve was severely restricted — only a slow drip — confirming a secondary fault: a heavily clogged water inlet valve.
- ✓Shut down the unit again and removed the clogged water inlet valve; visually confirmed significant mineral and contaminant buildup inside the valve body. Photographic documentation showed the water inside the system was black due to contamination.
- ✓Installed a new OEM-spec water inlet valve sourced directly from the technician's truck stock, matching the original valve's flow rate and solenoid specifications for the KUTX505ESS1 model.
- ✓Flushed and drained all old, contaminated water from the system; confirmed water exiting during the flush was visibly dark before running clear, indicating successful purge of the contamination.
- ✓Reassembled all panels, reconnected the water supply line and power, and performed a full restart of the ice maker cycle. Monitored the first complete ice production cycle to confirm proper water fill, freeze, and harvest sequences before closing the case.
✓ Result
Following the replacement of both the circulation pump and the clogged water inlet valve, the KitchenAid KUTX505ESS1 ice maker resumed full operation. The system was thoroughly flushed of contaminated water and relaunched successfully. Within the first monitored cycle, water filled the tray at the correct volume and the harvest sequence initiated properly. The customer was present at the time and confirmed satisfaction with the repair. A standard service warranty was provided on both the parts and labor performed.
💡 Technician Notes
KitchenAid freestanding ice makers like the KUTX505ESS1 are precision appliances that rely heavily on accurate sensor feedback to manage their water fill and freeze cycles. If your ice maker suddenly stops producing ice, don't assume the problem is a simple mechanical jam — a failed water level sensor in the circulation pump can mimic a 'full bin' condition even when the unit is empty, completely shutting down production without triggering an obvious error. Additionally, mineral-rich water supplies common in the Houston area can cause accelerated buildup inside water inlet valves. Homeowners should consider installing an inline water filter rated for ice makers and scheduling an annual flush of the water system. Early warning signs to watch for include unusually small or malformed ice cubes, slower-than-normal ice production, or visible discoloration in the first batch of ice after the unit sits idle. Addressing these symptoms early can prevent secondary component failures and significantly reduce repair costs.
Frequently Asked Questions
Why did my KitchenAid KUTX505ESS1 ice maker stop making ice even though it's plugged in and the water line is connected?
A faulty water level sensor inside the circulation pump can send a false 'bin full' signal to the control board, preventing the water inlet valve from opening. This is exactly what happened in this Memorial, TX case. The ice maker appeared operational but wasn't producing any ice because the valve never received the command to let water in.
How much does it cost to repair a KitchenAid freestanding ice maker with a bad circulation pump and clogged water valve?
Repair costs for a KitchenAid ice maker involving a circulation pump and water inlet valve replacement typically range from $250 to $450 depending on parts availability and local labor rates. In Memorial, TX (77057), same-day service with truck-stock parts can reduce downtime significantly. Repairing is almost always more cost-effective than replacing the unit.
What are the warning signs that the water inlet valve on a KitchenAid ice maker is starting to fail or get clogged?
Early warning signs of a clogging water inlet valve include very slow water fill, smaller-than-normal ice cubes, irregular ice production cycles, or a faint humming sound from the valve solenoid without water flowing. Discolored or dark water in the system — as seen in this case — is a strong indicator of significant mineral and contaminant buildup requiring immediate attention.
Is it worth repairing a KitchenAid KUTX505ESS1 freestanding ice maker, or should I replace it?
For a unit like the KitchenAid KUTX505ESS1, repair is typically the right choice when the failure involves components like the circulation pump or water inlet valve. These are serviceable parts with available OEM replacements. Replacement units of comparable quality cost significantly more than a typical repair. As long as the compressor and sealed system are intact, repairing is the smarter investment.
After my KitchenAid ice maker was repaired, how long does it take to start producing ice again, and what should I do to maintain it?
After a full restart, most KitchenAid freestanding ice makers complete their first production cycle within 90 minutes to 3 hours depending on ambient temperature. To maintain the unit, use a quality inline water filter, flush the system every 6–12 months, and clean the condenser coils annually. In areas with hard water like Houston, a filter is especially important to prevent valve clogging.
Repair Summary
- Brand
- KitchenAid
- Model
- KUTX505ESS1
- Repair Type
- Ice Maker Repair
- Root Cause
- Failed circulation pump water level sensor and clogged water inlet valve
- Parts Replaced
- ✓Circulation pump with integrated water level sensor (OEM-compatible replacement for KitchenAid KUTX505ESS1)
- ✓Water inlet valve (OEM-spec replacement, matching original flow rate and solenoid configuration for KUTX505ESS1)
- Location
- Memorial, TX 77057
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Memorial and surrounding areas.
View Memorial Service Area →📸 Repair Photos

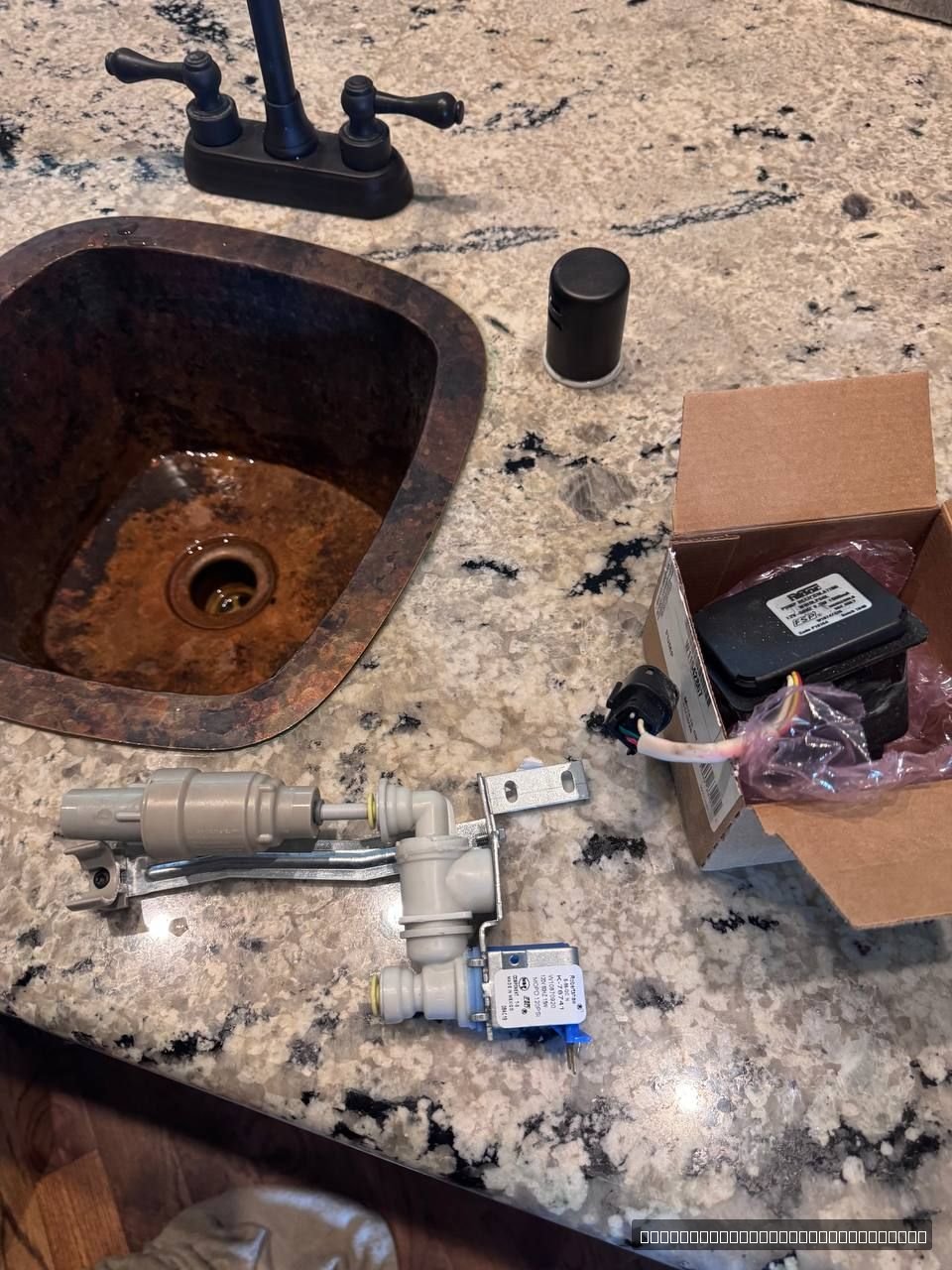

KitchenAid KUTX505ESS1 repair in Memorial, TX — photo 4

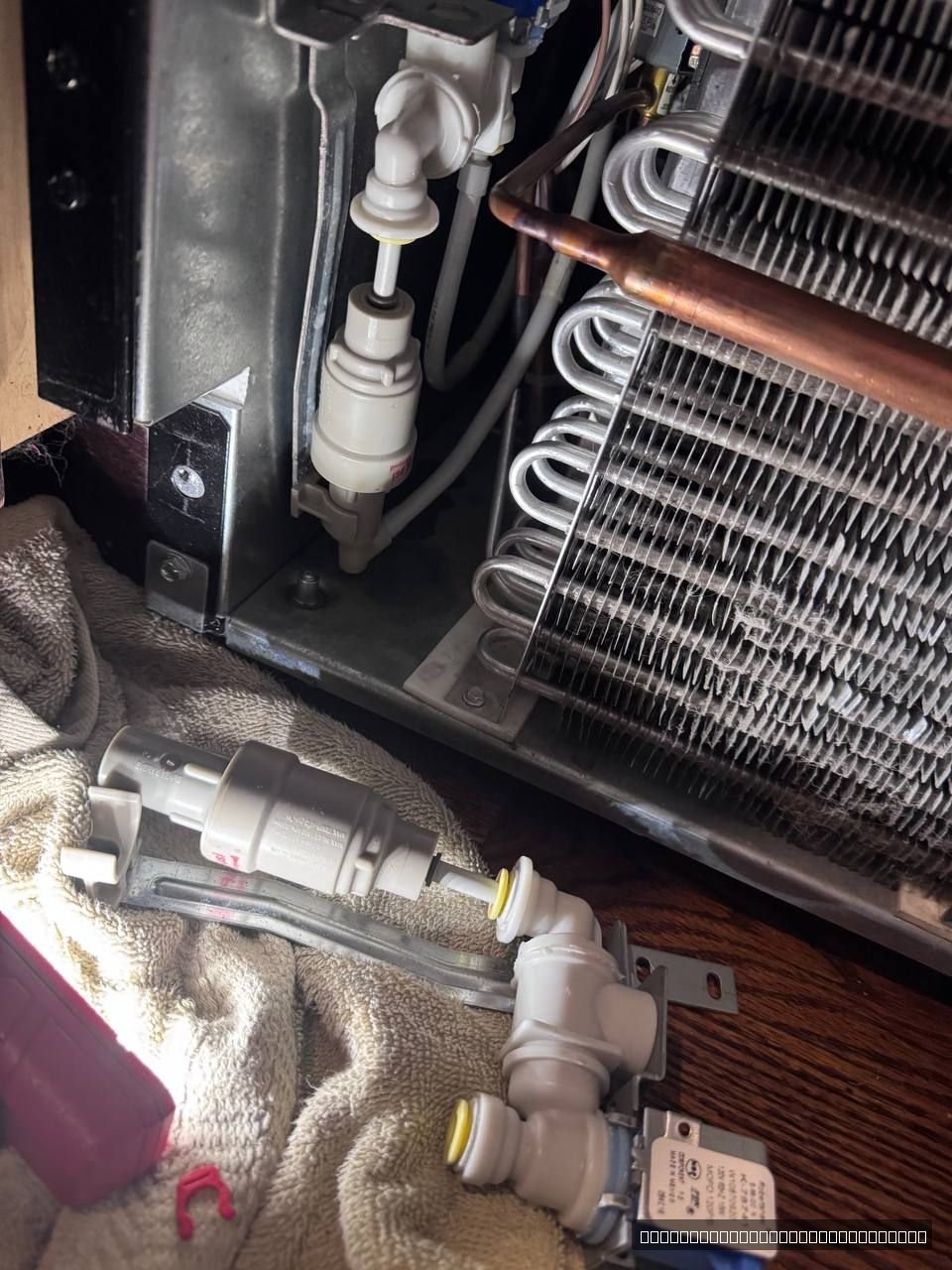

KitchenAid KUTX505ESS1 repair in Memorial, TX — photo 5
