KitchenAid KUIX585HPS00: Condenser Coil Cleaning and Ice Maker Maintenance in Memorial, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Ice production taking significantly longer than normal — full bin cycle stretched to 4 or more hours
- •Ice maker running continuously without shutting off at normal intervals
- •Unit running louder than usual due to compressor working under thermal load
- •Ice cubes coming out smaller and slightly cloudy compared to before
🔍 Diagnosis

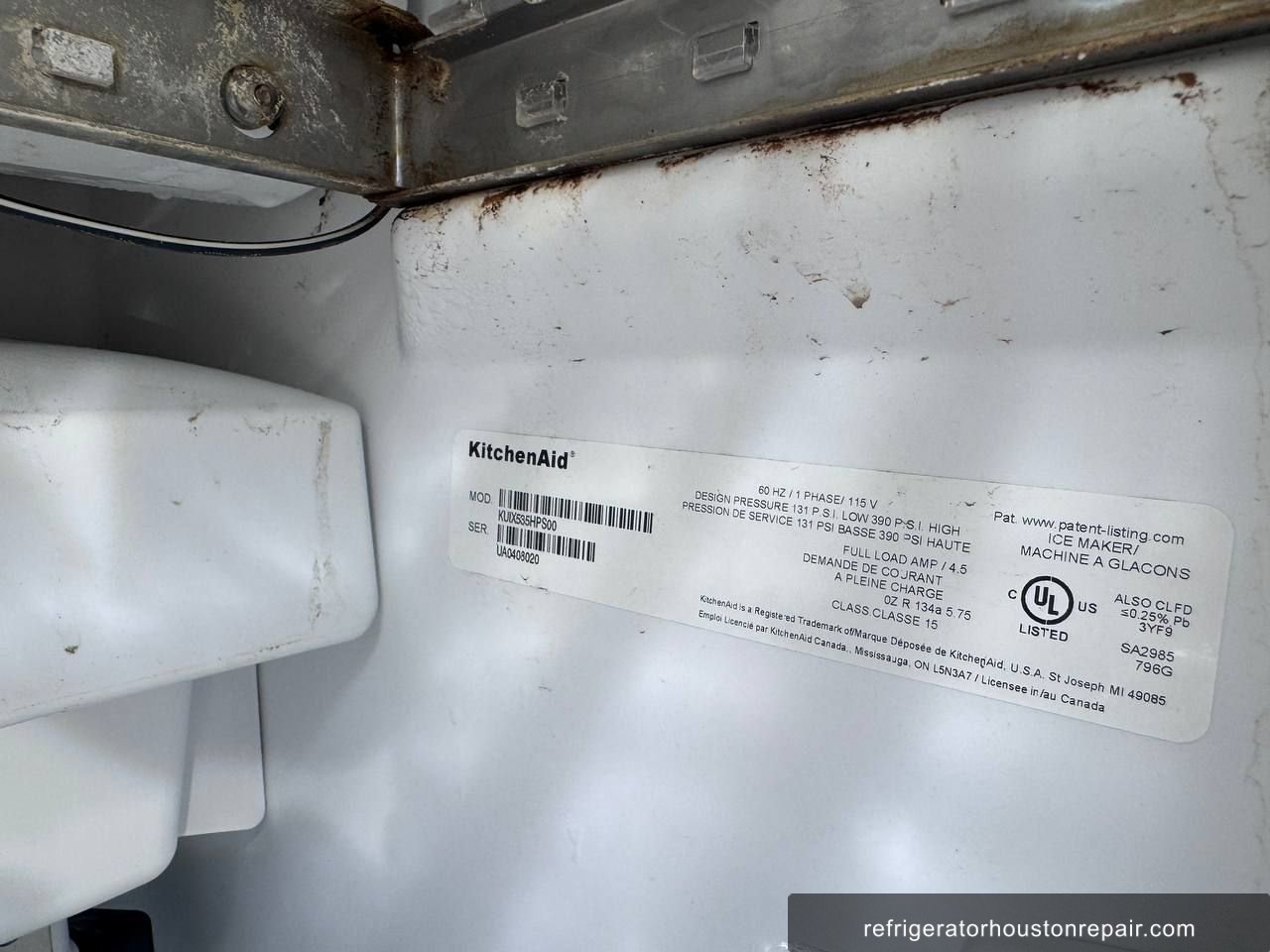

The customer in the 77055 ZIP code called for a scheduled maintenance visit on their KitchenAid KUIX585HPS00 undercounter ice maker. When I arrived, the unit was running but ice production was noticeably slow. The customer told me they had been cleaning the ice maker interior with calcium and lime descaling solution for years, which is good practice for this model. What they had never done was clean the condenser coil. I pulled the unit away from the wall and the state of the condenser immediately told the story. The coil was packed with years of accumulated dust, lint, and grease typical of a Houston kitchen environment. A clogged condenser forces the compressor to work against elevated head pressure because heat cannot dissipate efficiently from the refrigerant loop. On the KUIX585HPS00, which runs R-134a, normal high-side pressure at ambient room temperature should sit around 130 to 145 psi. With a coil that restricted, the compressor runs hotter, cycles longer per batch, and the freezing plate temperature drops more slowly than designed. The result is exactly what the customer described: slow ice, longer cycles, and a unit that sounds like it is straining. No refrigerant leak, no failed components. The root cause was entirely maintenance-related.
🔧 The Repair

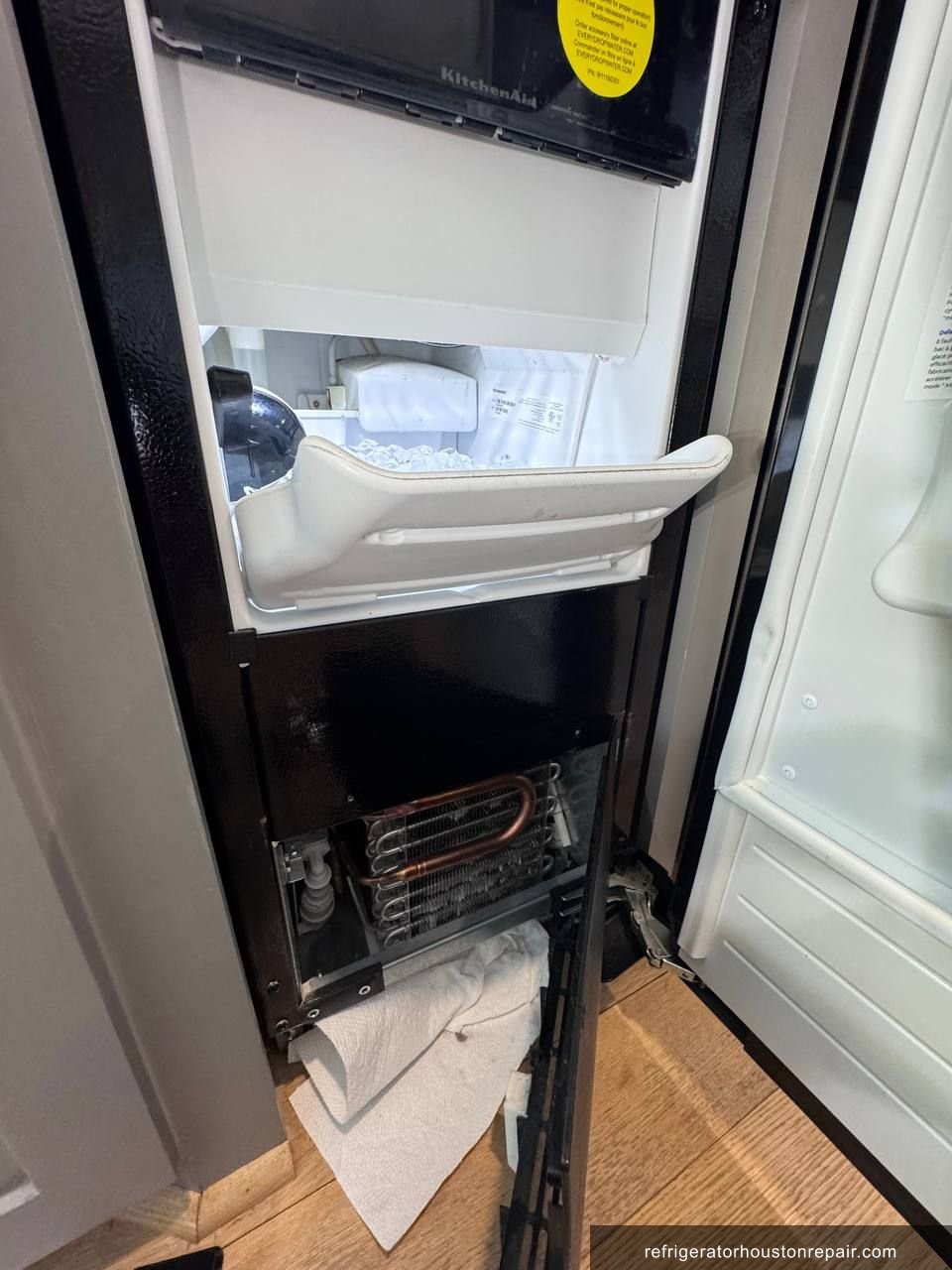

- ✓Step 1: Disconnected the KUIX585HPS00 from power at the wall outlet and pulled the unit fully out from its cabinet space to access the rear condenser coil panel.
- ✓Step 2: Removed the condenser access panel at the base rear of the unit using a 1/4-inch nut driver to expose the full coil surface.

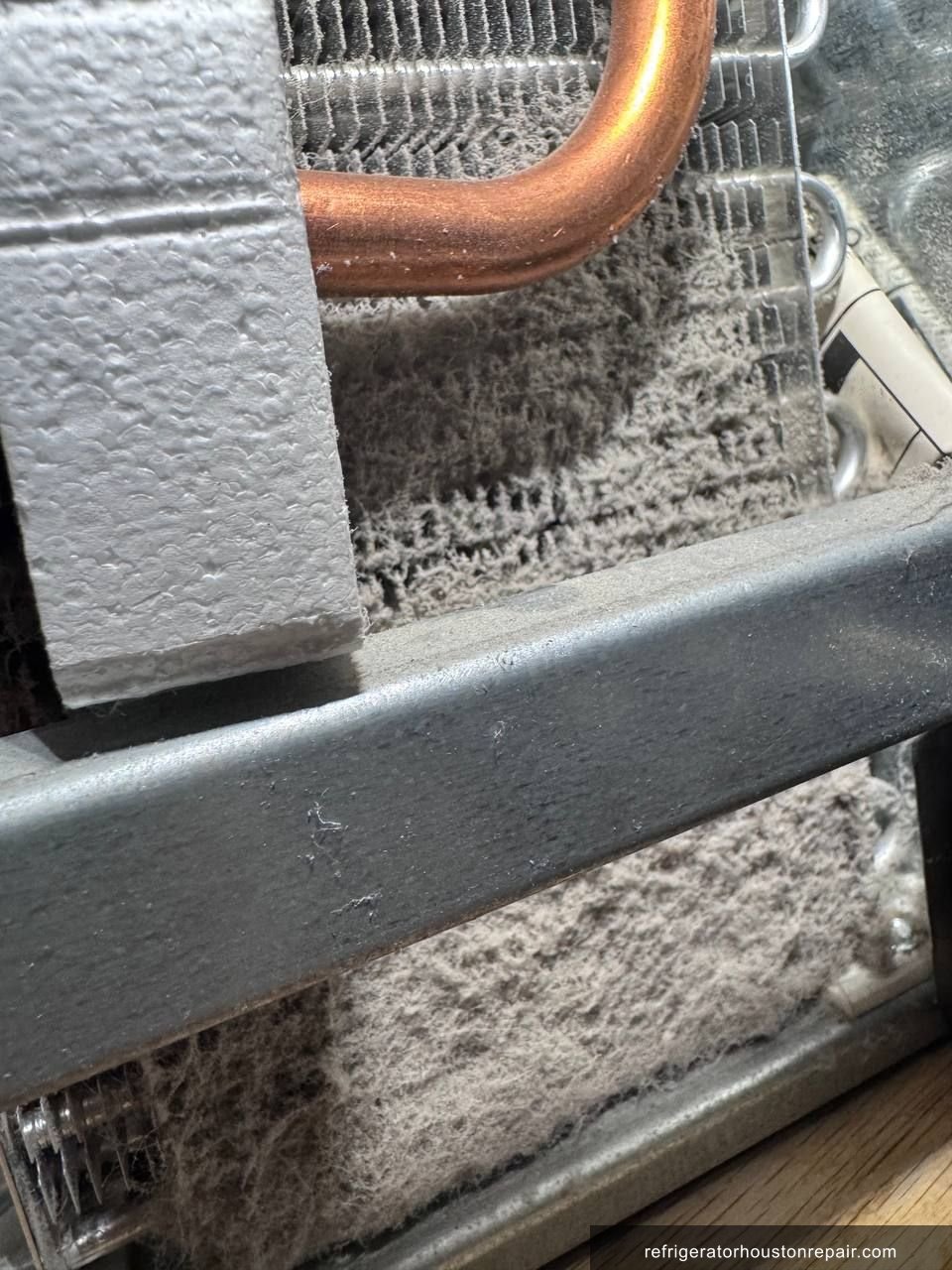

- ✓Step 3: Photographed the condenser coil before cleaning to document the level of buildup — coil fins were visibly packed with compacted dust, lint, and grease film across approximately 80 percent of the surface area.

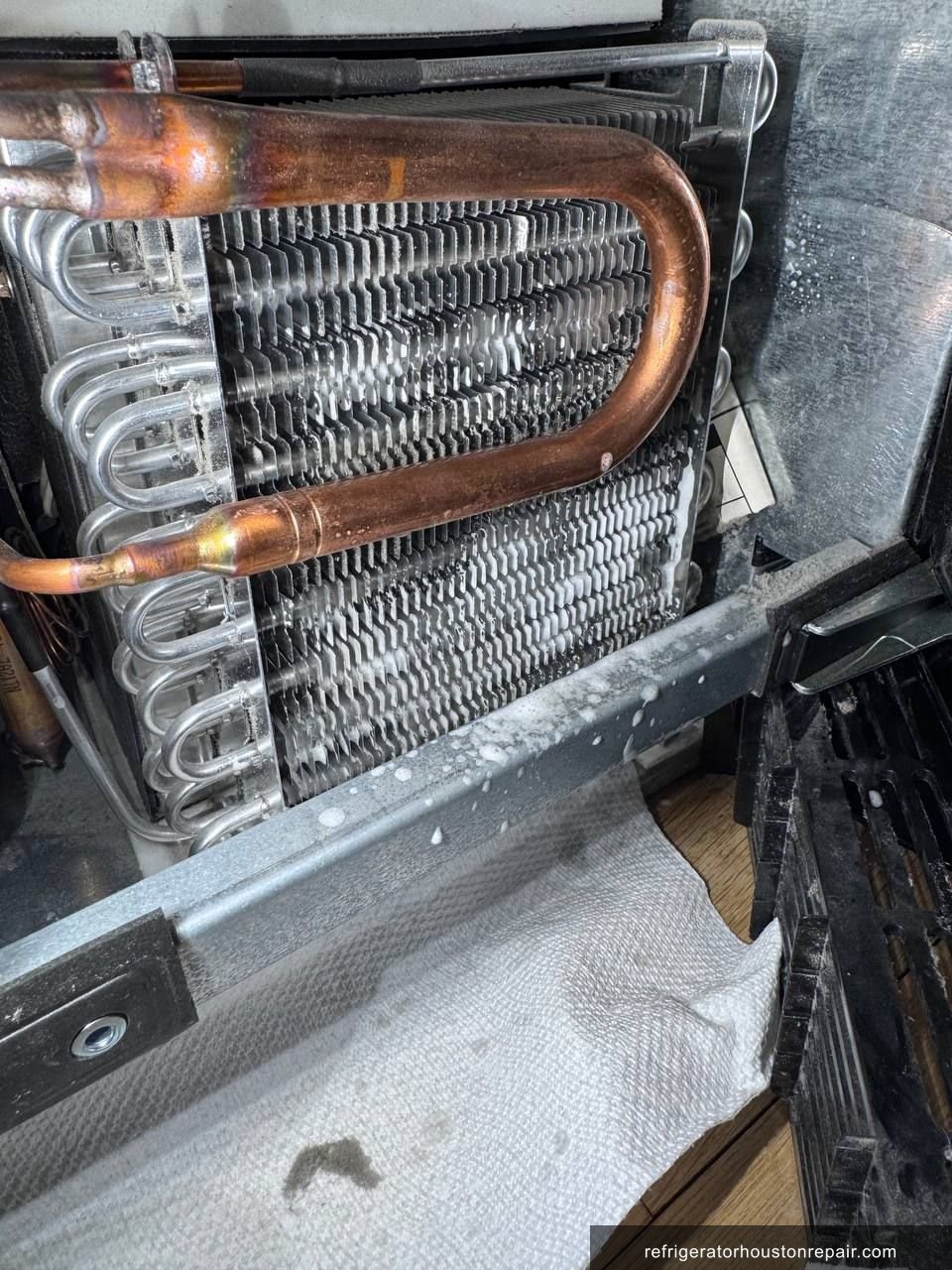

- ✓Step 4: Applied active foaming coil cleaner directly to the condenser fins, working top to bottom in sections and allowing the foam to penetrate and lift debris for 5 minutes per section.
- ✓Step 5: Used a soft-bristle condenser brush to agitate loosened debris between the fins without bending the aluminum fins, then flushed the coil thoroughly with compressed air from the inside out.
- ✓Step 6: Wiped down the condenser fan blades, the fan motor housing, and the drain pan beneath the compressor compartment — all carried significant dust accumulation.

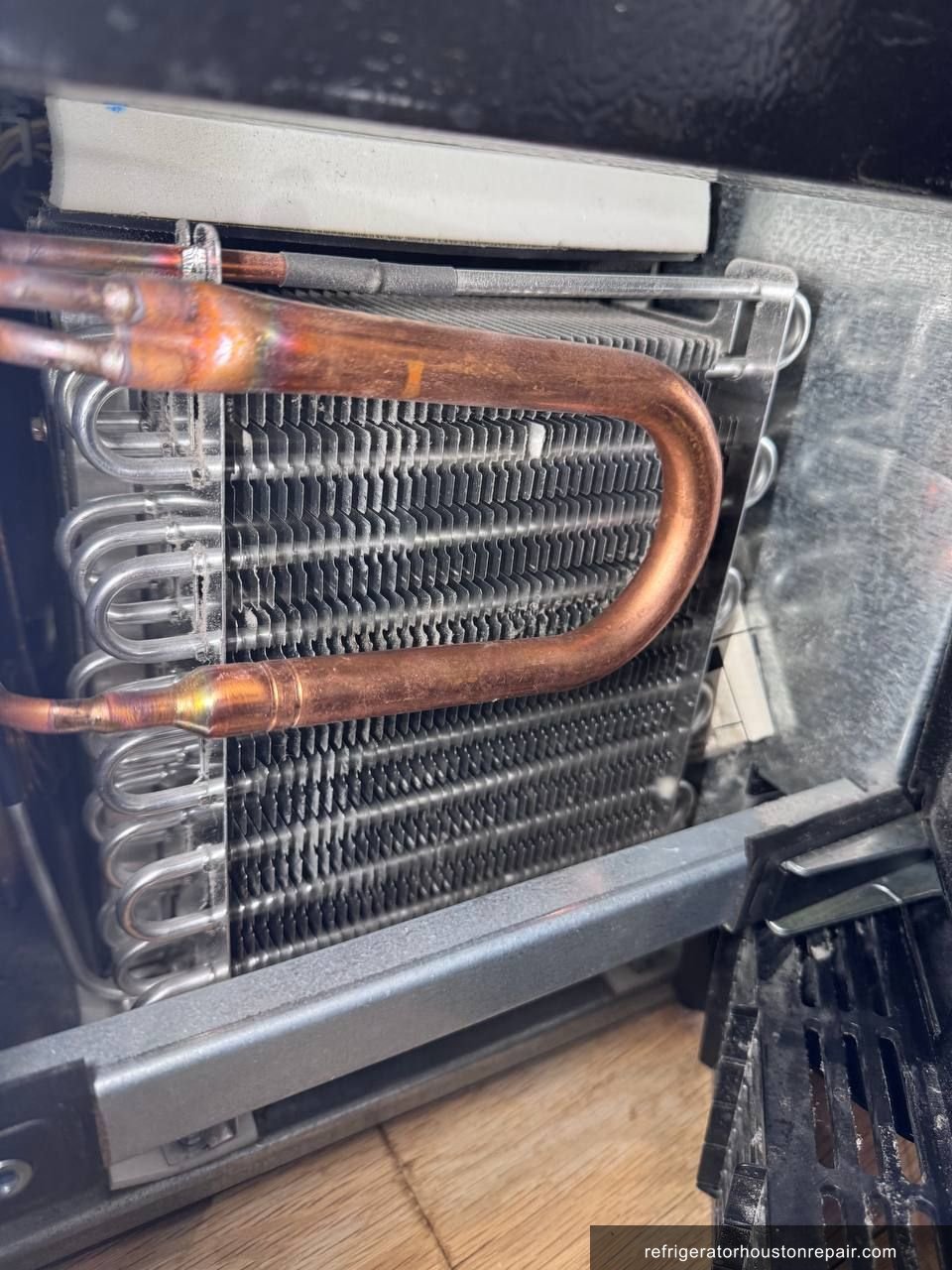

- ✓Step 7: Photographed the cleaned condenser coil for the customer record — fin surface was fully open, free of debris, and airflow through the coil was restored to normal.

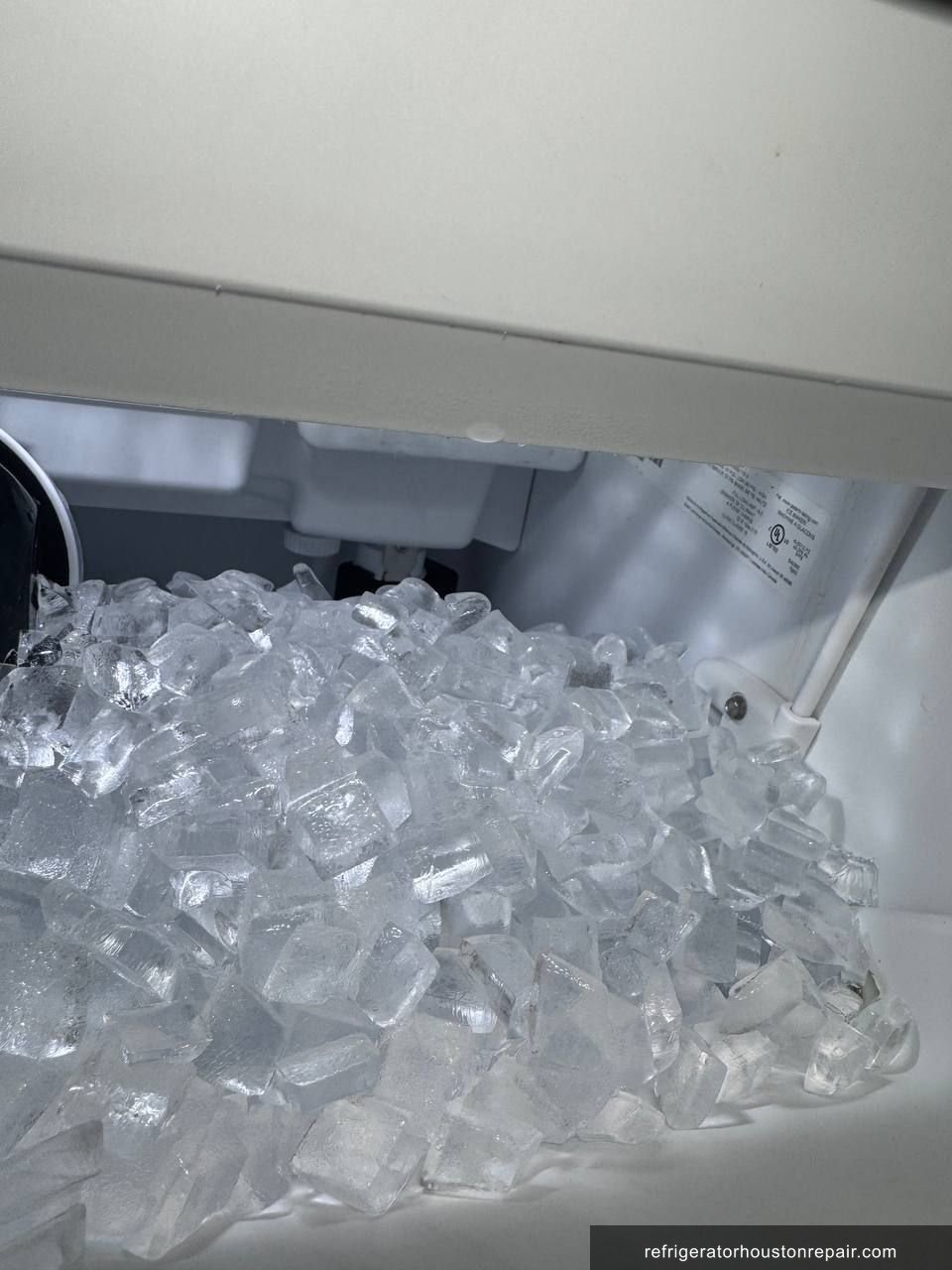

- ✓Step 8: Reinstalled the condenser access panel, pushed the unit back into position, reconnected power, and ran the KUIX585HPS00 through two full ice production cycles. First batch completed in 18 minutes, second batch in 17 minutes, both within the manufacturer spec range for this model. Freezing plate surface temperature reached -8°F as expected.
✓ Result
After cleaning the condenser coil, the KUIX585HPS00 returned to normal ice production within two cycles. Ice batch time dropped from the customer's reported 4-plus hours down to under 20 minutes per cycle, which is right where this model should be. The compressor noise level dropped noticeably as well. The customer in Memorial was relieved because they had assumed the slow ice meant the machine was dying and they were mentally preparing to replace it. A cleaning visit was all it needed. No refrigerant work, no parts. The customer mentioned they wished someone had told them about the condenser years ago.
💡 Technician Notes
KitchenAid undercounter ice makers like the KUIX585HPS00 are installed inside cabinetry in most Memorial and Houston kitchens, which means the condenser coil runs in a low-airflow environment and collects grease and kitchen dust faster than a freestanding unit would. The early warning sign for a dirty condenser on this model is a gradual increase in batch cycle time — if your KUIX585HPS00 used to produce a full batch in 15 to 20 minutes and it is now taking 45 minutes or more, the condenser is the first place to check before assuming a refrigerant or component failure. Clean the condenser coil at minimum once per year. If the unit is in a high-use kitchen, every 6 months is better. The customer here was doing the right thing by descaling the water system, but the condenser is equally critical. Call for service when batch times double or the unit runs continuously without completing a cycle — waiting longer puts unnecessary thermal stress on the compressor.
Frequently Asked Questions
Why is my KitchenAid KUIX585HPS00 making ice so slowly all of a sudden?
Slow ice production on the KitchenAid KUIX585HPS00 is most often caused by a dirty condenser coil. When the coil is clogged with dust and grease, the compressor cannot shed heat efficiently, which extends every freeze cycle. Cleaning the condenser is the first thing to check before assuming a refrigerant or mechanical failure.
How much does a KitchenAid ice maker maintenance cleaning cost in Houston, TX?
A condenser coil cleaning and preventive maintenance visit for a KitchenAid undercounter ice maker in the Houston area typically runs between $120 and $200 depending on how long the coil has gone without service. If the coil is severely packed, the cleaning takes longer. No parts are needed in most cases, which keeps the cost low.
What happens if I keep using my KitchenAid KUIX585HPS00 with a dirty condenser coil?
Continued use with a clogged condenser forces the compressor to run hotter and longer on every ice cycle. Over time this leads to premature compressor failure, which is the most expensive repair on any undercounter ice maker. A compressor replacement on the KUIX585HPS00 costs several hundred dollars, far more than a routine coil cleaning.
Should I repair or replace my KitchenAid KUIX585HPS00 if the ice maker is running slowly?
If the slow ice production is caused by a dirty condenser — which is the most common cause — repair is the obvious choice. A cleaning restores full function at a fraction of replacement cost. The KUIX585HPS00 is a well-built unit that lasts 10 to 15 years with proper maintenance. Replacement only makes sense if the compressor or sealed system has failed.
How often should I clean the condenser coil on my KitchenAid undercounter ice maker?
KitchenAid recommends cleaning the condenser coil on the KUIX585HPS00 at least once per year. In a Houston kitchen where the unit is enclosed in cabinetry, twice per year is a better target. Grease and humidity in Houston kitchens accelerate buildup on the fins. Pair the condenser cleaning with your regular descaling routine for best results.
Repair Summary
- Brand
- KitchenAid
- Model
- KUIX585HPS00
- Repair Type
- Condenser Coil Deep Cleaning and Ice Maker Preventive Maintenance
- Refrigerant
- R-134a
- Root Cause
- Heavily clogged condenser coil forcing compressor overwork and slowing ice production
- Parts Replaced
- ✓No parts replaced — repair was full preventive maintenance cleaning
- ✓Foaming coil cleaner (food-safe, NSF-rated formulation appropriate for ice maker condenser use)
- ✓Condenser brush and compressed air service consumables
- Location
- Memorial, TX 77055
- Status
- ✓ Completed
