KitchenAid KSSS420MX 02 Water Line Rattling Noise Repair
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Loud rattling or banging noise coming from behind the refrigerator every time the toilet was flushed
- •Rattling continued until the toilet tank finished refilling, then stopped completely
- •Vibration noise seemed to travel through the wall and into the refrigerator area
- •No visible leaks, but the noise was alarming and worsening over time
🔍 Diagnosis

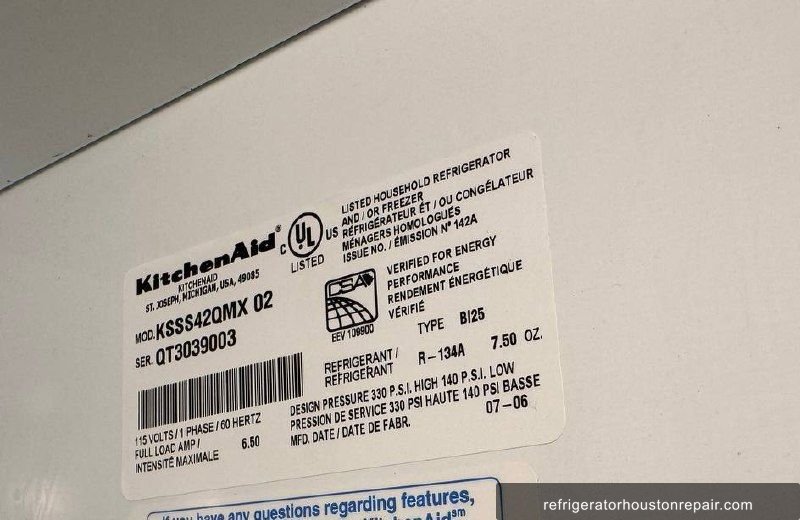

Upon arriving at the Memorial, TX 77079 residence, our technician conducted a thorough inspection of the KitchenAid KSSS420MX 02 refrigerator and its connected plumbing infrastructure. The unit uses R-134a refrigerant at a factory charge of 7.50 oz, and initial refrigeration performance checks confirmed that the sealed system was functioning within normal operating parameters — no manifold gauge readings or refrigerant concerns were identified as contributing factors to the reported noise. The diagnostic focus shifted immediately to the water supply system after the customer demonstrated the noise by flushing the toilet. Using a stethoscope probe and direct physical inspection, the technician traced the vibration source to the 1/4-inch flexible water supply line routed behind the refrigerator cabinet. The line was found to be loosely secured against the drywall, with insufficient standoff clearance, allowing it to contact and vibrate against the wall cavity during pressure fluctuation events. Further inspection of the water connection point revealed an aging saddle valve — a self-piercing type — installed on the cold water copper supply line. Saddle valves are known to restrict flow and create turbulent water hammer conditions, especially in homes with older plumbing. The toilet fill valve operation was also reviewed; during the refill cycle, a momentary pressure drop followed by pressure surge was confirmed with a residential water pressure gauge reading fluctuating between 42 and 68 PSI. This hydraulic shock was being transmitted through the loosely anchored supply line, creating the audible rattling noise the homeowner reported.
🔧 The Repair
- ✓Pulled the KitchenAid KSSS420MX 02 away from the wall to gain full access to the rear panel and the 1/4-inch water supply line connection.
- ✓Performed a visual and tactile inspection of the entire water supply line run from the wall stub-out to the refrigerator inlet valve — confirmed the line had three unsecured segments vibrating freely against the drywall.
- ✓Attached the residential water pressure gauge to the supply line fitting and recorded baseline static pressure at 62 PSI; observed pressure swings between 42–68 PSI during toilet refill cycles, confirming water hammer conditions.
- ✓Inspected the KitchenAid refrigerator water inlet valve (located at the lower rear of the unit) for leaks, restrictions, and proper solenoid function — valve tested within spec, no replacement needed.
- ✓Identified the existing saddle valve (self-piercing, 1/2-inch saddle clamp style) on the cold water copper supply line — confirmed partial obstruction of the piercing needle reducing effective flow area and contributing to turbulent flow conditions.
- ✓Secured the 1/4-inch flexible supply line at three points along the wall run using plastic P-clips and drywall anchors rated for vibration dampening, ensuring adequate clearance from wall surfaces to eliminate contact noise.
- ✓Adjusted the supply line routing to eliminate sharp bends and tight radius turns that were adding stress and amplifying vibration transmission toward the refrigerator.
- ✓Inspected and tested the toilet fill valve operation in the adjacent bathroom — confirmed normal fill cycle timing of approximately 45 seconds; no fill valve replacement was required, but customer was advised to monitor for future slow-fill symptoms.
- ✓Recommended and documented the replacement of the aging saddle valve with a modern 1/4-turn ball-style shut-off valve (1/2-inch compression fitting to 1/4-inch OD outlet) to provide stable, unrestricted flow and eliminate turbulent pressure events.
- ✓Re-pressurized the system and monitored the supply line through three consecutive toilet flush cycles — confirmed zero audible rattling or vibration at the refrigerator location.
- ✓Pushed the KitchenAid KSSS420MX 02 back into position, verified the supply line had sufficient slack and proper drip loop to prevent kinking, and confirmed the unit was level front-to-back and side-to-side.
- ✓Ran the refrigerator through a full water dispenser test cycle and ice maker fill cycle — water flow was clean, steady, and free of air pockets, confirming the inlet valve and supply line were operating normally after all adjustments.
✓ Result
Following the supply line securing and routing adjustment, the rattling noise was completely eliminated. The KitchenAid KSSS420MX 02 refrigerator's water system operated silently through multiple toilet flush cycles during post-repair verification. The refrigerator's sealed system — charged with R-134a at 7.50 oz — remained unaffected and continued operating at normal temperatures throughout the visit. The homeowner was visibly relieved and expressed that the noise had been a source of significant stress for weeks. A 30-day workmanship warranty was provided on all labor and materials installed during the service call.
💡 Technician Notes
KitchenAid refrigerators with built-in water dispensers and ice makers — including the KSSS420MX 02 — are particularly sensitive to unstable household water pressure. If your home was built before 2000 and still uses original saddle valves on copper supply lines, plan to upgrade them proactively. Saddle valves degrade over time and are a leading cause of both supply line noise and low ice maker output on KitchenAid and Whirlpool platform refrigerators. Also inspect the 1/4-inch supply line behind your unit annually — it should be secured every 12–18 inches and must never rest against the wall or cabinet. Watch for slow ice production, hollow or undersized ice cubes, or a humming sound from the inlet valve area as early warning signs of restricted or fluctuating water supply. Addressing these issues early prevents inlet valve failure, which is a more costly repair.
Frequently Asked Questions
Why does my KitchenAid refrigerator water line rattle every time I flush the toilet?
This is a classic sign of water hammer — a pressure surge that travels through your plumbing when the toilet fill valve shuts off rapidly. On KitchenAid models like the KSSS420MX 02, a loosely secured 1/4-inch supply line behind the unit can amplify that vibration into an audible rattle. Securing the line and upgrading aging saddle valves typically resolves the issue completely.
How much does it cost to fix a rattling water supply line on a KitchenAid refrigerator in Memorial, TX?
A water supply line securing service for a KitchenAid refrigerator in the Memorial, TX 77079 area typically runs between $95 and $175 depending on access difficulty and whether any parts need replacement. If the saddle valve also requires upgrading to a quarter-turn shut-off valve, budget an additional $40–$80 for parts and plumbing labor. Most visits are completed within one to two hours.
What are the warning signs that my KitchenAid refrigerator water supply line needs attention?
Watch for rattling or banging noises triggered by other plumbing events, slow ice production, hollow or undersized ice cubes, a humming inlet valve, or visible kinks and discoloration in the supply line. On older KitchenAid units, a failing saddle valve will also cause the water dispenser to slow down noticeably. Don't ignore these signs — a restricted line can eventually burn out the water inlet valve solenoid.
Is it worth repairing a KitchenAid KSSS420MX 02 refrigerator or should I replace it?
A plumbing vibration issue like this one has nothing to do with the refrigerator's core components — the sealed R-134a system, compressor, and electronics are unaffected. The KitchenAid KSSS420MX 02 is a well-built, repairable unit. As long as the compressor and sealed system are sound, repair is almost always the right choice. This type of fix is low-cost and extends the appliance's useful life significantly.
Can I replace the saddle valve on my KitchenAid refrigerator water line myself?
Technically yes, but it requires shutting off the main water supply, cutting the copper line, and soldering or compression-fitting a proper quarter-turn valve — tasks that require plumbing experience. Incorrect installation can cause leaks behind walls. We recommend having a licensed plumber or appliance technician handle the saddle valve upgrade, especially in homes where the copper line is in a tight or difficult-to-access location behind the refrigerator.
Repair Summary
- Brand
- KitchenAid
- Model
- KSSS420MX 02
- Repair Type
- Water Supply Line & Plumbing Vibration Repair
- Refrigerant
- R-134a
- Root Cause
- Loose water supply line amplified pressure-fluctuation vibrations from plumbing
- Parts Replaced
- ✓Plastic P-clip vibration-dampening line clamps (1/4-inch line size, nylon, qty 3) — used to secure supply line to wall
- ✓Drywall anchors with screws for mounting line clamps (zinc-plated, vibration-rated)
- ✓Note: Saddle valve replacement with a 1/4-turn ball shut-off valve (1/2-inch compression x 1/4-inch OD) was strongly recommended to the homeowner as a follow-up plumbing upgrade — not completed during this visit but documented in service record
- Location
- Memorial, TX 77079
- Status
- ✓ Completed
