KitchenAid KSSO48QMB00: Inverter Failure, Gasket Replacement, and Refrigerant Recharge in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Refrigerator not maintaining temperature, fresh food section reading 55°F instead of the target 37°F
- •Compressor starting and stopping erratically, cycling every few minutes without completing a normal run
- •Frost forming unevenly inside the cabinet, concentrated near the door seals on both the fresh food and freezer sides
- •Audible clicking from the compressor area each time the inverter attempted and failed to initiate a start sequence
- •Visible gap and deterioration along both door gaskets, allowing warm Houston air to infiltrate the cabinet
🔍 Diagnosis

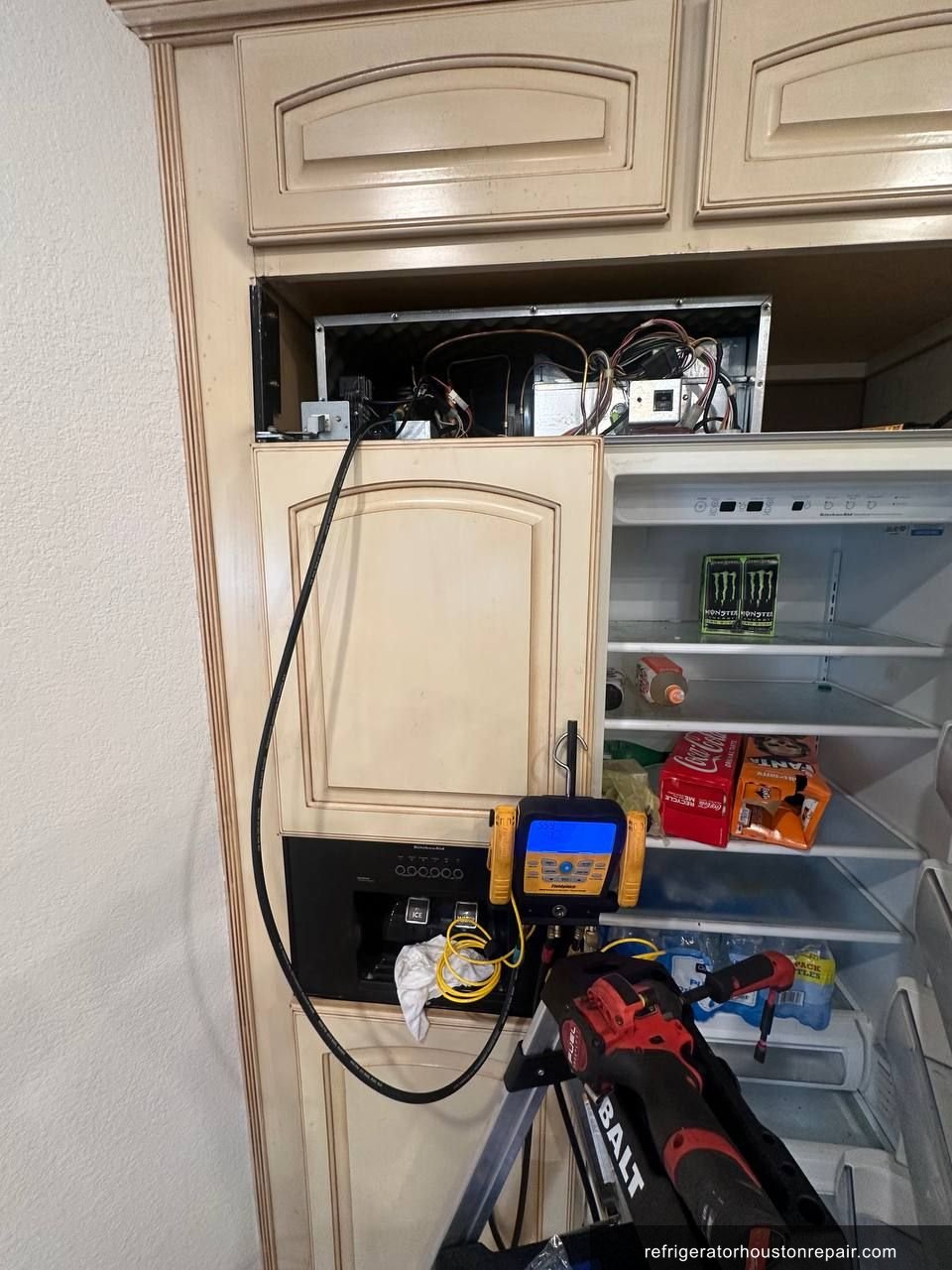

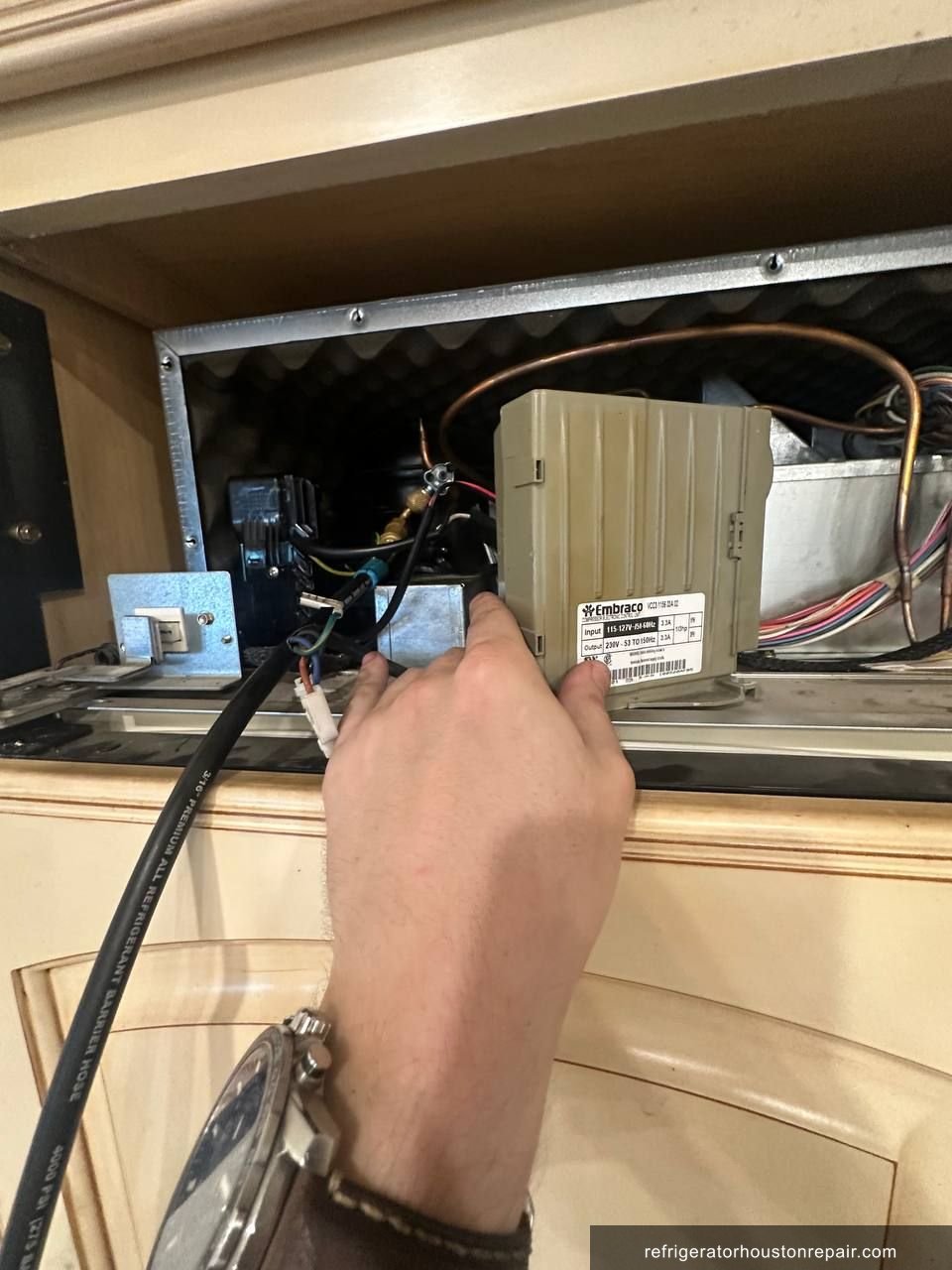

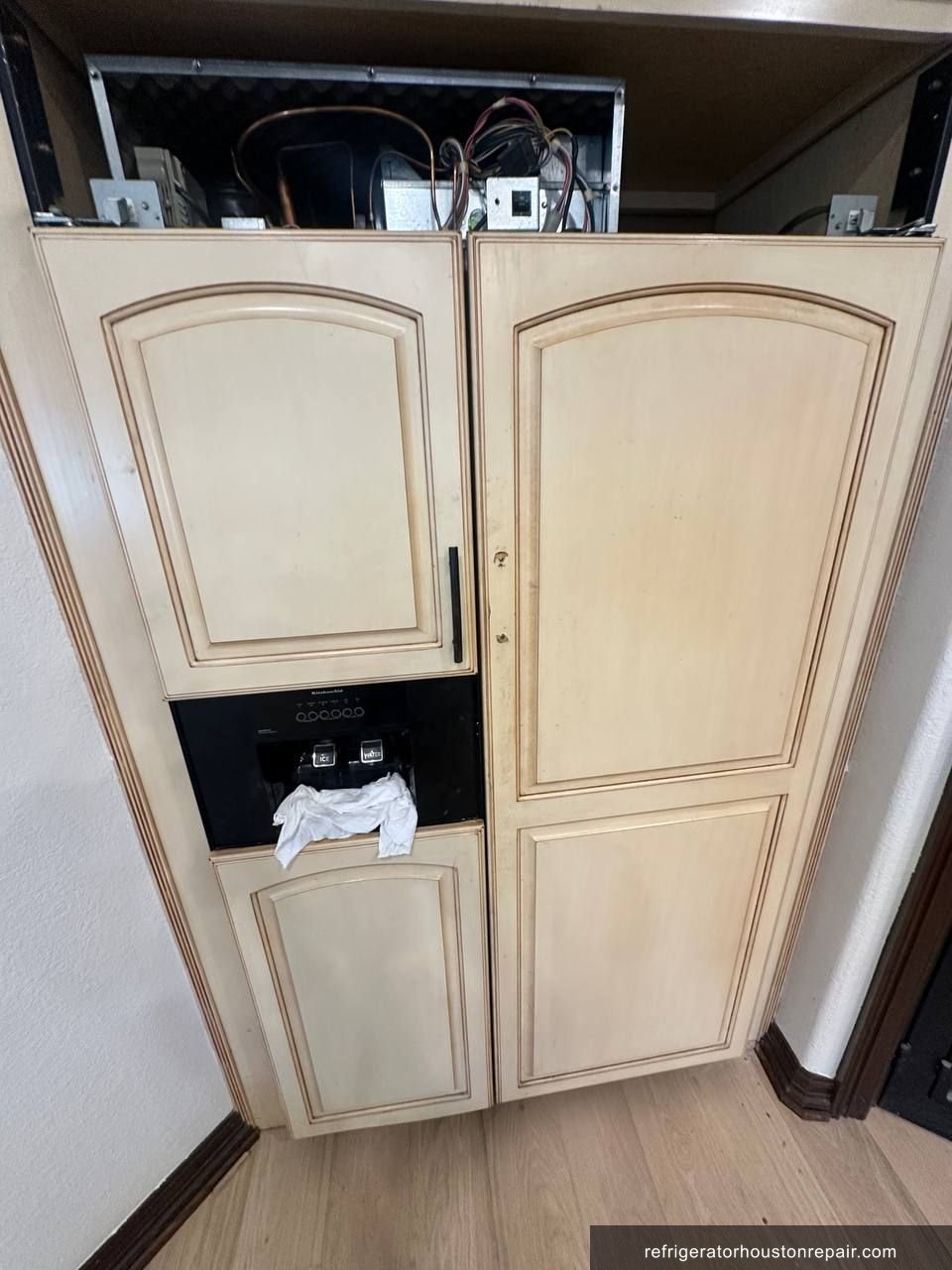

When I arrived at the home in the 77539 area, the KitchenAid KSSO48QMB00 side-by-side column refrigerator was sitting at 55°F in the fresh food section and 28°F in the freezer. The compressor was clicking on and off repeatedly, never completing a stable run cycle. I connected my manifold gauges and found suction pressure at 8 psi and discharge at 90 psi. Those readings are far below the normal operating range for R-134a on this unit. Normal suction on this model should sit around 20 to 22 psi at ambient conditions around 75°F. Low side pressure that low told me immediately the system was short on refrigerant charge. I ran my Fieldpiece LD520 electronic leak detector around the service ports, evaporator connections, and door frame perimeter. The detector alarmed along both door gaskets, confirming refrigerant was migrating out through the degraded seals over time. I pulled the compressor access panel and tested the inverter board with a clamp meter. The board was drawing 0.3 amps during attempted start cycles instead of the expected 2.5 to 3.5 amps, indicating the inverter had failed and was not delivering proper variable-frequency drive voltage to the linear compressor. On the KSSO48QMB00, the inverter board controls compressor speed and is a known failure point when the unit runs in conditions of poor door sealing, because extended run cycles from temperature loss stress the board beyond its rated duty cycle.
🔧 The Repair
- ✓Step 1: Recovered the remaining R-134a refrigerant from the sealed system using a Fieldpiece MR45 recovery machine, capturing 4.1 oz of degraded charge per EPA 608 protocol before opening any components.
- ✓Step 2: Removed the rear access panel and disconnected the failed inverter board from the compressor harness and control board wiring. Documented all connector positions before removal.
- ✓Step 3: Installed the replacement inverter board compatible with KitchenAid KSSO48QMB00, reconnected all harness plugs in sequence, and verified proper seating of the communication connector between the inverter and main control board.

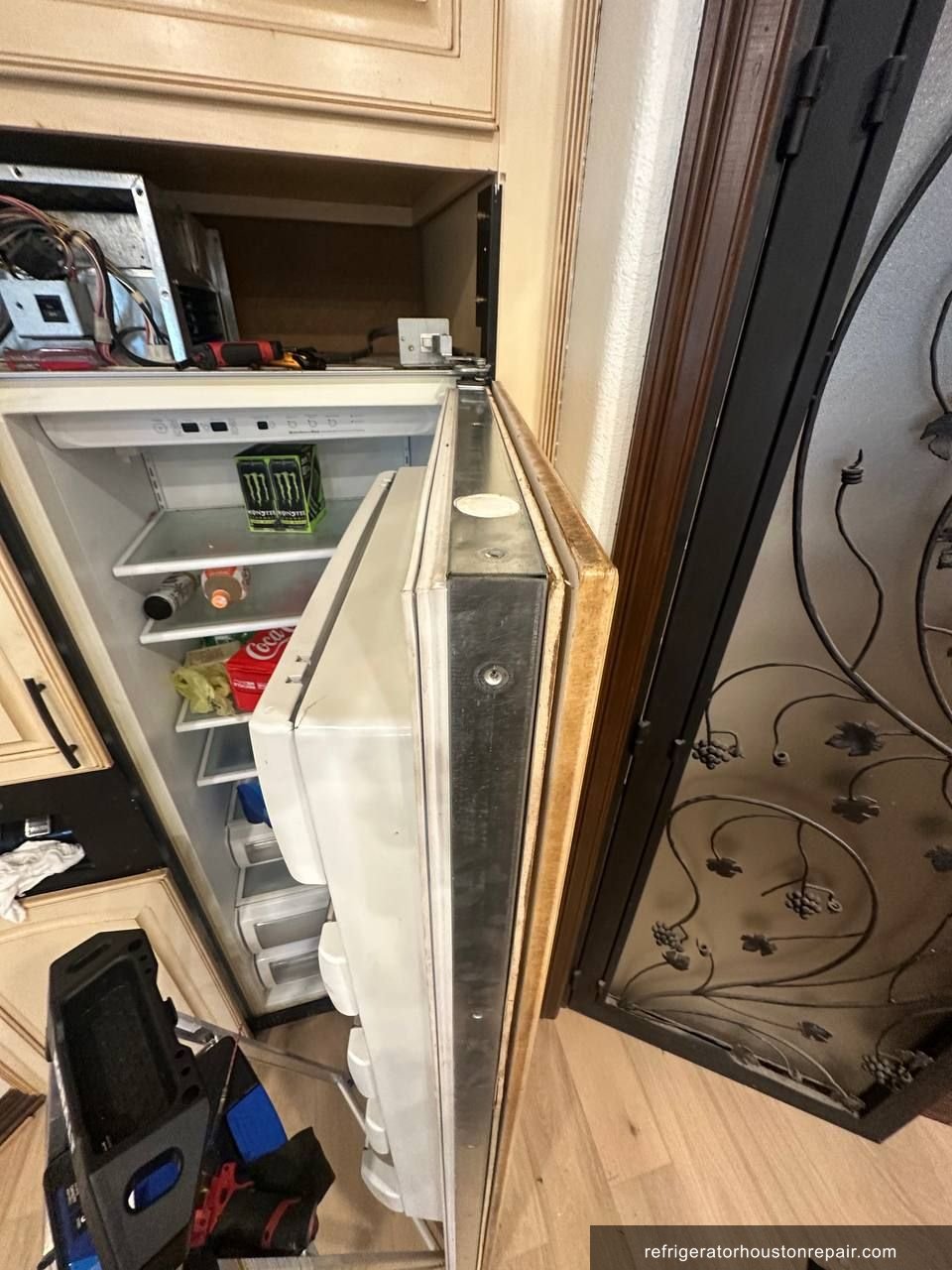

- ✓Step 4: Removed both door gaskets from the fresh food door and the freezer column door. The gaskets were brittle and had lost their magnetic retention along the lower corners on both sides.
- ✓Step 5: Cleaned the gasket channels on both door frames with a degreaser, removing old adhesive residue and debris. Installed new gaskets on both doors, starting at the top corners and pressing the gasket bead firmly into the retaining channel around the full perimeter.
- ✓Step 6: Verified door seal integrity by closing each door on a sheet of paper at multiple points around the perimeter. Confirmed firm drag resistance at all test points, including the lower corners where the original gaskets had failed.

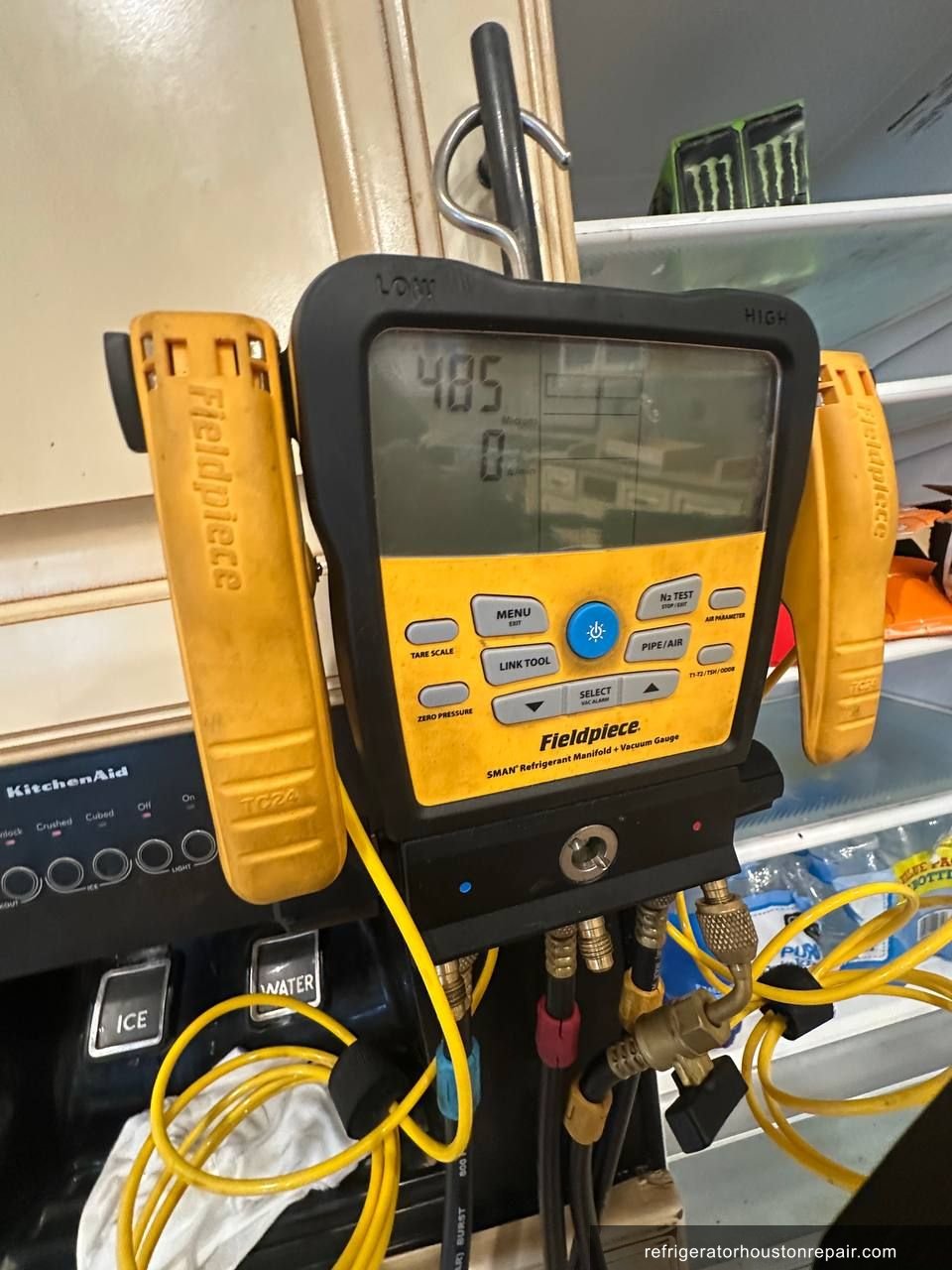

- ✓Step 7: Evacuated the sealed system to 250 microns using a Robinair 15500 two-stage vacuum pump. Held vacuum for 30 minutes and confirmed no rise above 300 microns, indicating the system was clean and leak-free.

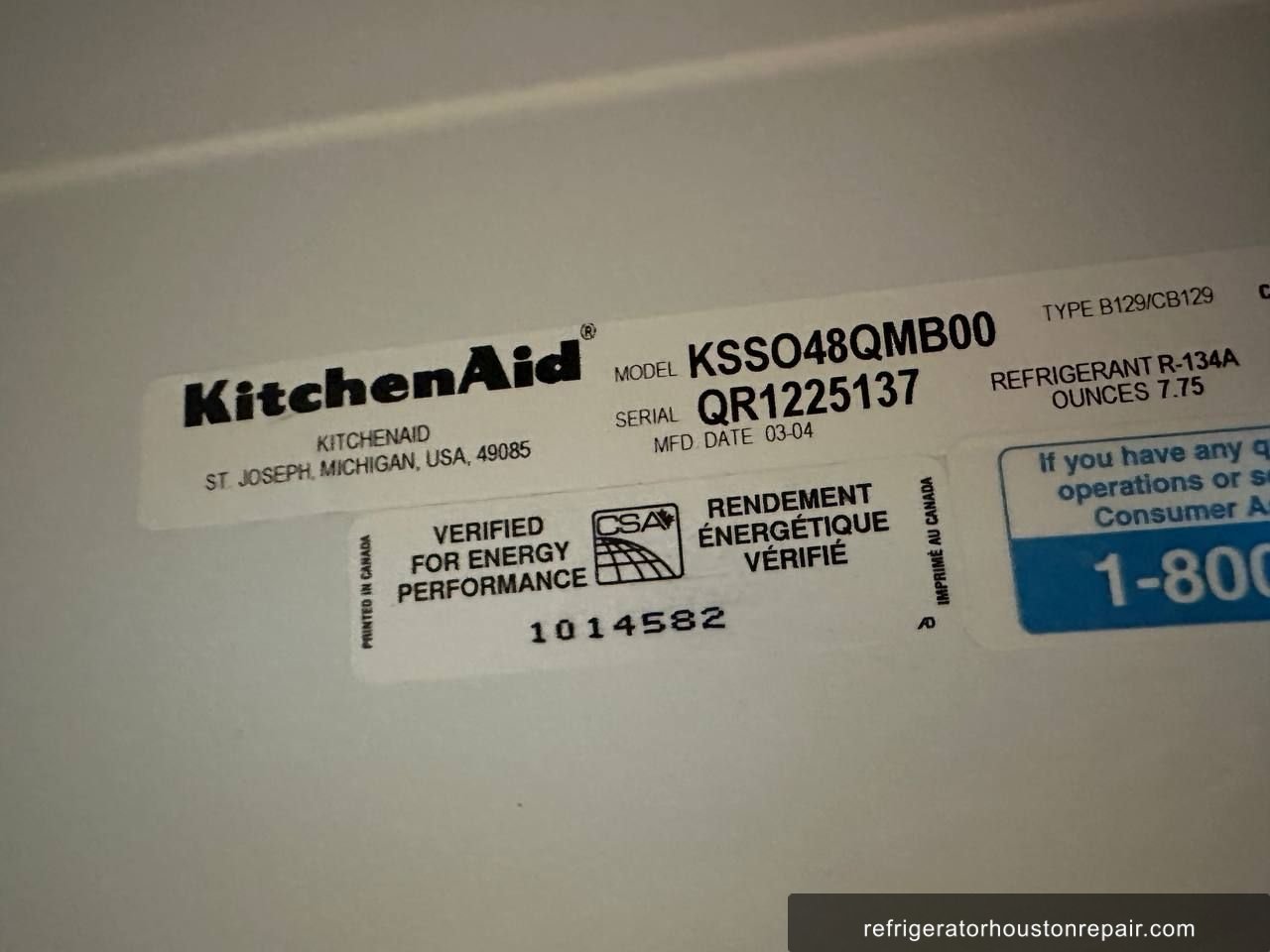

- ✓Step 8: Recharged the system with 7.75 oz of R-134a per the label specification, confirmed suction pressure at 21 psi and discharge at 145 psi during steady-state operation. After a 2-hour runtime, fresh food section measured 37°F and freezer measured 0°F.
✓ Result
After the 2-hour stabilization period, the KSSO48QMB00 was holding 37°F in the fresh food section and 0°F in the freezer. The compressor was running smoothly in variable-speed mode without any cycling or clicking. The homeowner in the 77539 area was relieved because the unit had been struggling for several weeks and they had already lost a round of groceries. They were glad to have the unit fully operational before the weekend. I provided a 90-day labor warranty on the inverter replacement and gasket installation.
💡 Technician Notes
The KSSO48QMB00 uses a linear inverter-driven compressor, which is sensitive to voltage fluctuations and extended duty cycles caused by poor door sealing. If you notice the compressor running almost continuously, that is an early sign the gaskets are failing and the inverter is being overworked. Do not ignore even a slight soft spot in the door seal. On this model, a degraded gasket does not just waste energy. It eventually kills the inverter board because the board was not designed for 100-percent duty cycle operation. Every 12 months, wipe both door gaskets with a damp cloth and check for any sections that feel stiff or fail to spring back when pressed. If the gaskets feel brittle, schedule a replacement before refrigerant loss begins. If you hear clicking at startup that stops after a few seconds and the unit fails to cool, call for service the same day. Waiting on an inverter issue on this platform leads to refrigerant migration and a significantly larger repair bill.
Frequently Asked Questions
Why did my KitchenAid KSSO48QMB00 inverter board fail so early?
The inverter board on the KSSO48QMB00 controls the variable-speed linear compressor. When door gaskets degrade, the compressor runs almost continuously to compensate for temperature loss. That extended duty cycle overheats the inverter board beyond its design limits. Replacing the gaskets at the first sign of wear prevents the inverter from failing prematurely.
How much does it cost to replace the inverter board and recharge refrigerant on a KitchenAid KSSO48QMB00 in Houston?
A full repair like this one, covering inverter board replacement, both door gaskets, system evacuation, and R-134a recharge, typically runs between $650 and $950 in the Houston area depending on parts sourcing and labor time. The KSSO48QMB00 is a premium column unit, so OEM-spec parts carry a higher price than standard side-by-side components.
What happens if I keep running my KitchenAid KSSO48QMB00 with a bad inverter and leaking gaskets?
Continuing to run the unit with a failing inverter and compromised gaskets accelerates refrigerant loss through the door seals and risks a complete compressor failure. Once the compressor seizes on this platform, repair costs climb sharply. Food safety is also a concern: temperatures above 40°F in the fresh food section for more than two hours put perishables at risk.
Is it worth repairing a KitchenAid KSSO48QMB00 column refrigerator or should I replace it?
The KSSO48QMB00 is a 48-inch column unit that retails well above $6,000 new. Even a sealed system overhaul with inverter and gasket replacement is a fraction of replacement cost. As long as the compressor itself is sound, repairing this unit is the right financial decision. Replacement only makes sense if the compressor has seized or the cabinet has structural damage.
How do I know if my KitchenAid KSSO48QMB00 needs a refrigerant recharge after gasket replacement?
If the unit ran with degraded gaskets for weeks or months before repair, refrigerant loss through permeation is likely. Low suction pressure on manifold gauges, warm fresh food temperatures despite a running compressor, and frost patterns concentrated near the door frame are all signs the charge is low. Always evacuate and recharge after replacing gaskets if any refrigerant loss is suspected.
Repair Summary
- Brand
- KitchenAid
- Model
- KSSO48QMB00
- Repair Type
- Sealed System Overhaul with Inverter Replacement and Gasket Reseal
- Refrigerant
- R-134a
- Root Cause
- Failed inverter board and compromised door gaskets causing refrigerant loss
- Parts Replaced
- ✓Inverter board (variable frequency drive board for KitchenAid KSSO48QMB00 linear compressor system)
- ✓Fresh food door gasket (full perimeter, OEM-spec magnetic gasket for KSSO48QMB00)
- ✓Freezer column door gasket (full perimeter, OEM-spec magnetic gasket for KSSO48QMB00)
- ✓R-134a refrigerant, 7.75 oz full recharge per label specification
- Location
- Houston, TX 77539
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos
KitchenAid KSSO48QMB00 repair in Houston, TX — photo 3
KitchenAid KSSO48QMB00 repair in Houston, TX — photo 4

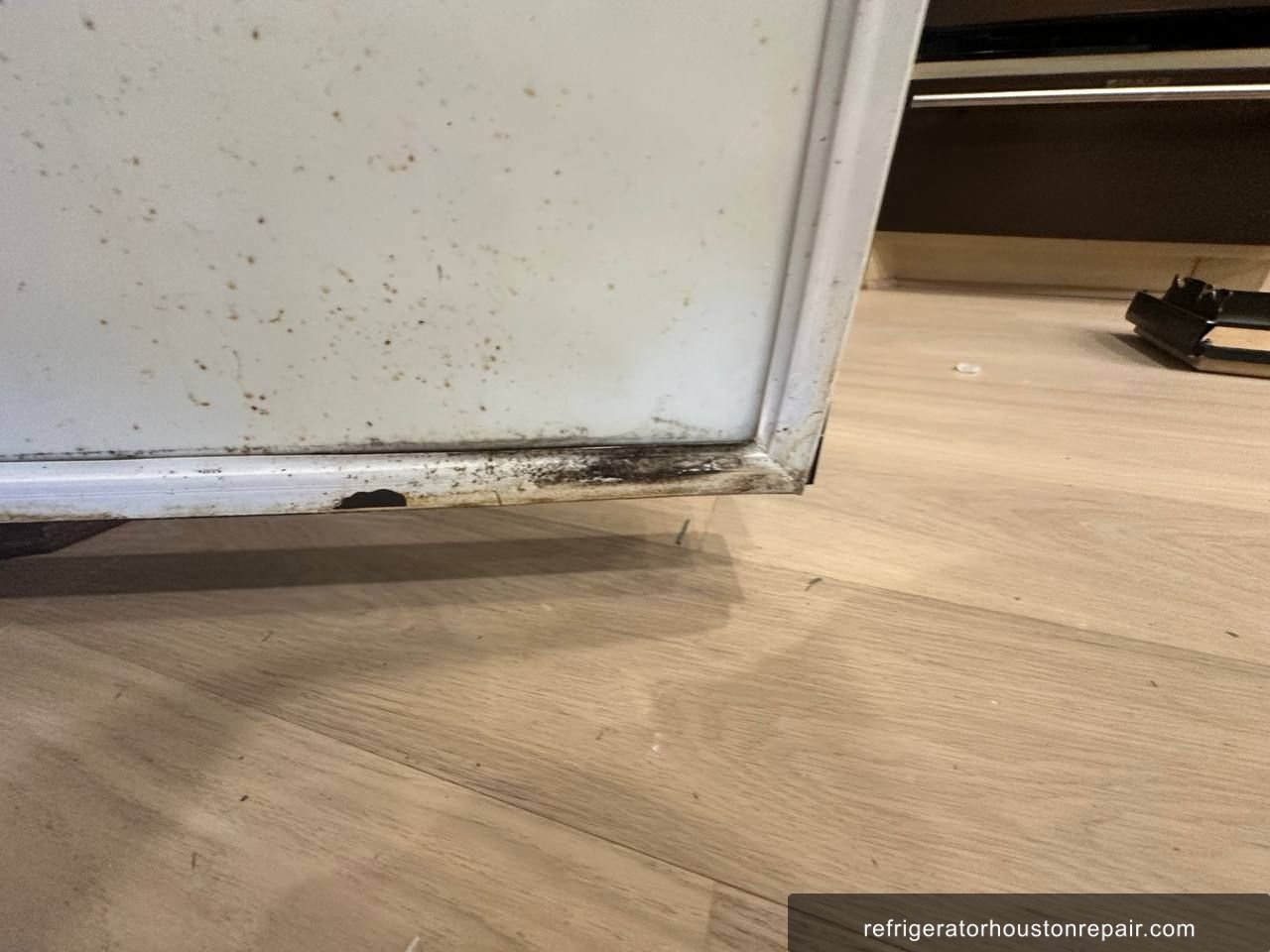

KitchenAid KSSO48QMB00 repair in Houston, TX — photo 5
