KitchenAid KSSC48QMS 02: No Cooling, Bad Main Board and Overcharged Refrigerant in Memorial, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Refrigerator completely stopped cooling — both fresh food and freezer sections warm
- •Compressor attempting to start then immediately shutting down on overload error
- •No temperature drop after several hours of operation following initial board swap
🔍 Diagnosis
When I arrived at the home in Memorial, both the fresh food and freezer compartments were sitting at ambient room temperature, around 78°F. The compressor was not running at all. I pulled the error codes from the KitchenAid KSSC48QMS 02 control panel and found a communication fault between the main control board and the inverter board. To confirm this, I connected an oscilloscope directly to the signal line running from the main board to the inverter board. The waveform was severely degraded, with no clean PWM signal reaching the inverter. This told me the main board was not sending a proper start command to the compressor inverter. The inverter board itself tested within spec using a clamp meter on the output terminals. I confirmed the main board was the root cause of the no-cooling condition. However, after I replaced the main board with the OEM unit the following day, the compressor attempted to start but immediately tripped on an overload fault. Suction pressure on the manifold gauges read abnormally high at idle, which pointed straight to an overcharged system. When I asked the homeowner about prior service, he confirmed a previous technician had accessed the sealed system and added refrigerant. That explained everything. The system had too much R-134a, creating excessive head pressure and preventing the compressor from starting cleanly.
🔧 The Repair
- ✓Step 1: Connected oscilloscope to the signal output line between the main control board and the inverter board on the KitchenAid KSSC48QMS 02. Confirmed degraded PWM waveform with no usable signal reaching the inverter.
- ✓Step 2: Tested inverter board output terminals with a clamp meter. Readings were within normal spec, confirming the inverter board was functional and the main board was the failed component.
- ✓Step 3: Ordered and sourced OEM KitchenAid main control board for the KSSC48QMS 02. Returned the following day for installation.
- ✓Step 4: Disconnected power to the unit and removed the rear access panel. Photographed all harness connections before disconnecting the old main board.

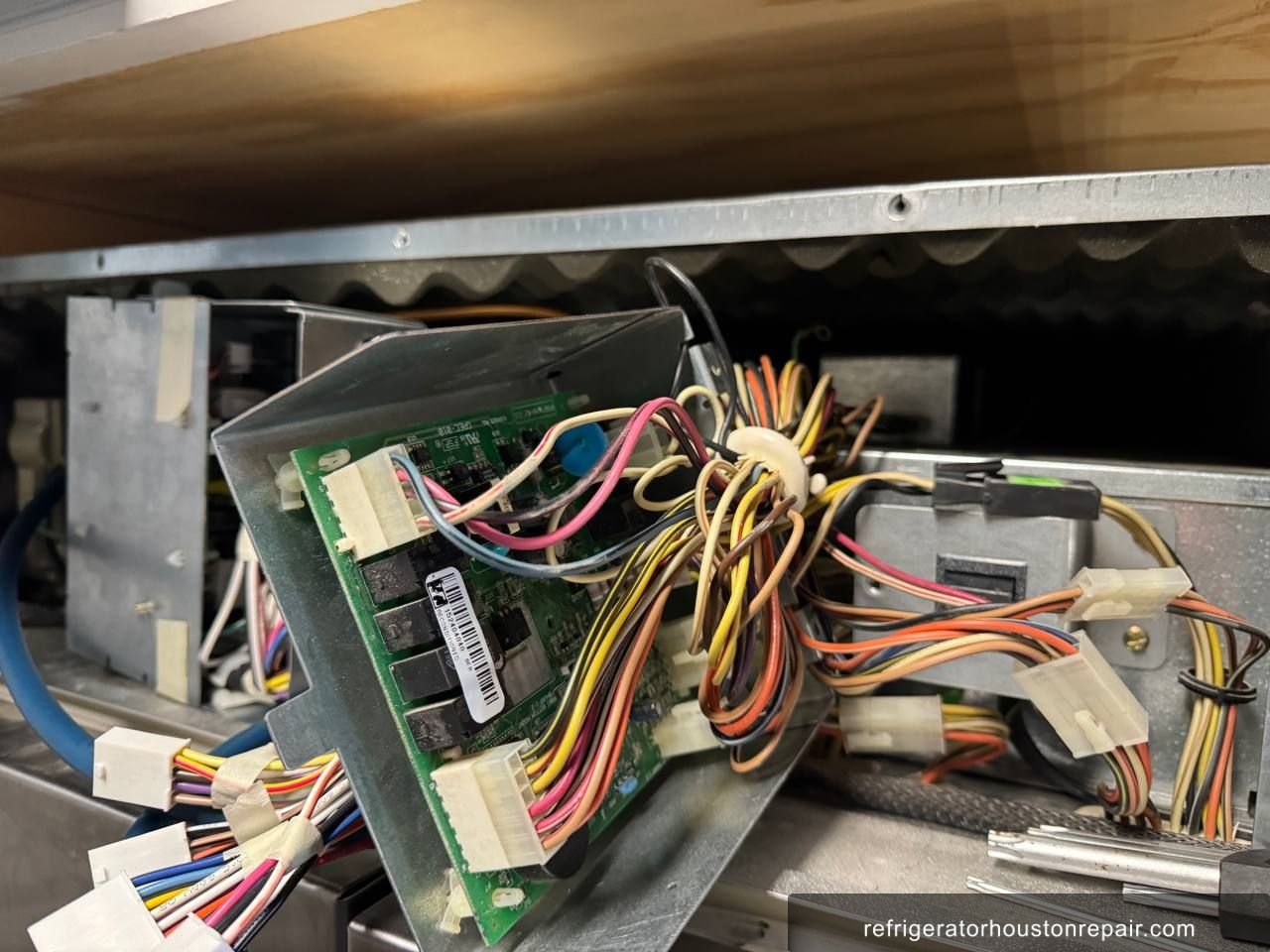

- ✓Step 5: Installed the replacement OEM main control board, reconnected all wire harnesses in correct sequence, and restored power. Compressor attempted to start but immediately faulted on overload. Attached manifold gauges and confirmed abnormally high suction-side pressure at rest, indicating refrigerant overcharge from prior service.
- ✓Step 6: Connected recovery machine (Fieldpiece MR45) and recovered the full charge of R-134a from the sealed system per EPA 608 protocol. Weighed out the recovered refrigerant and confirmed the system held significantly more than the factory spec charge weight.
- ✓Step 7: Pulled a deep vacuum on the sealed system using a micron gauge. Held vacuum below 300 microns for 30 minutes to confirm system integrity with no leaks.
- ✓Step 8: Recharged the sealed system with R-134a to the exact factory specification listed on the KSSC48QMS 02 data plate. Compressor started immediately with no overload fault. After a 2-hour runtime, fresh food section reached 37°F and freezer section reached 0°F, both within normal operating range.
✓ Result
The KitchenAid KSSC48QMS 02 was fully operational the same afternoon the refrigerant was corrected. Fresh food held at 37°F and the freezer settled at 0°F within two hours. Total repair cost came to $1,000, covering both the main board and the sealed system work. The homeowner's insurance company had estimated over $4,000 for the same repair. The customer told me he wished he had called us first. He saved more than $3,000 by getting a second opinion from a qualified technician in Memorial.
💡 Technician Notes
KitchenAid built-in column refrigerators like the KSSC48QMS 02 use an inverter-driven compressor that communicates over a dedicated signal line from the main board. If you see the compressor making brief start attempts and then going quiet, do not assume the compressor itself is dead. That behavior on this model almost always points to a board communication fault or a refrigerant charge issue first. Before any technician opens your sealed system on this unit, make sure they weigh in and weigh out the refrigerant. An overcharged system will mimic a failed compressor exactly. If a technician quotes you for a compressor on this model without first checking the signal waveform with an oscilloscope and verifying the system charge weight, ask for a second opinion. On the KitchenAid KSSC48QMS 02, the main board runs about $400 to $600 for the OEM part. A proper sealed system recharge with recovery adds another $200 to $350. Any quote well above that range deserves scrutiny.
Frequently Asked Questions
KitchenAid KSSC48QMS not cooling at all — what is wrong with it?
On the KitchenAid KSSC48QMS 02, a complete loss of cooling with no compressor activity usually means the main control board has stopped sending a proper signal to the inverter board. I confirmed this with an oscilloscope on this specific repair. A degraded PWM signal to the inverter will prevent the compressor from ever starting, even though the inverter board and compressor themselves are fine.
How much does it cost to repair a KitchenAid built-in refrigerator that is not cooling in Houston?
For a KitchenAid KSSC48QMS 02 with a main board failure and sealed system recharge, expect $800 to $1,200 total for parts and labor in the Houston area. If the compressor itself has failed, costs rise to $1,800 to $2,500. Any estimate over $4,000 for board and refrigerant work on this model deserves a second opinion. We completed this repair for $1,000 all-in.
KitchenAid refrigerator compressor tries to start and shuts off — is the compressor bad?
Not necessarily. On the KitchenAid KSSC48QMS 02, a compressor that attempts to start and immediately trips on overload is a strong sign the sealed system is overcharged, not that the compressor has failed. A previous technician had added refrigerant to this unit without recovering the old charge first. Once I evacuated and recharged the system to factory spec, the compressor started without issue.
Is it worth repairing a KitchenAid built-in refrigerator or should I replace it?
KitchenAid built-in column refrigerators like the KSSC48QMS cost $6,000 to $9,000 new. Unless the compressor and sealed system have both catastrophically failed at the same time, repair is almost always the right financial decision. Main board replacements and refrigerant recharges are straightforward repairs with years of useful life remaining. Replacement should be the last option, not the first quote.
Can a previous technician adding too much refrigerant damage my KitchenAid refrigerator compressor?
Yes, and it is more common than people realize. An overcharged sealed system forces the compressor to work against excessive head pressure on every start attempt. Over time, repeated overload trips stress the compressor windings and start components. On the KSSC48QMS 02, I caught the overcharge before permanent damage occurred. If left running in that state for weeks, the compressor would eventually fail from the strain.
Repair Summary
- Brand
- KitchenAid
- Model
- KSSC48QMS 02
- Repair Type
- Main Control Board Replacement and Sealed System Refrigerant Recharge
- Refrigerant
- R-134a
- Root Cause
- Faulty main board signal to inverter board, then overcharged sealed system from prior technician
- Parts Replaced
- ✓Main control board (OEM KitchenAid replacement for KSSC48QMS 02, sourced direct from manufacturer parts network)
- ✓R-134a refrigerant charge (full system recovery and factory-spec recharge)
- Location
- Memorial, TX 77024
- Status
- ✓ Completed
