KitchenAid KSSC48FTS02: Refrigerant Leak from Burned Evaporator in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Freezer stopped cooling after another company recharged R-134a twice within a short period
- •Fresh food compartment warming to unsafe temperatures despite repeated refrigerant recharges
- •Previous repair company abandoned the job after two failed recharge attempts and issued a refund
- •Refrigerator would cool briefly after a recharge then lose all cooling again within days
🔍 Diagnosis

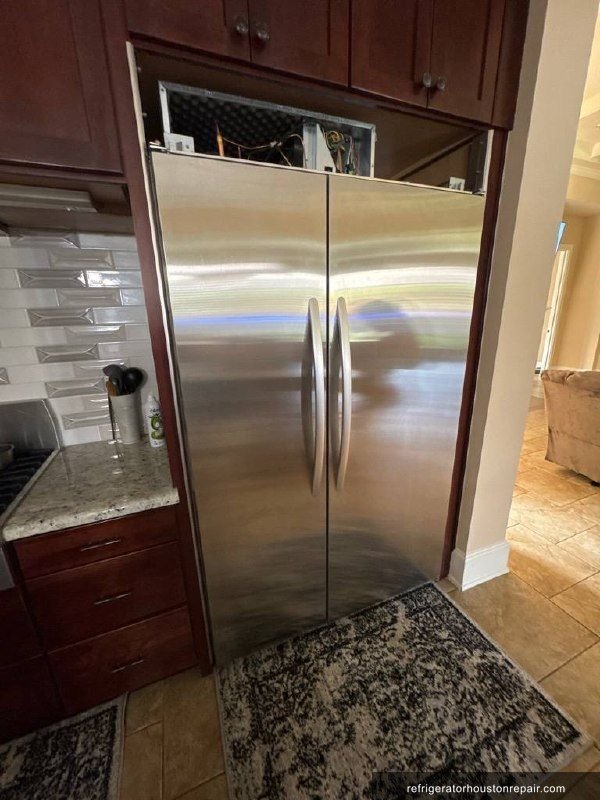

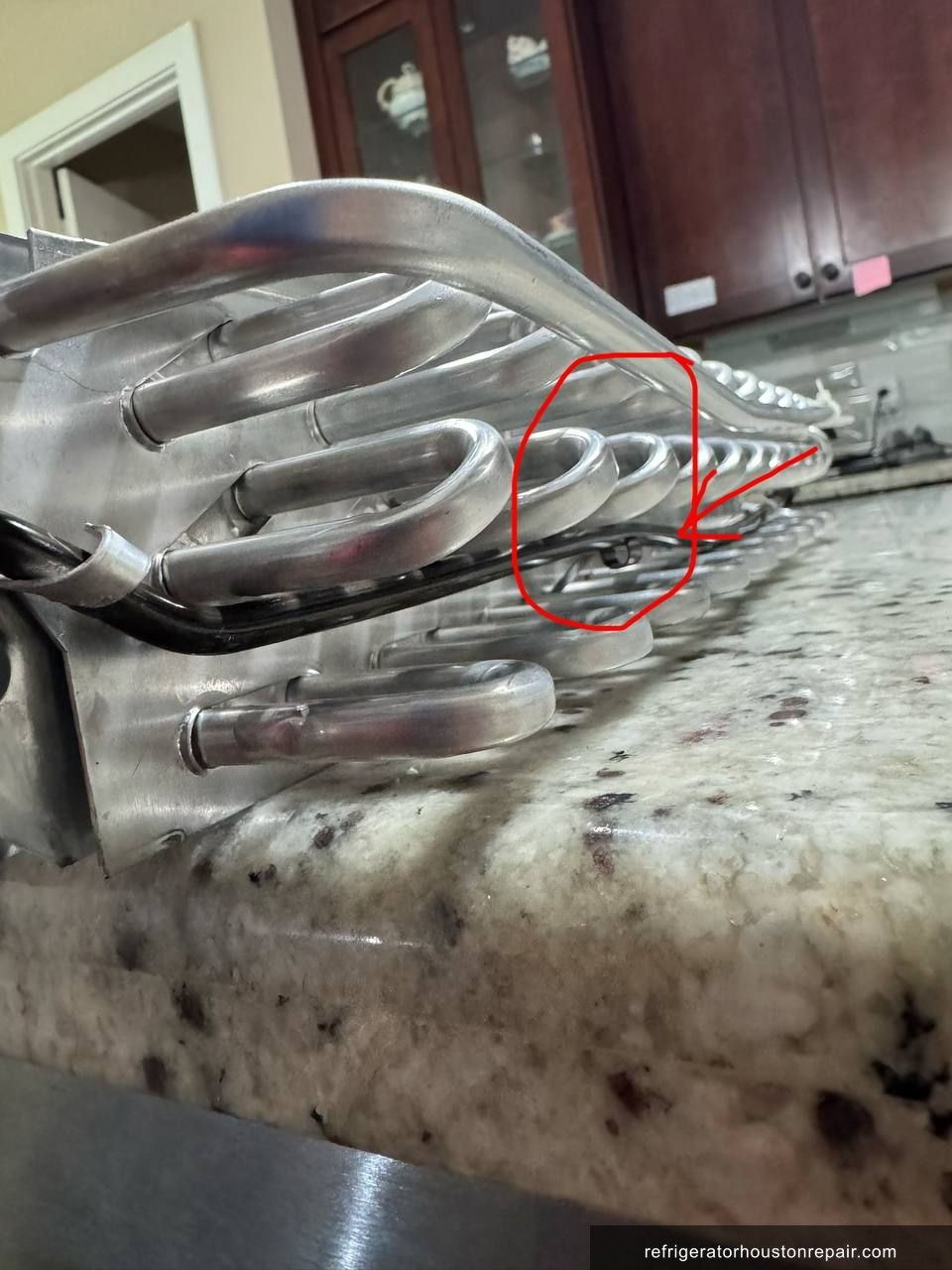

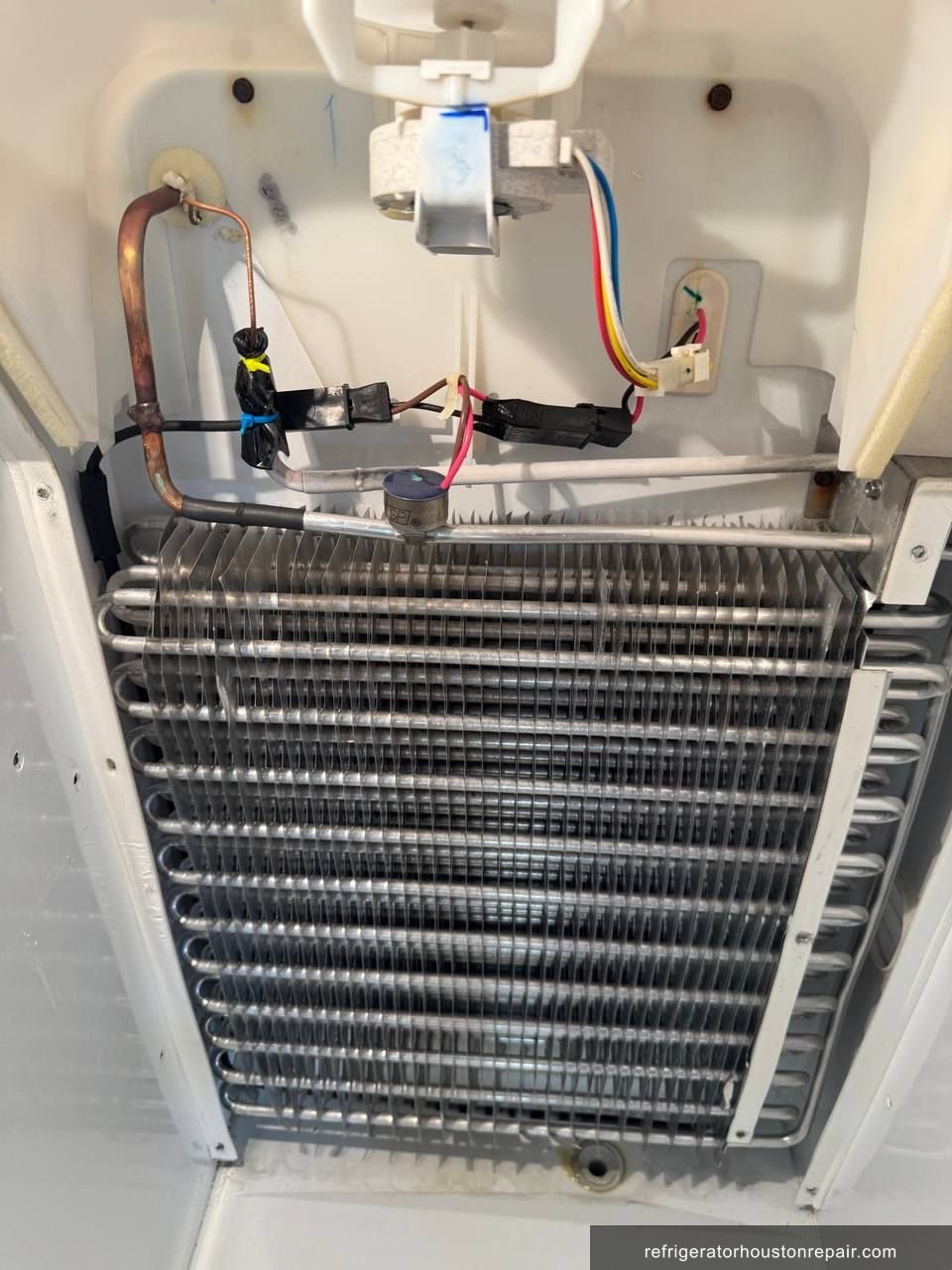

When I arrived, the KSSC48FTS02 was warm throughout. The customer explained the history: a different company had recharged R-134a twice, the refrigerator cooled briefly each time, then lost all refrigerant again. The other company gave up and refunded the customer, which told me immediately this was a leak, not a low-charge situation. I pulled out my electronic leak detector and within seconds it lit up at the freezer compartment, right at the evaporator section. I opened the evaporator cover and found the root cause right away. The defrost heater element had deformed over time, a known issue in this class of KitchenAid side-by-side units with sealed evaporator bays. The element had shifted position, made contact with the evaporator coil wall, and burned a small but definitive hole through the aluminum tubing. R-134a had escaped completely through that breach. I documented the burn mark and the deformed heater shape in photos. The repair scope was clear: replace the evaporator coil, install a brazed service valve for future refrigerant access, and replace the filter-drier. Per EPA 608 requirements, any time the sealed system is opened, the drier must be replaced and the system must be pressure-tested before charging.
🔧 The Repair

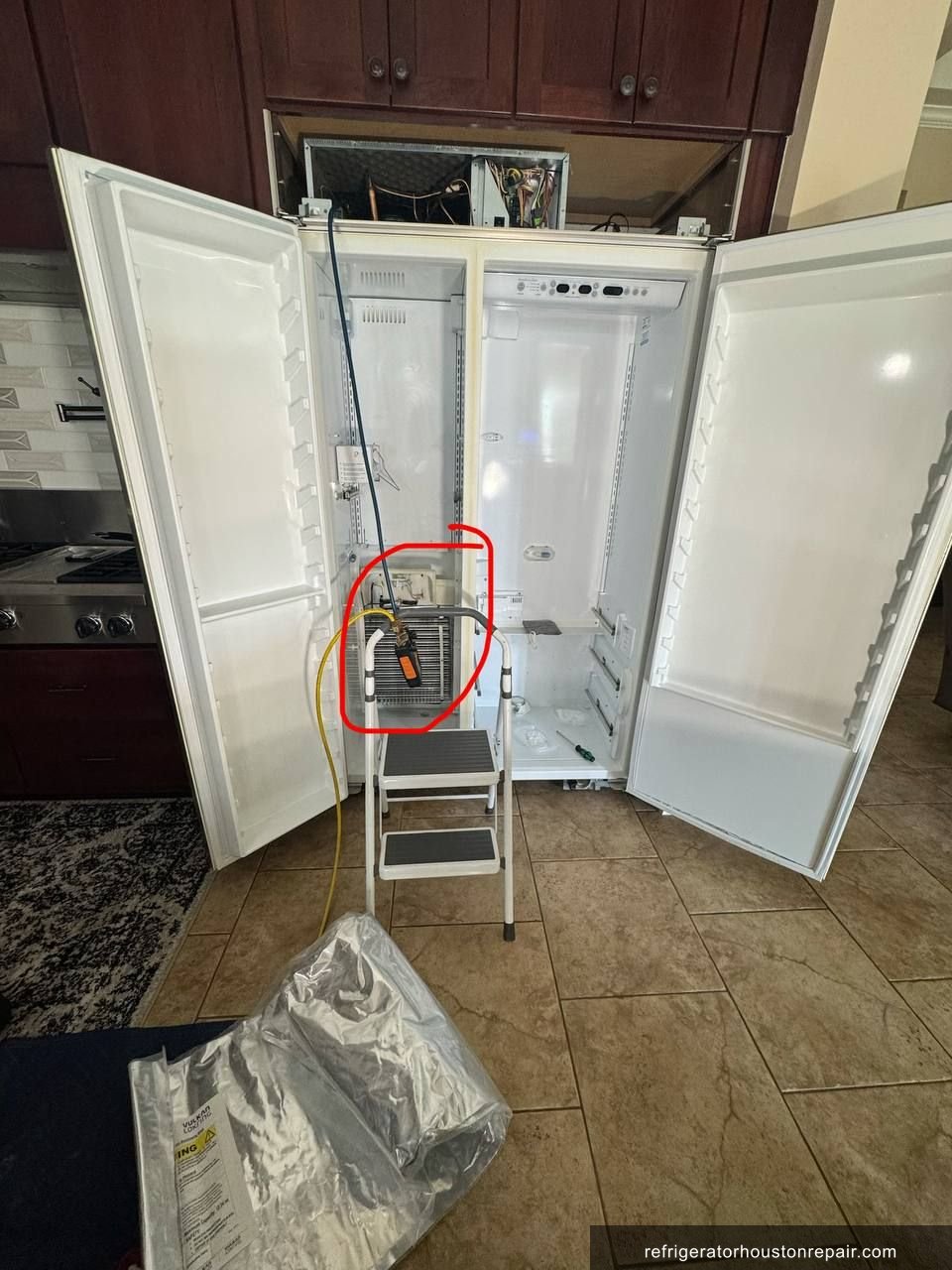

- ✓Step 1: Confirmed active refrigerant leak in the freezer evaporator bay using an electronic leak detector. Documented the deformed defrost heater element and burn hole in the evaporator coil wall with 10 photographs.
- ✓Step 2: Recovered remaining R-134a from the sealed system per EPA 608 protocol using a certified refrigerant recovery machine. System had minimal refrigerant remaining due to prior leakage history.
- ✓Step 3: Removed the freezer evaporator cover panel, disconnected the defrost heater assembly, and extracted the damaged evaporator coil from the KSSC48FTS02 freezer compartment.
- ✓Step 4: Ordered and received the replacement evaporator coil, a new filter-drier with UV-dye compatible ultraviolet fill, and a service valve for the suction line. Parts arrived within a few days.

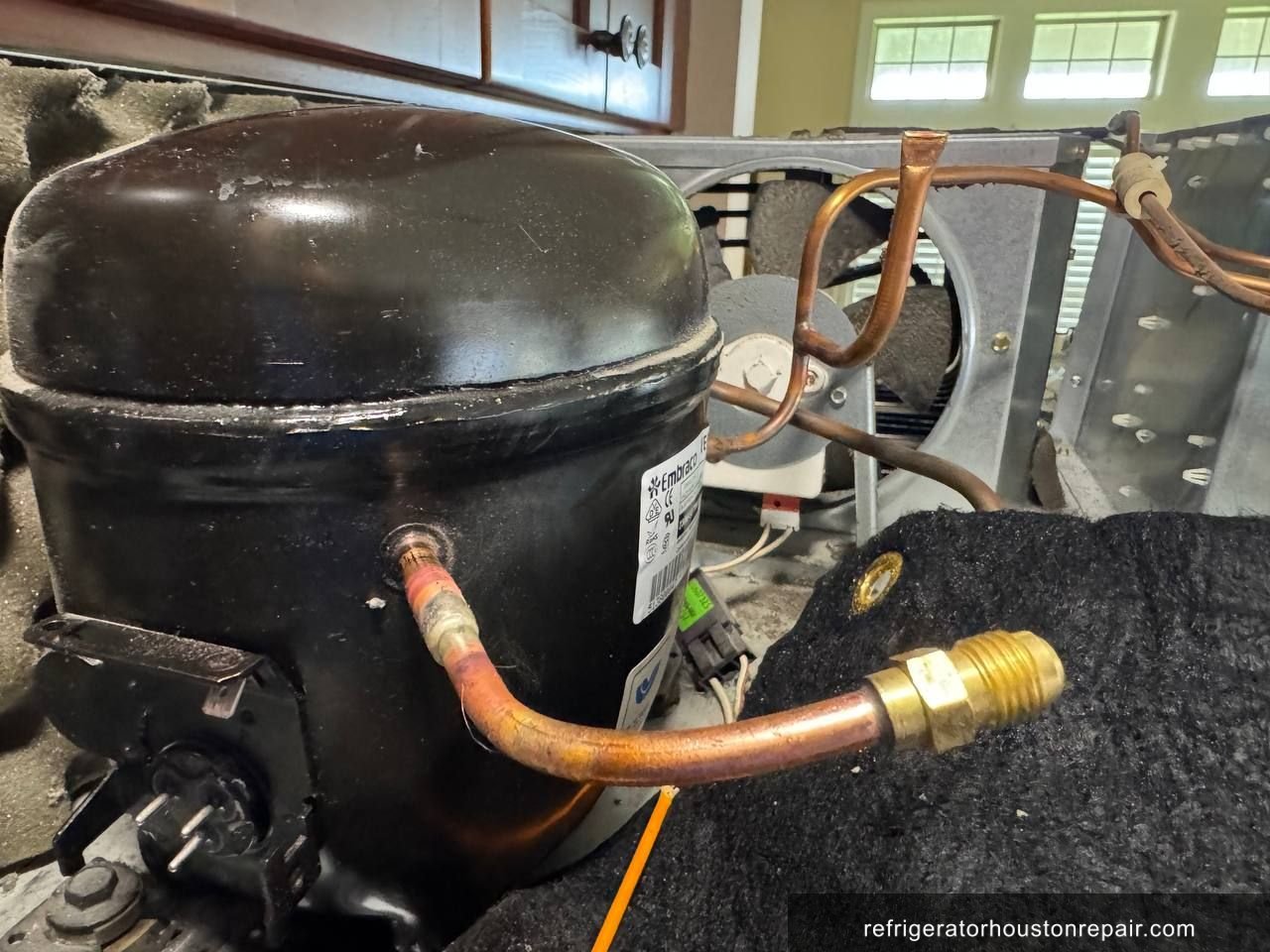

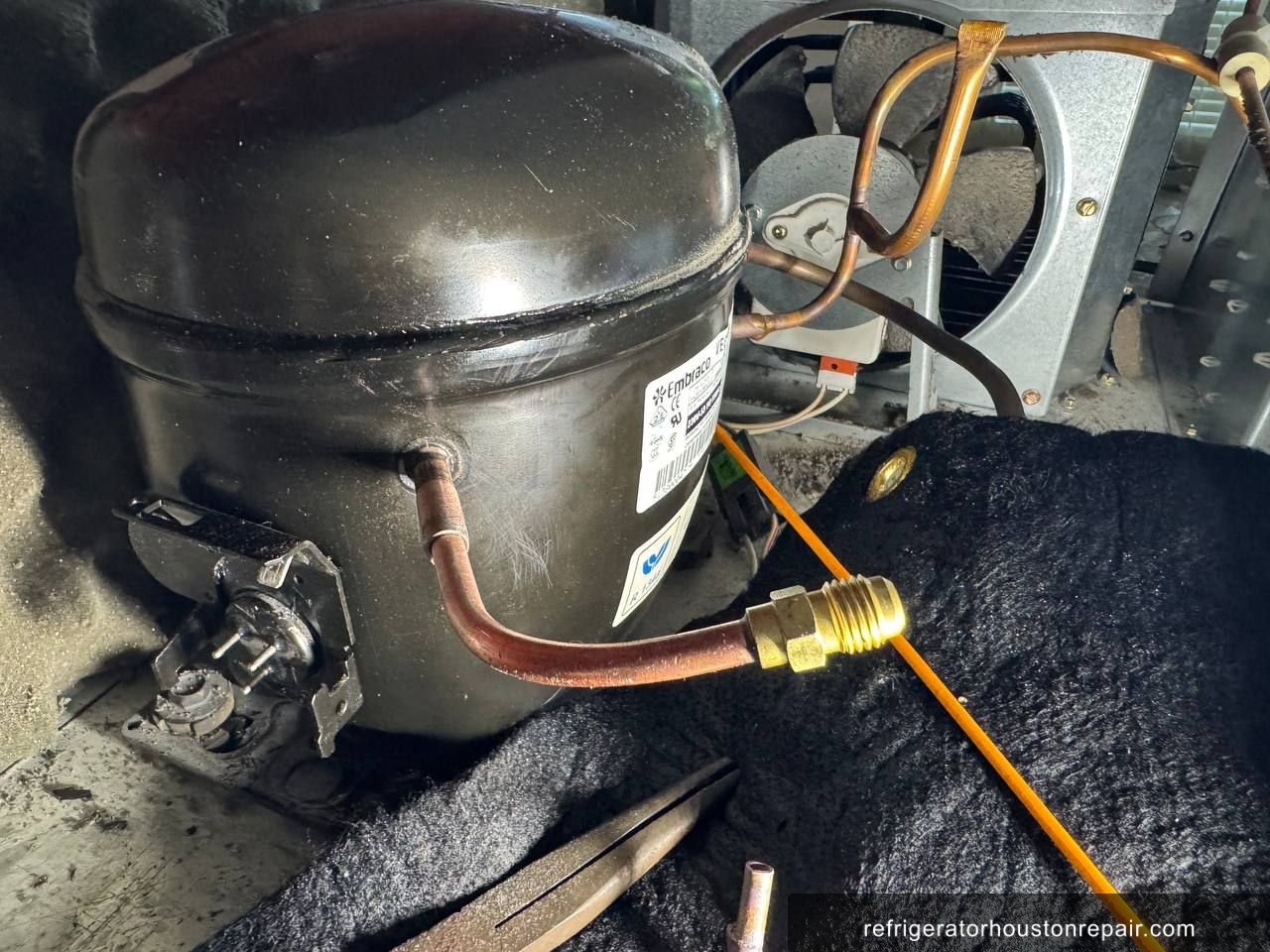

- ✓Step 5: Brazed the new service valve onto the suction line using nitrogen-purged brazing to prevent internal oxidation scale from forming inside the copper tubing.

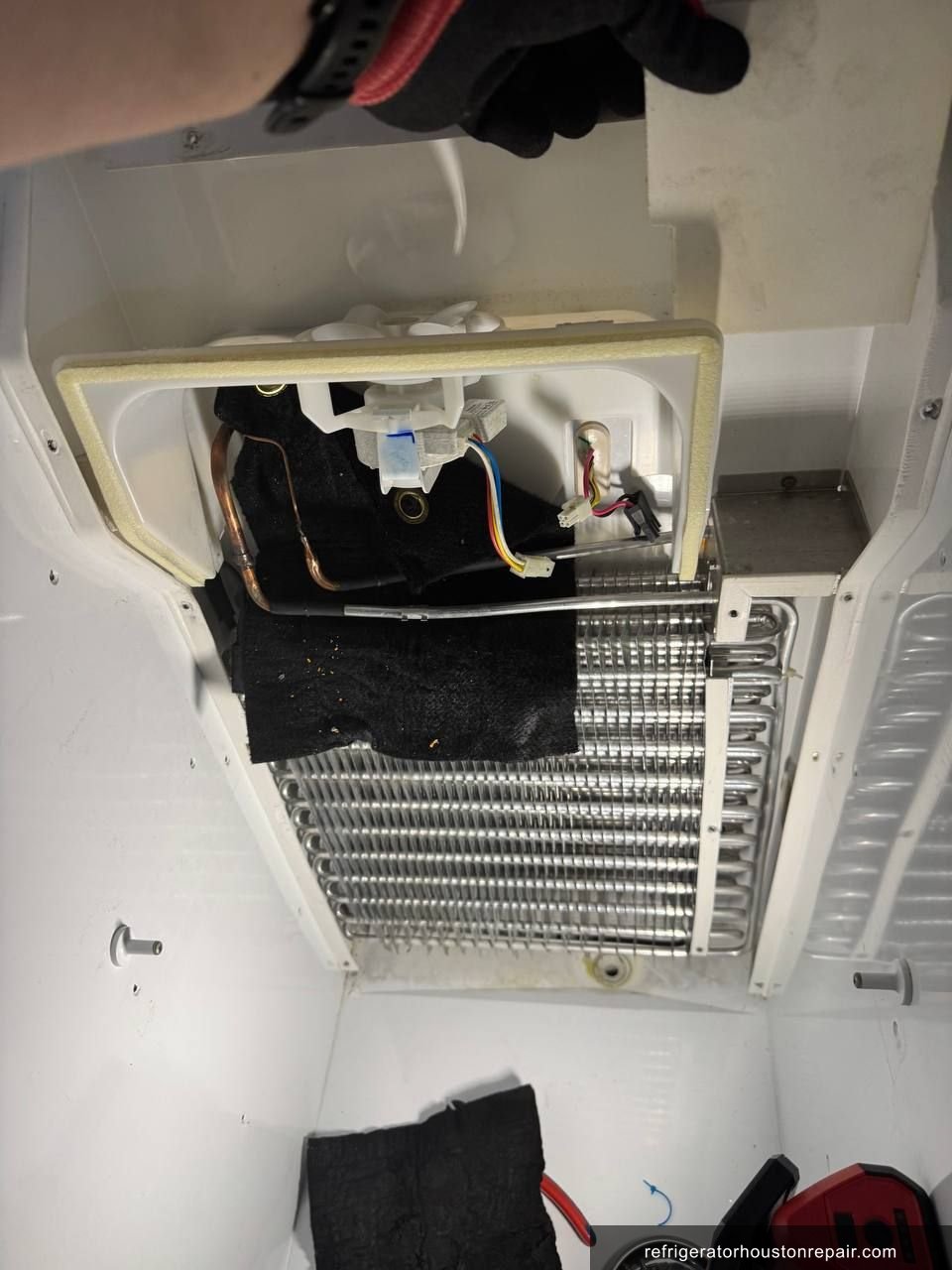

- ✓Step 6: Installed the new evaporator coil and replaced the defrost heater assembly with a correctly positioned unit to prevent recurrence of coil contact.

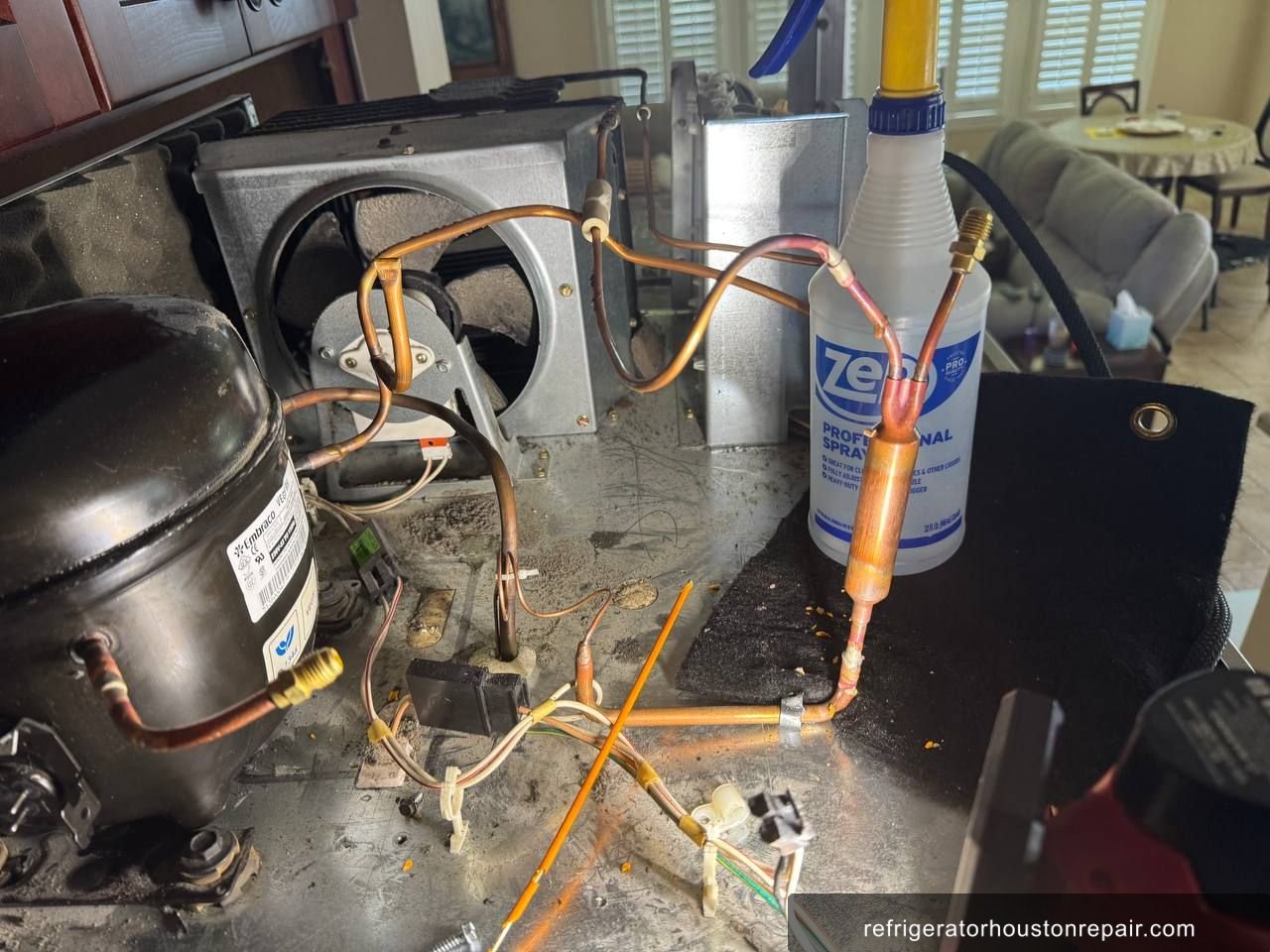

- ✓Step 7: Installed the new filter-drier with ultraviolet-compatible fill to enable future UV leak detection if needed. Pressure-tested the entire sealed system with nitrogen at over 100 psi and held the test for 30 minutes with no pressure drop confirmed.
- ✓Step 8: Evacuated the system to deep vacuum, then charged with R-134a through the new service valve to manufacturer specification. After a 2-hour runtime, freezer measured 2°F and fresh food compartment measured 37°F, both within the target range.
✓ Result
After the two-hour runtime, the KSSC48FTS02 was holding 2°F in the freezer and 37°F in the fresh food section. The customer in the 77494 area had been dealing with this problem for weeks, bounced between failed recharge attempts from another company. Once the actual leak source was addressed and the sealed system was properly rebuilt, the refrigerator held temperature without issue. The customer was relieved to finally have a real diagnosis and a lasting fix. She said she was recommending me to her neighbors on her street.
💡 Technician Notes
KitchenAid KSSC48FTS02 owners should know that this model uses a sealed evaporator bay with a defrost heater element mounted close to the coil wall. Over time, the heater bracket or element itself shifts position. The first warning sign is a subtle one: you may notice the freezer cycling more frequently or running longer than usual before temperatures start to climb. That is the refrigerant level dropping slowly through a small leak. Do not let another company recharge your system more than once without first running a leak detection test. Two failed recharges in a row means refrigerant is escaping, not disappearing. Recharging without finding the leak is wasting money and refrigerant. If your KitchenAid side-by-side has had R-134a added twice in under a year, call for a sealed system diagnostic immediately. A UV dye inspection or electronic leak test takes under 30 minutes and gives a definitive answer before any refrigerant is touched.
Frequently Asked Questions
Why did my KitchenAid KSSC48FTS02 stop cooling again right after being recharged with Freon?
If the KitchenAid KSSC48FTS02 cools briefly after a recharge and then warms up again, refrigerant is escaping through a leak. In this model, the defrost heater element shifts over time and burns a hole in the evaporator coil. Recharging without finding and fixing that hole will never hold. You need a leak detection test before any refrigerant is added.
How much does it cost to replace the evaporator coil on a KitchenAid KSSC48FTS02 in Houston?
A full evaporator coil replacement on the KSSC48FTS02 in the Houston area, including the filter-drier, service valve brazing, nitrogen pressure test, and R-134a recharge, typically runs between $600 and $950 depending on parts availability and system condition. It takes roughly half a day of labor once parts are on hand.
What happens if I ignore a Freon leak in my KitchenAid side-by-side refrigerator and keep recharging it?
Every recharge without a repair forces R-134a into the atmosphere, which is an EPA violation if done commercially. More practically, running a KitchenAid sealed system low on refrigerant stresses the compressor. If the compressor overheats or seizes from running without adequate refrigerant pressure, repair costs increase significantly and the unit may become uneconomical to fix.
Is it worth repairing a KitchenAid KSSC48FTS02 evaporator leak or should I buy a new refrigerator?
The KSSC48FTS02 is a 48-inch built-in unit that sells for well over $5,000 new. If the compressor is healthy and the leak source is isolated to the evaporator coil, a sealed system repair is almost always the right financial decision. I have repaired units in this class that went on to run reliably for many more years after a proper evaporator replacement.
What is the purpose of the service valve that was brazed onto my KitchenAid refrigerator during this repair?
The KSSC48FTS02 does not come from the factory with a built-in service port on the suction line. Brazing a service valve onto the system gives future technicians a dedicated access point to measure system pressures or add refrigerant without cutting into the sealed tubing again. It also makes any future leak verification faster and cleaner.
Repair Summary
- Brand
- KitchenAid
- Model
- KSSC48FTS02
- Repair Type
- Sealed System Overhaul / Evaporator Coil Replacement / Service Valve Installation
- Refrigerant
- R-134a
- Root Cause
- Deformed defrost heater element burned a hole in the evaporator coil
- Parts Replaced
- ✓Evaporator coil assembly for KitchenAid KSSC48FTS02 freezer section (OEM-spec replacement)
- ✓Filter-drier with ultraviolet-compatible desiccant fill
- ✓Suction line service valve (brazed fitting for R-134a access)
- ✓Defrost heater element (replaced to eliminate root cause of coil contact)
- Location
- Houston, TX 77494
- Status
- ✓ Completed
