KitchenAid KRFF707ESS01 No Cooling — Defrost System Failure
📞 Call (346) 512-3688🔧 Performed by Alex Z.
The Problem
- •Refrigerator compartment not cooling while freezer remains cold
- •Food spoiling faster than normal despite freezer functioning properly
- •Unusual warmth felt inside the fresh food section
- •No audible airflow or fan noise coming from the refrigerator compartment
🔍 Diagnosis
Upon arrival at the customer's home in The Woodlands, TX 77382, the technician began a comprehensive diagnostic inspection of the KitchenAid KRFF707ESS01 French door refrigerator (Serial: KB1300002), rated at 115VAC/60Hz and 7.10A. The customer reported that the refrigerator side had completely lost its ability to cool, while the freezer appeared to be functioning normally. The technician started by removing the rear interior panel of the fresh food compartment to access the evaporator assembly. A significant accumulation of frost — dense enough to fully obstruct airflow — was found covering both the evaporator coil and its protective cover. This confirmed that the defrost system had failed to cycle properly. Using a multimeter, the technician tested the defrost heater, defrost thermostat, and defrost sensor for continuity. The defrost sensor and thermistor returned open-circuit readings, indicating complete component failure. The evaporator fan motor was also tested and found to be non-functional, likely seized due to ice contact and moisture ingress. Manifold gauge readings on the R-134a sealed system (5.50 oz charge) were within normal parameters, ruling out any refrigerant leak or compressor issue. The control board was inspected and found to be operating in adaptive defrost mode, which had not been triggering sufficient defrost cycles — a known contributing factor to recurring ice accumulation on this model. All findings pointed exclusively to a defrost system failure rather than a sealed system problem.
🔧 The Repair
- ✓Disconnected the refrigerator from power and allowed safe access to internal components before beginning any disassembly.

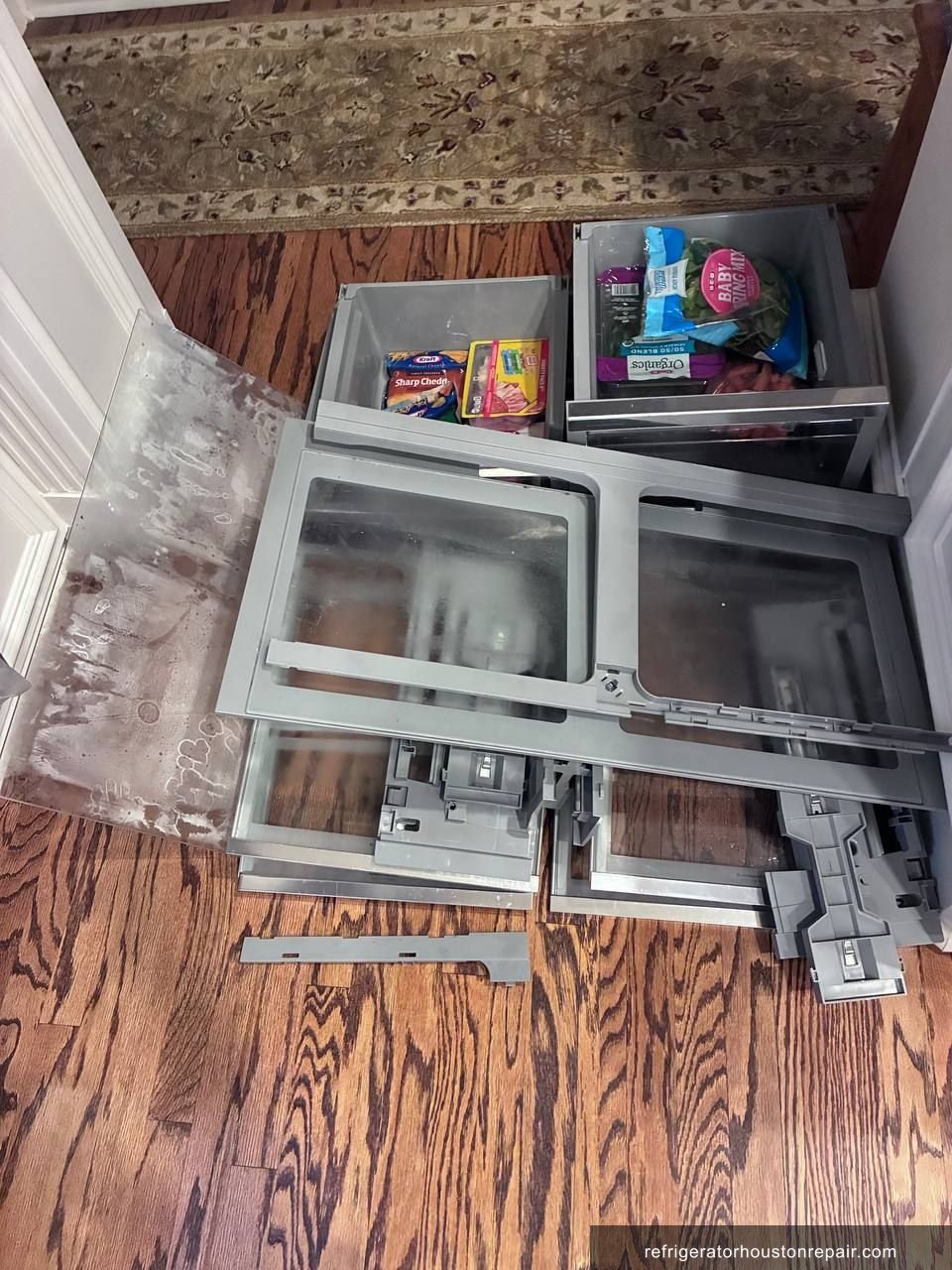

- ✓Removed all food items and shelving from the fresh food compartment to expose the rear interior evaporator cover panel.

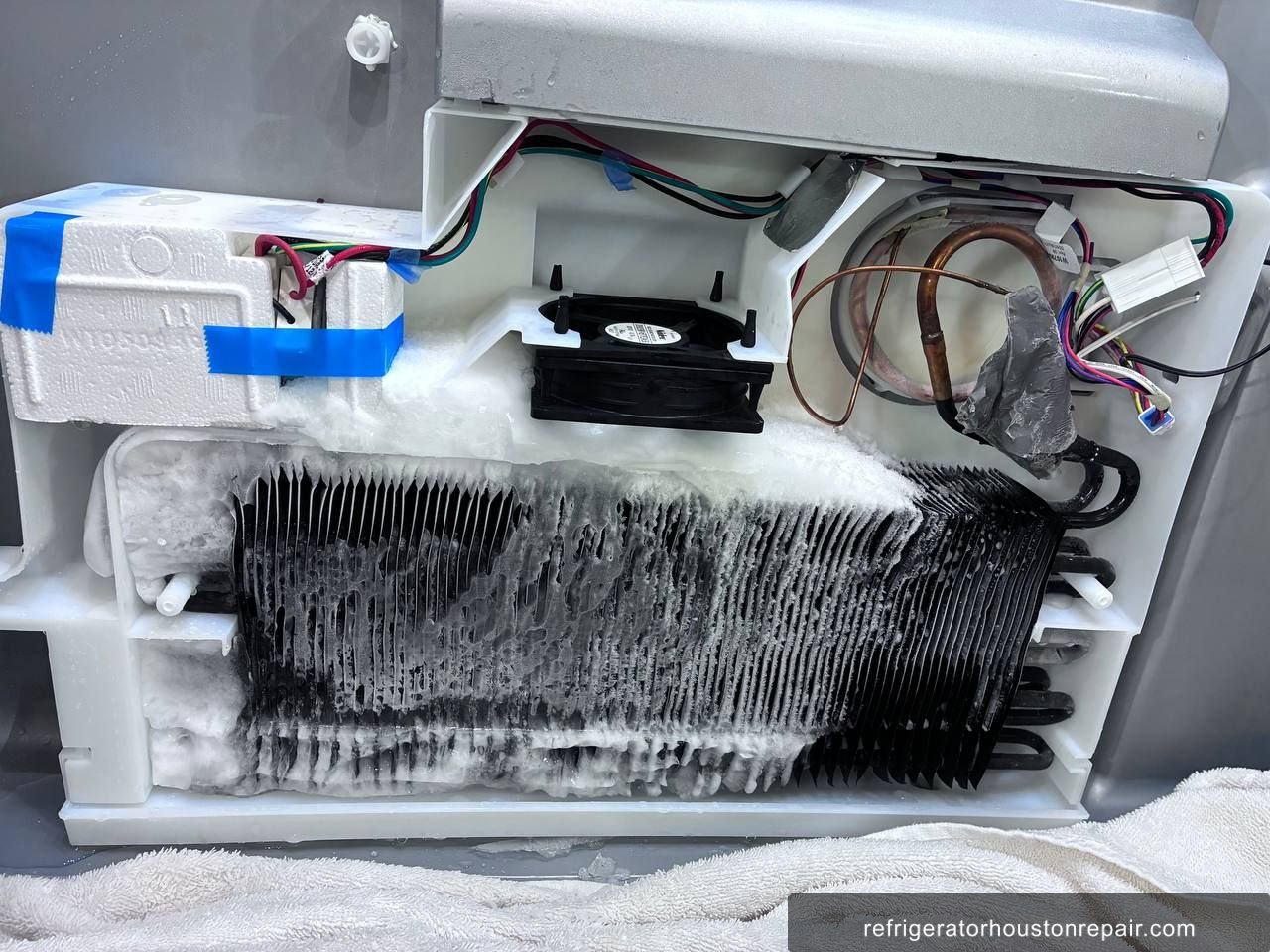

- ✓Detached the evaporator cover panel screws and carefully removed the panel, revealing heavy frost and ice accumulation on the evaporator coil and surrounding components.
- ✓Used a calibrated multimeter to test the defrost heater, defrost thermostat, defrost sensor, and thermistor — confirming open-circuit failure on the sensor and thermistor.
- ✓Tested the evaporator fan motor electrically and mechanically; confirmed it was seized and non-operational due to ice contact damage.

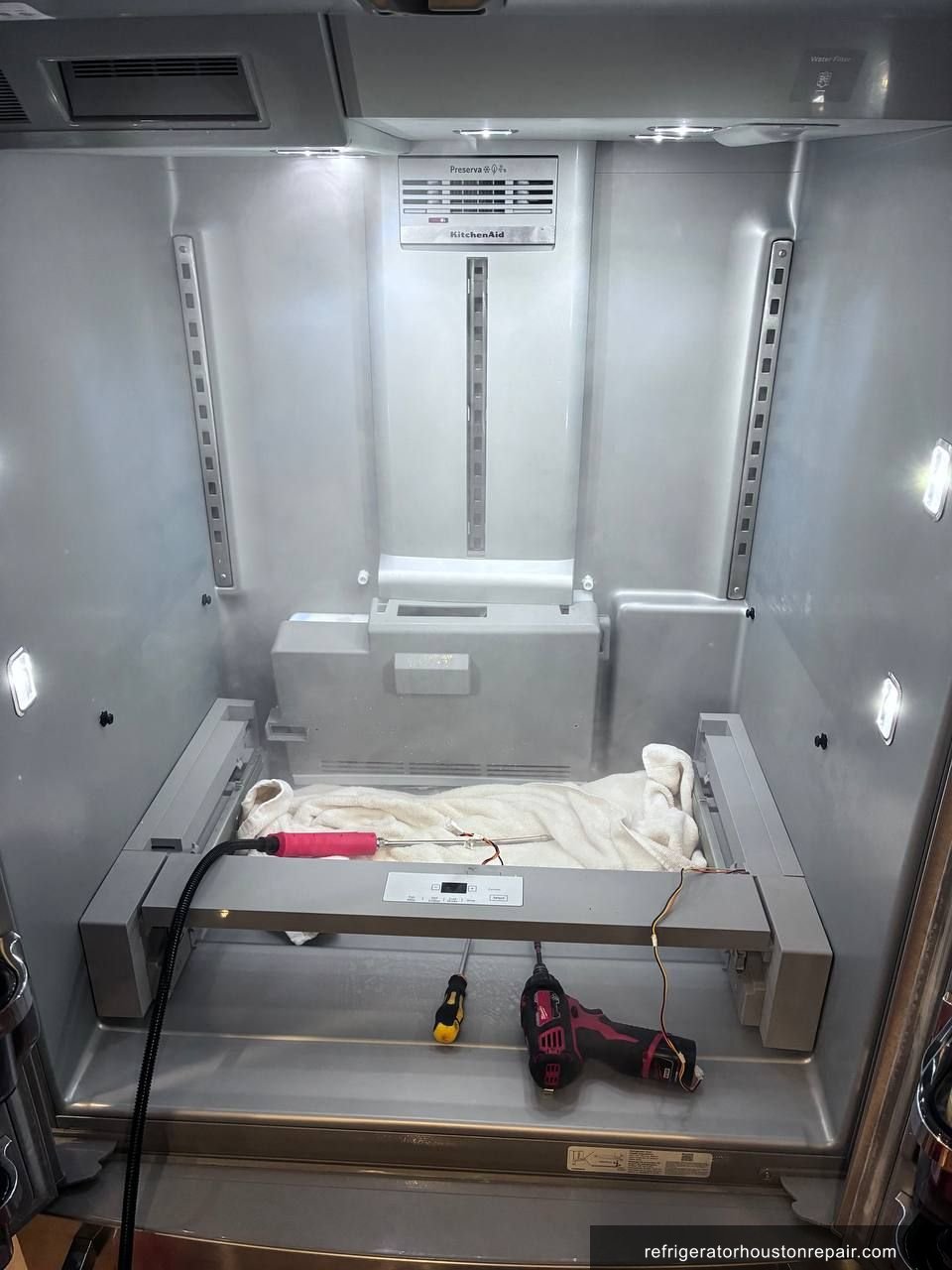

- ✓Performed a manual defrost of the evaporator coil using a heat gun and absorbent towels, carefully removing all ice buildup without damaging the R-134a refrigerant lines (system charged with 5.50 oz R-134a per label specification).
- ✓Replaced the evaporator fan motor assembly with a compatible OEM-specification unit rated for the KRFF707ESS01 model, ensuring proper blade orientation and housing alignment.
- ✓Installed a new defrost sensor and thermistor — both confirmed compatible with the KRFF707ESS01 — and verified correct connector engagement and wire routing.
- ✓Tested the newly installed defrost components with the multimeter to confirm proper resistance readings within manufacturer specifications before reassembly.
- ✓Accessed the main control board and reprogrammed the defrost mode from adaptive defrost to a fixed 8-hour defrost cycle, ensuring the system initiates a full defrost regularly throughout the day, preventing future ice accumulation.
- ✓Reassembled the evaporator cover panel securely, restored all interior shelving, and reconnected the refrigerator to the 115VAC/60Hz power supply.
- ✓Monitored the unit for 30 minutes post-repair to confirm the evaporator fan was circulating air, temperatures in the fresh food compartment were dropping appropriately, and the defrost cycle programming was saved correctly in the control board.
✓ Result
Following the repair, the KitchenAid KRFF707ESS01 fresh food compartment reached a stable operating temperature of 37°F within approximately 3.5 hours of power restoration. The freezer maintained its target temperature throughout the entire process. The evaporator fan operated quietly and continuously, confirming proper airflow restoration. The customer was relieved to have the unit working again and expressed satisfaction with the technician's thorough explanation of the failure. A 90-day labor warranty was provided on all replaced components and the control board reprogramming.
💡 Technician Notes
KitchenAid French door refrigerators like the KRFF707ESS01 are designed with adaptive defrost logic that can underperform in high-humidity climates like The Woodlands, TX. If you notice the fresh food section warming up while the freezer stays cold, do not delay service — this is a classic sign of evaporator icing. Avoid propping the doors open unnecessarily, as humid air accelerates frost buildup. Periodically check that the door gaskets seal properly by performing the dollar-bill test. Listen for the evaporator fan running after the compressor starts — silence from that area is a warning sign. Reprogramming the control board to a fixed defrost schedule, as done here, is a proactive step that significantly reduces the risk of recurring ice blockage on this model family.
Frequently Asked Questions
Why is my KitchenAid KRFF707ESS01 refrigerator not cooling but the freezer is fine?
When a KitchenAid KRFF707ESS01 freezer works but the fresh food section does not cool, the most common cause is a failed defrost system. Ice builds up on the refrigerator evaporator coil, blocking airflow from the evaporator fan. A failed defrost sensor, thermistor, or heater is typically responsible. A technician can diagnose and repair this without replacing the entire unit.
How much does it cost to repair the defrost system on a KitchenAid French door refrigerator?
Defrost system repairs on a KitchenAid KRFF707ESS01 typically involve replacing the evaporator fan motor, defrost sensor, and thermistor, plus a manual defrost and control board reprogramming. Costs vary based on parts and labor, but this type of repair is generally far more economical than replacing a high-end KitchenAid French door unit. Expect the repair to take 1.5 to 3 hours on-site.
What are early warning signs of evaporator icing on a KitchenAid refrigerator?
Early signs include the fresh food compartment gradually warming while the freezer remains cold, reduced airflow from interior vents, longer-than-usual cooling times after opening the door, and unusual silence where you'd normally hear the evaporator fan running. On the KitchenAid KRFF707ESS01, these symptoms often appear weeks before complete cooling failure, giving homeowners a window to seek service early.
Is it worth repairing a KitchenAid KRFF707ESS01 with a defrost system failure, or should I replace it?
A defrost system failure on the KitchenAid KRFF707ESS01 is absolutely worth repairing. The sealed refrigerant system and compressor on this model are typically unaffected, meaning the unit has significant remaining service life. Replacing sensors, a fan motor, and reprogramming the control board is a targeted, cost-effective fix. KitchenAid French door refrigerators are premium appliances; repair is the smart choice when the compressor and sealed system are intact.
What does reprogramming the KitchenAid control board from adaptive to 8-hour defrost do?
KitchenAid's adaptive defrost mode calculates defrost cycles based on door-opening frequency, which can result in insufficient defrost intervals — especially in humid climates. Reprogramming the KRFF707ESS01 control board to a fixed 8-hour defrost cycle forces the unit to defrost on a consistent schedule, preventing ice from accumulating on the evaporator coil and ensuring the evaporator fan can always circulate air properly through the fresh food compartment.
Repair Summary
- Brand
- KitchenAid
- Model
- KRFF707ESS01
- Repair Type
- Defrost System Repair
- Refrigerant
- R-134a
- Root Cause
- Failed defrost system caused evaporator coil ice blockage
- Parts Replaced
- ✓Evaporator fan motor assembly — OEM-compatible unit for KitchenAid KRFF707ESS01
- ✓Defrost sensor — replacement thermistor-type sensor compatible with KRFF707ESS01 fresh food evaporator circuit
- ✓Defrost thermistor — dual safety thermistor matched to original specifications for the KRFF707ESS01 defrost system
- Location
- The Woodlands, TX 77382
- Status
- ✓ Completed
